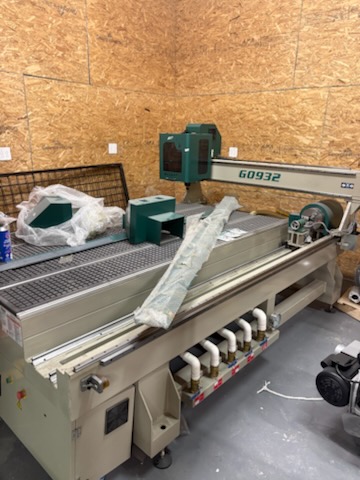

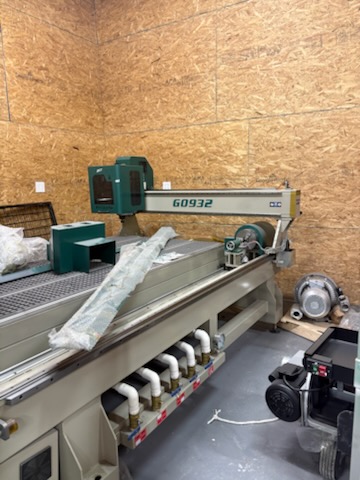

4′ x 8′ Grizzly G0932 CNC Router, 2025 – 4 HP HSD Spindle, 4th Axis Rotary, Vacuum Table

This Grizzly G0932 CNC router is a 4′ x 8′ CNC routing system designed for sheet processing, sign making, woodworking, plastics, and rotary axis machining. The machine features 4 HP HSD air-cooled spindle, 4-zone vacuum table, and rotary 4th axis with 3-jaw chuck.

Table Size: 49″ X 99″
Cutting Area: 51-3/16″ X 98-7/16″ X 7-7/8″
X-Axis Travel: 51-3/16″
Y-Axis Travel: 98-7/16″
Z-Axis Travel: 7-7/8″
Max Rotary Axis Diameter: 7-7/8″
Max Distance Spindle To Table: 7-7/8″
Cutting Accuracy: +/-0.002″
Spindle Motor: 4 HP
Spindle Speed: 6,000 – 18,000 RPM
Spindle Type: HSD Air-Cooled
Collet Type: ER25
Control: RichAuto DSP B18
Dimensions: 93-1/2″ W X 123″ D X 63″ H
Footprint: 106-1/2″ X 76″
Weight: 2,646 Lbs.

Equipped With:

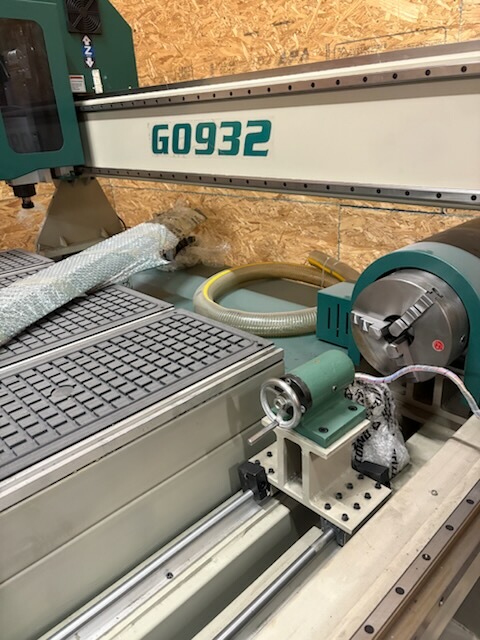

4th Axis Rotary
3-Jaw Chuck
Adjustable Tailstock Live Center
Phenolic T-Track Vacuum Table

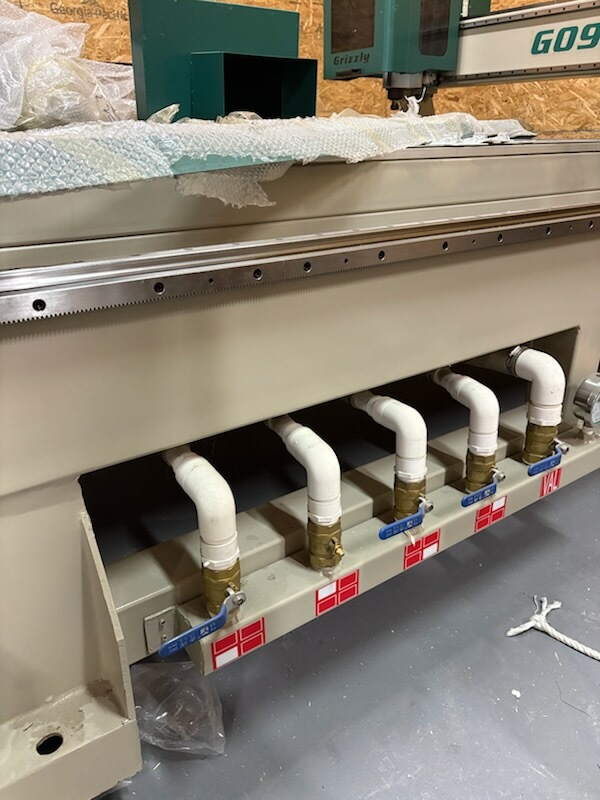

Four Independently Controlled Vacuum Zones
Z-Axis Tool Setter
Automatic Oiler System
Spindle Dust Shield
ER25 Collets

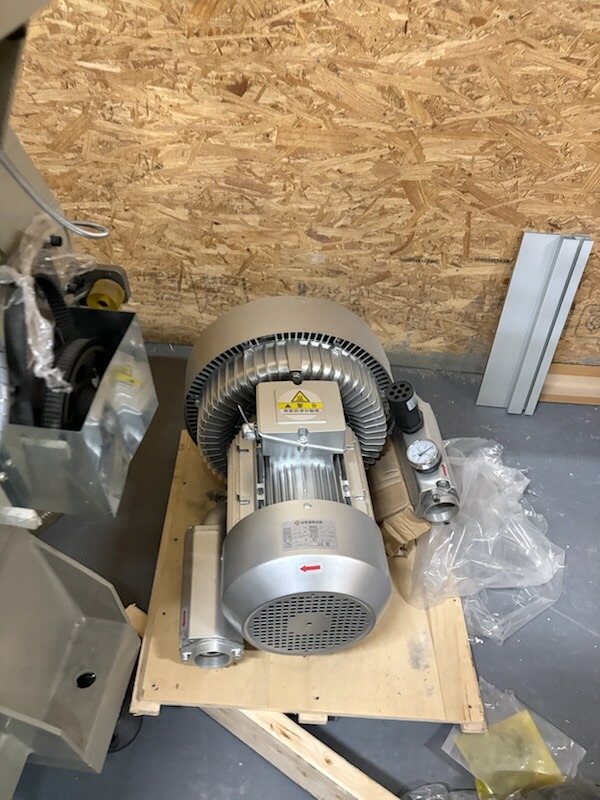

10 HP Vacuum Pump
