Haas GR-510 CNC Gantry Router, 2013 – 4′ x 10′ Table, Coolant System, Automatic Tool Changer

$69,900.00

Haas GR-510 Gantry Router, 2013 – 4′ x 10′ Table, Coolant System, Automatic Tool Changer
Haas GR-510 CNC Gantry Router, 2013 - 4' x 10' Table, Coolant System, Automatic Tool Changer - Image 2
Haas GR-510 CNC Gantry Router, 2013 - 4' x 10' Table, Coolant System, Automatic Tool Changer - Image 3
Haas GR-510 CNC Gantry Router, 2013 - 4' x 10' Table, Coolant System, Automatic Tool Changer - Image 4
Haas GR-510 CNC Gantry Router, 2013 - 4' x 10' Table, Coolant System, Automatic Tool Changer - Image 5
Haas GR-510 CNC Gantry Router, 2013 - 4' x 10' Table, Coolant System, Automatic Tool Changer - Image 6
Haas GR-510 CNC Gantry Router, 2013 - 4' x 10' Table, Coolant System, Automatic Tool Changer - Image 7
Haas GR-510 CNC Gantry Router, 2013 - 4' x 10' Table, Coolant System, Automatic Tool Changer - Image 8

Request a Quote to Instantly See Pricing

Call Now

Machine Type: Routers
Make: Haas
Model: GR-510
Year: 2013
Machine Location: Upon Request
Stock #: 318995

Table Size: 4′ x 10′
Number Of Axes: 3
X Axis Travel: 121″
Y Axis Travel: 61″
Z Axis Travel: 11″
Spindle Motor: 15 HP
Spindle Taper: 40 Taper
Spindle Drive: Belt Drive
Tool Changer Type: Carousel
Maximum Table Load: 6,000 Lbs. Evenly Distributed
Distance Between Columns: 62″
Maximum Cutting Feed Rate: 800 IPM
Y Axis Rapid Traverse: 2,100 IPM
Z Axis Rapid Traverse: 1,100 IPM
Air Requirements: 4 SCFM At 100 PSI

Equipped With:
– Haas Classic CNC Control

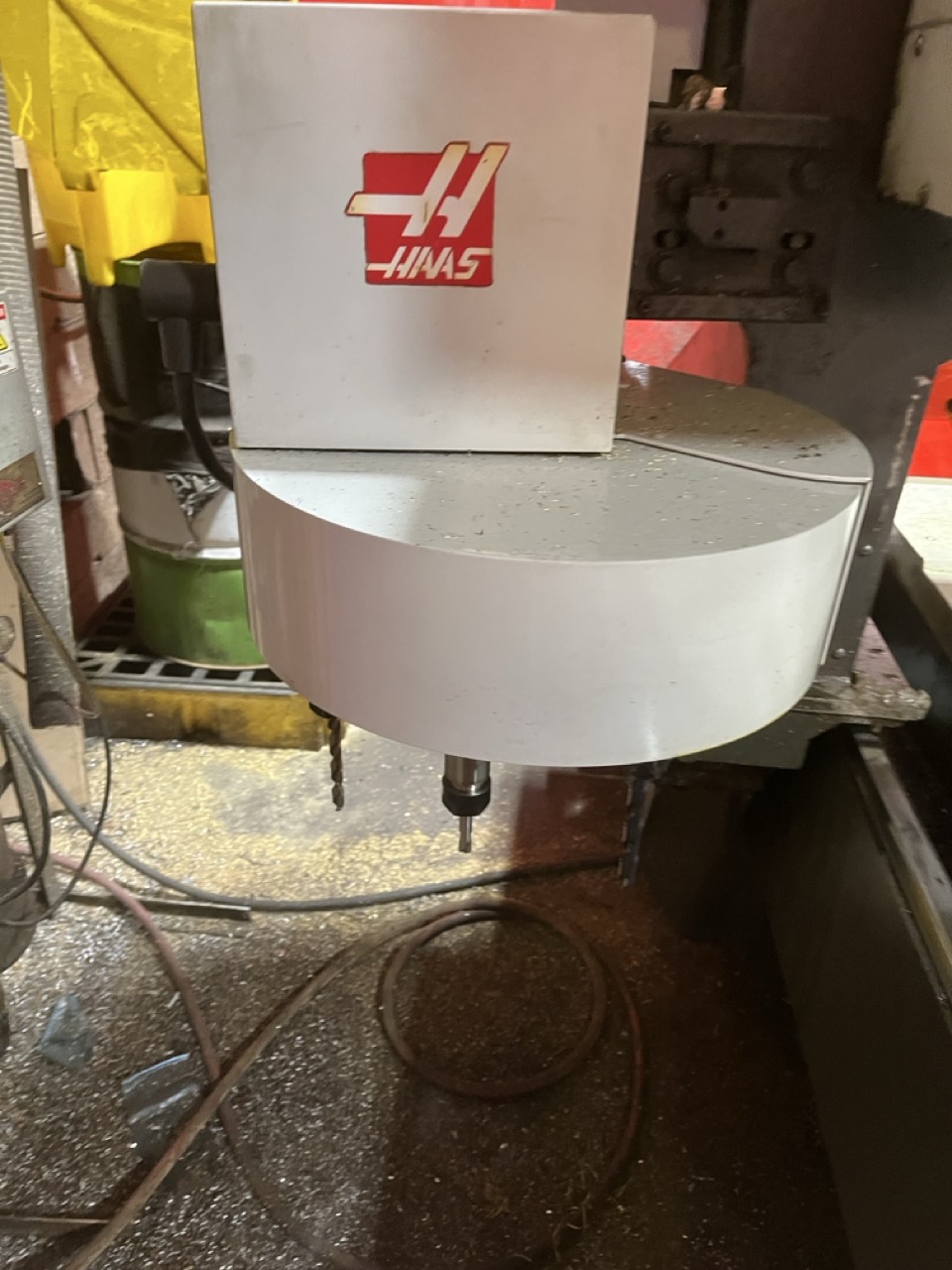

– Carousel Automatic Tool Changer

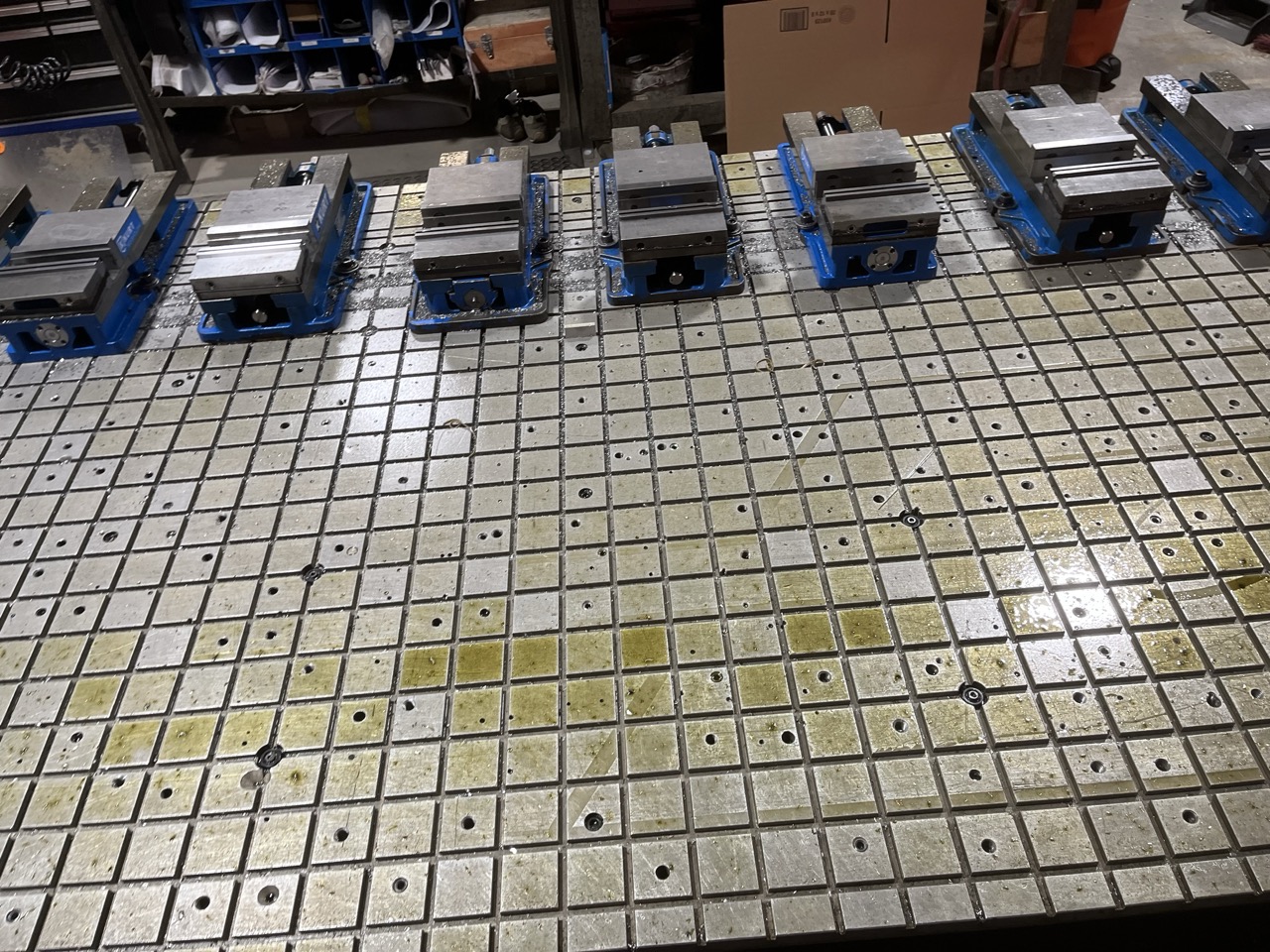

– Gridded Fixture Table
– Coolant System

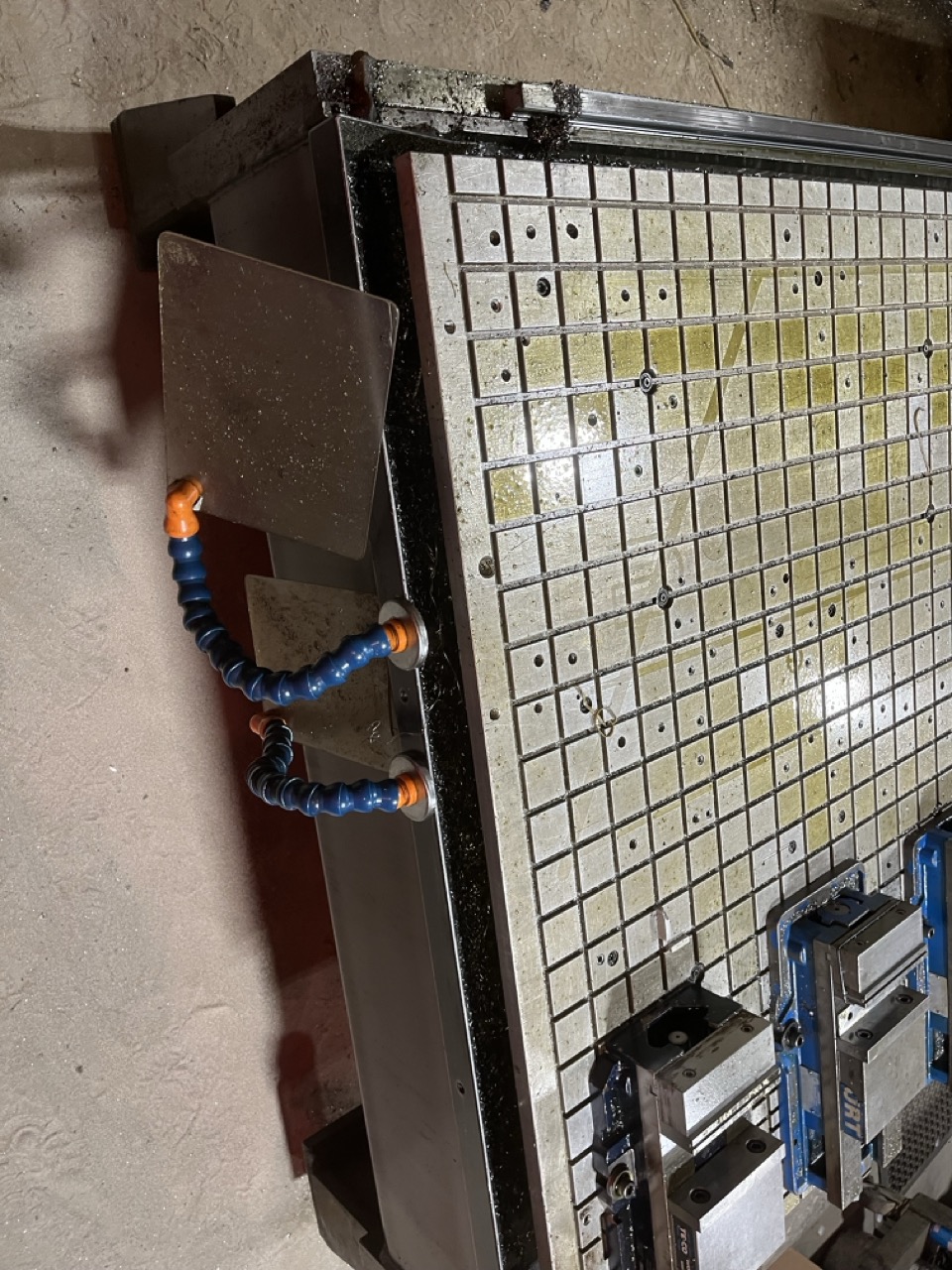

– Adjustable Coolant Nozzles
– Traveling Chip And Coolant Guard

All specifications are assumed to be correct but must be confirmed by the purchasing entity.



Need parts or tooling for this machine? Browse the latest inventory at MROExchange.com.
