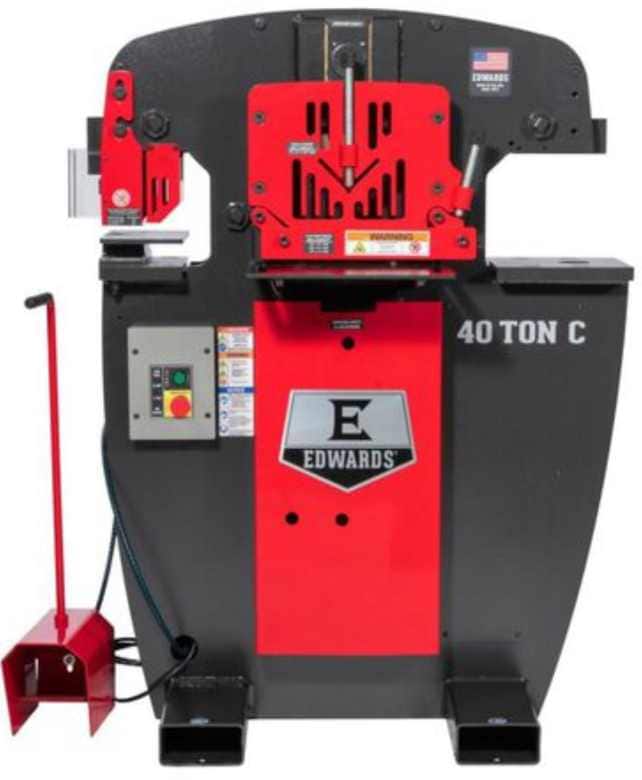

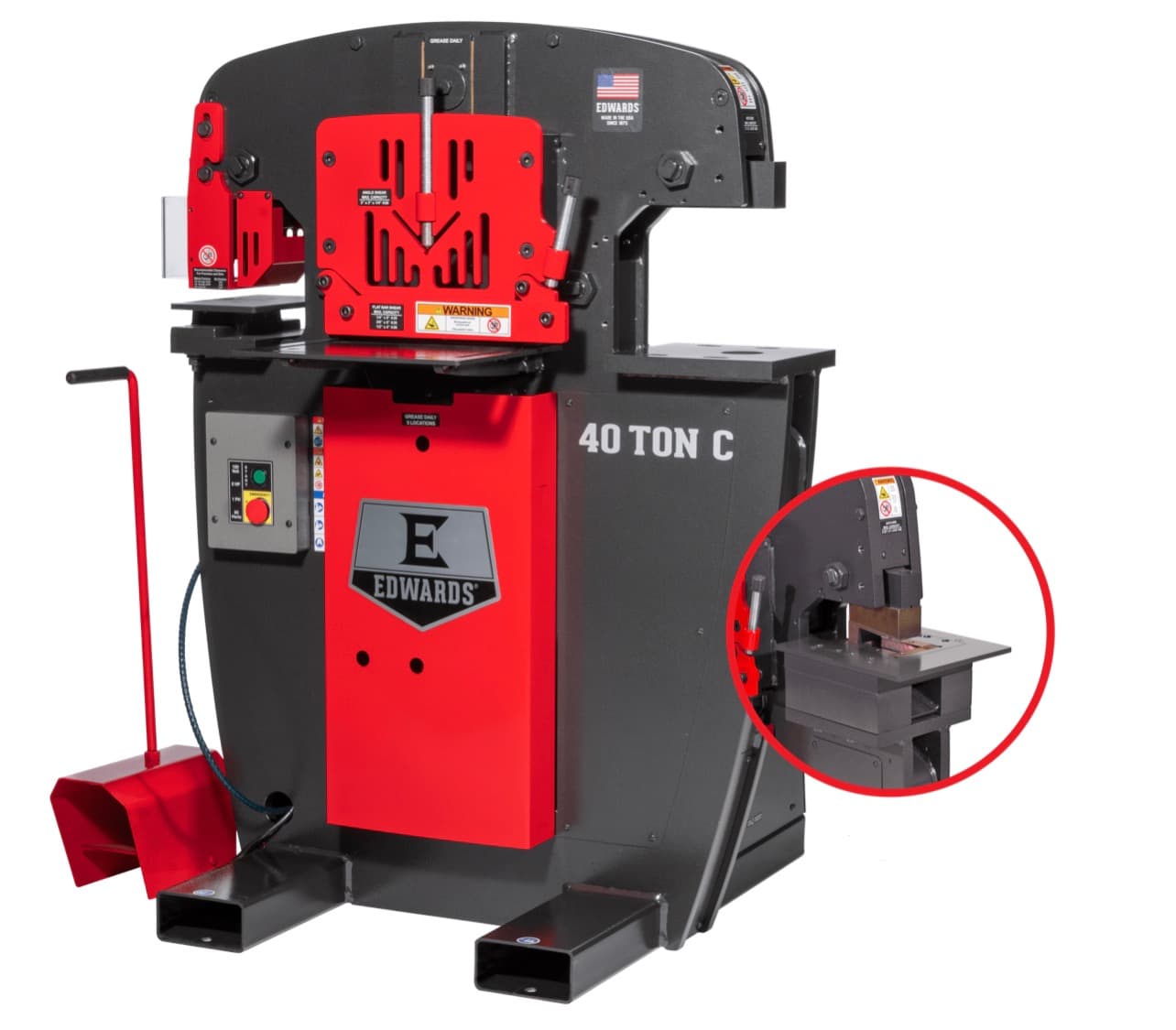

40 Ton C New Edwards Ironworker, 2023 – Coper Notcher

$9,900.00

Request a Quote to Instantly See Pricing

Call Now

Machine Type: Ironworkers
Make: Edwards
Model: 40 Ton
Year: 2023
Capacity: 40 Ton
Machine Location: Minnesota
Stock #: 296576

Specifications (subject to buyer verification):

Tonnage: 40
Max Capactiy: 1″ Dia. in 1/2 mild steel
Stroke: 1-5/8″
Throat Depth: 7″
Open Workstation Throat Depth: 10-1/2″
Open Station Work Height: 34-1/2″
Punch Work height: 36-1/2″
Reservoir: 7 Gal
Valve Pressure: 2750 PSI
Hydraulic Pump: 5 GPM
Coper Notcher Max Capacity: 2″ x 3″ x 5/16″

Standard Motor: 2 HP 1PH 115 V

Four Available Workstations
Punch Assembly Designed for Optional Tooling
Dedicated Coper Notcher Station
Electric Stroke Control
ANSI B11.5-1988R(02) Compliant
ETL Certified Controls

***1 Year Warranty through Edwards***

Approx Dims –
Height: 54-1/2″
Width: 36-3/4″
Depth: 36-1/8″
Shipping Weight: 1720 LBS

All specifications are assumed to be correct but must be confirmed by the purchasing entity.
