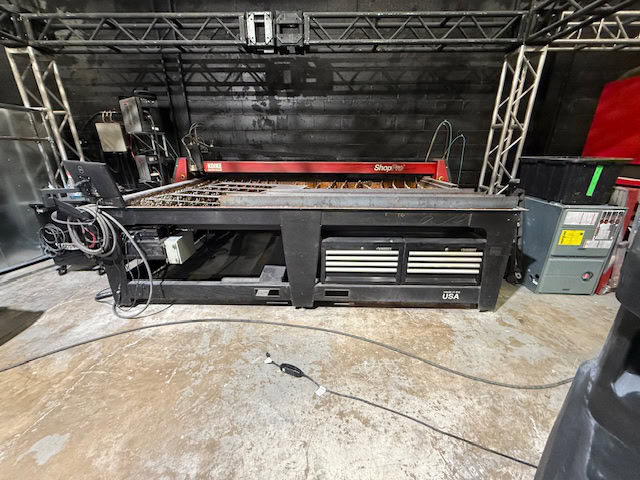

5′ x 10 ‘ Koike ShopPro SP510 Plasma, 2021 – Hypertherm Powermax 105, 105 Amps

Name: 5' x 10 ' Koike ShopPro SP510 Plasma, 2021 - Hypertherm Powermax 105, 105 Amps
SKU: 43739876494

$28,686.25

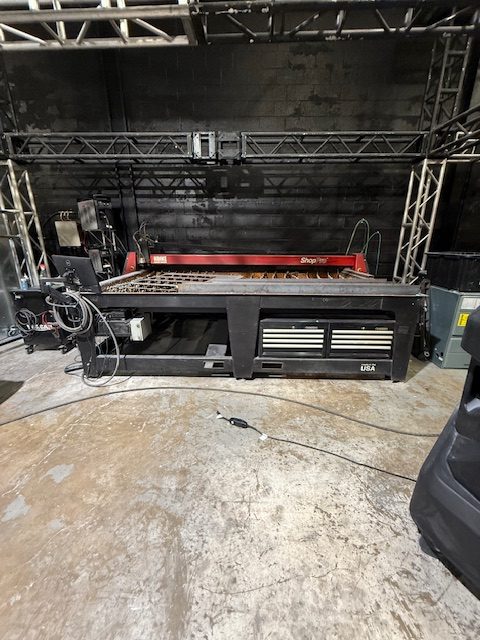

5' x 10 ' Koike ShopPro SP510 Plasma, 2021 - Hypertherm Powermax 105, 105 Amps - Image 2

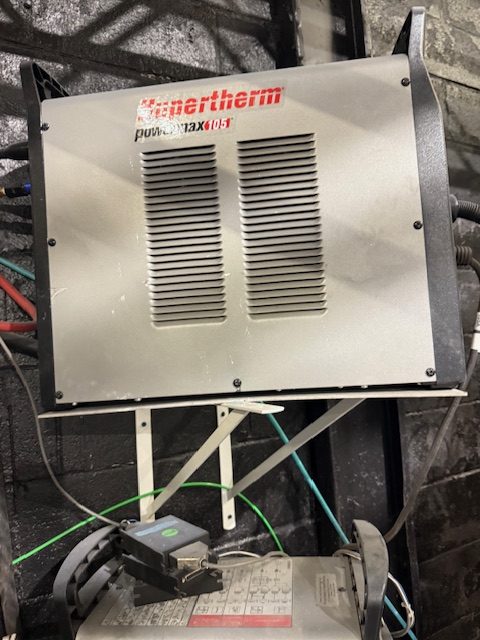

5' x 10 ' Koike ShopPro SP510 Plasma, 2021 - Hypertherm Powermax 105, 105 Amps - Image 3

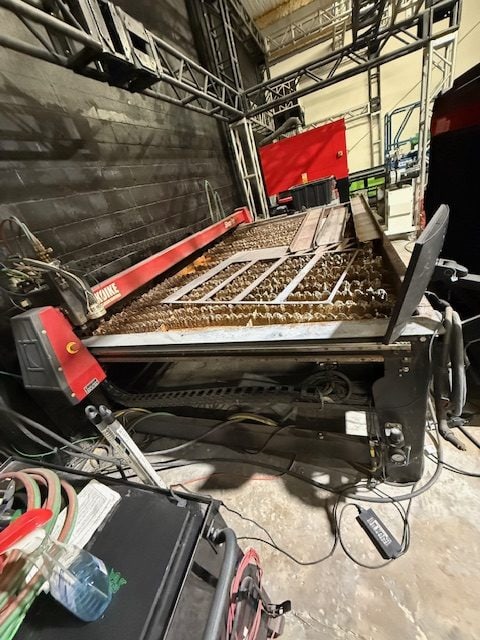

5' x 10 ' Koike ShopPro SP510 Plasma, 2021 - Hypertherm Powermax 105, 105 Amps - Image 4

This specific product is no longer available, however we may have other similar or identical products in stock. Please utilize our search function at the top of the page to check and confirm, or fill out the form below:

Effective Cutting Area: 5′ x 10′
Effective Cutting Width: 120″
Effective Cutting Length: 60″
Rapid Traverse Speed: 1000 IPM
Tool Capacity: 2
Amps: 105
Max Thickness Cut: 2″ Mild Steel
Table Dimensions: 150″ x 72″ x 56″
Table Type: Water Pan Insert
Water Capacity: 220 Gallons
Linear Guidance: 25mm Profile Linear Rail, 30mm Gantry
Gear Engagement: Direct Drive Helical Rack and Pinion
Machine Repeatability: 0.0015″

Electrical: 115V
Machine Dimensions: 84″ x 150″
Machine Weight: 3500lbs

Equipped With
FlashCut CNC 21″ Touchscreen Panel PC
