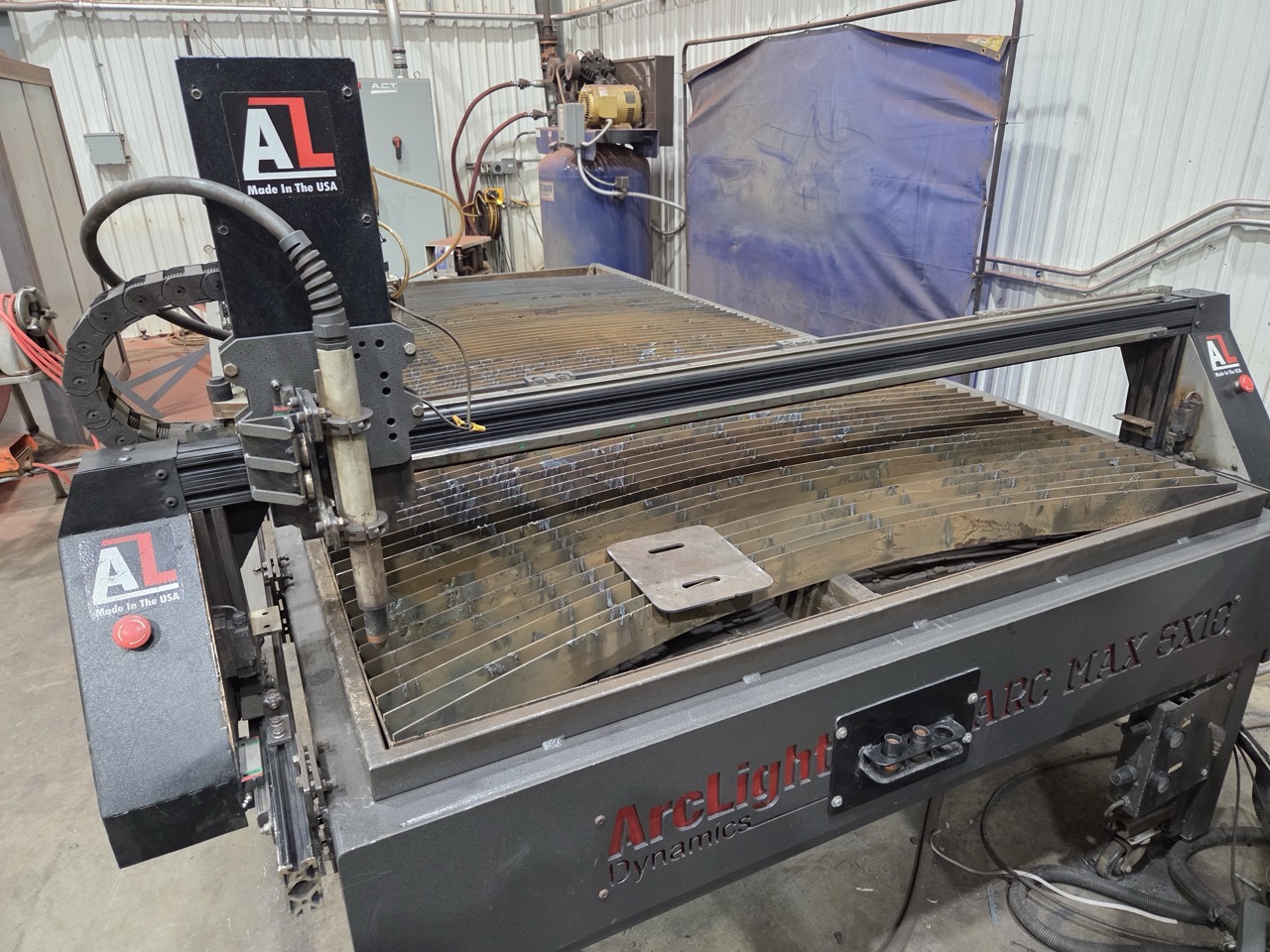

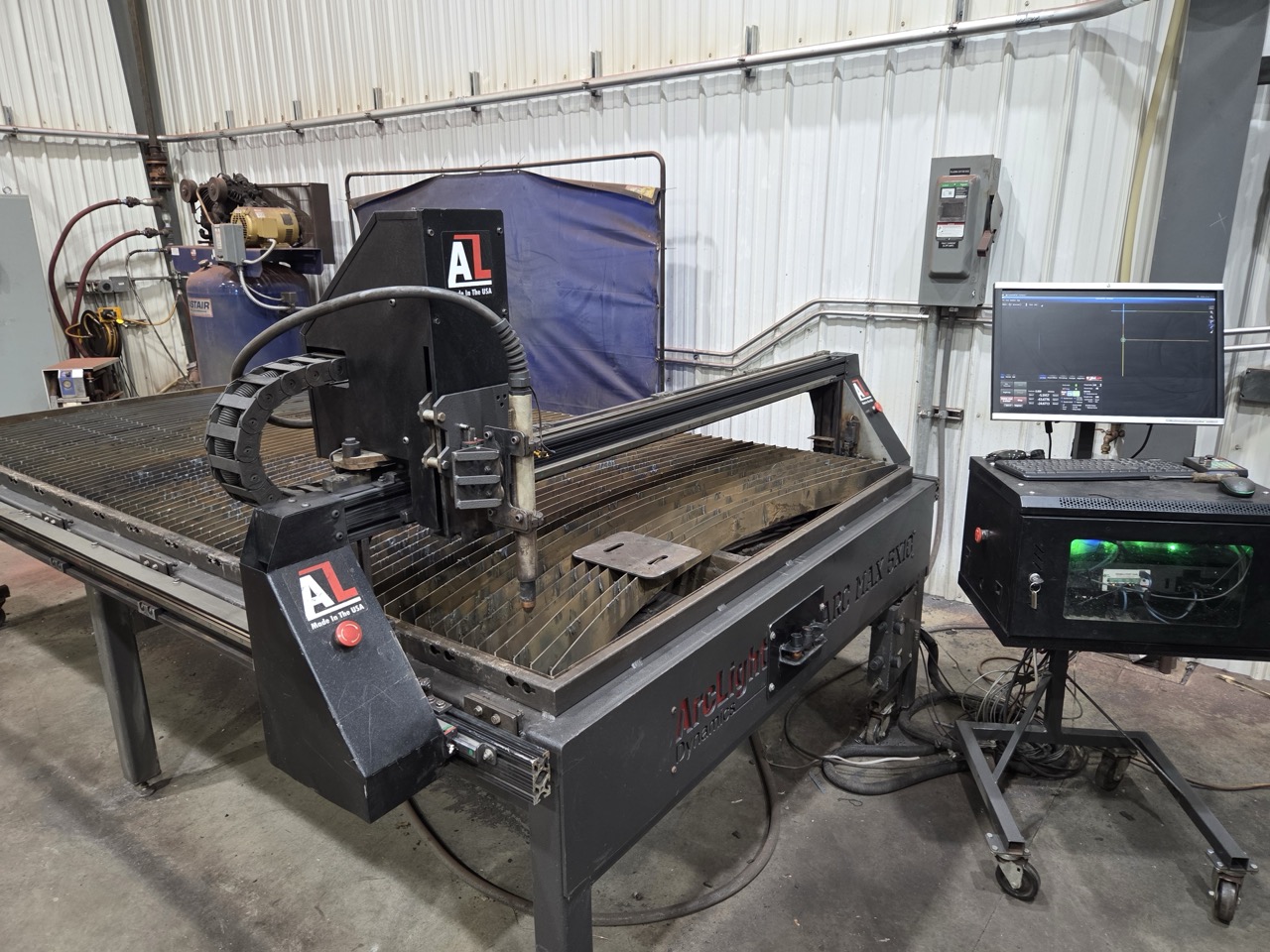

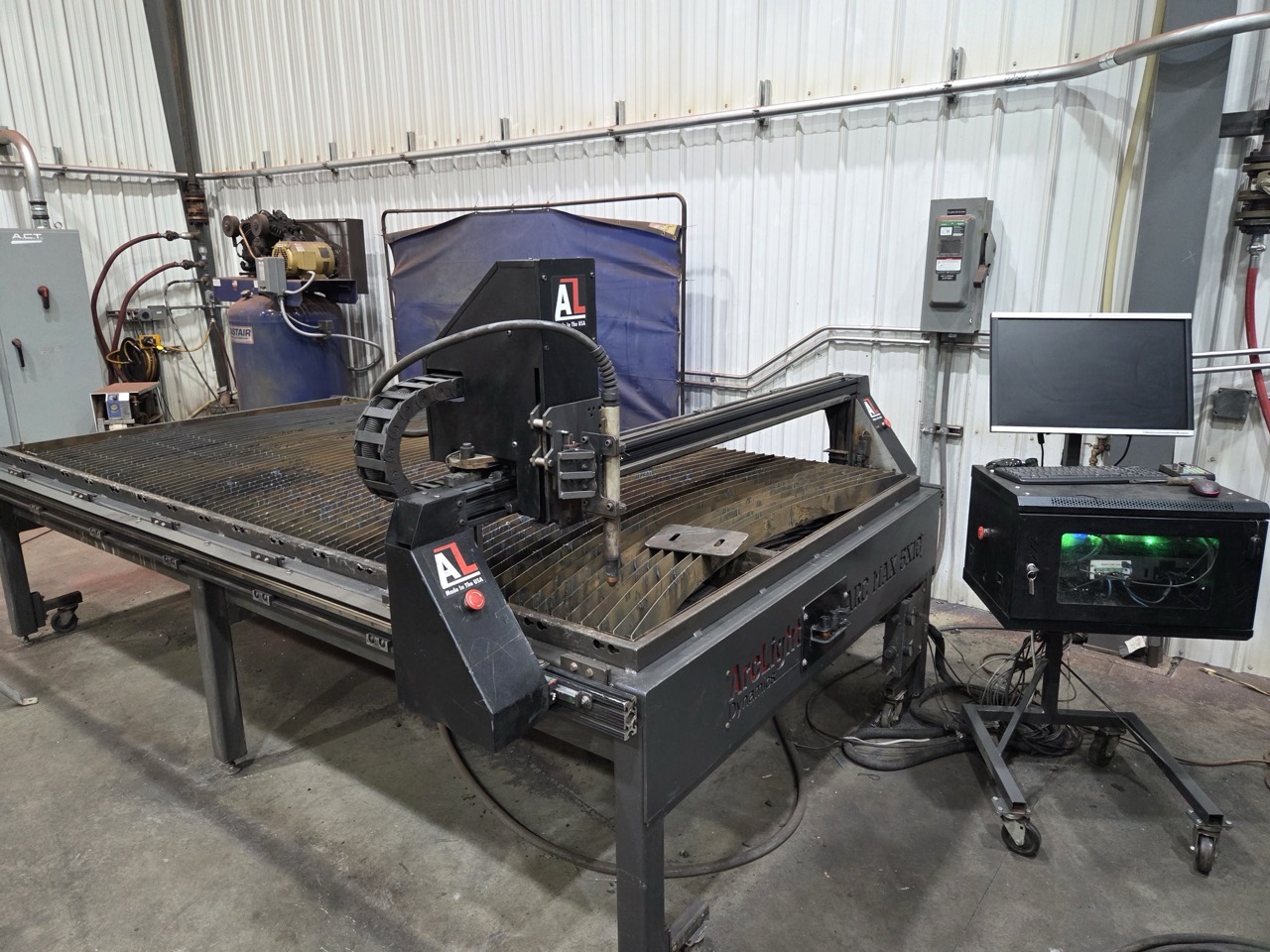

5′ x 10′ ArcLight Dynamics Arc Max Plasma Table, 2018 – Hypertherm Powermax 105, Tube Cutting Attachment

Table Size: 5′ × 10′
Table Type: Water Table
Frame Construction: Fully Welded, Powder Coated Steel
Frame Tubing: 3/16″ Wall
Slat Surface: Flush with Table Side, Built-In Load Rollers
Gantry Material: Aircraft Aluminum
Drive System: Rack and Pinion
X & Y Axis Rails: Dual 20mm Linear Guide Rails
Linear Blocks: Hiwin Linear Slide Blocks
Z-Axis: Anti-Backlash Lead Screw with Floating Head & Magnetic Torch Mount
Drive Motors: Four 620 oz. Stepper Motors, 3:1 Gear Reduction
Y-Axis Drive: Dual Motor

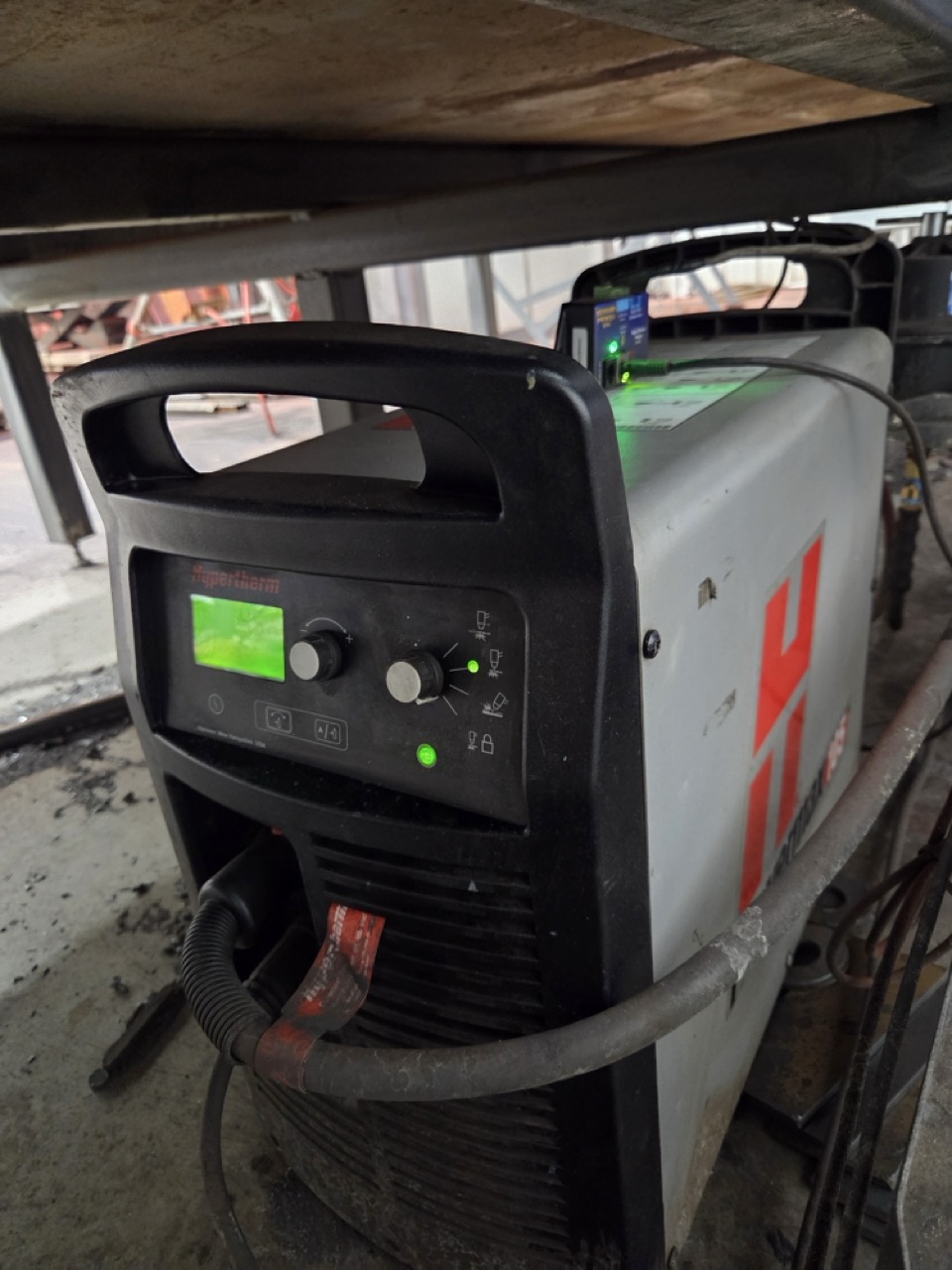

Plasma Power Supply Make: Hypertherm
Plasma Power Supply Model: Powermax 105
Input Power: Three-Phase
Output Amperage: 105 Amps

Equipped With:
Tube Cutting Attachment
Hypertherm Powermax 105 (3-Phase) Plasma Power Supply
