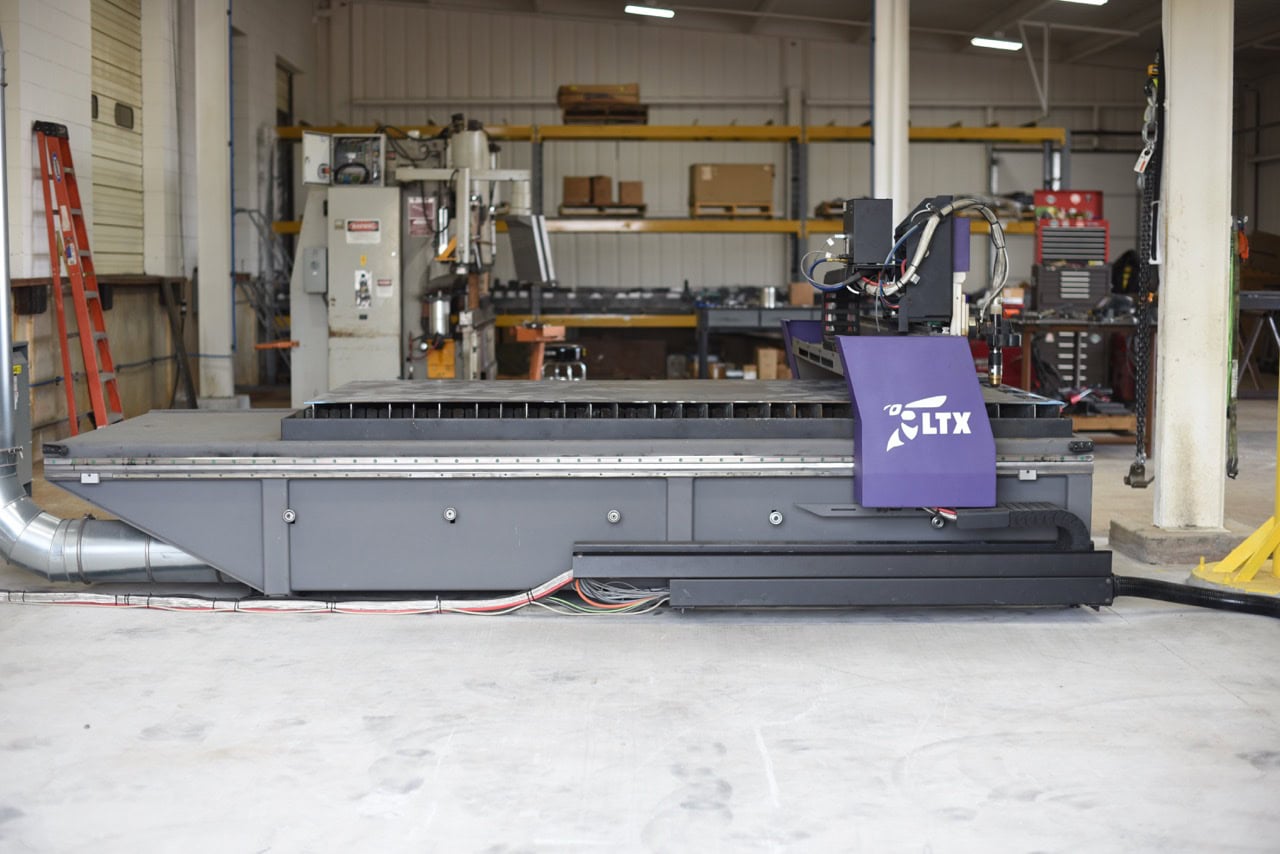

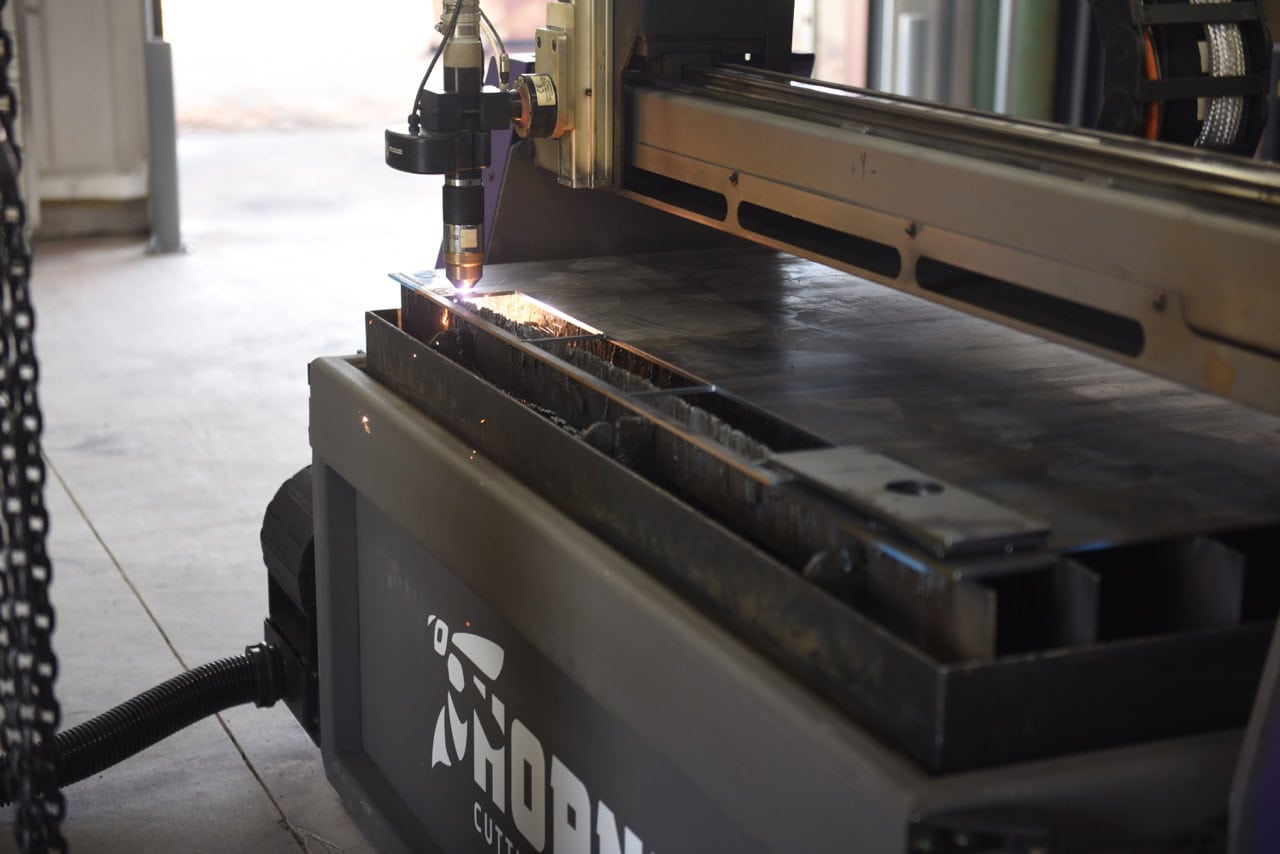

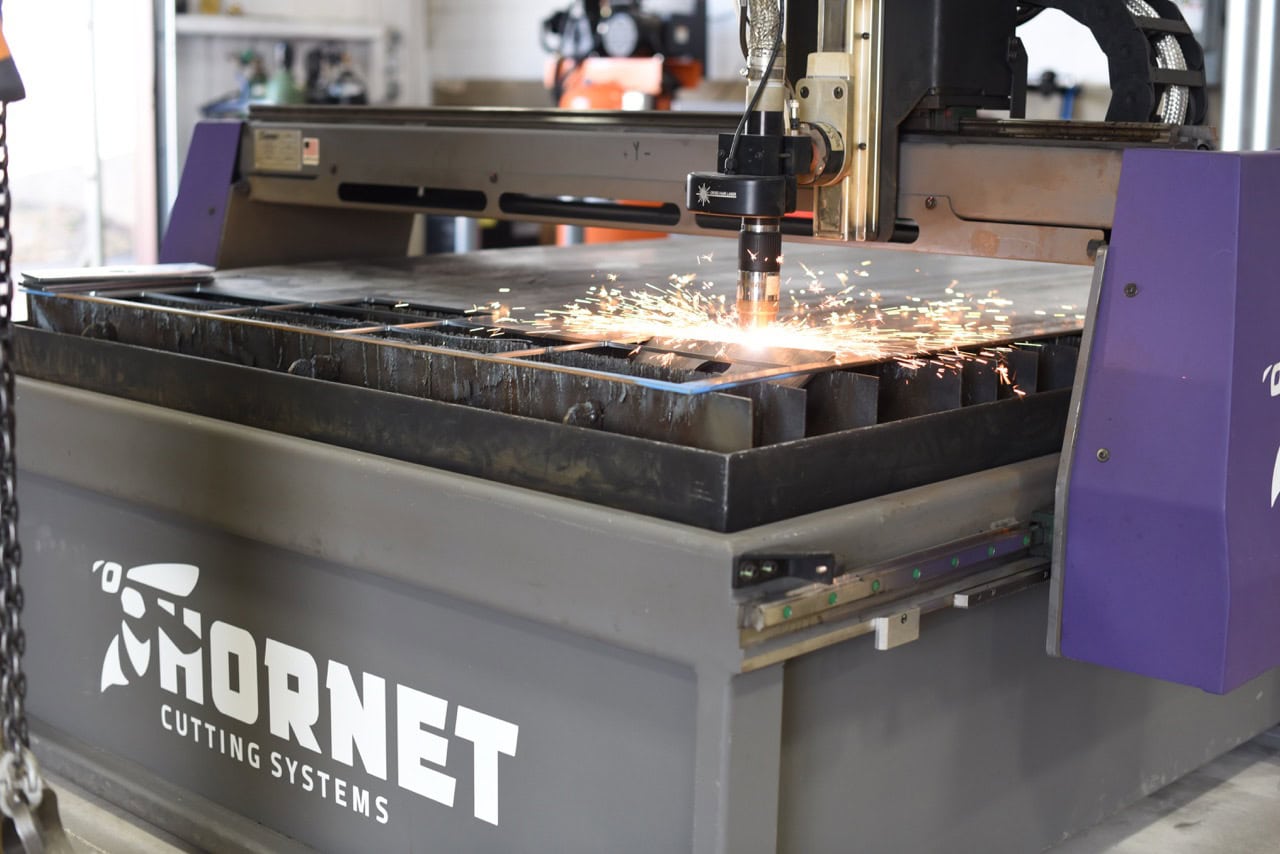

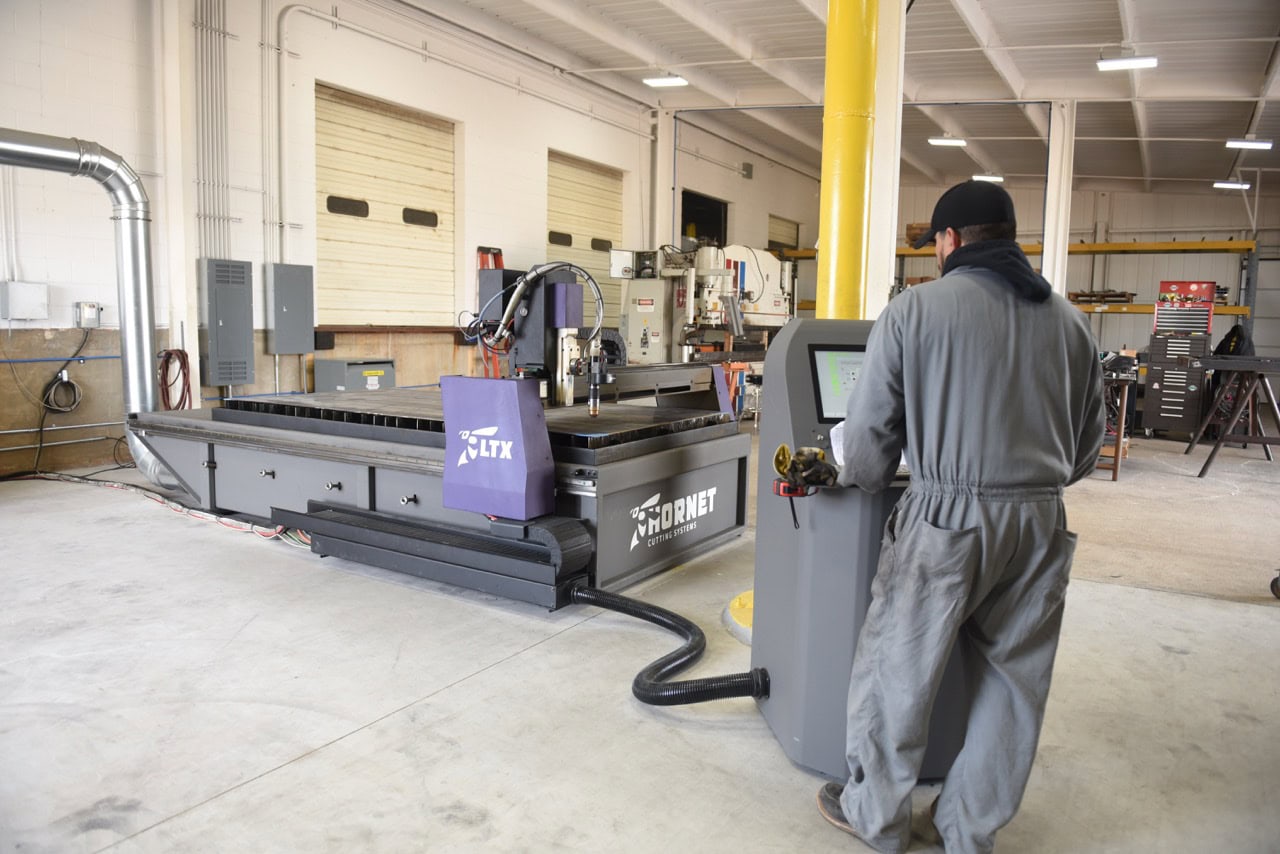

5’ X 10’ Hornet LTX CNC Plasma Cutter, 2025 – Brand New, with Powermax125 Power Supply

Power Requirements: 240/480 VAC 3 PH 50/60 Hz
Cutting Envelope: 5′ x 10′
Clearance Under Gantry Beam: 5″
Linear Guides on Cross Axis Gantry Bridge: 1.18″
Linear Guides on both Rail Axes: 1.18″
Table Slat Height: 32″
Rapid Traverse Speed: 1,200 Ipm
Machine Dimensions: 8.33′ x 13.75′
Machine Weight: 7,500 lbs.

Equipped With
Powermax125 power supply
Plasma marking
Collision sensor
Refrigerated air dryer
Consumables kit
ProNest LT 2025 software
Hornet’s Crosshair Laser System for quick and easy homing and plate
alignment
Movable control console with 21” touchscreen interface
Water table with quickly adjustable water level via ballast tank
Zoned Downdraft table available at the same cost as a water table
