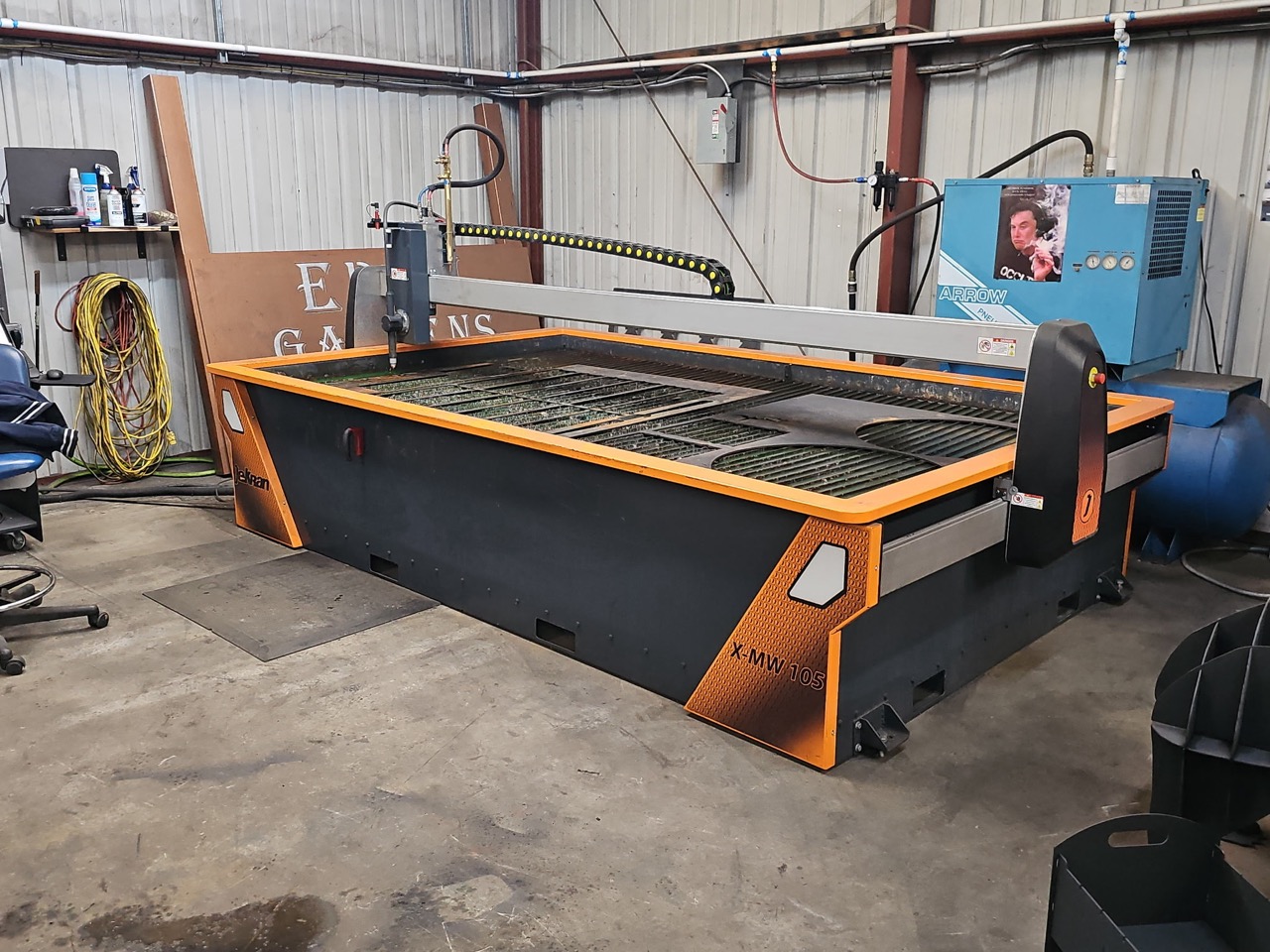

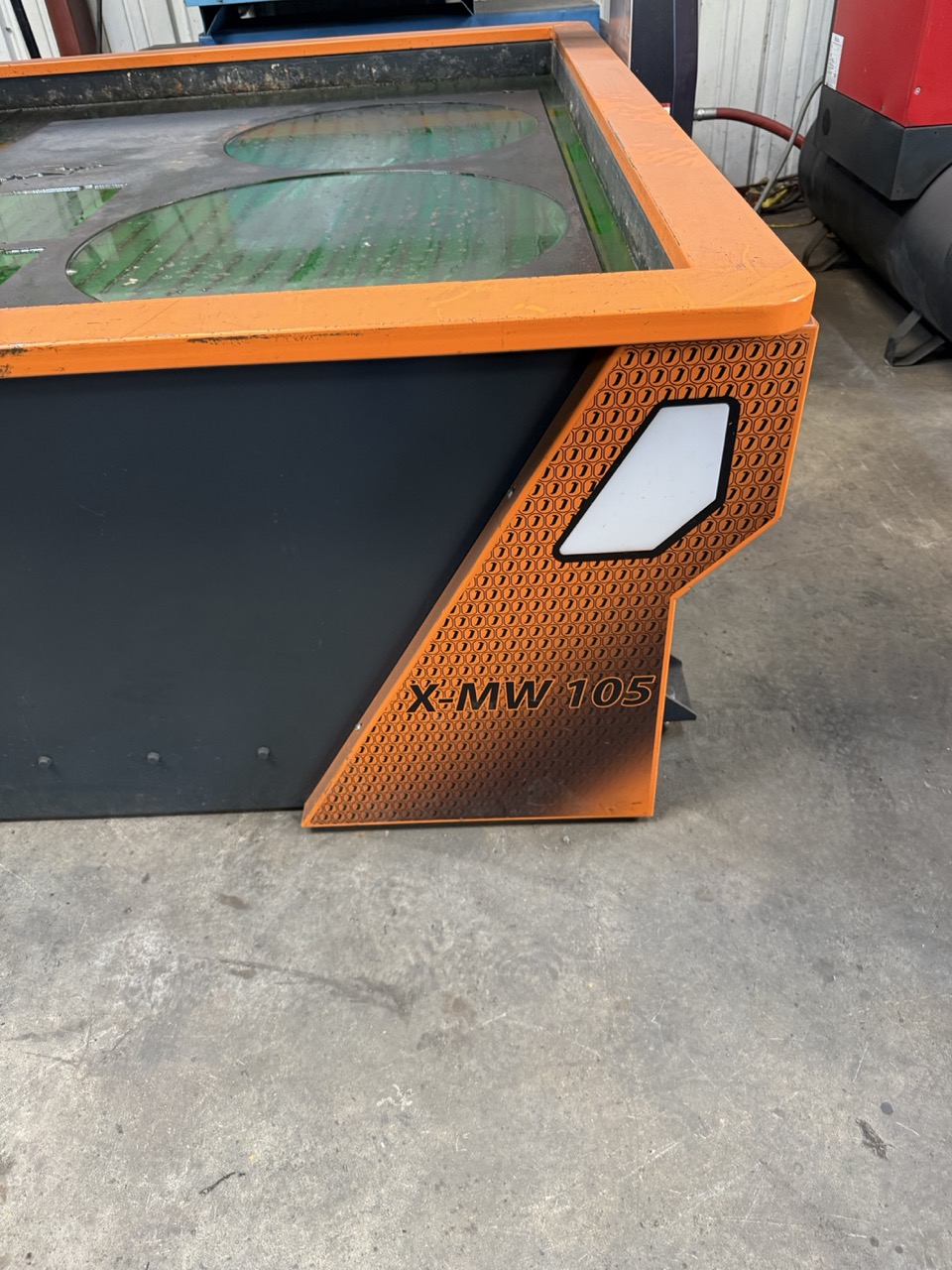

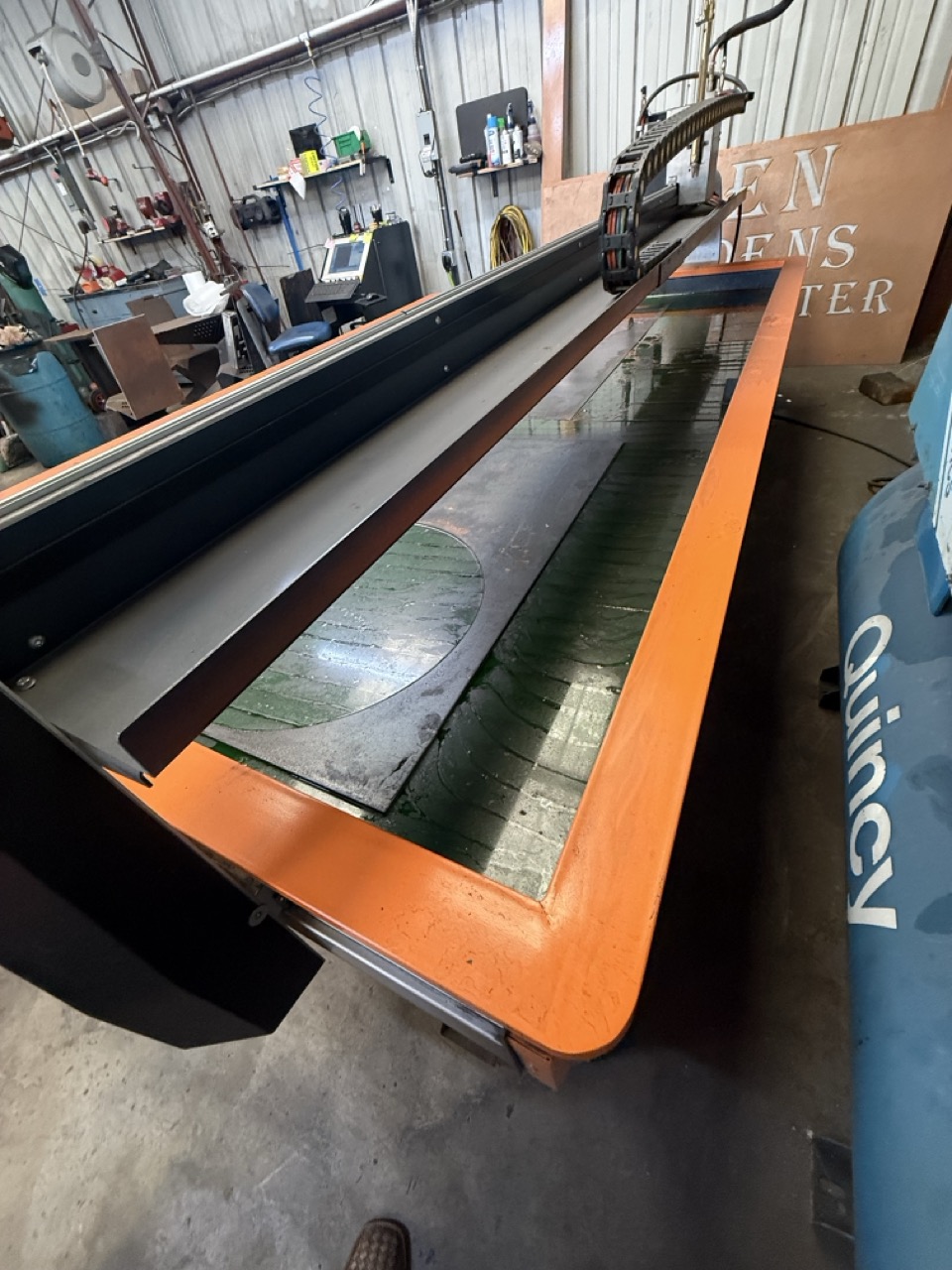

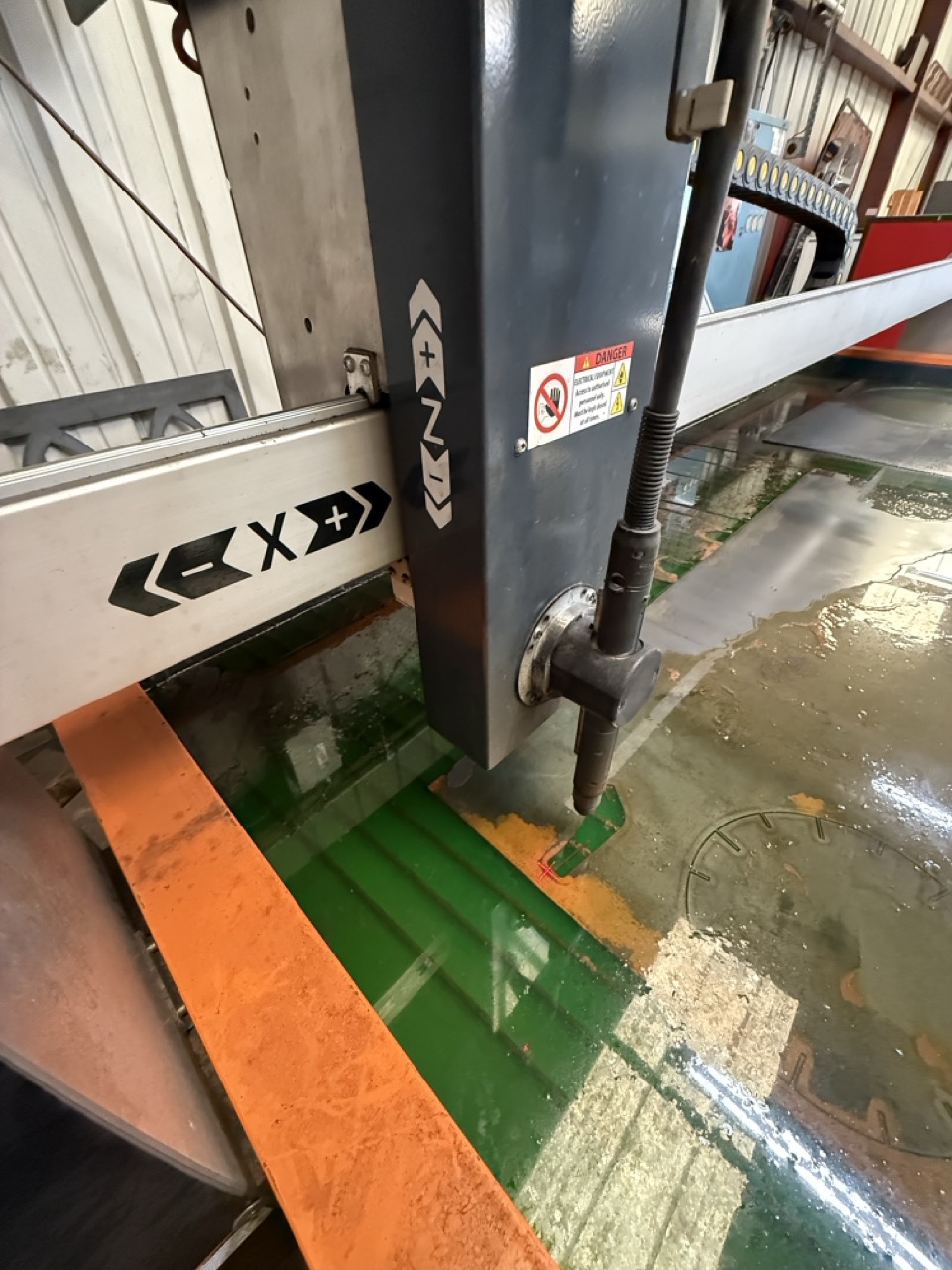

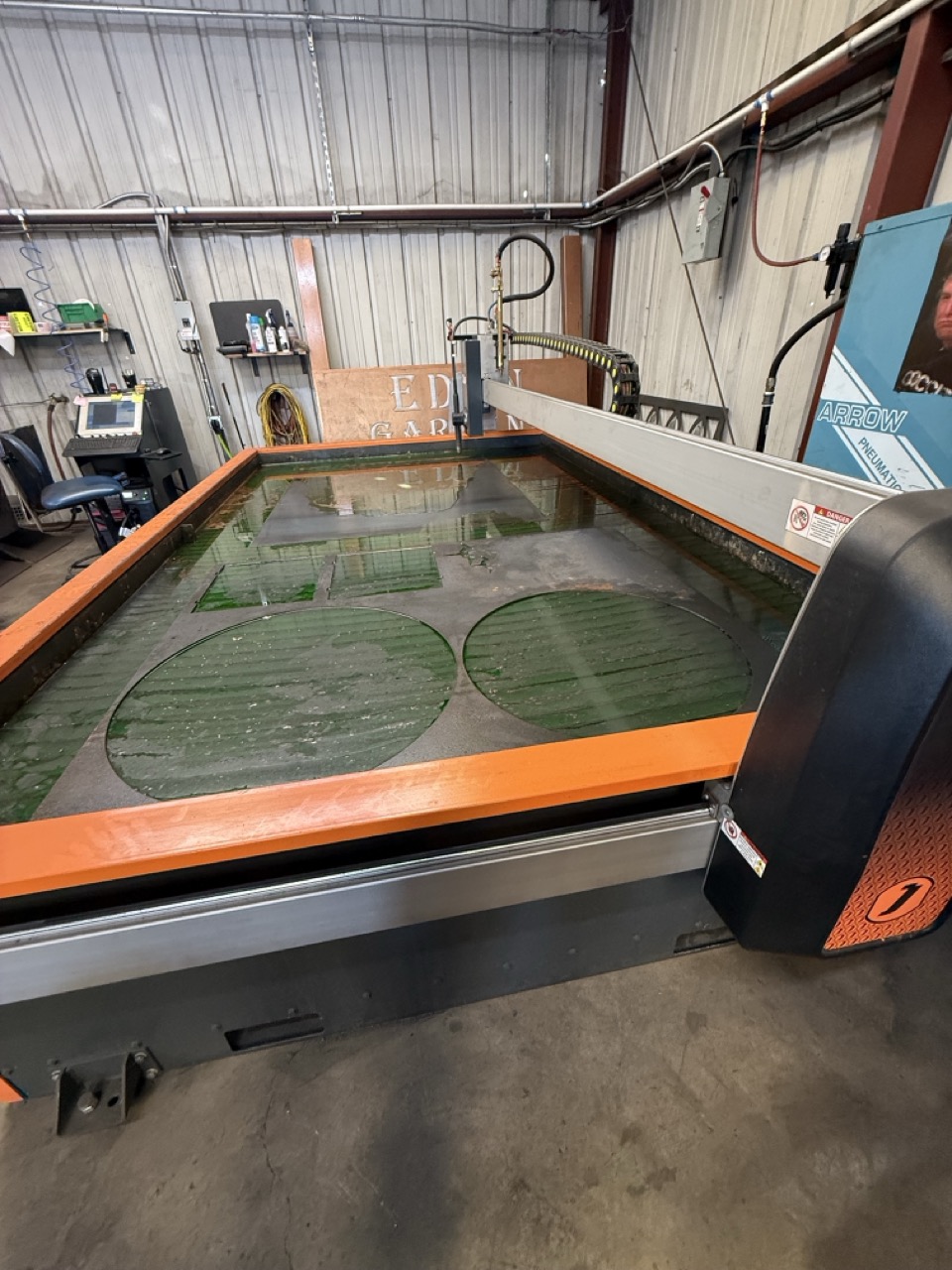

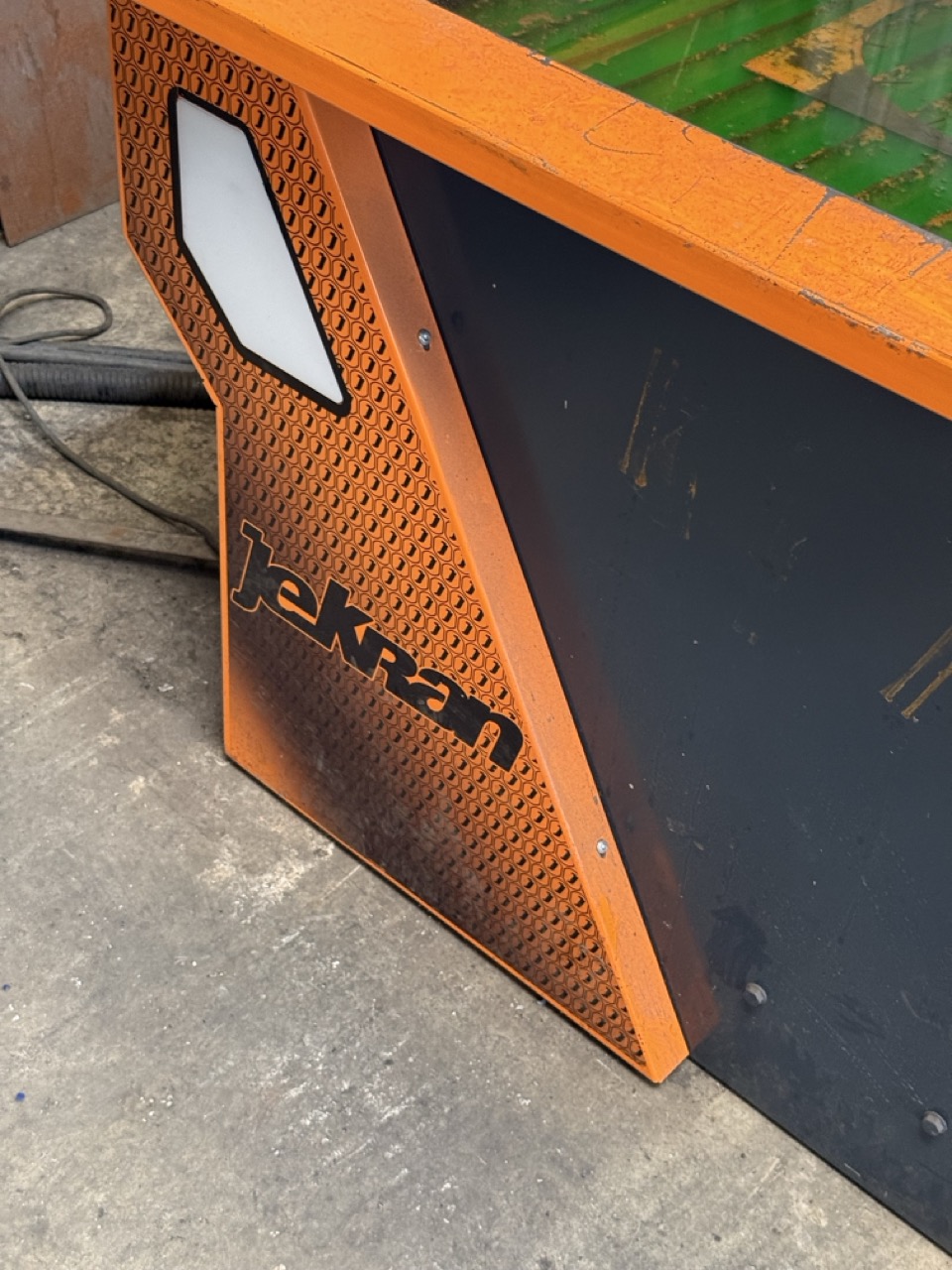

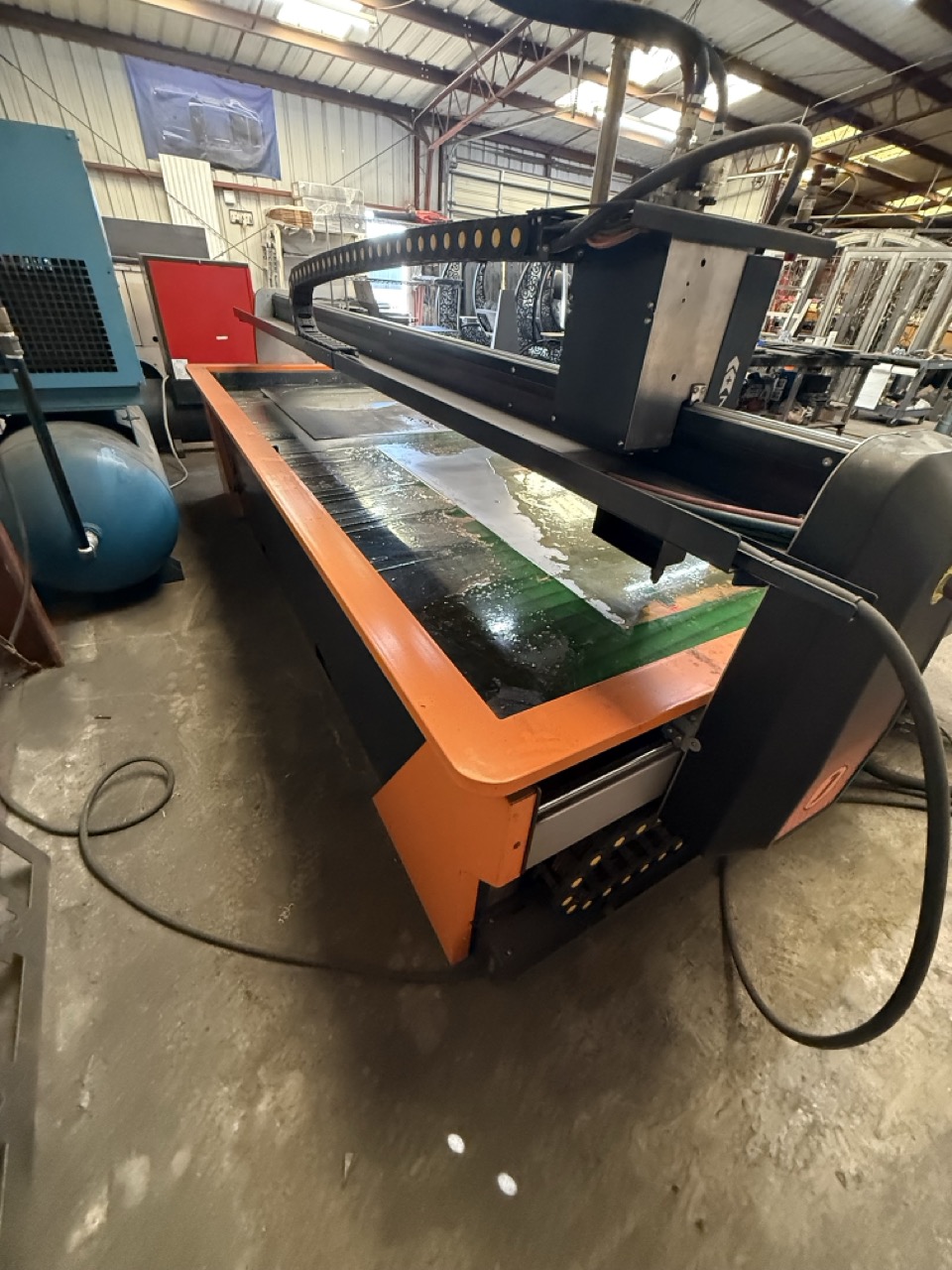

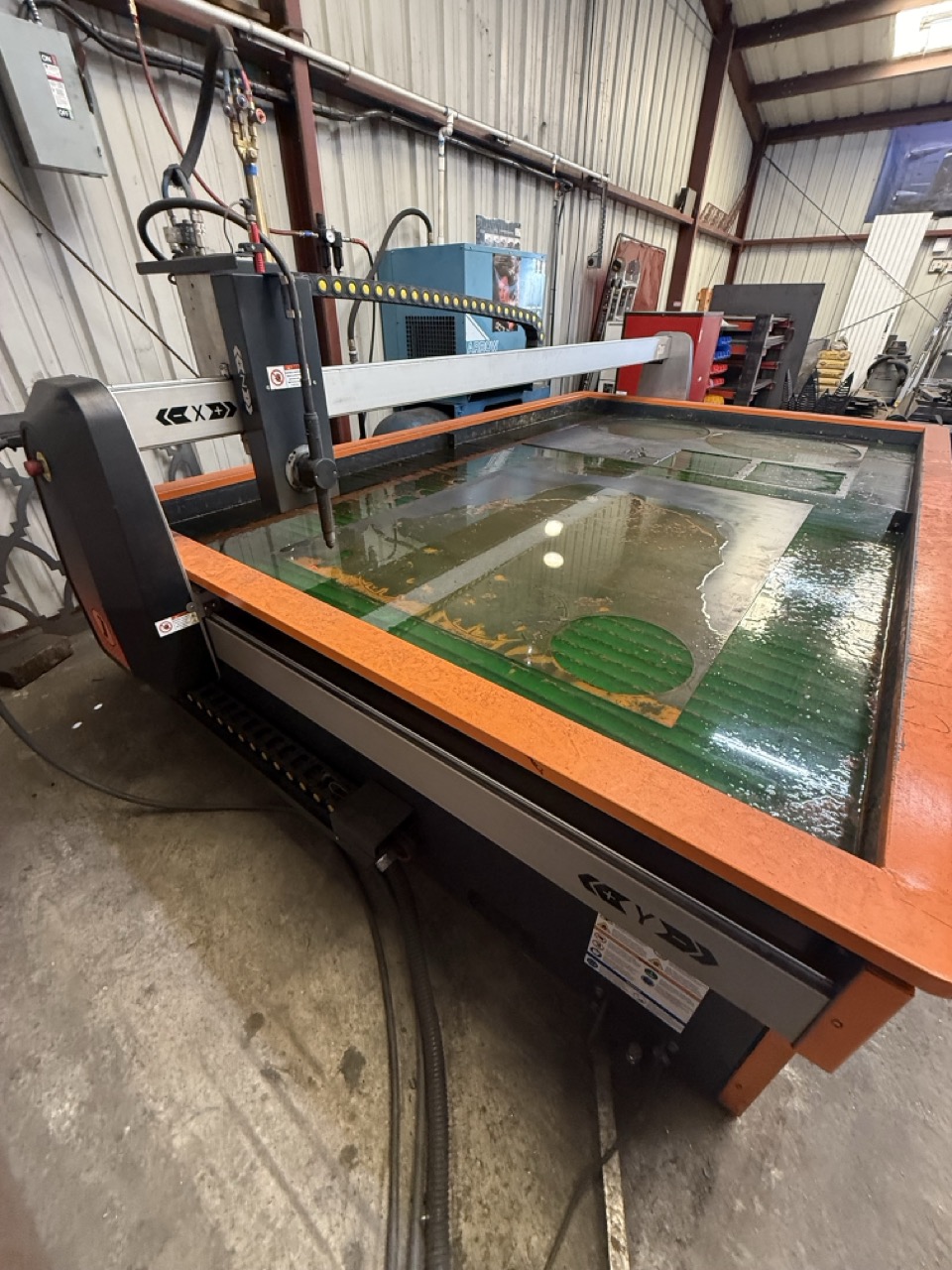

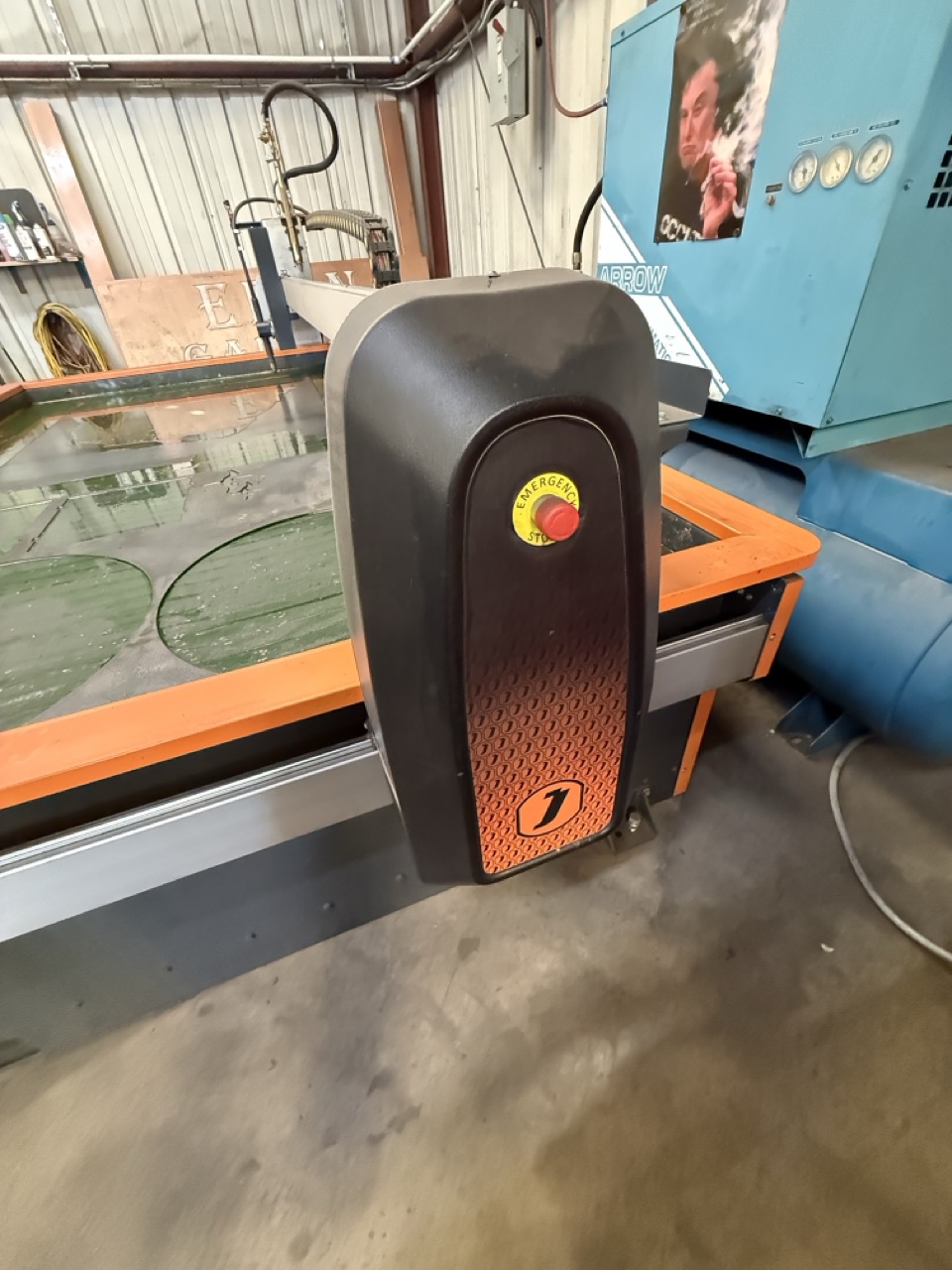

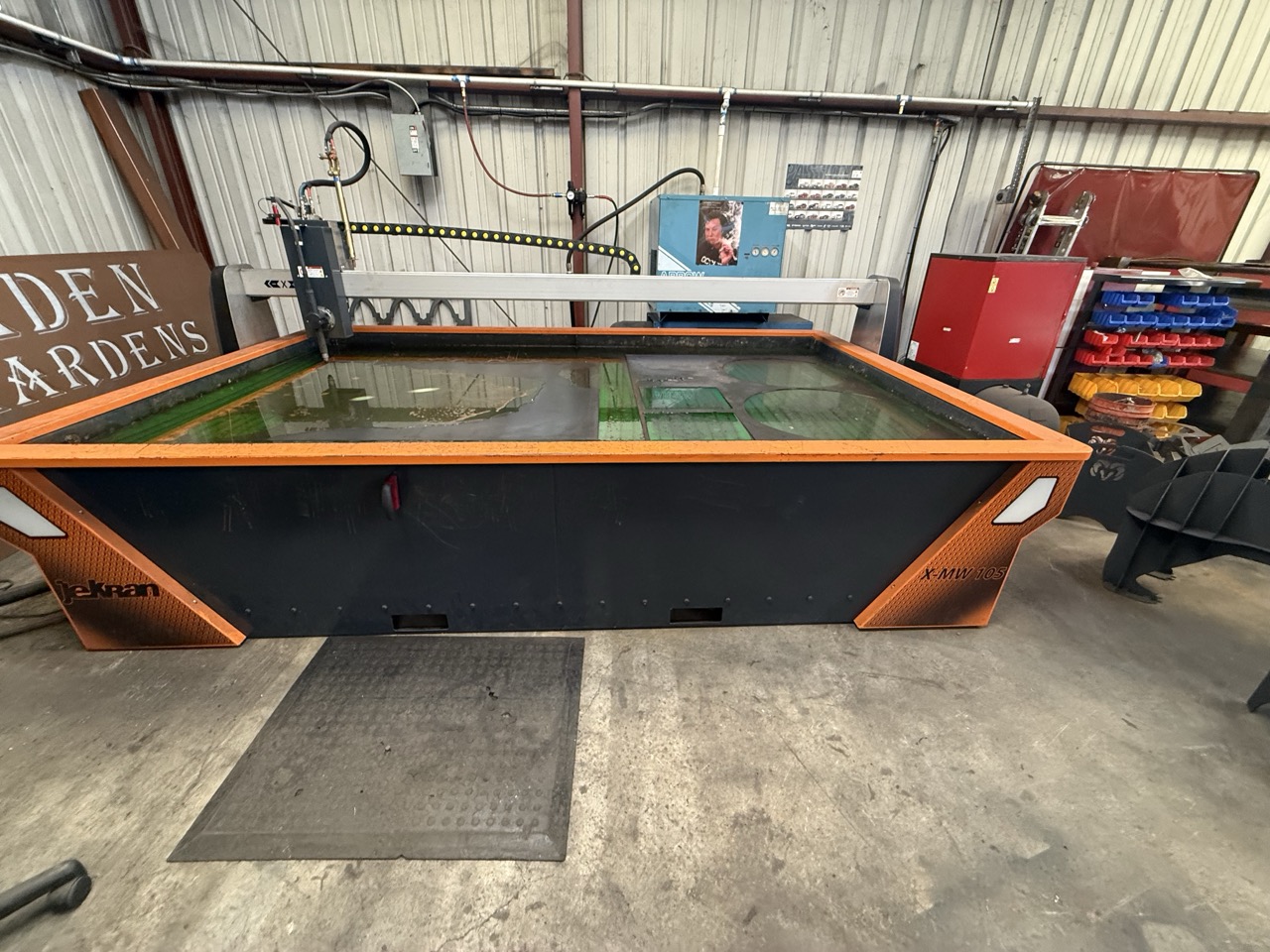

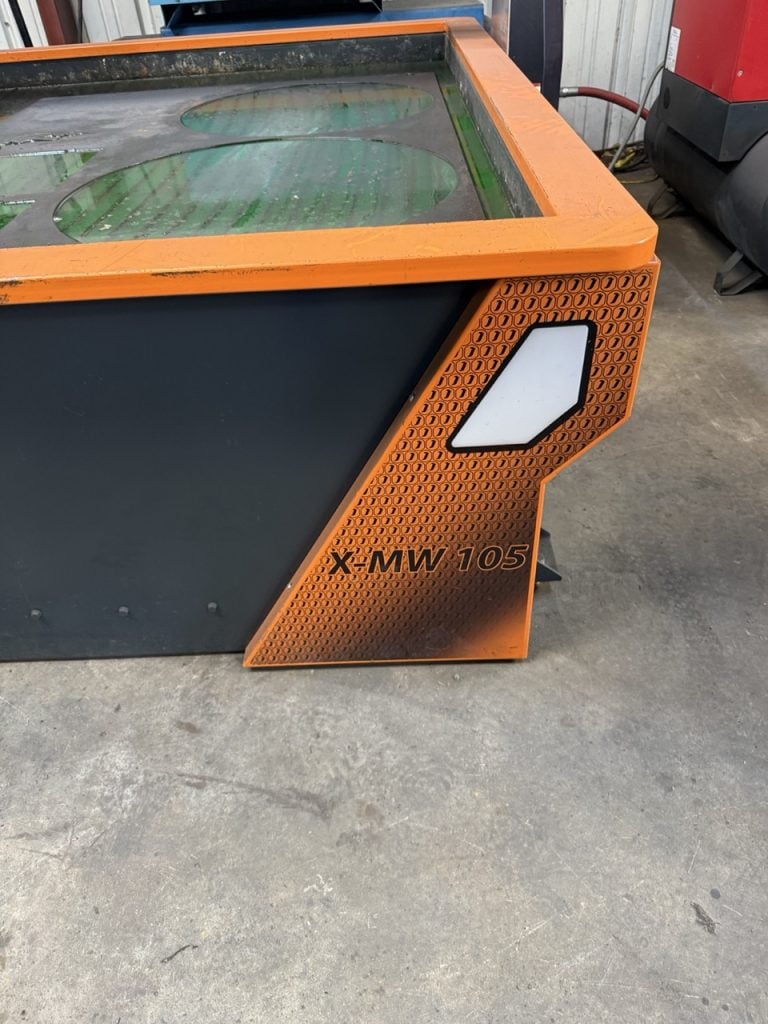

5′ x 10′ Jekran X-MW 105 CNC Plasma, 2023

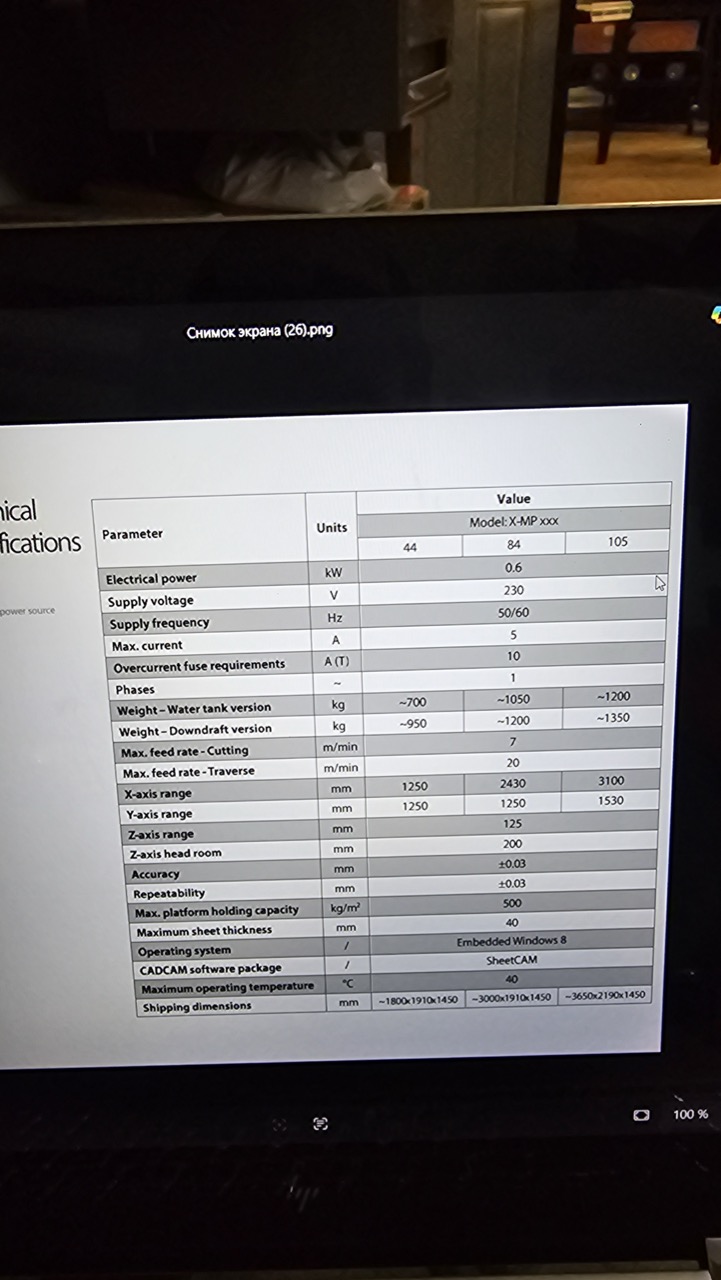

Max cutting feed rate: 275.6 ipm
Max traverse feed rate: 787.4 ipm
X-Axis Travel: 122.05 in
Y-Axis Travel: 60.24 in

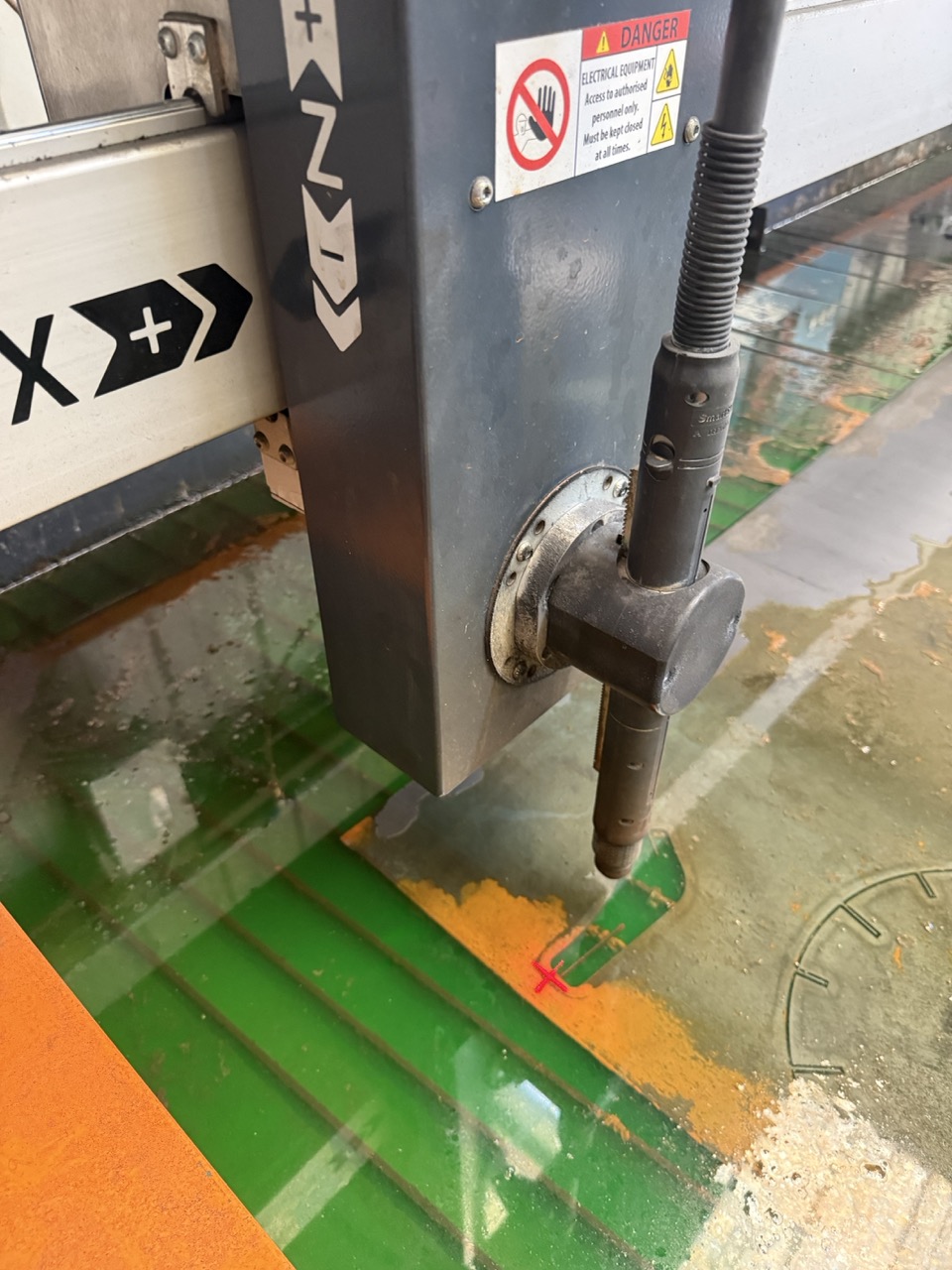

Z-Axis Travel: 4.92 in
Z-Axis Head Room: 7.87 in
Accuracy: ±0.0012 in
Repeatability: ±0.0012 in
Maximum platform holding capacity: ~102 lb/ft²
Maximum sheet thickness: 1.57 in

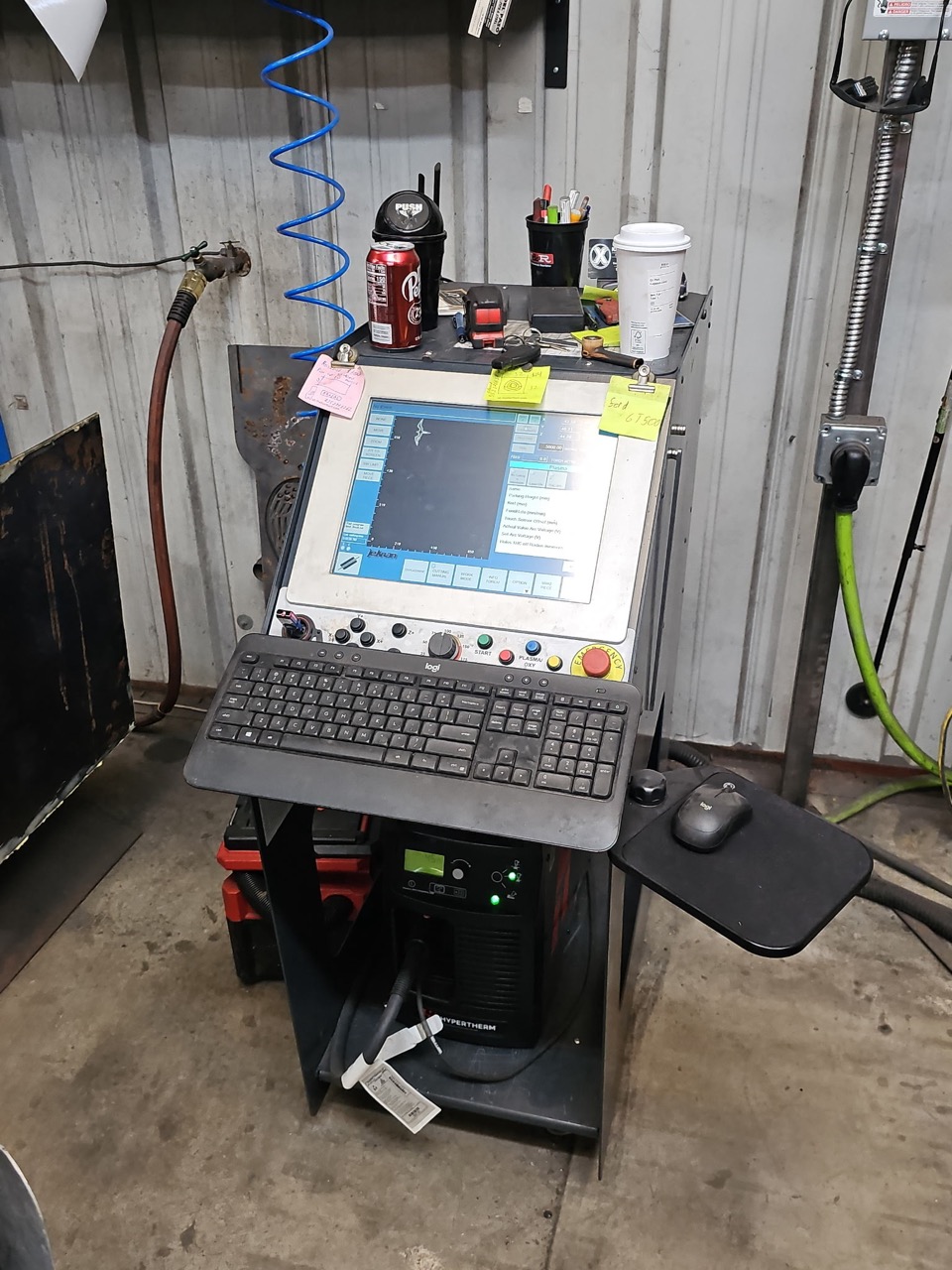

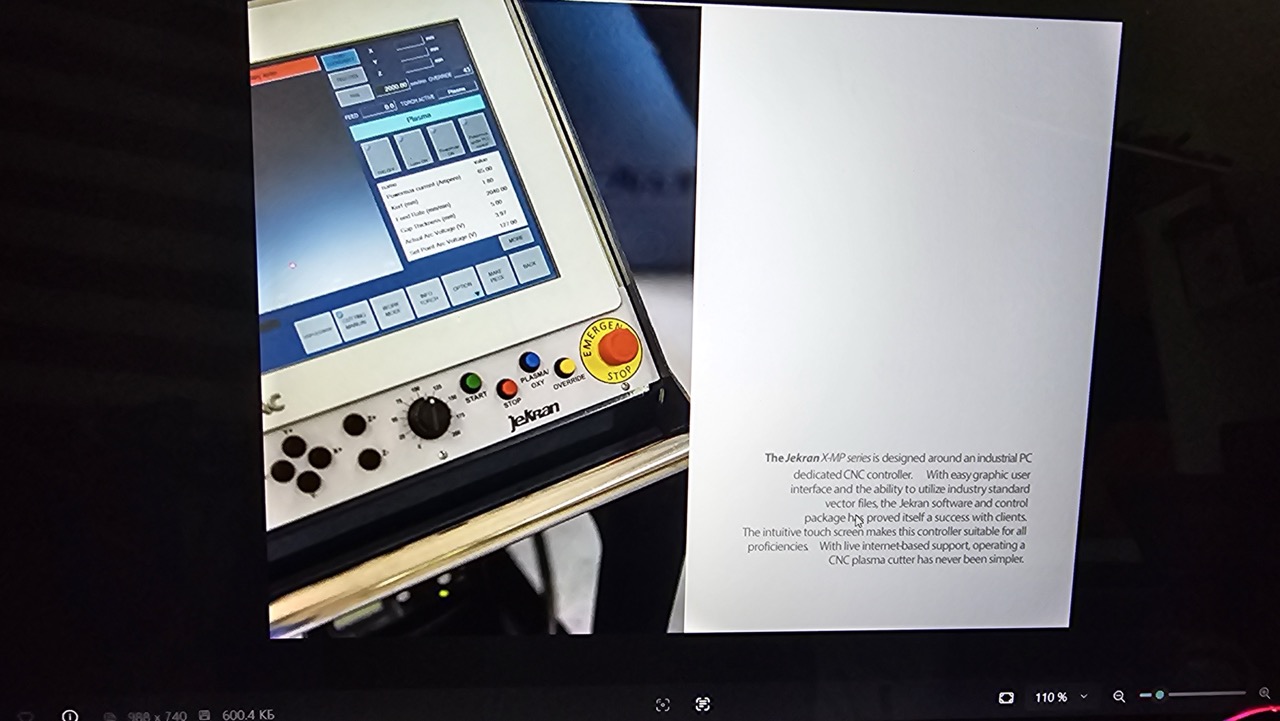

Operating system: Embedded Windows 8
CAD/CAM software: SheetCAM
Maximum operating temperature: 104°F
Approx. Dimensions: 143.70 × 86.22 × 57.09 in
Approx. Machine Weight: 2,646 lbs
Electrical power: 0.6 kW
Supply voltage: 230 V
Supply frequency: 50/60 Hz
Maximum current: 5 A
Overcurrent fuse requirement: 10 A (T)
Phases: 1
