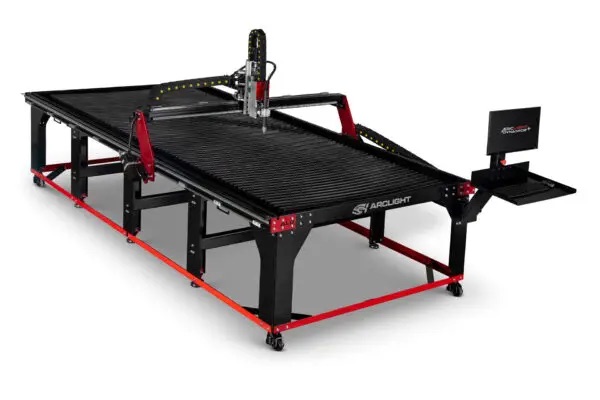

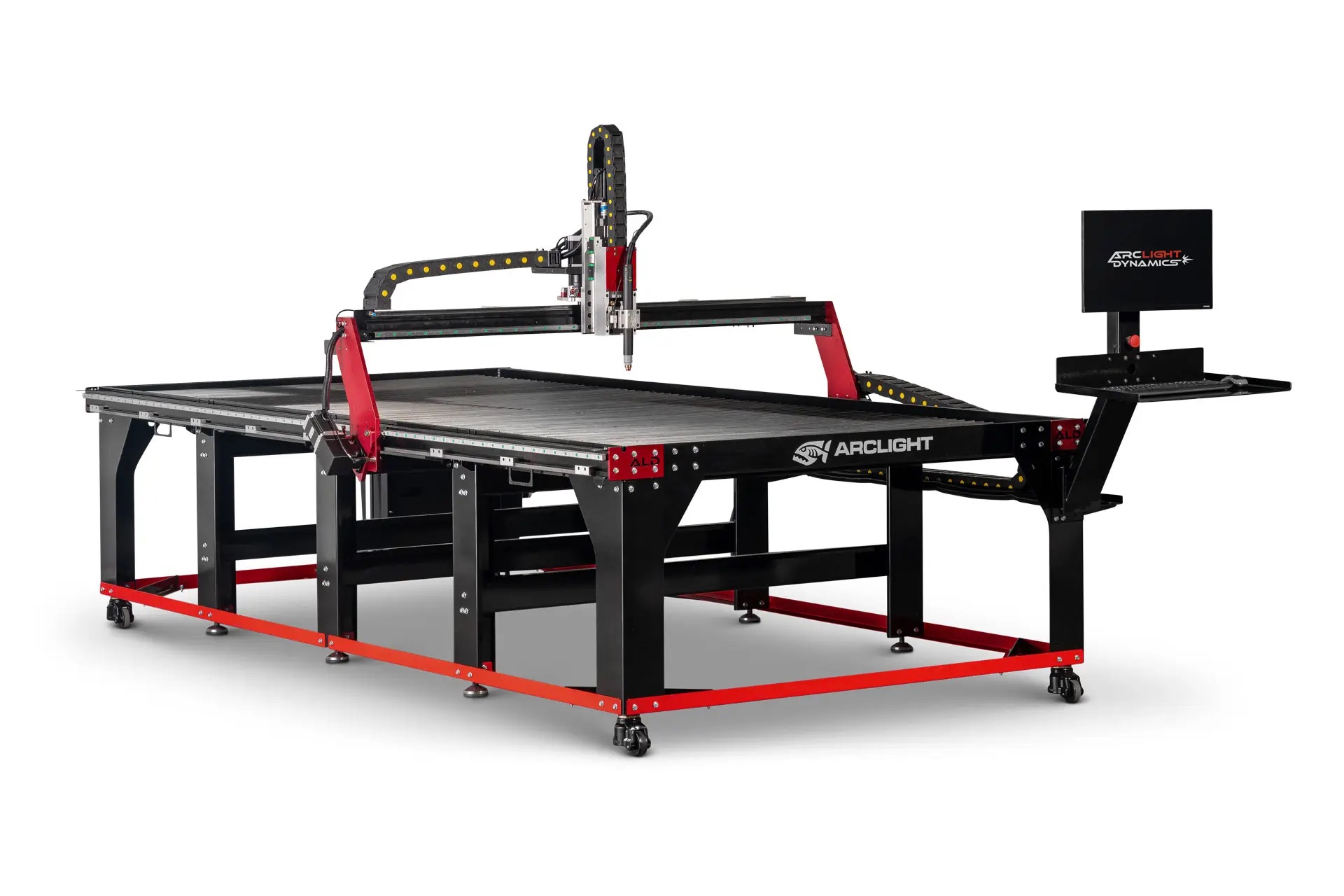

5′ x 10′ Arclight ArcPro Ultra CNC Plasma Table, 2025

Cutting envelope: 65″ x 132″ x 9″
Overall dimensions: 93″ x 186″, 74″ tall
Weight capacity: 1.5″ thick mild steel
Frame: Steel, precision-ground
Table base dimensions: 73″ x 145″
Water pan capacity: 158.5 gallons
Table power: 110V / 15-20A
Overall weight: 1,300 lbs
Positioning accuracy: .001″
Controller: Arc CNC Software

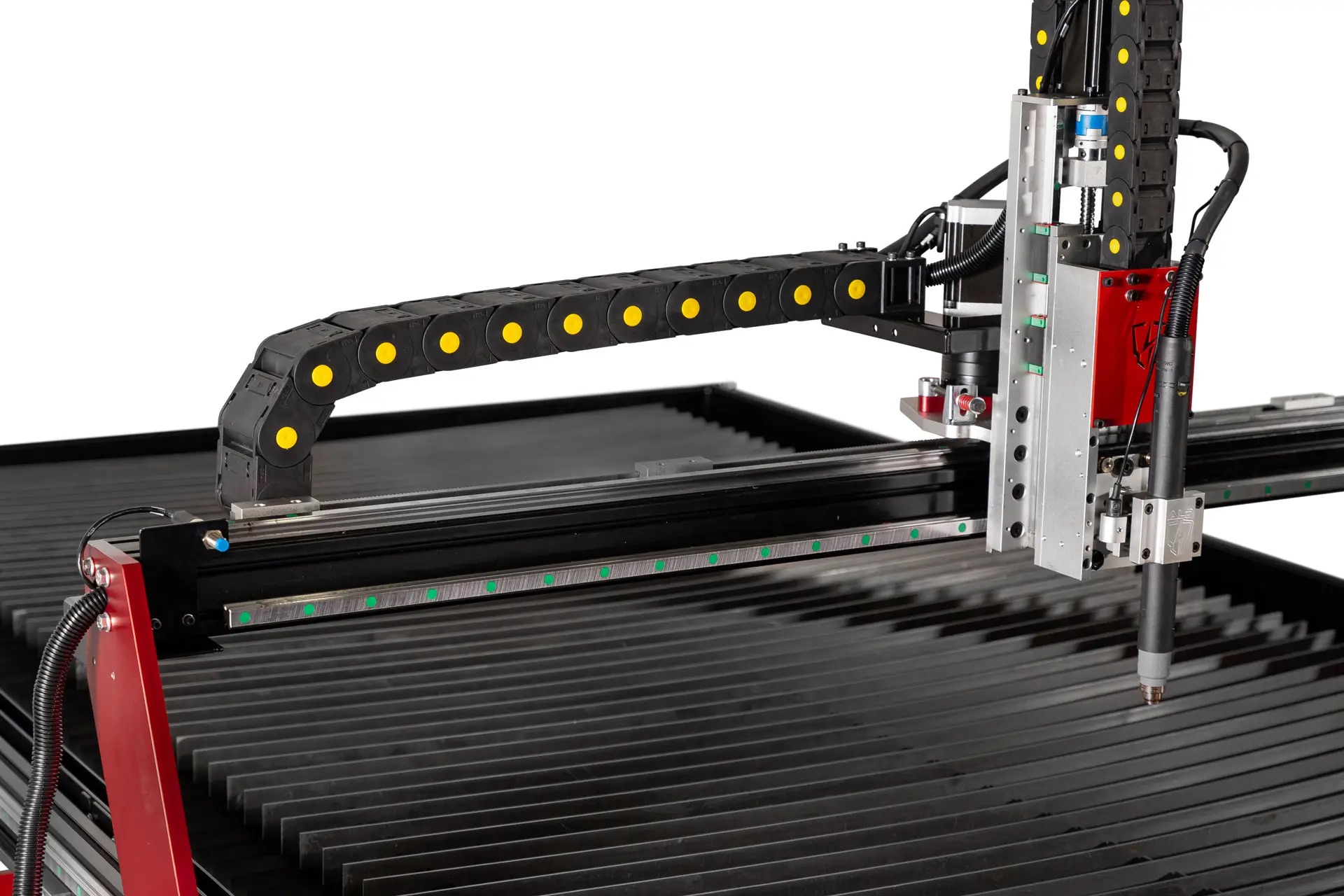

Drive system: Dual-drive gantry on Hiwin precision linear rails
Motors: NEMA 34 with planetary gear boxes
Z-axis: Ball screw
Year: 2025
Plasma source not included — available to add on for additional cost, buyer’s choice of amperage

Equipped With:

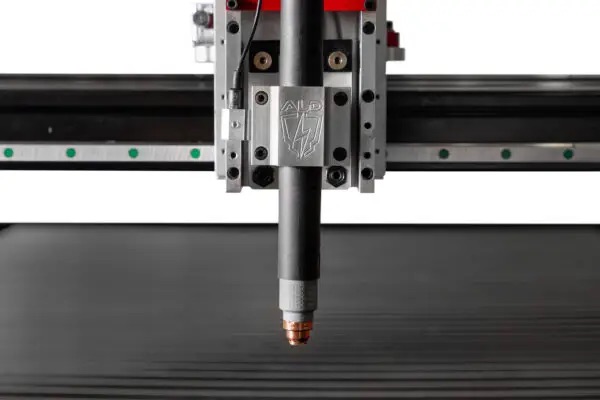

Collision Detection System
Plate Engraver
Plate Rollers
