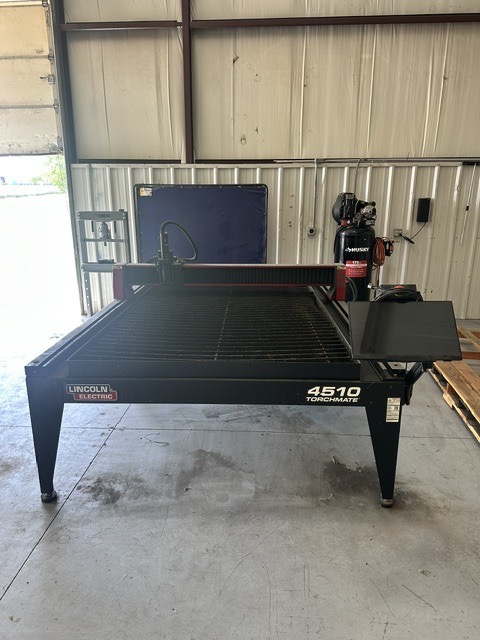

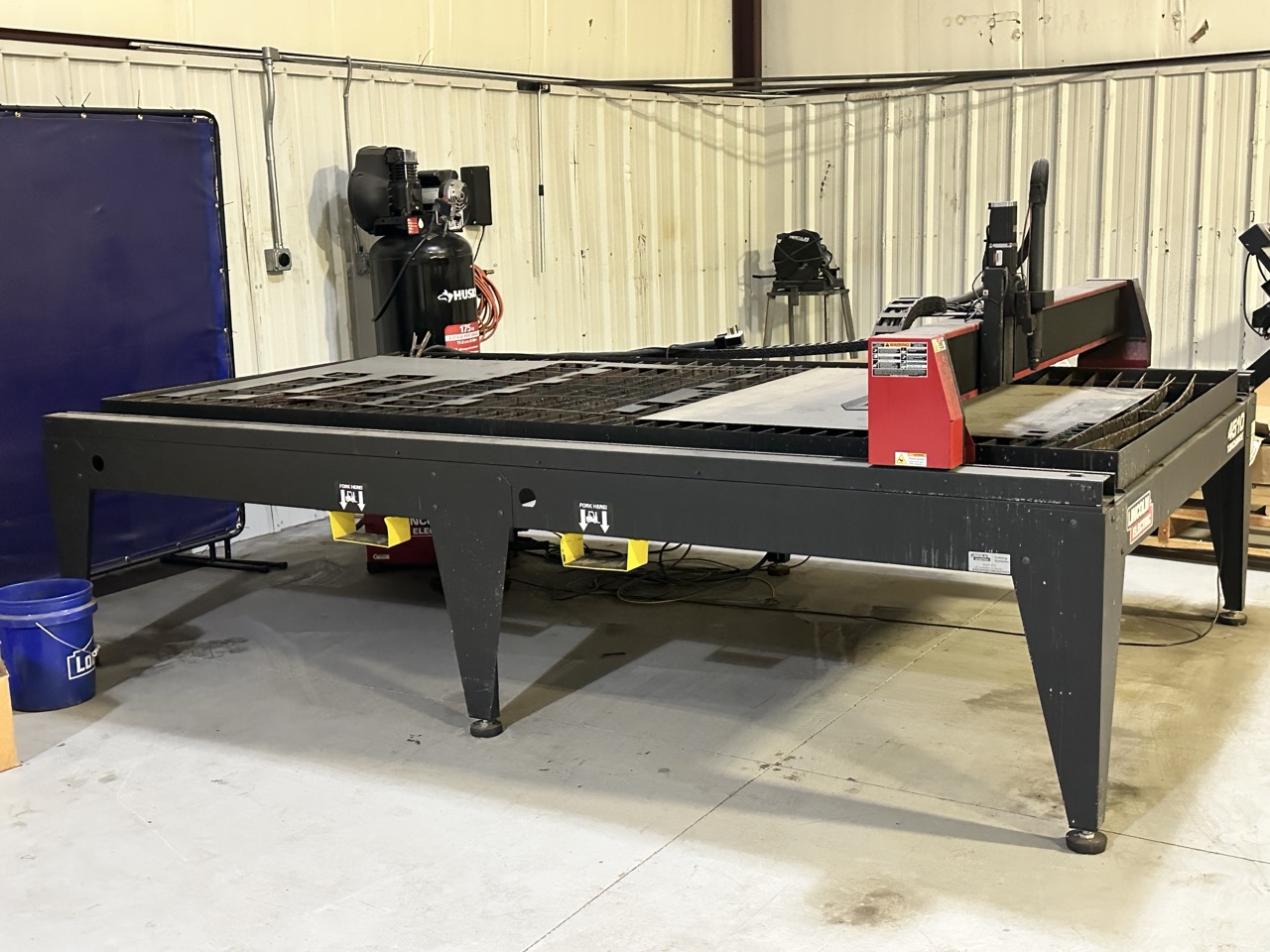

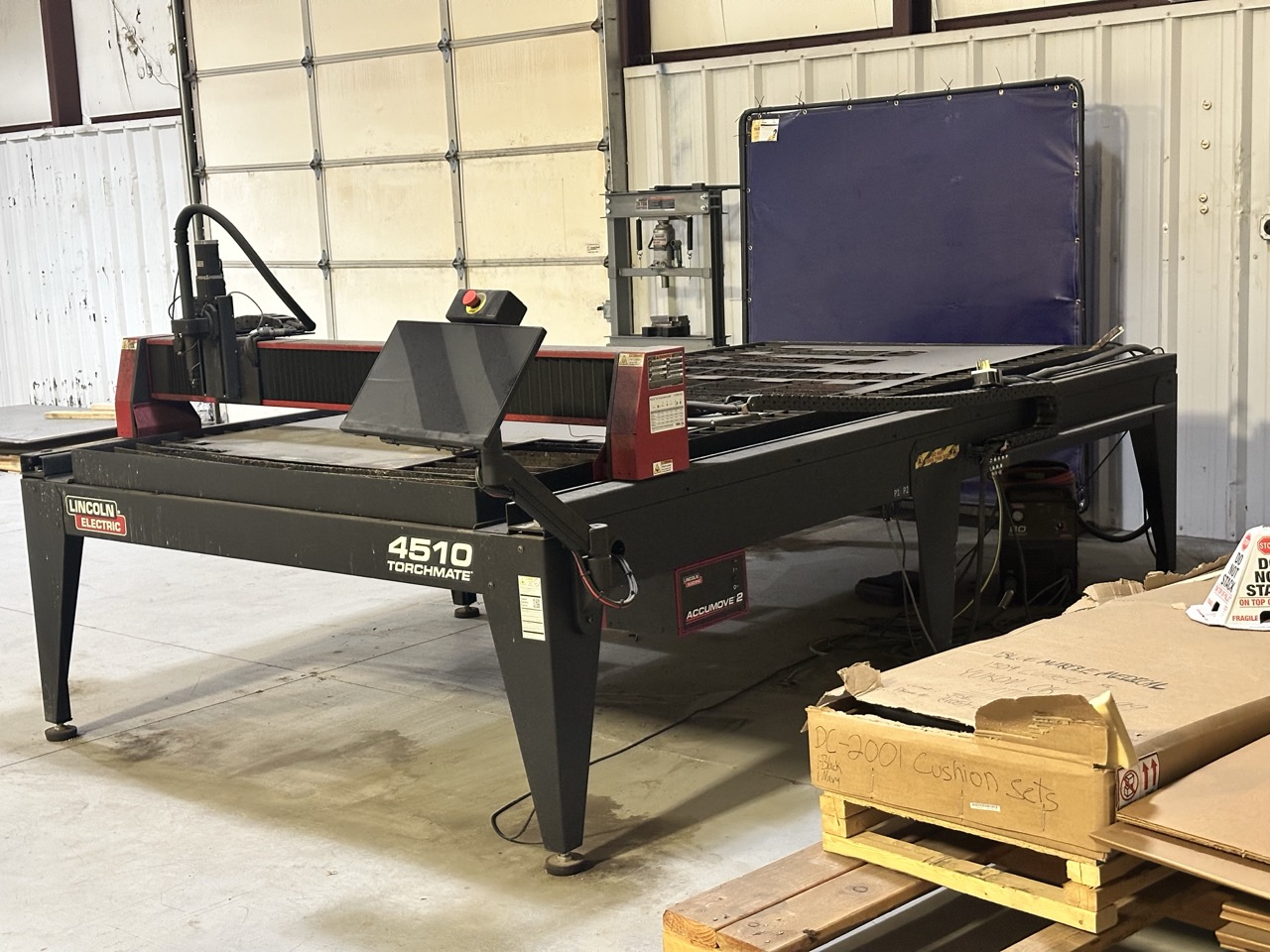

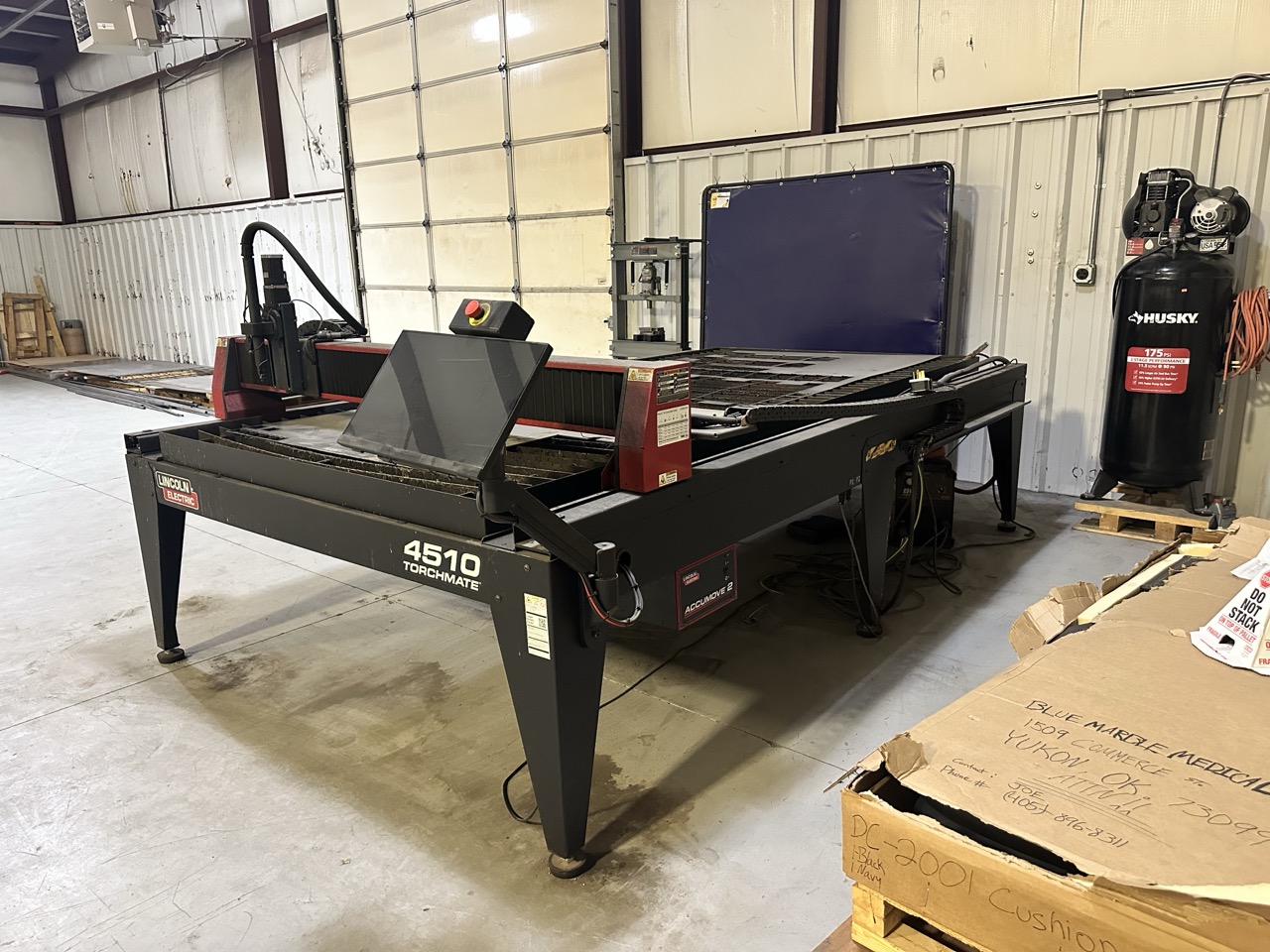

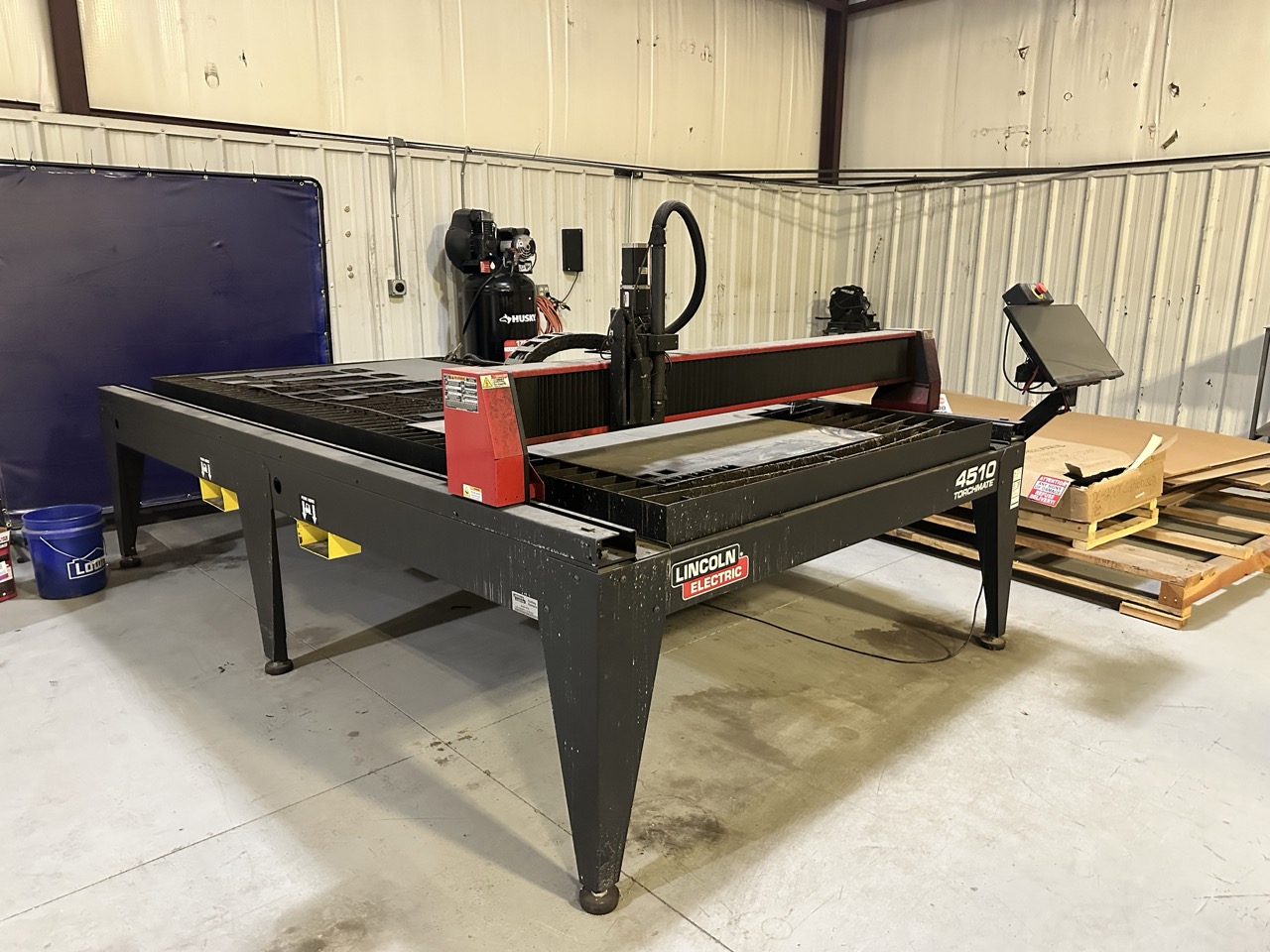

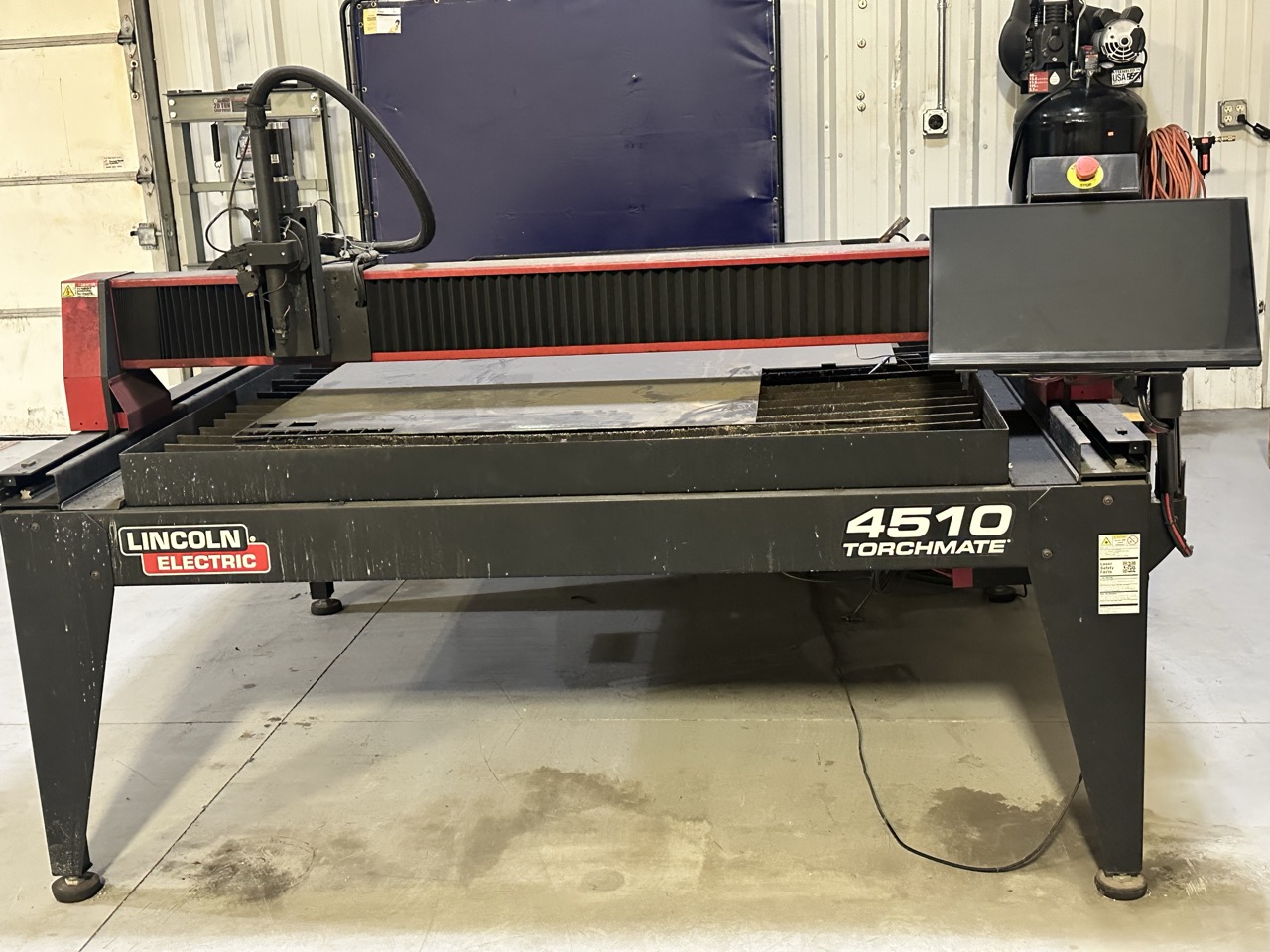

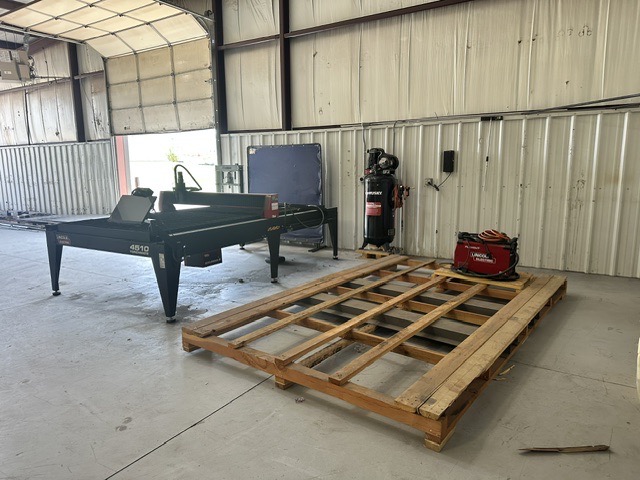

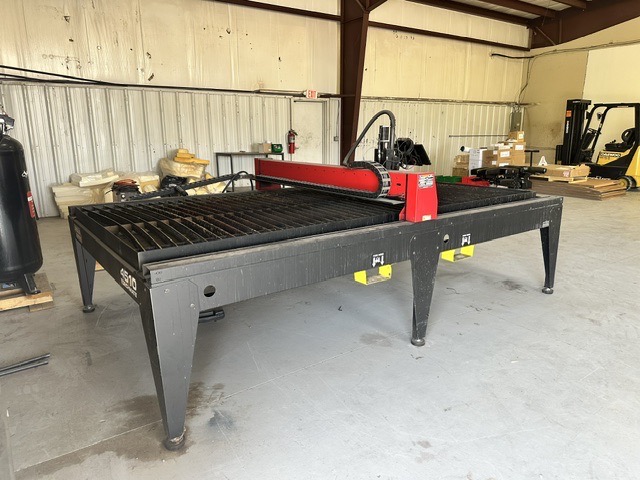

5′ x 10′ Lincoln Electric Torchmate 4510 CNC Plasma Cutting System, 2023 – Flexcut 80

The 2023 Lincoln Electric Torchmate 4510 with a FlexCut 80 plasma source is a 5′ x 10′ conventional CNC plasma cutting system built for light industrial fabrication and prototyping

Table: 5′ x 10″

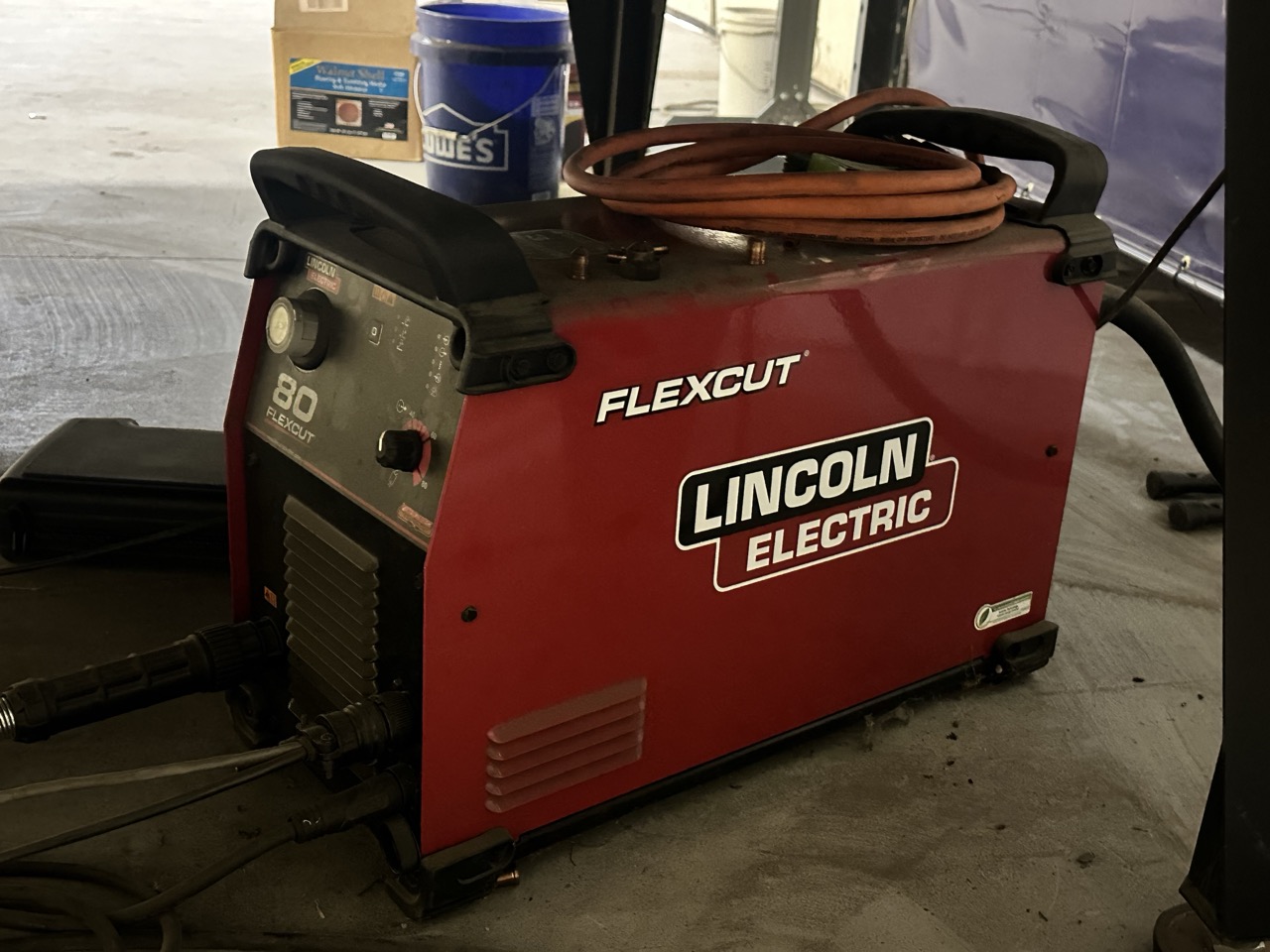

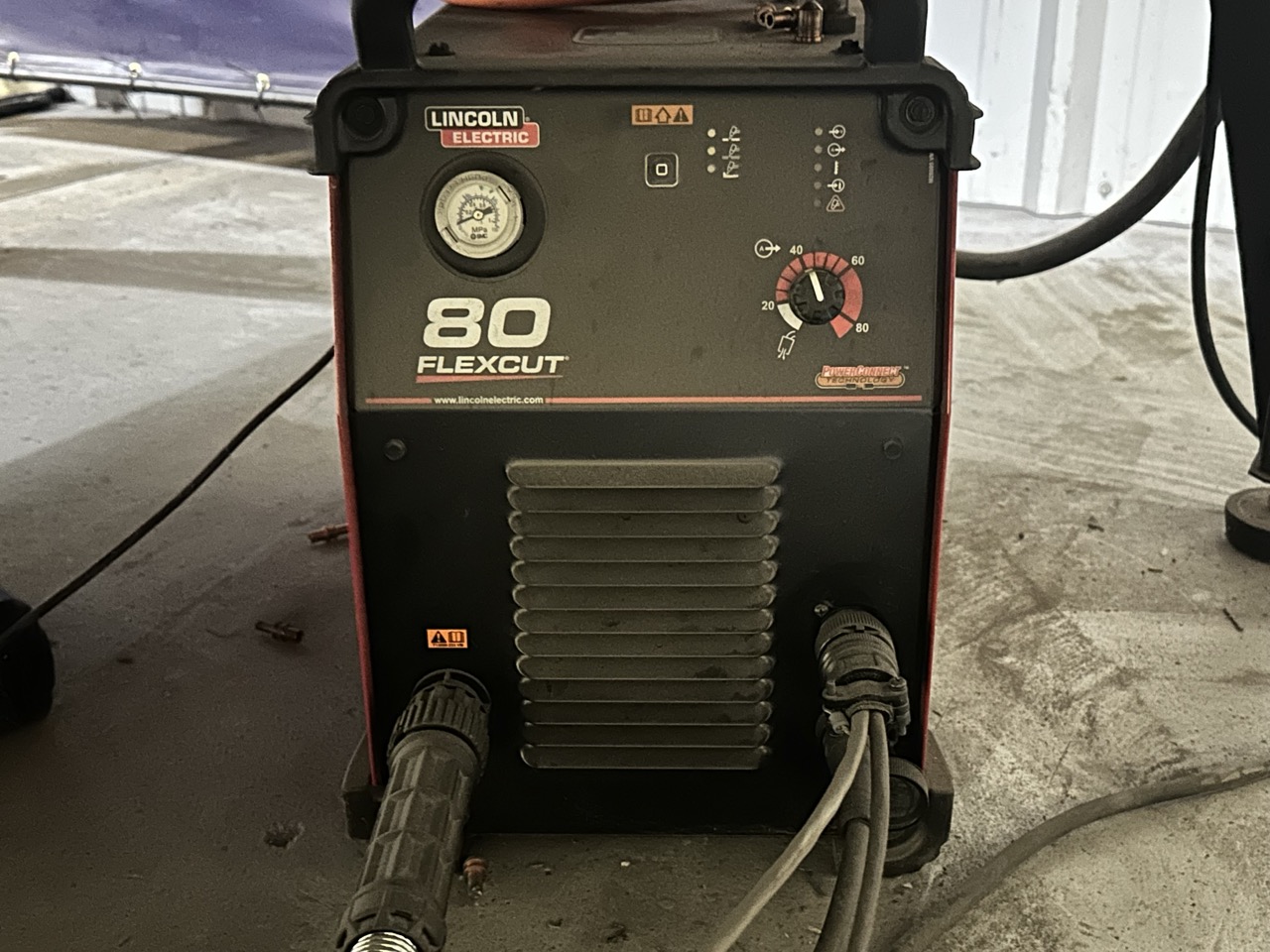

Power Supply: Flexcut 80
Dual X and Y Axis
Water Capacity: 140 Gallons
Max. Table Capacity: 2,040 lbs (40.8 lbs /sqft)
Max. Plasma Pierce Capacity: 1″ Mild Steel, Aluminum / 0.75″ Stainless
Cut Speeds:
– 0.25″: 210 IPM
– 0.5″: 88 IPM
– 0.75″: 52 IPM
– 1″: 32 IPM
