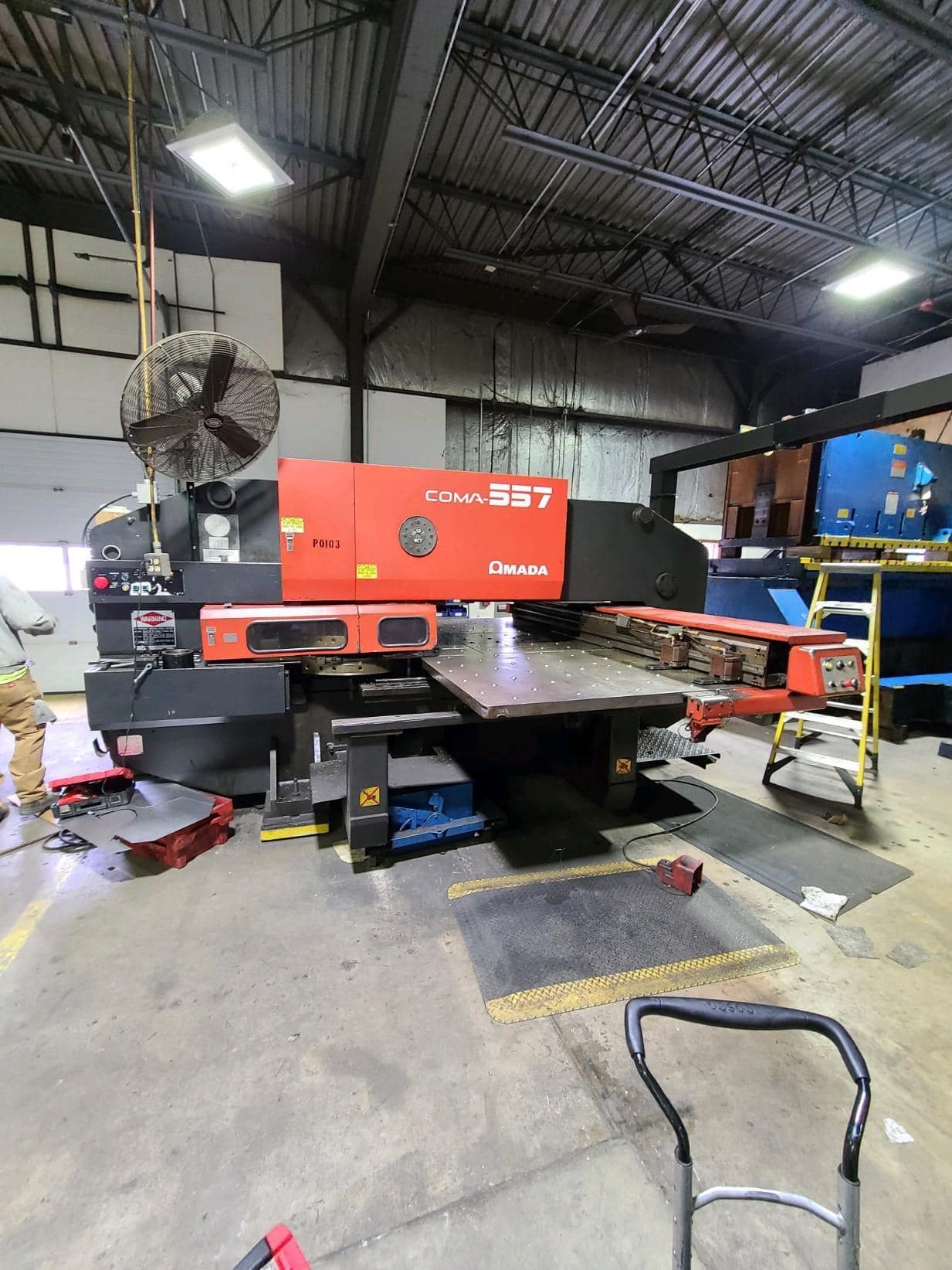

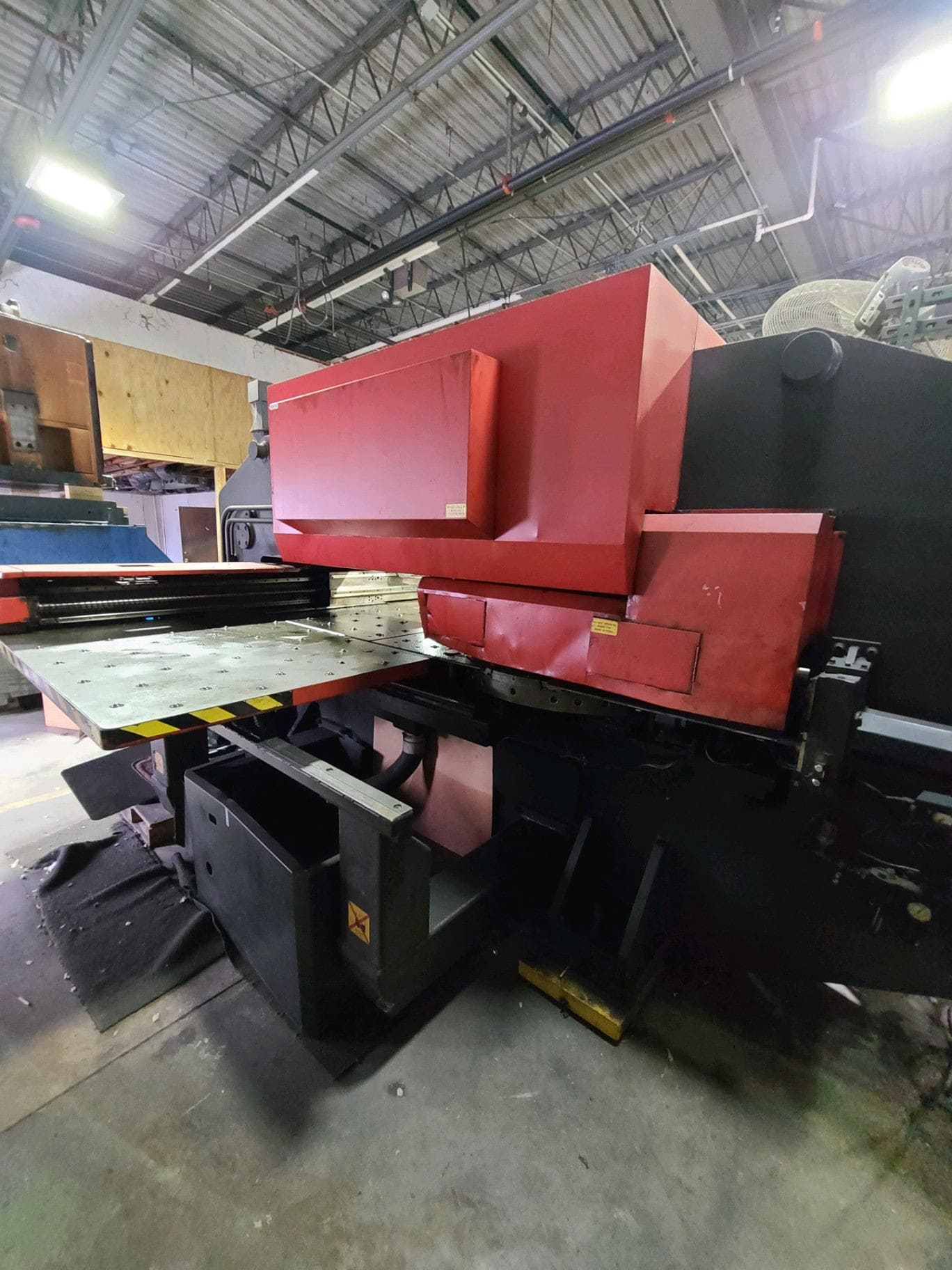

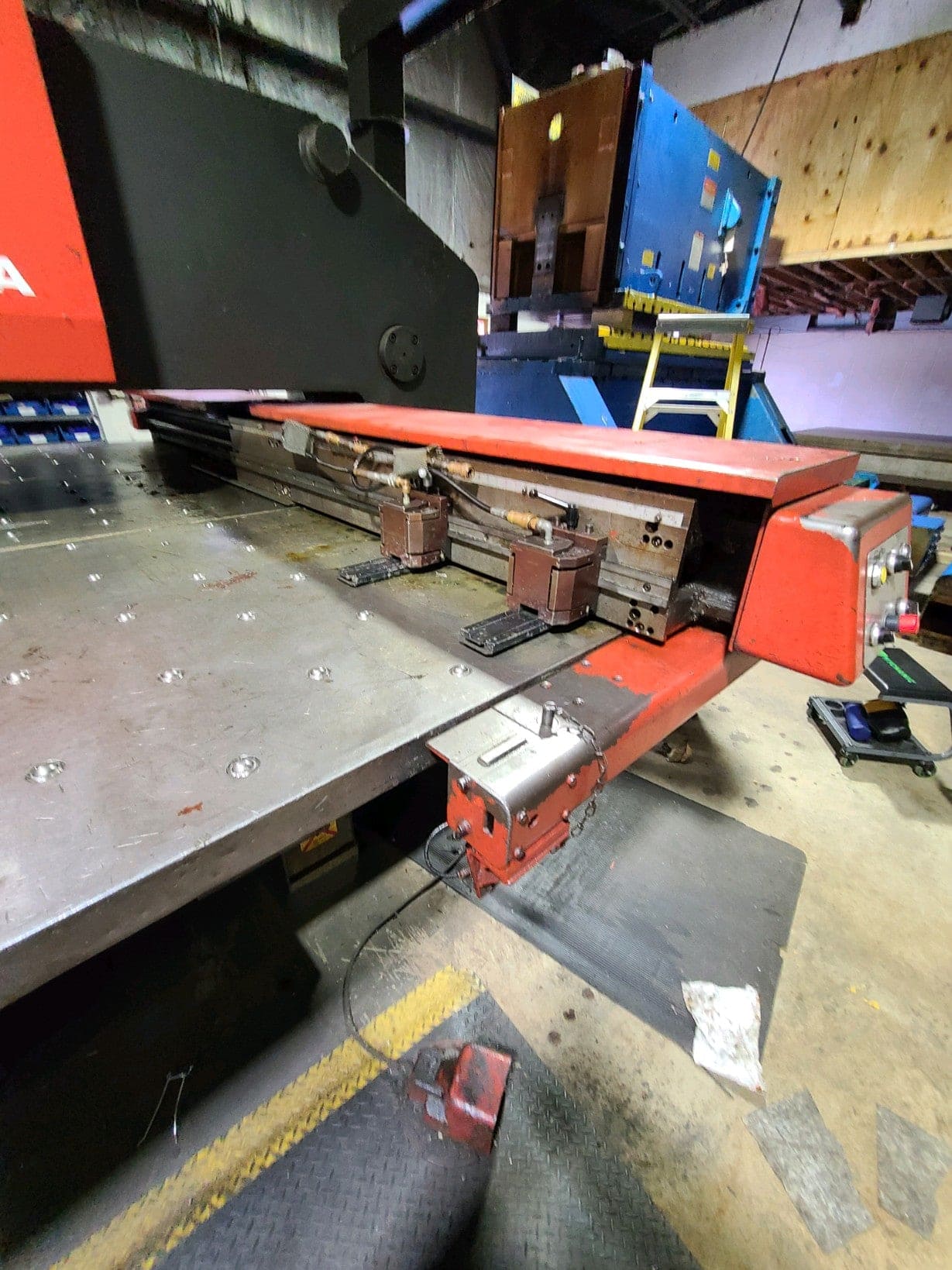

55 Ton Amada Coma 557 CNC Turret Punch, 1991
$50,400.00
This specific product is no longer available, however we may have other similar or identical products in stock. Please utilize our search function at the top of the page to check and confirm, or fill out the form below:
Punching force: 55 Ton
Auto Index: 2 Stations
Machine Frame: Bridge Frame
Hit Rate with 25mm Pitch: 200 per minute
Tool Stations: 44
Punching Drive: Eccentric Drive
Working Range (X x Y): 50″ x 72″
Maximum hit rate: 300 per minute

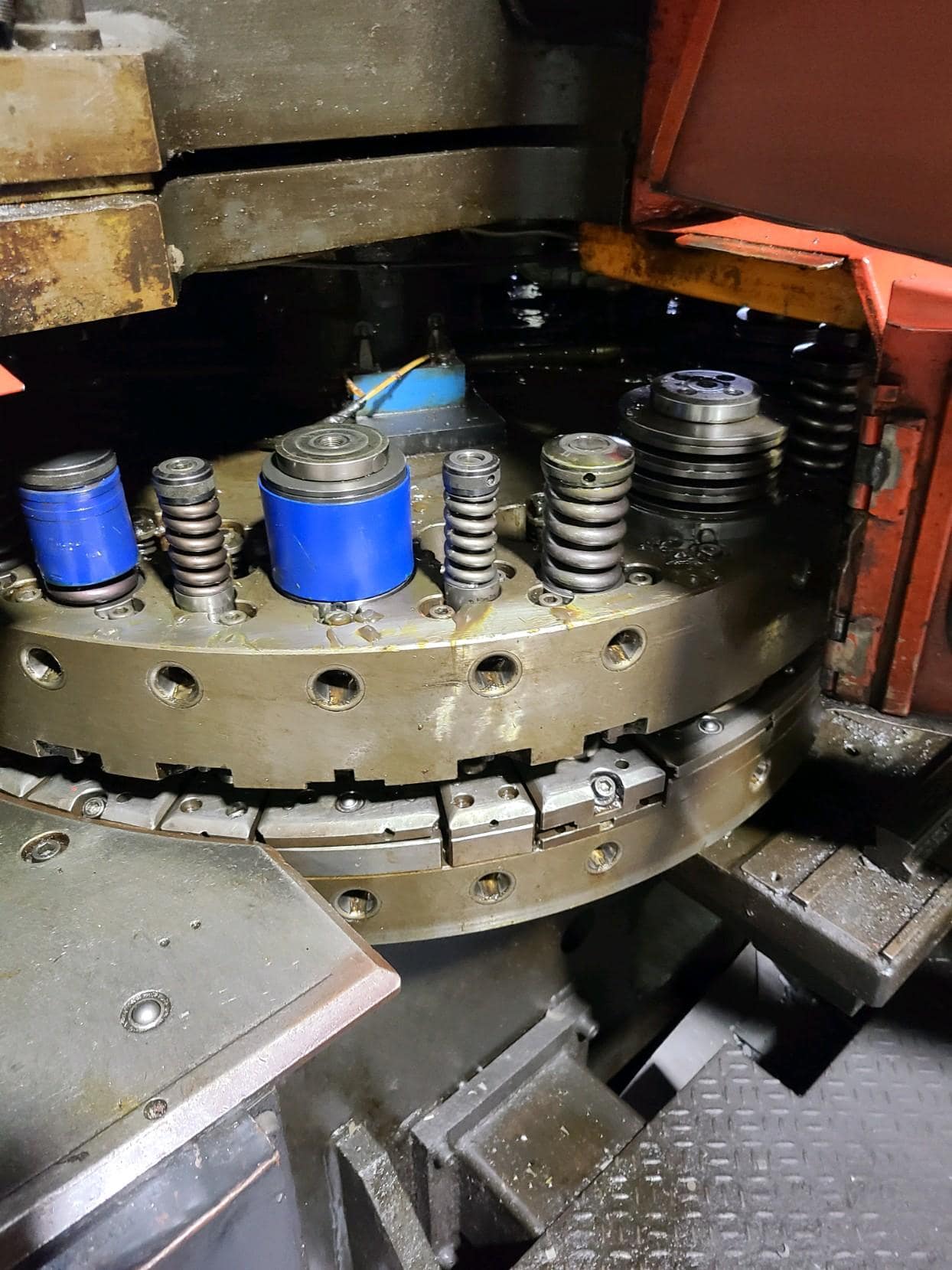

Tooling system: Turret magazine
Approx. Height: 86 1/2″
Approx. Width: 148″
Approx. Weight: 37, 500 lbs
Equipped with:

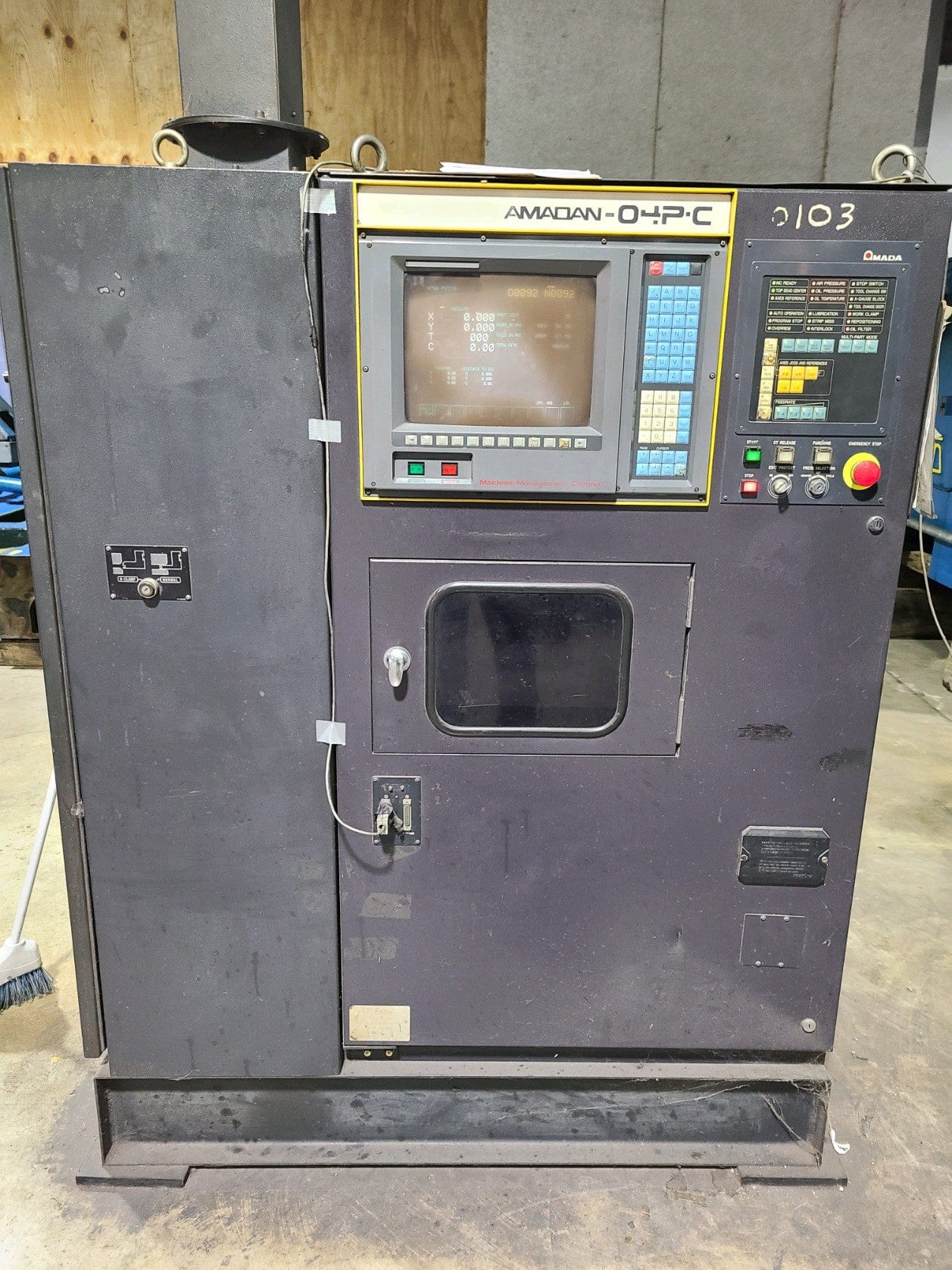

AMADAN-04 PC CNC Control

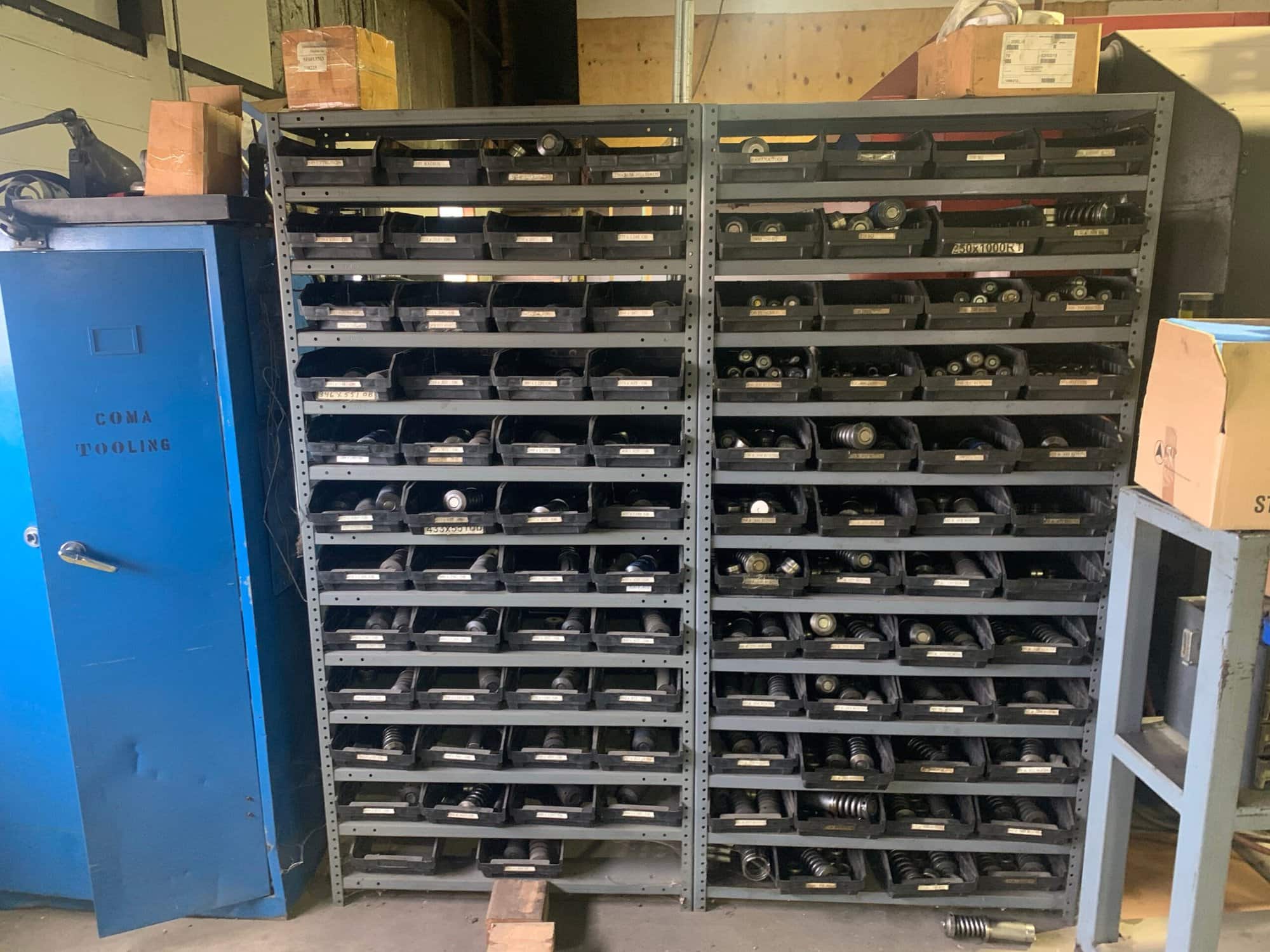

Tooling Included
