6,000 Watt Bystronic BySmart 3015 Fiber Laser, 2019 – 5′ x 10′ Bed, Available Now

Name: 6,000 Watt Bystronic BySmart 3015 Fiber Laser, 2019 - 5' x 10' Bed, Available Now
SKU: 56163417469

$199,900.00

6,000 Watt Bystronic BySmart 3015 Fiber Laser, 2019 - 5' x 10' Bed, Available Now - Image 2

6,000 Watt Bystronic BySmart 3015 Fiber Laser, 2019 - 5' x 10' Bed, Available Now - Image 3

6,000 Watt Bystronic BySmart 3015 Fiber Laser, 2019 - 5' x 10' Bed, Available Now - Image 4

6,000 Watt Bystronic BySmart 3015 Fiber Laser, 2019 - 5' x 10' Bed, Available Now - Image 5

6,000 Watt Bystronic BySmart 3015 Fiber Laser, 2019 - 5' x 10' Bed, Available Now - Image 6

6,000 Watt Bystronic BySmart 3015 Fiber Laser, 2019 - 5' x 10' Bed, Available Now - Image 7

6,000 Watt Bystronic BySmart 3015 Fiber Laser, 2019 - 5' x 10' Bed, Available Now - Image 8

6,000 Watt Bystronic BySmart 3015 Fiber Laser, 2019 - 5' x 10' Bed, Available Now - Image 9

6,000 Watt Bystronic BySmart 3015 Fiber Laser, 2019 - 5' x 10' Bed, Available Now - Image 10

6,000 Watt Bystronic BySmart 3015 Fiber Laser, 2019 - 5' x 10' Bed, Available Now - Image 11

6,000 Watt Bystronic BySmart 3015 Fiber Laser, 2019 - 5' x 10' Bed, Available Now - Image 12

6,000 Watt Bystronic BySmart 3015 Fiber Laser, 2019 - 5' x 10' Bed, Available Now - Image 13

6,000 Watt Bystronic BySmart 3015 Fiber Laser, 2019 - 5' x 10' Bed, Available Now - Image 14

6,000 Watt Bystronic BySmart 3015 Fiber Laser, 2019 - 5' x 10' Bed, Available Now - Image 15

6,000 Watt Bystronic BySmart 3015 Fiber Laser, 2019 - 5' x 10' Bed, Available Now - Image 16

6,000 Watt Bystronic BySmart 3015 Fiber Laser, 2019 - 5' x 10' Bed, Available Now - Image 17

6,000 Watt Bystronic BySmart 3015 Fiber Laser, 2019 - 5' x 10' Bed, Available Now - Image 18

6,000 Watt Bystronic BySmart 3015 Fiber Laser, 2019 - 5' x 10' Bed, Available Now - Image 19

6,000 Watt Bystronic BySmart 3015 Fiber Laser, 2019 - 5' x 10' Bed, Available Now - Image 20

Request a Quote to Instantly See Pricing

Call Now

Machine Type: Fiber Lasers
Make: Bystronic
Model: BySmart Fiber 3015
Year: 2018
Capacity: 6000 Watt
Machine Location: Upon Request
Stock #: 417469

Laser Power: 6000 W
Nominal Sheet Size: 5 ft × 10 ft (60″ × 120″)
Cutting Area X Axis: 122.28″
Cutting Area Y Axis: 62.28″
Cutting Area Z Axis: 3.937″
Maximum Cutting Thickness Steel: 0.984″
Maximum Cutting Thickness Stainless Steel: 1.18″
Maximum Cutting Thickness Aluminum: 1.18″
Maximum Cutting Thickness Brass: 0.59″
Maximum Cutting Thickness Copper: 0.47″
X Axis Maximum Positioning Speed: 3,937 IPM
Simultaneous Positioning Speed: 5,511 IPM
Positioning Accuracy: ±0.004″
Maximum Workpiece Weight: 2,425 lbs
Machine Dimensions: 413″ × 272″ × 113″
Total Electric Consumption: 17 kW

Equipped With

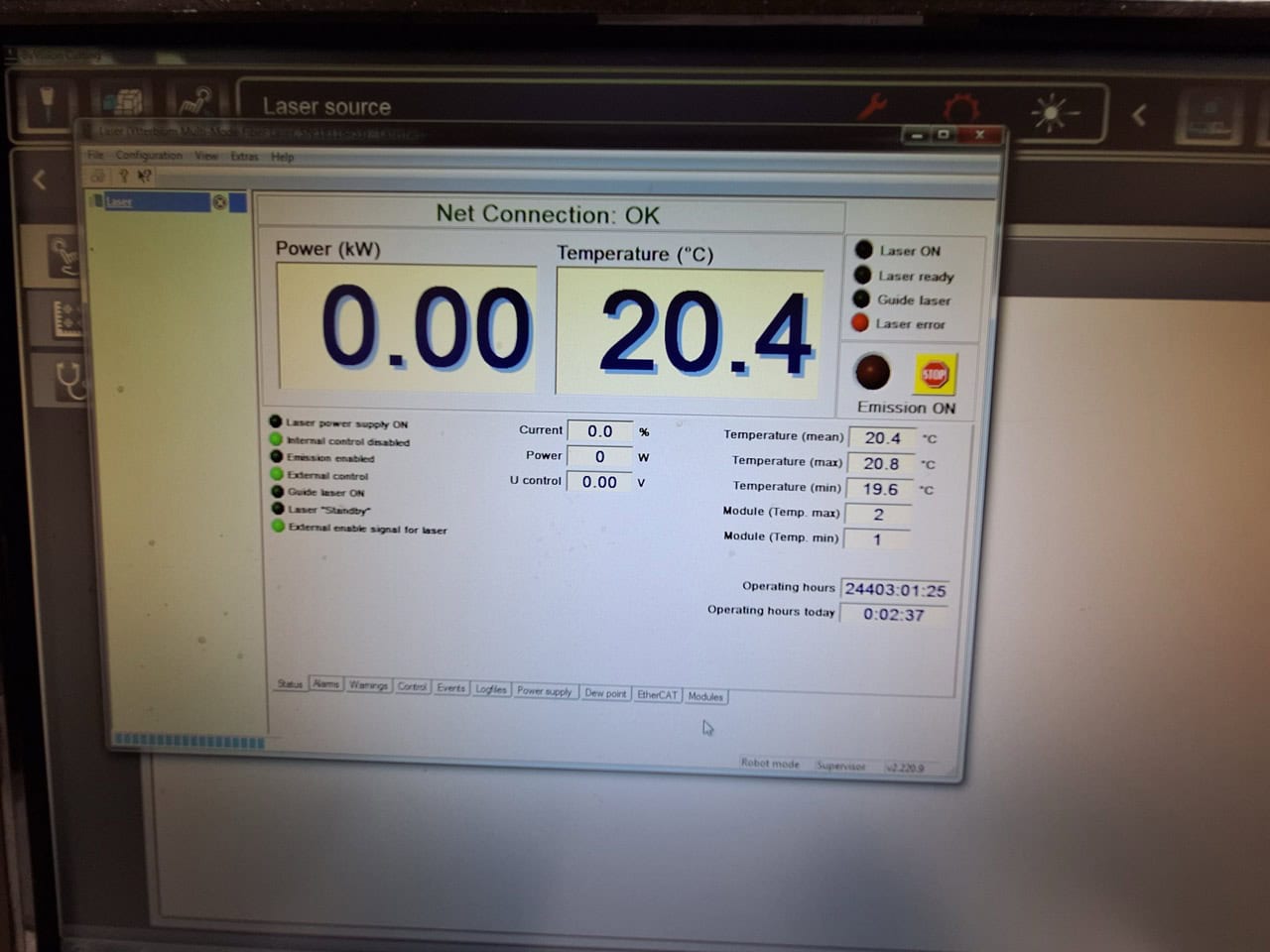

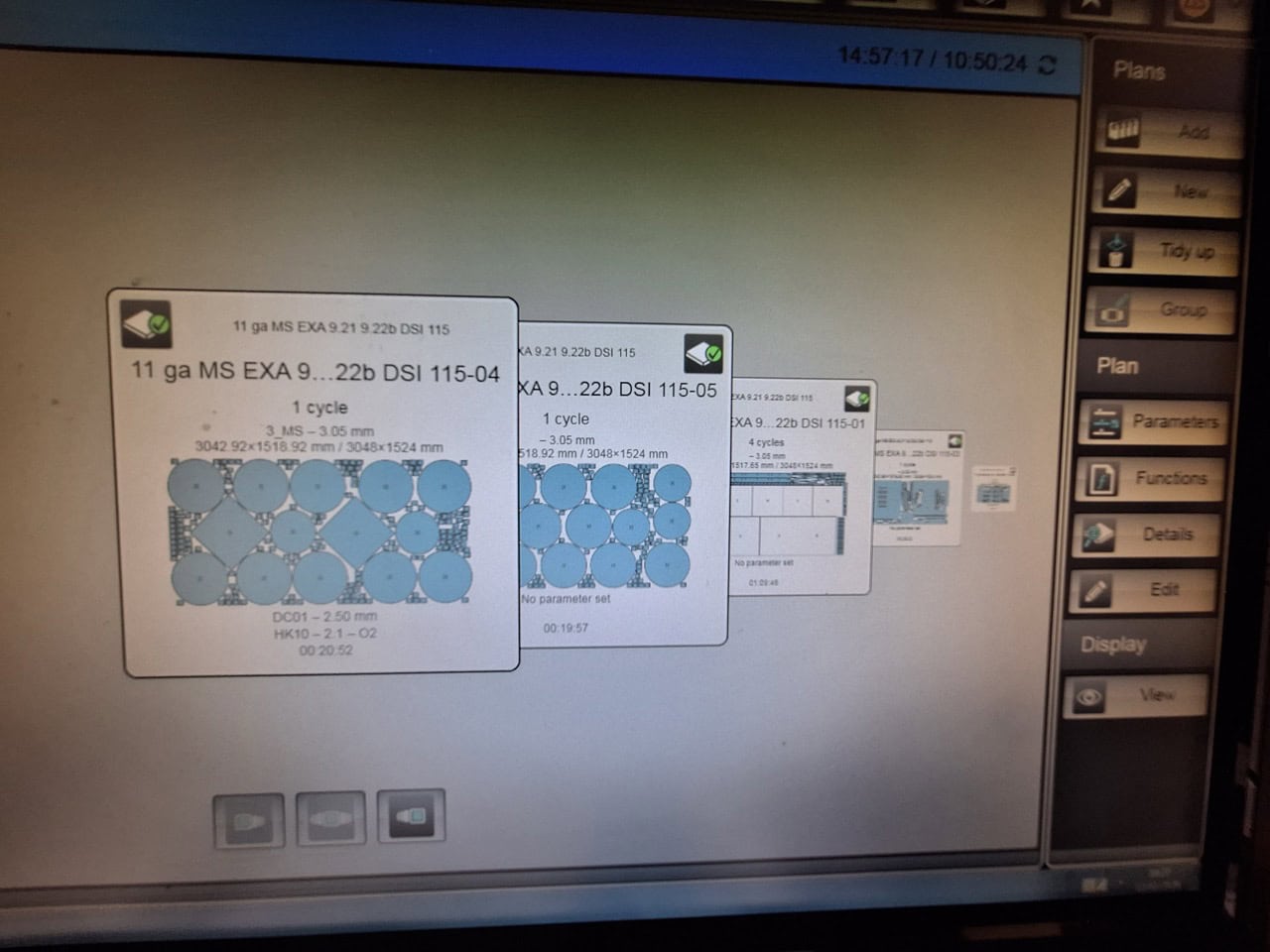

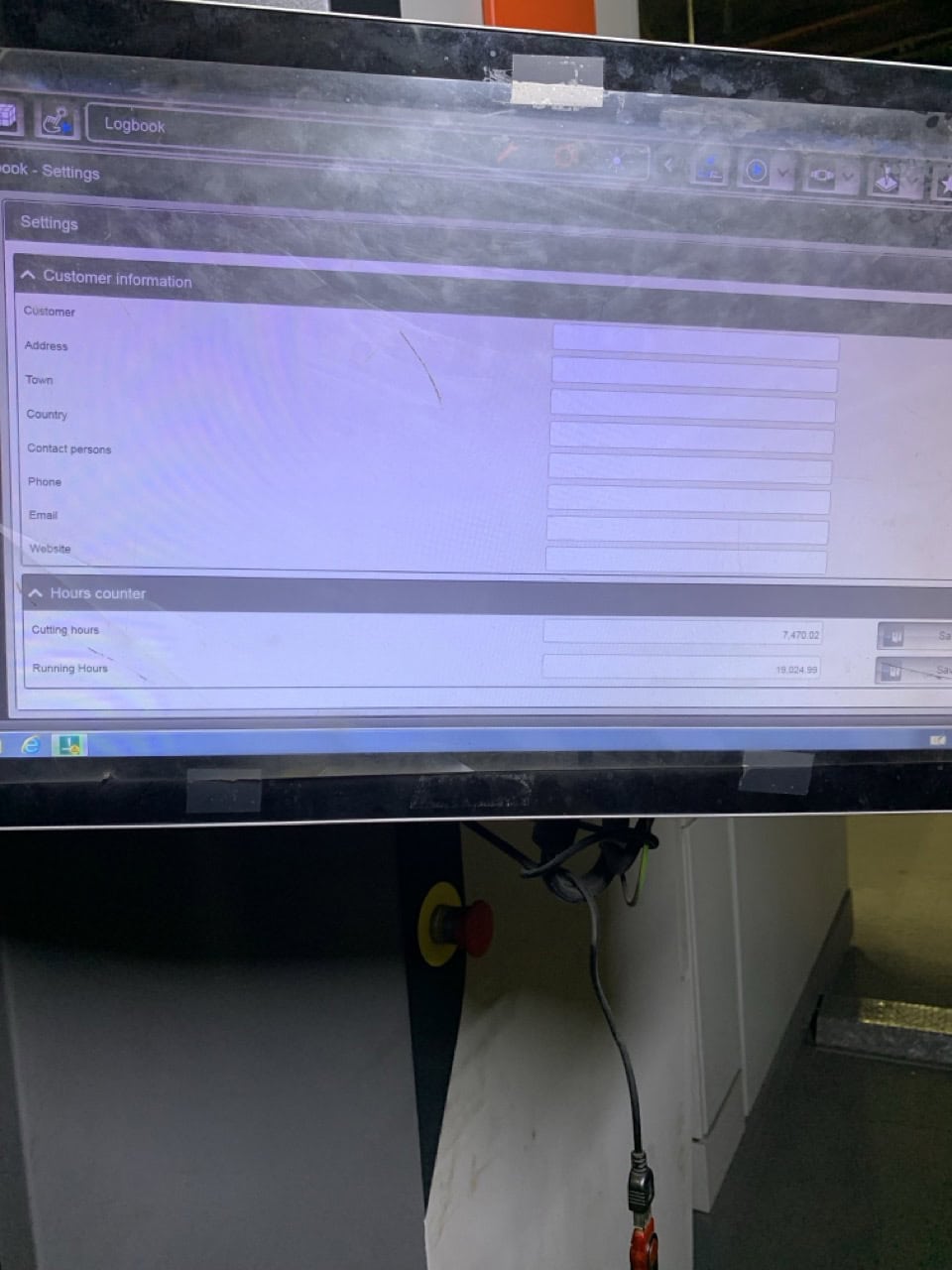

Bystronic ByVision Touchscreen CNC Control

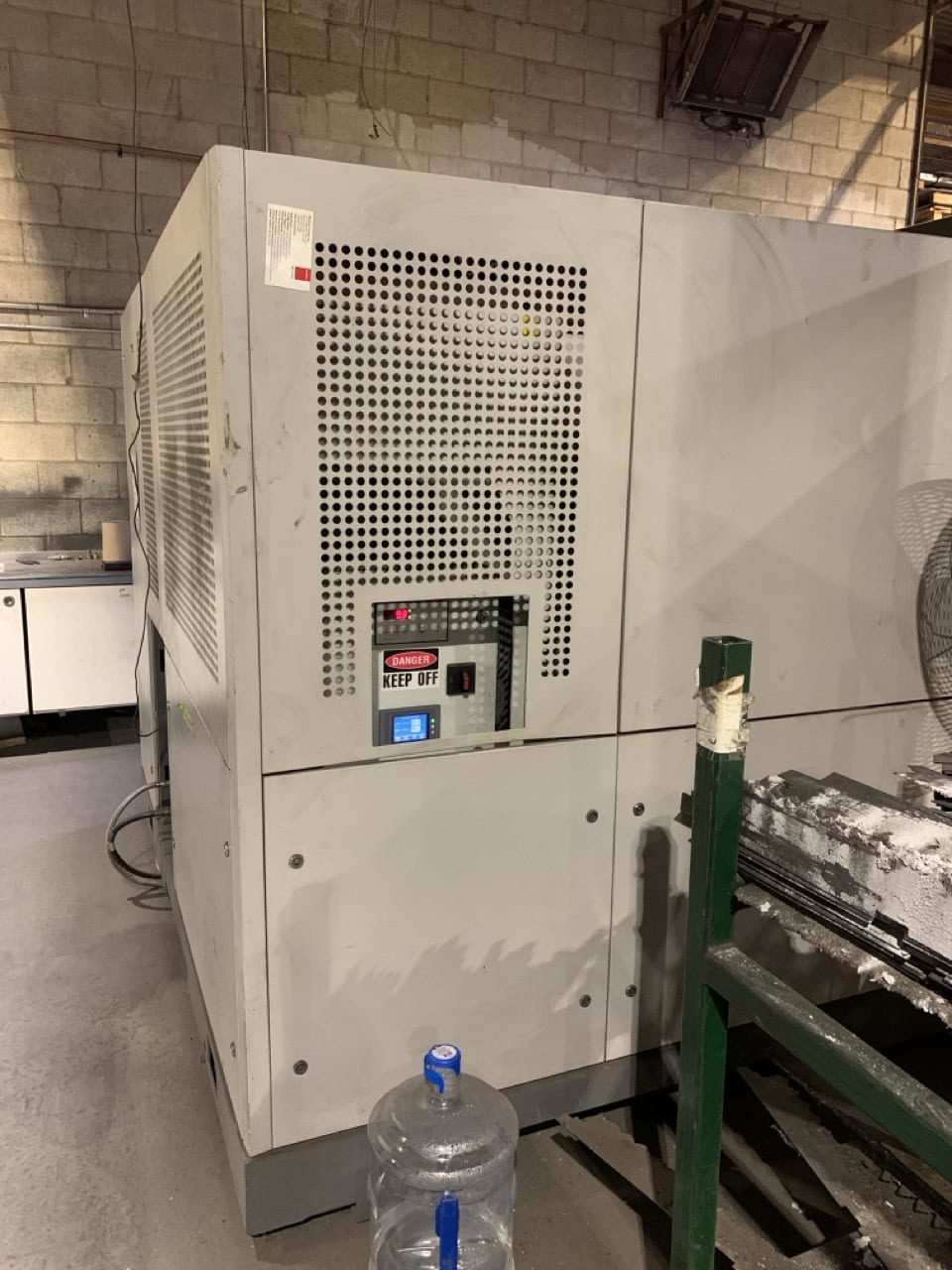

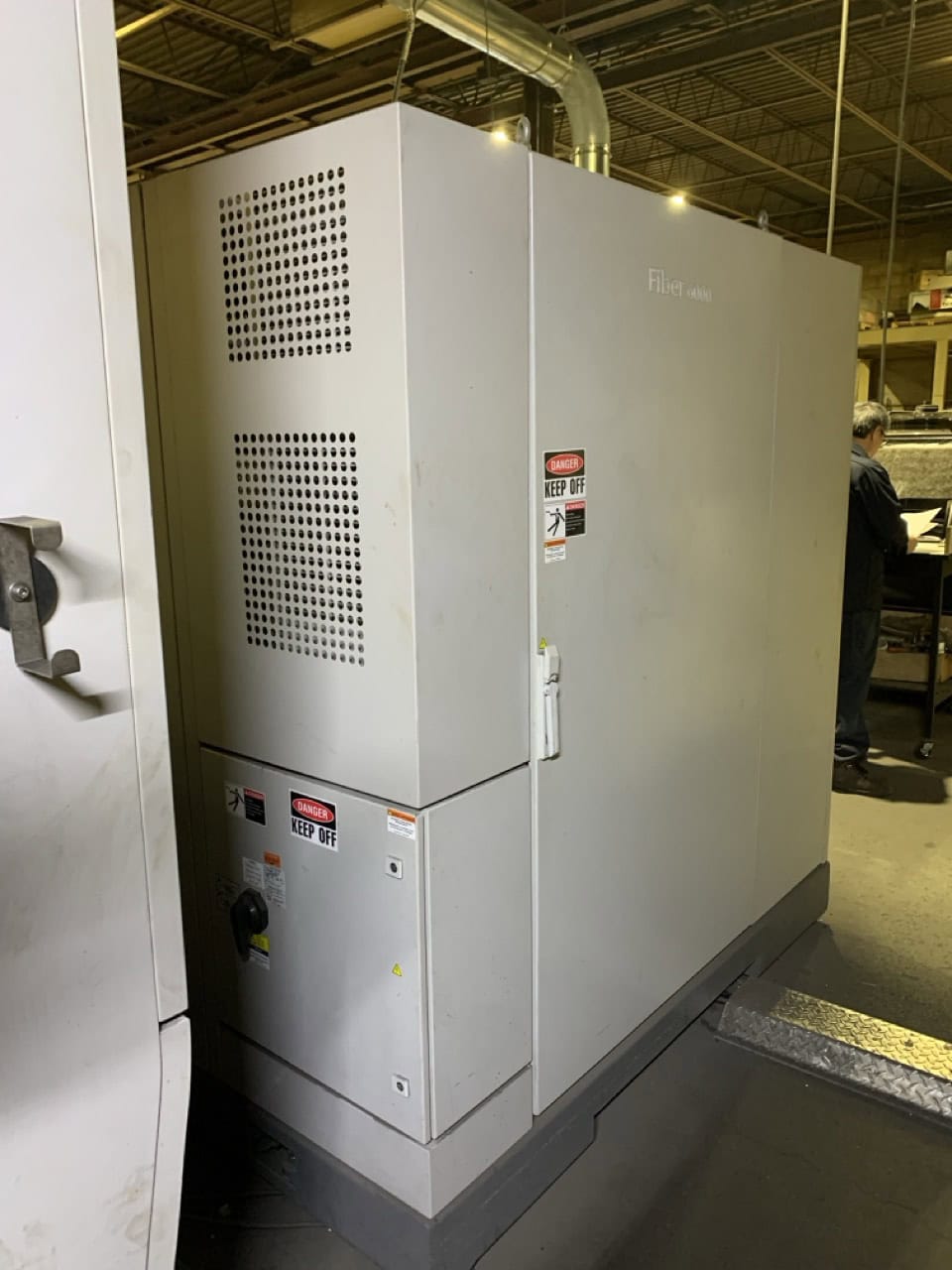

Fiber 6000 Laser Source

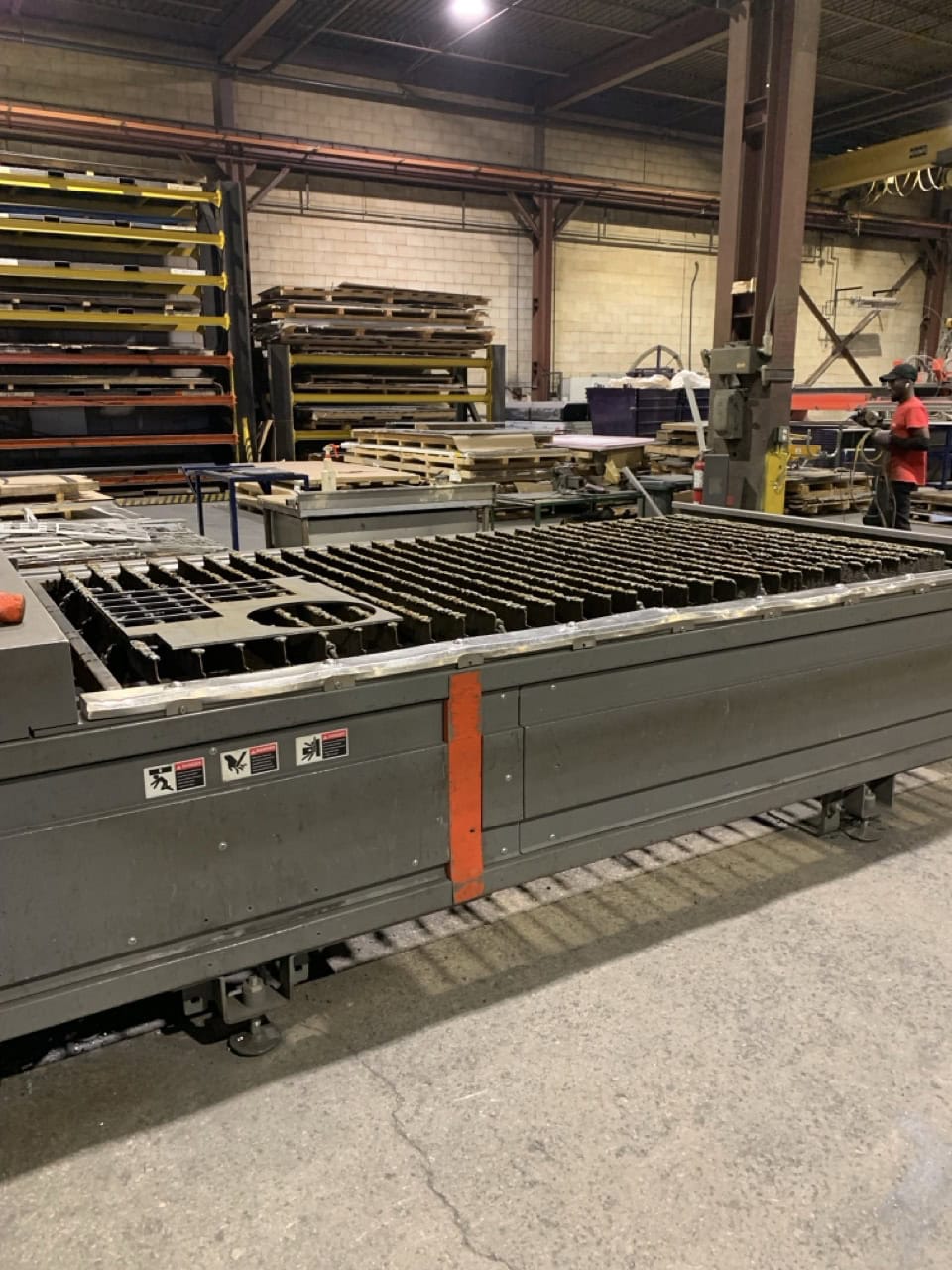

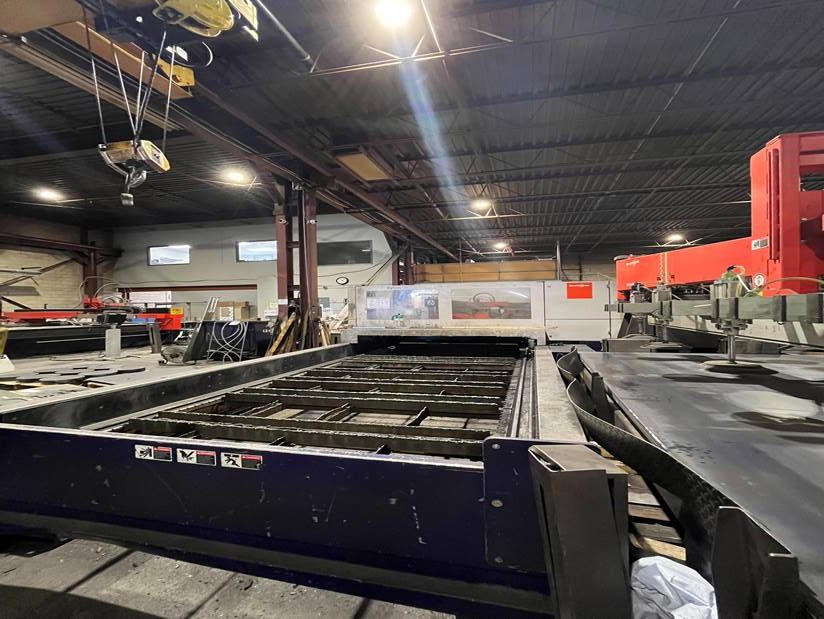

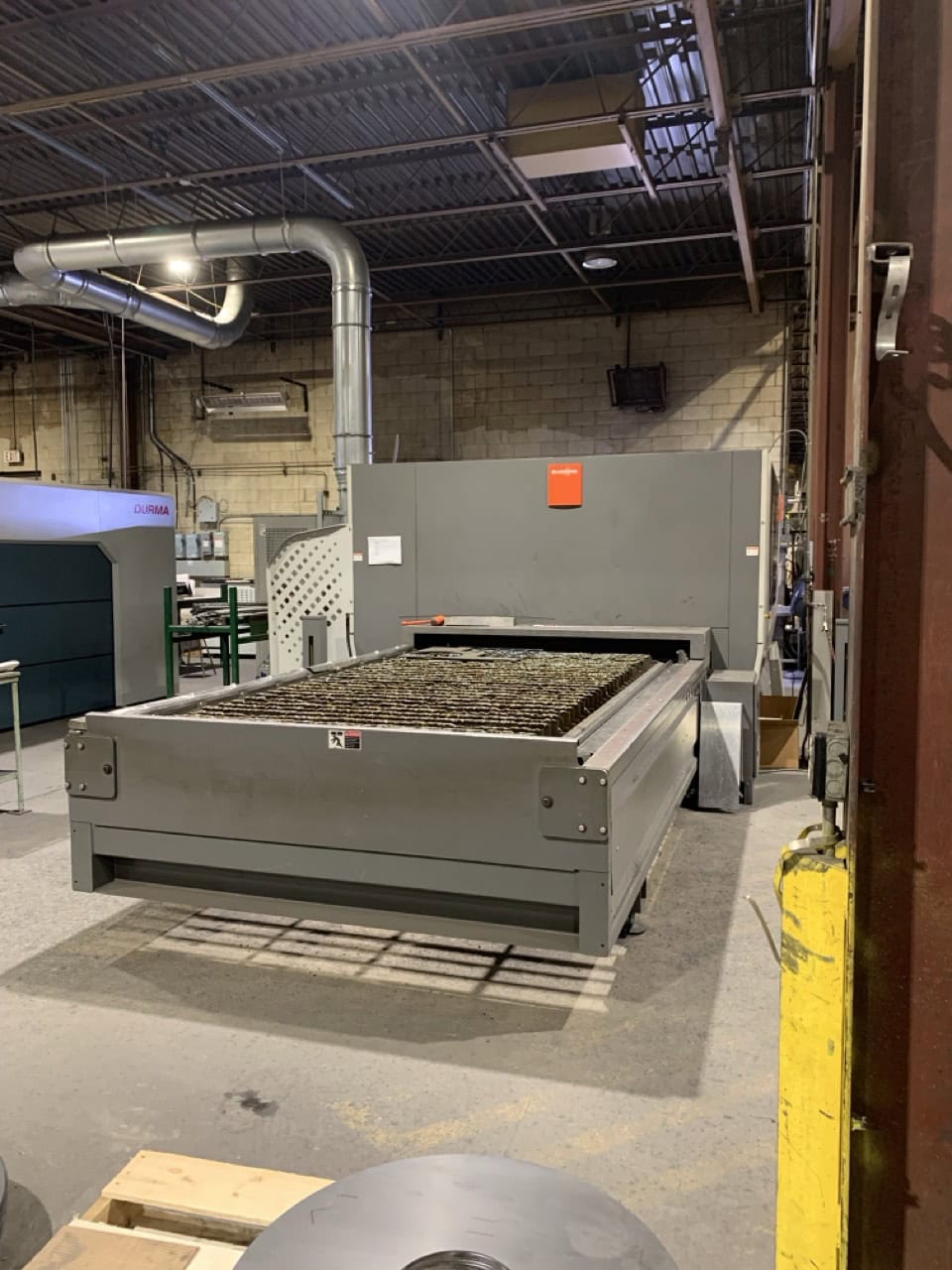

Automatic Pallet Shuttle Table
All Available Manuals

Dust Collection Available Separately

All specifications are assumed to be correct but must be confirmed by the purchasing entity.
