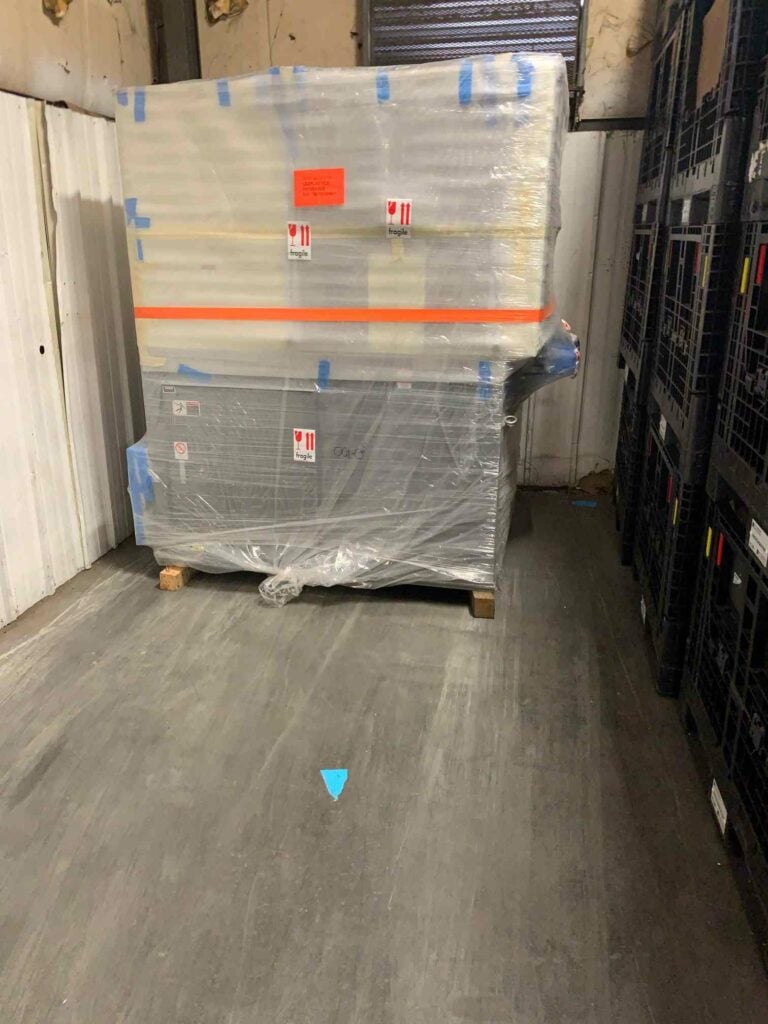

70 Ton 1.65 Oz Nissei TH70EIII-5VE Vertical Electric Injection Molding Machine, 2021 – Never Used Still In Crate
$149,900.00
Machine Type: Injection Molding Machines
Make: Nissei
Model: TH70EIII-5VE
Year: 2021
Machine Location: Upon Request
Stock #: 802910
Capacity: 70 Ton
Shot Size: 1.65 oz
Screw Diameter: 1.02″
Clamping Force: 80 Tons
Clamping Stroke: 9.84″
Mold Thickness: 9.06″/13.78″ (min/max)
Maximum Daylight Opening: 23.62″
Tie Bar Clearance: 16.5″ x 16.5″
Controller: TACT 12.1″ Color Liquid Crystal Screen
Electrical: 230V
Included: Mounting pads, interface for hoop automation with connector, cut both side acrylic safety door for hoop, daylight extension +3.94″, hardened screw, non-interlocking tip and barrel, special sequence for hoop molding with full auto sequence, hopper tube with material outlet, upper ejector, SPI robot interface
All specifications are assumed to be correct but must be confirmed by the purchasing entity.
