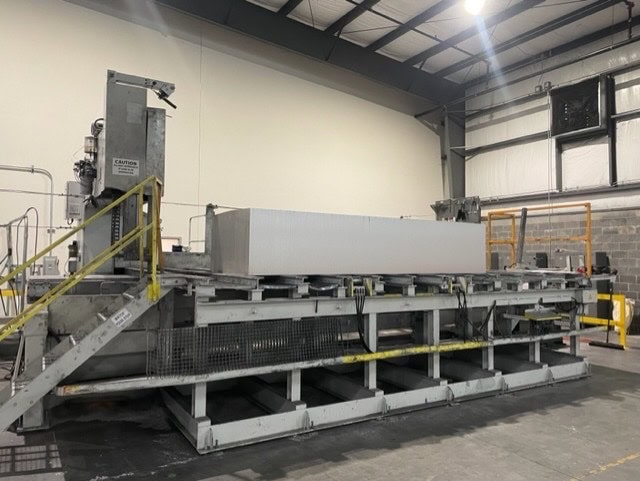

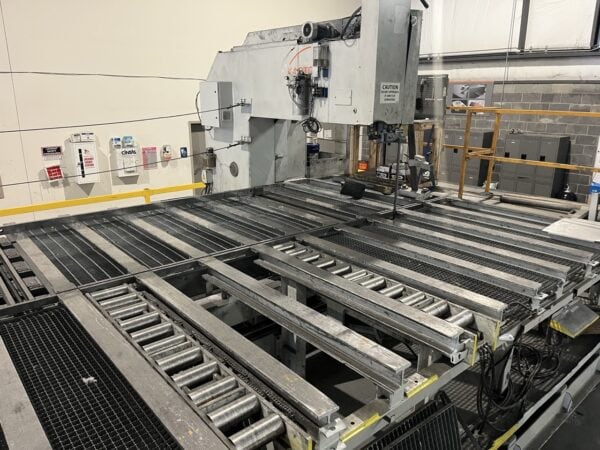

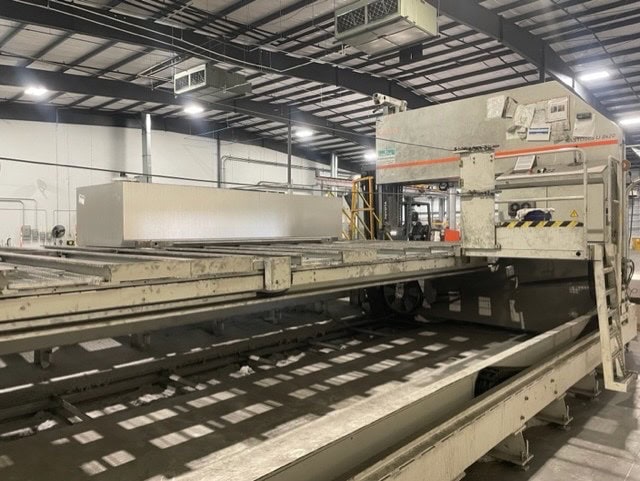

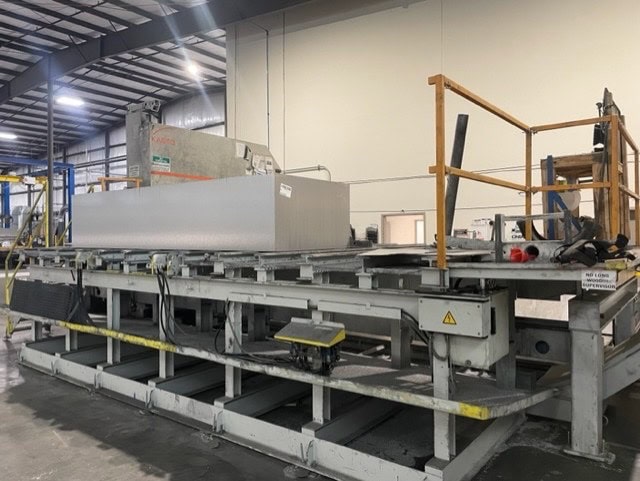

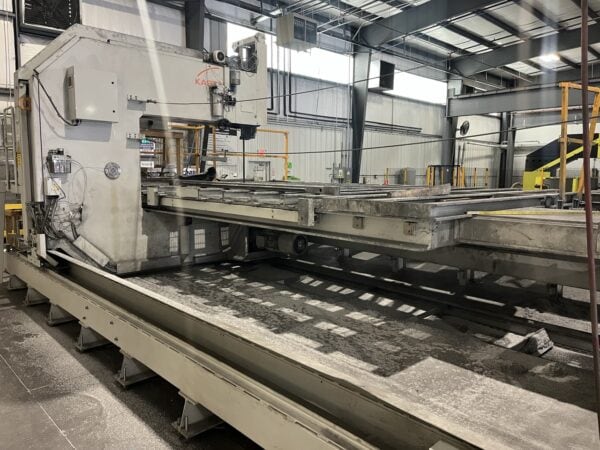

79″ x 220″ Kasto BBS U8x20 Semi-Automatic Vertical Bandsaw, 2016 – Infinitely Variable Bandsaw Blade Speed
$113,400.00
This specific product is no longer available, however we may have other similar or identical products in stock. Please utilize our search function at the top of the page to check and confirm, or fill out the form below:
Max cutting Thickness- 35″
Max cutting length- 220″
Smallest cut Width-.4″
Largest cut Width- 78.7″
Min/Max blade speed- 13-130m/min
Min/Max feed Rate- 0.7-270mm/min
Part adjustment roller capacity- 15tons
Power supply 440V/80A/60Hz
Standard Dimensions
Width when protective cover is Open: 288.4โ
Height without line laser unit: 155.9โ
Height with line laser unit: 179.5โ
Height of material; support table: 61.0โ
Cutting Ranges
Maximum cutting height
With band control: 33.9โ
Without bang control: 35.4โ
With pressure rollers: 30.7โ
Smallest cut-piece width: 0.4โ
Largest cut piece width
With electro motive measuring stop: 78.7โ
With manual measuring stop: 70.9โ
Without measuring stop: 81.1โ
Speeds
Cutting speed: 130-1300 m/min.
Feed rate: 0.7 – 270 mm/min
Saw Blade
Standard: 384โ x 2.1โ x 0.06โ
As an alternative: 384โ x 2.6โ x 0.06โ
Tooth set width: 0.1โ
Saw blade guide: Carbide
Saw blade back guide: Roller
Saw blade clamping: Hydraulic
Saw blade clamping pressure
With saw blade width 54 mm: 40
With saw blade width 67 mm: 67
Saw blade cleaning: Plastic brush
Measuring ranges for measuring stops
Manually movable
Range: 0 – 78.7โ
Motorized
Range (a): 0 – 66.5โ
Range (b): 12.2โ – 78.7โ
Drive capacity: 17.4โ
Saw motor: 10.1โ
Equipped with:
Infinitely Variable Bandsaw Blade Speed
Bi-Metal or Carbide Saw Blades
Semi-Automatic Operation
Vibration-Free Performance
Space-Saving Design
Set of Old flywheels
8 blades (Available for Extra Cost)
