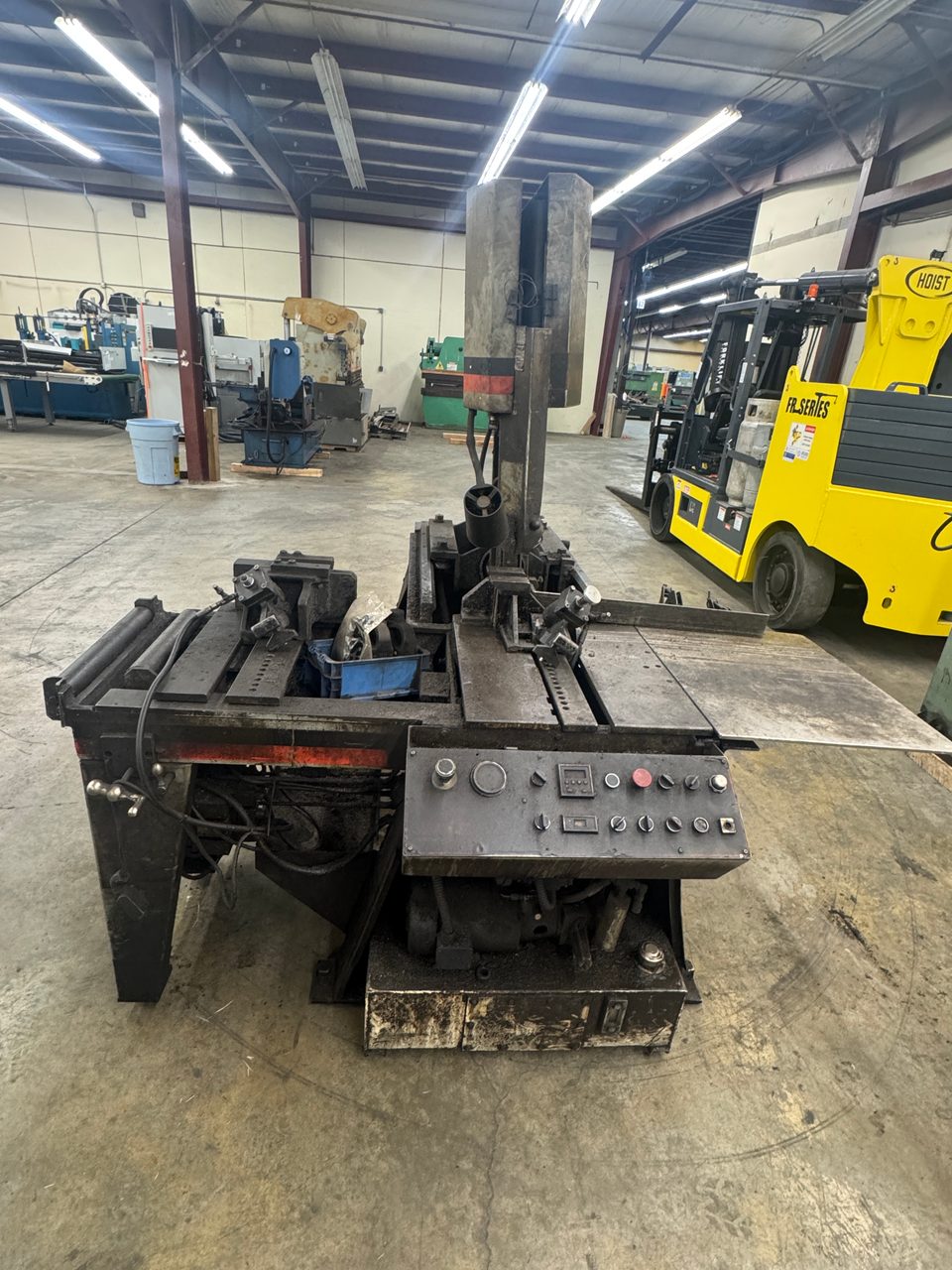

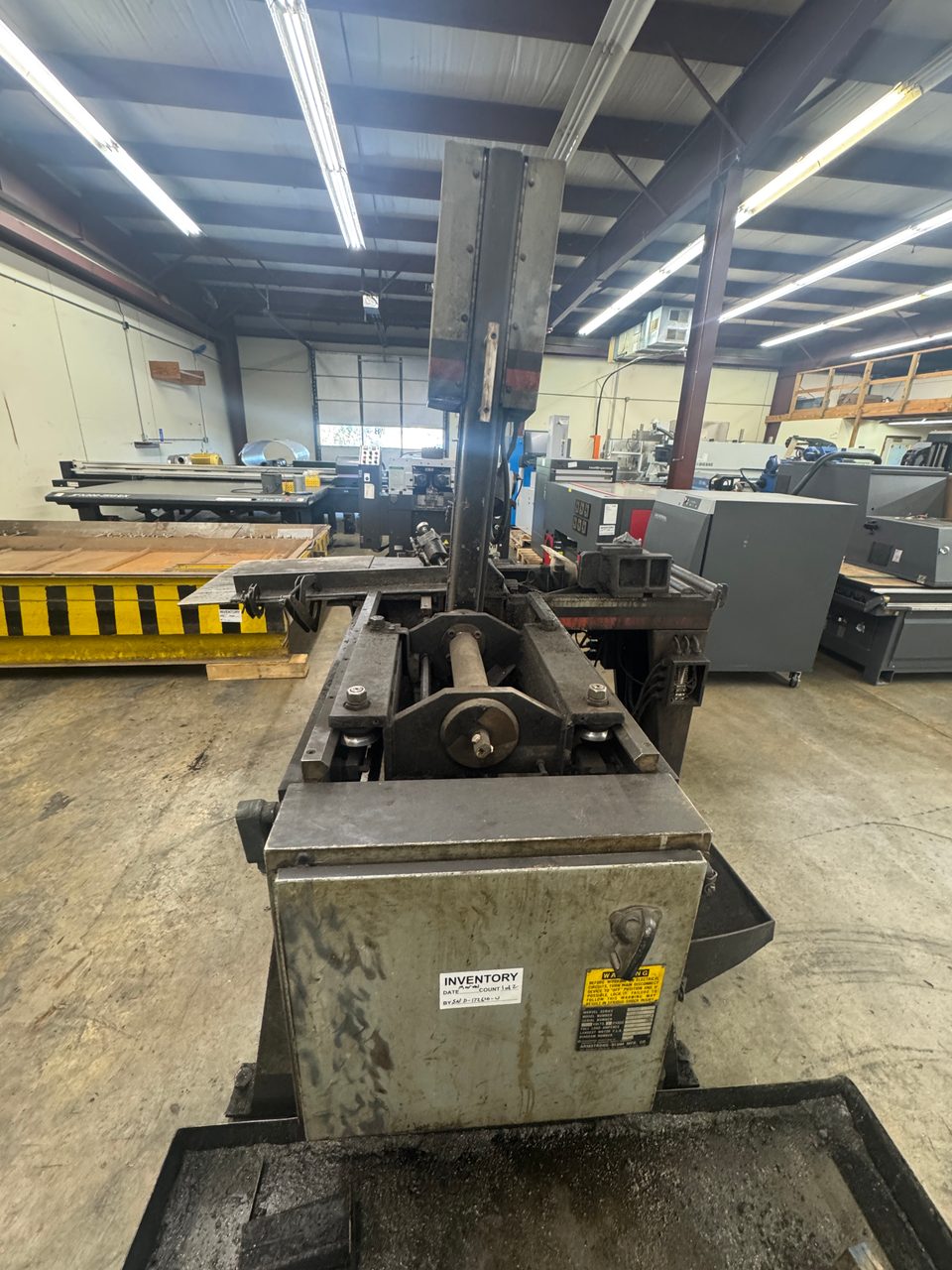

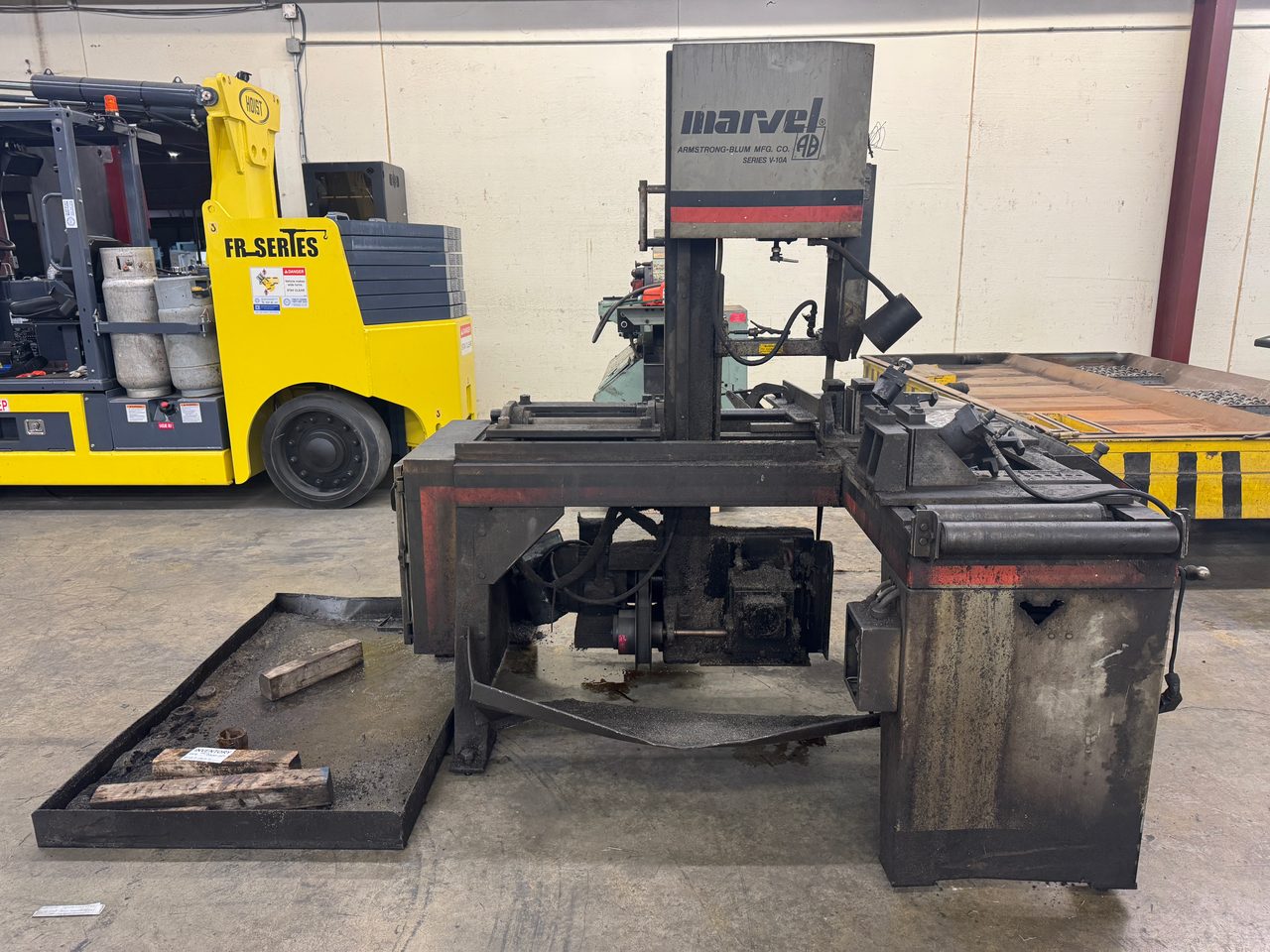

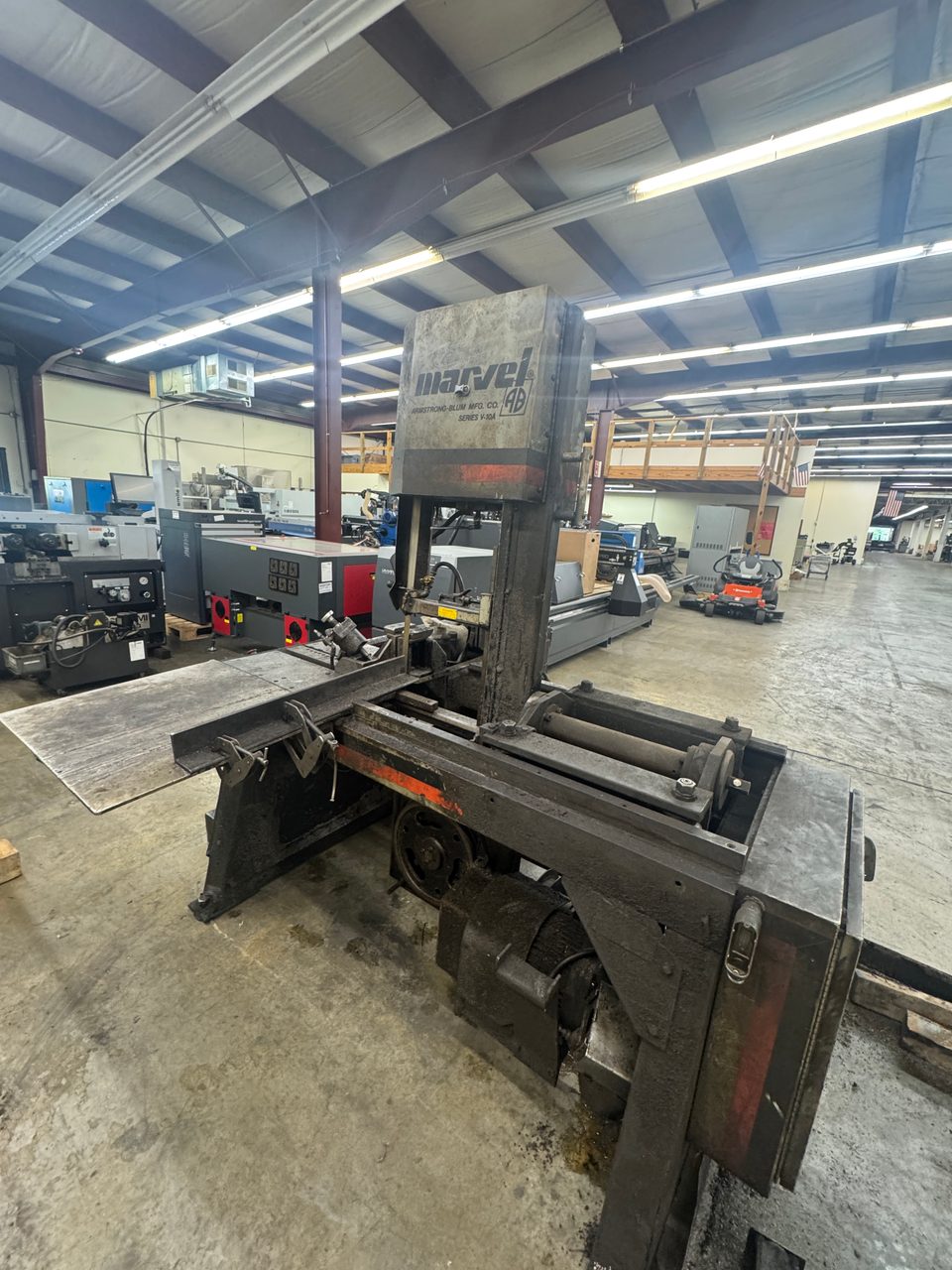

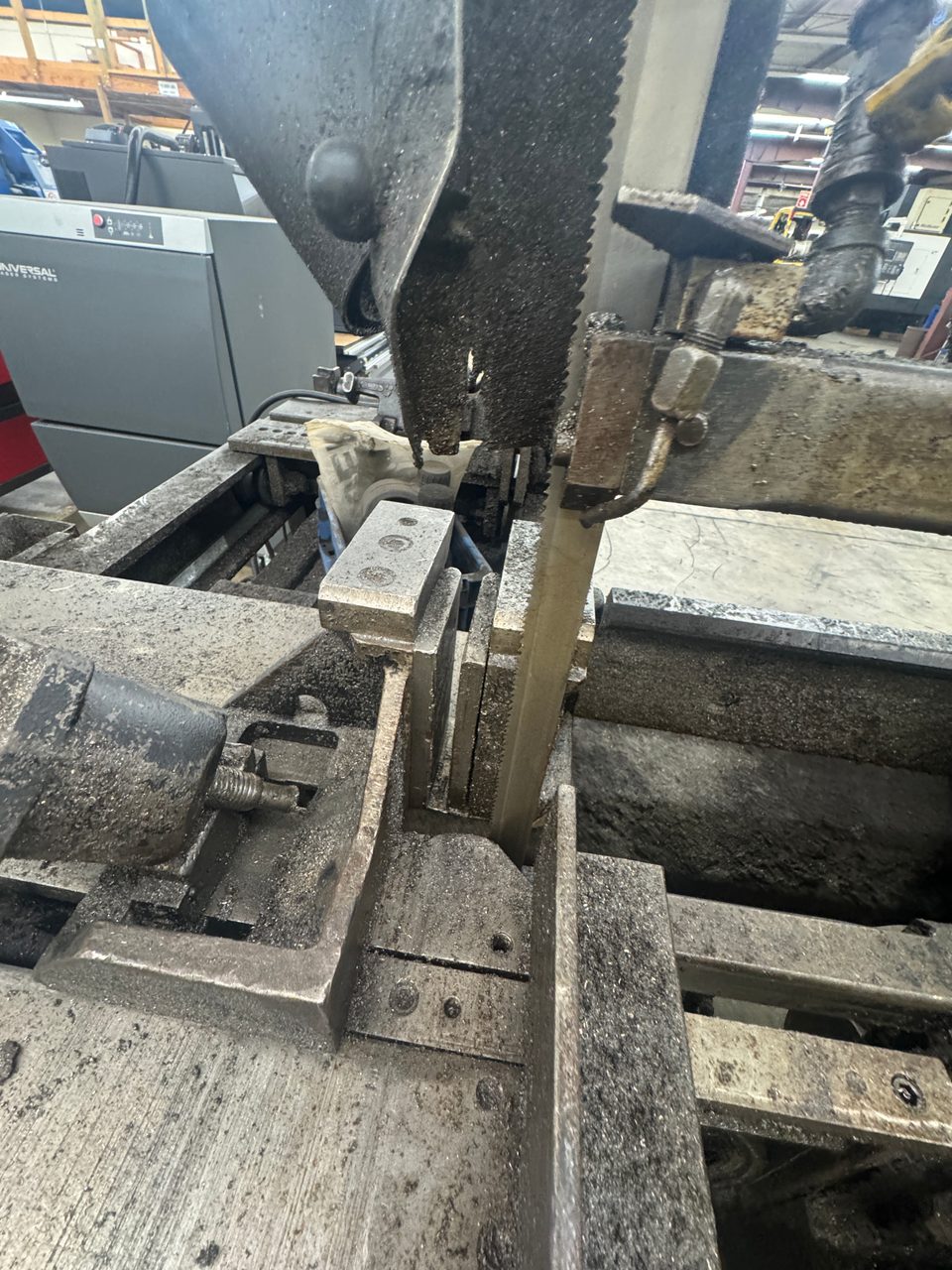

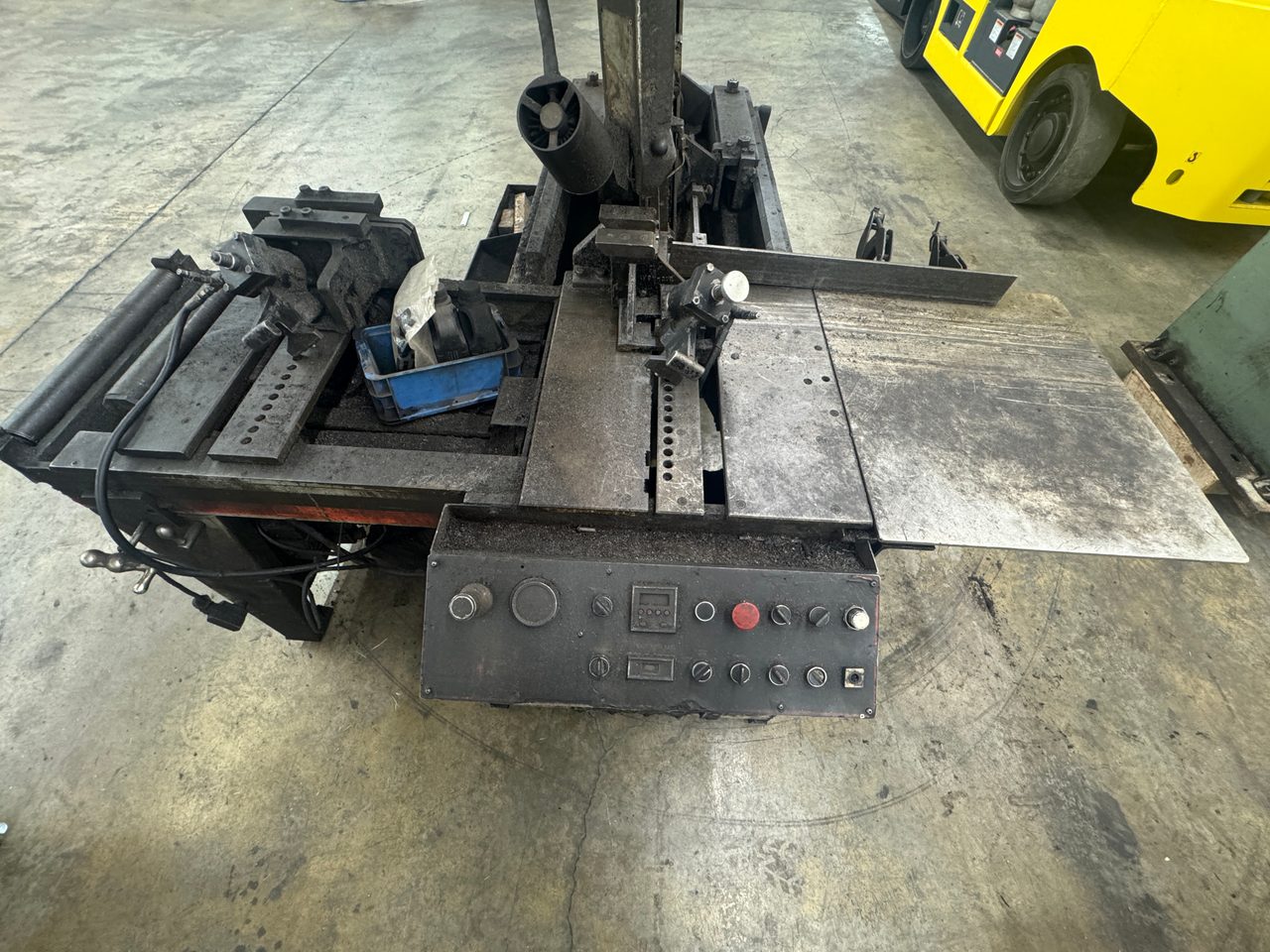

Marvel Series V-10A2 10″ X 10″ Automatic Vertical Band Saw

90° STRAIGHT CUT CAPACITY (ROUND): 10″
90° STRAIGHT CUT CAPACITY (FLAT/SQUARE): 10″ X 10″
45° MITRE CUT CAPACITY (ROUND): 7″
45° MITRE CUT CAPACITY (FLAT): 10″ X 7″
MAXIMUM VISE OPENING: 10.5″
VISE JAW HEIGHT: 6″
BLADE SIZE: 12′ 0″ X 1″ X 0.035″
BLADE SPEED RANGE: 60 – 400 FPM
BAND WHEEL DIAMETER: 15″
FEED PRESSURE RANGE: 0 – 250 LBS
MAIN BLADE DRIVE MOTOR: 3 HP
HYDRAULIC PUMP MOTOR: 1.5 HP
ELECTRICAL CONFIGURATION: 230V / 3-PHASE / 60HZ / 15.4 FLA
SHUTTLE TABLE LENGTH: 36″
SHUTTLE LOAD CAPACITY: 5,000 LBS MAX
SHUTTLE STROKE TRAVEL: 15″ MAX PER CYCLE
HYDRAULIC RESERVOIR CAPACITY: 10 GALLONS
DIMENSIONS (L X W X H): 90″ X 68″ X 82″
APPROXIMATE WEIGHT: 3,500 LBS
