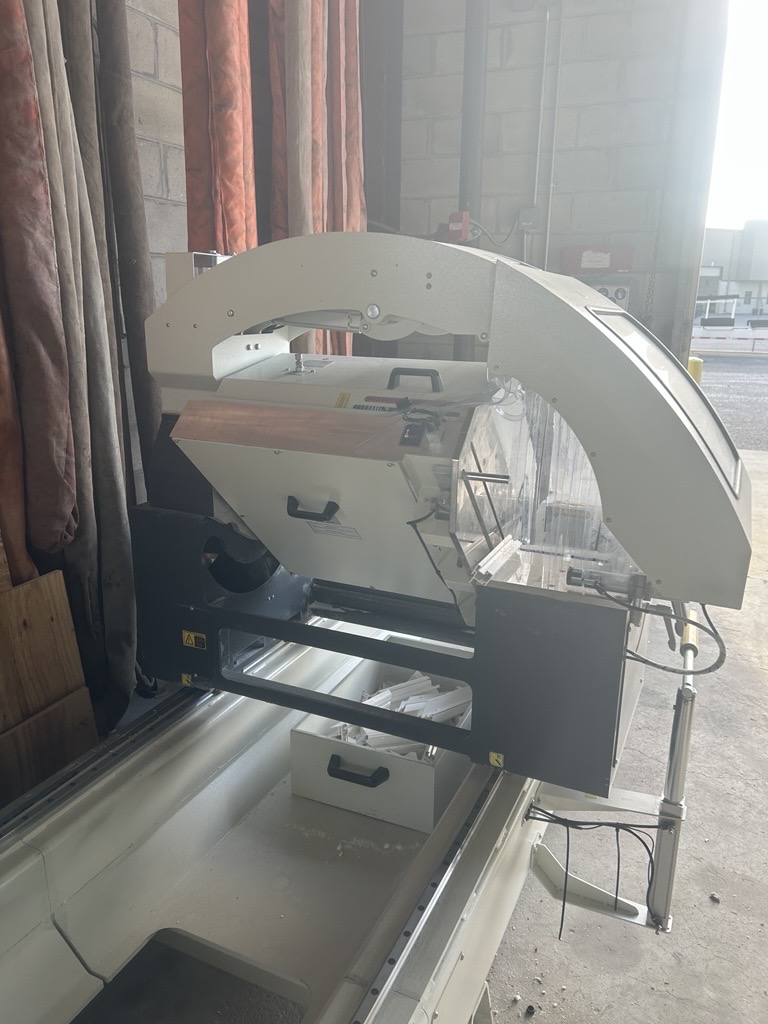

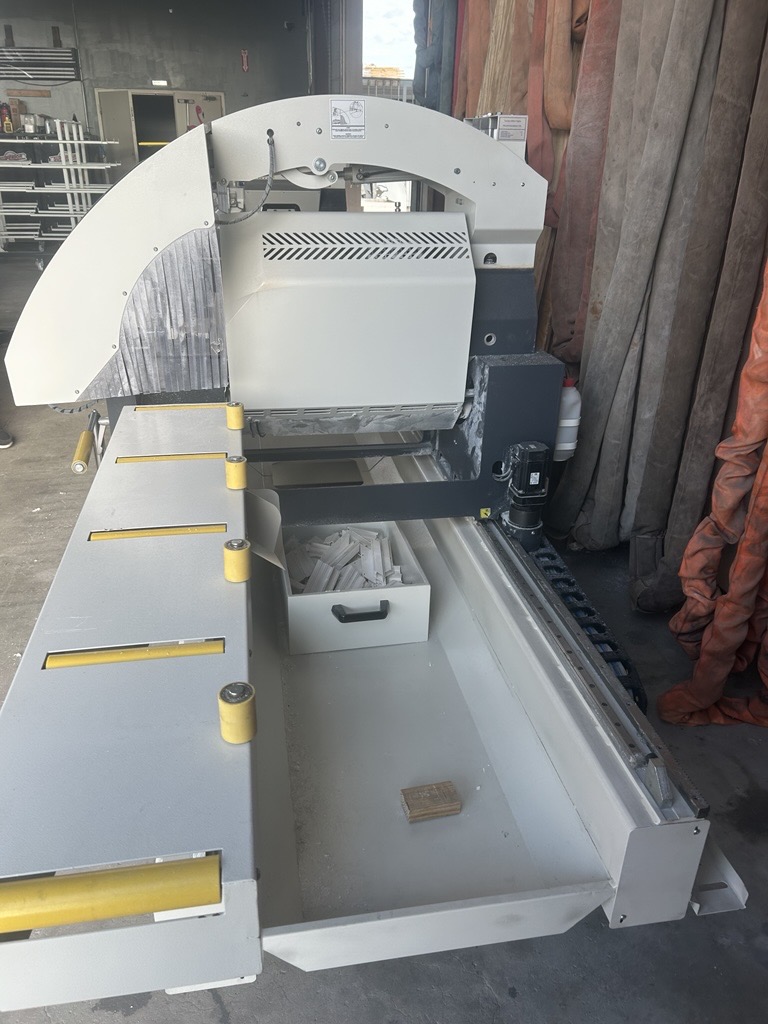

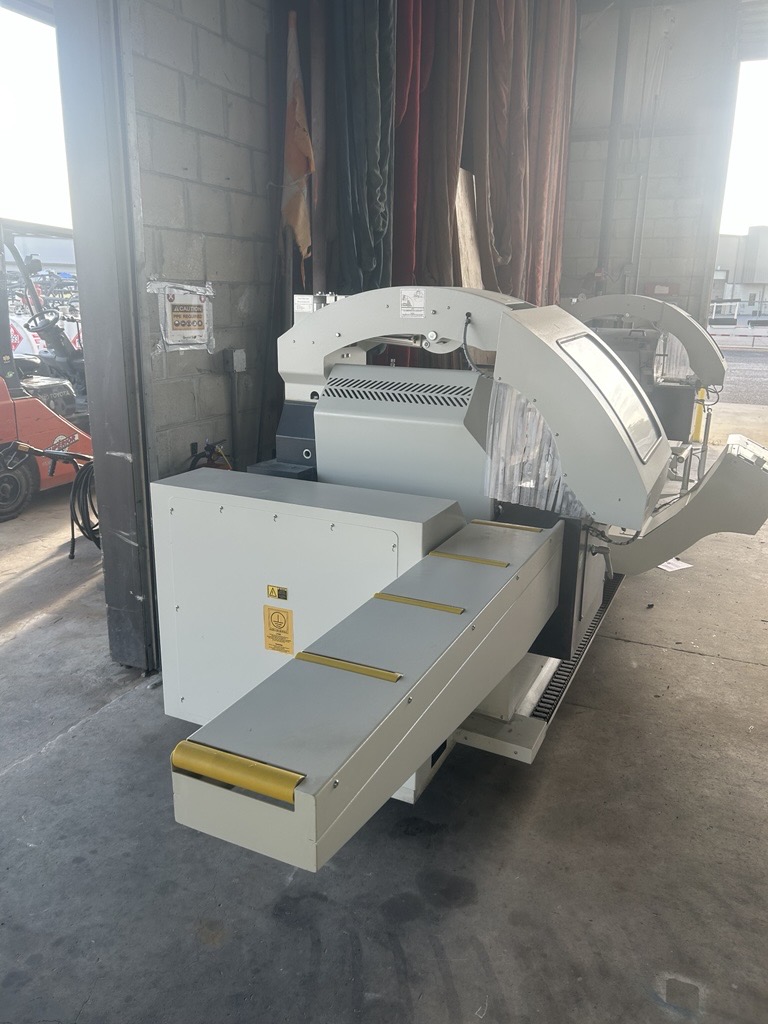

OZ Machine Gemini V-SA 22″ Double Head Aluminum Miter Saw, 2024 – 1-Axis Servo, 550mm Blades, 220V

OZ Machine Gemini V-SA semi-automatic double-head profile saw featuring twin 22″ (550 mm) blades, servo-controlled X-axis positioning, hydro-pneumatic cutting and angle positioning, touchscreen controls, pneumatic clamping and up to approximately 195″ double-head cutting capacity for aluminum, PVC/vinyl and wood profiles.

Manufacturer OZ Machine / Özçelik Machinery
Model Gemini V-SA
Machine Type Semi-Automatic Double Head Miter / Profile Saw
Control 1-Axis Servo Controlled
Primary Applications Aluminum, PVC/vinyl and wood profile cutting
Saw Heads 2
Saw Blade Diameter 22″ / 550 mm
Saw Blade Motor Power 3 kW per head
Blade Speed 3,000 RPM (machine nameplate)
X-Axis Positioning Electronically / servo controlled
X-Axis Positioning Speed Up to 40,000 mm/min / 1,575 in./min
Minimum Double-Head Cut – 90° Approx. 360 mm / 16″
Minimum Double-Head Cut – 45° Approx. 590 mm / 21″
Maximum Double-Head Cut Approx. 4,930 mm / 195″
Maximum Profile Loading Length Approx. 8,000 mm / 314″
Angle Positioning Hydro-pneumatic rapid positioning
Intermediate Angles Manual positioning
Maximum Internal Rotation 90°
Maximum External Rotation -22.5°
Cutting Feed Hydro-pneumatic
Clamping Horizontal & vertical pneumatic clamps
Intermediate Supports Automatic profile support
Blade Stroke Adjustable
Cutting Speed Adjustable
Cooling Cooling / lubrication system
Control Interface Smart touchscreen / industrial control
Data Transfer Ethernet, USB and network connection
Slicing Mode Yes
Safety Enclosed cutting zones with safety covers/sensors

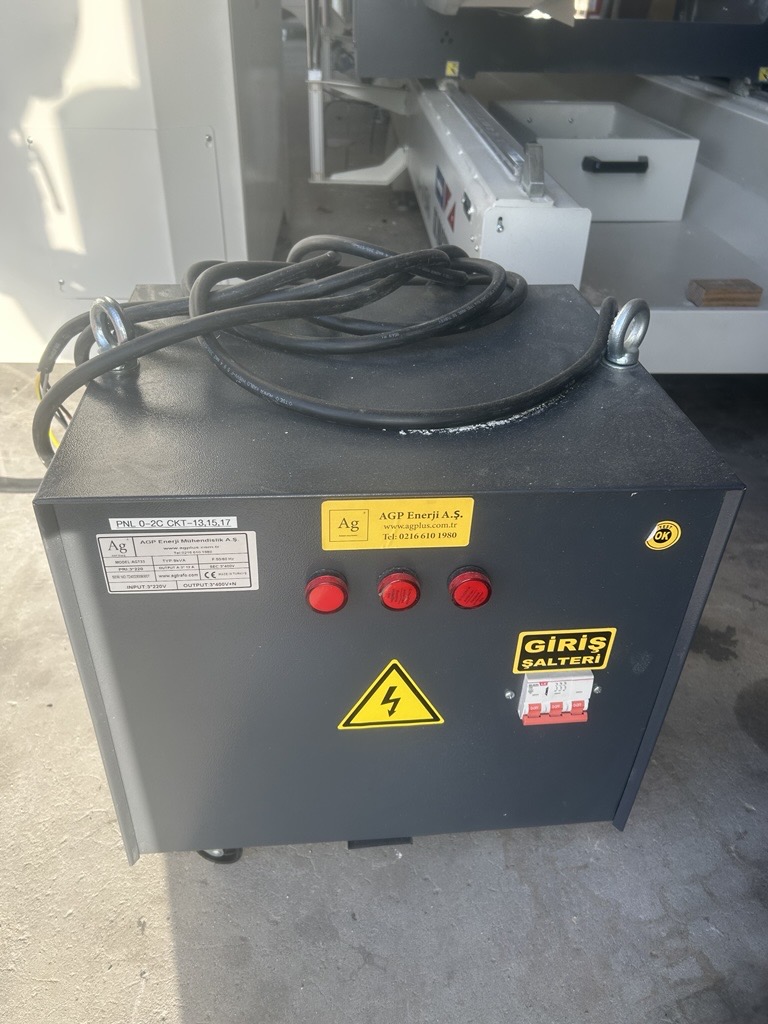

Electrical – Your Machine 220V AC, 3 Phase, PE
Total Power – Your Machine 6.8 kW
Rated Current – Your Machine 27 A
Air Pressure – Your Machine 6–8 bar
Air Consumption – Your Machine 75 L/min
Machine Dimensions – Nameplate 7,710 × 1,970 × 1,635 mm
Approx. Dimensions 303.5″ × 77.6″ × 64.4″
Machine Weight – Nameplate 1,840 kg / approx. 4,057 lb
