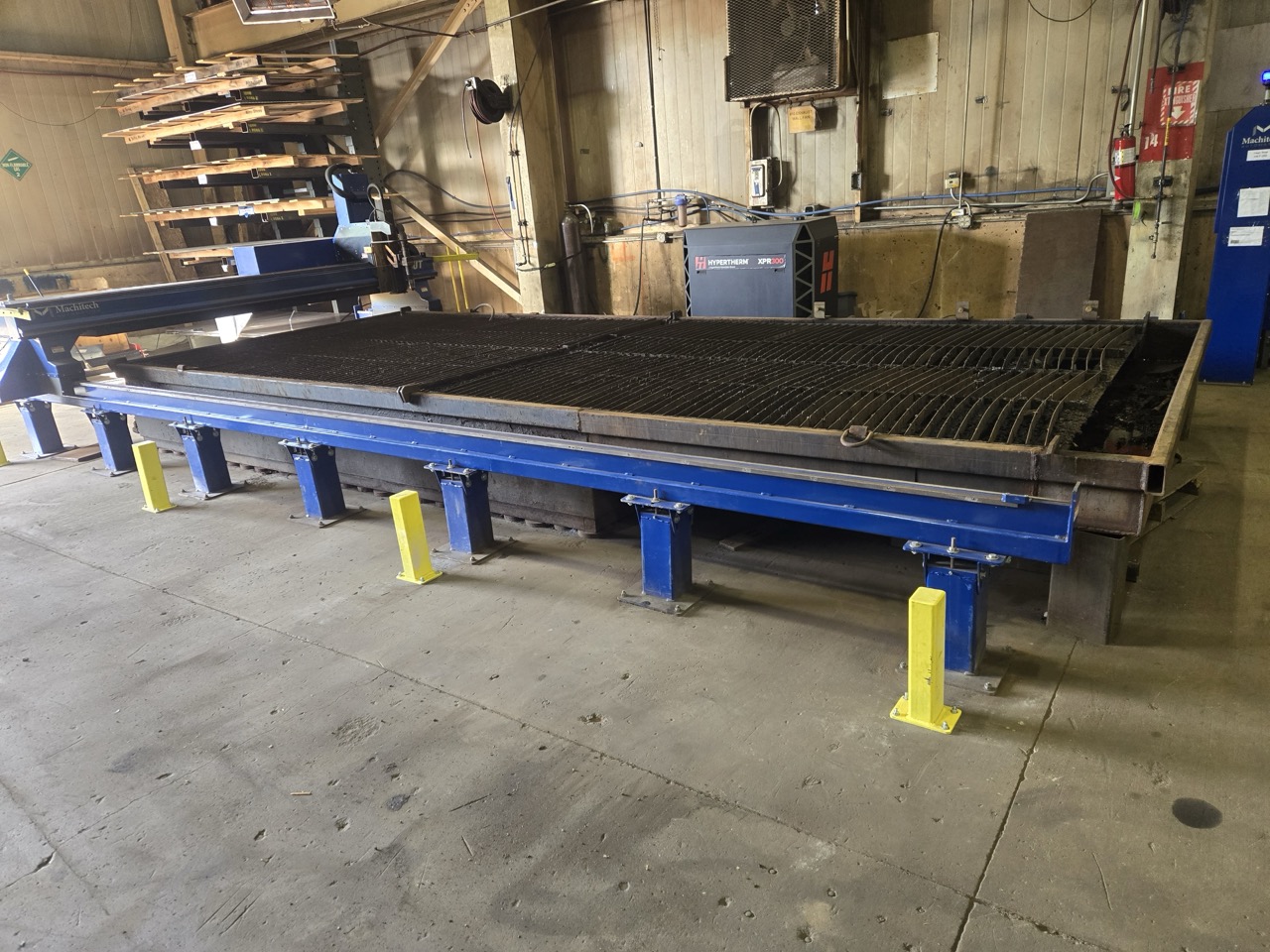

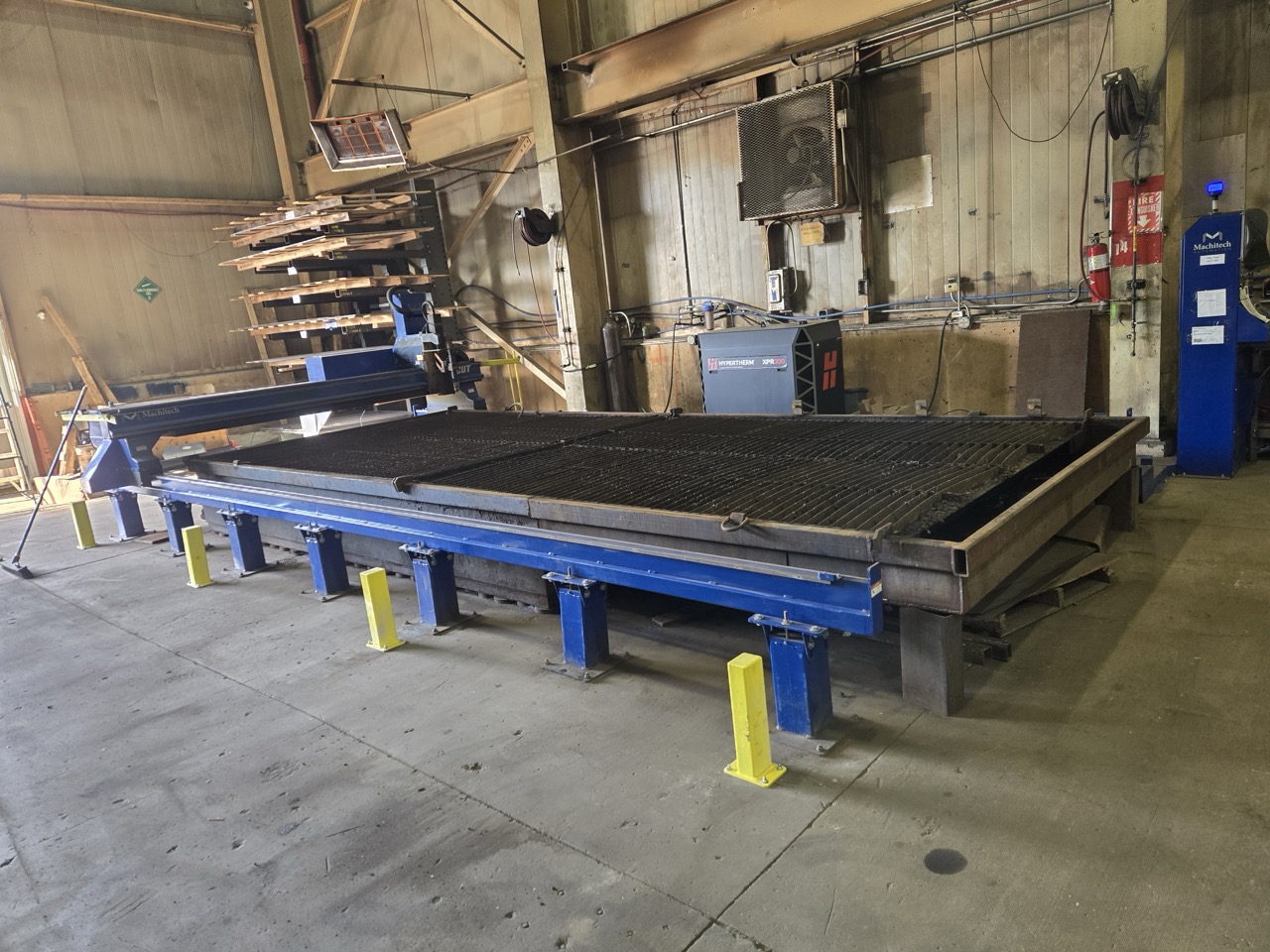

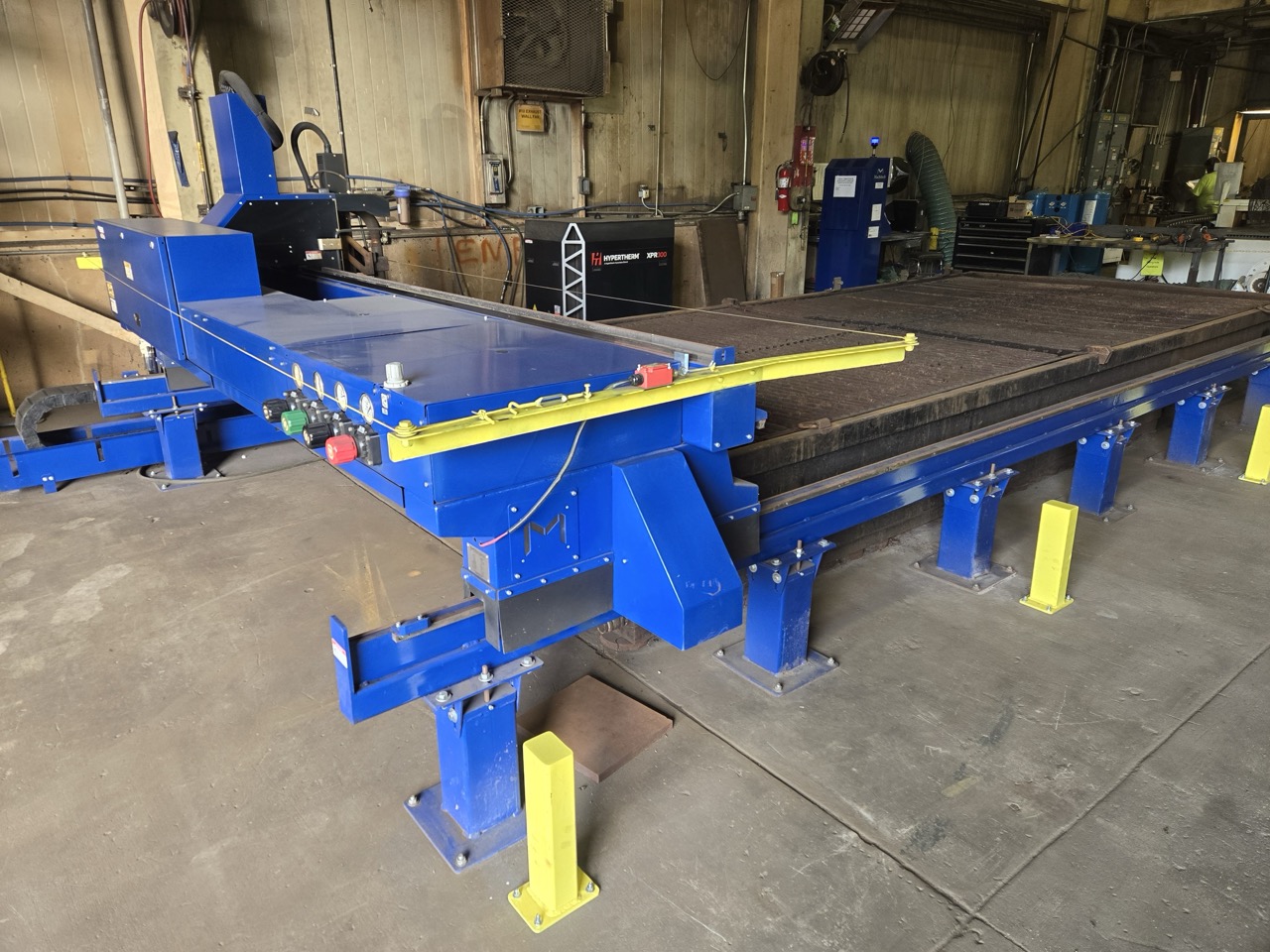

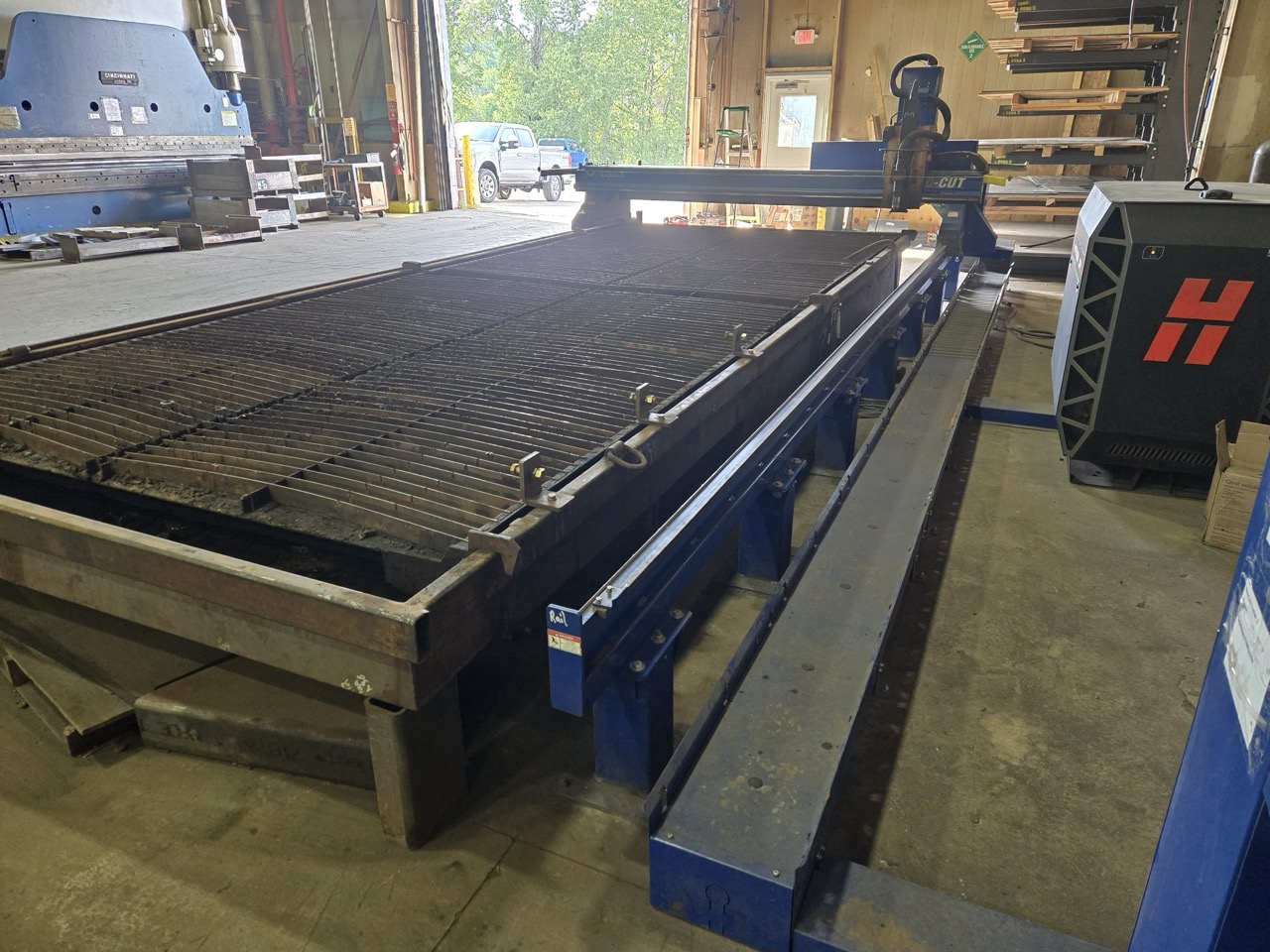

8′ x 20′ Machitech Hypertherm XPR300 CNC Plasma, 2024

Cutting Dimensions: 8′ x 20′
Max Traverse Speed: 1000 IPM
Max Cutting Speed: 0 to 500 IPM
Positional Accuracy: 0.003′
Repeatability: 0.002″
Max Table Capacity: 4″
Space Under Gantry: 8.5″
Cutting Capacity: Up to 3″ Steel
Amps: 300

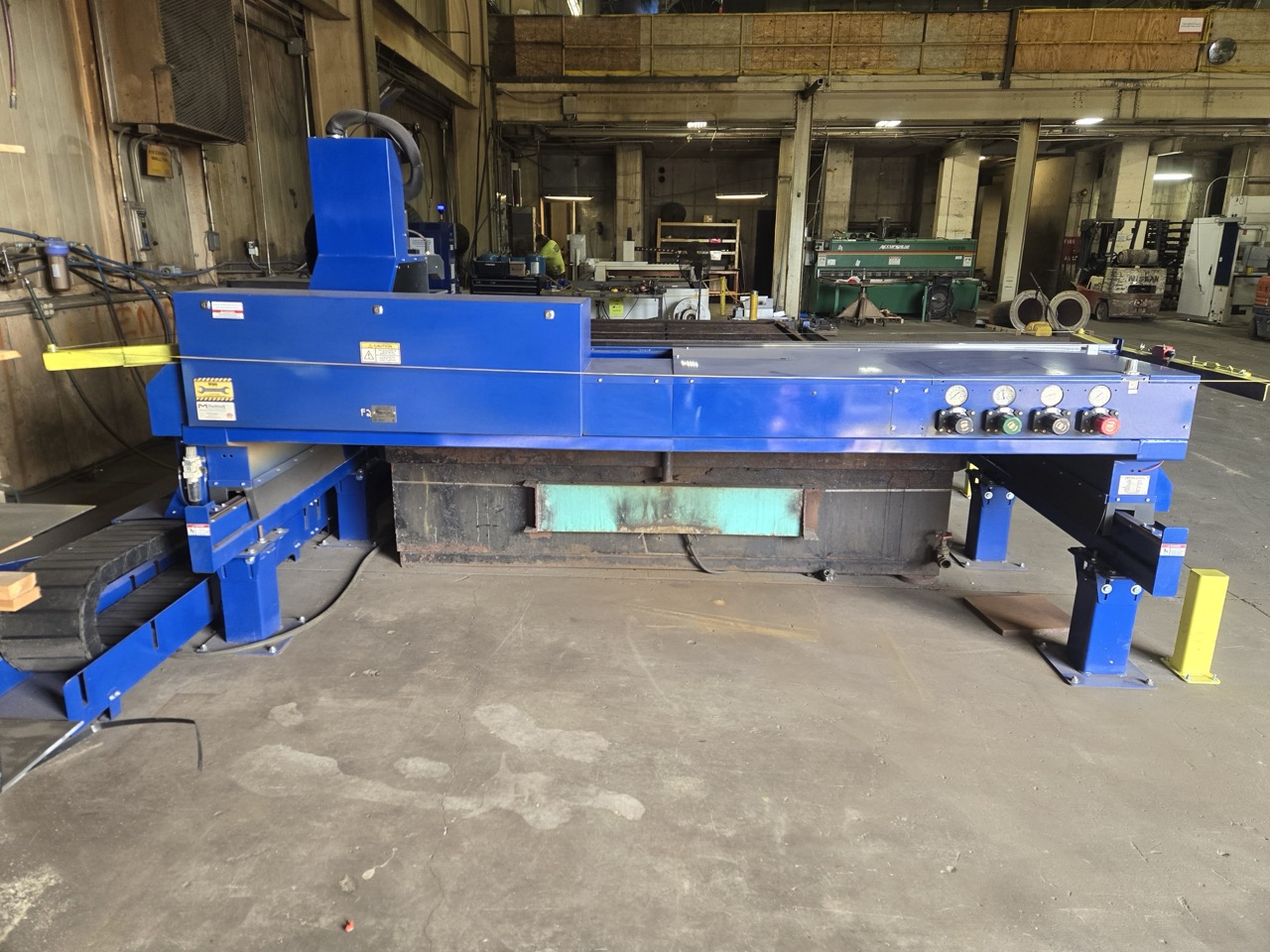

Gantry:
6″ x 8″ Steel Gantry
Inverted linear rails with Bosch linear bearings
Dual side drive Bosch Rexroth Digital Servo Motors
Ultra precise helical planetary gearboxes

Rails:
3/4″ Agma10 rack and 2.5″ pinion gears
Self-cleaning V-bearing rails on pedestal

Motors:
Pneumatic pinion engagement with linear bearings
Fully integrated w/ Bosch Rexroth AC Servo motors and Ehercat drive controller

Gearboxes:
Ultra precise helical planetary gearboxes
<3 arcminutes precision

Electrical Requirements: 480V

Equipped With
Automatic Torch Height Control

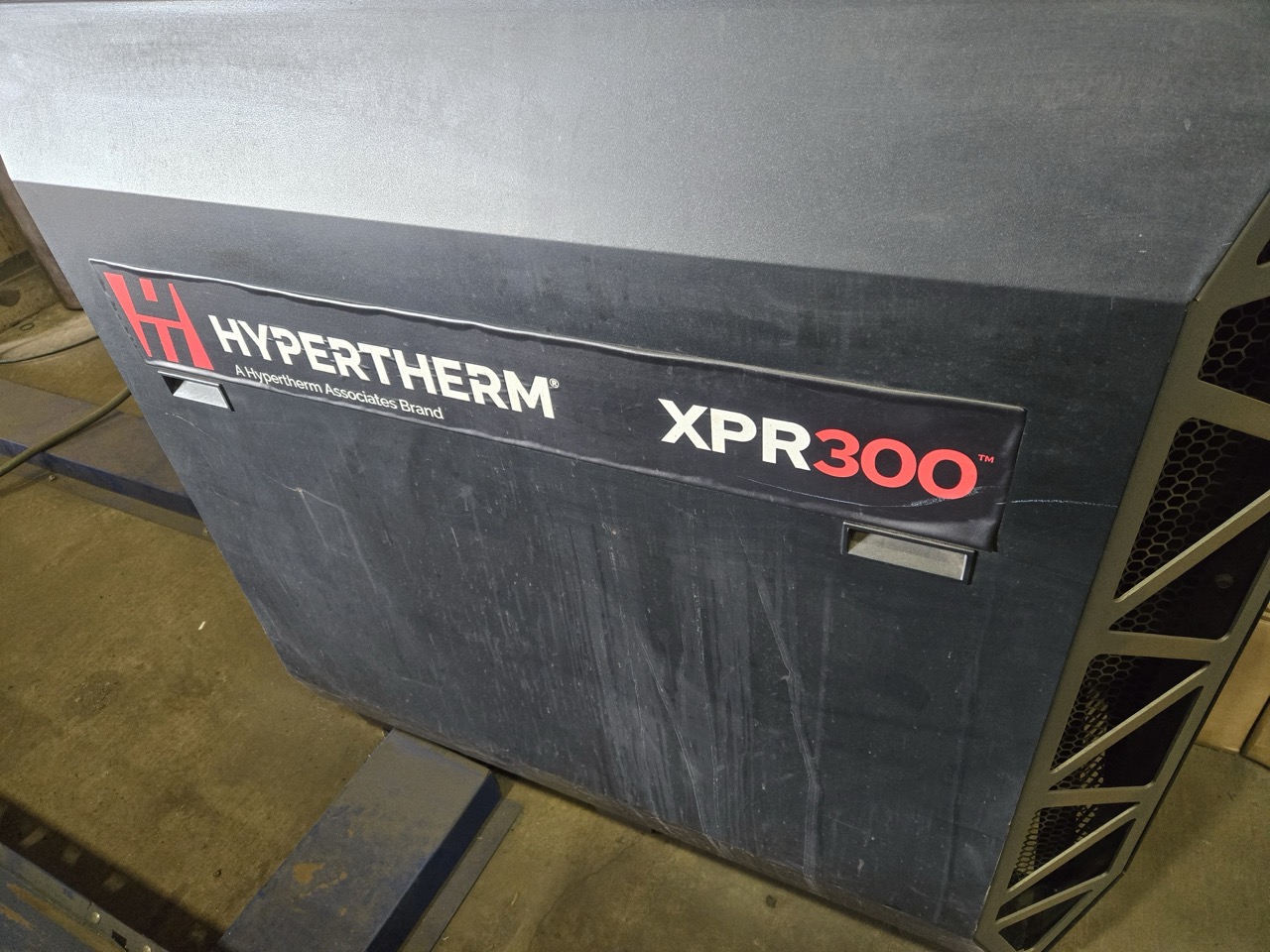

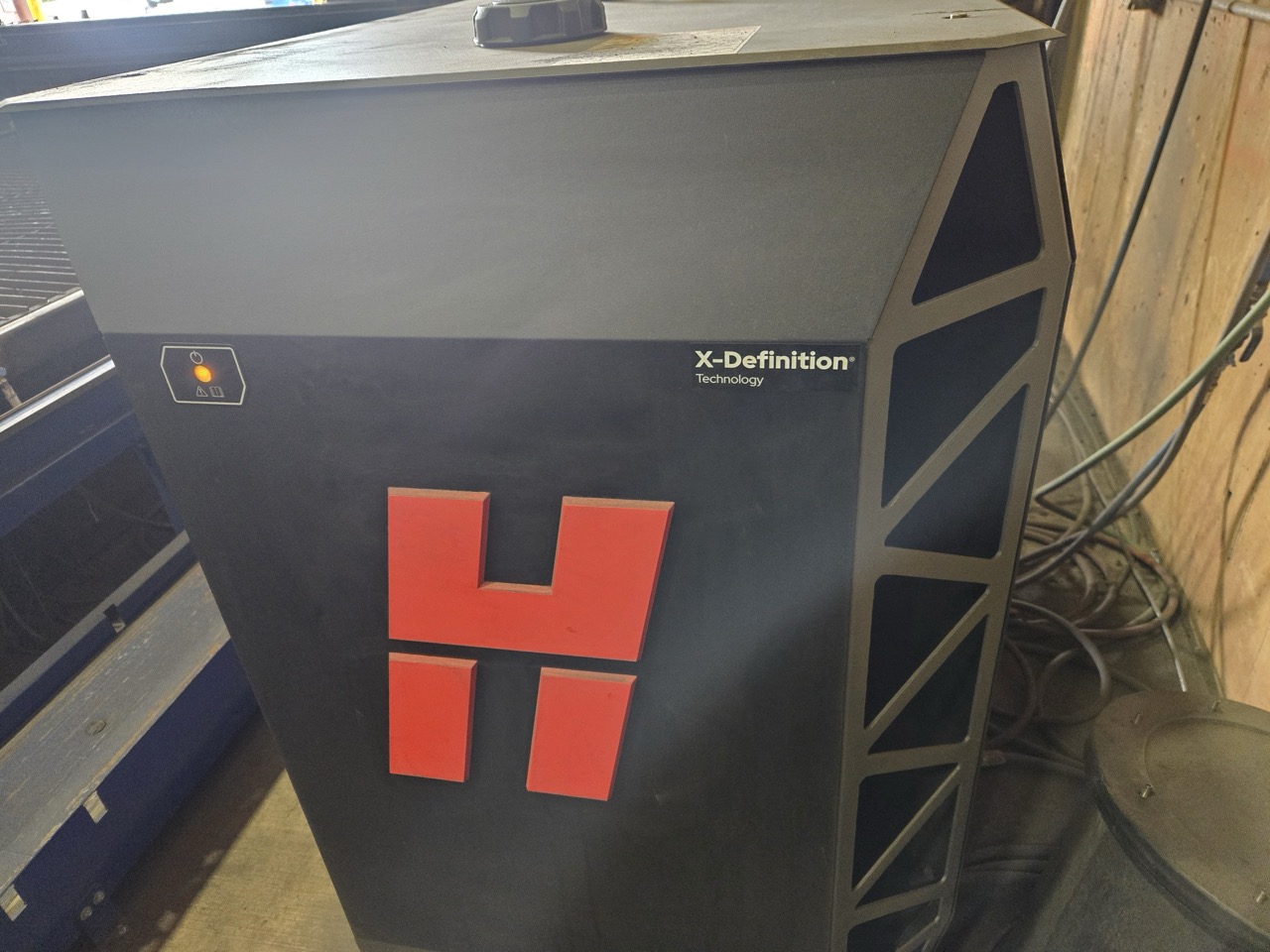

Hypertherm XPR300 (VWI gas console)

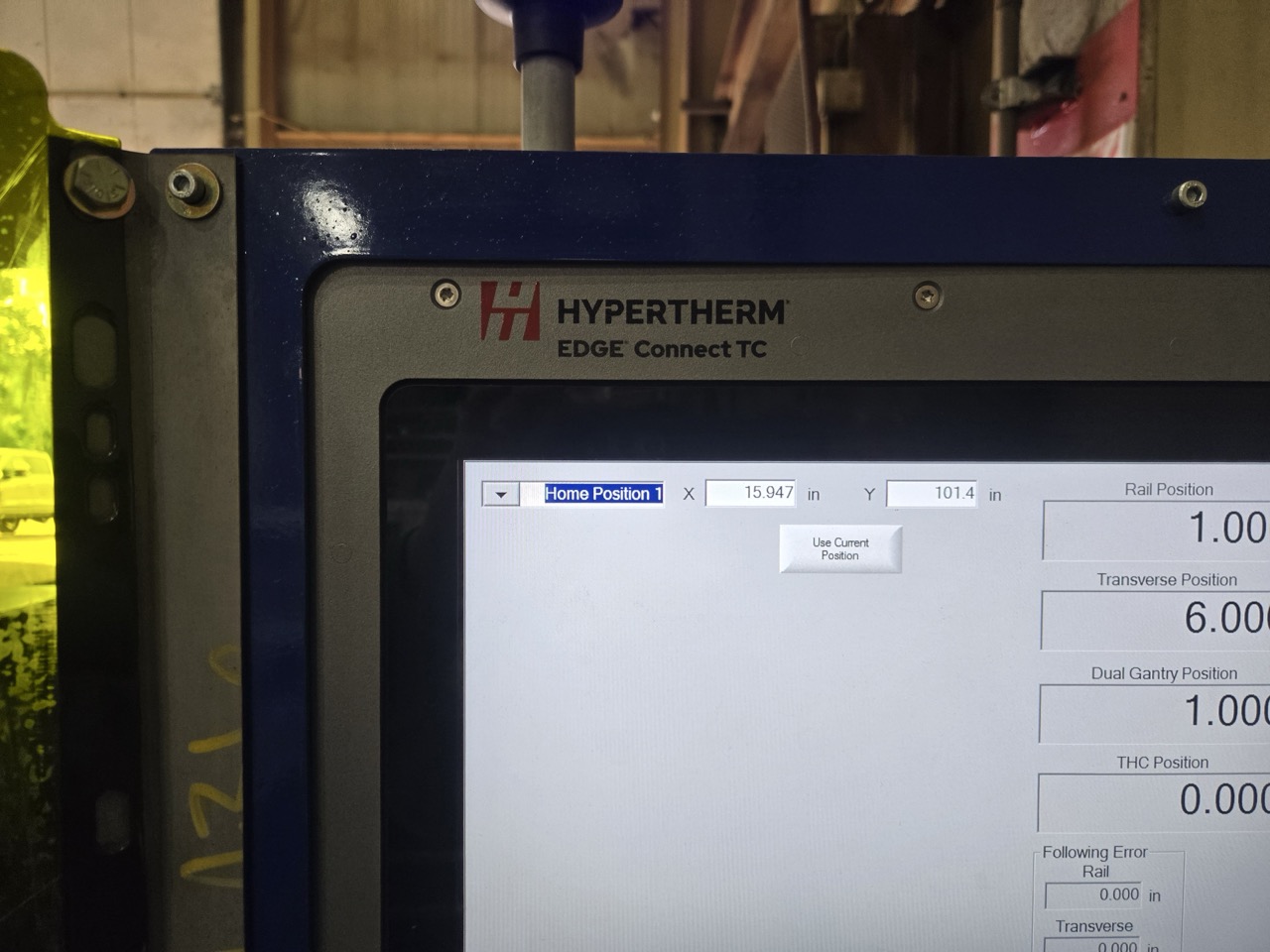

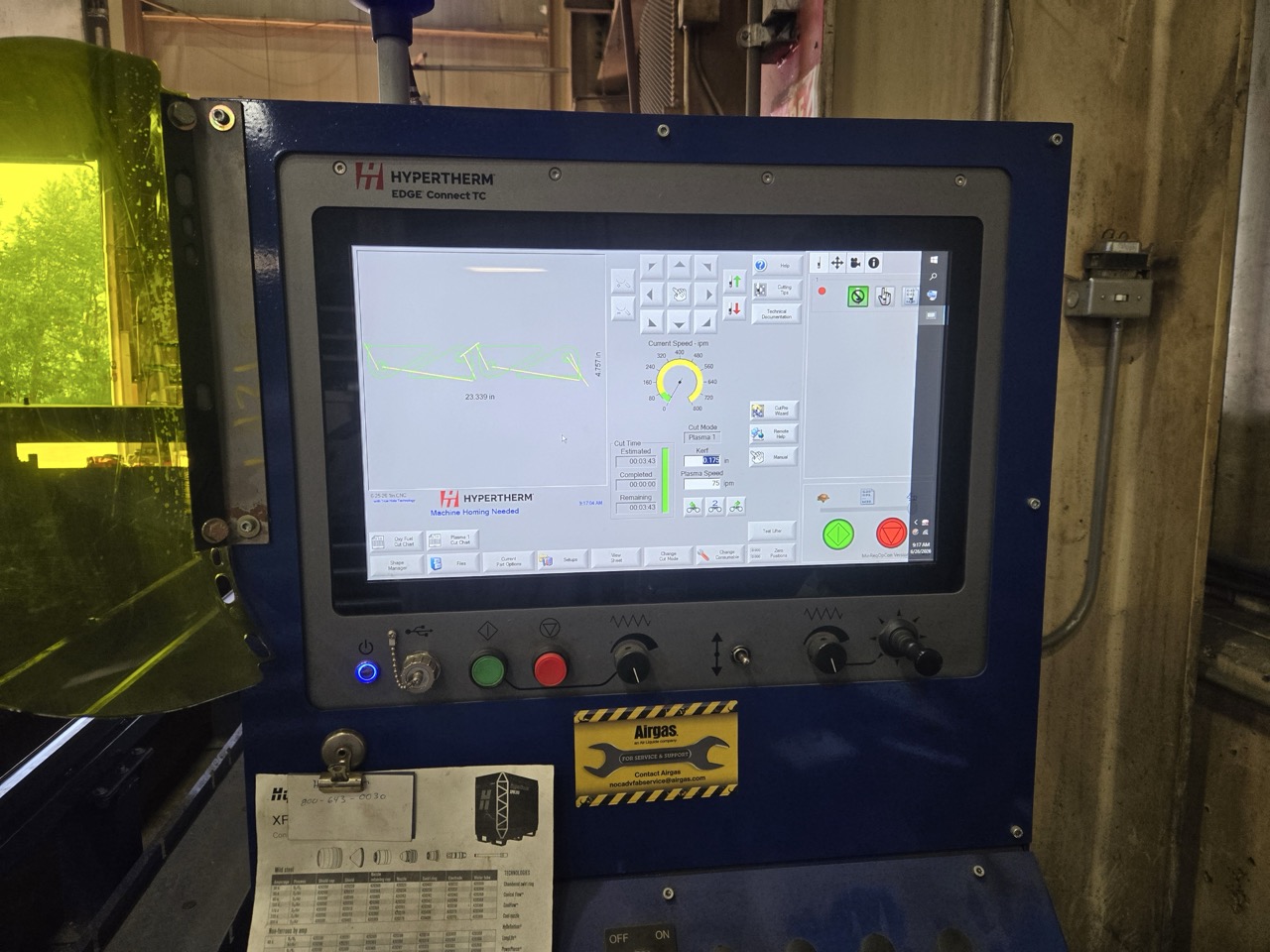

Hypertherm EDGE Connect CNC Control
ProNest 2023 CAD/CAM Software

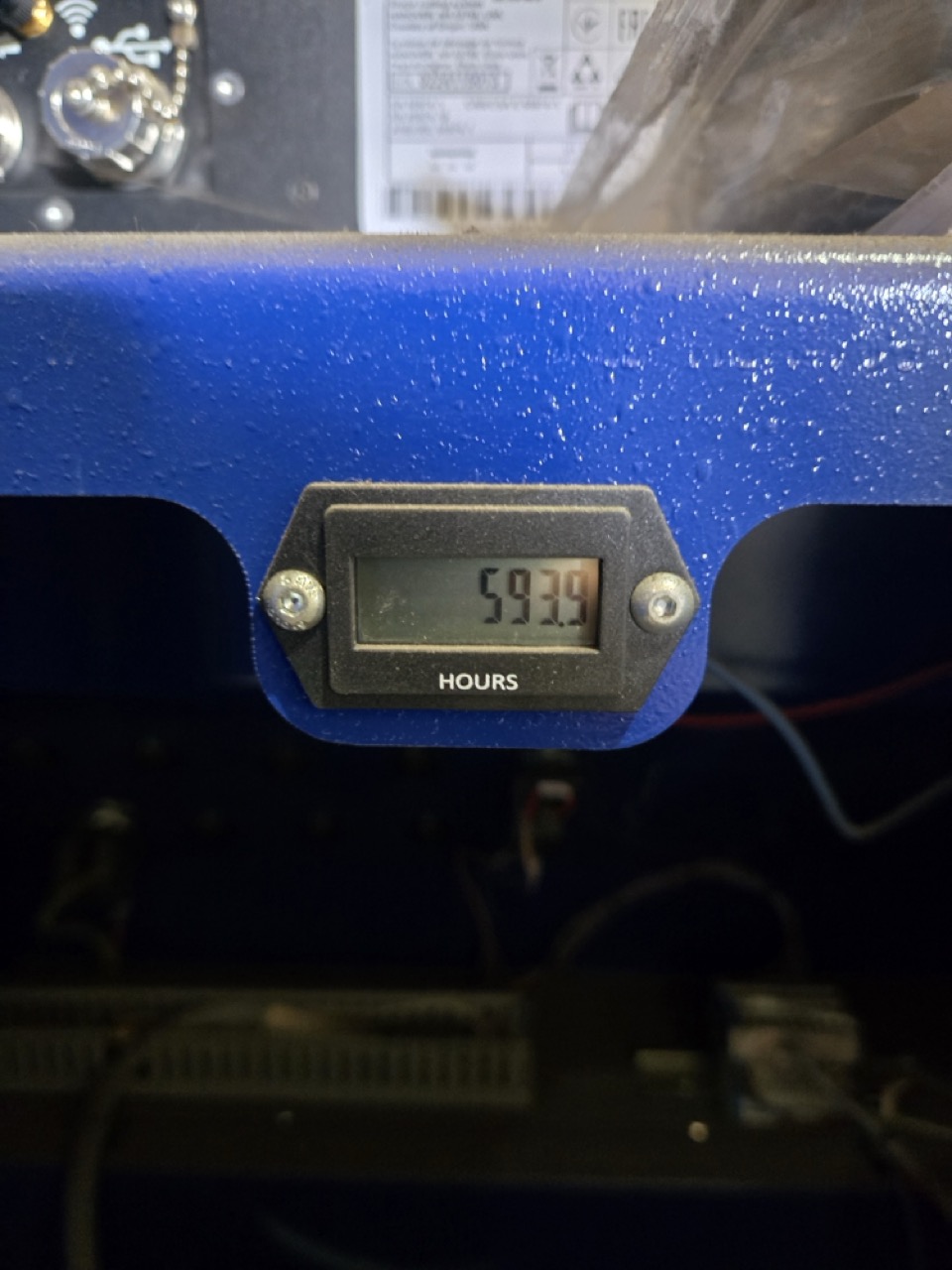

594 Hours
