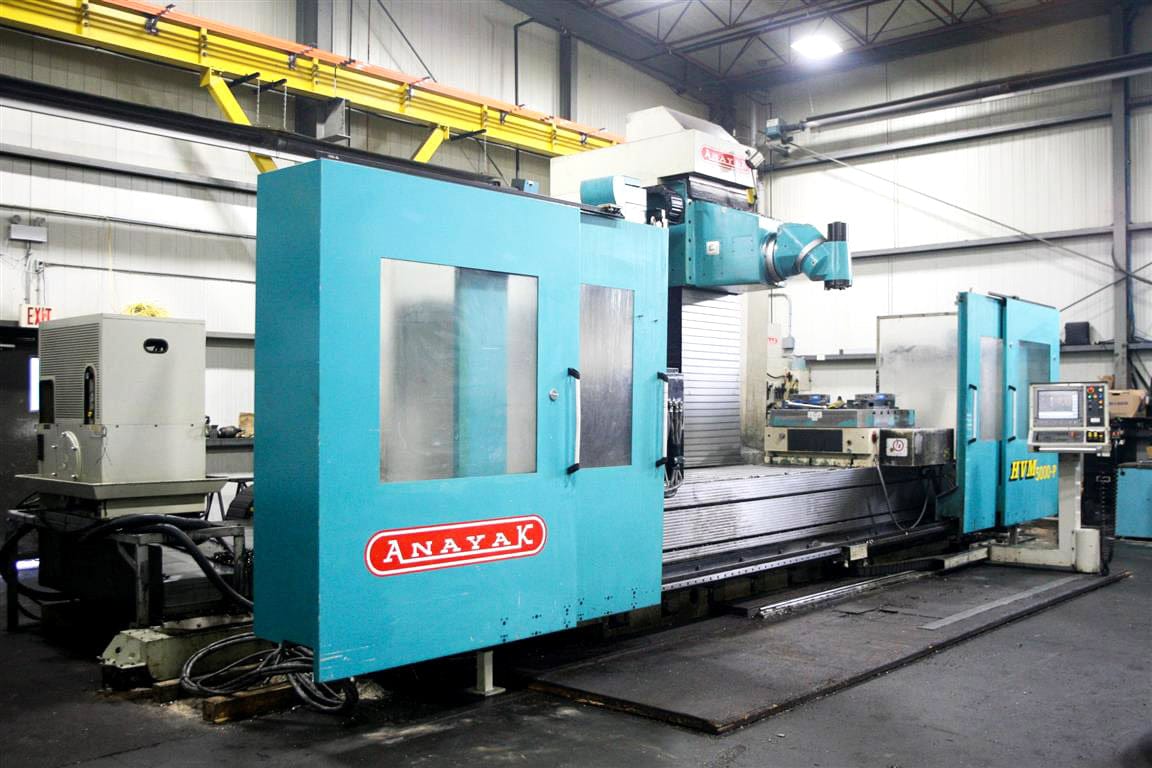

Anayak HVM 5000-P 5-Side Machining Center- Universal Head, 2005- 5 Axis, Rotary Table

Name: Anayak HVM 5000-P 5-Side Machining Center- Universal Head, 2005- 5 Axis, Rotary Table
SKU: 995154903

$99,500.00

Anayak HVM 5000-P 5-Side Machining Center- Universal Head, 2005- 5 Axis, Rotary Table - Image 2

Anayak HVM 5000-P 5-Side Machining Center- Universal Head, 2005- 5 Axis, Rotary Table - Image 3

Anayak HVM 5000-P 5-Side Machining Center- Universal Head, 2005- 5 Axis, Rotary Table - Image 4

Anayak HVM 5000-P 5-Side Machining Center- Universal Head, 2005- 5 Axis, Rotary Table - Image 5

Anayak HVM 5000-P 5-Side Machining Center- Universal Head, 2005- 5 Axis, Rotary Table - Image 6

Anayak HVM 5000-P 5-Side Machining Center- Universal Head, 2005- 5 Axis, Rotary Table - Image 7

This specific product is no longer available, however we may have other similar or identical products in stock. Please utilize our search function at the top of the page to check and confirm, or fill out the form below:

Specifications:
X-Axis Travel: 169″
Y-Axis Travel: 59″
Z-Axis Travel: 59″
A-Axis Travel: +/- 180 degrees
C-Axis Travel: +/- 180 degrees

Control: Heidenhain iTNC-530
Table Size: 195″ x 39.3″
Max Table Weight: No Limit
Rapid Traverse Rate (X / Y / Z): 885 / 787 / 393 IPM
Working Feed Rate (X,Y / Z): 393 / 236 IPM

Spindle Taper: CAT #50
Spindle Speed (2 Speed Ranges): 60 – 3000 RPM
Main Motor: 29.5 / 44 HP
Automatic Tool Changer Pockets: 40 ATC

Dimensions 315” x 118” x 110”
Weight 89,000 lbs.

Equipped With:
Heidenhain iTNC 530 CNC Control
2 Speed Geared Headstock
A & C Axis Positioning (5-Sided)
Universal Head
Zeatz Rotary Table- Full Contouring
Zeatz 4th Axis with Center Tailstock- Full Contouring
Chip Conveyor
Program Time: 7743 hrs
Spindle Run time: 8337 hrs
Video available
