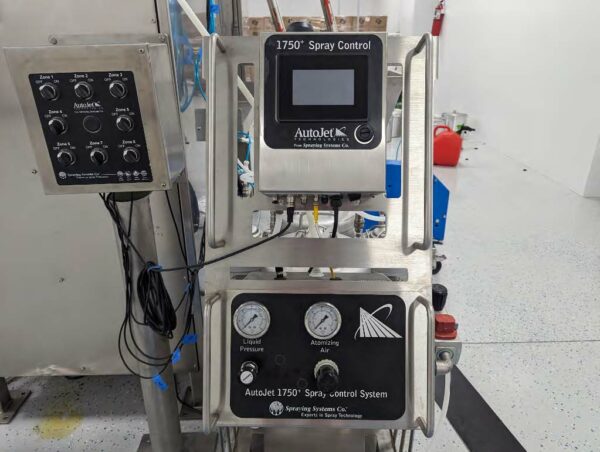

AutoJet 1750+ Spray Control System, 2022
$4,999.00
This specific product is no longer available, however we may have other similar or identical products in stock. Please utilize our search function at the top of the page to check and confirm, or fill out the form below:
Pumping & Flow Ratings
Inks, stains, water-based solvents, lubricants, oils, paints,
non-abrasive slurries
Fluid viscosity 1000 cP or less at 68ยฐF (20ยฐC)
Fluid temperatures of 32ยฐ to 140ยฐF (0ยฐ to 60ยฐC)
Flow & Pressure Ratings
3.5 gpm at 40 psi (13.2 lpm at 2.8 bar)
70 scfm for nozzles plus the pump air
Maximum air and liquid pressure: 100 psi (7 bar)
Control
Control panel: UL Type 1 with door closed (stainless steel)
HMI touchscreen, washdown compatible
Remote connection via WiFi
Three electable timing modes: Fixed spray time,
Variable spray time, Repeat
Controls up to 10 electrically-actuated automatic spray
nozzles (varies by type)
Standard triggering options: various laser sensors
For automatic line speed adjustments using PSC flow
control, a conditioned, 4-20mA signal is required
Optional control of up to 20 recipes
Components
Air inlet shut-off/lockout and filter assembly
Liquid outlet strainer 100 mesh
Liquid pressure regulator and gauge
Power required: 110 VAC, 60 Hz, 15 A, 1 ร
(capable to 260 VAC, 50 Hz, 15 A, 1 ร)
General
Dimensions: 41″ H x 17″ W x 22.5″ D
(1 m H x .43 m W x .57 m D)
Weight: Less than 85 lbs. (38.5kg)
UL, cUL rated
Wetted Materials
Pump version: stainless steel, Viton, PVC, nylon,
nickel-plated brass, polypropylene, PTFE
Pumpless version: stainless steel, Vitonยฎ, PVC, nylon
and nickel-plated brass
Pressure pot version: Stainless steel, polyethylene,
Viton and PVC
Food contact pumpless version: stainless steel, Viton,
acetal, polyethylene
Food contact pump version: stainless steel, Viton, acetal,
polyethylene, PTFE
