Black Clawson Davis Standard 4.5 Extr B, 2009

Extruder #1: 2.5″, 30:1 L/D Ratio
Process Tension Ranges *1: Low Range 5 – 50 Lbs. / High Range 50 – 150 Lbs.
Extruder #2: 2.5″, 30:1 L/D Ratio
Hand of Machine Except Winder/Drive Side *4: Right Side
Extruder #1 & #2 Throughput: 90-100 Lbs/Hr (Approx)
Hand of Winder Only: Left
Extruder #3: 4.5″, 30:1 L/D Ratio
Slitters: Edge Trim Razor Blade (3 Pairs)
Extruder #3 Throughput: 1,000 lbs. / Hr. (approx)
Max Roll Diameter (Winder): 26″
Material Processed: Fluoro Polymers (Pellet Form)
Max Roll Weight (Winder): 3,500 Lbs.
Maximum Web Width *1: 84″ Trimmed Finished / 92″ Untrimmed
Core Size Shafted *5: 6″ ID, 6 1⁄2″ OD
Maximum Web Width *2: 56″ Trimmed
Core Material: Fibre
Nominal Machine Roll Face: 96″ / 102″ at Winder (For Oscillation)
Web Tension Range *1: Low Range 5 – 50 Lbs. / High Range 50 – 150 Lbs.
Machine Line Speed *1 *2: 10-250 FPM
Idler Rolls: 6″ O.D. Live Shaft Carbon Fiber
Gear-In Speed: 250 FPM

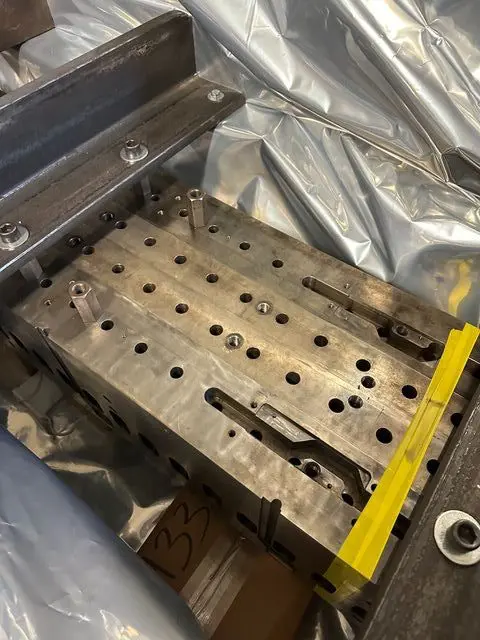

Note: Very Low Hours;Sri-Air Model HP4-X 750 FM system – NOT INCLUDED;System can also run TPU (Thermoplastic Polyurethane) 96″ Multi-Manifold Die…….New Replacement Cost – $1.0 mil.
Adjustable Thread Speed: Up to 50 FPM
