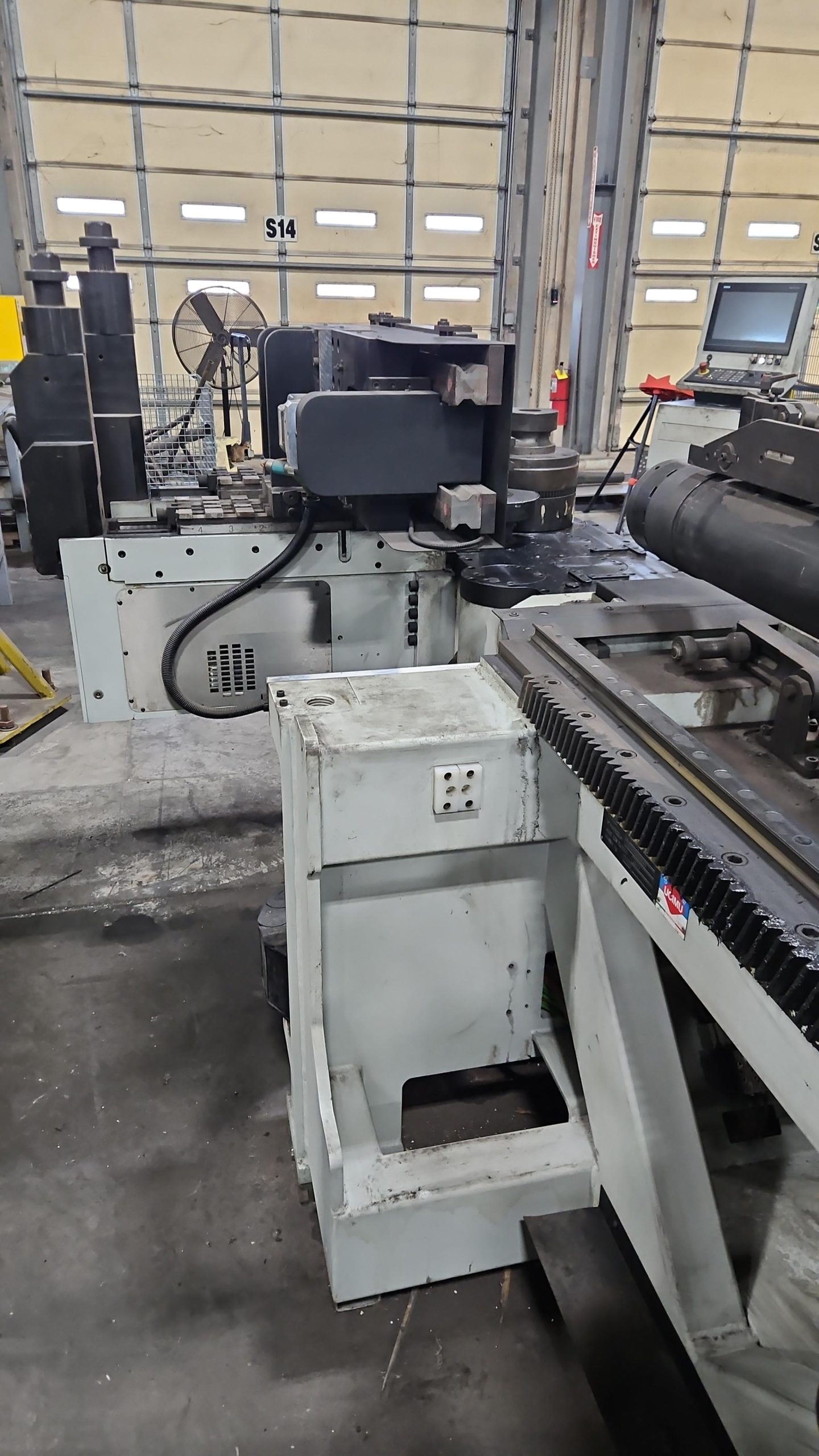

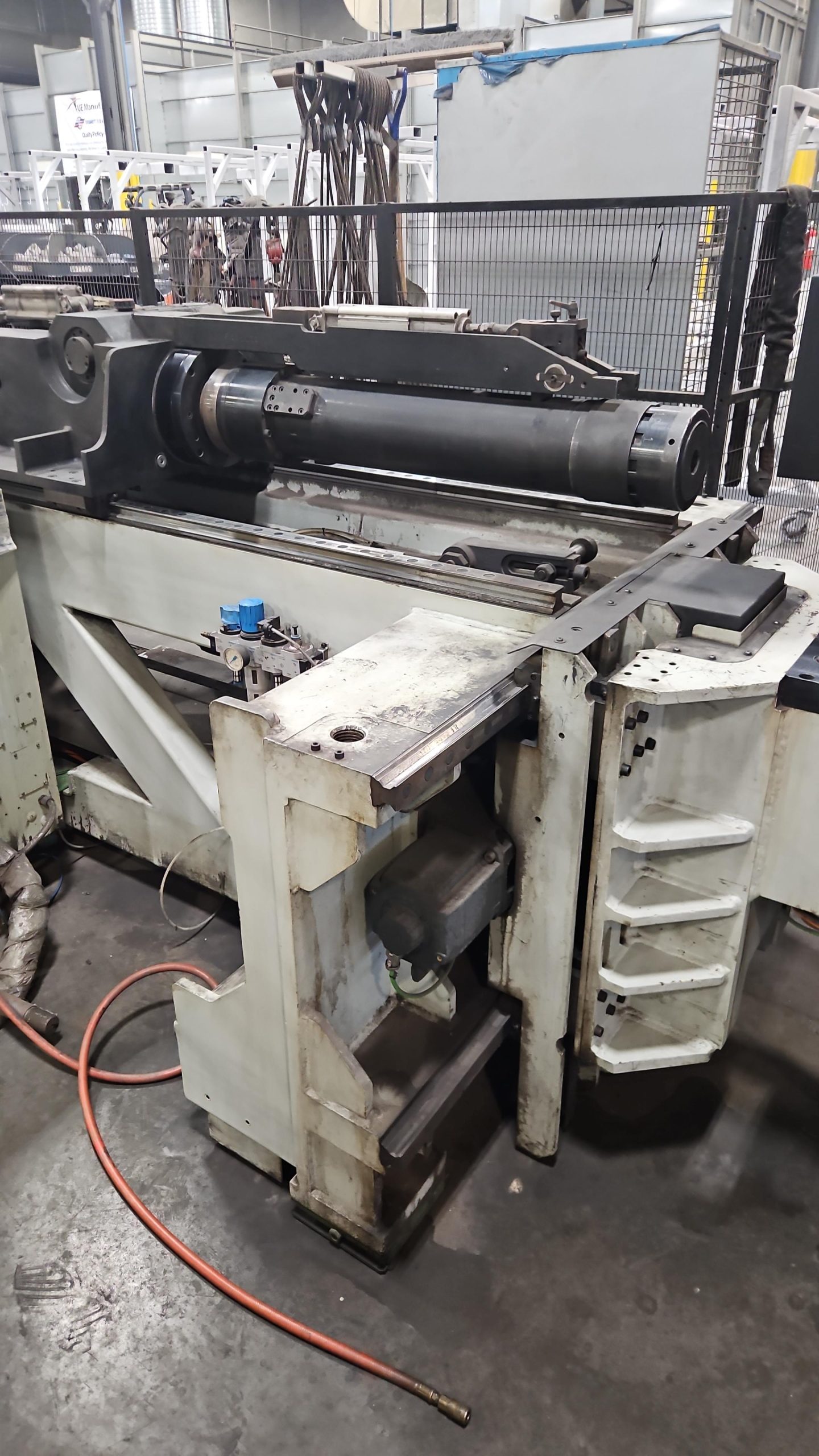

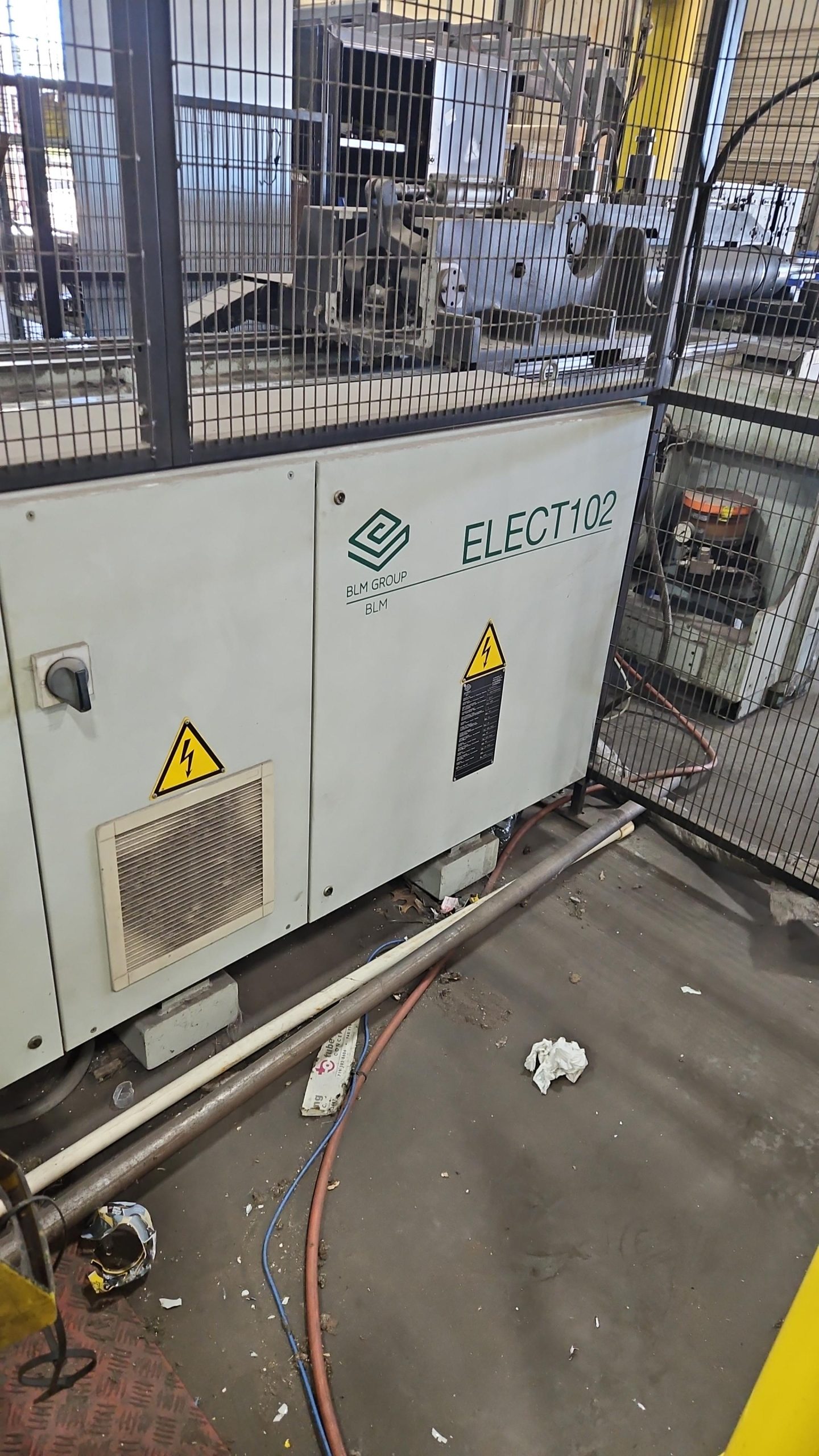

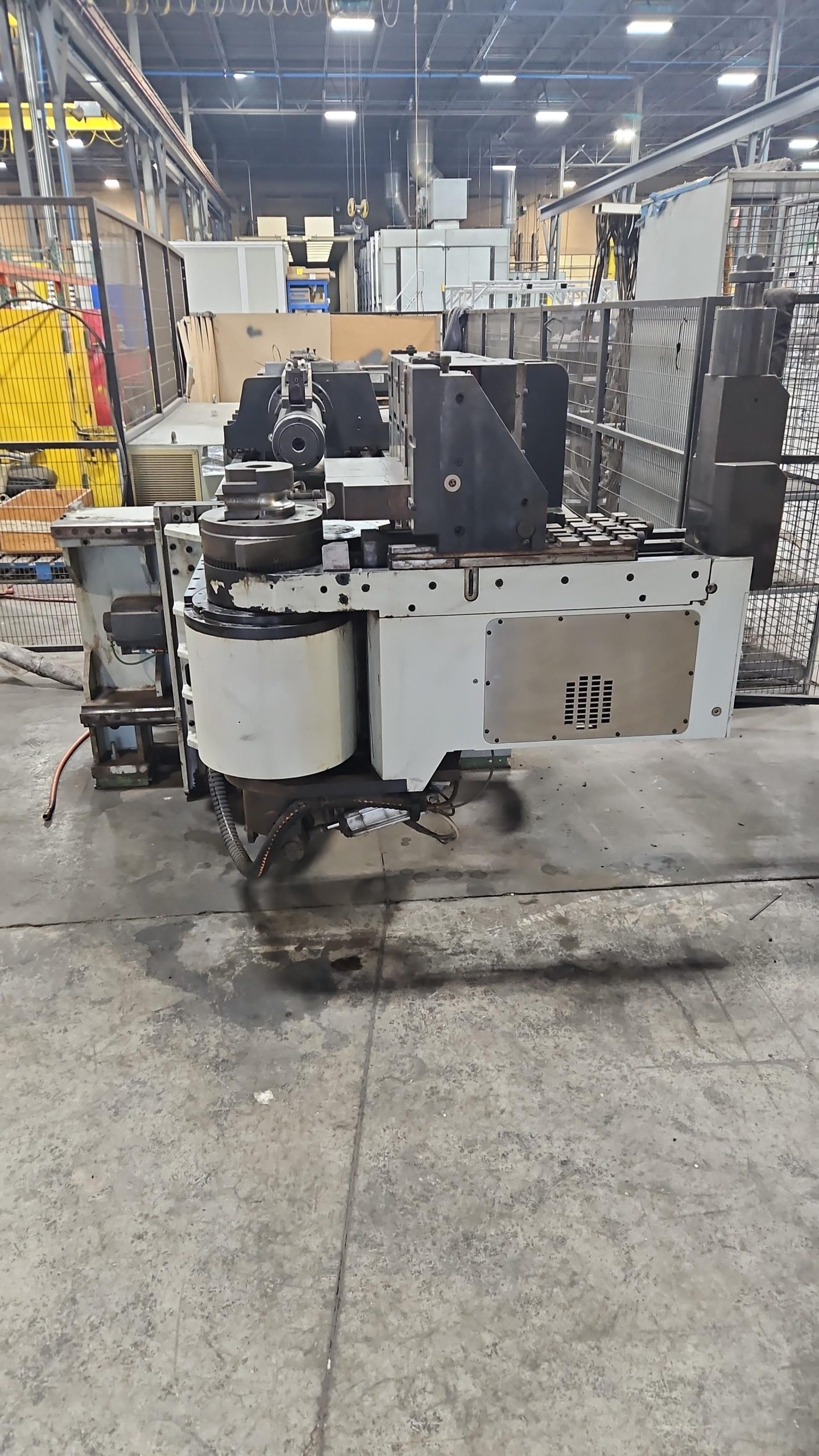

BLM Elect 102 Tube Bender, 2017

Capacity: Max Tube OD of 4″/ 102mm
Bending Direction: In-process right or left-handed, convertible.
Tooling: Multi-stack, up to 8 tools simultaneously, suitable for fixed or variable radii.
Axes: All-electric, 8+2 optional.
Accuracy: Y and Z axes: 0.05″
X-axis: 0.002″
Performance: Boost power up to 60,000 N allowing for tight radius bends without deformation.

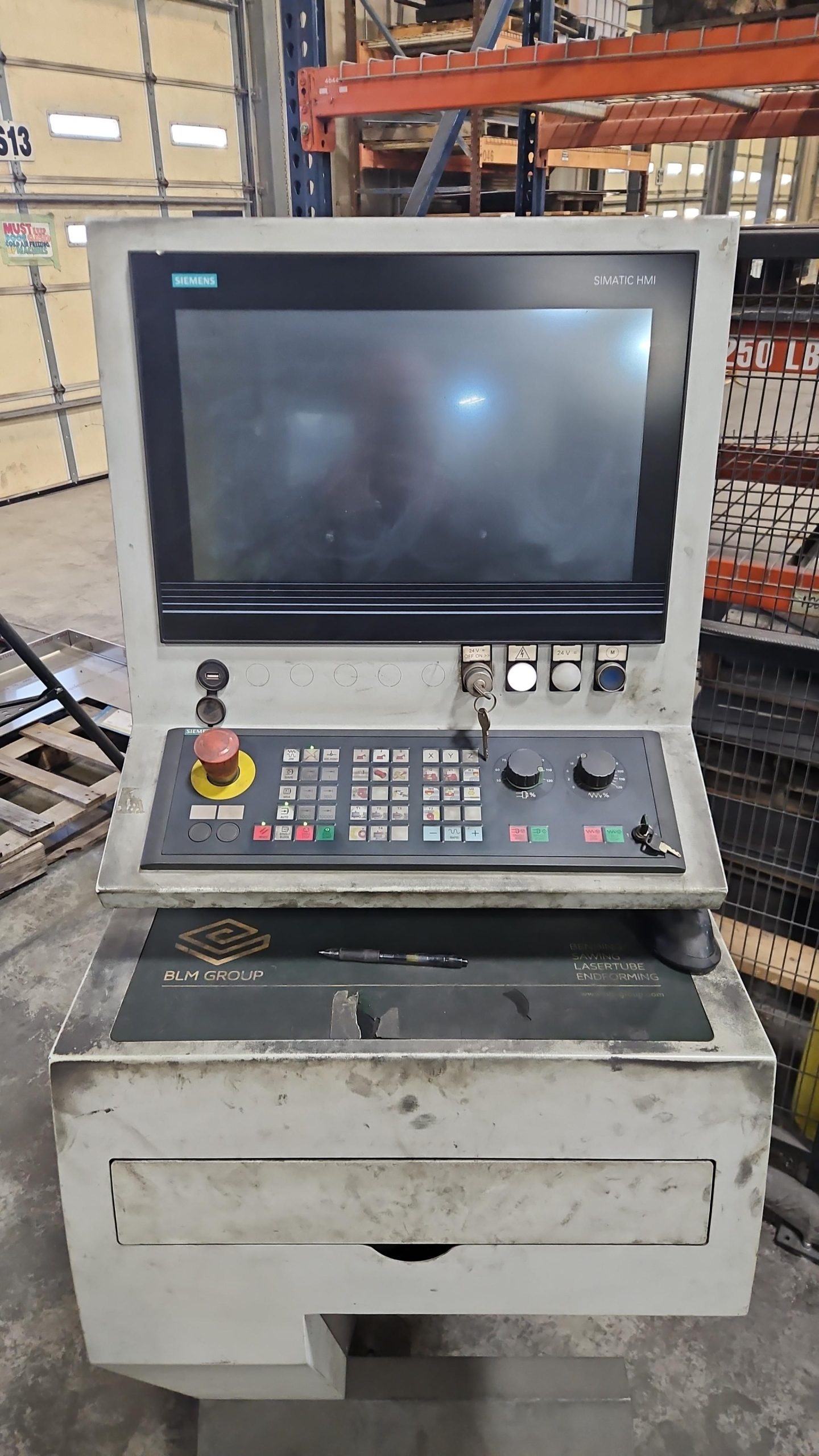

Control/Software: SIEMENS Simotion D435-2 CNC, utilizing VGP3D graphical software.
Dimensions/Weight: Approx. 35,000LBS

The 2017 BLM Elect 102 is an all-electric, CNC mandrel tube bending machine capable of handling tubes up to 4.0″ (102mm) OD. It features multi-stack, right/left-hand in-process bending with up to 12 axes, high precision (0.005″ for Y/Z axes), and an average noise level of 65db(A)

Spec Sheet Available Upon Request

Rough count 29 Dyes, tooling from 1.5in to 4in and miscellaneous items.
