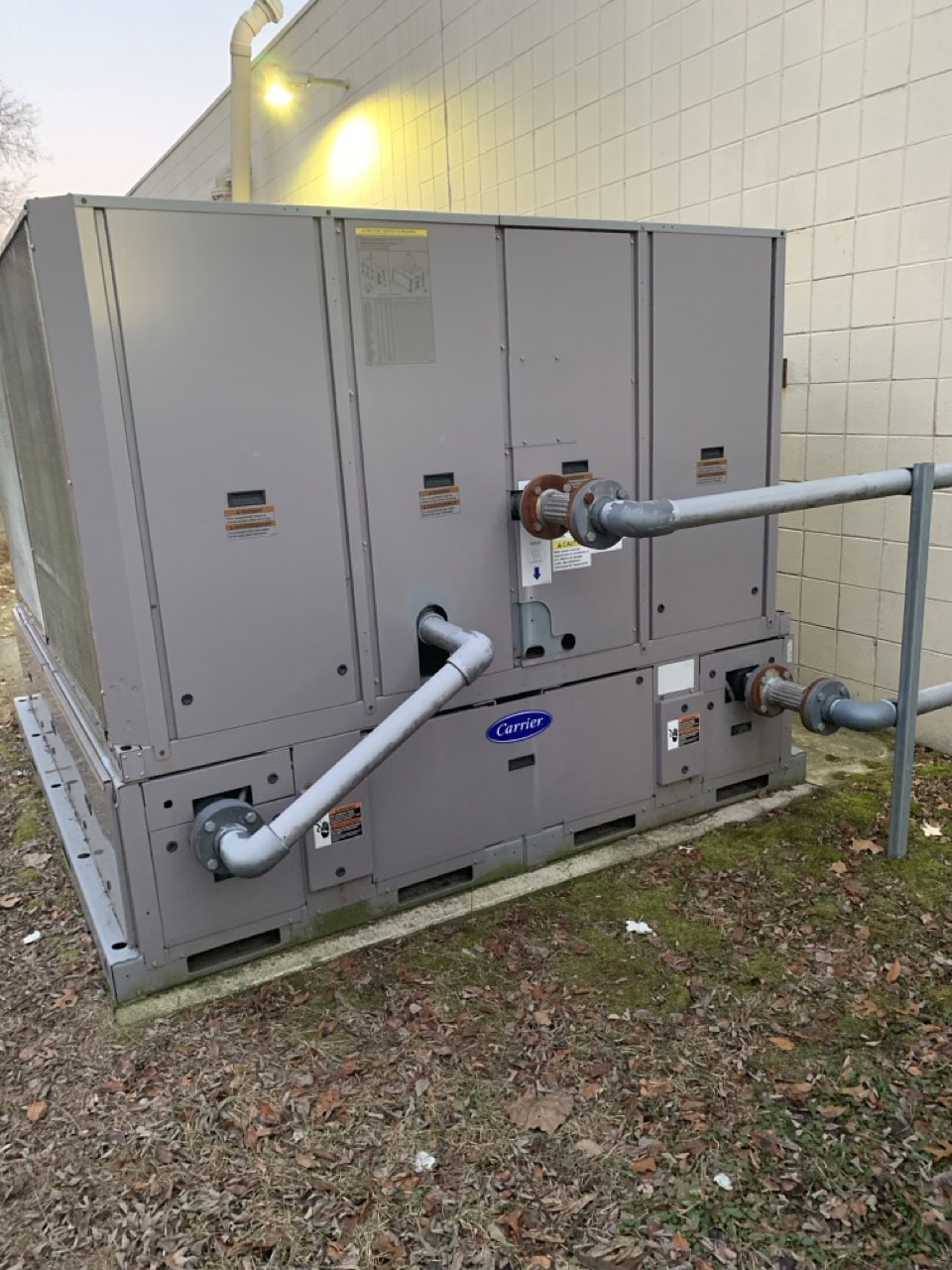

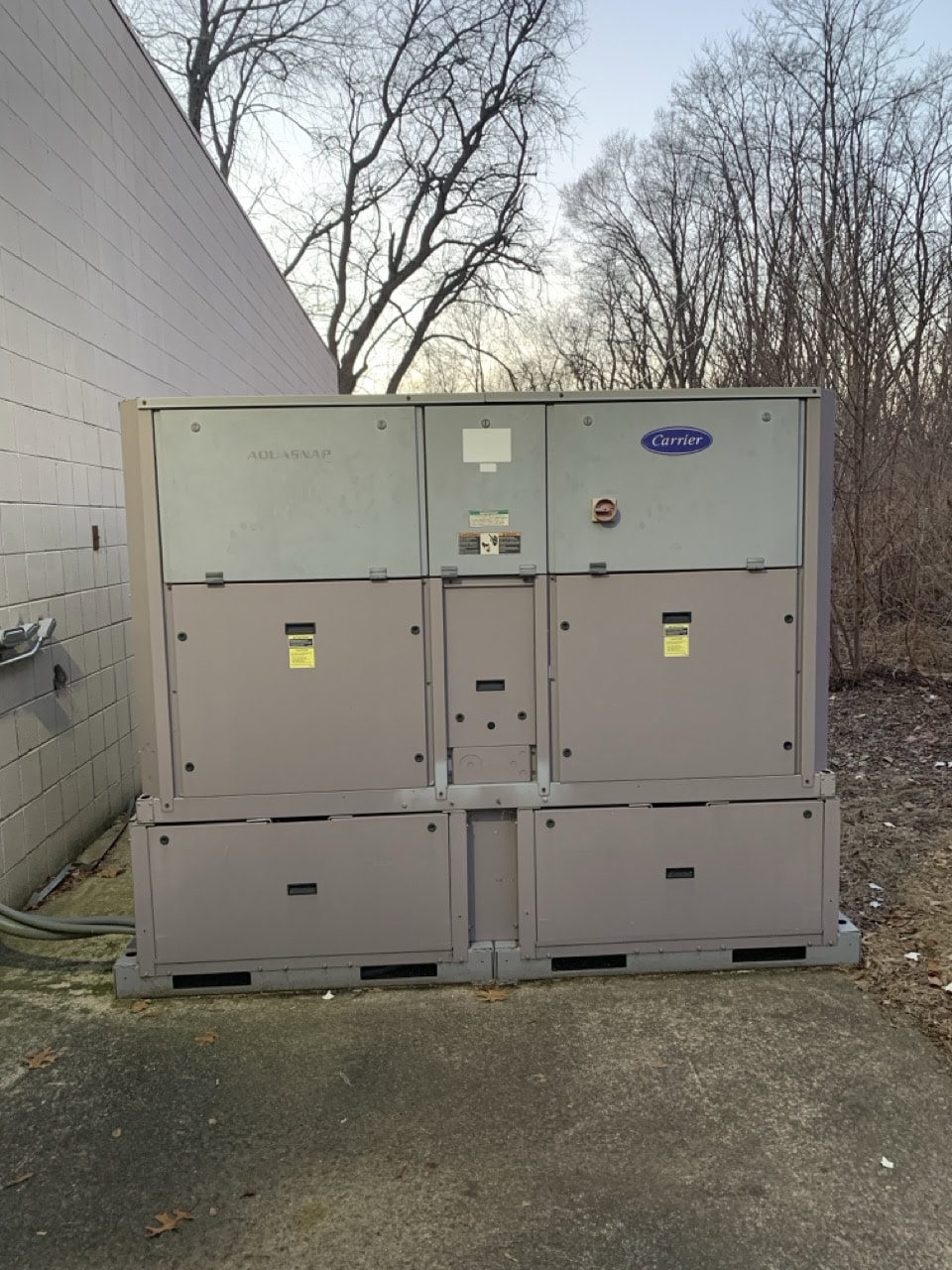

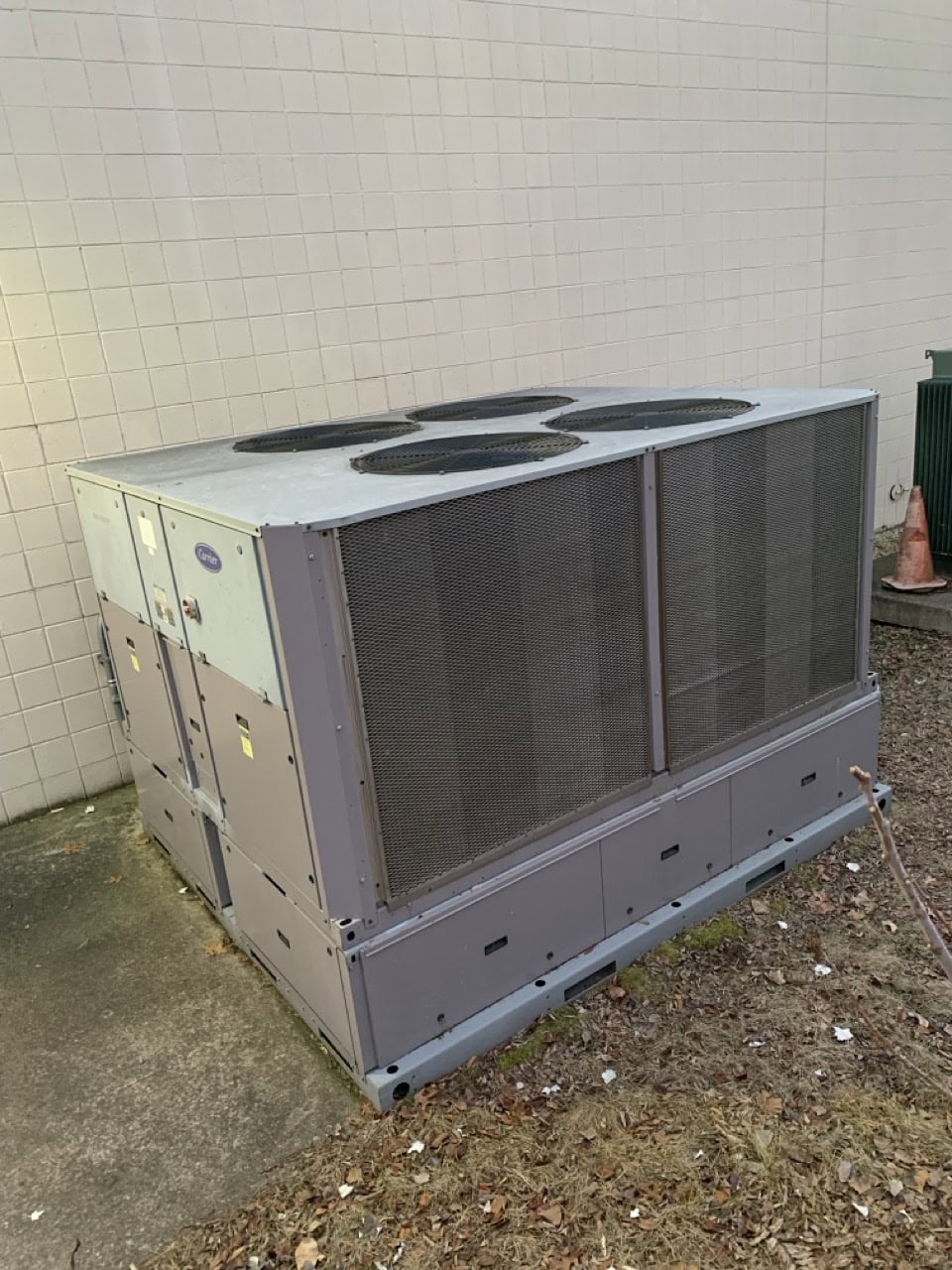

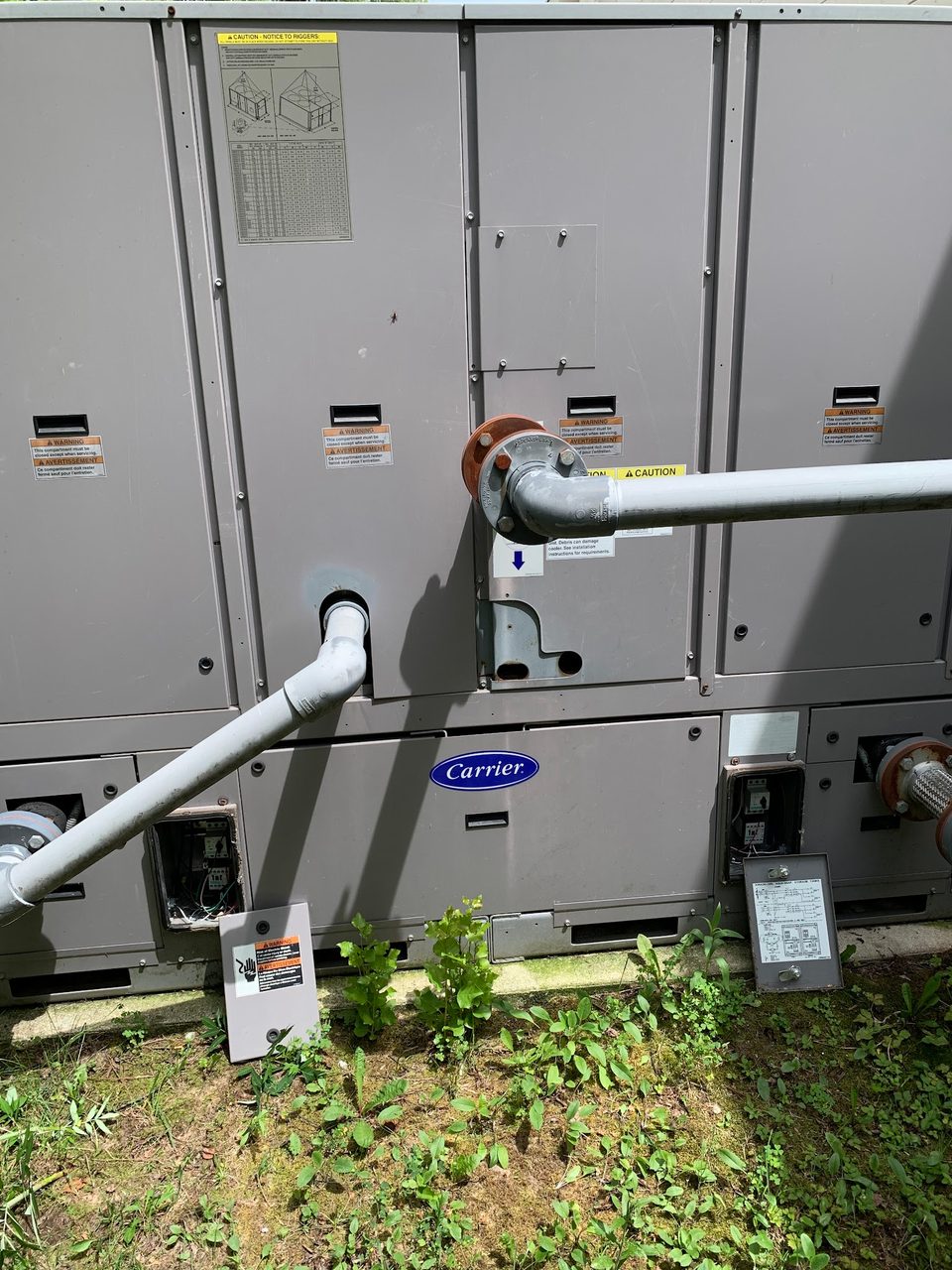

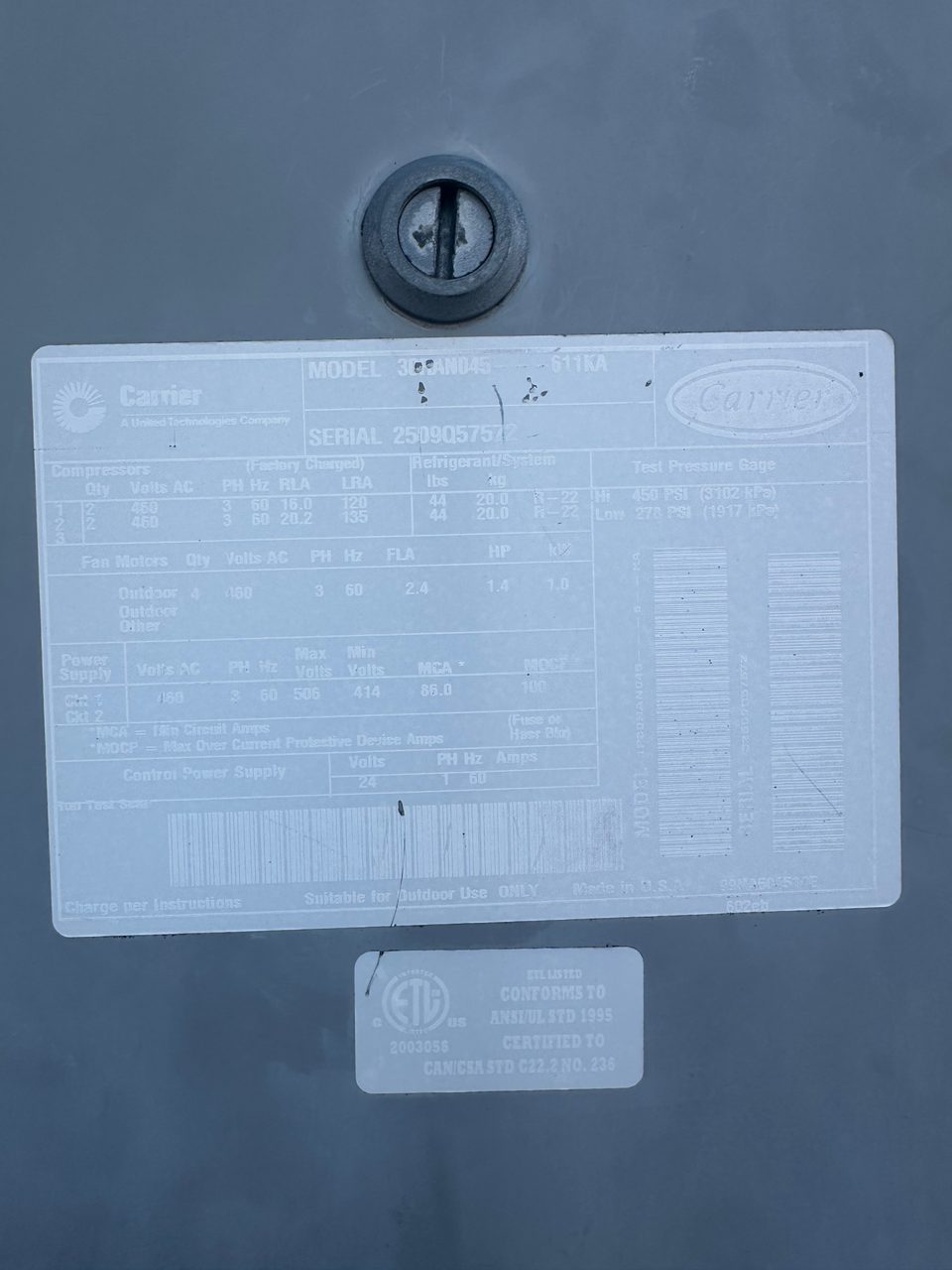

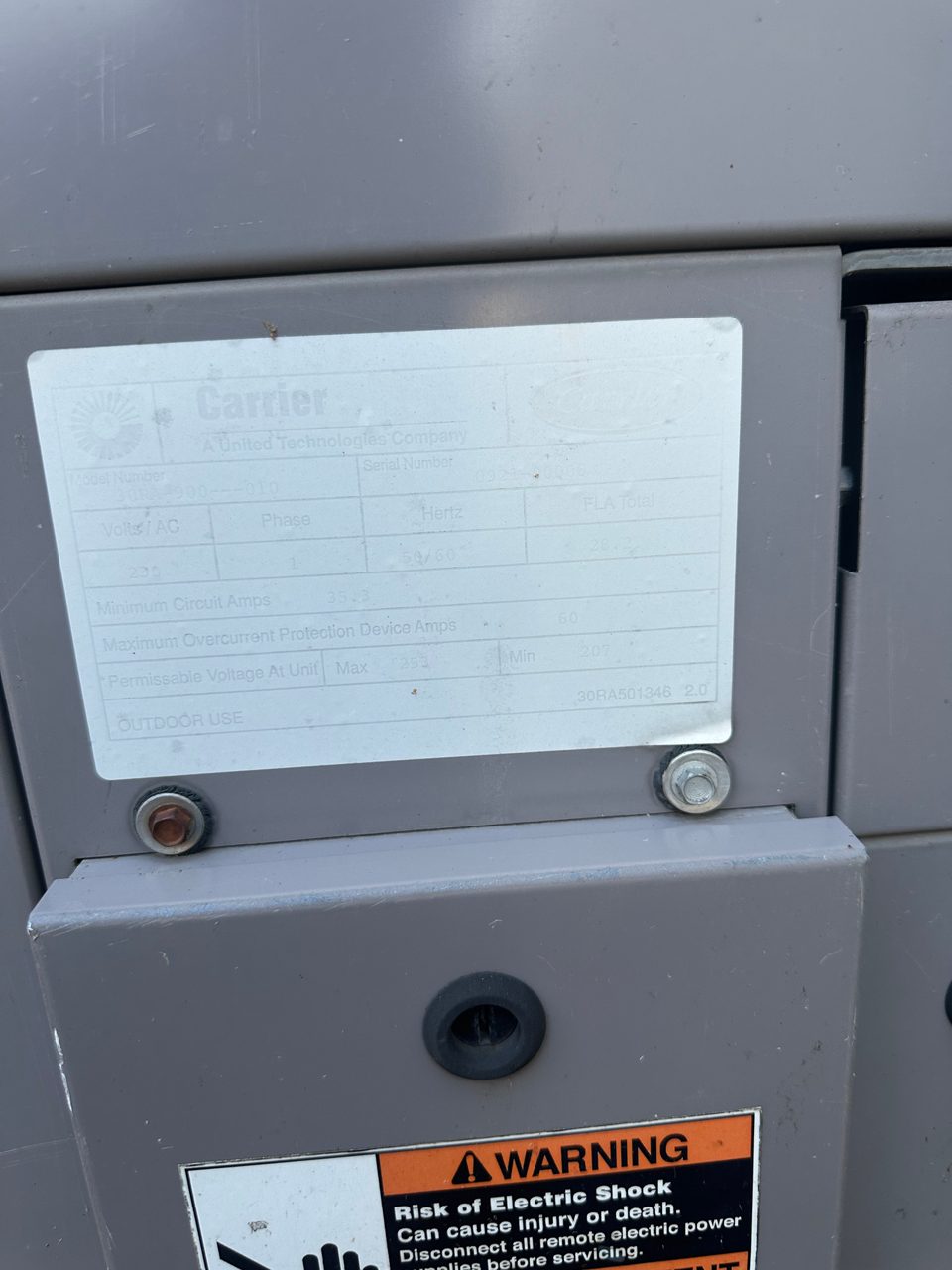

Carrier 30RAN045 Air-Cooled Chiller, 2009

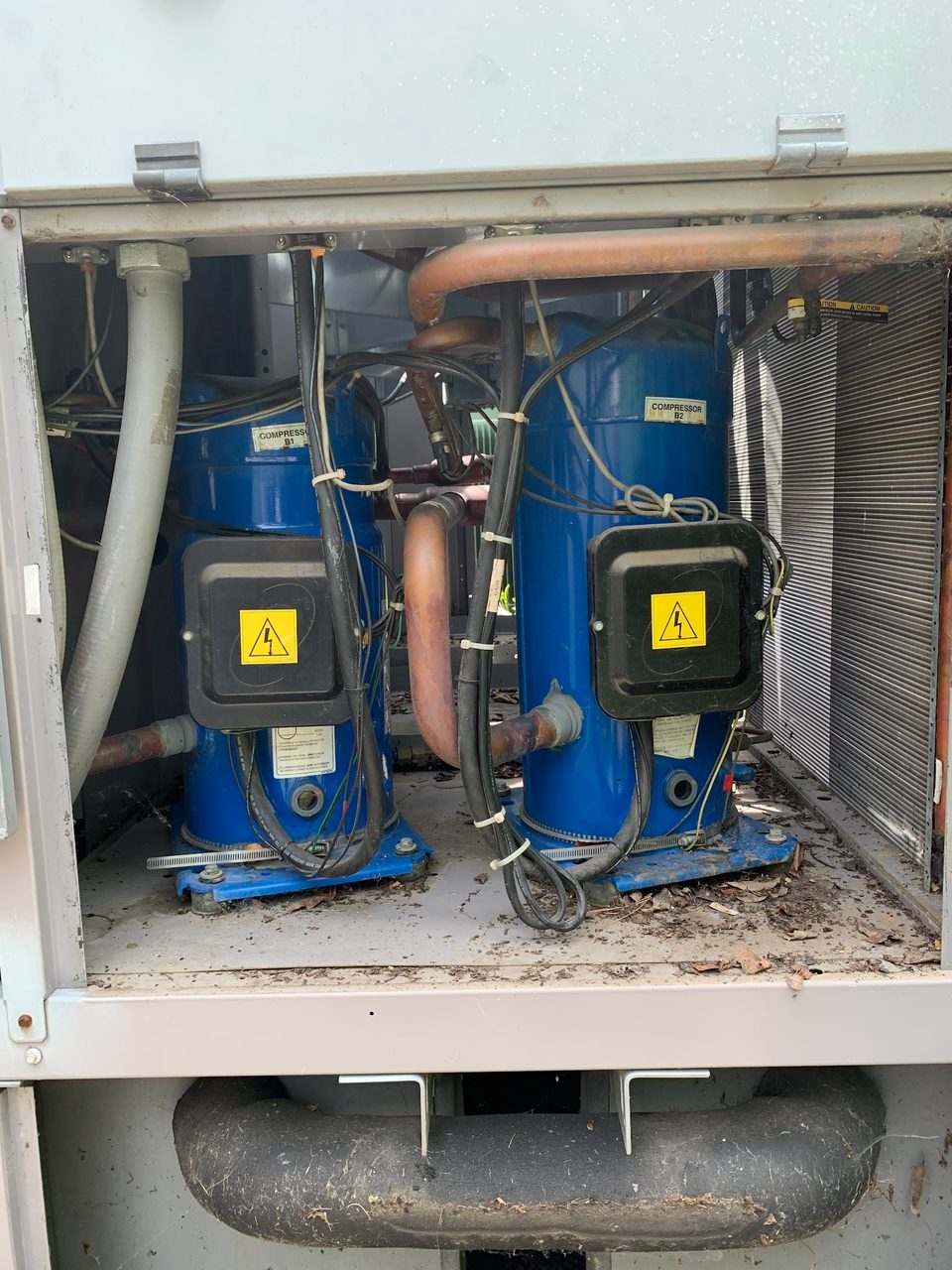

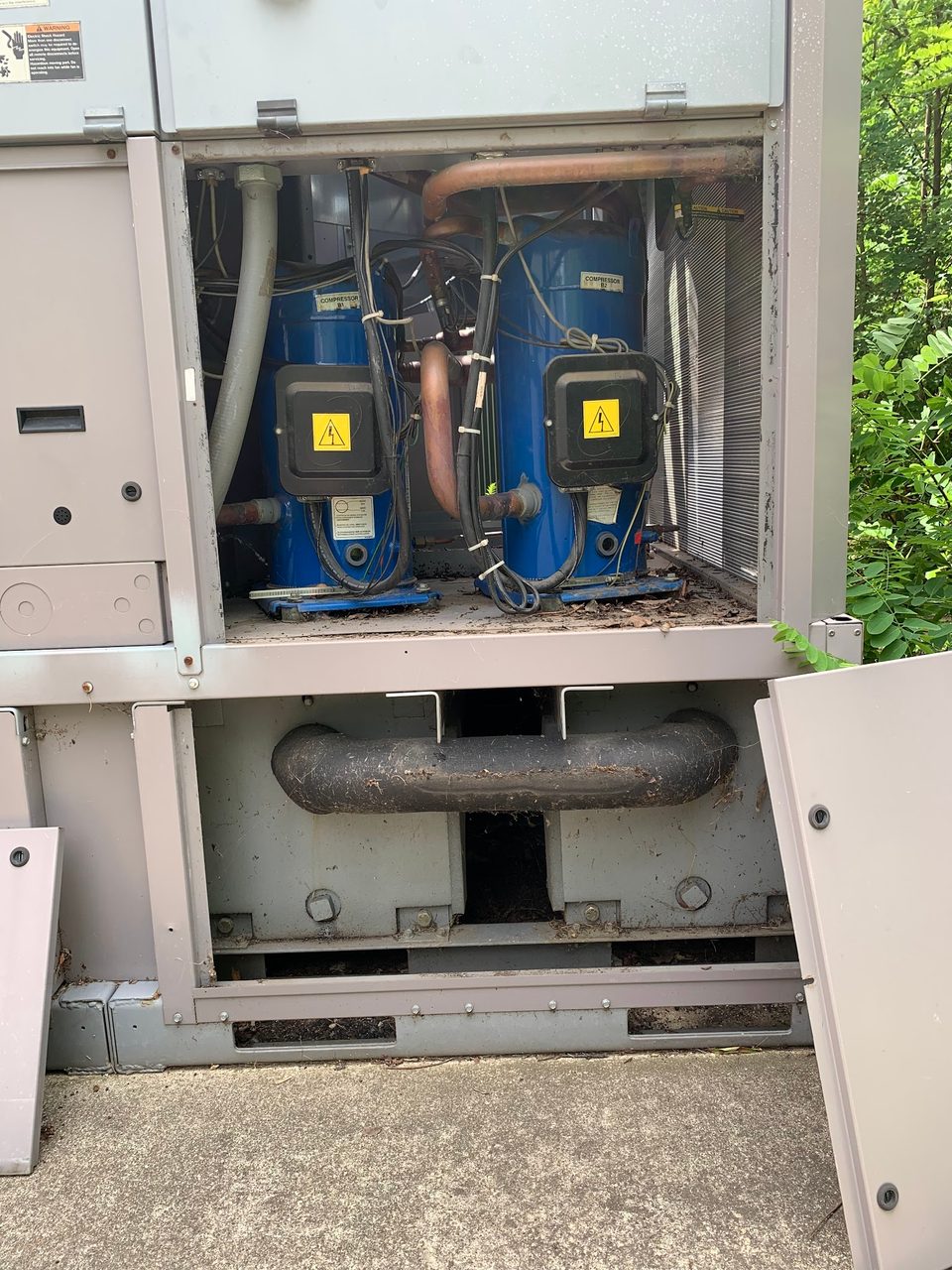

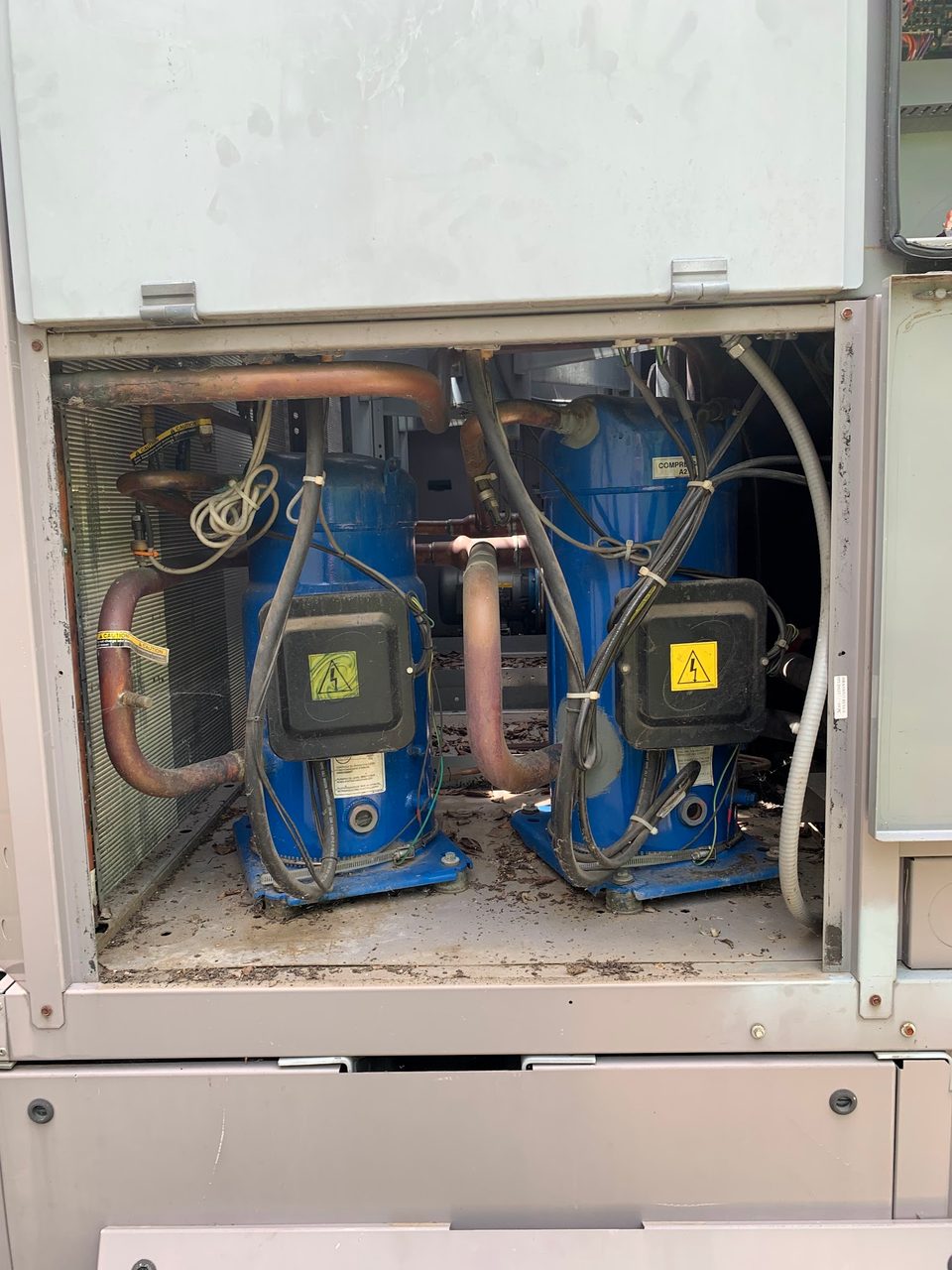

Compressors

Quantity: 2
Voltage: 460V
Phase: 3
Frequency: 60 Hz

Compressor RLA LRA
#1 15.0 120
#2 20.2 159

Refrigerant

Type: R-22
Charge: ~44 lbs per circuit (appears per compressor)

Test Pressure

High Side: 150 PSI (≈1032 kPa)
Low Side: 278 PSI (≈1917 kPa)

Fan Motors (Outdoor)

Voltage: 460V
Phase: 3
Frequency: 60 Hz
FLA: 2.4
HP: 1.4

Power Supply (Main)

Voltage: 460V
Phase: 3
Frequency: 60 Hz
Max Voltage: 508 V
Min Voltage: 414 V
MCA: 86.0 A
MOCP: 100 A (Fuse or HACR breaker)

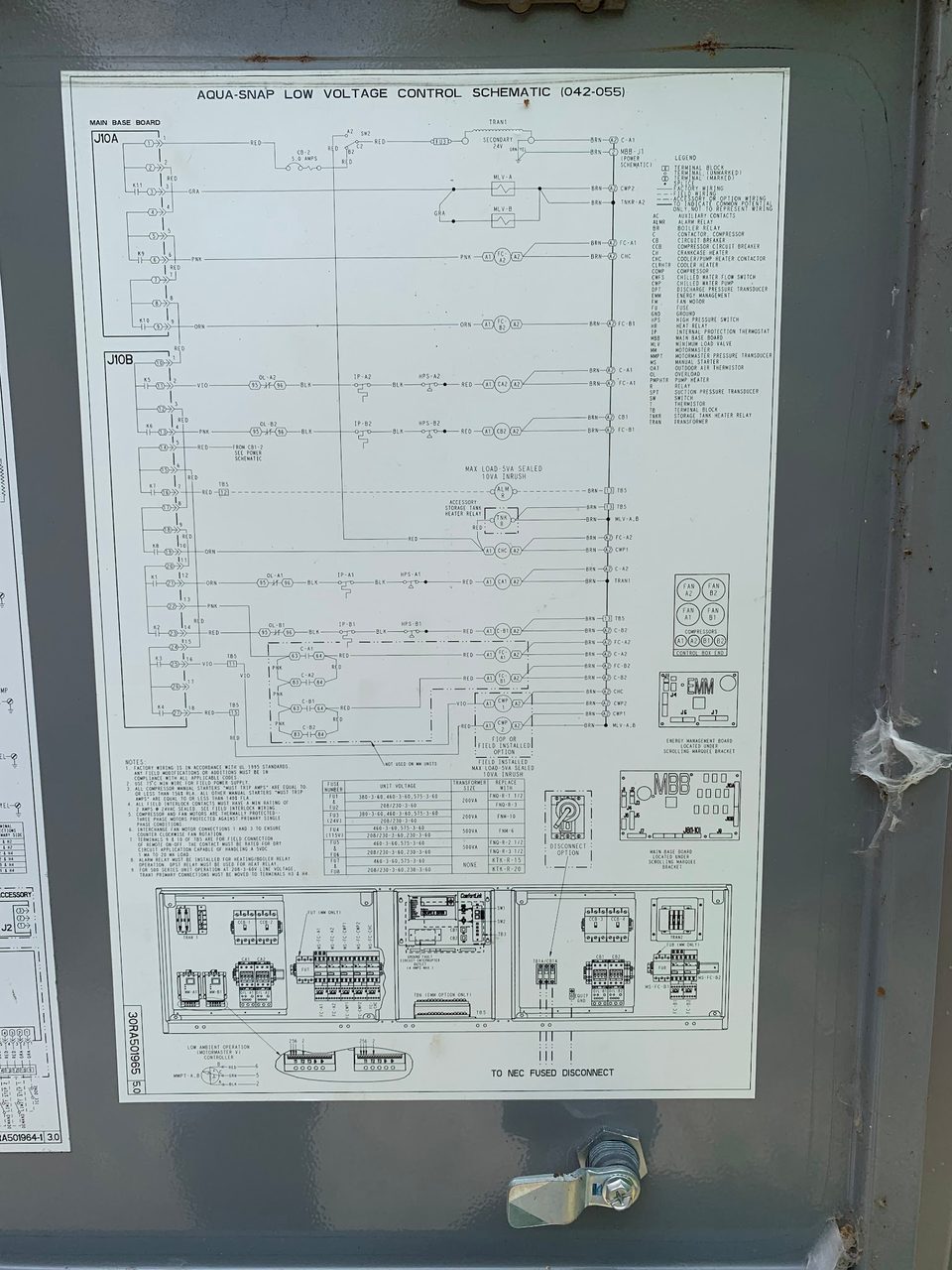

Control Power

Voltage: 24V
Phase: 1
Frequency: 60 Hz
