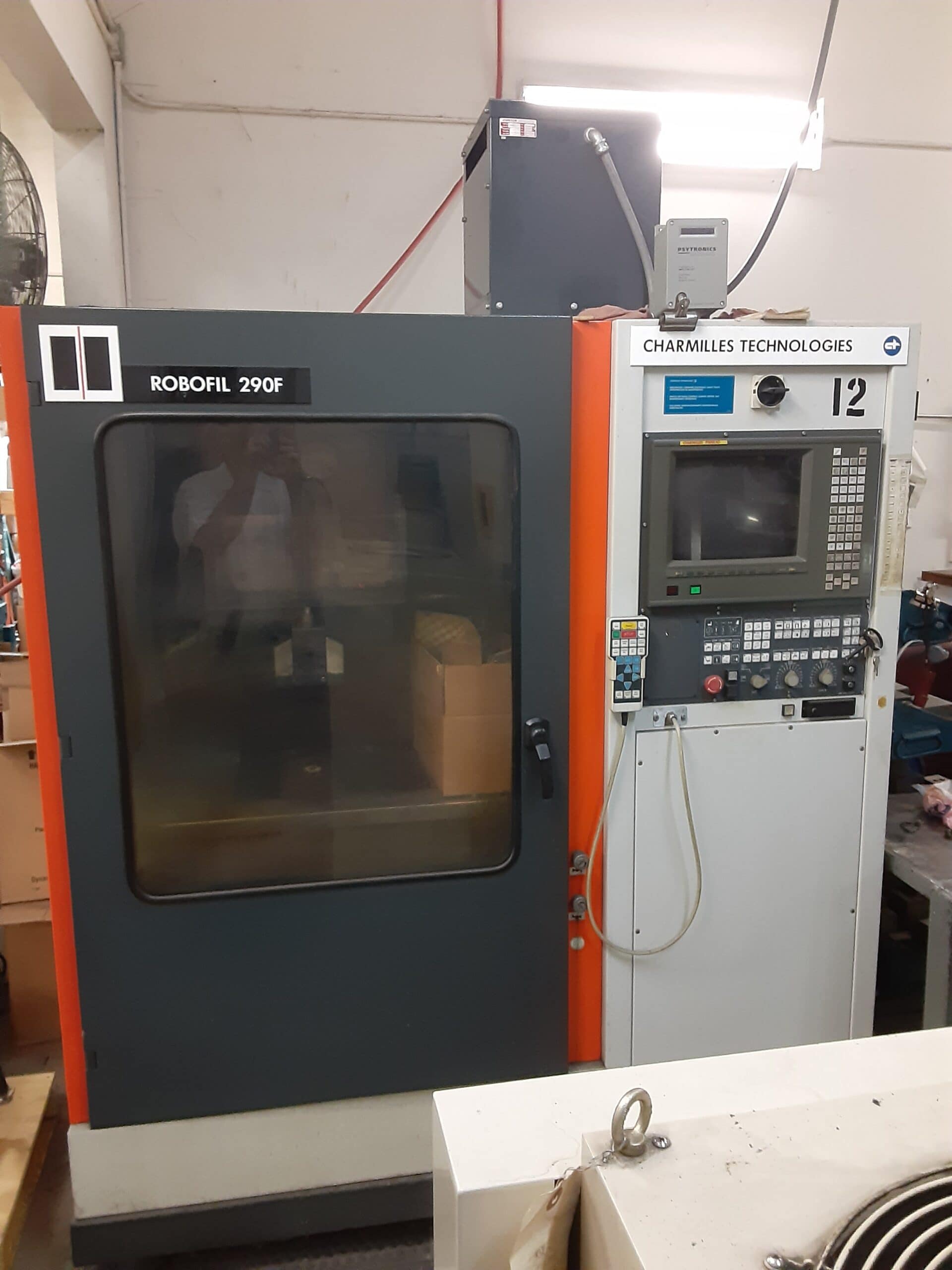

Charmilles Robofil 290F Wire EDM, 1997

$9,500.00

Request a Quote to Instantly See Pricing

Machine Type:
EDM
Model:
Robofil 290F
Make:
Charmilles
Year:
1997

Maximum Workpiece Size: 33.5″ x 19.7″ x 7.87″
Maximum Workpiece Weight: 1,100 Lbs
Taper Capacity: 0 to 30 Degrees
X Axis: 16.5″
Y Axis: 10″
Z Axis: 11.8″
Wire Diameter Capability: .004″-.012″
Machine Weight: 5,600 LBS

Equipped With:

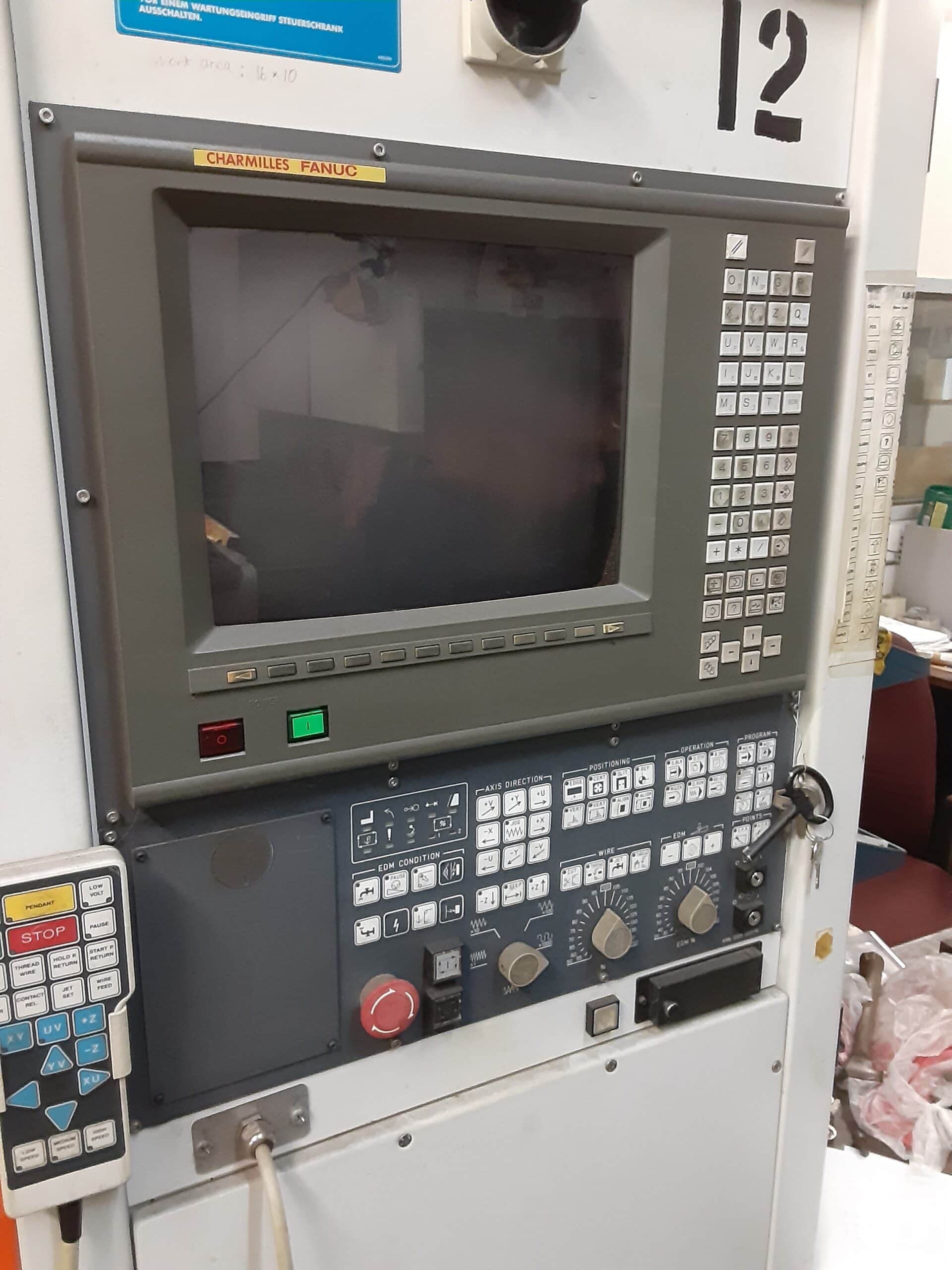

Charmilles Fanuc Control
Autothread

All specifications are assumed to be correct but must be confirmed by the purchasing entity.
