Citizen K16 CNC Swiss Lathe, 2007 – Bar Feeder, Live Tooling, Sub Spindle

Maximum Machining Diameter: 0.787″
Maximum Machining Length: 9.84″ w Guide Bush
Main Spindle Speed: 200–10,000 RPM
Main Spindle Indexing: Full C-Axis
Back (Sub) Spindle Speed: 200–8,000 RPM
Sub Spindle Indexing: Full C
Rotary Tool Speed: 8,000 Rpm
Back Spindle Max Chucking Diameter: 0.787″
Turning Tools: 8 (7)On Front Main Slide
Rotary (Live) Tools: 4 On Front Main Slide
Front-End Working Tools: 5 Stations (For Sub-Spindle Work On Main Slide)
Back-End Working Tools: 5 Stations
Main Spindle Drive: 5 HP
Back Spindle Drive: 3 HP
Rotary Tool Drive: 1.5 HP

Equipped With:

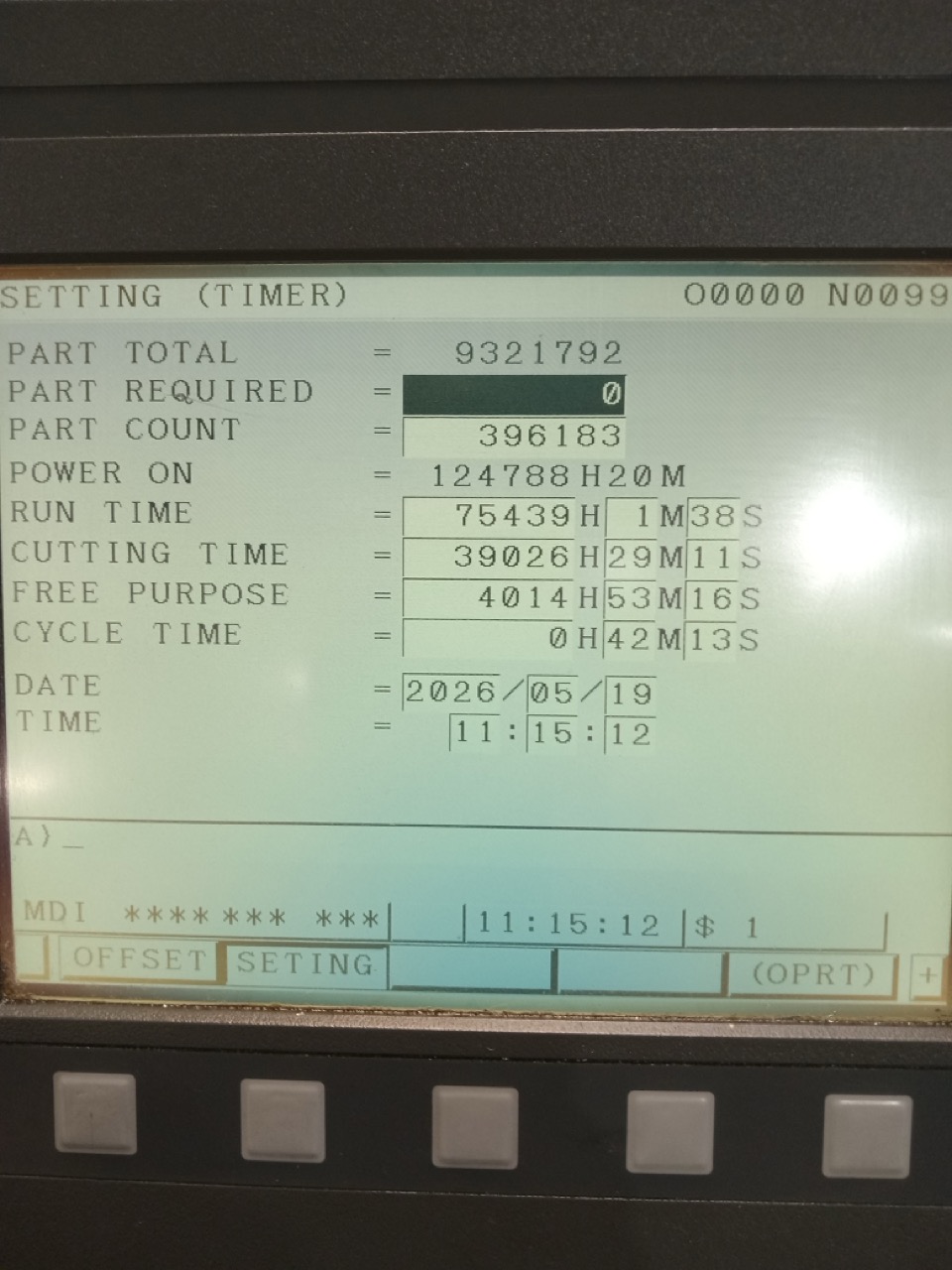

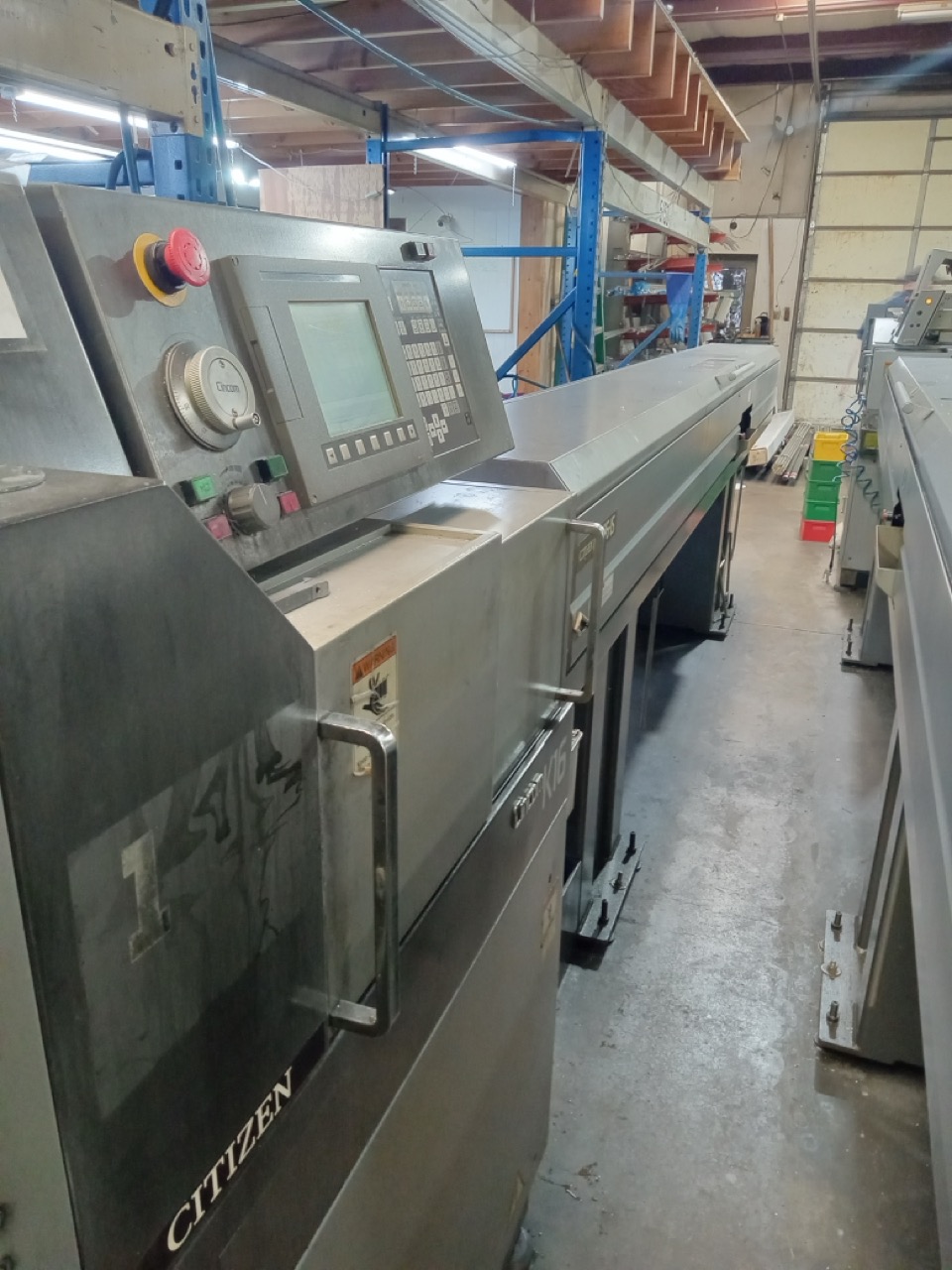

Mitsubishi M70 CNC Control
Full C Indexing On The Main Spindle
Sub Spindle 360 Degree
Main Spindle X1 Y1 Z1 C1 Axes
Sub Spindle With X2, Z2 And C1 Axes
8,000 Max RPM Live Milling
Parts Catcher
Coolant Thru Sub Spindle

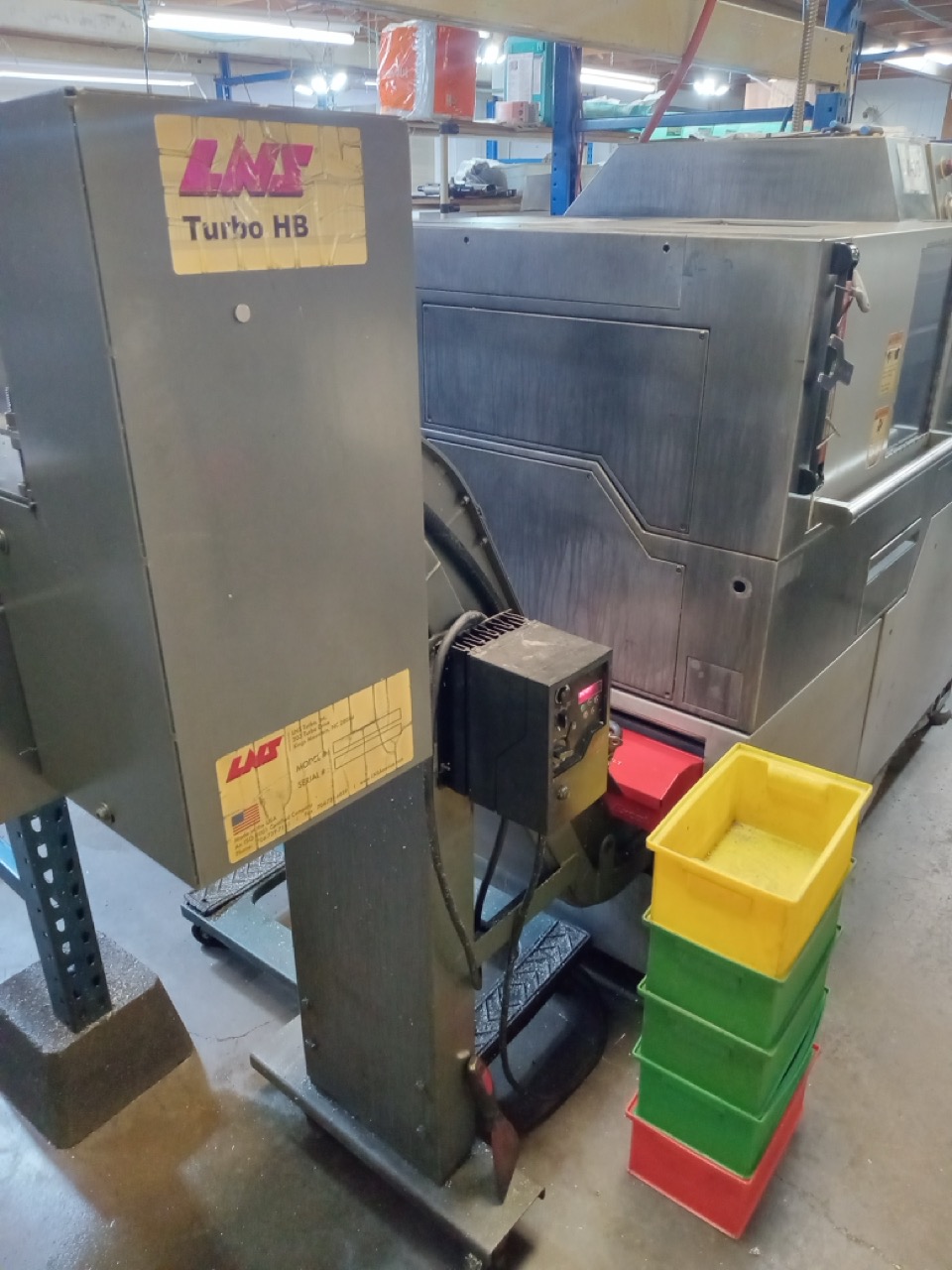

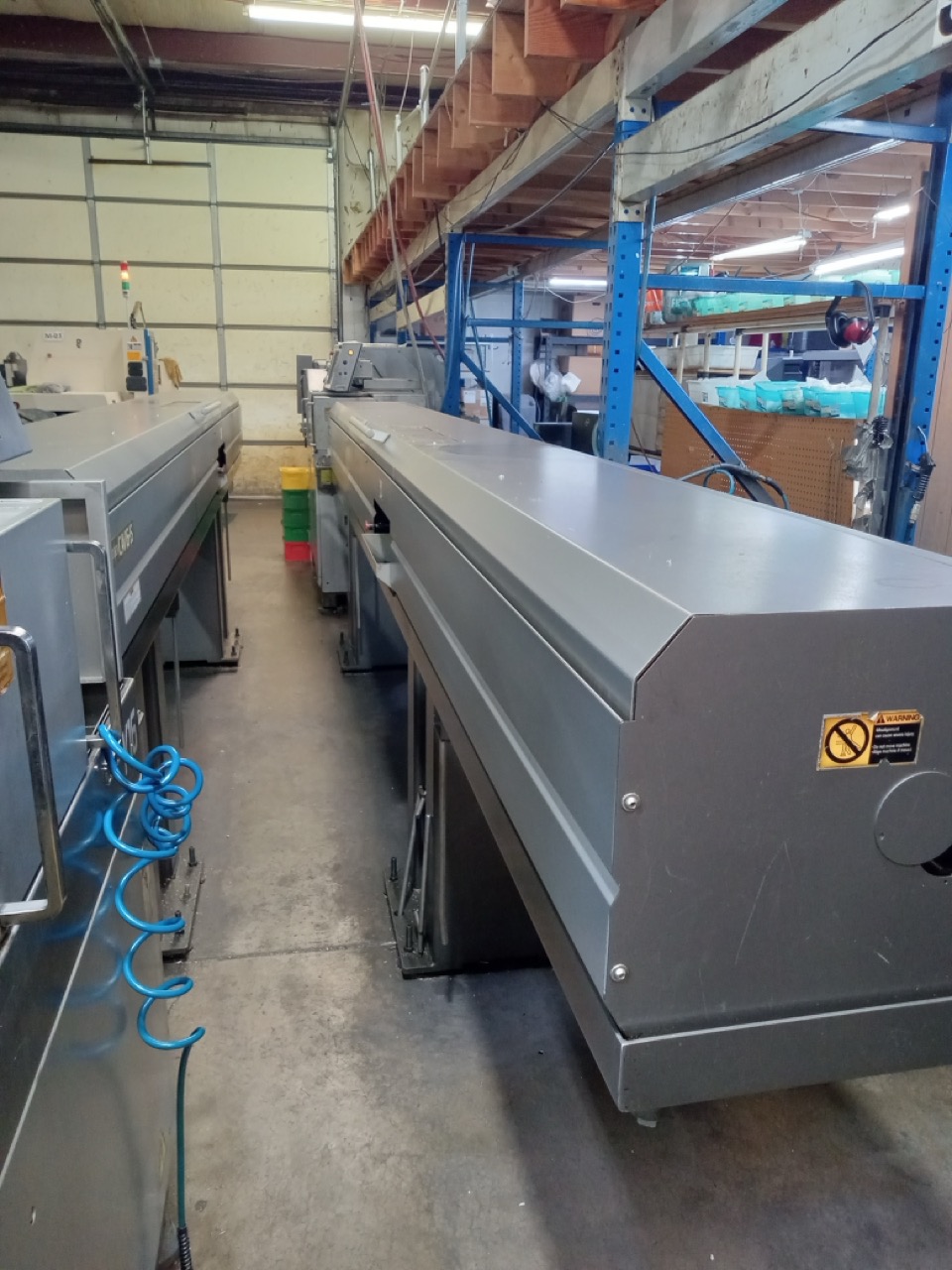

Edge Tech 12 Foot Bar Feeder

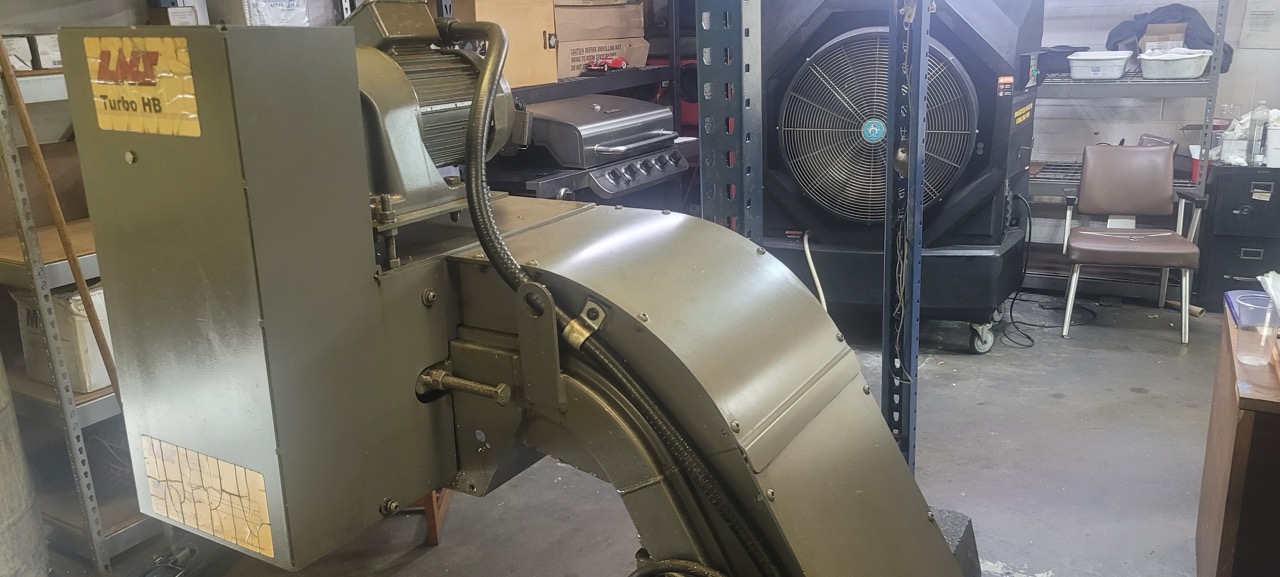

Chip Conveyor
