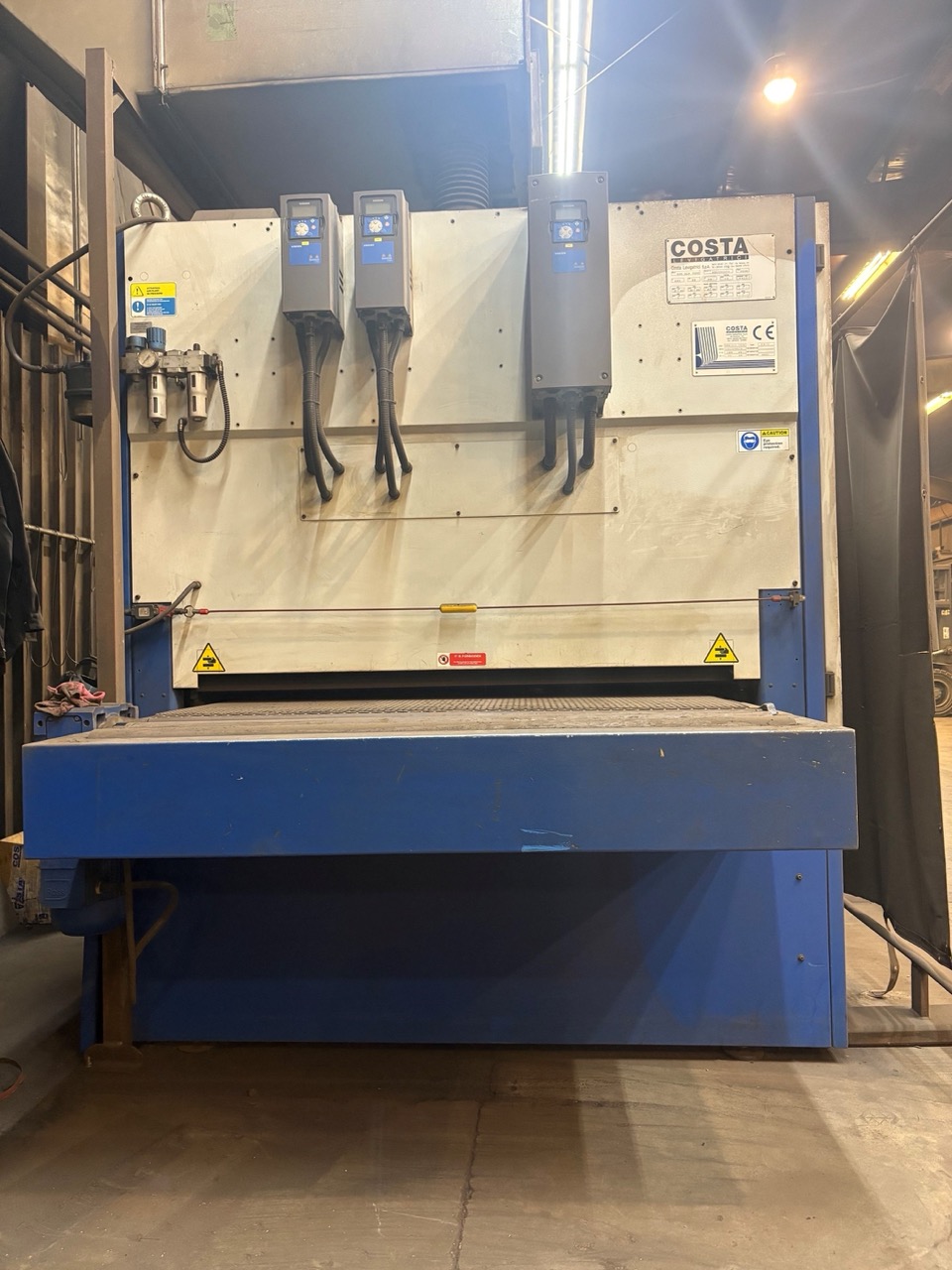

Costa Levigatrici MD6 CVV 1350 Metal Deburring and Polishing Machine, 2015

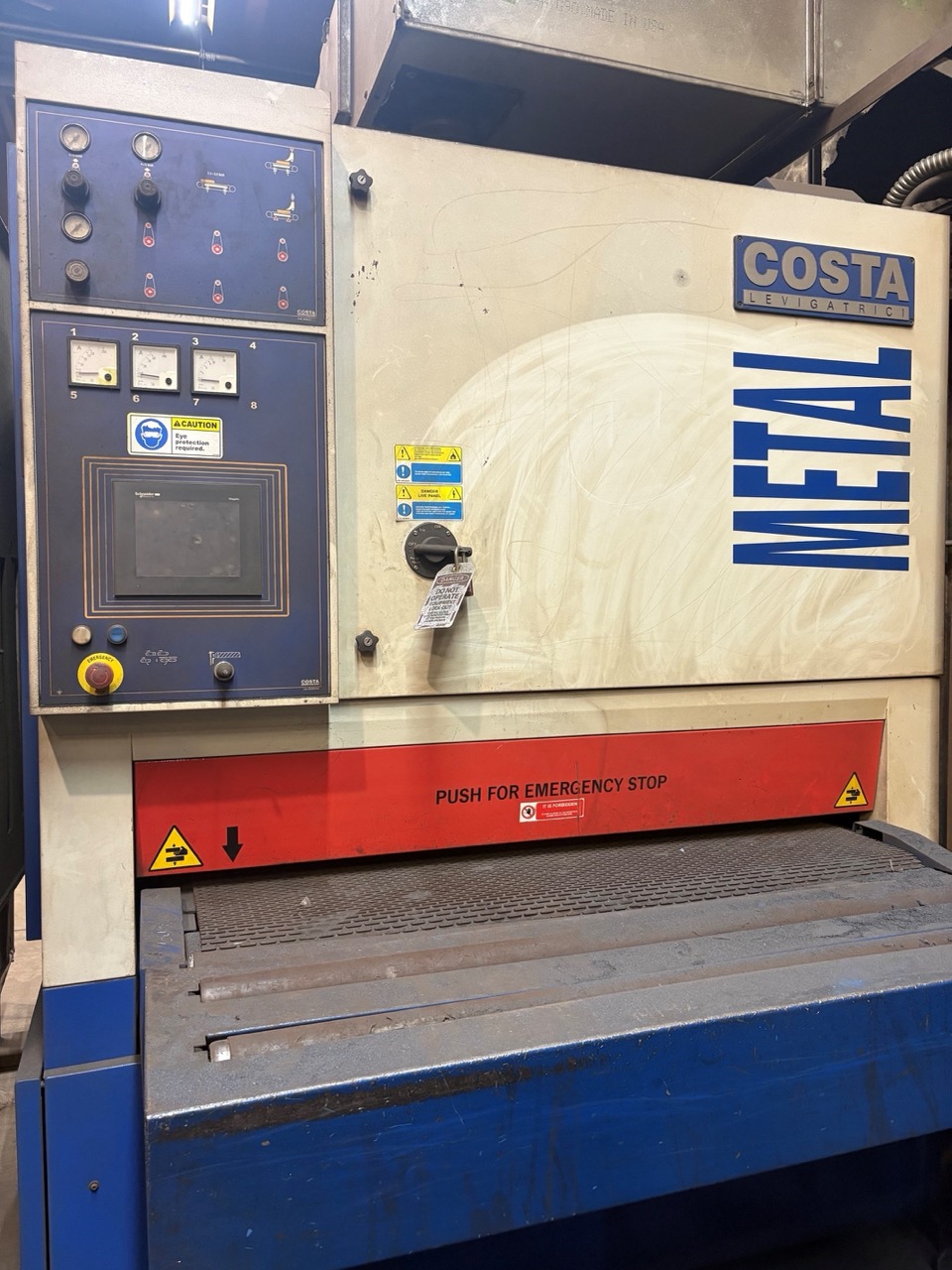

Costa Levigatrici MD6 CVV 1350 Metal Deburring and Polishing Machine, 2015 - Image 2

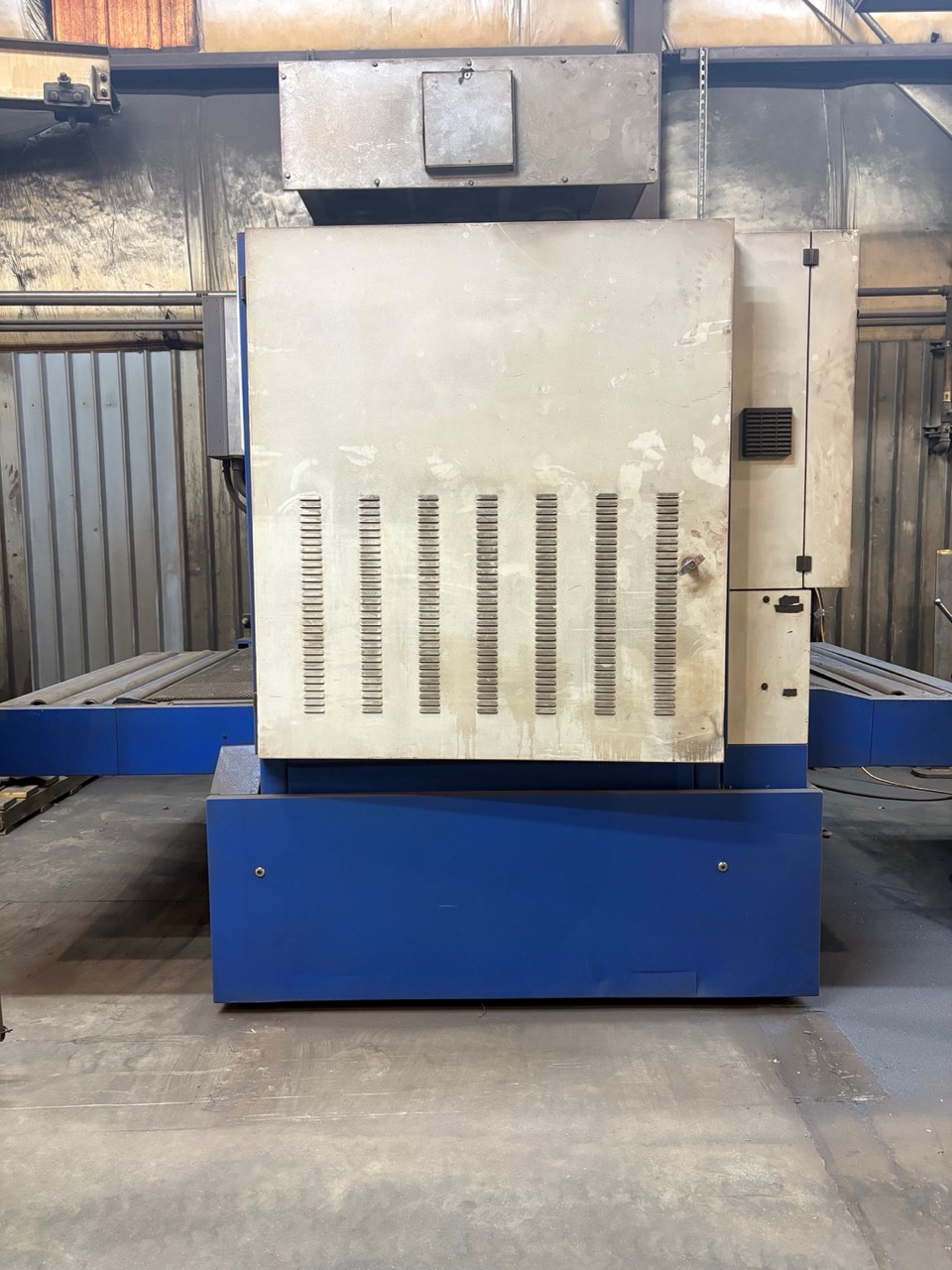

Costa Levigatrici MD6 CVV 1350 Metal Deburring and Polishing Machine, 2015 - Image 3
VH
61749705793

Costa Levigatrici MD6 CVV 1350 Metal Deburring and Polishing Machine, 2015

$59,900.00

Costa Levigatrici MD6 CVV 1350 Metal Deburring and Polishing Machine, 2015
Costa Levigatrici MD6 CVV 1350 Metal Deburring and Polishing Machine, 2015 - Image 2
Costa Levigatrici MD6 CVV 1350 Metal Deburring and Polishing Machine, 2015 - Image 3

Request a Quote to Instantly See Pricing

Call Now

Machine Type: Deburring
Make: Costa Levigatrici
Model: MD6 CVV 1350
Year: 2015
Machine Location: Upon Request
Stock #: 705793

Working Width: 53.1″
Maximum Material Thickness: 6.3″
Minimum Material Thickness: 0.03″
Maximum Workpiece Weight: 1,102 Lbs.
Abrasive Belt Length: 103.1″
Working Units: C25 + XRS-130 + C25
Contact Roller Diameter: 9.8″
Orbital Brush Diameter: 5.1″
Approximate Weight: 10,582 Lbs. (4,800 Kg)

Equipped With:

C25 Wide Belt Grinding Head
XRS-130 Orbital Brush Head
Second C25 Wide Belt Grinding Head
SB-18 Scotch-Brite Finishing Unit
PLC Vision B Touchscreen Control
Constant Height Conveyor Table
Oscillating Belt System
Dry Processing Configuration
Dust Extraction Connection

All specifications are assumed to be correct but must be confirmed by the purchasing entity.
