2023 Despatch TFD3‑10 – 104 cu ft Class A Walk-In/Truck-In Industrial Oven (Never Used)

Specs
Make: Despatch
Model: TFD3‑10
Year: 2023

Condition: Never used

Work chamber dimensions: 48″ W × 52″ D × 72″ H

Chamber capacity: 104 cu ft (2,945 liters)

Heater capacity: 48 kW

Operating temperature: 93°F to 650°F (34°C to 343°C)

Temperature uniformity: ± 1.5% after stabilization

Recirculation: 5 HP fan delivering ~3,800 CFM

Power requirement: 480 V, 3‑phase, 60 Hz, 66 A max draw

External dimensions: 100.5″ × 62.5″ × 102″

Construction: 5″ fiberglass insulated walls, aluminized steel interior, mild steel enamel exterior

Weight: ~3,070 lb (shipping: ~3,270 lb)

Installed Options
Class A flammable solvent handling package (NFPA 86 compliant)
Protocol 3™ programmable controller with Ethernet/Modbus and USB data logging
Truck with one shelf
12 additional removable truck shelves
2″ test port with pipe cap
Door switch interlock for heater deactivation when open
Exhaust fan and pressure relief system

Feature Spotlight
UL/C-UL certified panel, Protocol 3™ control system, and high-limit alarm for maximum process safety
Pre-assembled and factory-tested, ensuring turnkey setup with full compliance to Class A standards
Flexible racking with shelf spacing and high airflow for load versatility and thermal consistency

Machine Overview

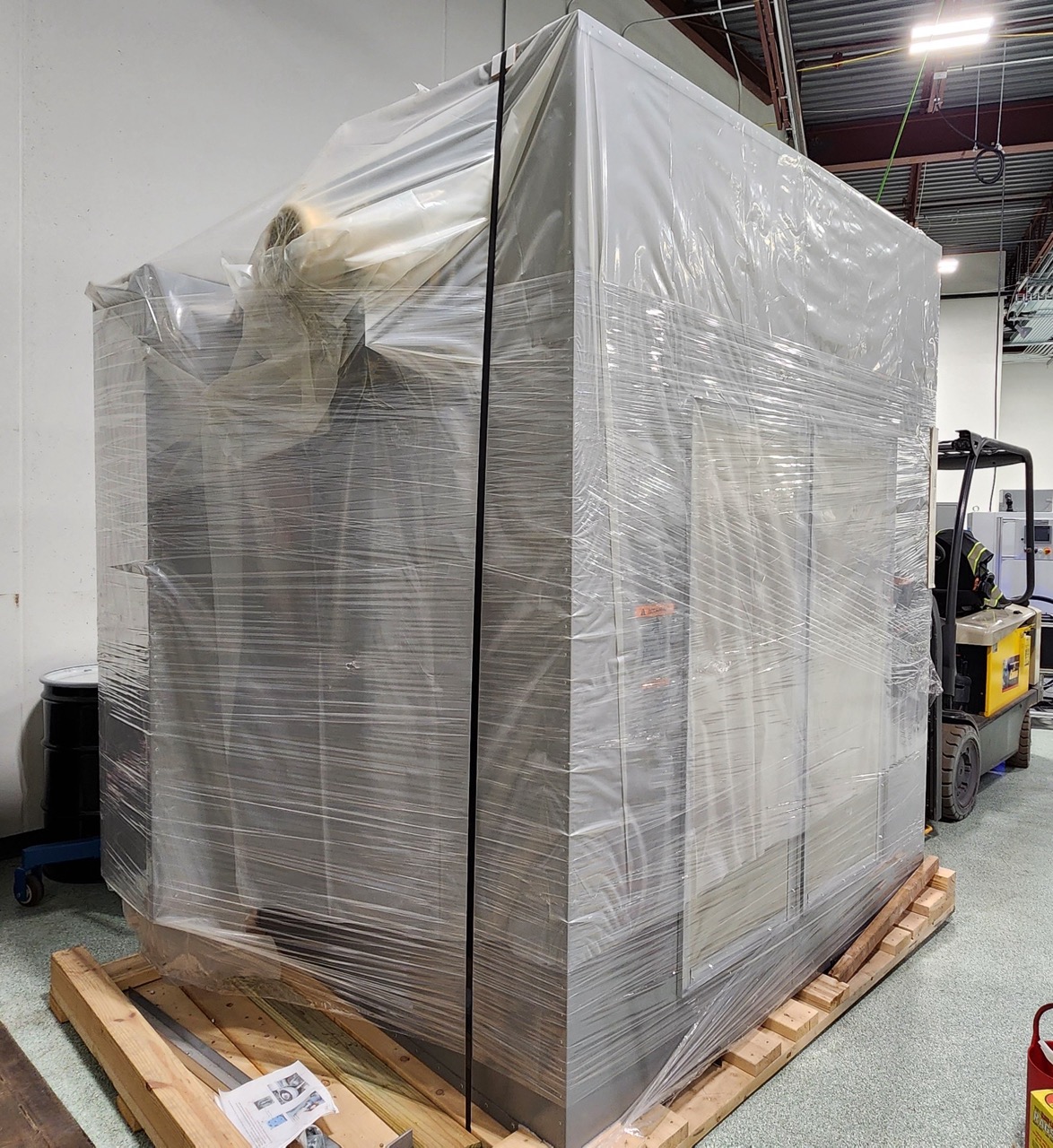

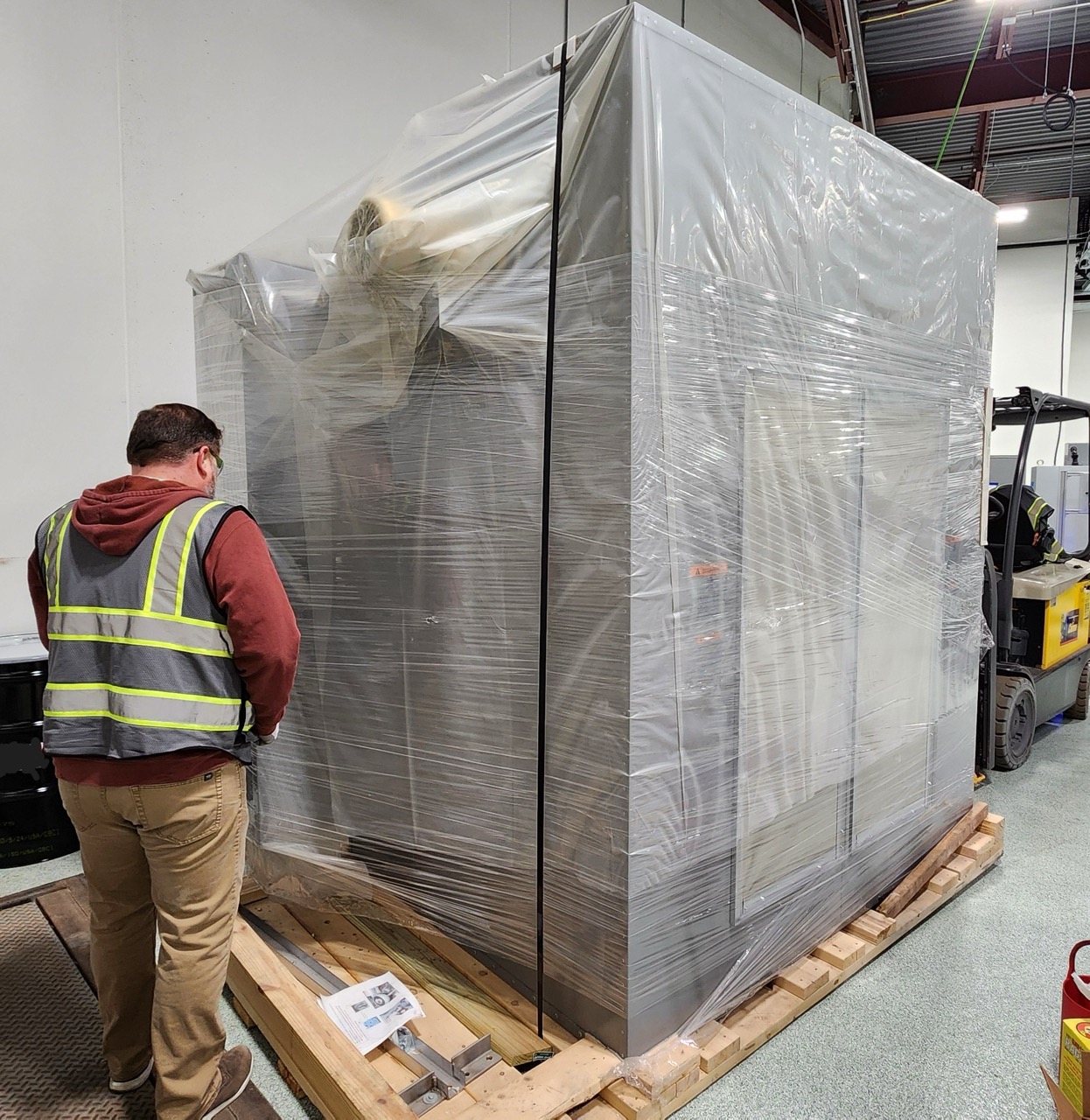

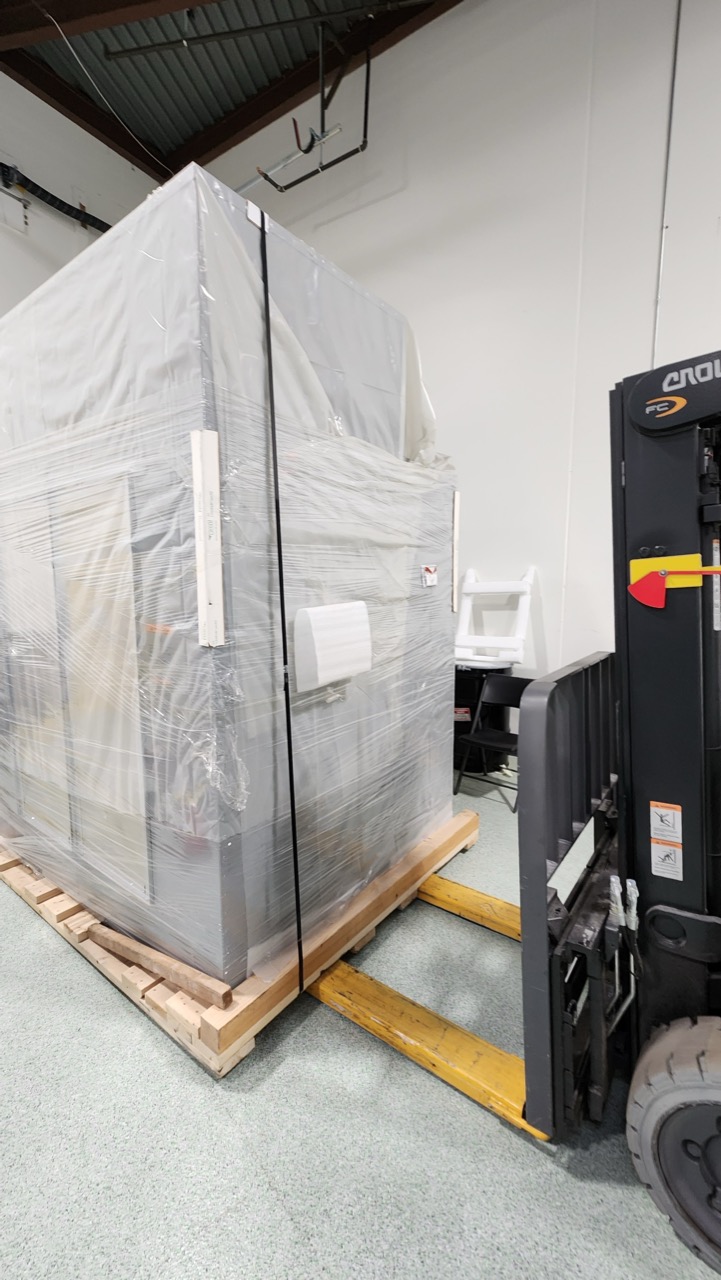

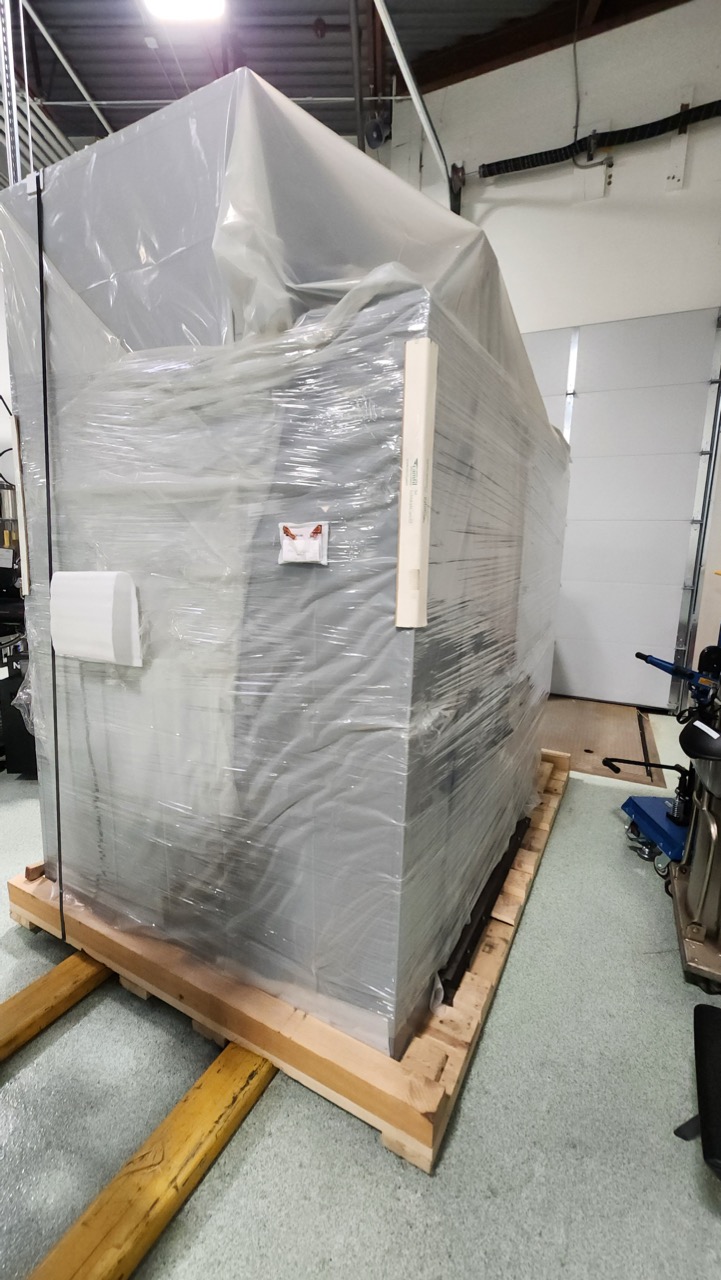

The 2023 Despatch TFD3‑10 is a state-of-the-art Class A walk-in/truck-in oven designed for curing, drying, or heat-treating solvent-bearing materials up to 650°F. It features a spacious 104 cu ft chamber, 48 kW of heating power, and precision airflow driven by a 5 HP recirculation motor. The included Protocol 3™ controller offers Ethernet/Modbus connectivity and USB data logging. Built with robust insulation and safety systems, this unit is suitable for demanding industrial environments. This specific build includes a cart with 13-shelf capability and upgraded safety/compliance features. It has never been used and remains in original packaging, offering buyers a like-new machine at a post-production discount.
