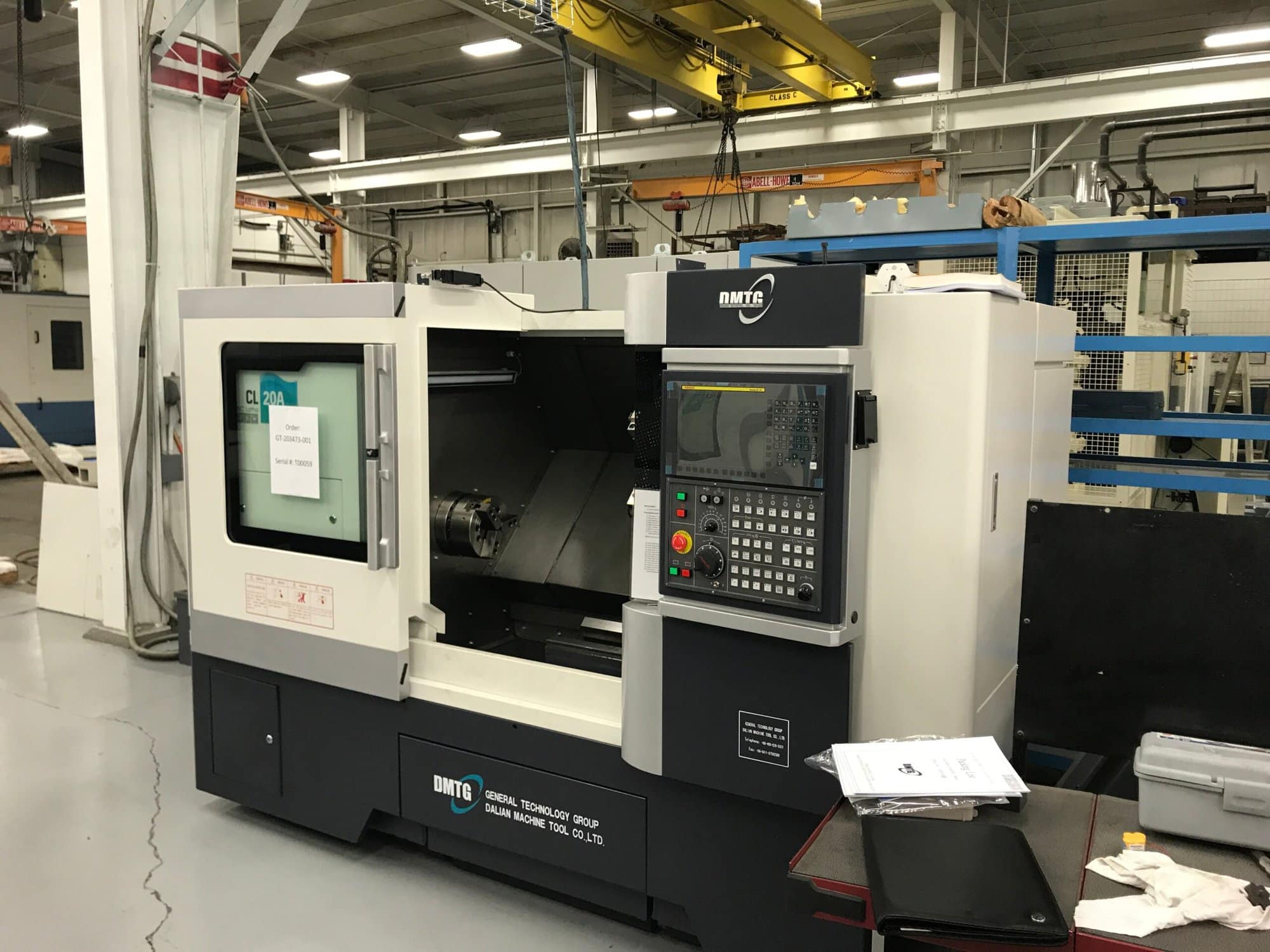

DMTG CL-20A Slant Bed CNC Lathe, 2020 – Fanuc Control, Tailstock

$42,000.00

This product is no longer available. For additional information, please fill out the form below.

Swing over bed – 440MM
Max turning diameter – Shaft parts 260mm; Disc parts 300mm
Max turning length – 450mm
Chuck Size – 8in
Spindle nose type – A2-6
Spindle Speed Range – 45-4500rpm
Spindle motor power – 11/15KW
Spindle through bore – 62mm
Max Bar Capacity – 52mm
Max Cross travel X,Z axes – 165/500mm
Rapid traverse X,Z axes – 16/20 m/min
Cutting feed rate – 5000 mm/min
Turret Type and number of cutters – 8 stations hydraulic tool turret
Tool Size – 25mm
Tailstock travel – 460mm
Tailstock quill stroke – 130mm
Machine dimensions – 2850mm x 2920mm x 1760mm h
Machine weight – 4500kg

Equipped with:

Fanuc Oi TF control
Hydraulic tailstock quill

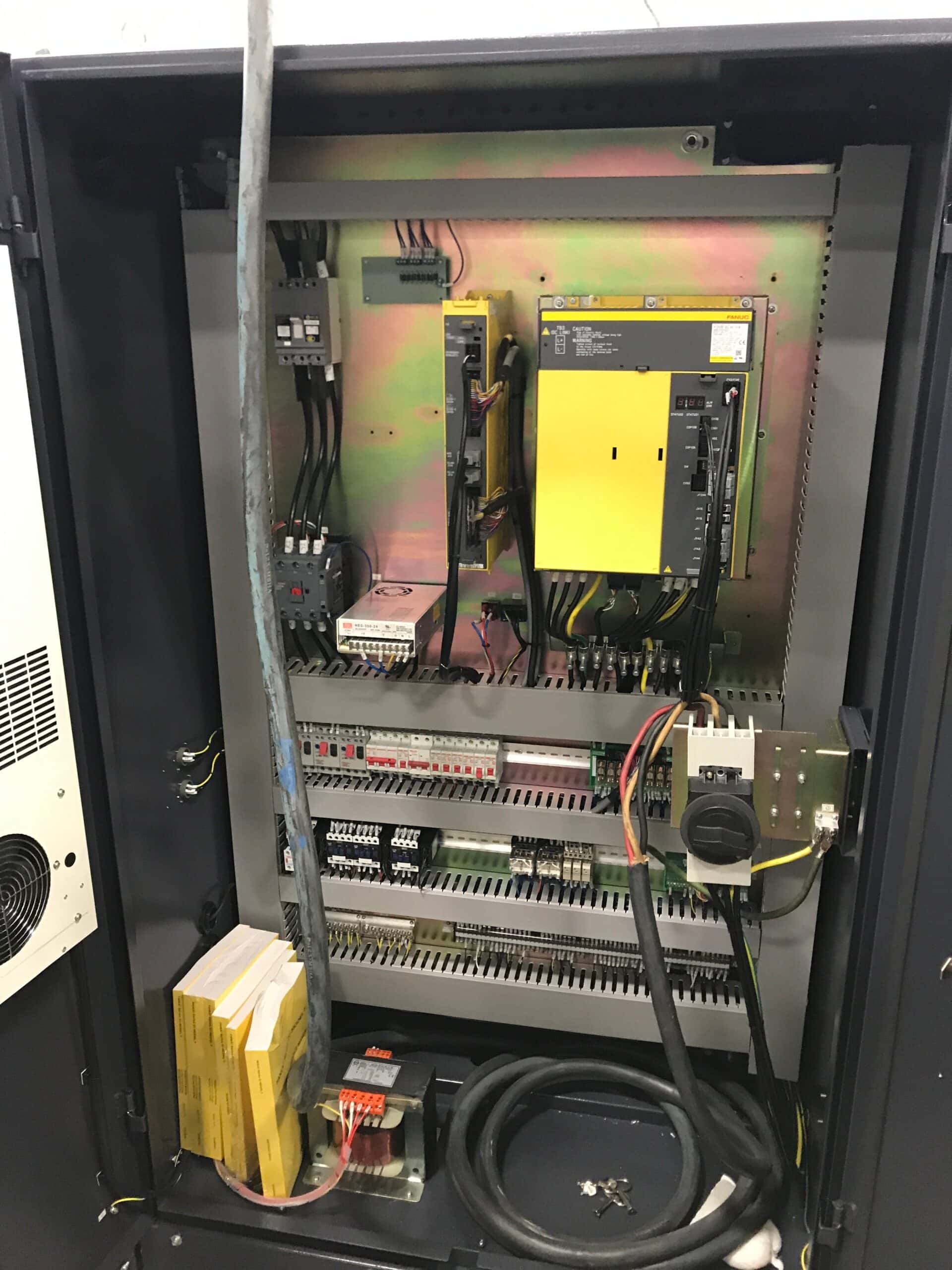

Heat exchanger for electrical panel
Alarm stack light
Semi-closed loop measurement device
