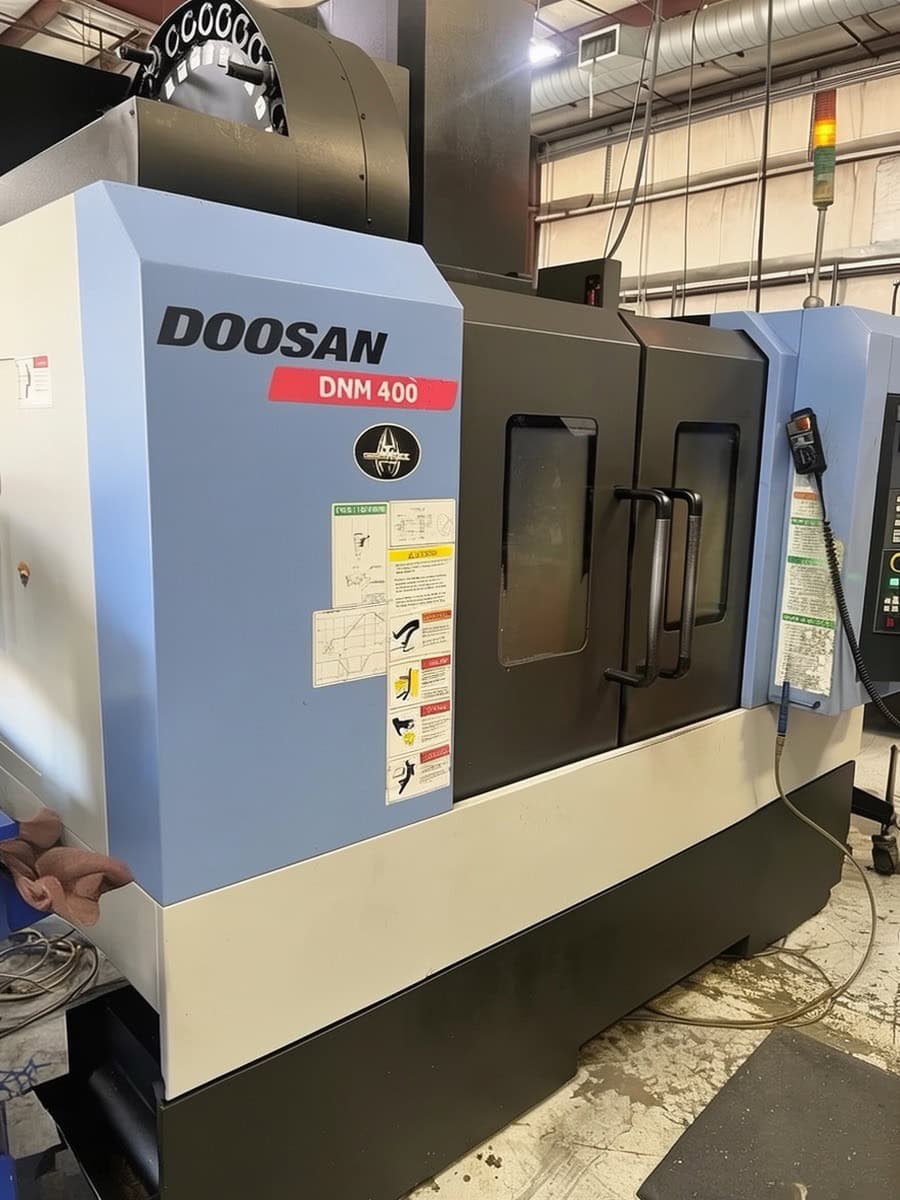

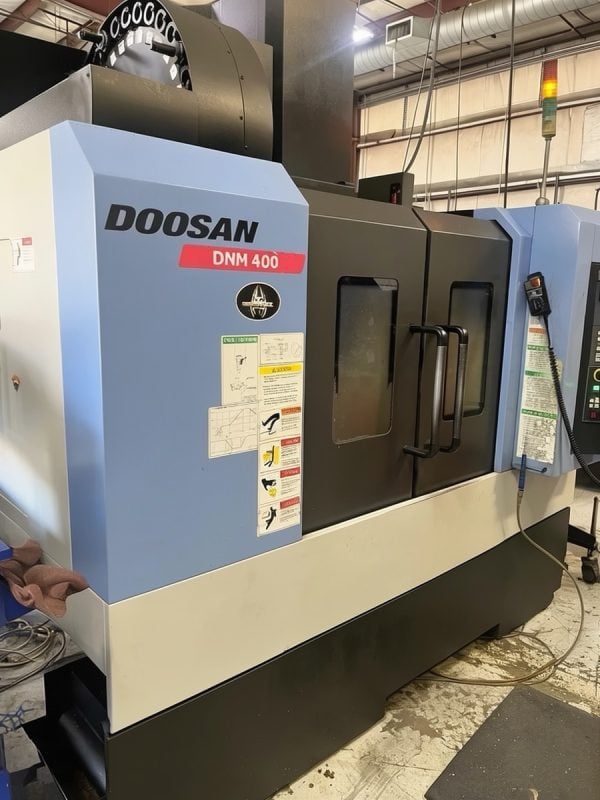

Doosan DNM 400 VMC, 2013 - Probing, Through Spindle Coolant, Conveyor

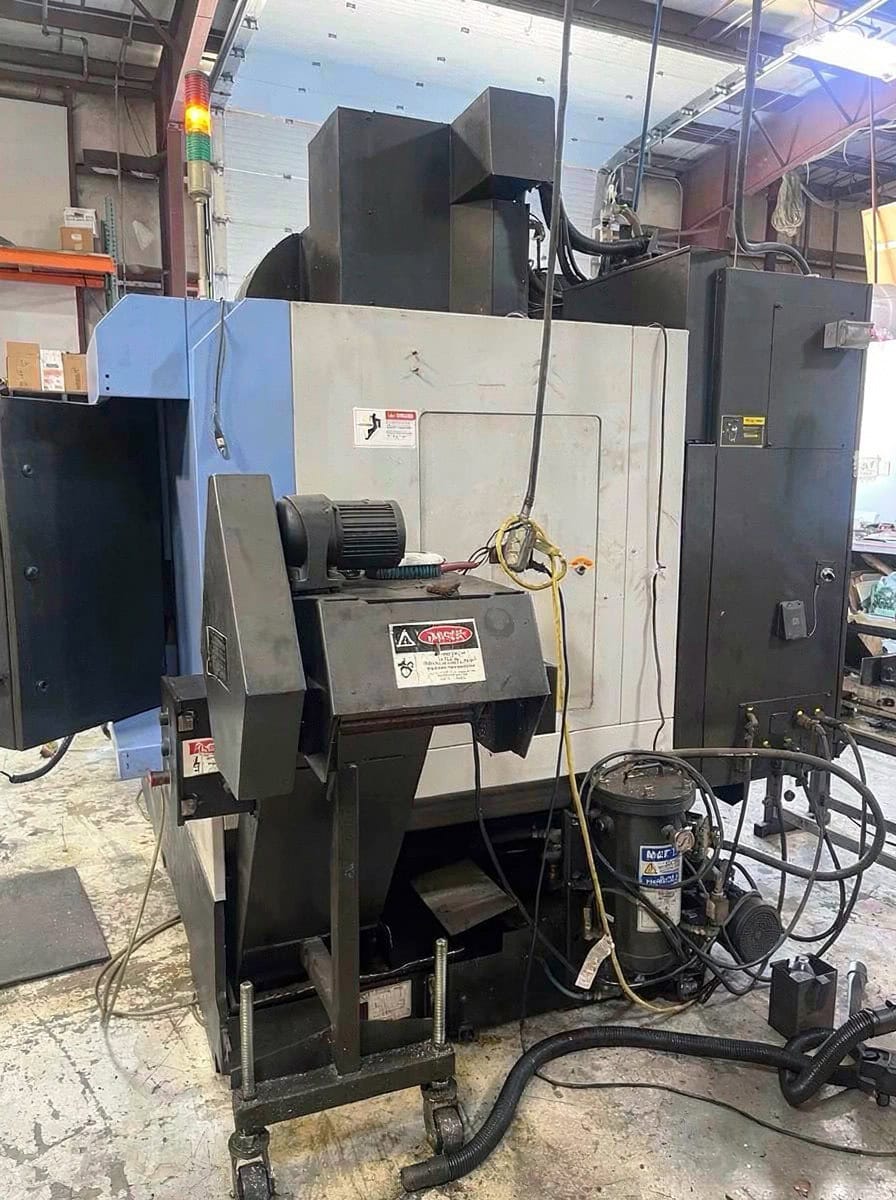

Doosan DNM 400 VMC, 2013 - Probing, Through Spindle Coolant, Conveyor - Image 2

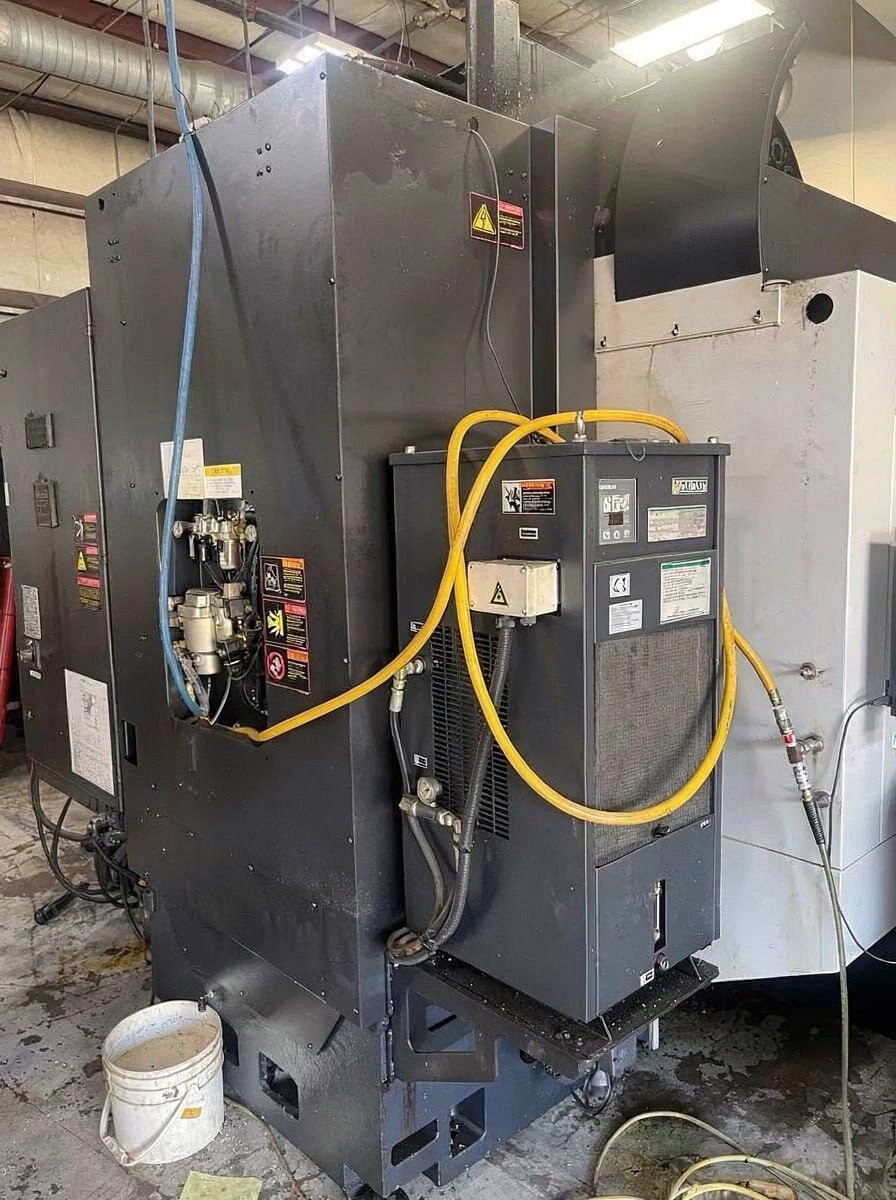

Doosan DNM 400 VMC, 2013 - Probing, Through Spindle Coolant, Conveyor - Image 3

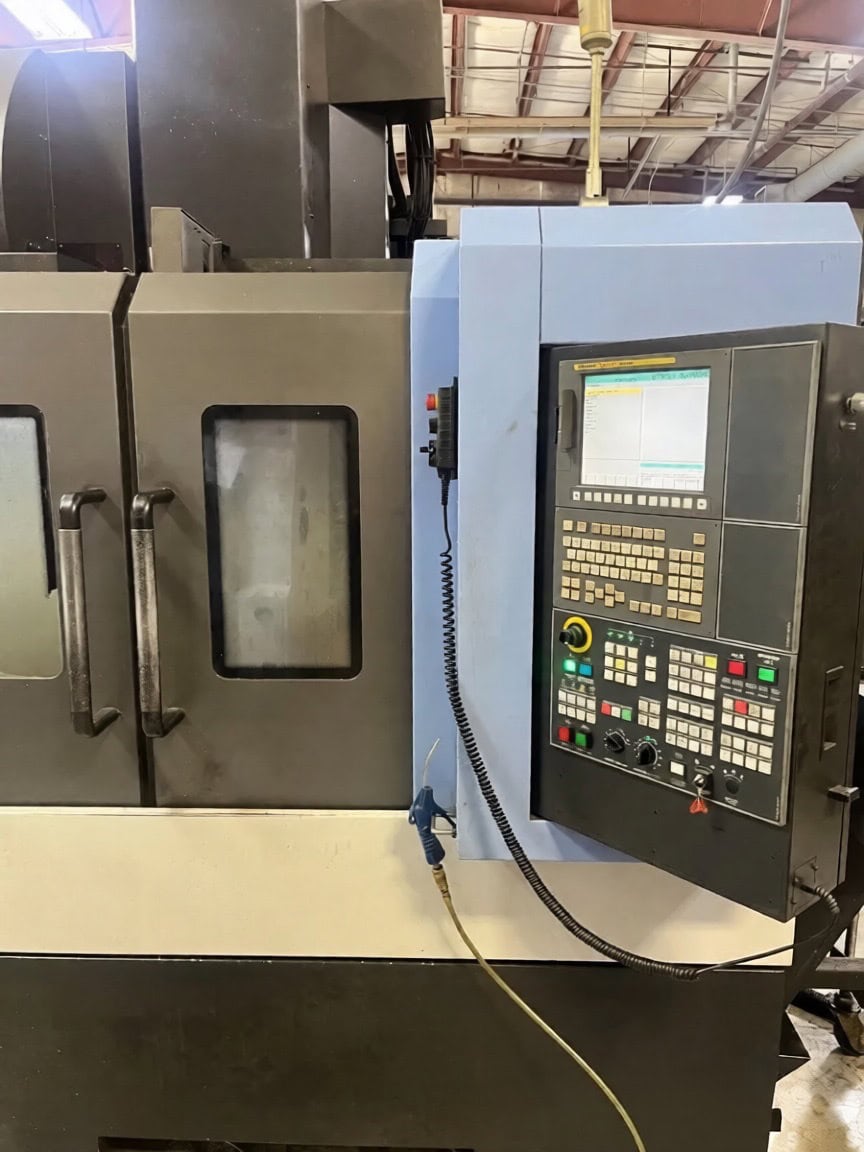

Doosan DNM 400 VMC, 2013 - Probing, Through Spindle Coolant, Conveyor - Image 4

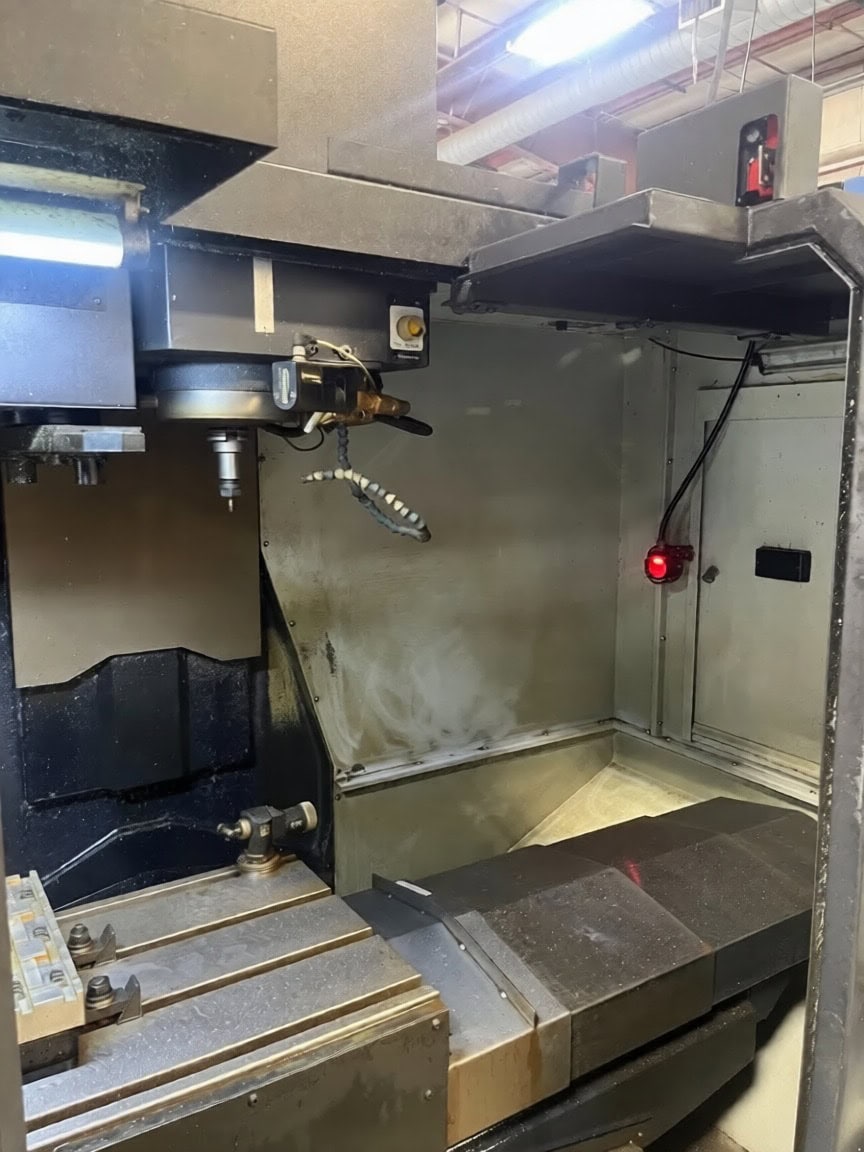

Doosan DNM 400 VMC, 2013 - Probing, Through Spindle Coolant, Conveyor - Image 5

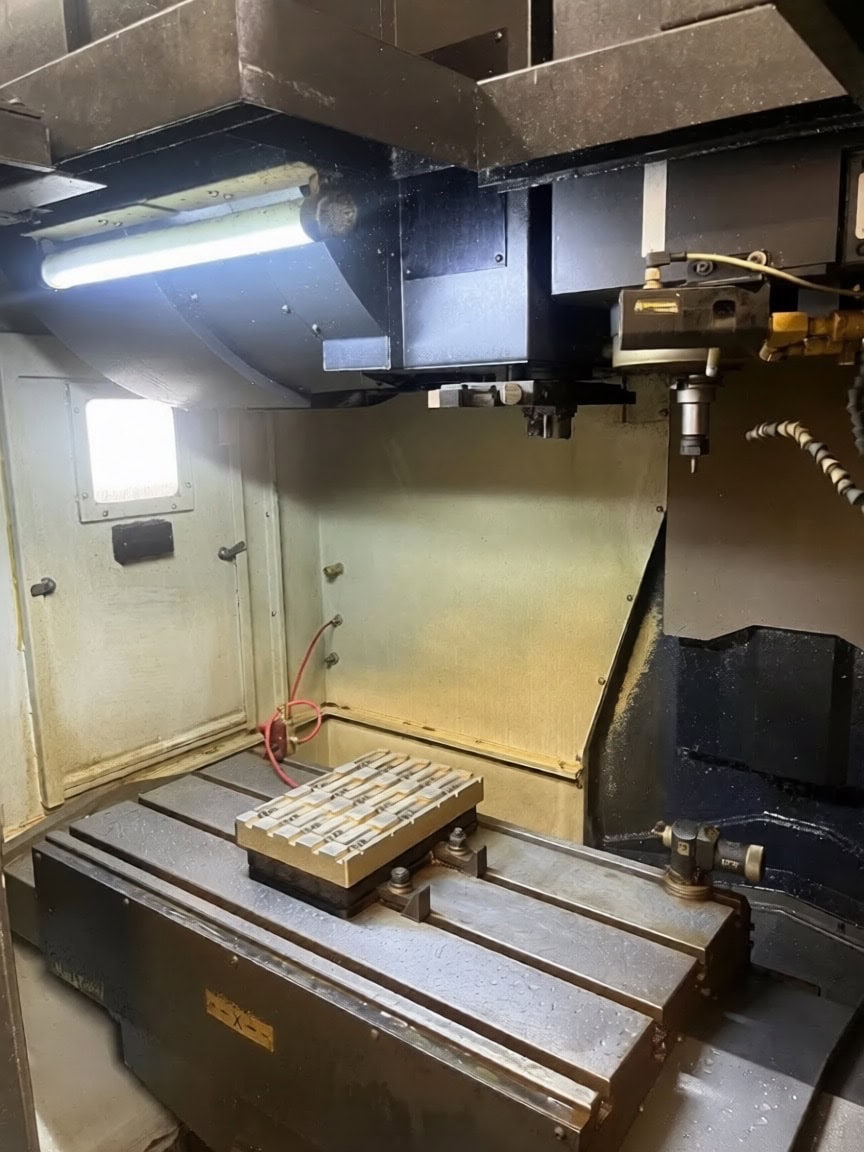

Doosan DNM 400 VMC, 2013 - Probing, Through Spindle Coolant, Conveyor - Image 6
MJS
61293085608

Doosan DNM 400 VMC, 2013 – Probing, Through Spindle Coolant, Conveyor

$37,900.00

Doosan DNM 400 VMC, 2013 - Probing, Through Spindle Coolant, Conveyor
Doosan DNM 400 VMC, 2013 - Probing, Through Spindle Coolant, Conveyor - Image 2
Doosan DNM 400 VMC, 2013 - Probing, Through Spindle Coolant, Conveyor - Image 3
Doosan DNM 400 VMC, 2013 - Probing, Through Spindle Coolant, Conveyor - Image 4
Doosan DNM 400 VMC, 2013 - Probing, Through Spindle Coolant, Conveyor - Image 5
Doosan DNM 400 VMC, 2013 - Probing, Through Spindle Coolant, Conveyor - Image 6

Request a Quote to Instantly See Pricing

Call Now

Machine Type: Vertical Machining Centers
Make: Doosan
Model: DNM 400
Year: 2013
Machine Location: Idaho
Stock #: 085608

Table Size: 36.2″ x 17.1″
Table Load Capacity: 1,320 LBS
X Axis Travel: 30″
Y Axis Travel: 17.1″
Z Axis Travel: 20.1″
Spindle Speed: 8,000 RPM
Spindle Motor: 30 HP
Spindle Taper: Big Plus Spindle CAT 40
ATC: 30
Machine Weight: 12,500 LBS

Equipped With:

Fanuc Oi-MD Control
Through Spindle Coolant
Probing (Spindle Probe Not Included)
Chip Conveyor
Spindle Chiller
Spindle Orientation
Rigid Tapping
Custom Macro B (User Definable)
Oil Skimmer
Portable Manual Pulse Generator
Full Enclosure Splash Guard
Work Light

All specifications are assumed to be correct but must be confirmed by the purchasing entity.
