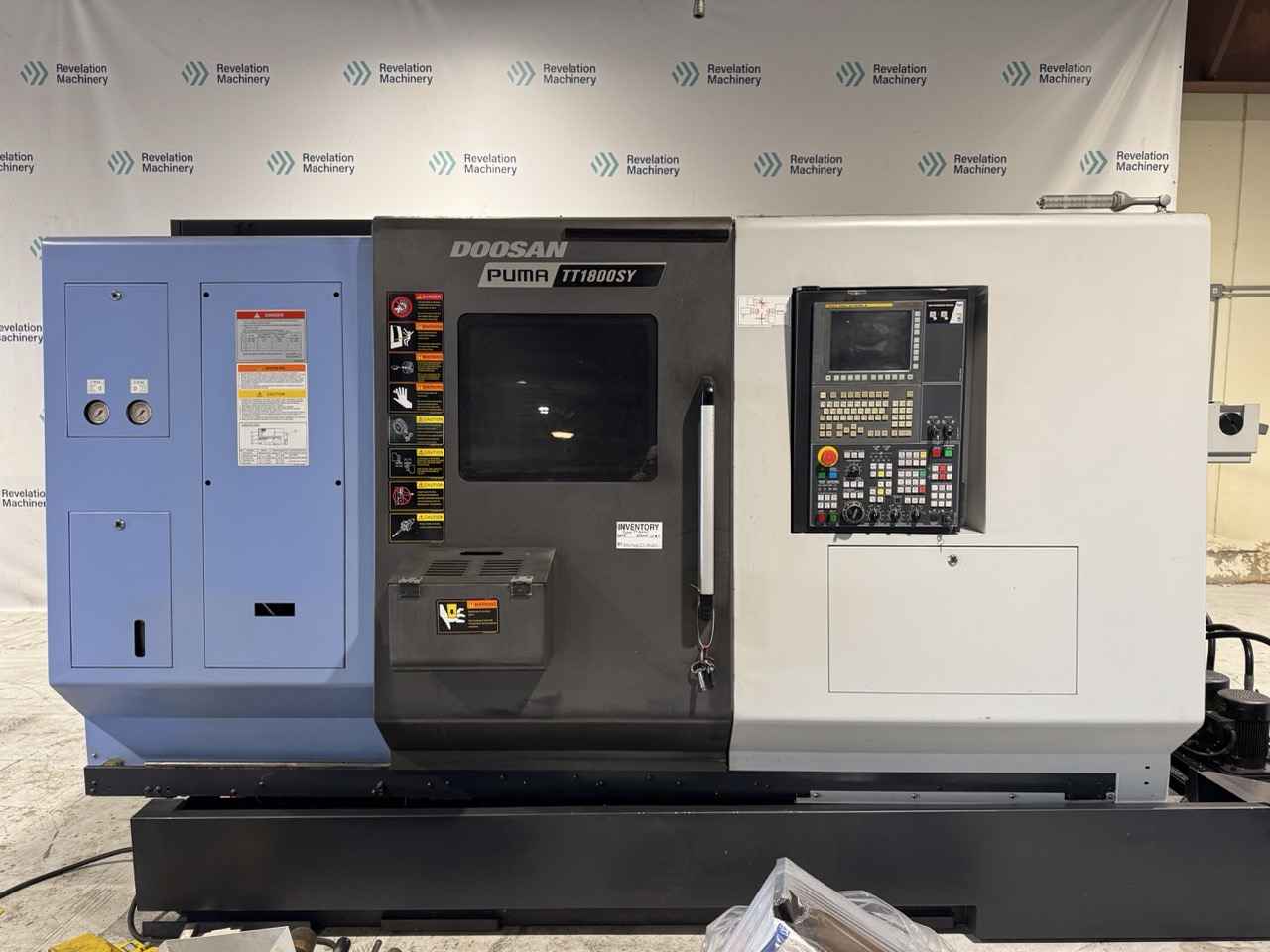

Doosan Puma TT1800SY, 2018 – Twin Spindle, Twin Turret, Live Tool CNC Turning Center
$120,000.00
This specific product is no longer available, however we may have other similar or identical products in stock. Please utilize our search function at the top of the page to check and confirm, or fill out the form below:
New Arrival! Pictures coming soon. Reach out for more info.
Specifications:
X-Axis Travel: 6.5″
Z-Axis Travel: 27.50″
Distance Between Centers: 39″
Max Swing Over Bed: 9.05″
Max Turning / Cutting Length: 9.10″
Max Cutting / Turning Diameter: 9.05″
Rapid Traverse: 787 / 1575 IPM
Bar Capacity (Main & Sub): 2.625″
Chuck Type (Main & Sub): Collet
Spindle Bore (Main & Sub): 3.00″
Spindle Speed (Main & Sub): 5,000 RPM
Spindle Motor (Main & Sub): 30 HP
Spindle Nose (Main & Sub): A2-6
Turret Positions: 24
Live Mill Max RPM: 5,000 RPM
Control: Fanuc Series 31i-Model B Control
Equipped With:
Dual Turrets
Sub Spindle
Fanuc Series 31i-Model B Control
Spindle Liners
LNS Chip Conveyor
Bar Feed Interface
Parts Catcher
Tool Presetter
Collet Chucks
Original Samchully 8″ 3 Jaw Chucks
