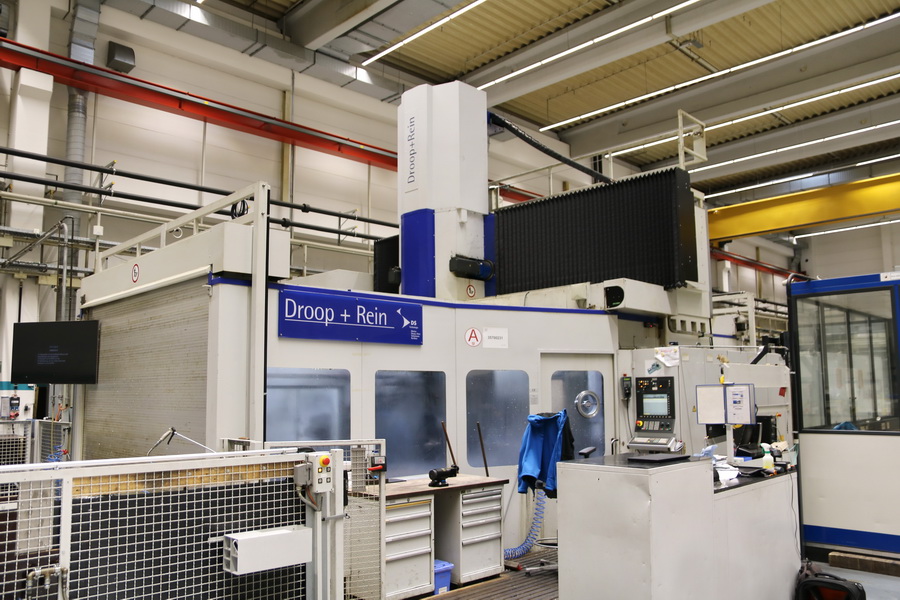

Name: Droop + Rein TFS 22-40 DT D40 P CNC 5-Axis Planer Type Milling Machine, 2007 - Dual Chip Conveyors, Through Spindle Coolant, Probe, Rotary Table
SKU: 62115147162

$859,900.00

Droop + Rein TFS 22-40 DT D40 P CNC 5-Axis Planer Type Milling Machine, 2007 - Dual Chip Conveyors, Through Spindle Coolant, Probe, Rotary Table - Image 2

Droop + Rein TFS 22-40 DT D40 P CNC 5-Axis Planer Type Milling Machine, 2007 - Dual Chip Conveyors, Through Spindle Coolant, Probe, Rotary Table - Image 3

Droop + Rein TFS 22-40 DT D40 P CNC 5-Axis Planer Type Milling Machine, 2007 - Dual Chip Conveyors, Through Spindle Coolant, Probe, Rotary Table - Image 4

Droop + Rein TFS 22-40 DT D40 P CNC 5-Axis Planer Type Milling Machine, 2007 - Dual Chip Conveyors, Through Spindle Coolant, Probe, Rotary Table - Image 5

Droop + Rein TFS 22-40 DT D40 P CNC 5-Axis Planer Type Milling Machine, 2007 - Dual Chip Conveyors, Through Spindle Coolant, Probe, Rotary Table - Image 6

Droop + Rein TFS 22-40 DT D40 P CNC 5-Axis Planer Type Milling Machine, 2007 - Dual Chip Conveyors, Through Spindle Coolant, Probe, Rotary Table - Image 7

Droop + Rein TFS 22-40 DT D40 P CNC 5-Axis Planer Type Milling Machine, 2007 - Dual Chip Conveyors, Through Spindle Coolant, Probe, Rotary Table - Image 8

Droop + Rein TFS 22-40 DT D40 P CNC 5-Axis Planer Type Milling Machine, 2007 - Dual Chip Conveyors, Through Spindle Coolant, Probe, Rotary Table - Image 9

Droop + Rein TFS 22-40 DT D40 P CNC 5-Axis Planer Type Milling Machine, 2007 - Dual Chip Conveyors, Through Spindle Coolant, Probe, Rotary Table - Image 10

Droop + Rein TFS 22-40 DT D40 P CNC 5-Axis Planer Type Milling Machine, 2007 - Dual Chip Conveyors, Through Spindle Coolant, Probe, Rotary Table - Image 11

Droop + Rein TFS 22-40 DT D40 P CNC 5-Axis Planer Type Milling Machine, 2007 - Dual Chip Conveyors, Through Spindle Coolant, Probe, Rotary Table - Image 12

Droop + Rein TFS 22-40 DT D40 P CNC 5-Axis Planer Type Milling Machine, 2007 - Dual Chip Conveyors, Through Spindle Coolant, Probe, Rotary Table - Image 13

Droop + Rein TFS 22-40 DT D40 P CNC 5-Axis Planer Type Milling Machine, 2007 - Dual Chip Conveyors, Through Spindle Coolant, Probe, Rotary Table - Image 14

Droop + Rein TFS 22-40 DT D40 P CNC 5-Axis Planer Type Milling Machine, 2007 - Dual Chip Conveyors, Through Spindle Coolant, Probe, Rotary Table - Image 15

Droop + Rein TFS 22-40 DT D40 P CNC 5-Axis Planer Type Milling Machine, 2007 - Dual Chip Conveyors, Through Spindle Coolant, Probe, Rotary Table - Image 16

Droop + Rein TFS 22-40 DT D40 P CNC 5-Axis Planer Type Milling Machine, 2007 - Dual Chip Conveyors, Through Spindle Coolant, Probe, Rotary Table - Image 17

Droop + Rein TFS 22-40 DT D40 P CNC 5-Axis Planer Type Milling Machine, 2007 - Dual Chip Conveyors, Through Spindle Coolant, Probe, Rotary Table - Image 18

Droop + Rein TFS 22-40 DT D40 P CNC 5-Axis Planer Type Milling Machine, 2007 - Dual Chip Conveyors, Through Spindle Coolant, Probe, Rotary Table - Image 19

Droop + Rein TFS 22-40 DT D40 P CNC 5-Axis Planer Type Milling Machine, 2007 - Dual Chip Conveyors, Through Spindle Coolant, Probe, Rotary Table - Image 20

Droop + Rein TFS 22-40 DT D40 P CNC 5-Axis Planer Type Milling Machine, 2007 - Dual Chip Conveyors, Through Spindle Coolant, Probe, Rotary Table - Image 21

Droop + Rein TFS 22-40 DT D40 P CNC 5-Axis Planer Type Milling Machine, 2007 - Dual Chip Conveyors, Through Spindle Coolant, Probe, Rotary Table - Image 22

Droop + Rein TFS 22-40 DT D40 P CNC 5-Axis Planer Type Milling Machine, 2007 - Dual Chip Conveyors, Through Spindle Coolant, Probe, Rotary Table - Image 23

Droop + Rein TFS 22-40 DT D40 P CNC 5-Axis Planer Type Milling Machine, 2007 - Dual Chip Conveyors, Through Spindle Coolant, Probe, Rotary Table - Image 24

Droop + Rein TFS 22-40 DT D40 P CNC 5-Axis Planer Type Milling Machine, 2007 - Dual Chip Conveyors, Through Spindle Coolant, Probe, Rotary Table - Image 25

Droop + Rein TFS 22-40 DT D40 P CNC 5-Axis Planer Type Milling Machine, 2007 - Dual Chip Conveyors, Through Spindle Coolant, Probe, Rotary Table - Image 26

Droop + Rein TFS 22-40 DT D40 P CNC 5-Axis Planer Type Milling Machine, 2007 - Dual Chip Conveyors, Through Spindle Coolant, Probe, Rotary Table - Image 27

Droop + Rein TFS 22-40 DT D40 P CNC 5-Axis Planer Type Milling Machine, 2007 - Dual Chip Conveyors, Through Spindle Coolant, Probe, Rotary Table - Image 28

Droop + Rein TFS 22-40 DT D40 P CNC 5-Axis Planer Type Milling Machine, 2007 - Dual Chip Conveyors, Through Spindle Coolant, Probe, Rotary Table - Image 29

Droop + Rein TFS 22-40 DT D40 P CNC 5-Axis Planer Type Milling Machine, 2007 - Dual Chip Conveyors, Through Spindle Coolant, Probe, Rotary Table - Image 30

Droop + Rein TFS 22-40 DT D40 P CNC 5-Axis Planer Type Milling Machine, 2007 - Dual Chip Conveyors, Through Spindle Coolant, Probe, Rotary Table - Image 31

Droop + Rein TFS 22-40 DT D40 P CNC 5-Axis Planer Type Milling Machine, 2007 - Dual Chip Conveyors, Through Spindle Coolant, Probe, Rotary Table - Image 32

Droop + Rein TFS 22-40 DT D40 P CNC 5-Axis Planer Type Milling Machine, 2007 - Dual Chip Conveyors, Through Spindle Coolant, Probe, Rotary Table - Image 33

Droop + Rein TFS 22-40 DT D40 P CNC 5-Axis Planer Type Milling Machine, 2007 - Dual Chip Conveyors, Through Spindle Coolant, Probe, Rotary Table - Image 34

Droop + Rein TFS 22-40 DT D40 P CNC 5-Axis Planer Type Milling Machine, 2007 - Dual Chip Conveyors, Through Spindle Coolant, Probe, Rotary Table - Image 35

Droop + Rein TFS 22-40 DT D40 P CNC 5-Axis Planer Type Milling Machine, 2007 - Dual Chip Conveyors, Through Spindle Coolant, Probe, Rotary Table - Image 36

Droop + Rein TFS 22-40 DT D40 P CNC 5-Axis Planer Type Milling Machine, 2007 - Dual Chip Conveyors, Through Spindle Coolant, Probe, Rotary Table - Image 37

Droop + Rein TFS 22-40 DT D40 P CNC 5-Axis Planer Type Milling Machine, 2007 - Dual Chip Conveyors, Through Spindle Coolant, Probe, Rotary Table - Image 38

Droop + Rein TFS 22-40 DT D40 P CNC 5-Axis Planer Type Milling Machine, 2007 - Dual Chip Conveyors, Through Spindle Coolant, Probe, Rotary Table - Image 39

Droop + Rein TFS 22-40 DT D40 P CNC 5-Axis Planer Type Milling Machine, 2007 - Dual Chip Conveyors, Through Spindle Coolant, Probe, Rotary Table - Image 40

Droop + Rein TFS 22-40 DT D40 P CNC 5-Axis Planer Type Milling Machine, 2007 - Dual Chip Conveyors, Through Spindle Coolant, Probe, Rotary Table - Image 41

Droop + Rein TFS 22-40 DT D40 P CNC 5-Axis Planer Type Milling Machine, 2007 - Dual Chip Conveyors, Through Spindle Coolant, Probe, Rotary Table - Image 42

Droop + Rein TFS 22-40 DT D40 P CNC 5-Axis Planer Type Milling Machine, 2007 - Dual Chip Conveyors, Through Spindle Coolant, Probe, Rotary Table - Image 43

Droop + Rein TFS 22-40 DT D40 P CNC 5-Axis Planer Type Milling Machine, 2007 - Dual Chip Conveyors, Through Spindle Coolant, Probe, Rotary Table - Image 44

Droop + Rein TFS 22-40 DT D40 P CNC 5-Axis Planer Type Milling Machine, 2007 - Dual Chip Conveyors, Through Spindle Coolant, Probe, Rotary Table - Image 45

Droop + Rein TFS 22-40 DT D40 P CNC 5-Axis Planer Type Milling Machine, 2007 - Dual Chip Conveyors, Through Spindle Coolant, Probe, Rotary Table - Image 46

Droop + Rein TFS 22-40 DT D40 P CNC 5-Axis Planer Type Milling Machine, 2007 - Dual Chip Conveyors, Through Spindle Coolant, Probe, Rotary Table - Image 47

Droop + Rein TFS 22-40 DT D40 P CNC 5-Axis Planer Type Milling Machine, 2007 - Dual Chip Conveyors, Through Spindle Coolant, Probe, Rotary Table - Image 48

Droop + Rein TFS 22-40 DT D40 P CNC 5-Axis Planer Type Milling Machine, 2007 - Dual Chip Conveyors, Through Spindle Coolant, Probe, Rotary Table - Image 49

Droop + Rein TFS 22-40 DT D40 P CNC 5-Axis Planer Type Milling Machine, 2007 - Dual Chip Conveyors, Through Spindle Coolant, Probe, Rotary Table - Image 50

Droop + Rein TFS 22-40 DT D40 P CNC 5-Axis Planer Type Milling Machine, 2007 - Dual Chip Conveyors, Through Spindle Coolant, Probe, Rotary Table - Image 51

Droop + Rein TFS 22-40 DT D40 P CNC 5-Axis Planer Type Milling Machine, 2007 - Dual Chip Conveyors, Through Spindle Coolant, Probe, Rotary Table - Image 52

Droop + Rein TFS 22-40 DT D40 P CNC 5-Axis Planer Type Milling Machine, 2007 - Dual Chip Conveyors, Through Spindle Coolant, Probe, Rotary Table - Image 53

Droop + Rein TFS 22-40 DT D40 P CNC 5-Axis Planer Type Milling Machine, 2007 - Dual Chip Conveyors, Through Spindle Coolant, Probe, Rotary Table - Image 54

Droop + Rein TFS 22-40 DT D40 P CNC 5-Axis Planer Type Milling Machine, 2007 - Dual Chip Conveyors, Through Spindle Coolant, Probe, Rotary Table - Image 55

Droop + Rein TFS 22-40 DT D40 P CNC 5-Axis Planer Type Milling Machine, 2007 - Dual Chip Conveyors, Through Spindle Coolant, Probe, Rotary Table - Image 56

Droop + Rein TFS 22-40 DT D40 P CNC 5-Axis Planer Type Milling Machine, 2007 - Dual Chip Conveyors, Through Spindle Coolant, Probe, Rotary Table - Image 57

Droop + Rein TFS 22-40 DT D40 P CNC 5-Axis Planer Type Milling Machine, 2007 - Dual Chip Conveyors, Through Spindle Coolant, Probe, Rotary Table - Image 58

Droop + Rein TFS 22-40 DT D40 P CNC 5-Axis Planer Type Milling Machine, 2007 - Dual Chip Conveyors, Through Spindle Coolant, Probe, Rotary Table - Image 59

Droop + Rein TFS 22-40 DT D40 P CNC 5-Axis Planer Type Milling Machine, 2007 - Dual Chip Conveyors, Through Spindle Coolant, Probe, Rotary Table - Image 60

Droop + Rein TFS 22-40 DT D40 P CNC 5-Axis Planer Type Milling Machine, 2007 - Dual Chip Conveyors, Through Spindle Coolant, Probe, Rotary Table - Image 61

Droop + Rein TFS 22-40 DT D40 P CNC 5-Axis Planer Type Milling Machine, 2007 - Dual Chip Conveyors, Through Spindle Coolant, Probe, Rotary Table - Image 62

Droop + Rein TFS 22-40 DT D40 P CNC 5-Axis Planer Type Milling Machine, 2007 - Dual Chip Conveyors, Through Spindle Coolant, Probe, Rotary Table - Image 63

Droop + Rein TFS 22-40 DT D40 P CNC 5-Axis Planer Type Milling Machine, 2007 - Dual Chip Conveyors, Through Spindle Coolant, Probe, Rotary Table - Image 64

Droop + Rein TFS 22-40 DT D40 P CNC 5-Axis Planer Type Milling Machine, 2007 - Dual Chip Conveyors, Through Spindle Coolant, Probe, Rotary Table - Image 65

Droop + Rein TFS 22-40 DT D40 P CNC 5-Axis Planer Type Milling Machine, 2007 - Dual Chip Conveyors, Through Spindle Coolant, Probe, Rotary Table - Image 66

Droop + Rein TFS 22-40 DT D40 P CNC 5-Axis Planer Type Milling Machine, 2007 - Dual Chip Conveyors, Through Spindle Coolant, Probe, Rotary Table - Image 67

Droop + Rein TFS 22-40 DT D40 P CNC 5-Axis Planer Type Milling Machine, 2007 - Dual Chip Conveyors, Through Spindle Coolant, Probe, Rotary Table - Image 68

Droop + Rein TFS 22-40 DT D40 P CNC 5-Axis Planer Type Milling Machine, 2007 - Dual Chip Conveyors, Through Spindle Coolant, Probe, Rotary Table - Image 69

Droop + Rein TFS 22-40 DT D40 P CNC 5-Axis Planer Type Milling Machine, 2007 - Dual Chip Conveyors, Through Spindle Coolant, Probe, Rotary Table - Image 70

Droop + Rein TFS 22-40 DT D40 P CNC 5-Axis Planer Type Milling Machine, 2007 - Dual Chip Conveyors, Through Spindle Coolant, Probe, Rotary Table - Image 71

Droop + Rein TFS 22-40 DT D40 P CNC 5-Axis Planer Type Milling Machine, 2007 - Dual Chip Conveyors, Through Spindle Coolant, Probe, Rotary Table - Image 72

Droop + Rein TFS 22-40 DT D40 P CNC 5-Axis Planer Type Milling Machine, 2007 - Dual Chip Conveyors, Through Spindle Coolant, Probe, Rotary Table - Image 73

Droop + Rein TFS 22-40 DT D40 P CNC 5-Axis Planer Type Milling Machine, 2007 - Dual Chip Conveyors, Through Spindle Coolant, Probe, Rotary Table - Image 74

Droop + Rein TFS 22-40 DT D40 P CNC 5-Axis Planer Type Milling Machine, 2007 - Dual Chip Conveyors, Through Spindle Coolant, Probe, Rotary Table - Image 75

Droop + Rein TFS 22-40 DT D40 P CNC 5-Axis Planer Type Milling Machine, 2007 - Dual Chip Conveyors, Through Spindle Coolant, Probe, Rotary Table - Image 76

Droop + Rein TFS 22-40 DT D40 P CNC 5-Axis Planer Type Milling Machine, 2007 - Dual Chip Conveyors, Through Spindle Coolant, Probe, Rotary Table - Image 77

Droop + Rein TFS 22-40 DT D40 P CNC 5-Axis Planer Type Milling Machine, 2007 - Dual Chip Conveyors, Through Spindle Coolant, Probe, Rotary Table - Image 78

Droop + Rein TFS 22-40 DT D40 P CNC 5-Axis Planer Type Milling Machine, 2007 - Dual Chip Conveyors, Through Spindle Coolant, Probe, Rotary Table - Image 79

Droop + Rein TFS 22-40 DT D40 P CNC 5-Axis Planer Type Milling Machine, 2007 - Dual Chip Conveyors, Through Spindle Coolant, Probe, Rotary Table - Image 80

Droop + Rein TFS 22-40 DT D40 P CNC 5-Axis Planer Type Milling Machine, 2007 - Dual Chip Conveyors, Through Spindle Coolant, Probe, Rotary Table - Image 81

Droop + Rein TFS 22-40 DT D40 P CNC 5-Axis Planer Type Milling Machine, 2007 - Dual Chip Conveyors, Through Spindle Coolant, Probe, Rotary Table - Image 82

Droop + Rein TFS 22-40 DT D40 P CNC 5-Axis Planer Type Milling Machine, 2007 - Dual Chip Conveyors, Through Spindle Coolant, Probe, Rotary Table - Image 83

Request a Quote to Instantly See Pricing

Call Now

Machine Type: Gantry/Bridge Mills
Make: Droop + Rein
Model: TFS 22 40 DT D40 P
Year: 2007
Machine Location: Upon Request
Stock #: 147162

Travels
X-Axis: 397.6″ (2 x 196.9″)
Y-Axis: 118.1″
Z-Axis: 59.1″
B-Axis: +110º/-10º
C-Axis: ±200º

Distance Between Columns: 118.1″
Passage Height: 76.8″
Spindle Center to Table: 70.9″
Spindle Nose to Table: 53.1″/59.1″

High-Speed Spindle
Max Speed: 18,000 RPM
Power: 26.8 HP
Torque: 35.4 ft-lb

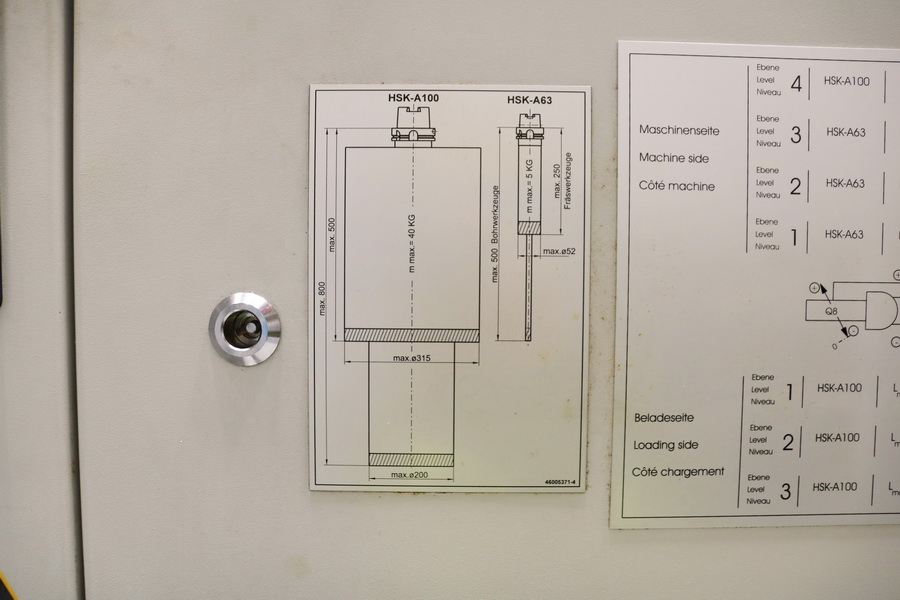

Taper: HSK-A63
Spindle Extension: 17.7″

Heavy-Duty Spindle
Speed Range: 20-5,000 RPM
Power: 53.6 HP
Torque: 811 ft-lb
Taper: HSK-A100
Spindle Extension: 11.8″

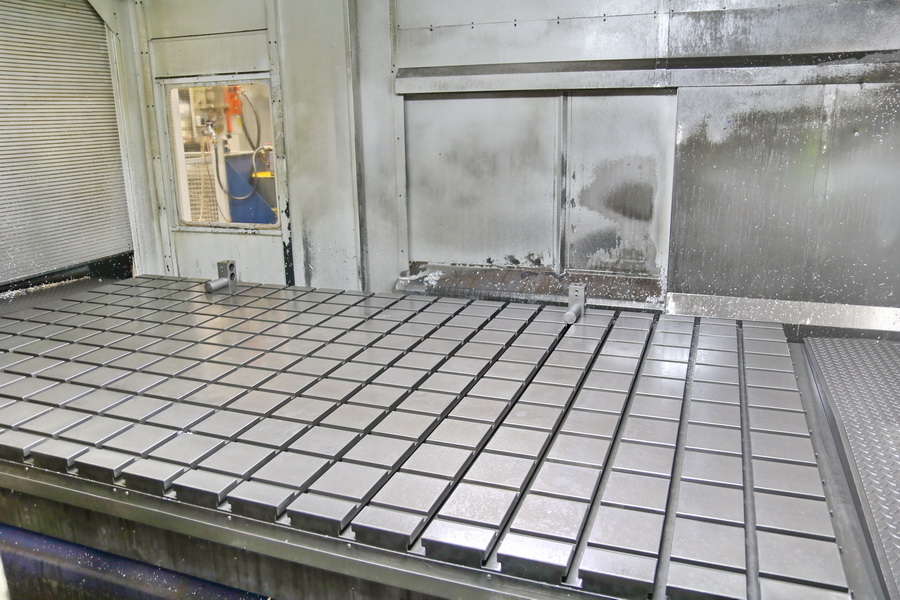

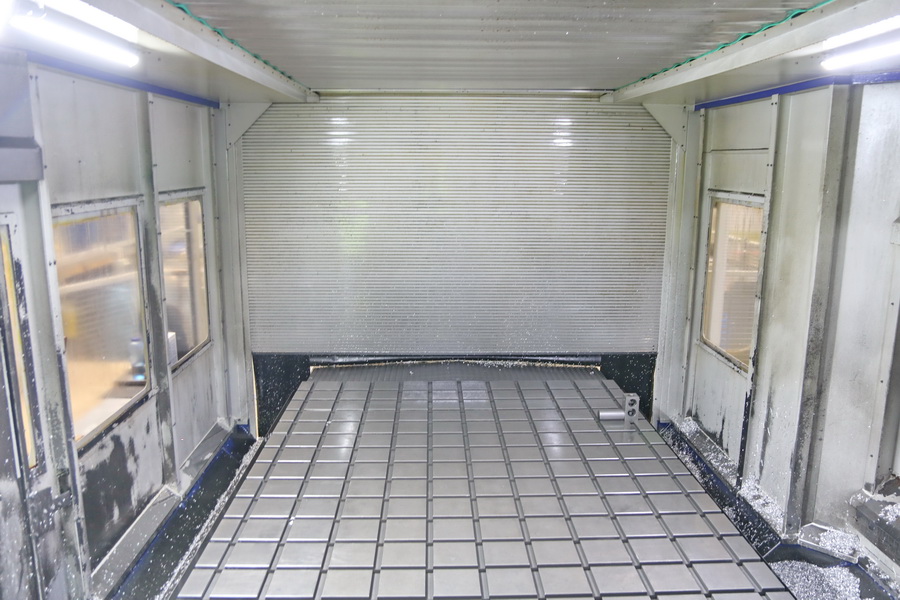

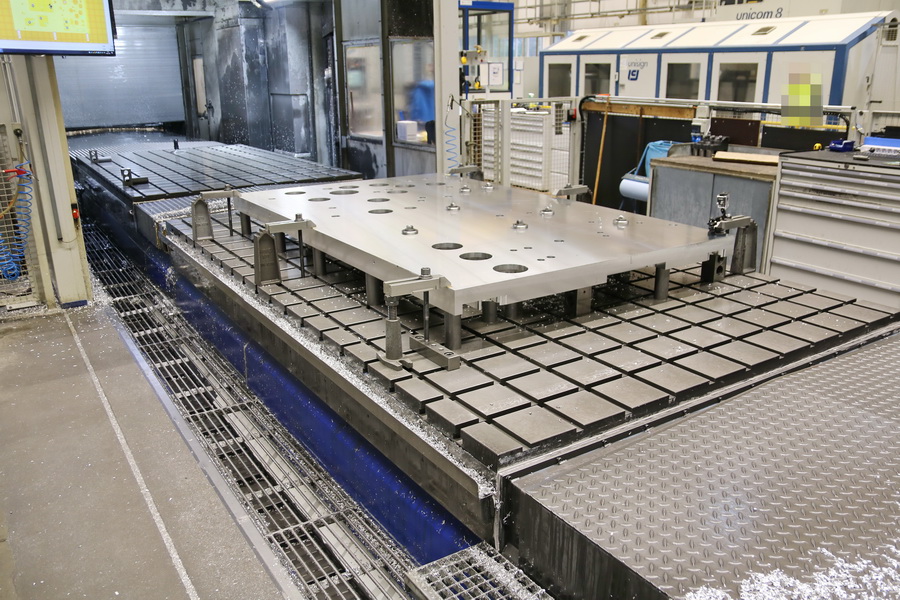

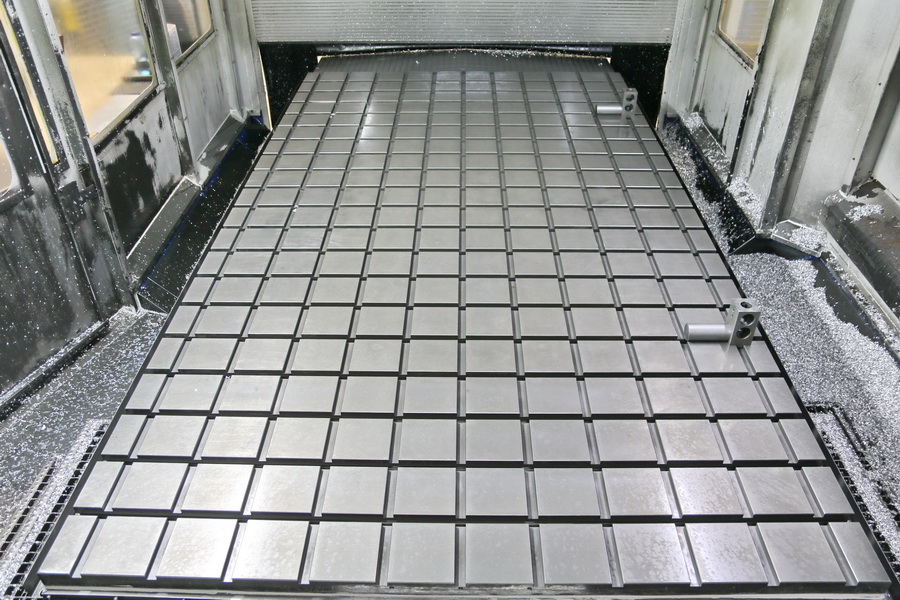

Work Table
Table Size: 157.5″ x 86.6″ (2 tables)
Max Table Load: 26,455 lbs/44,092 lbs
Table Height: 27.6″
T-Slots: 11 + 19
T-Slot Width: 1.10″
T-Slot Spacing: 7.87″

Feed Rates
X-Axis: 1,181 IPM
Y/Z-Axis: 1,575 IPM
B-Axis: 3,600º/min
C-Axis: 2,160º/min

Acceleration
X-Axis: 4.9 ft/sec sq
Y/Z-Axis: 10.5 ft/sec sq

Dimensions: ~984.3″ x 472.4″ x 275.6″

Equipped With:

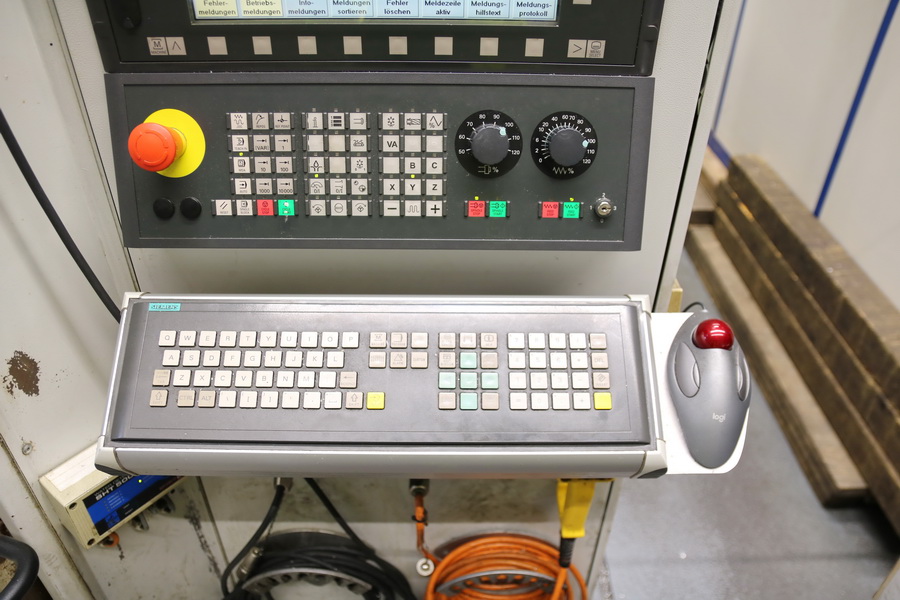

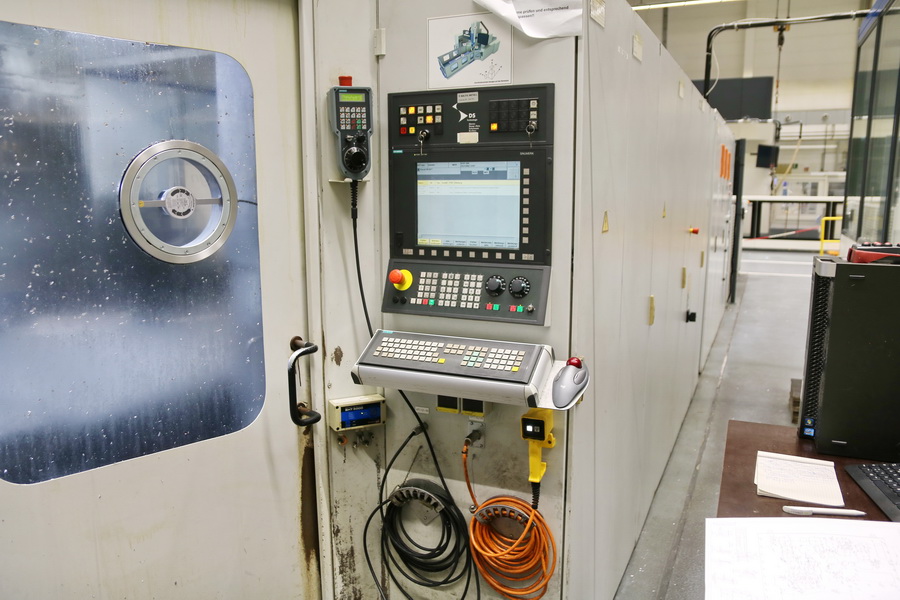

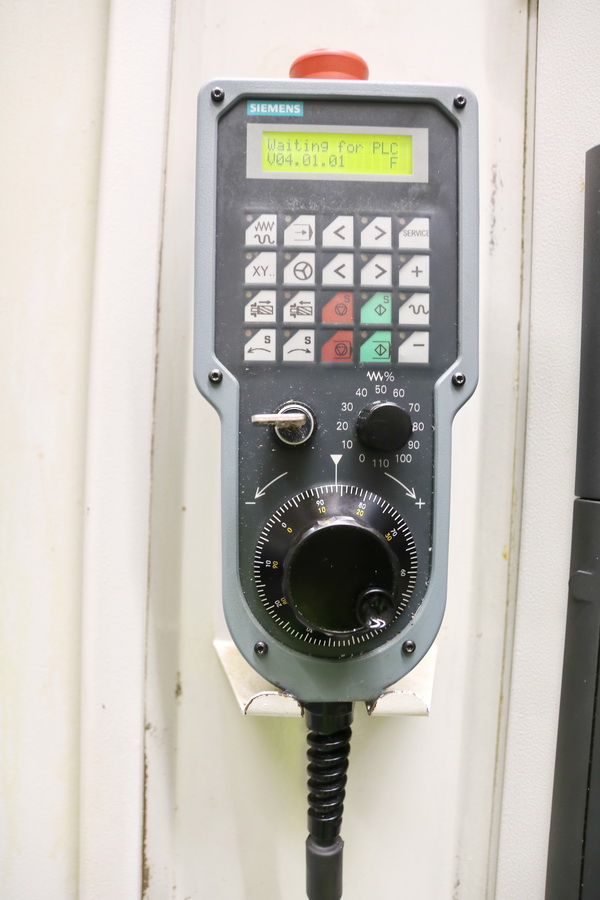

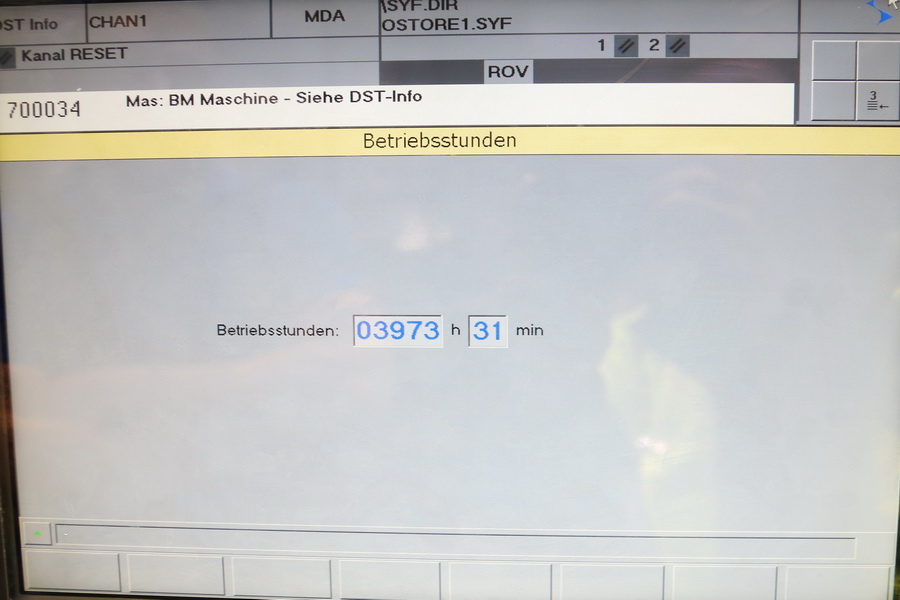

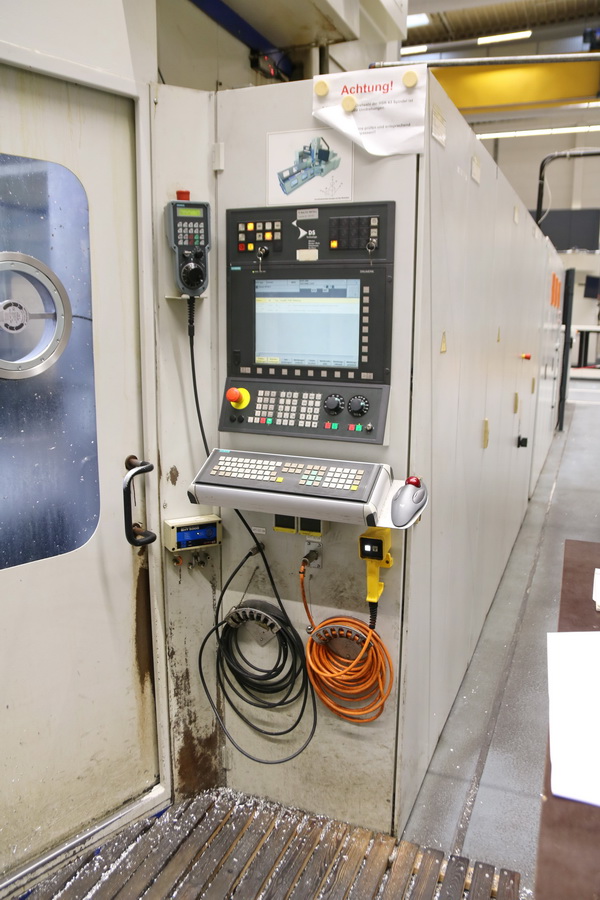

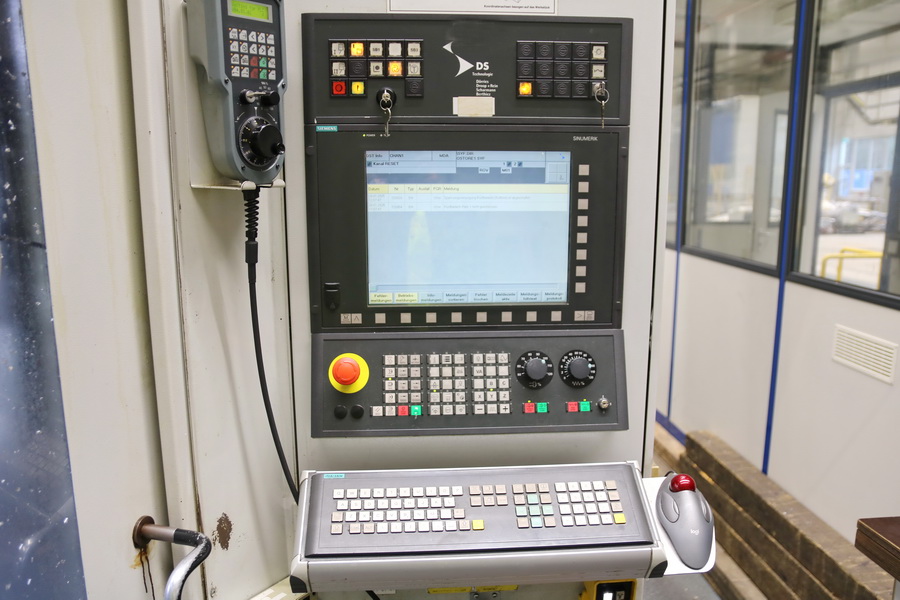

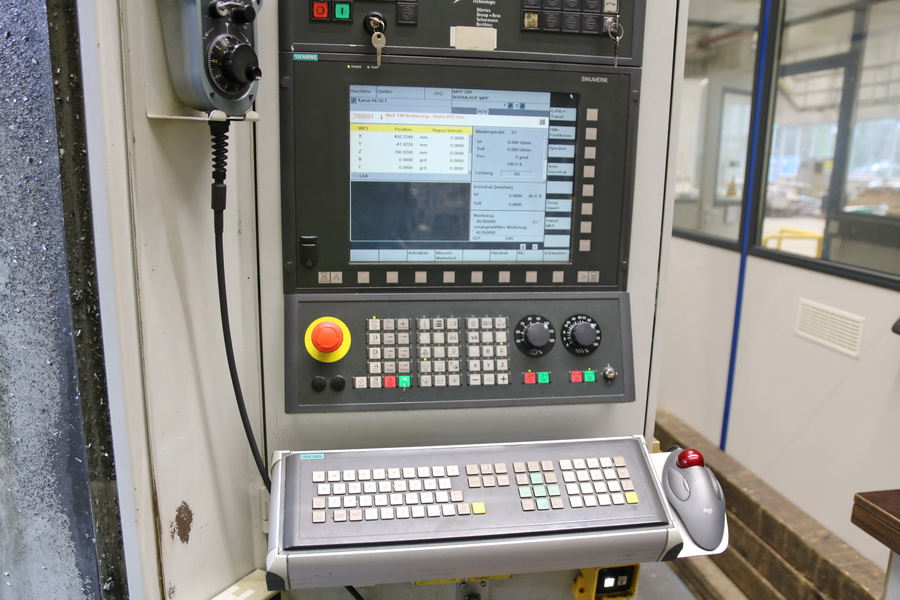

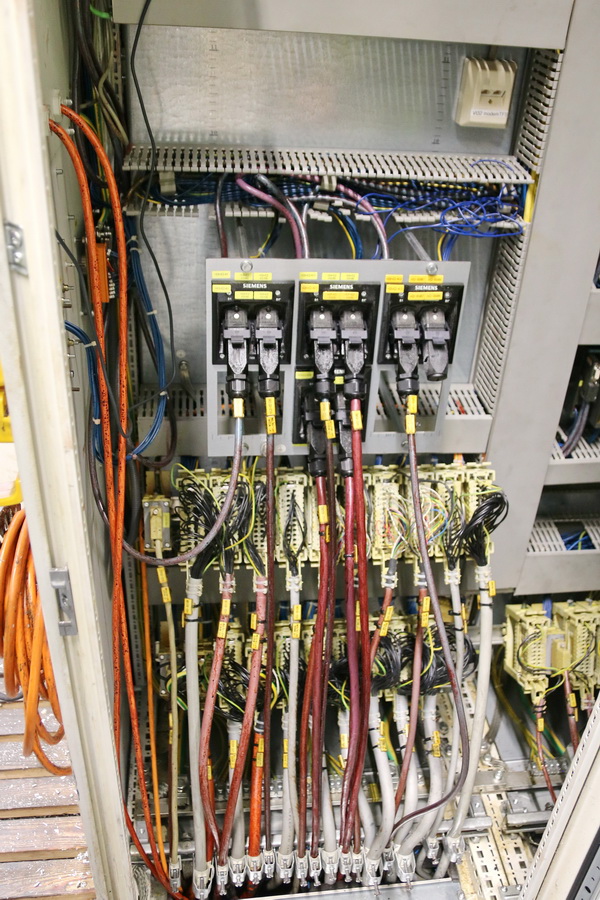

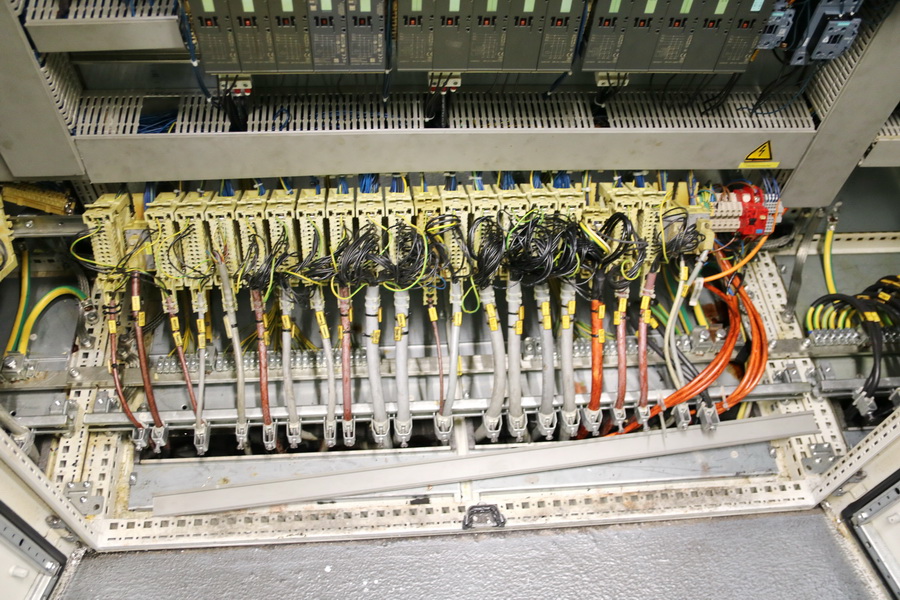

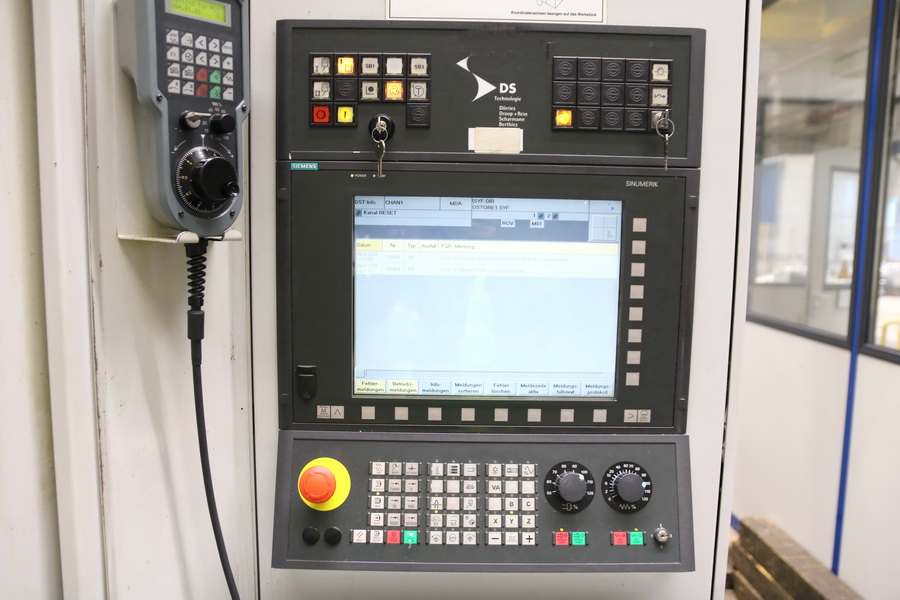

Siemens Sinumerik 840D CNC Control

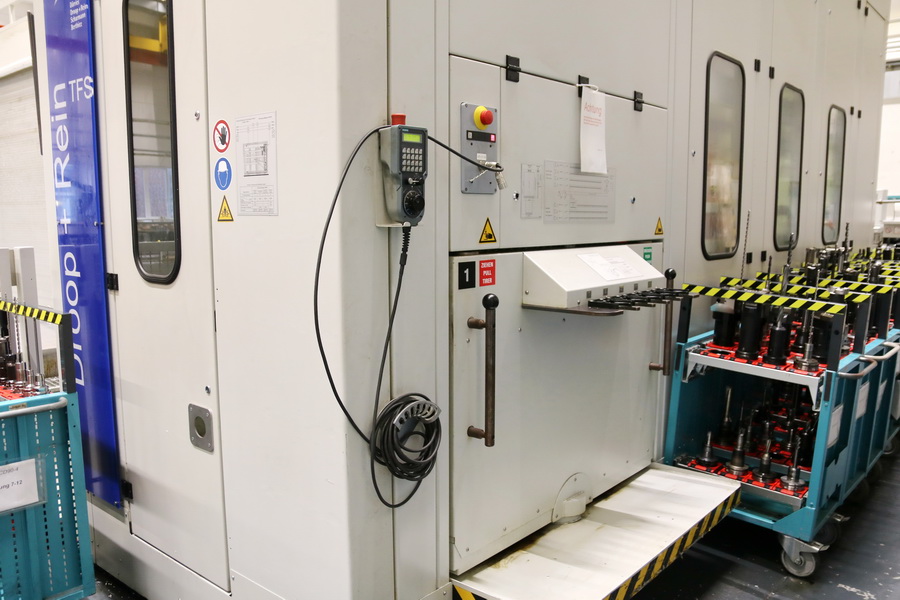

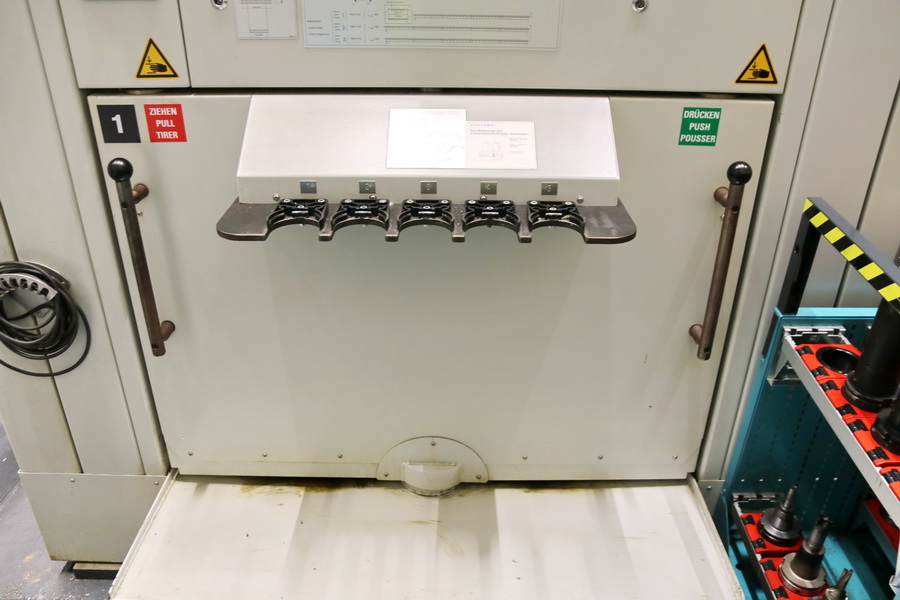

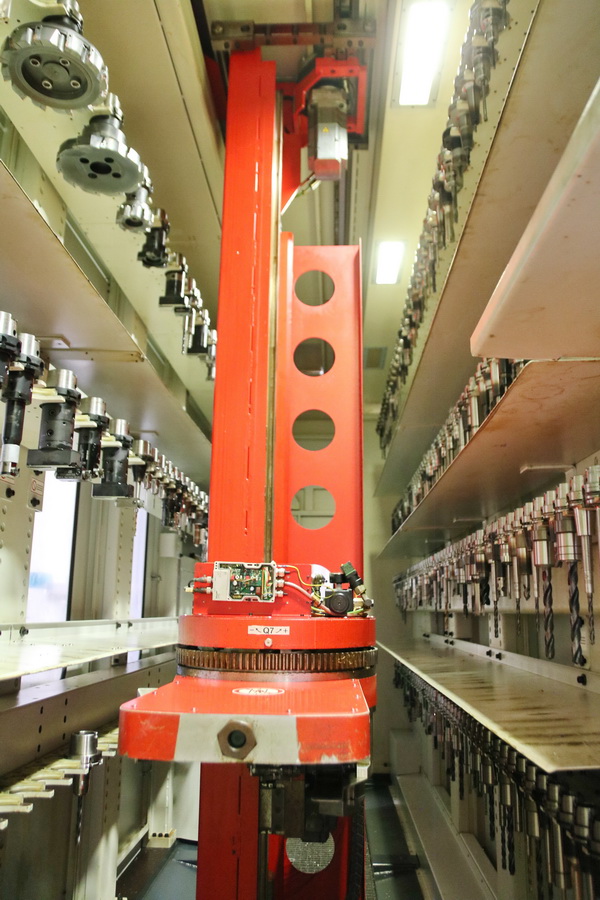

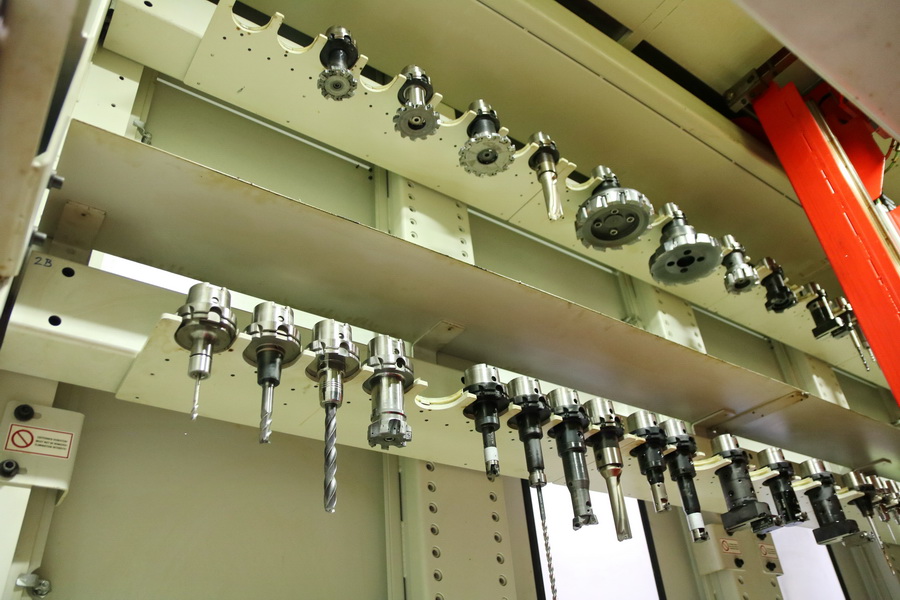

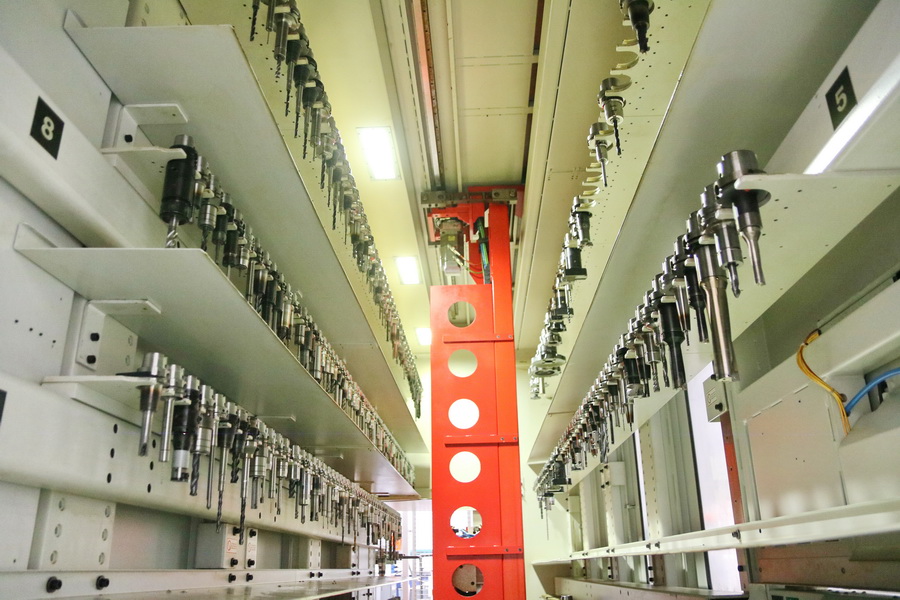

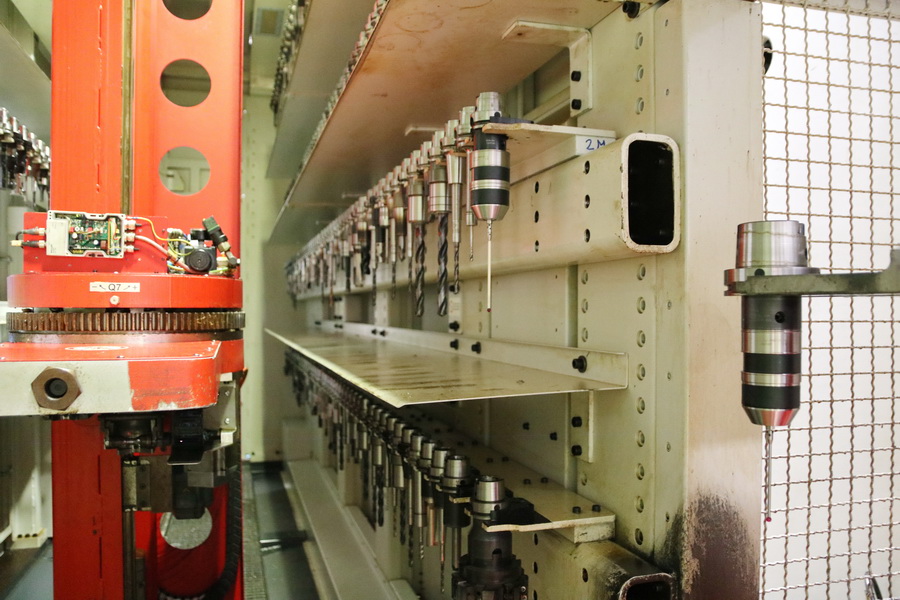

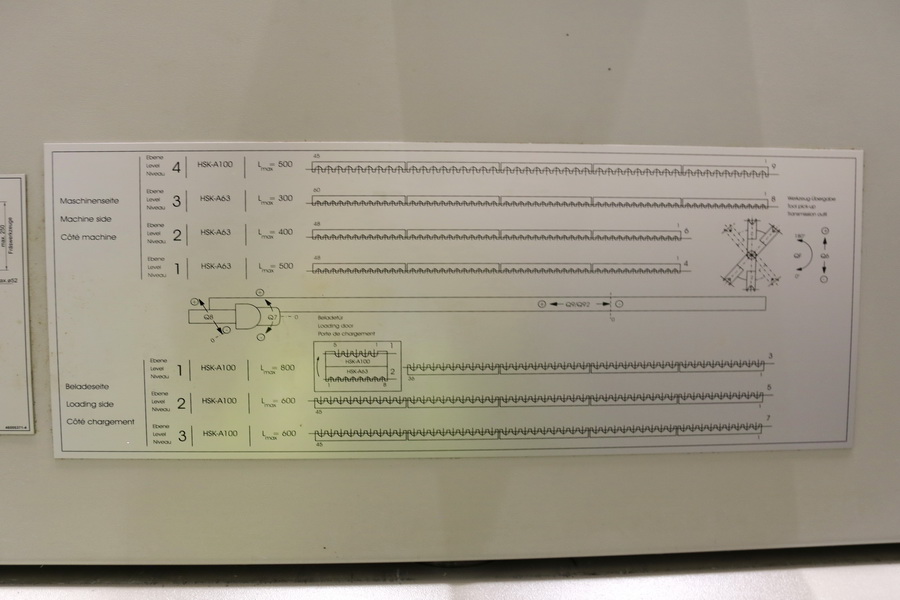

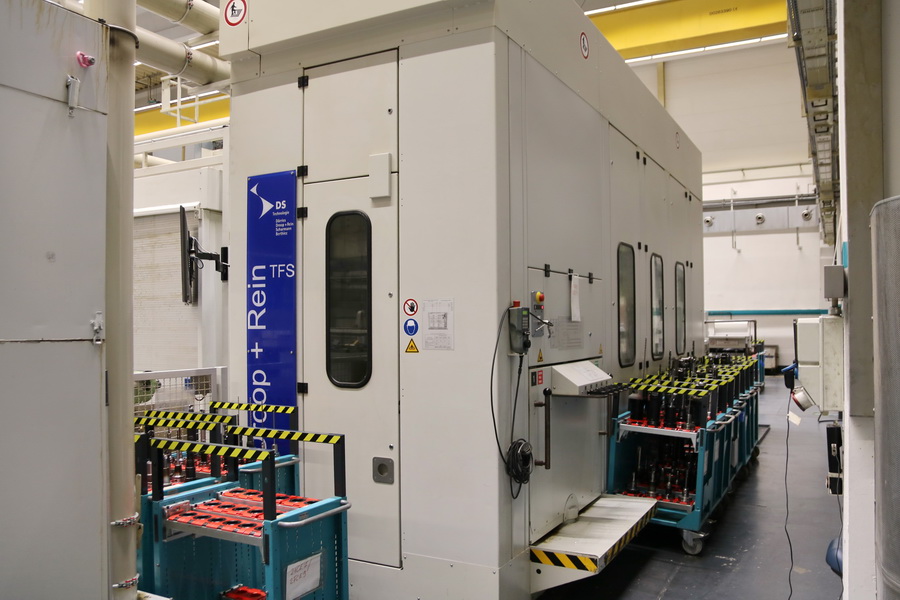

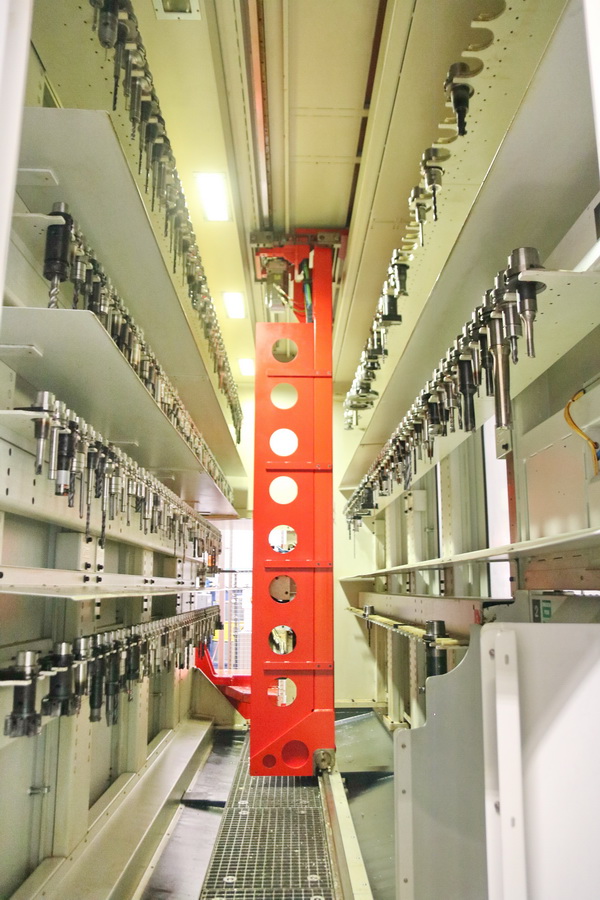

327 Total ATC

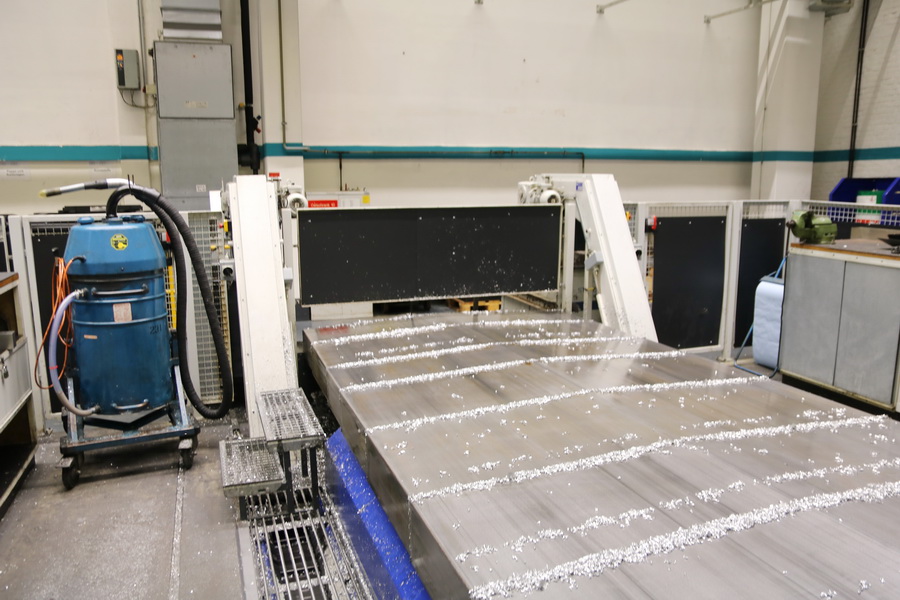

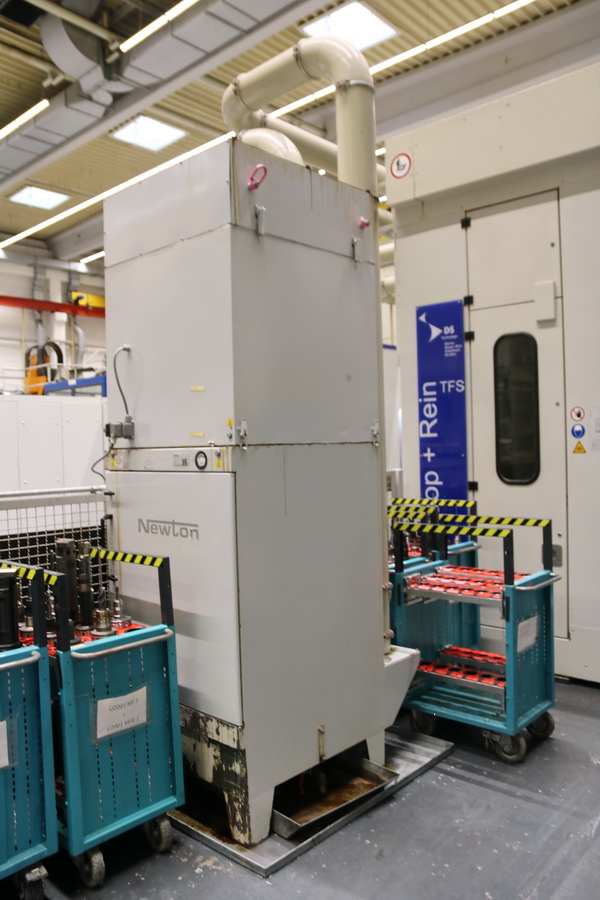

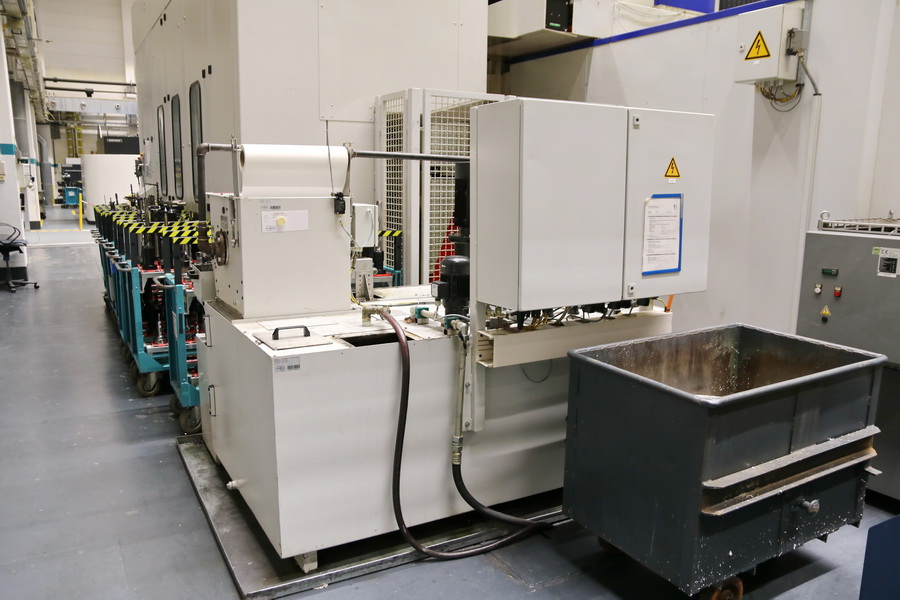

Dual Chip Conveyors
Through-Spindle Coolant

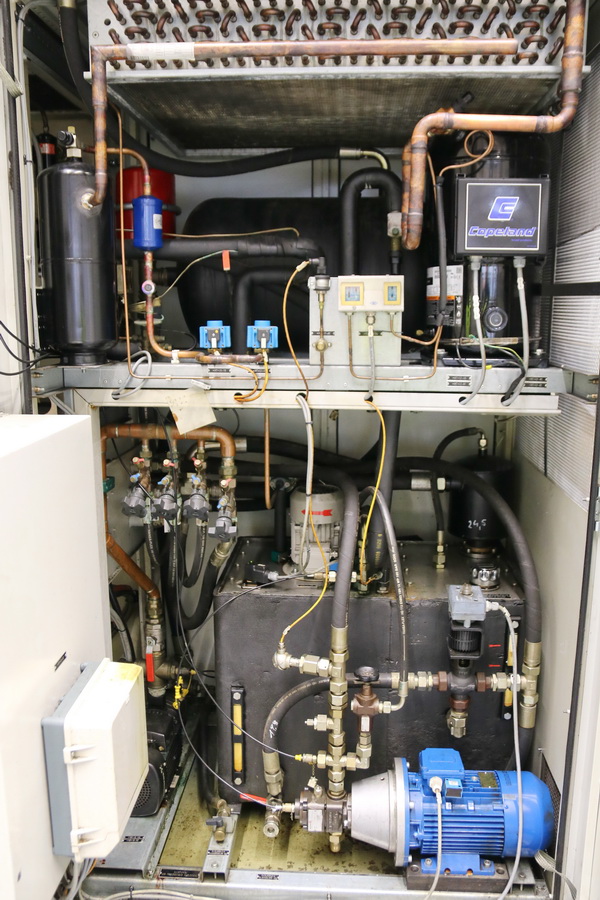

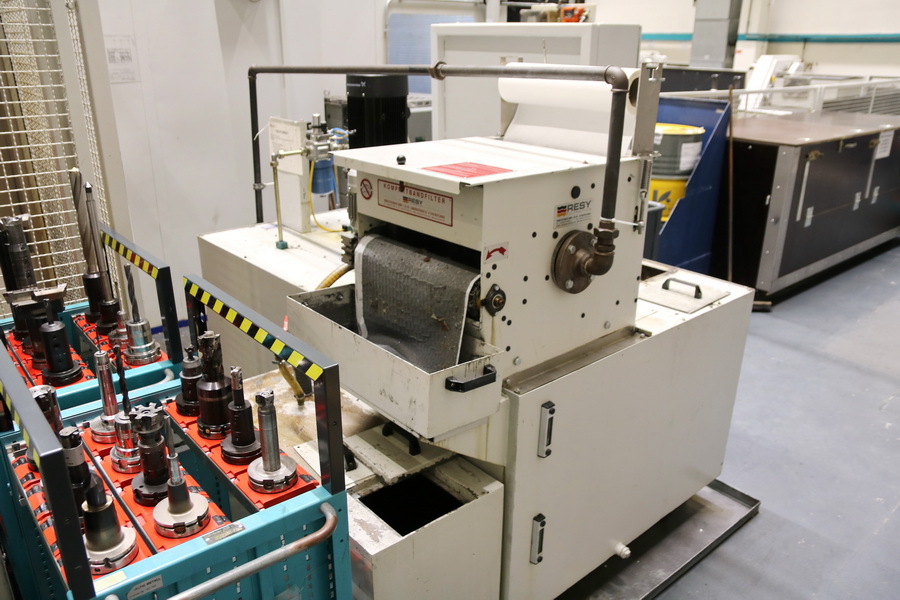

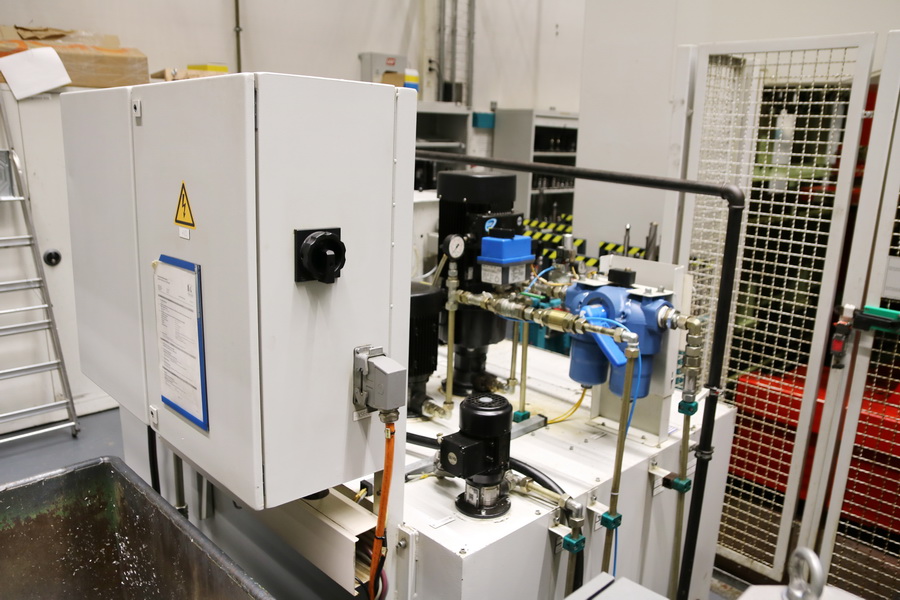

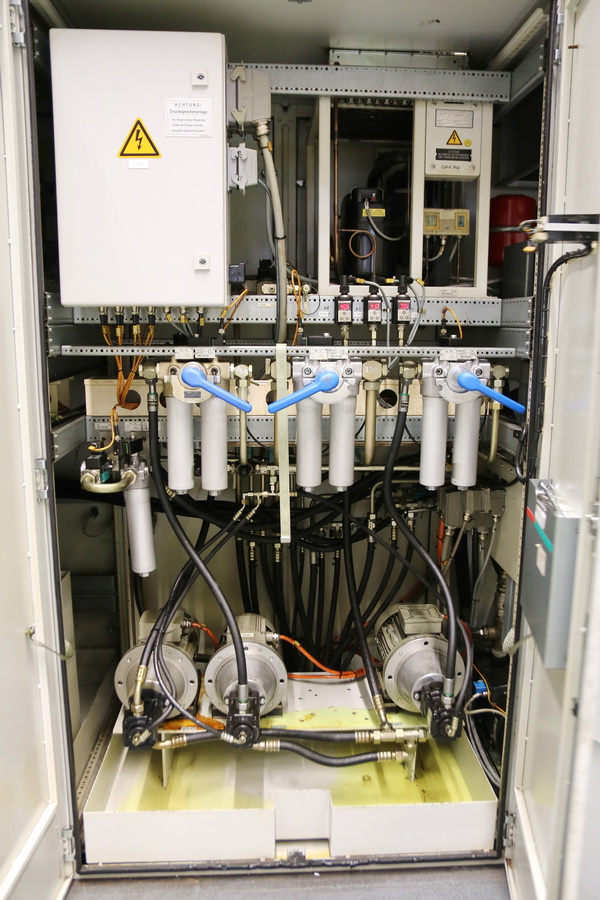

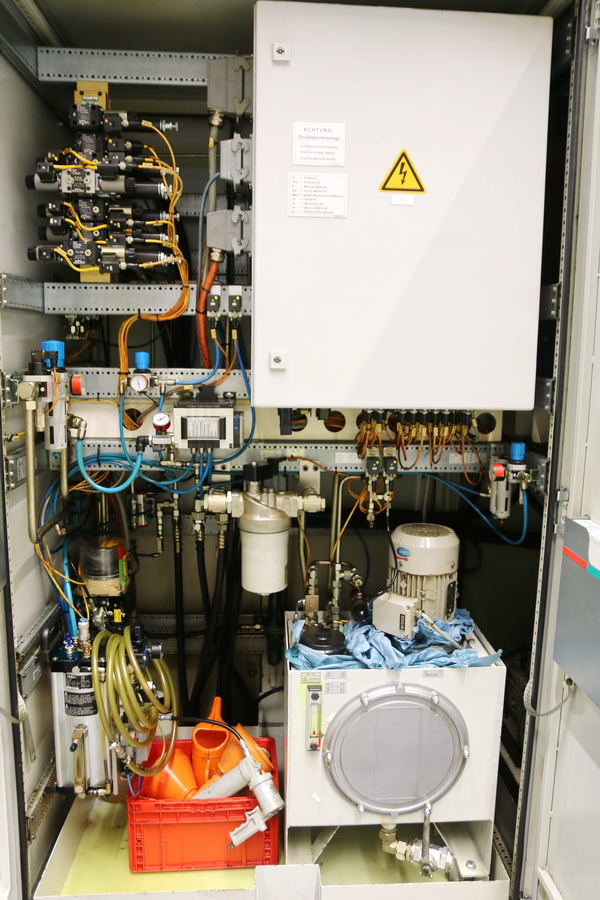

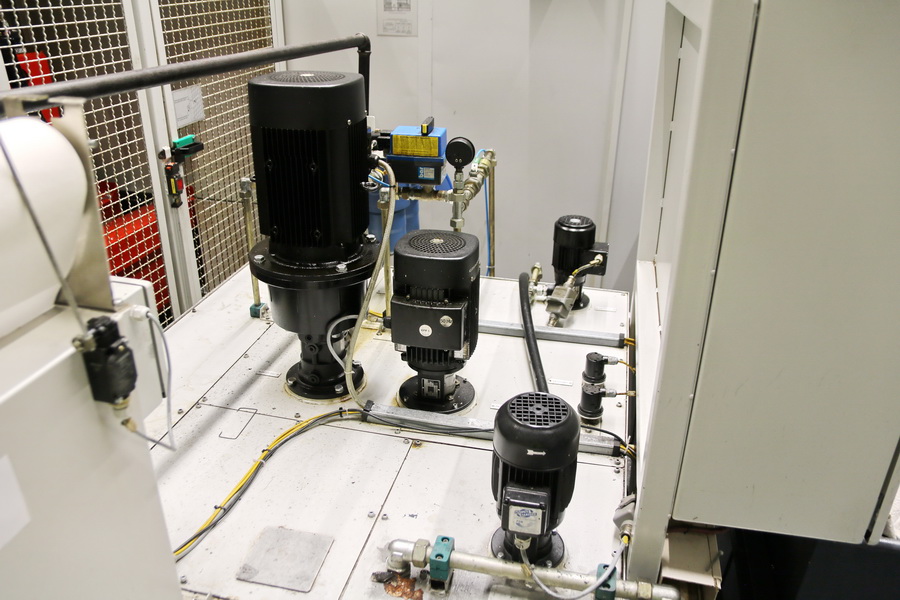

Coolant System

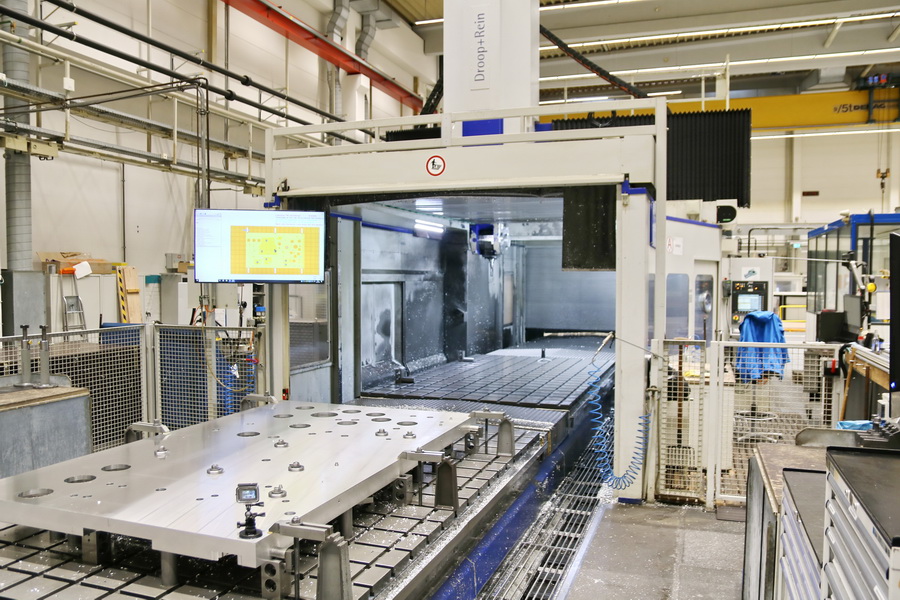

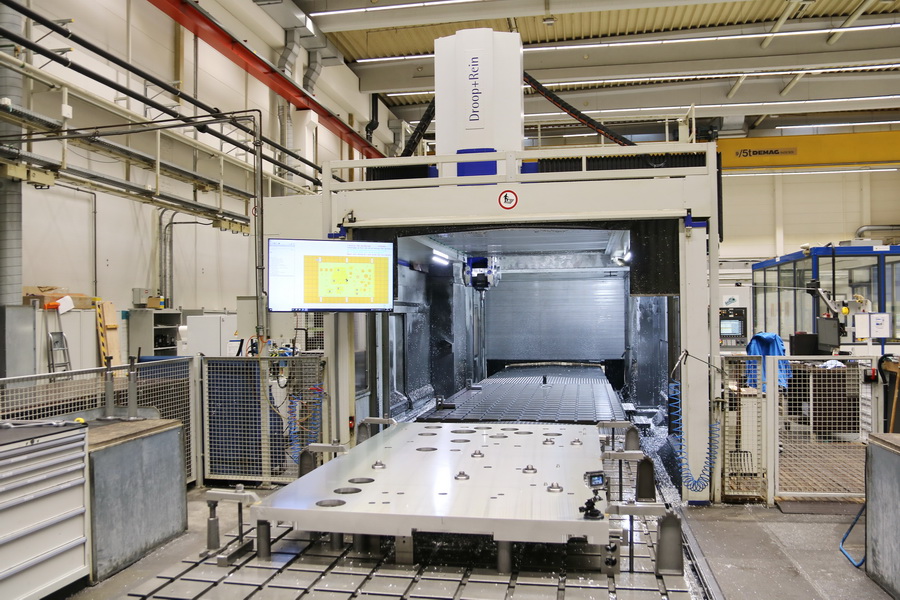

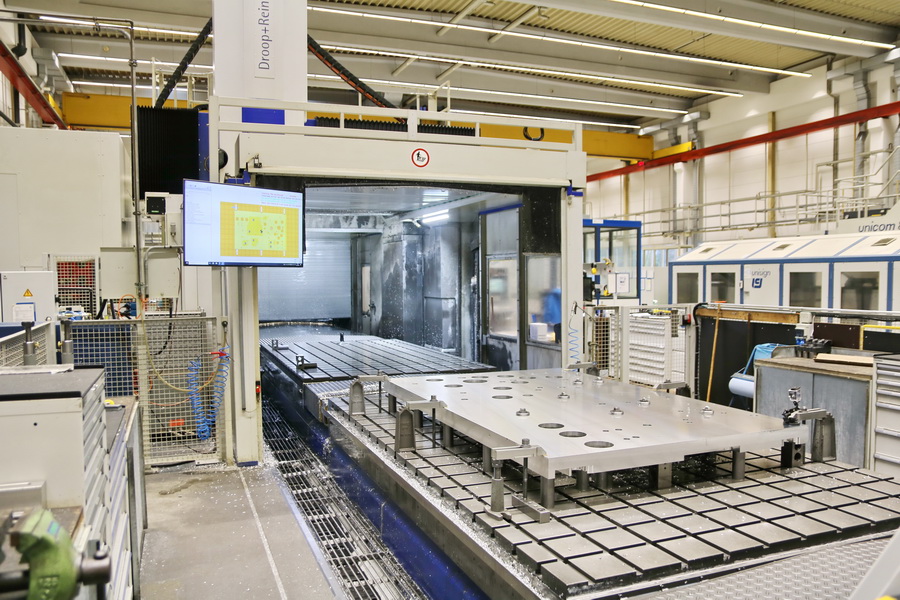

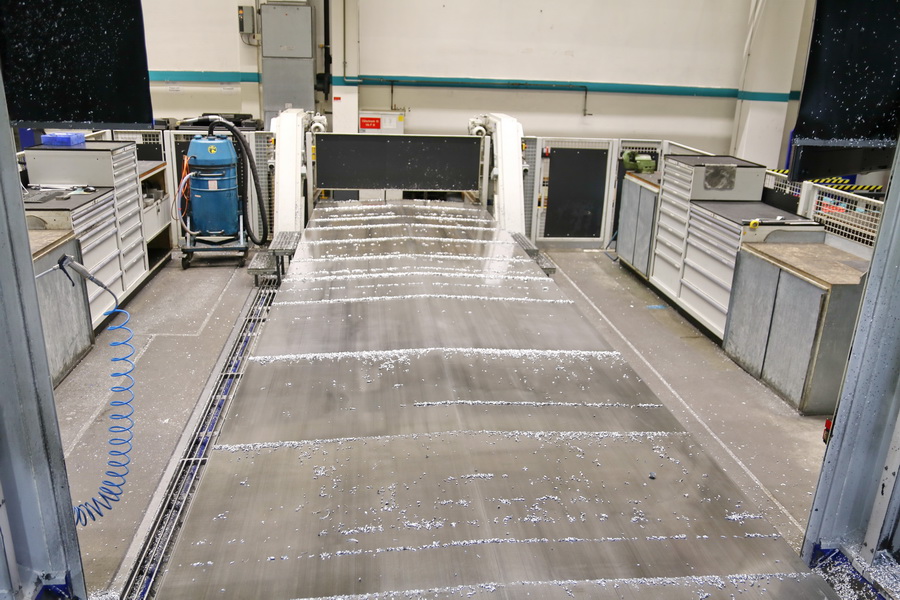

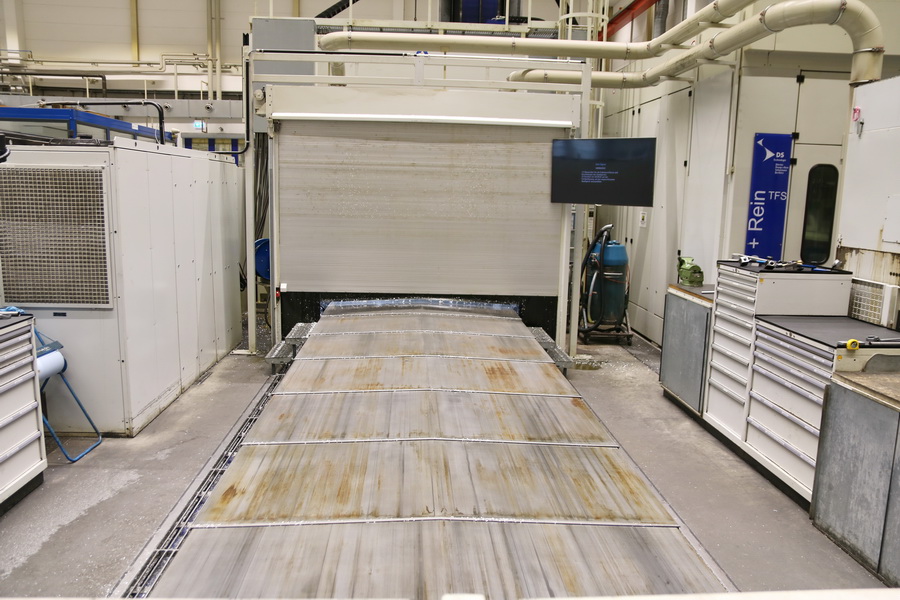

Dual Pallet/Work Table Configuration

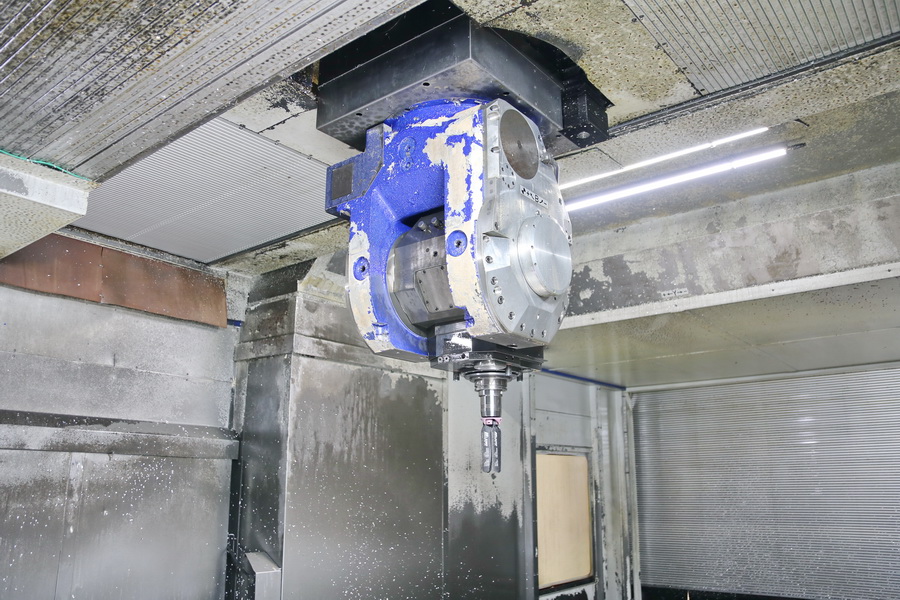

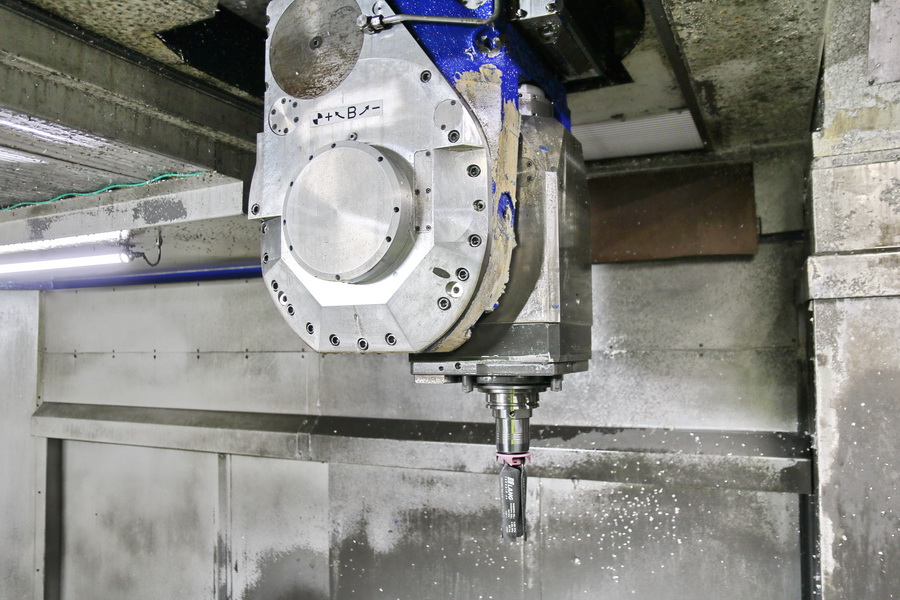

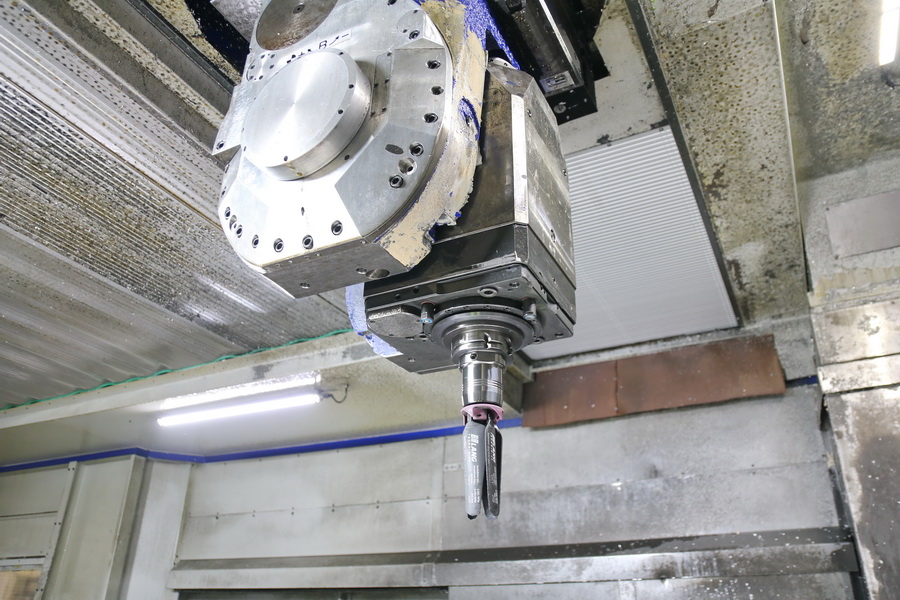

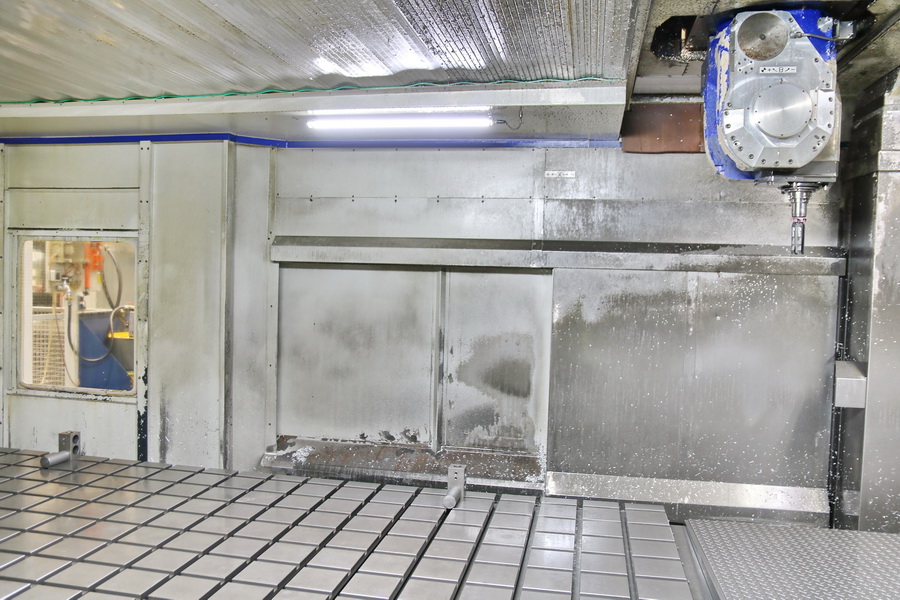

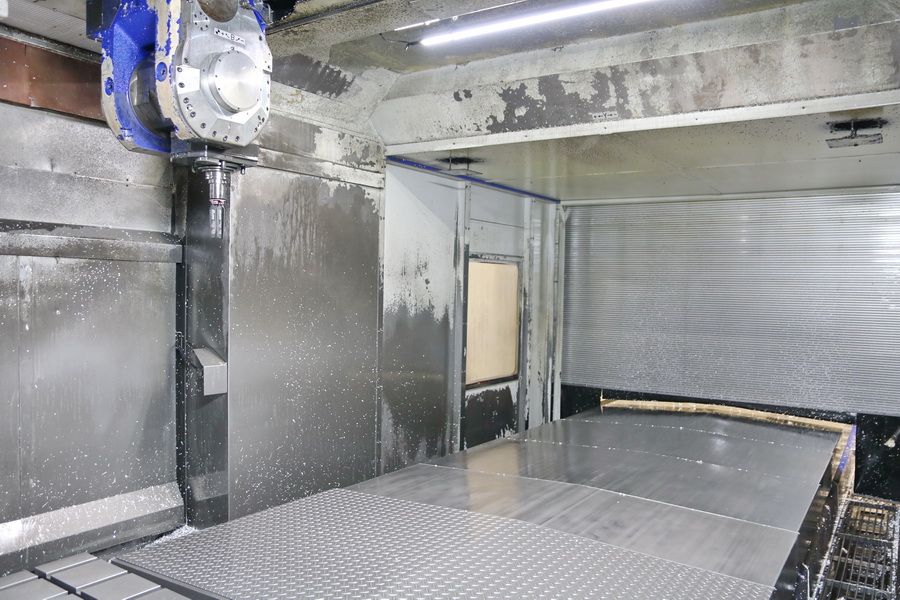

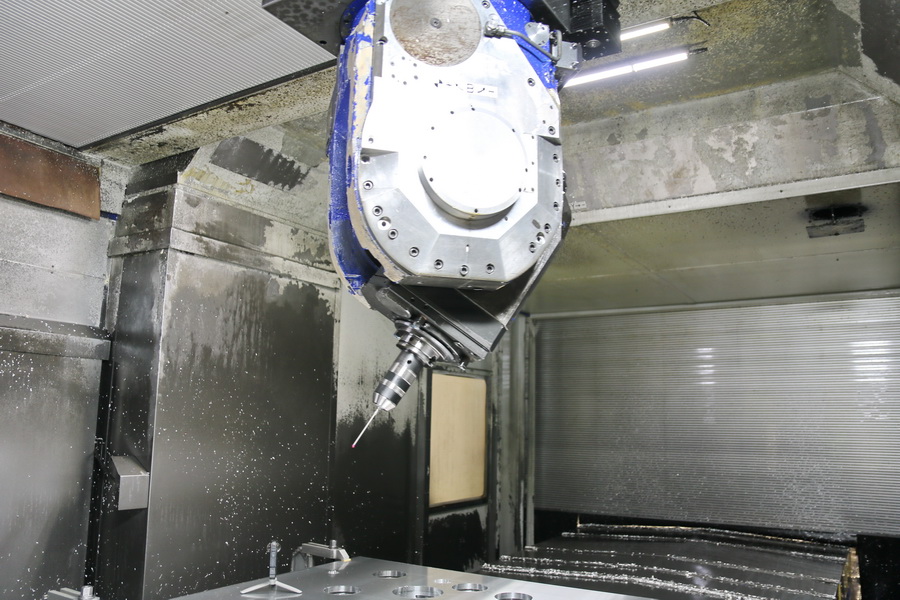

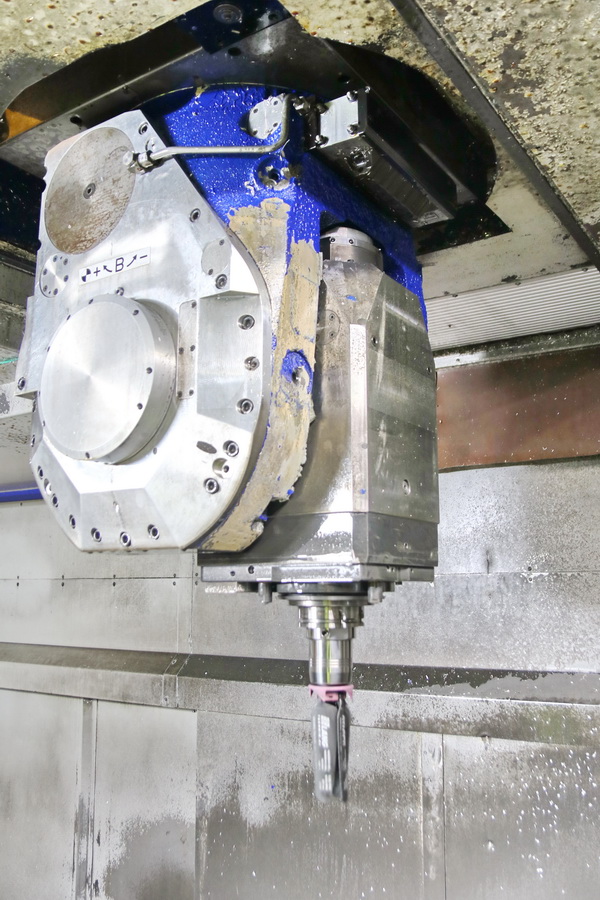

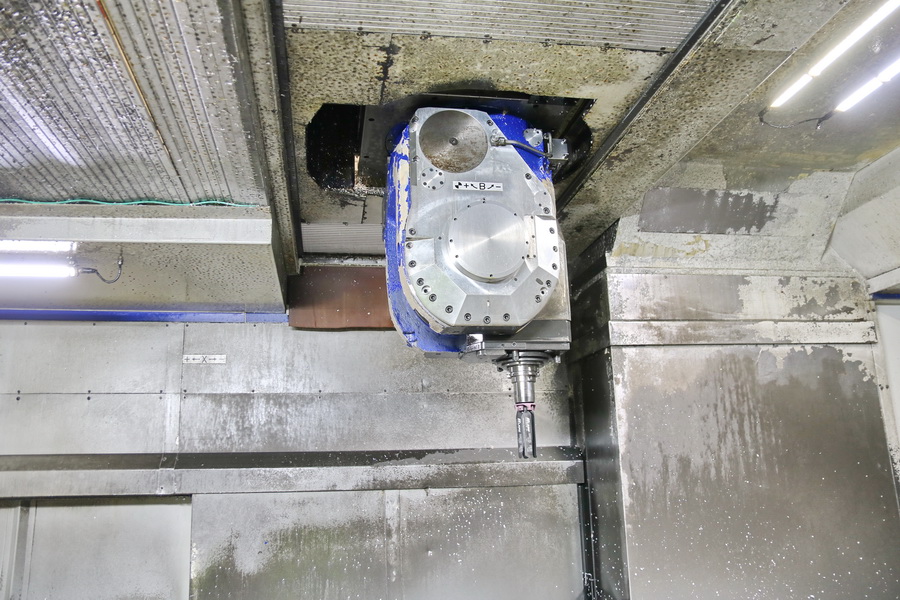

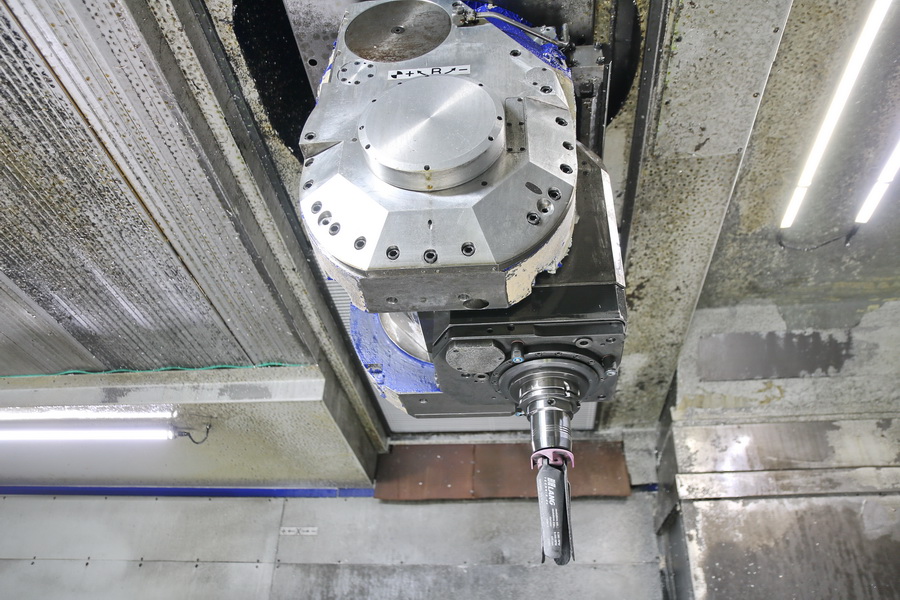

B-Axis Swiveling Head

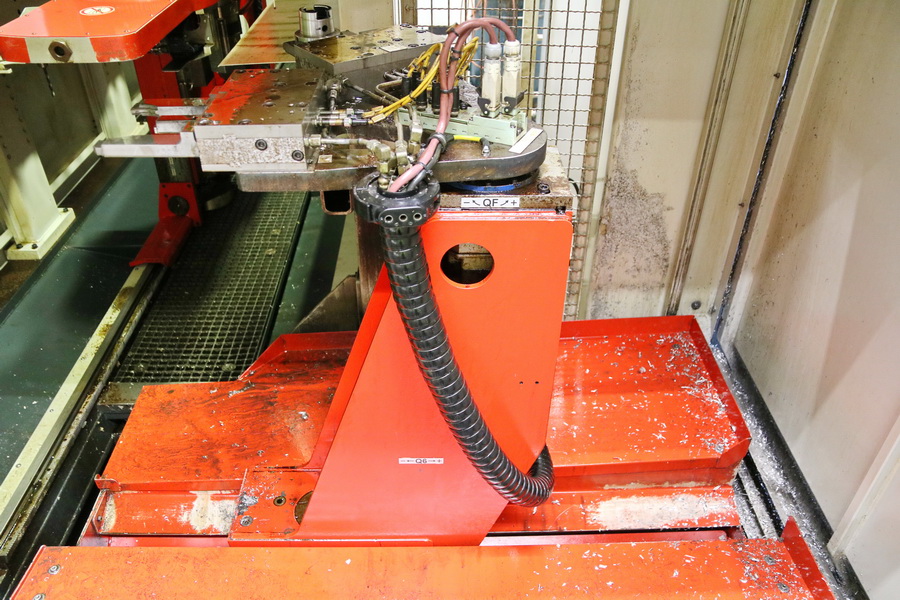

C-Axis Rotary Table

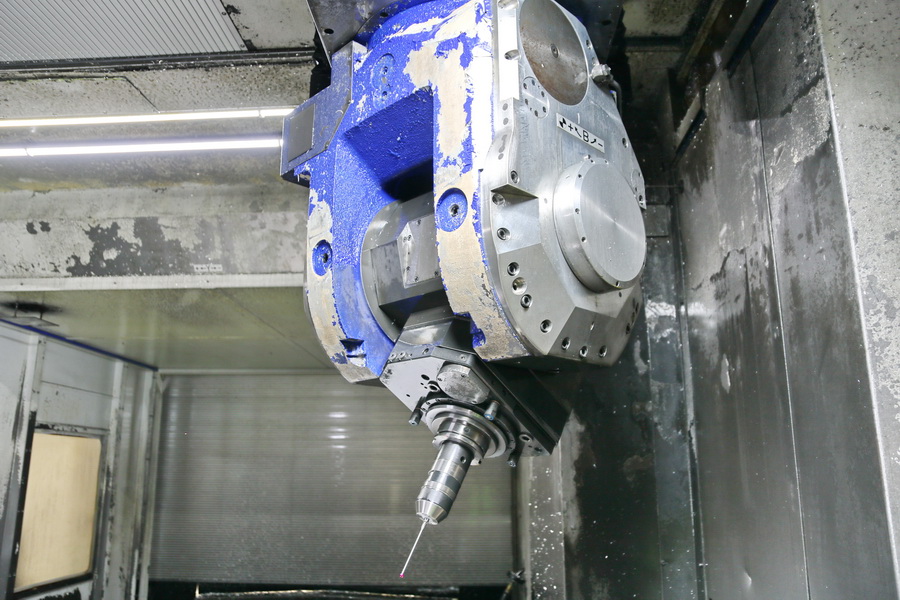

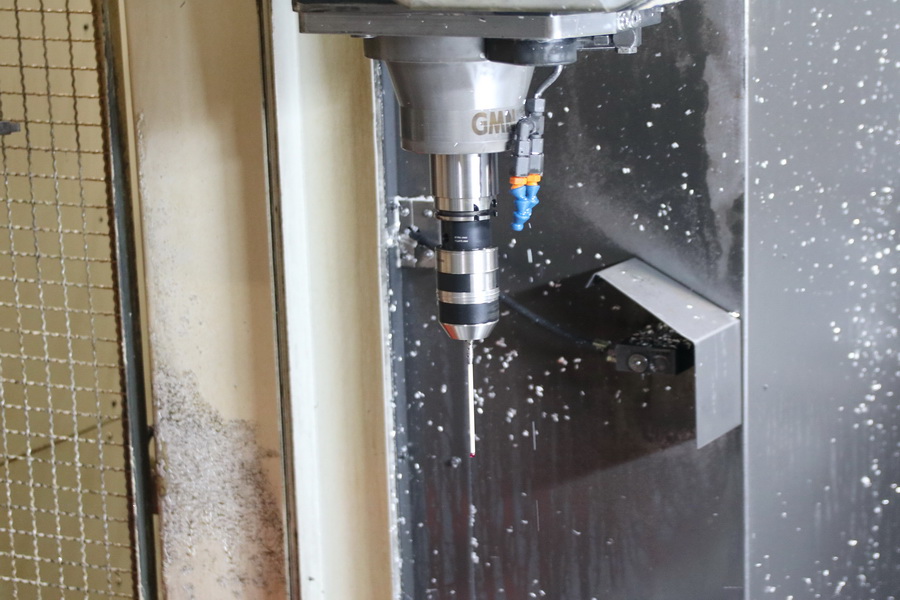

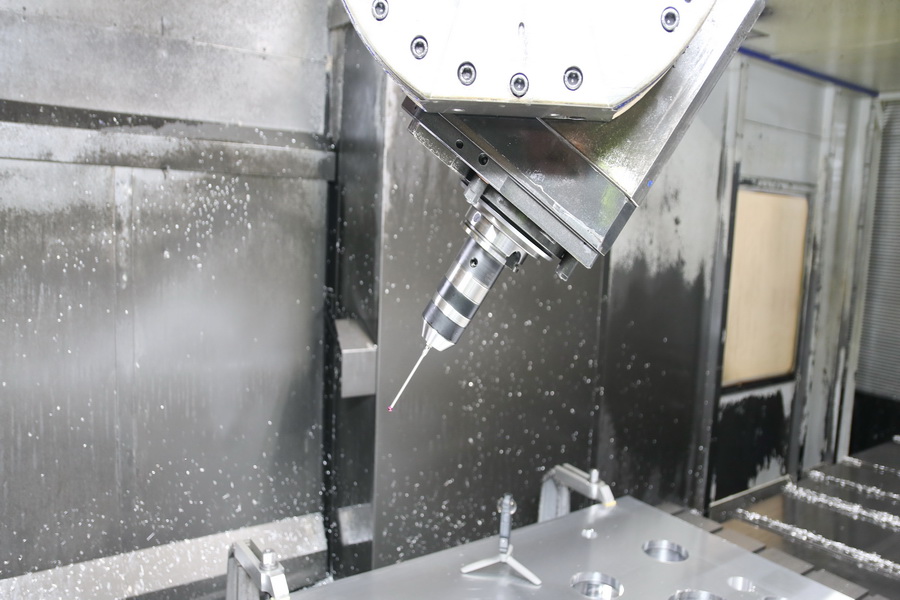

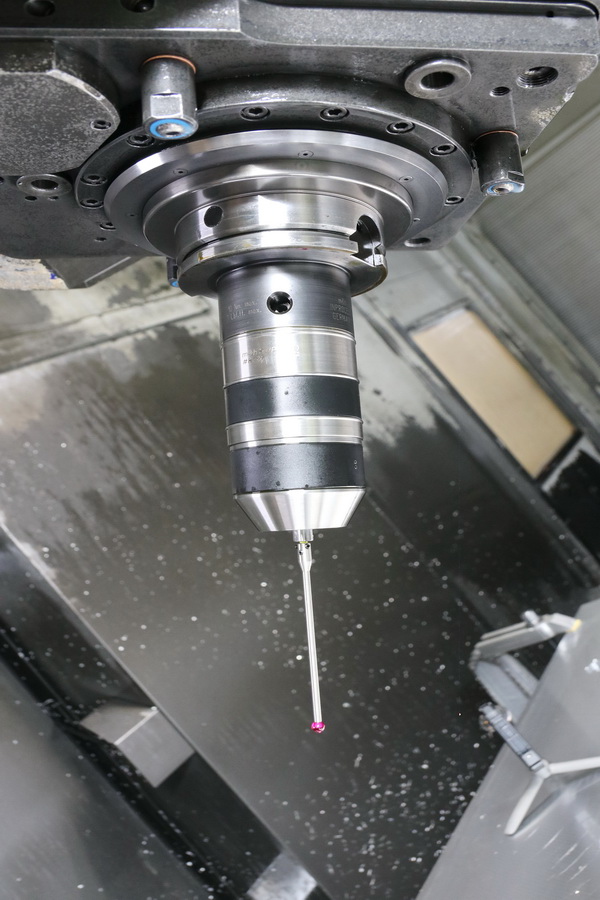

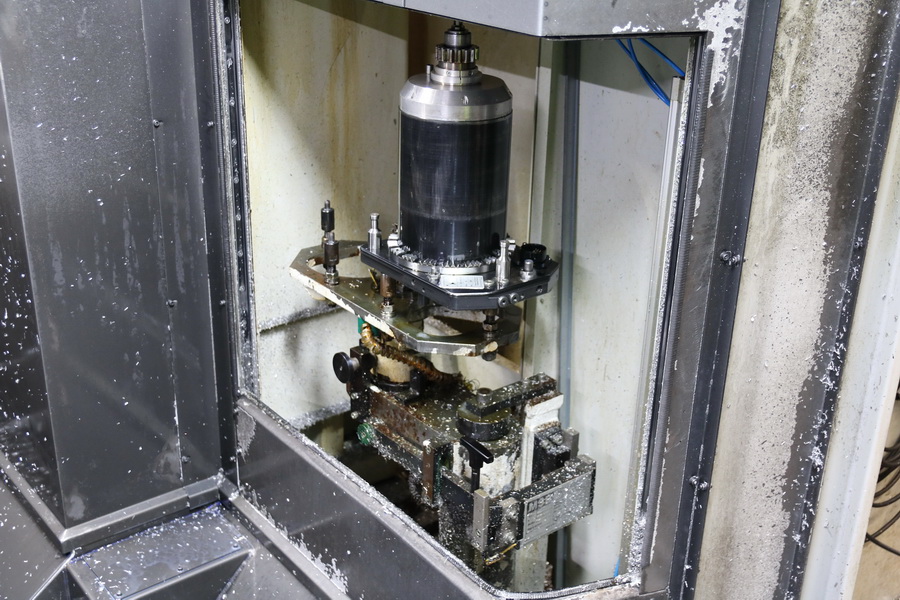

m&h RWP 20.10 Workpiece Probe

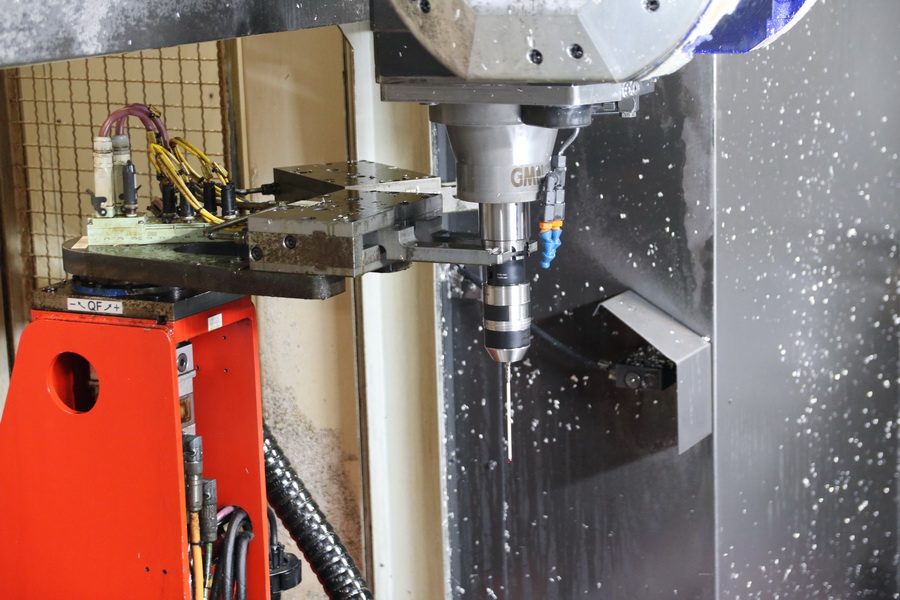

Renishaw Tool Breakage/Tool Measurement System

All specifications are assumed to be correct but must be confirmed by the purchasing entity.
