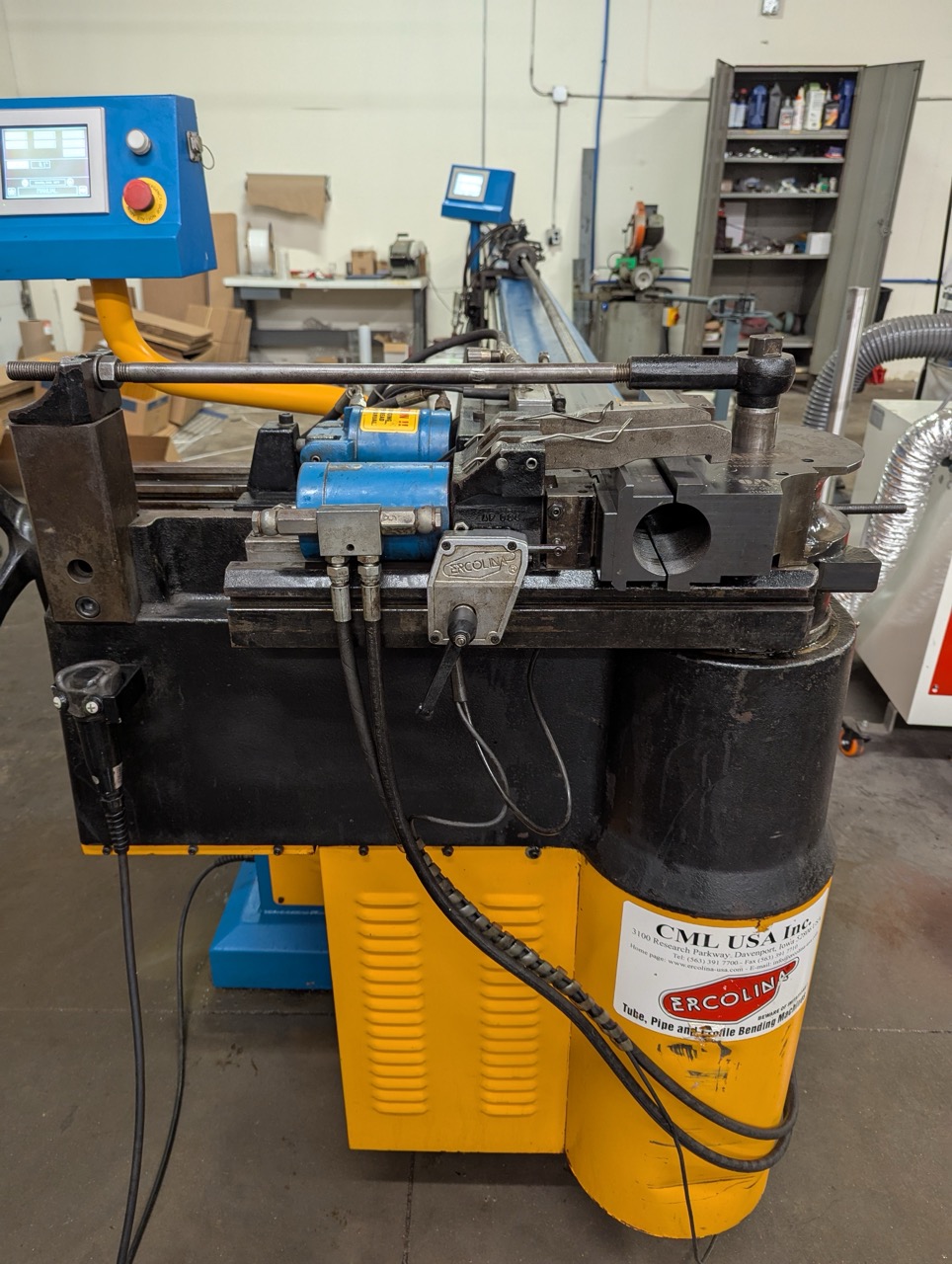

Ercolina TM76-6MT Mandrel Bender, 2010

Minimum External Diameter: 0.39 inches
Maximum Outer Diameter: 3.00 inches
Maximum Bend Radius (CLR): 10.00 inches
Minimum Bend Radius (CLR): 0.79 inches
Maximum Bend Angle: 195°
Installed Power: 5 kW
Programs: Limitless
Bend Speed: Variable (25°/sec.)
Tank Capacity: 13.21 US gallons (approx.)
Noise Level: 62 dB
Dimensions (Length x Width x Height): 171.46 x 40.55 x 54.33 inches
Weight: 2028.21 lbs (approx.)

Equipped With

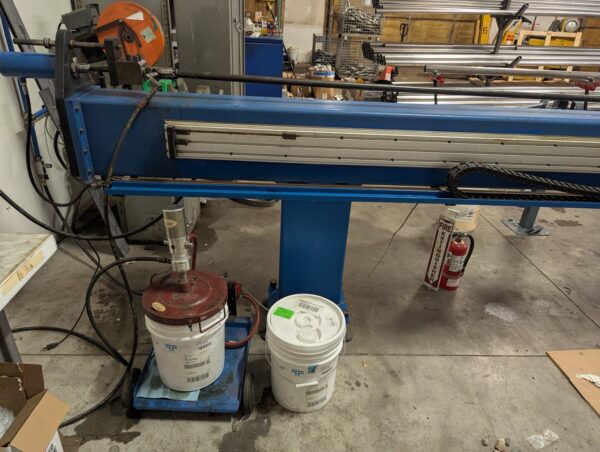

– 20′ Draw Table

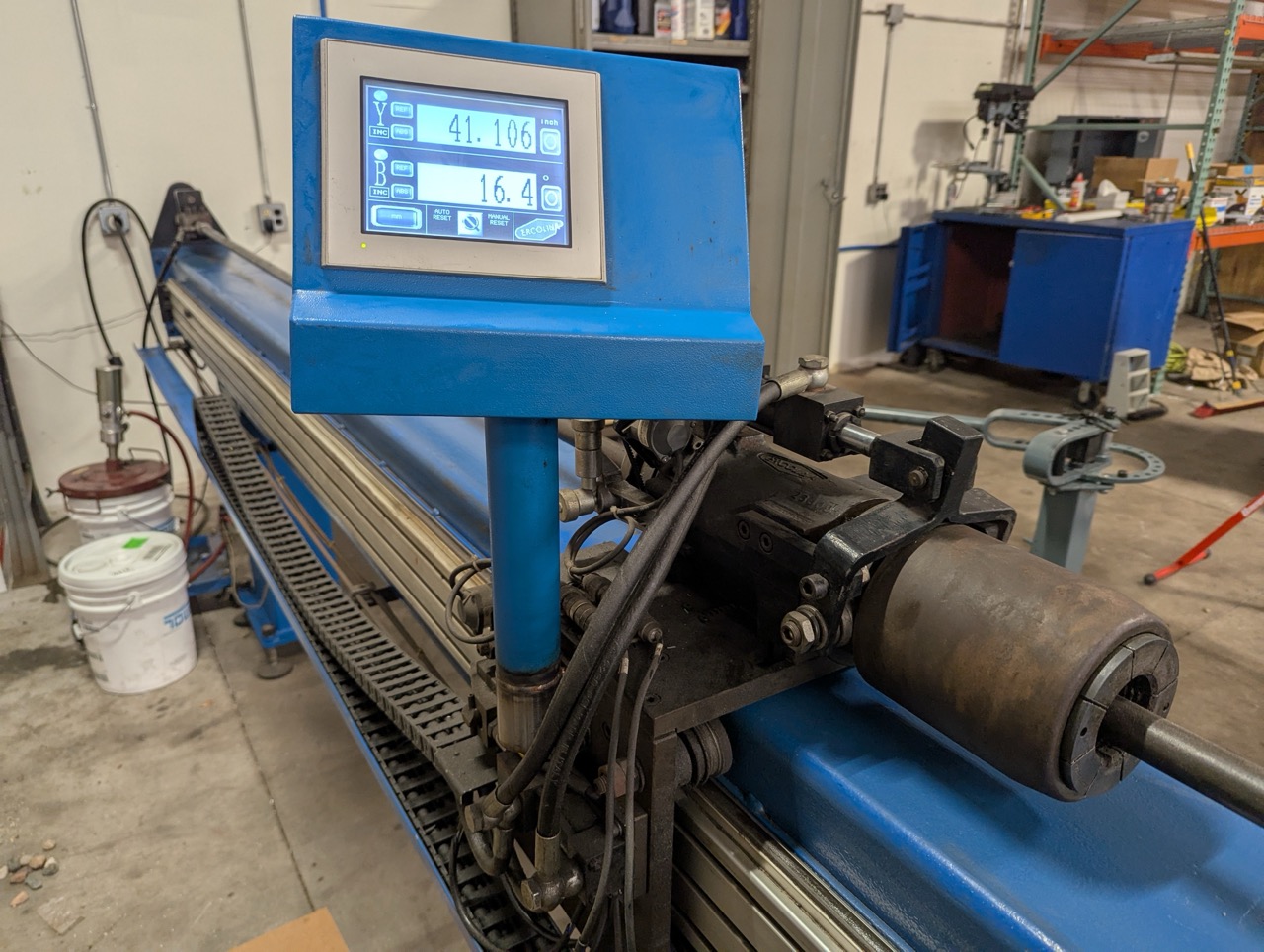

– Full CNC Control
– Rotation/Pull Gauge

Includes:
Full Tool sets for bending 304 Stainless Steel:
Omni-X Tooling 1.25″OD, CLR 3.125″
Omni-X Tooling 1.5″OD, CLR 3.75″
Omni-X Tooling 1.75″OD, CLR 2.625″
Omni-X Tooling 2″OD, CLR 5″
Omni-X Tooling 2.5″OD, CLR 4″
Omni-X Tooling 3″OD, CLR 4
