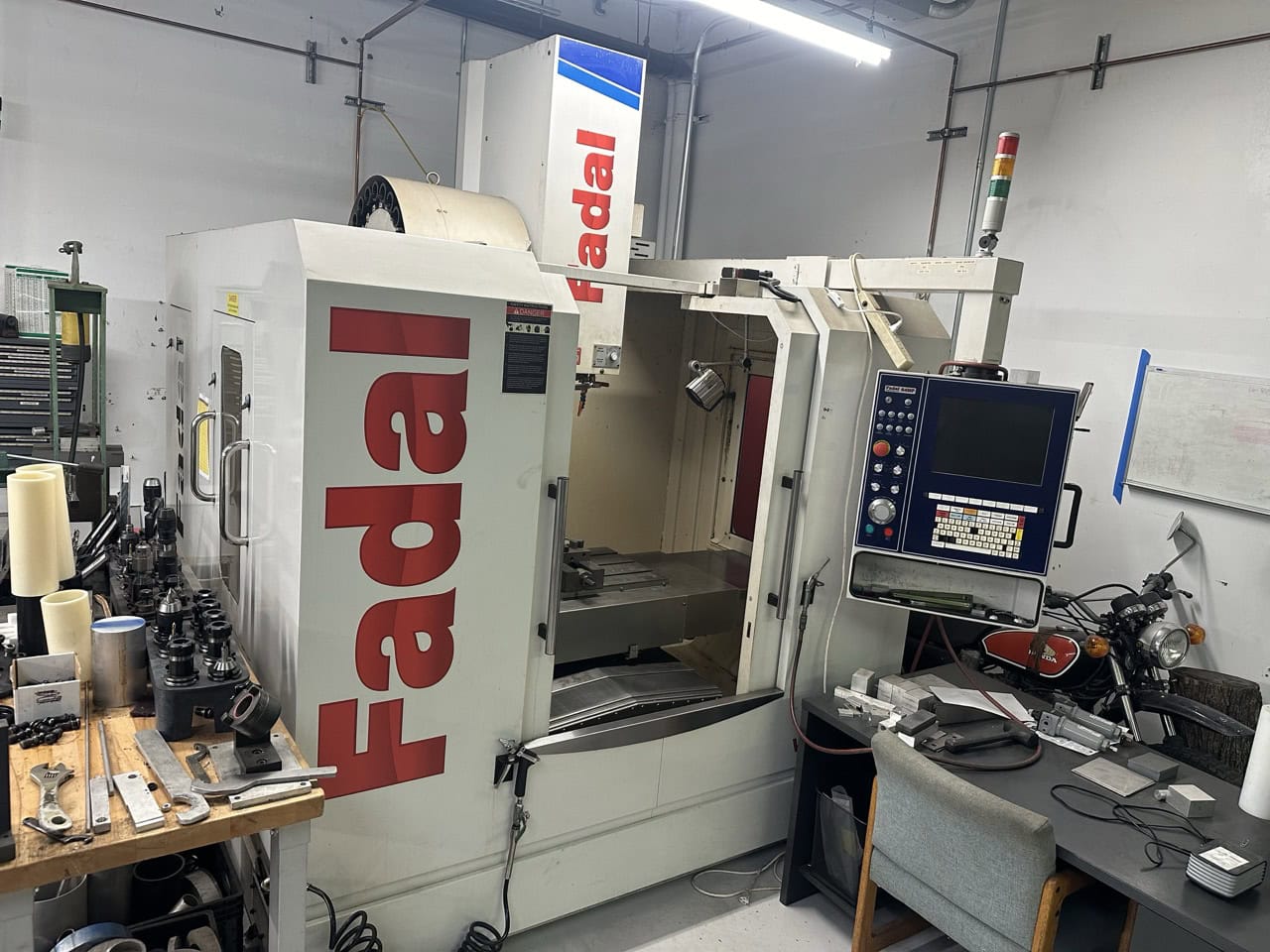

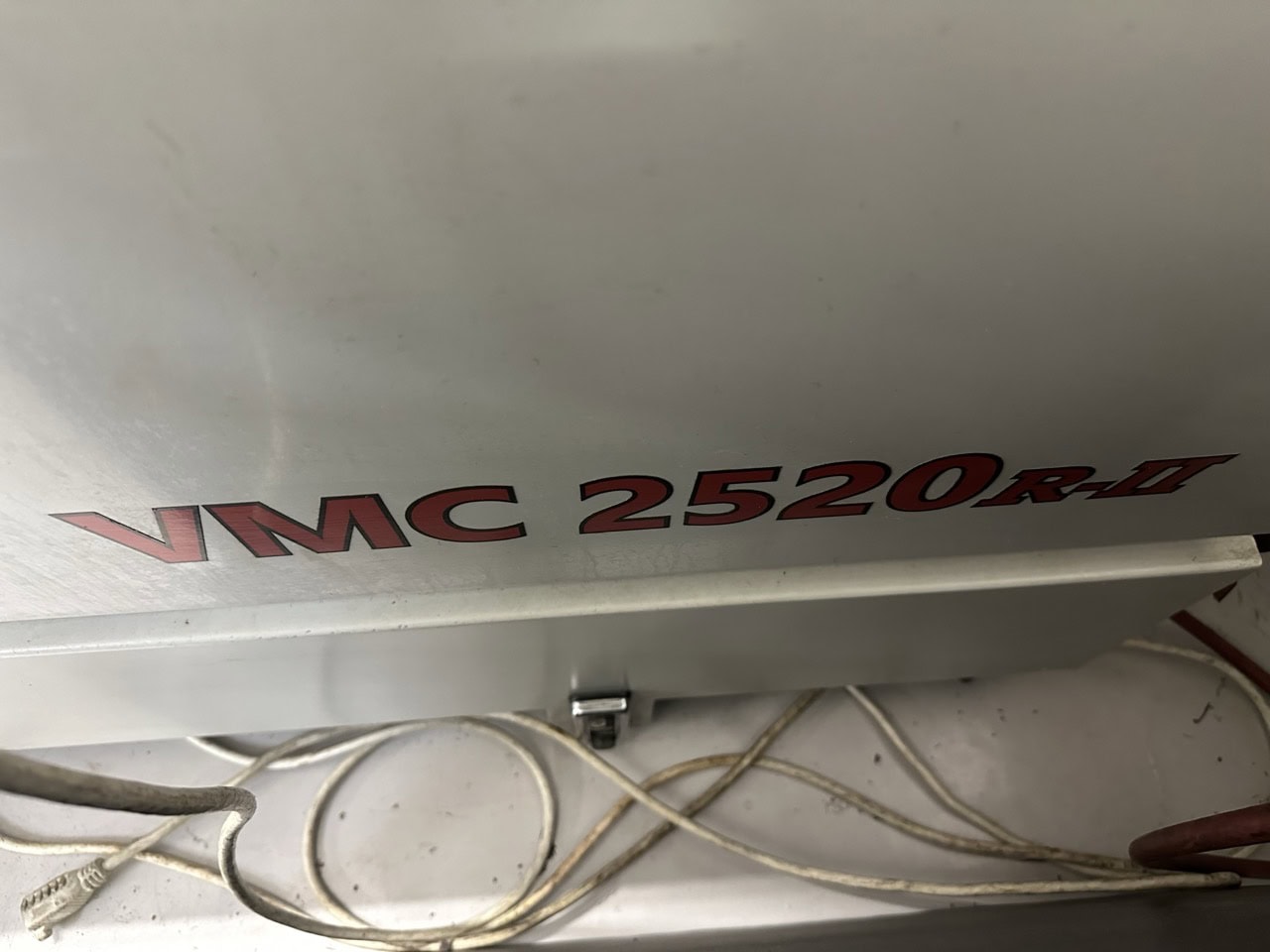

Fadal VMC 2520 R-II VMC, 2017 – 24 ATC, Available Immediately

X-Axis Travel: 25.5″
Y-Axis Travel: 20″
Z-Axis Travel: 20″
Table Size: 31.6″ x 17.75″
Max Table Load: 990 Lbs

Spindle Taper: CAT40
Spindle Speed: 10,000 RPM
Spindle Motor HP: 15
Automatic Tool Changer: 24 Positions
Rapid Traverse (X, Y, Z): 1,187 IPM
Accuracy Positioning: .0002
Accuracy Repeatability: .0001

Electrical Requirements: 220 V; 3 Ph; 60 Hz
Approx Weight: 11,000 Lbs
Approx Dimensions: 100″ x 96″ x 104″

Equipped With:

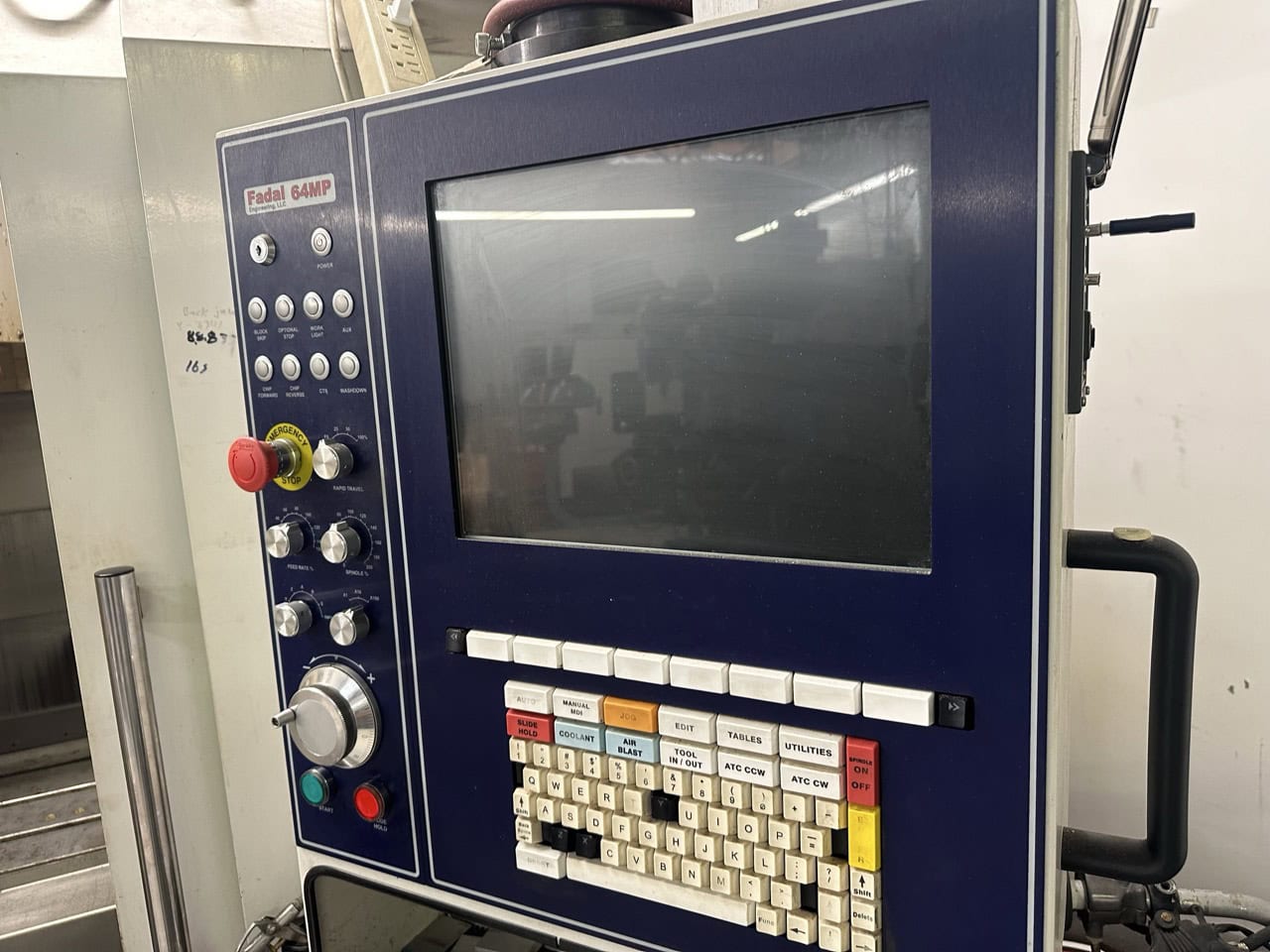

FADAL 64MP CNC Control
Rigid Tapping
24 Positions Side Mount Tool Changer
Linear Roller Bearing Ways
Spindle Oil Cooler
LED Lighting
Spindle Air Blast
Auto Lube System
