GF Mikron 500U VMC, 2020- 5-Axis, HSK, Low Hours, Excellent Condition,Probe

$279,500.00

Request a Quote to Instantly See Pricing

Machine Type:
Vertical Machining Centers
Model:
500U
Make:
GF Mikron
Year:
2020

X-axis- 19.68 in (500 mm)
Y-axis – 17.71 in (450 mm)
Z-axis – 15.74 in (400 mm)
B-axis – 65°/+120°
C-Axis- 360° endless

Spindle drive type- Cartridge
Spindle max.- 20,000 RPM
Spindle Power at S1-30.8 HP (23kW)
Spindle Power at S6-48.2 HP (36 kW)
Spindle Torque at S6-88.5 ft. lbs. (120 Nm)
Spindle tool interface- HSK-A63
Distance from table top to spindle 5.90 – 21.65 in (150 – 550 mm)
Rapid traverse X,Y & Z 1,181 min (30 m/min)
Acceleration X,Y & Z .3g (3 m/sq. sec.)
Rapid speed B/C 32/112 RPM

Tool changer capacity- 60 tools
Work table size- 19.68 in (500 mm)
Maximum payload on table 440 lbs (200 kg)
Typical table height 38.58 in (980 mm)
Number of T-slots 7
T-slot spacing- 2.48″ in (63 mm)
T-slot dimension- 0.55 in (14 mm)

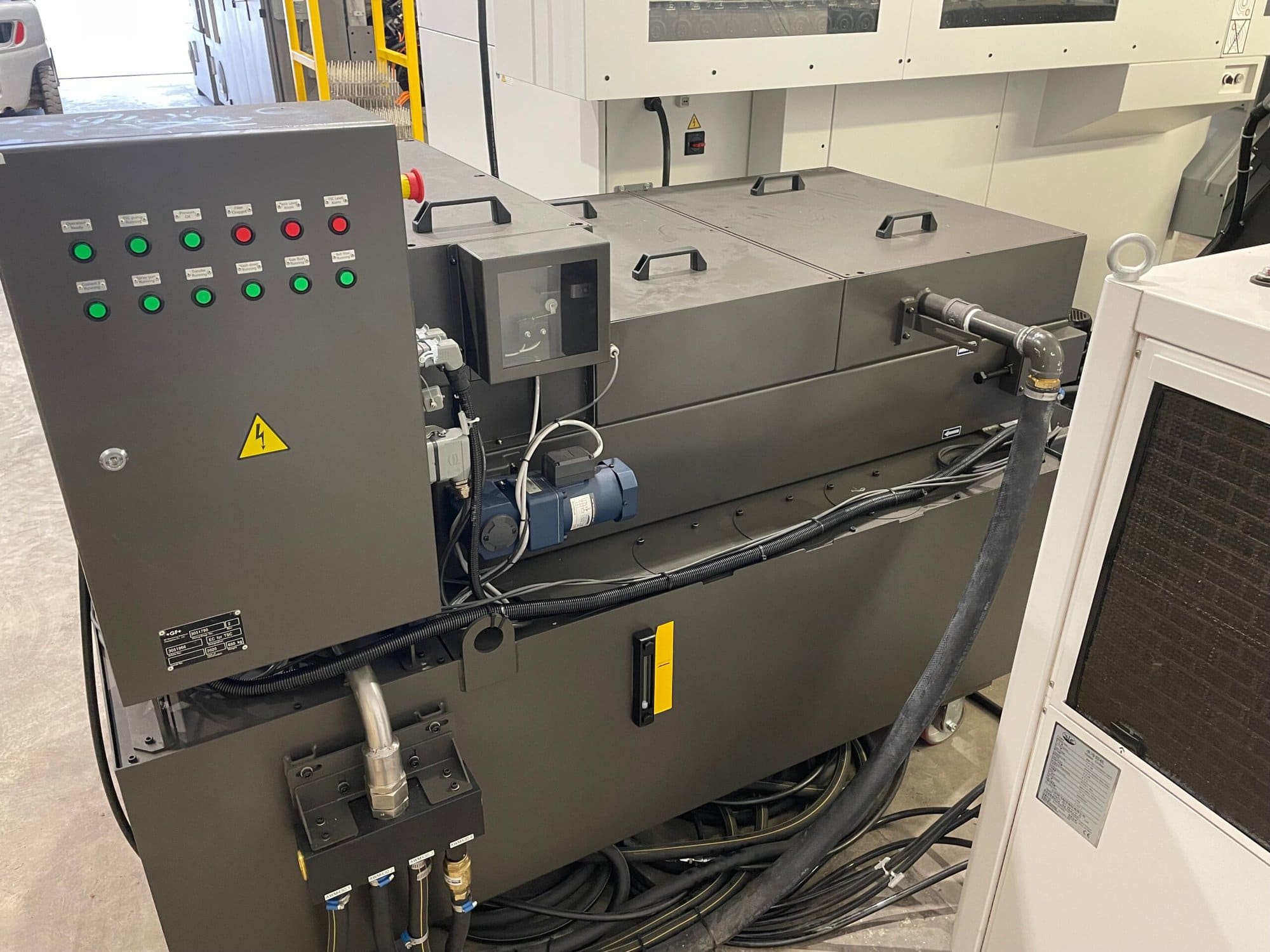

Coolant tank capacity- 158 gal (600 L)
Machine weight- 15,430 lbs (7,000 kg)
CNC control- Heidenhain iTNC 640

All specifications are assumed to be correct but must be confirmed by the purchasing entity.
