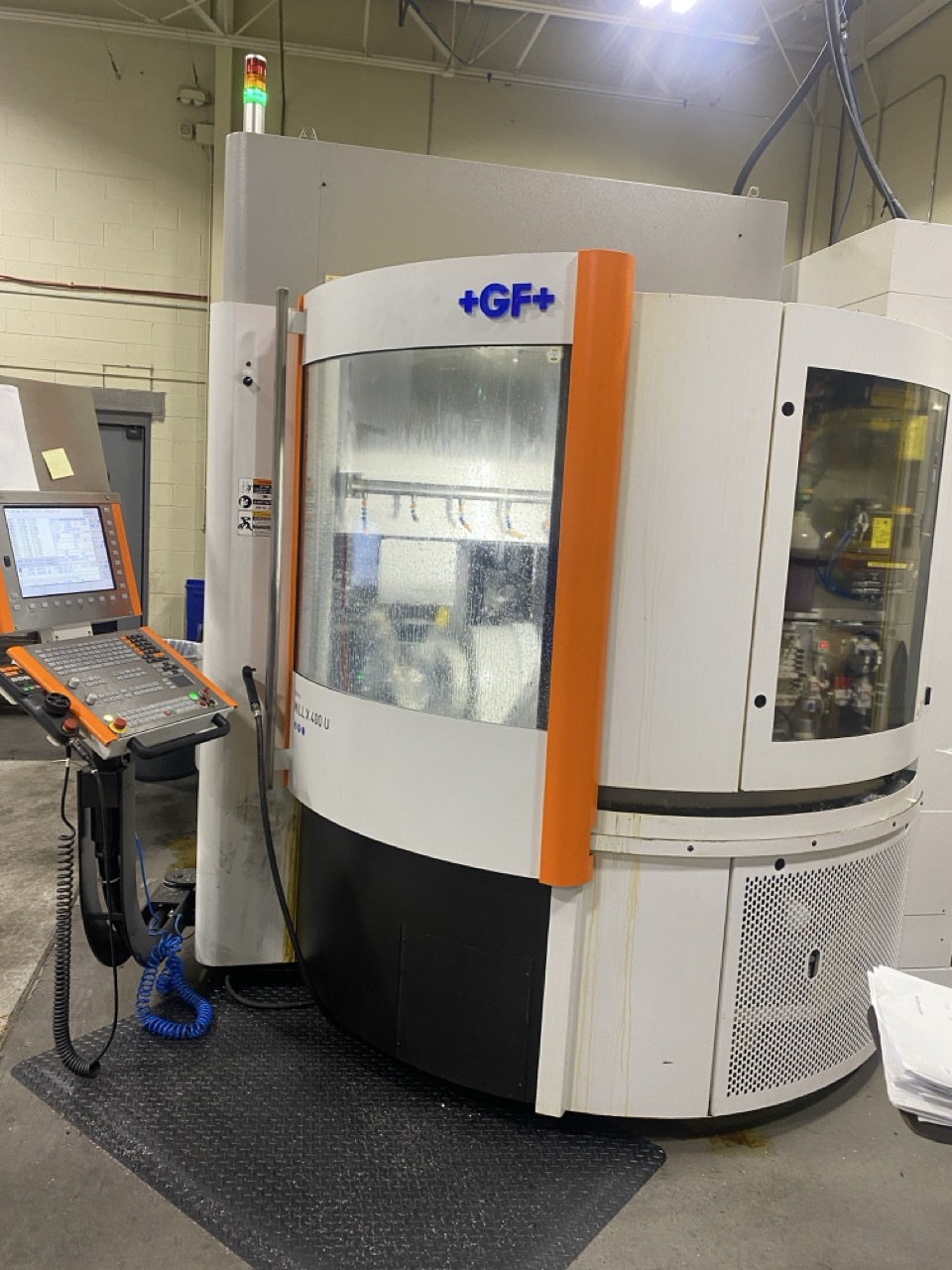

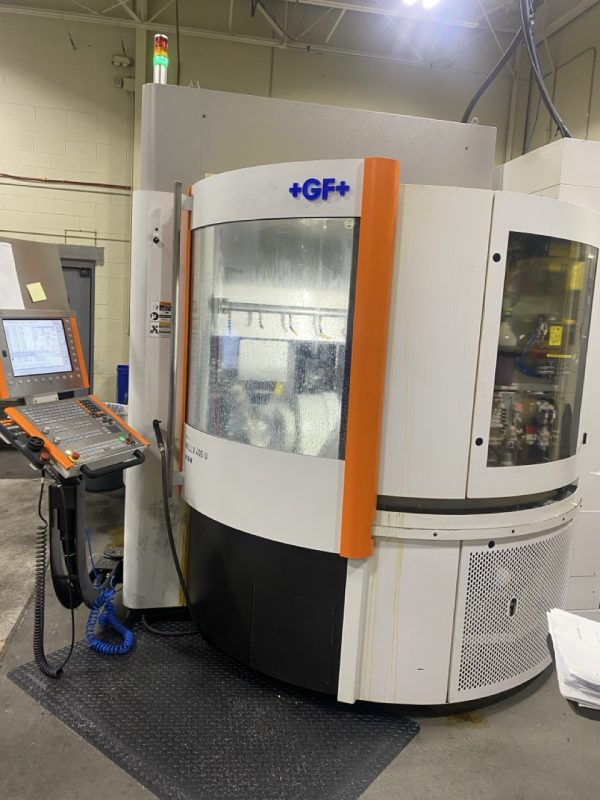

2018 GF Mikron MILL X 400U ultra-high-speed 5-axis vertical machining center built for precision mold, die, aerospace, medical, graphite/electrode, and high-speed hard milling applications.

X Axis – 19.68”
Y Axis – 9.45”
Z Axis – 14.17”
Swiveling axis +110/-110 degrees
Rotary axis n x 360
Rapid traverse (X/Y/Z) 100 m/min (3,937 ipm)
Rapid traverse (swivel) 165 rpm
Rapid traverse (rotary) 250 rpm
Working Spindle speed 42,000 rpm
Working Spindle taper HSK-E40

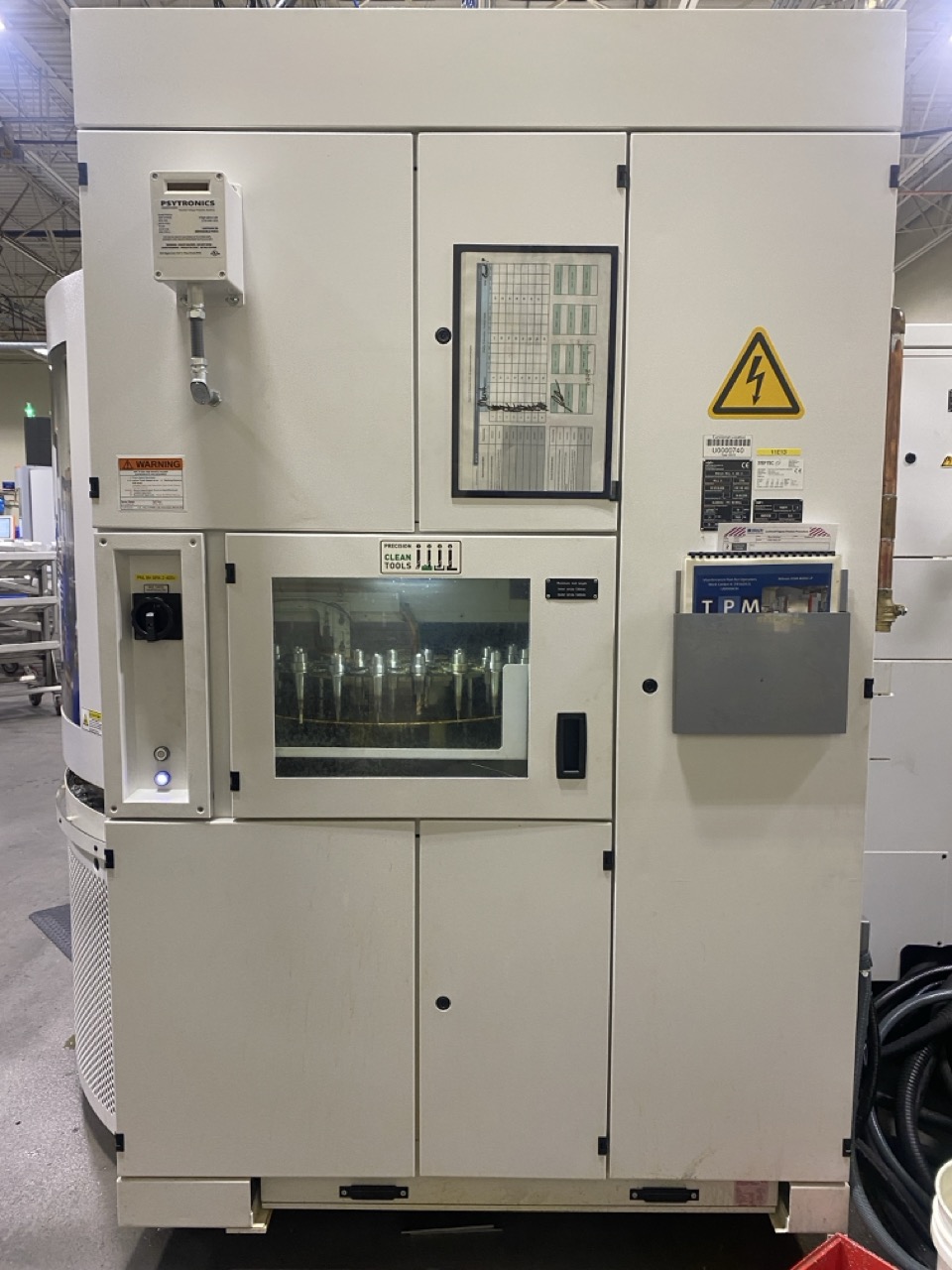

Tool Changer 68 ATC
Working Spindle power 13.5 kW
Working Spindle torque 8.8 Nm
Machine weight 15,432 lbs

Equipped with:

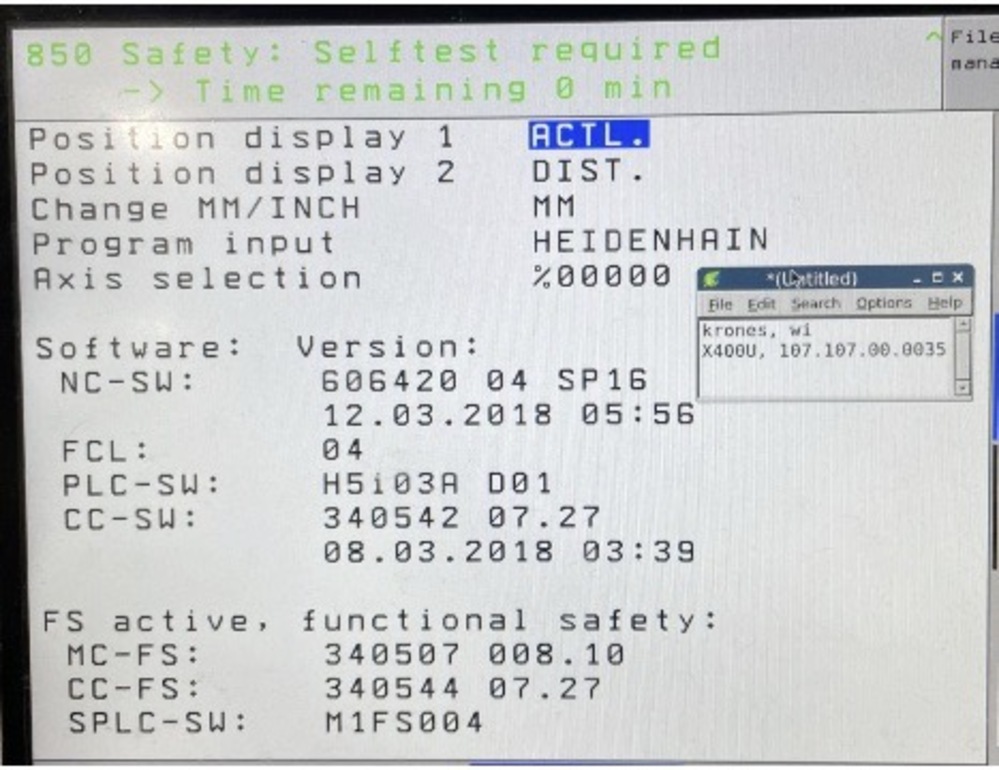

Heidenhain ITNC 530 HSCI CNC Control

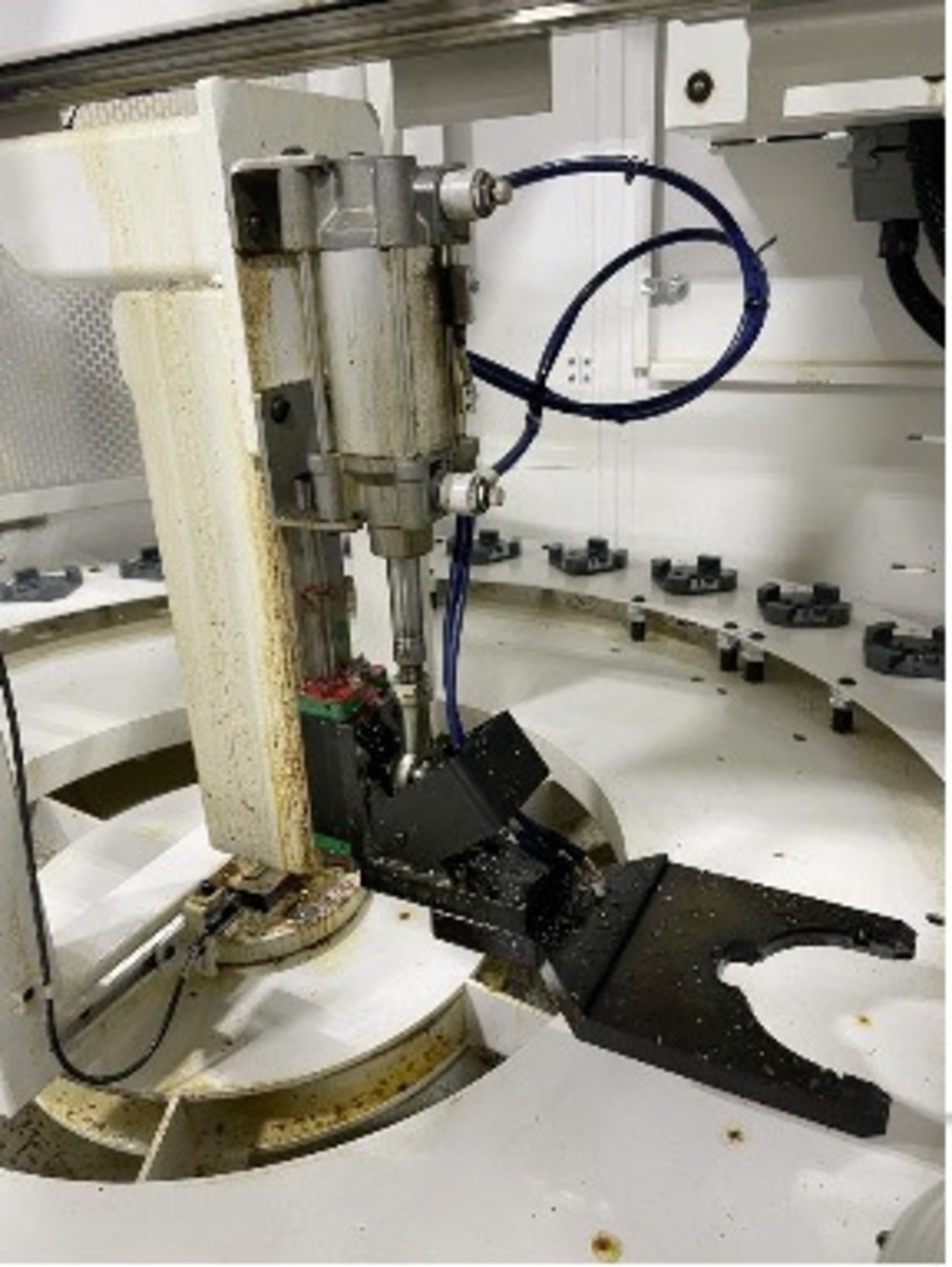

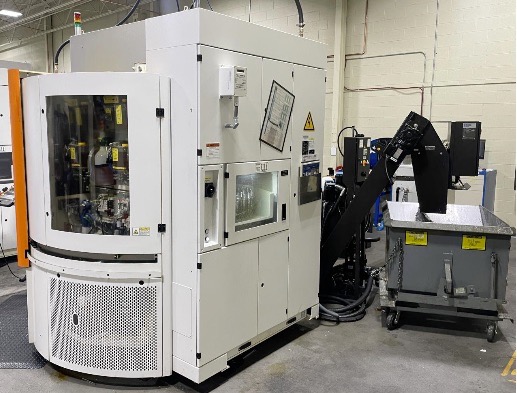

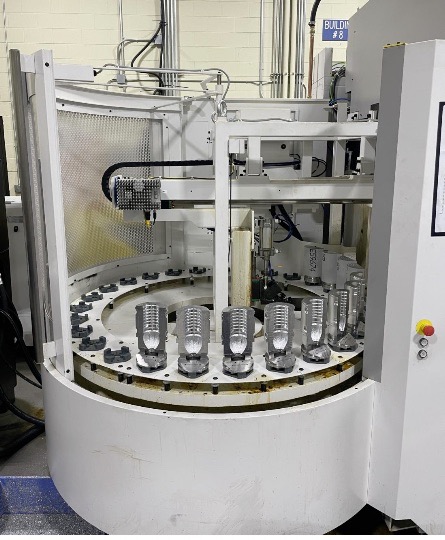

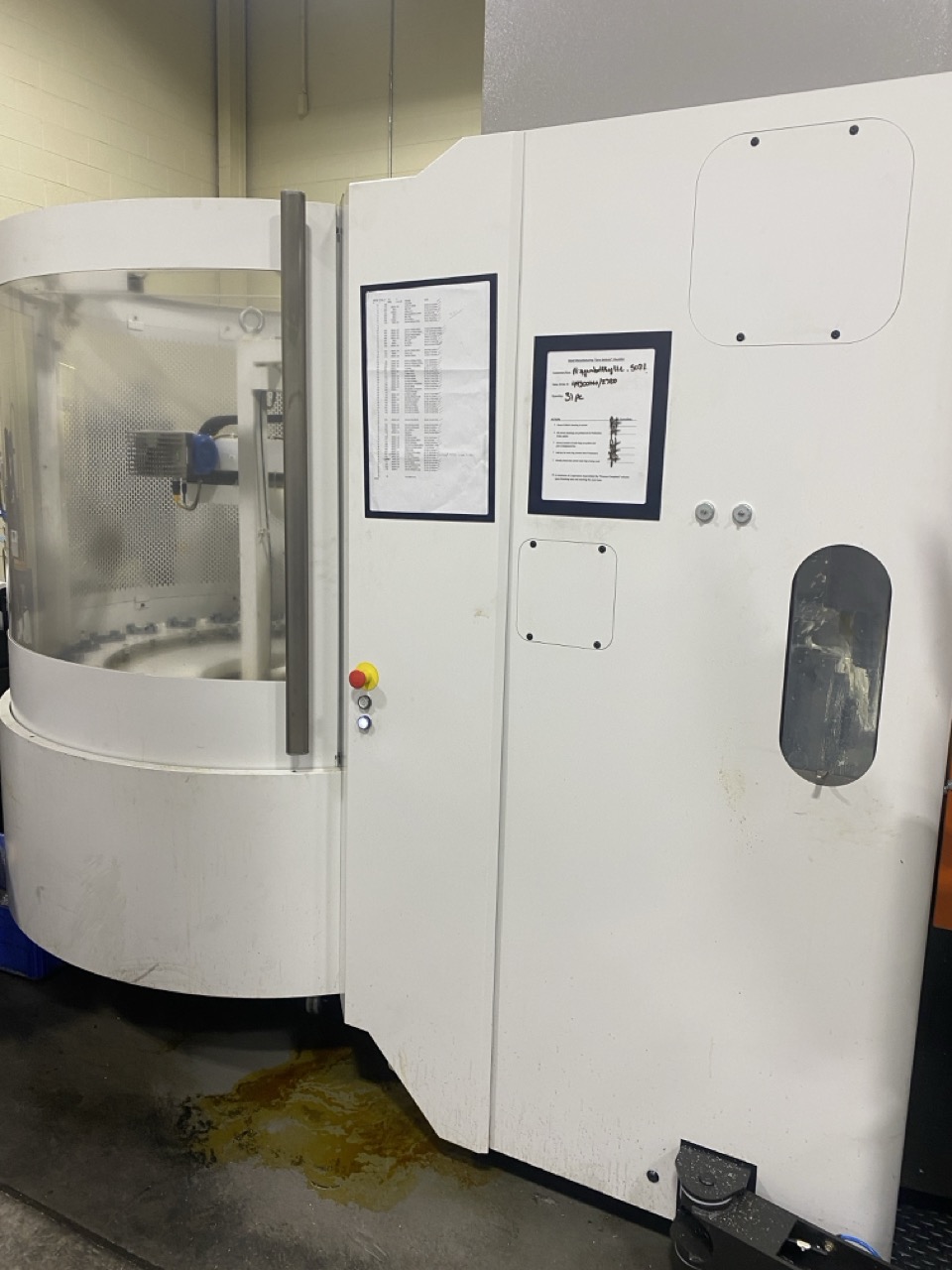

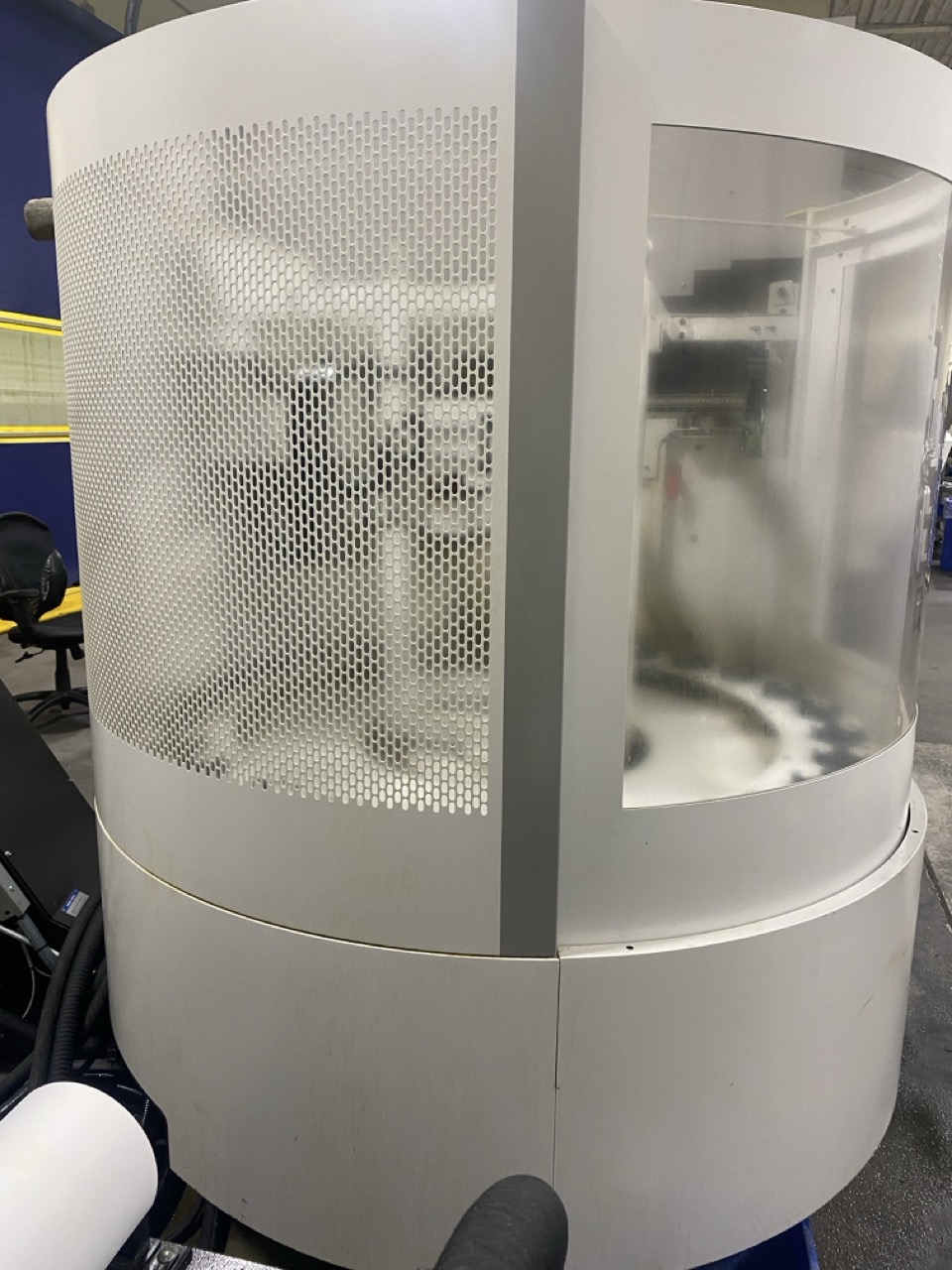

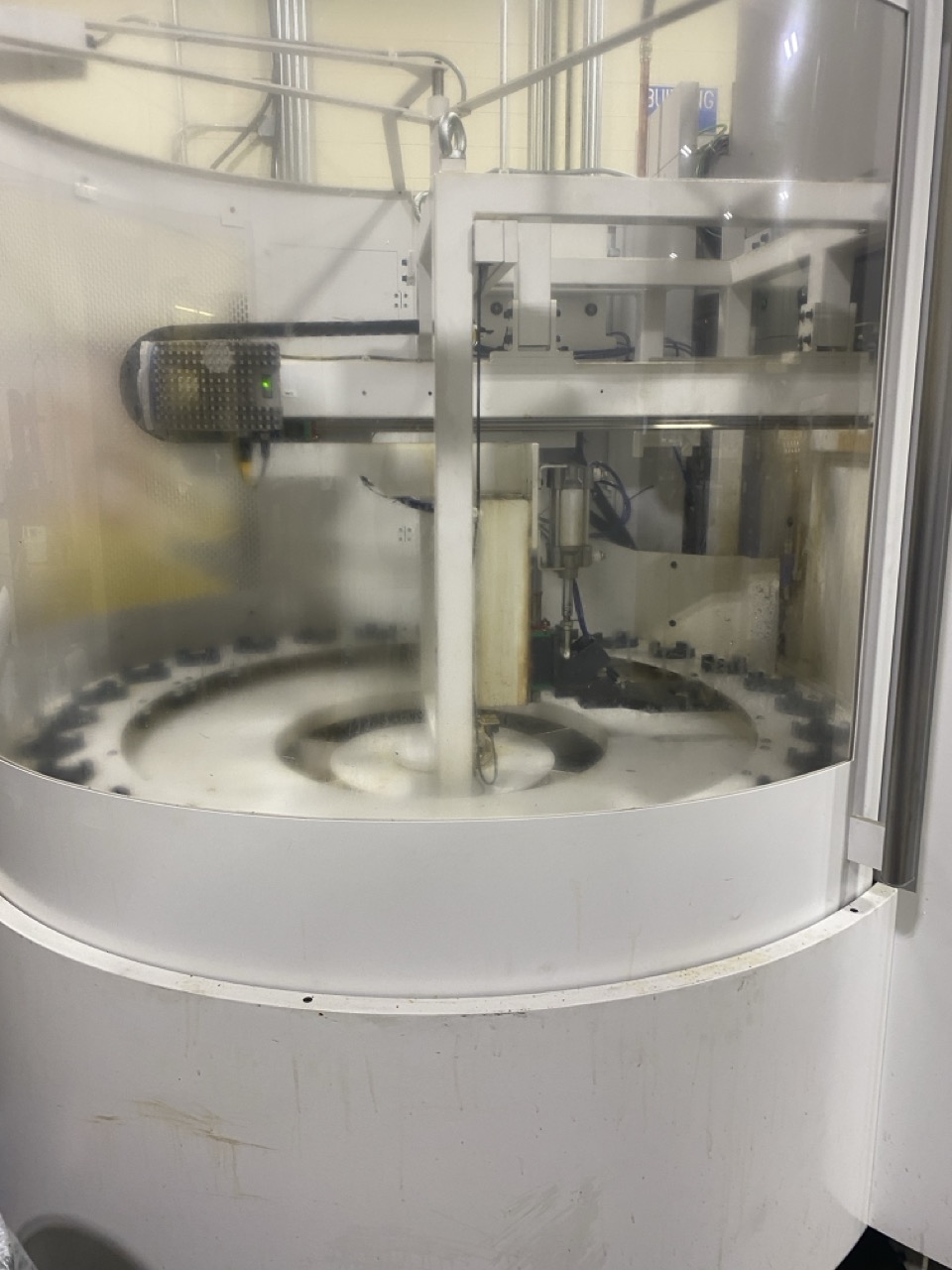

Pallet Magazine 27 Macro
Rotary Tilt Table Macro Magnum

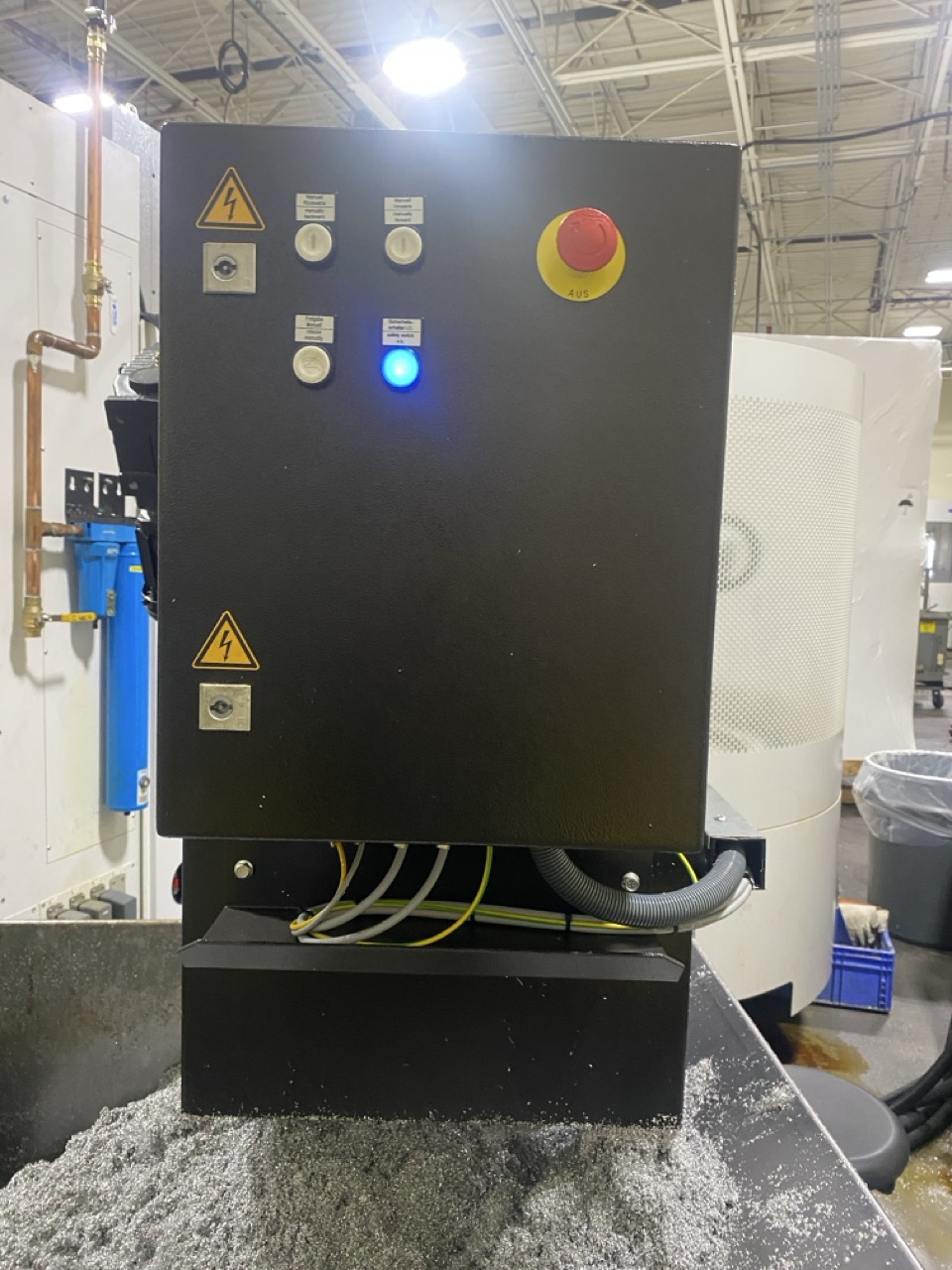

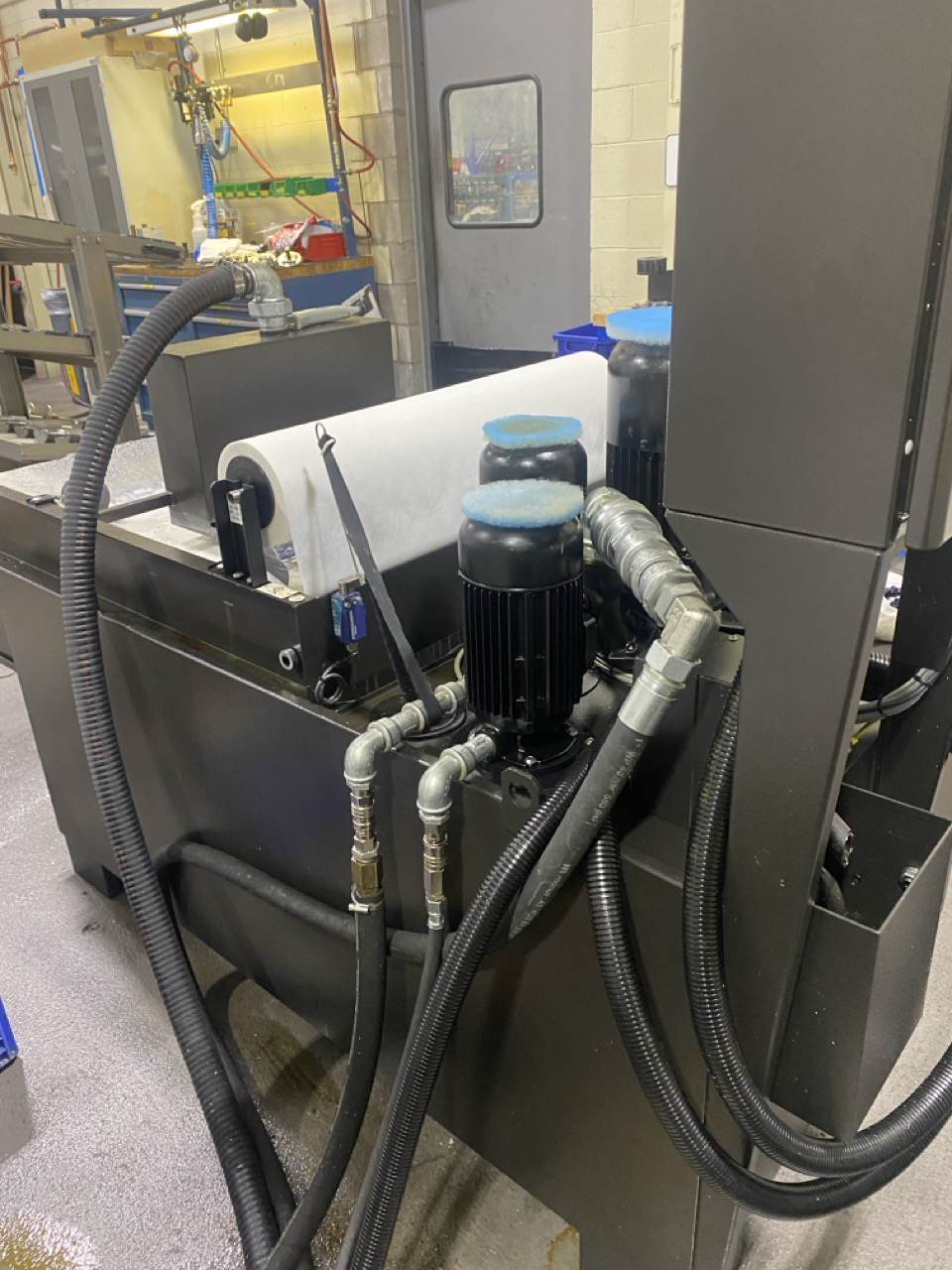

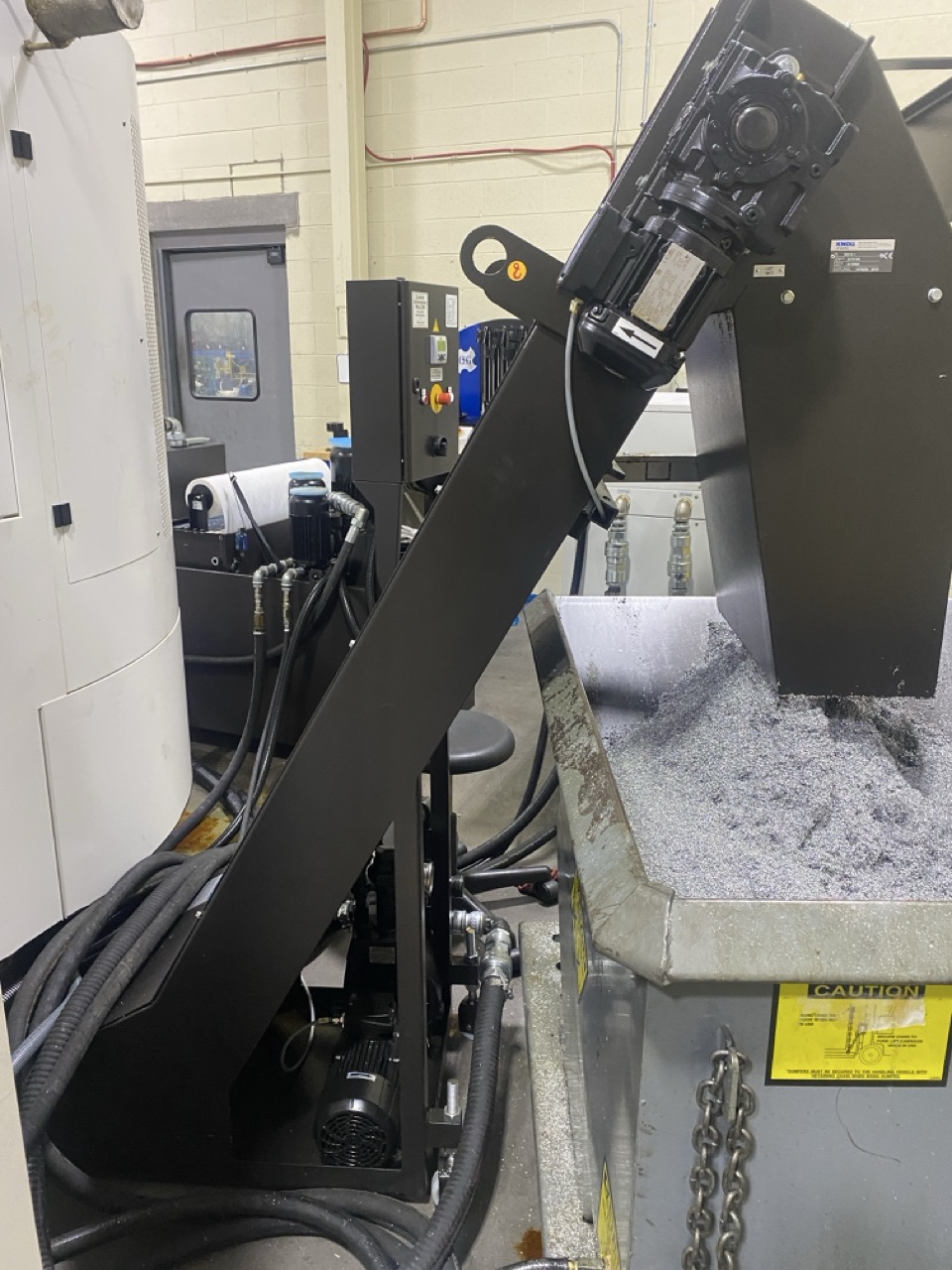

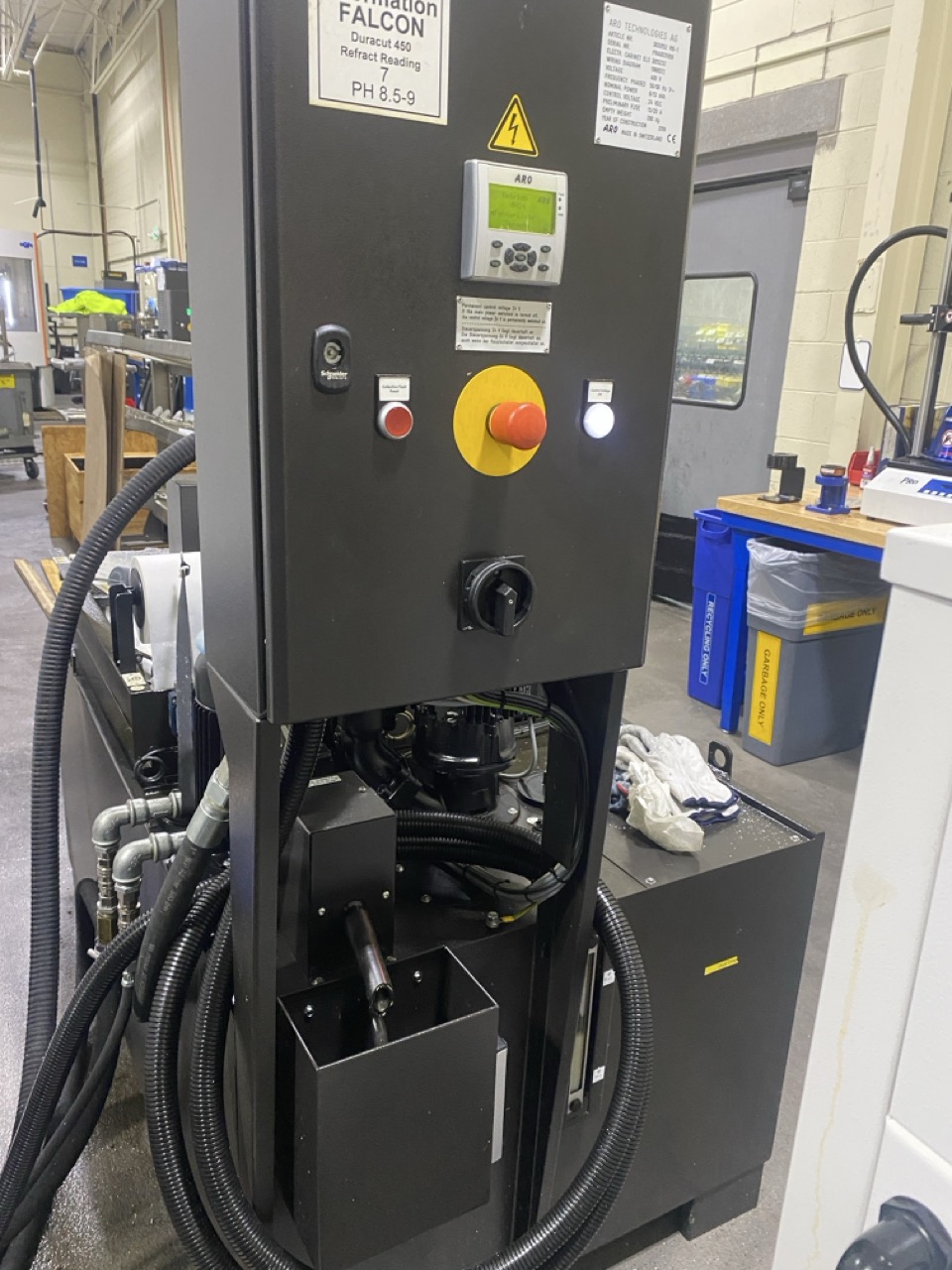

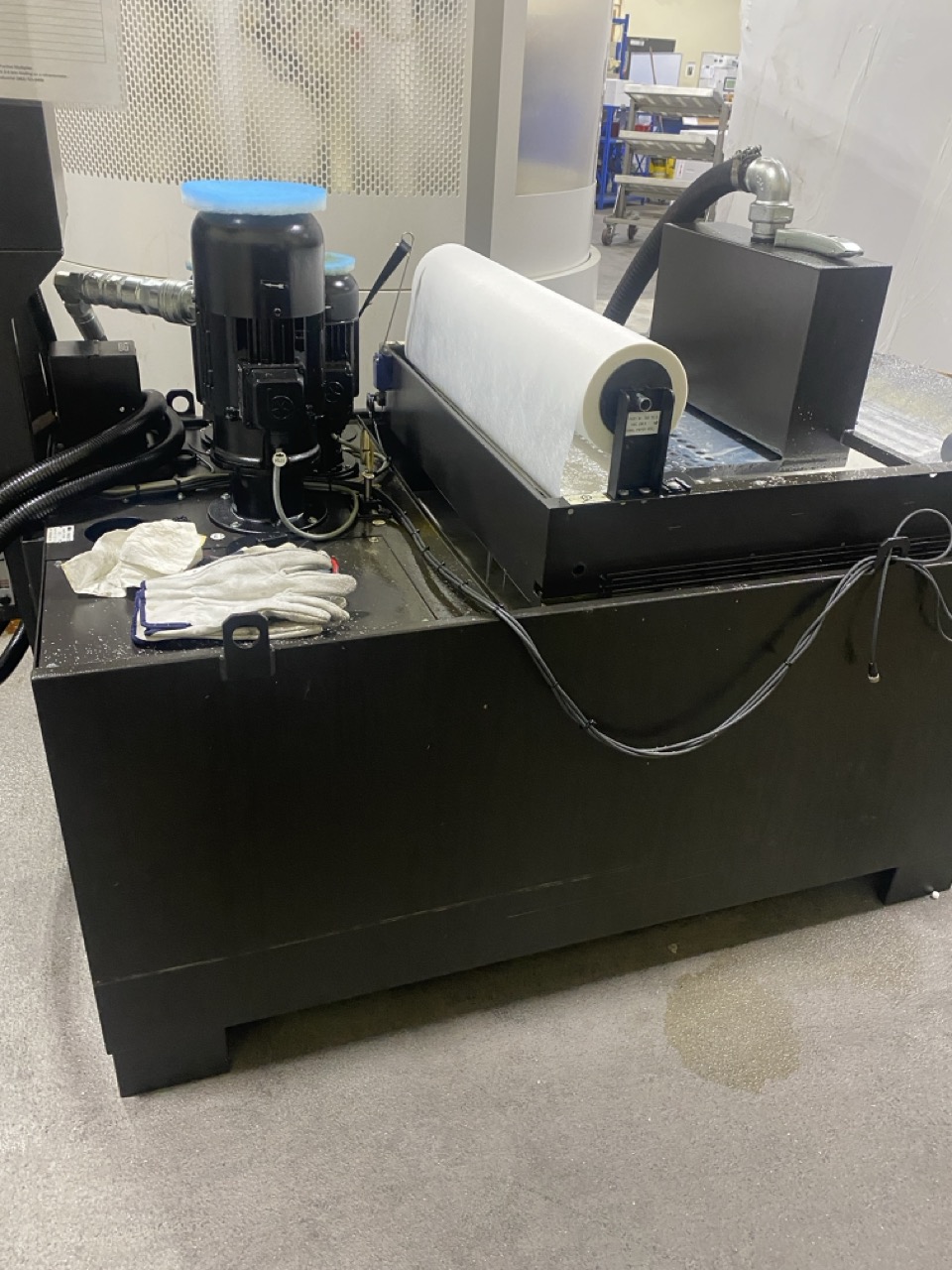

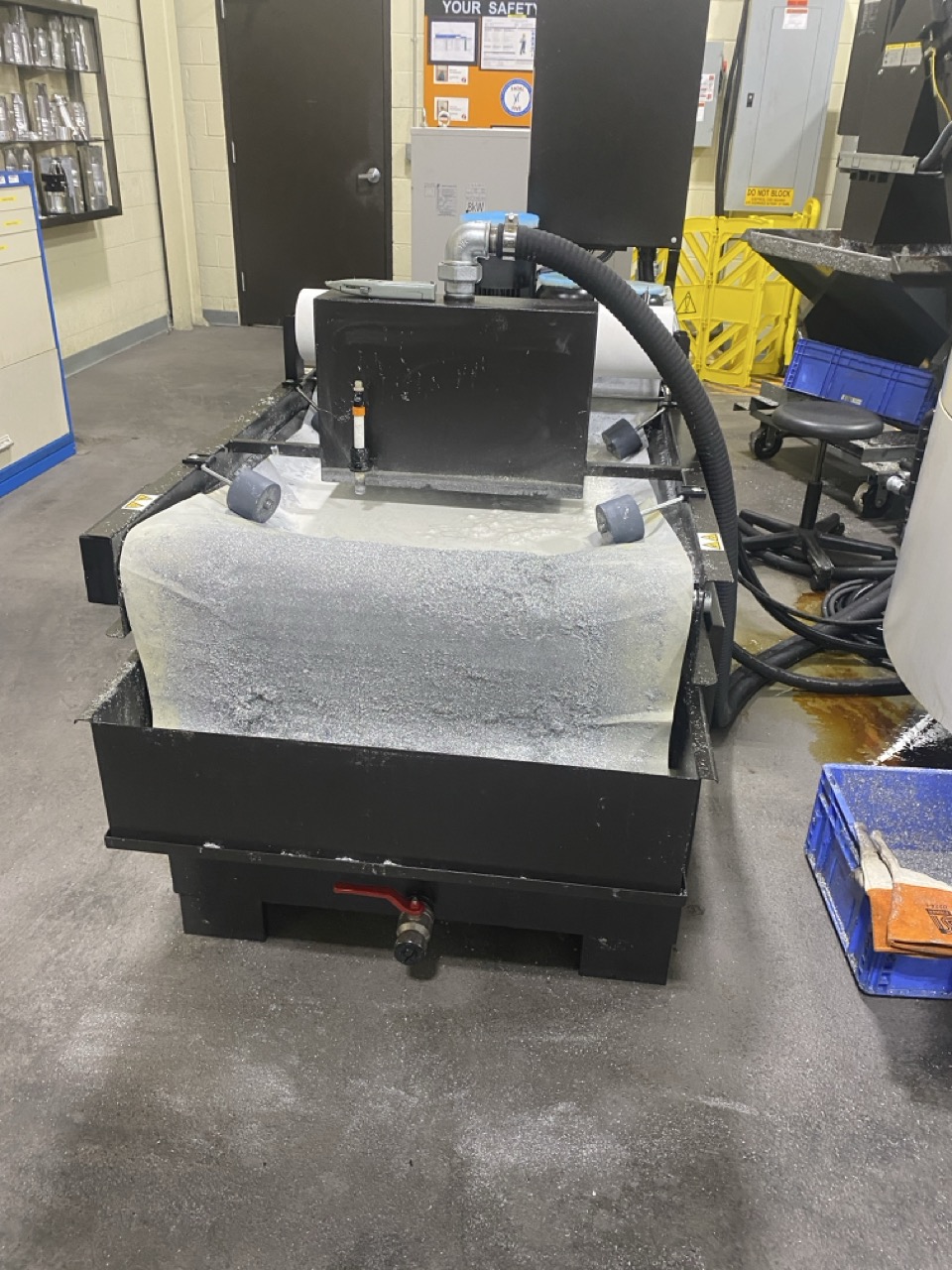

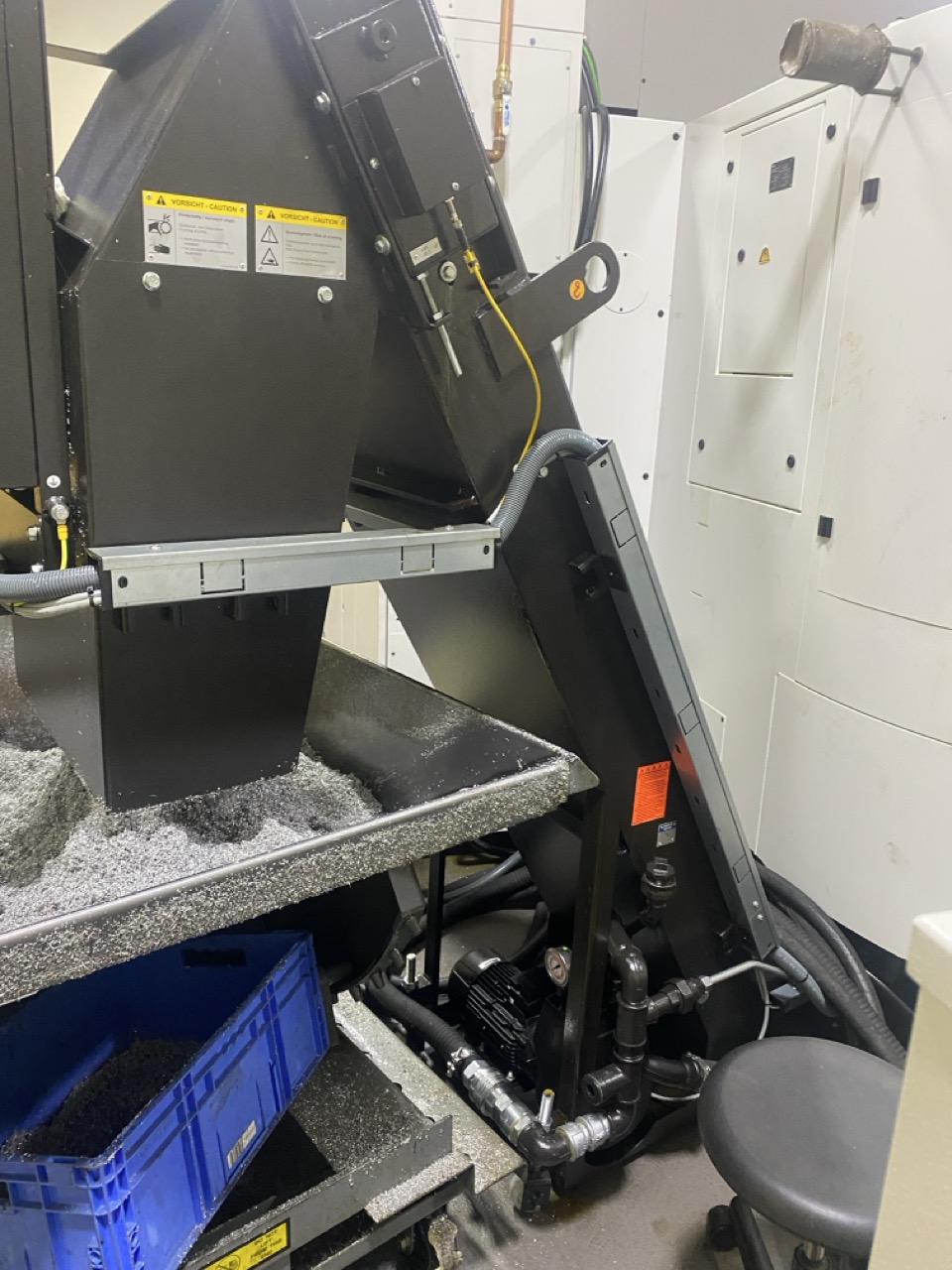

Knoll Scraper Conveyor With Filter System
Coolant Thru Spindle

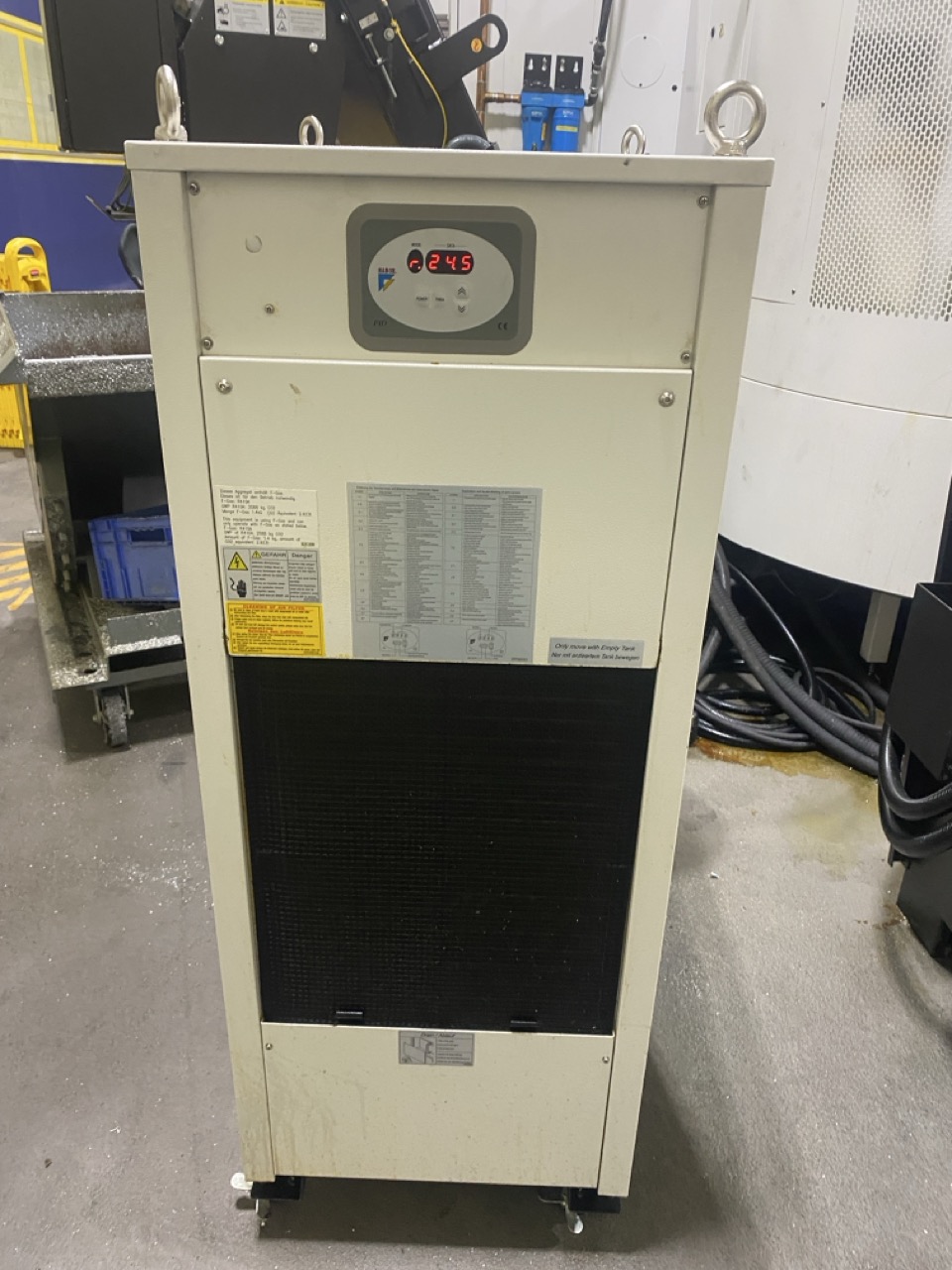

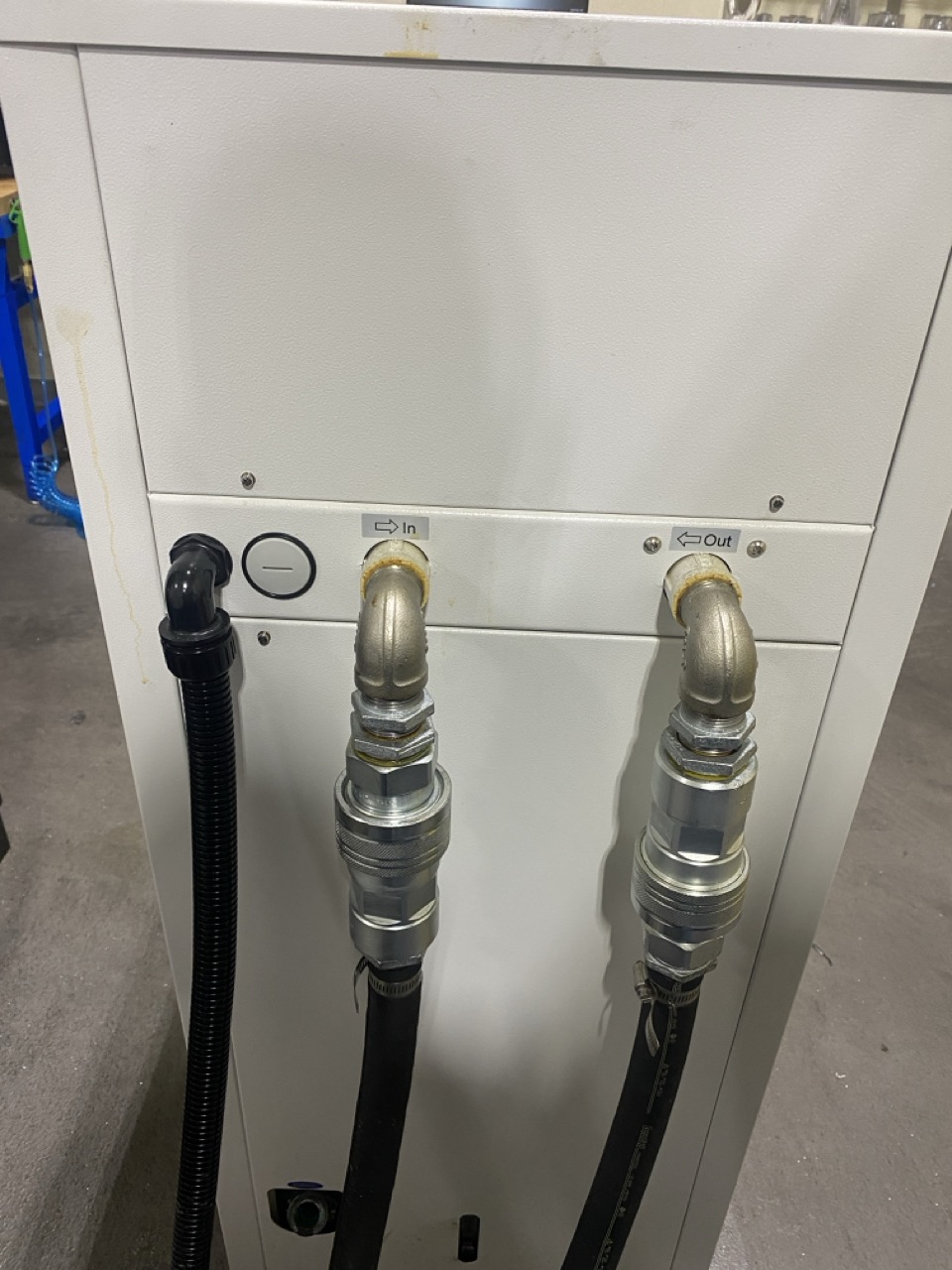

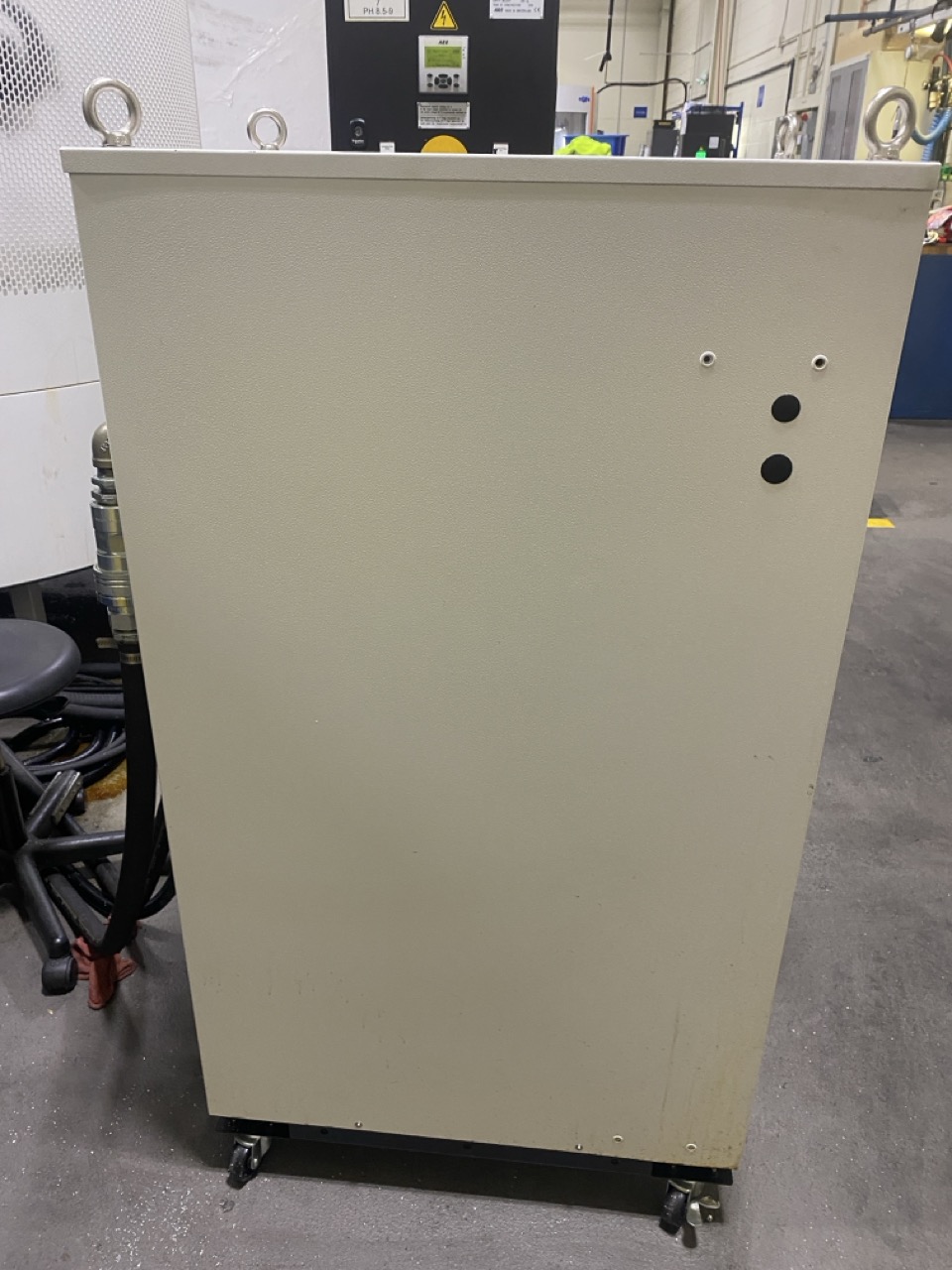

Spindle Chiller
Spindle Nose Wash Down
Quick Coupling Lines
Production Monitoring Software
Extended Accuracy 5-Axis
Wash Down System
Tool/Part Probe
Oil Skimmer
Oil Spray Unit
Mist Collector
Chip Auger Inside machine
Conversational Programming
APS Advanced Process System
ITC Intelligent Thermal Control 5-Axis
PFP Power Fail Protection
OSS Operator Support System

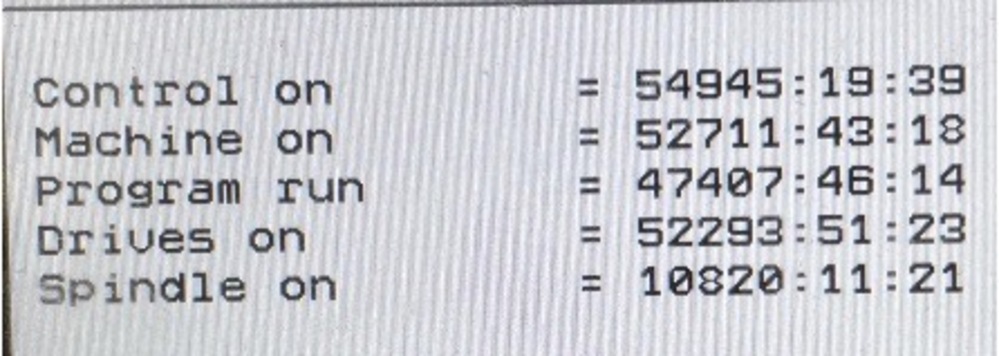

Spindle Hours – 10,820

Used 2018 GF Mikron MILL X 400U 5-Axis CNC Machining Center for Sale

Discover the capabilities of this used 2018 GF Mikron MILL X 400U 5-axis CNC machining center, an ideal choice for those seeking high-speed precision milling solutions. Buyers searching for a pre-owned machine will find this model equipped to handle a variety of applications, including mold, die, and aerospace manufacturing.

This machining center features impressive specifications, including a working spindle speed of 42,000 RPM, a 68-tool automatic tool changer, and a robust Heidenhain ITNC 530 HSCI CNC control system. The GF Mikron MILL X 400U stands out with rapid traverses of 100 m/min across the X, Y, and Z axes, and a swiveling axis range of +110/-110 degrees, making it a versatile addition to any workshop.

With dimensions that include a 19.68” X axis, 9.45” Y axis, and 14.17” Z axis, this machine accommodates a variety of workpieces. Operators will appreciate the integrated features such as the coolant through spindle, mist collector, and the advanced process system, enhancing operational efficiency without making performance guarantees.

This machine serves a wide range of industries, including aerospace and medical, providing the necessary precision for demanding applications. If you are evaluating used 5-axis CNC machining centers for sale, consider this option that combines advanced features with proven performance.
