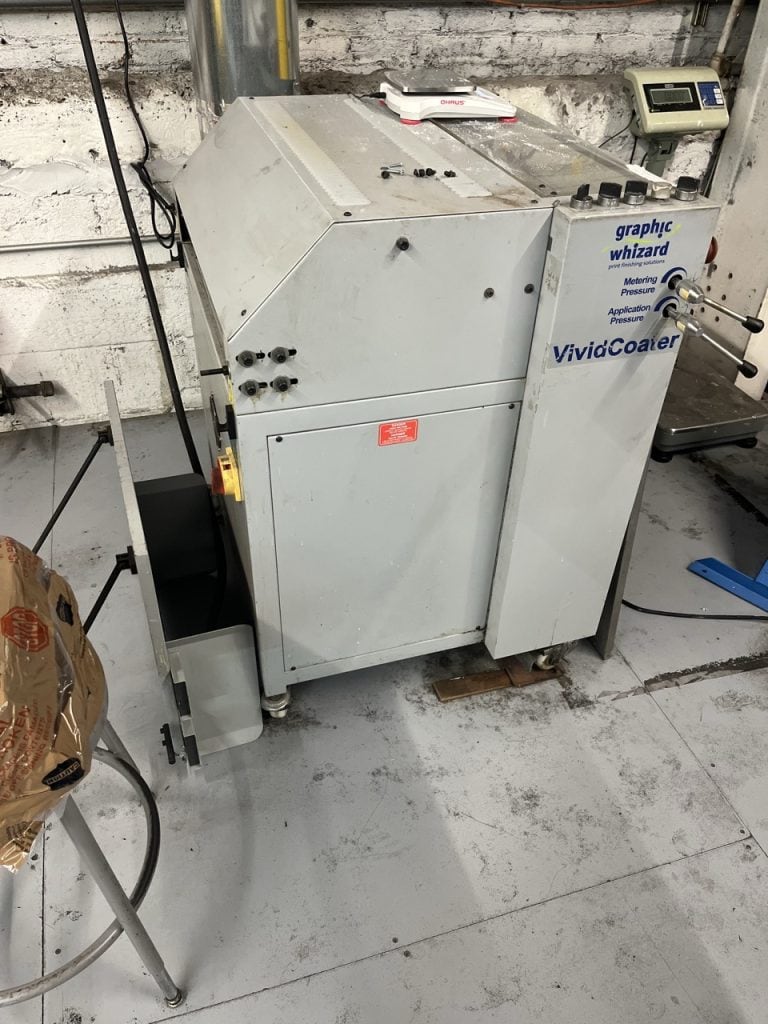

Graphic Wizard Vividcoater XDC 530 Micro UV Coater for Coating Paper or Paperboard, Includes Feeder
$6,900.00
Machine Type: Printing Equipment
Make: Graphic Wizard
Model: Vividcoater XDC 530
Year: 1900
Machine Location: New York
Stock #: 080799
Graphic Wizard Vividcoater XDC 530 Micro UV Coater for Coating Paper or Paperboard, includes feeder:
Coater:
– Coater has small footprint (3′ x 3′)
– Recycles UV fluid to eliminate waste
– IR lamp with adjustable intensity
– Coats stock from 128-450 gsm
– Max stock size: 20.75โฒโฒWide (53 cm)
* Length : Unlimited (standard tray holds up to 18โฒโฒ(457mm)
– Variable speed, up to 2700 sheets per hour
– Coating capacity: 9 lb (4.1 k) buckets (5000+ sheets)
– Amperage 30A breaker required
Voltage 208-240V, 50/60Hz, 1 phase
– Polished chrome metering and bottom rollers
– Stainless steel doctor/wiper blade
– Vacuum cooled UV lamp
– Forward/Reverse controls for easy clean up
– Easy set handles for pressure control
– Coater Dimensions: 29.25โฒโฒ x 35.25โฒโฒ x 34.25โฒโฒ (74x87x87 cm)
– Coater Weight: 420 lbs ( 191 kg)
– Coater Height when the machine is on casters is 39.5โฒโฒ
All specifications are assumed to be correct but must be confirmed by the purchasing entity.
