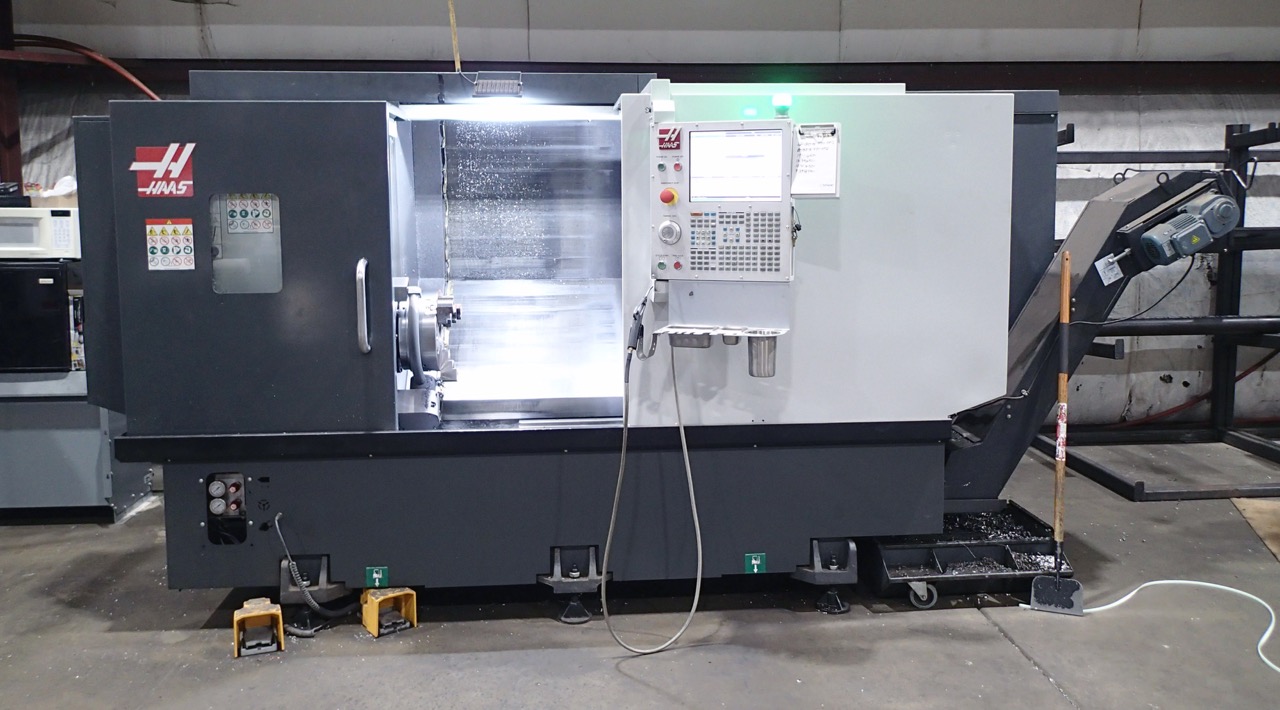

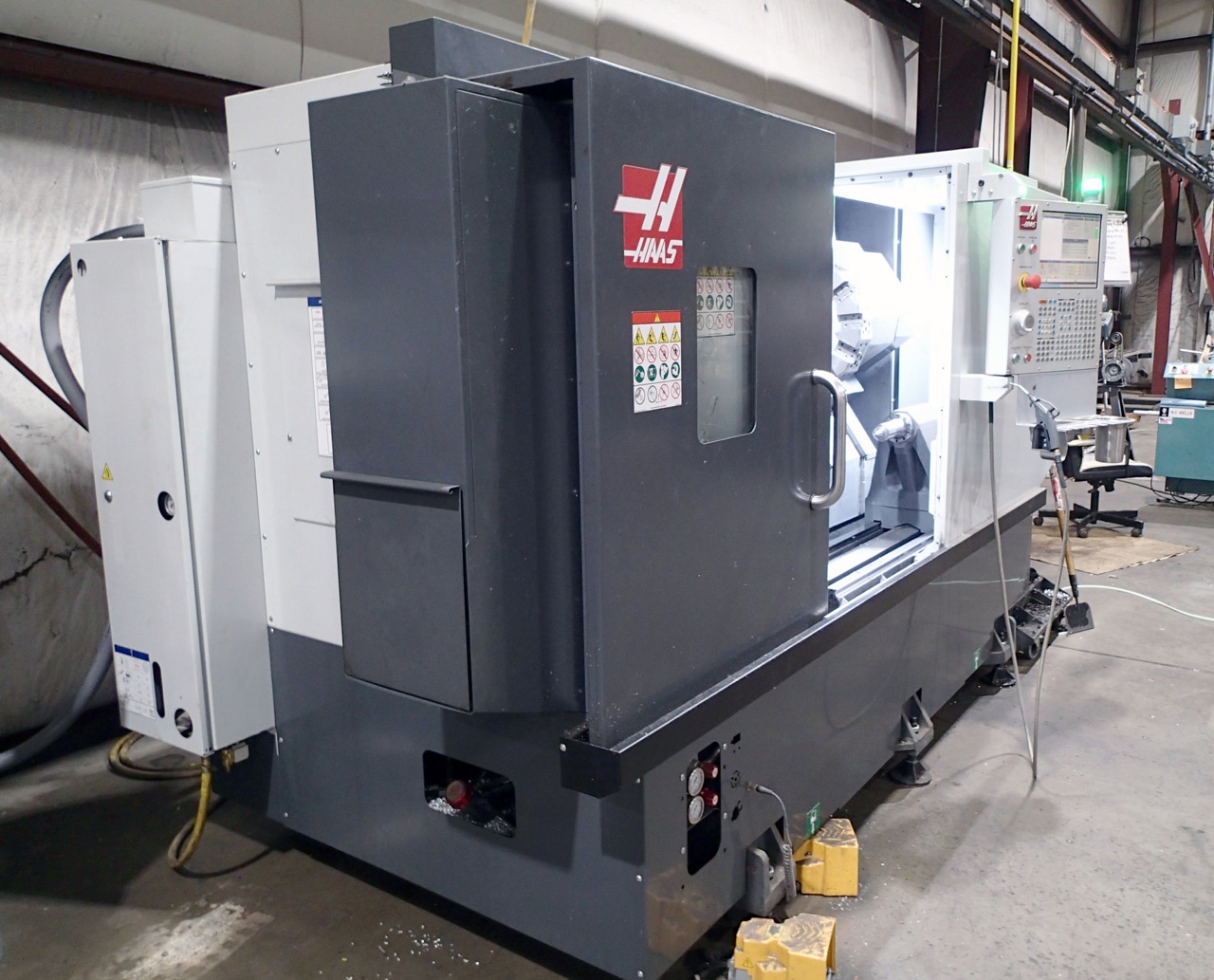

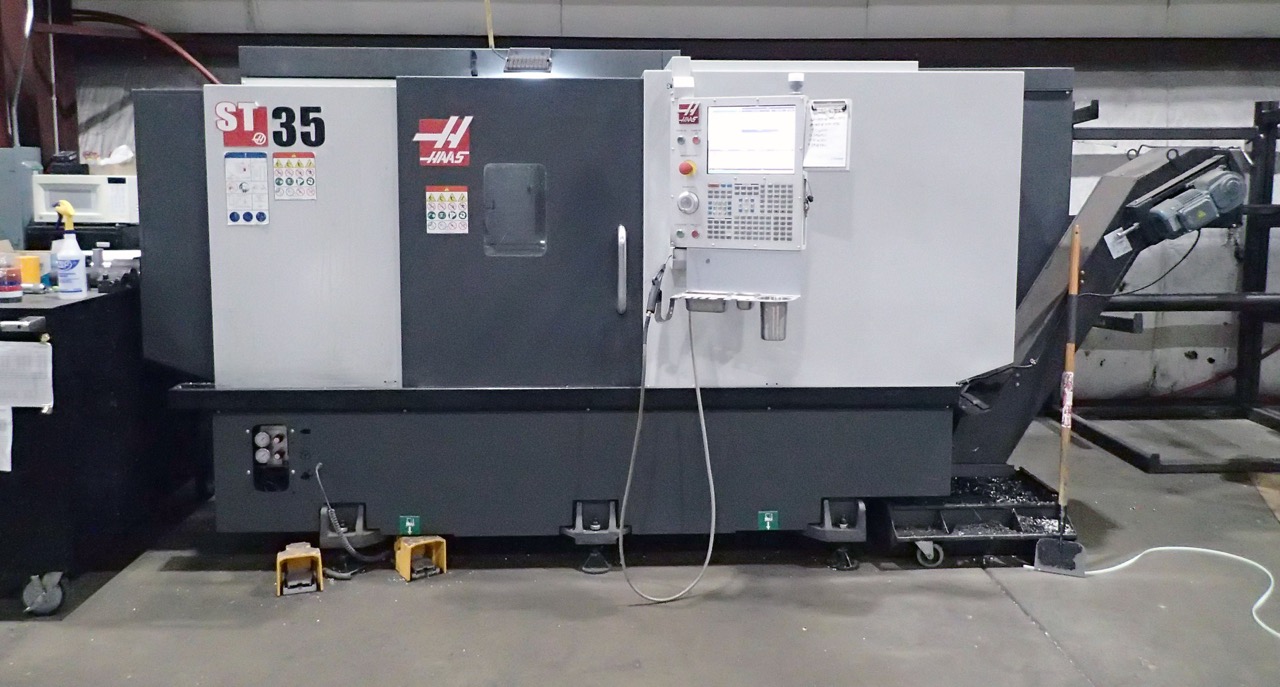

Haas ST-35 CNC Lathe, 2022 – Programmable Tailstock, Presetter, 12″ Chuck, Conveyor

Chuck Size: 12.0″ (305 mm)
Max Part Swing: 21.0″ (533 mm)
Max Cutting Diameter (with BOT turret) 15.00 in 381 mm
Max Cutting Length: 32.5″ (826 mm)
Bar Capacity 4.00″ (102 mm)
Between Centers: 32.5″ (826 mm)

X-Axis: 9.4″ (239 mm)
Z-Axis: 32.5″ (826 mm)
Rapids on X/Z: 945 ipm (24.0 m/min)
Max Thrust X: 4100 lbf
Max Thrust Z: 5100 lbf

Spindle Nose: A2-8
Max Rating: 40.0 hp
Max Speed: 3200 rpm
Max Torque: 425.0 ft-lbf @ 325 rpm
Spindle Bore Diameter: 4.62″
Max Rating: 40.0 hp 29.8 kW

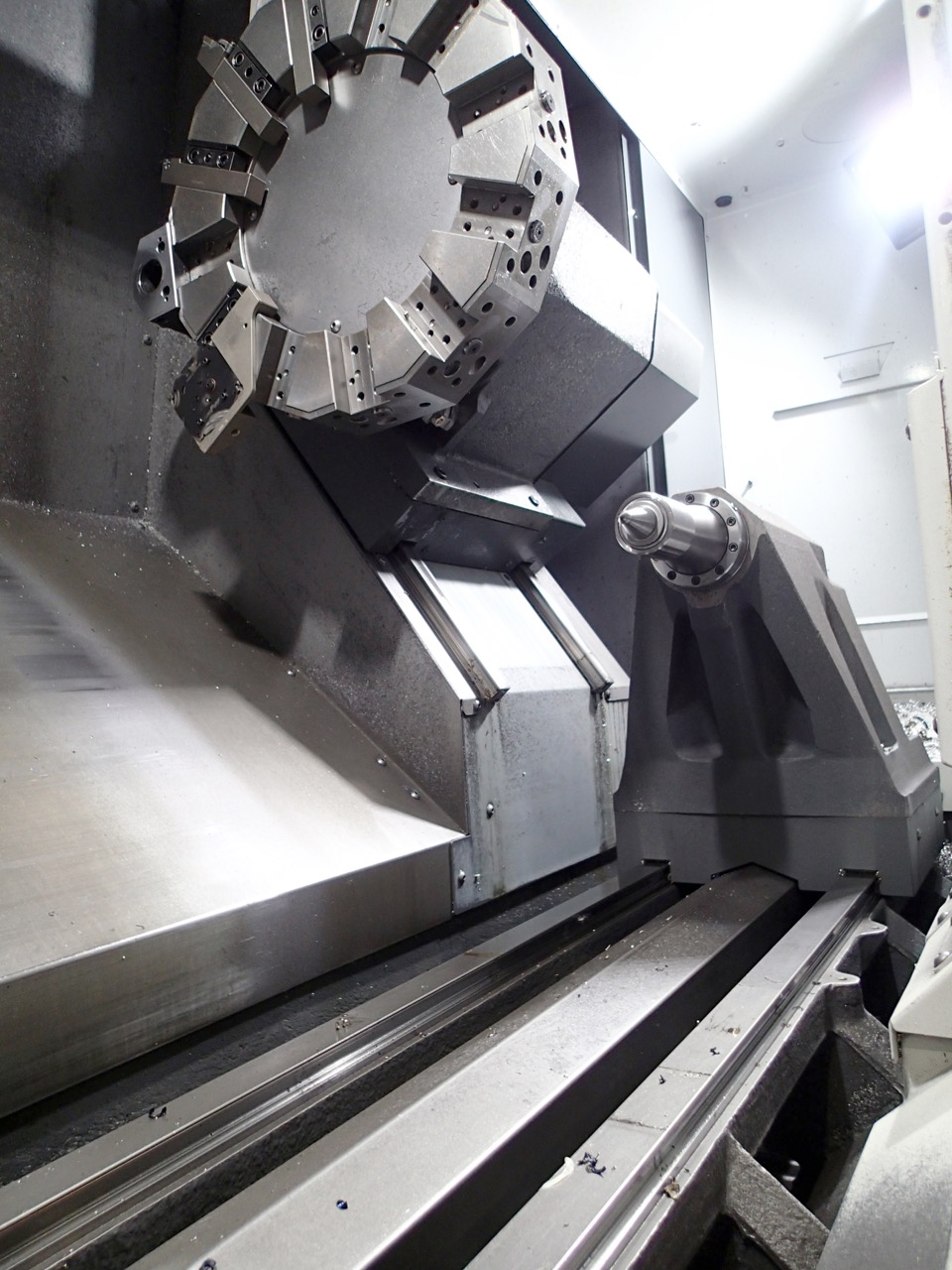

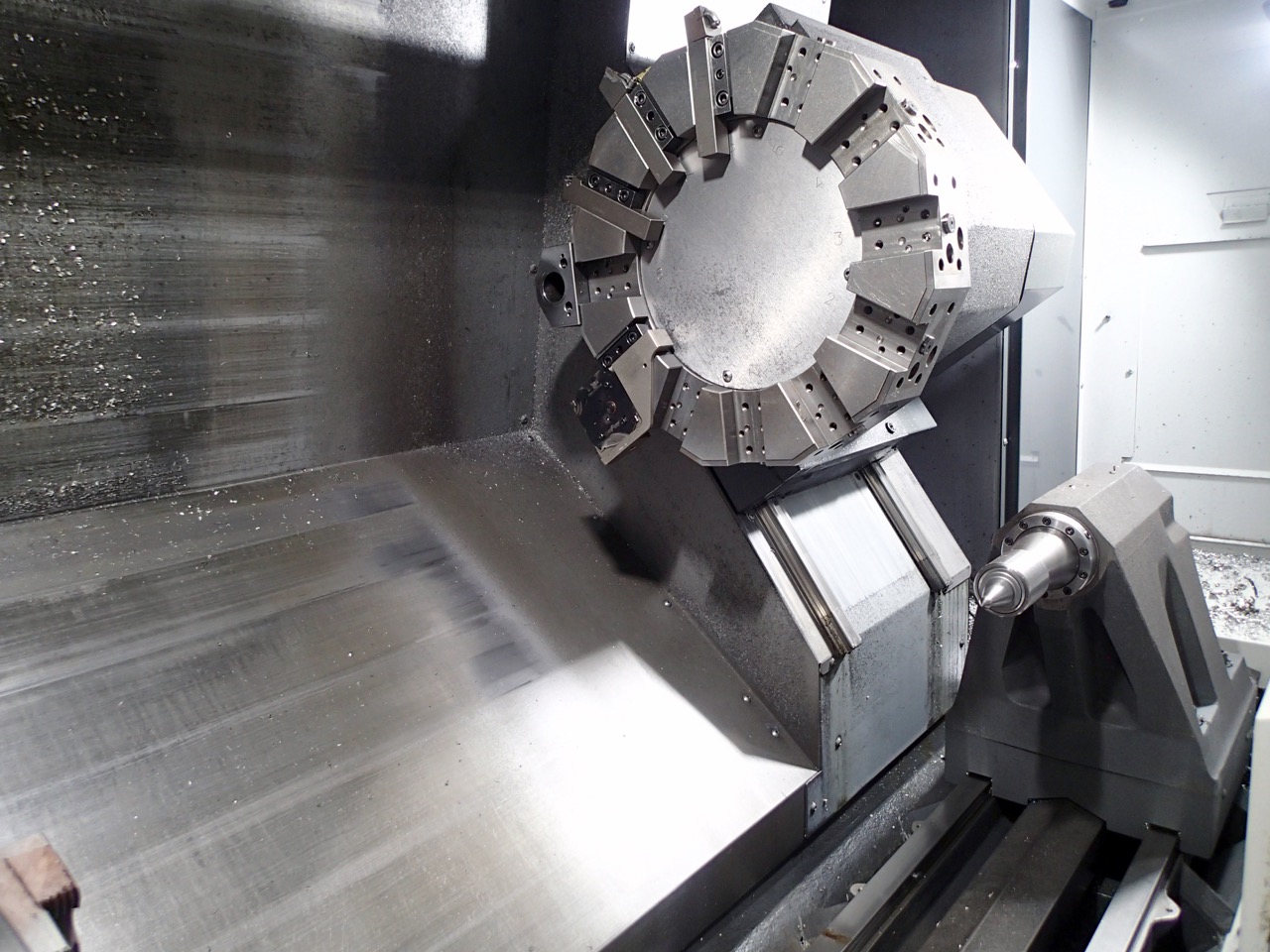

Tool Turret: 12 Station
Boring Bar Rear Clearance: 4.00″ (102.0 mm)

Approx. Dimensions: 171″ x 90″ x 92″ (435 cm x 229 cm x 234 cm)
Machine Weight: 14,300 lb (6487 kg)

EQUIPPED WITH:

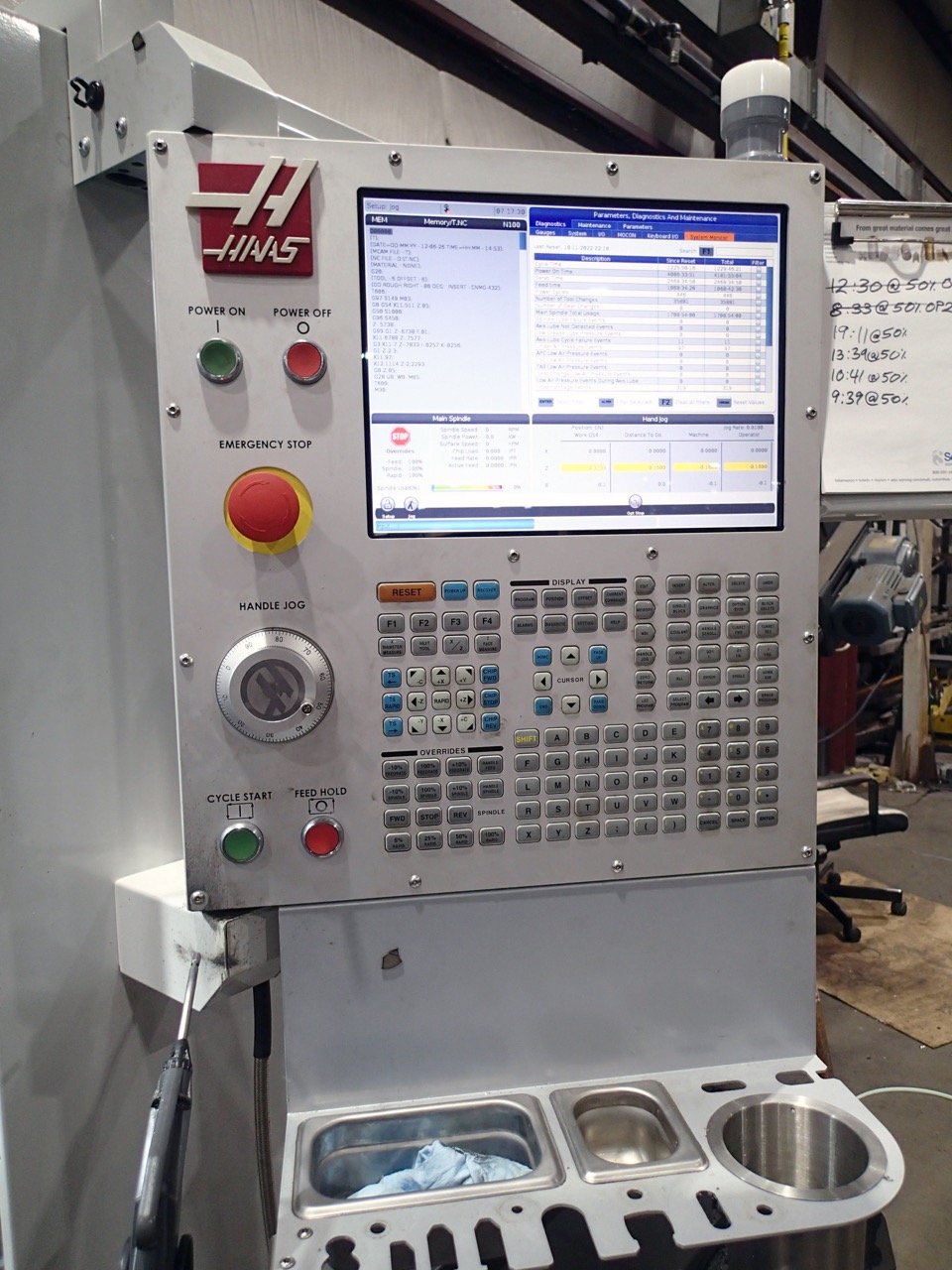

Haas CNC Control with Touch Screen
Ethernet Interface & Wi-Fi Connection

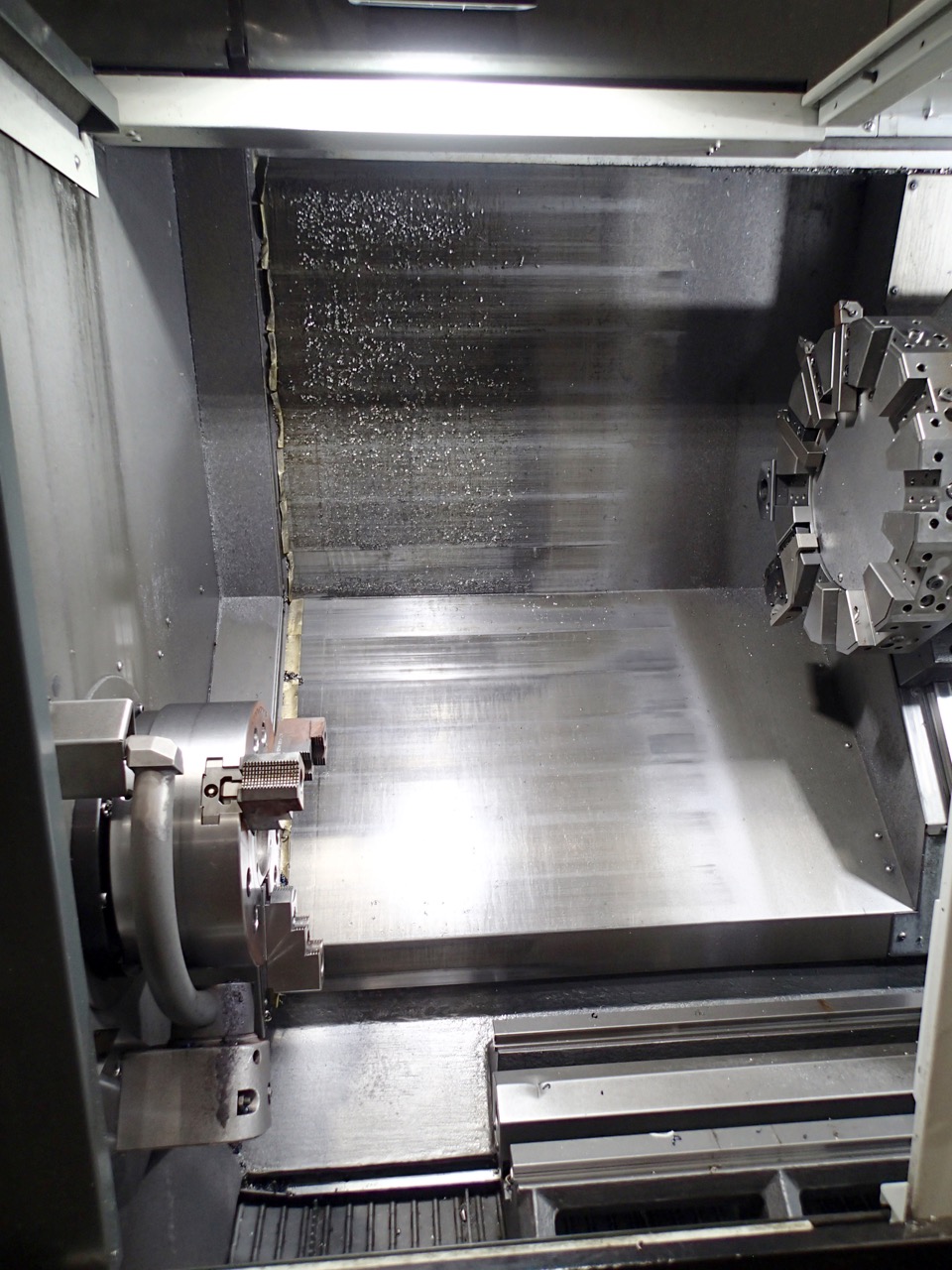

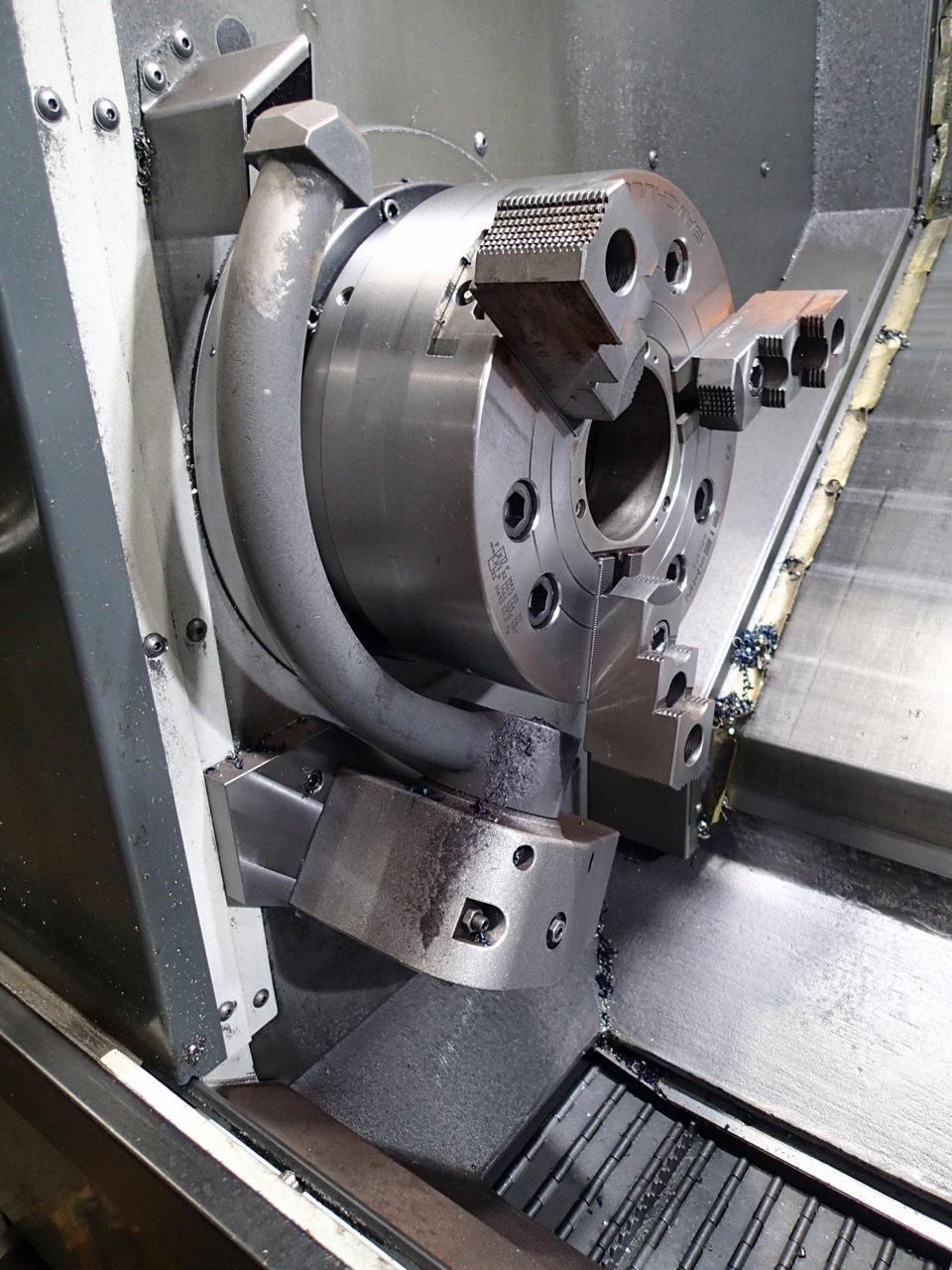

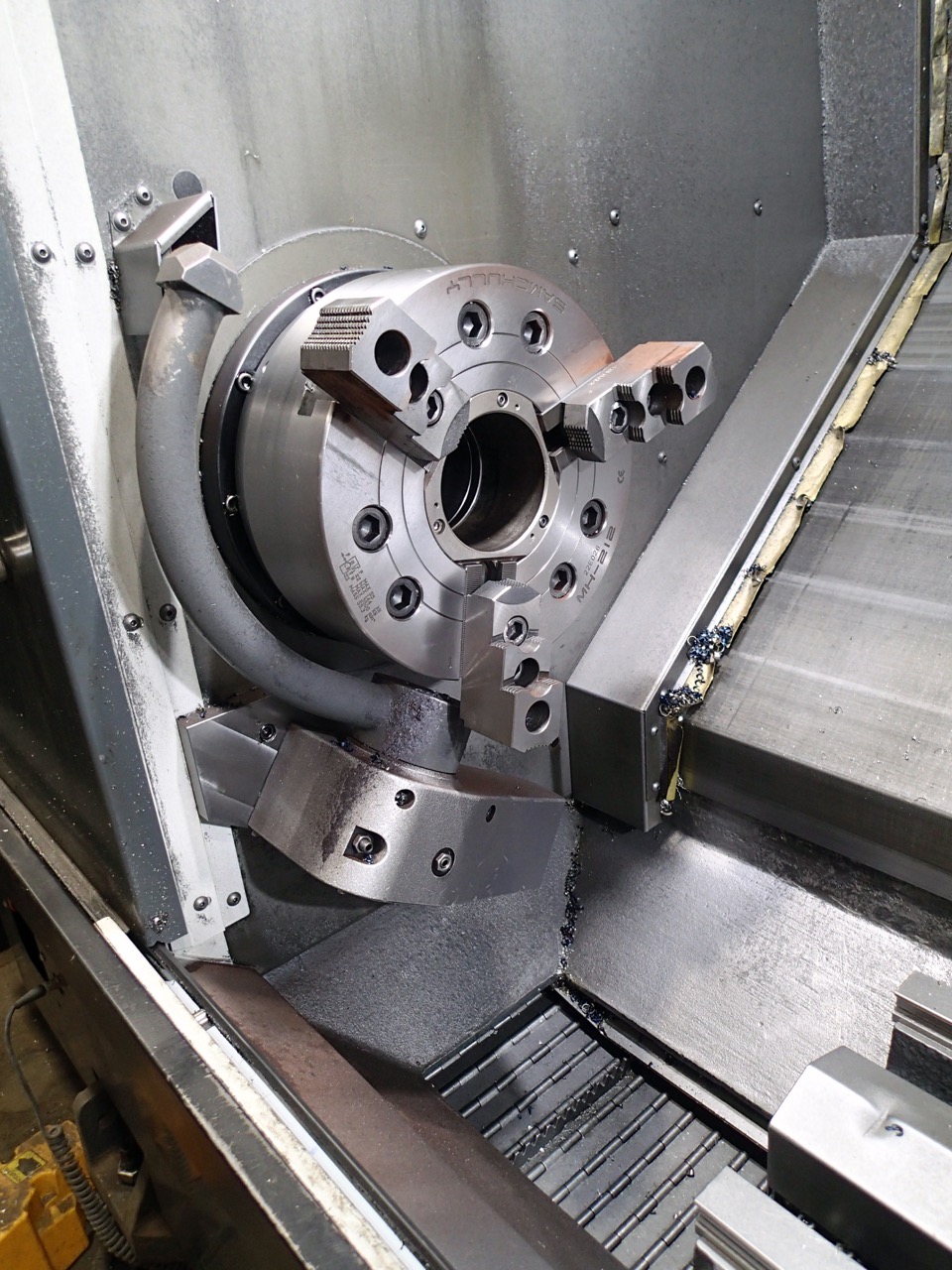

12″ Hydraulic Chuck, A2-8
Spindle Orientation
Rigid Tapping

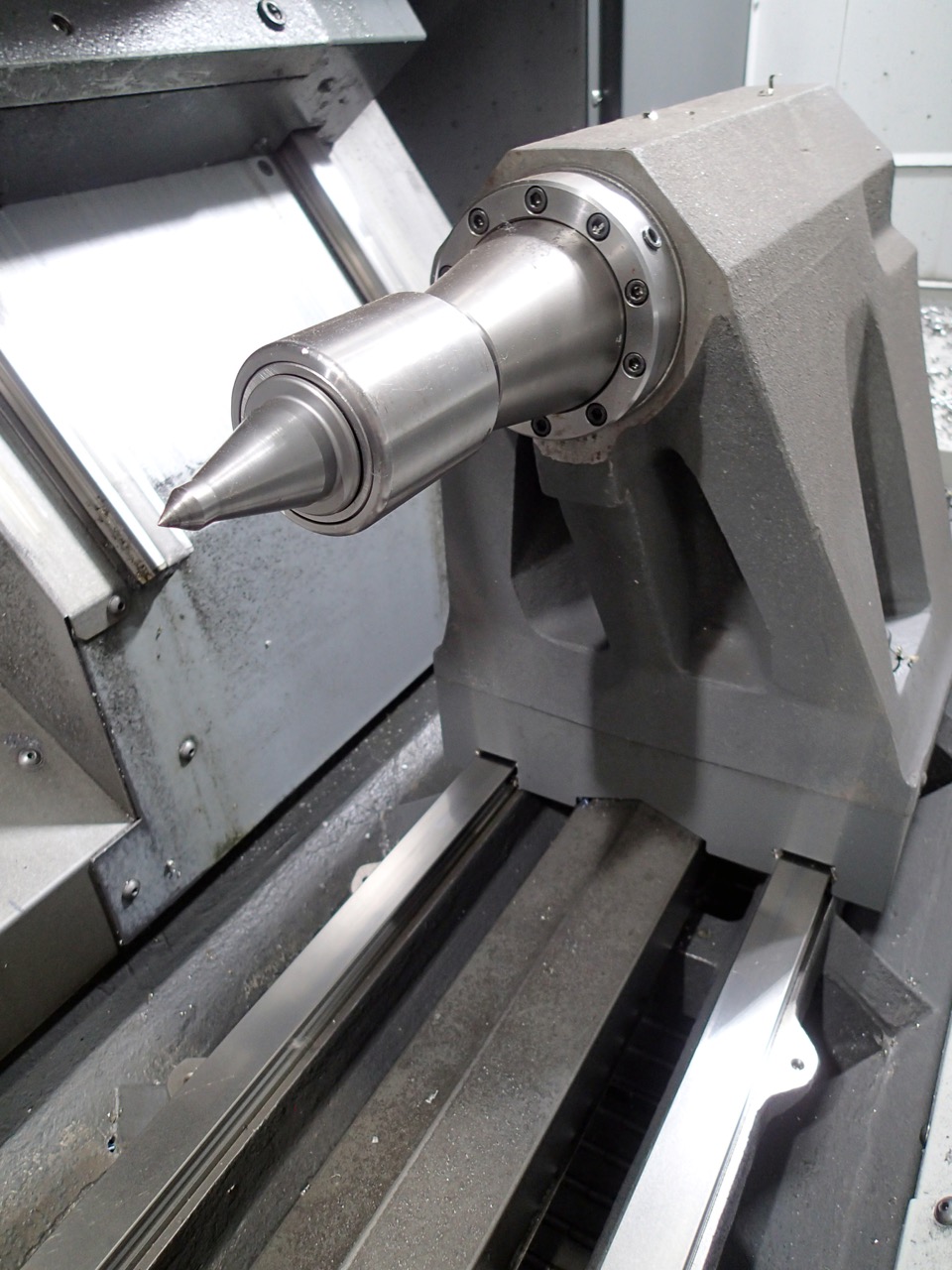

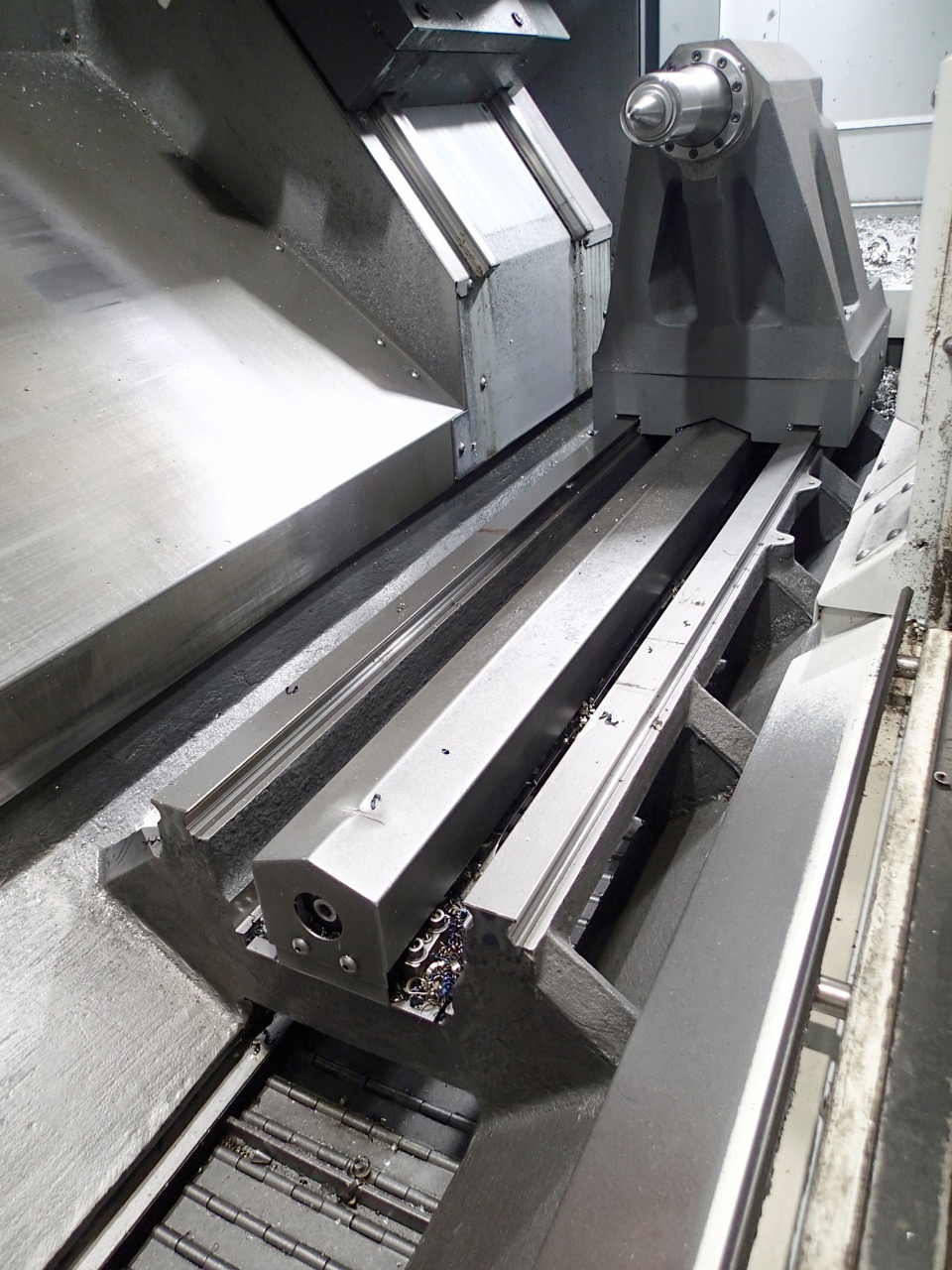

Programmable Hydraulic Tailstock
Automatic Tool Presetter

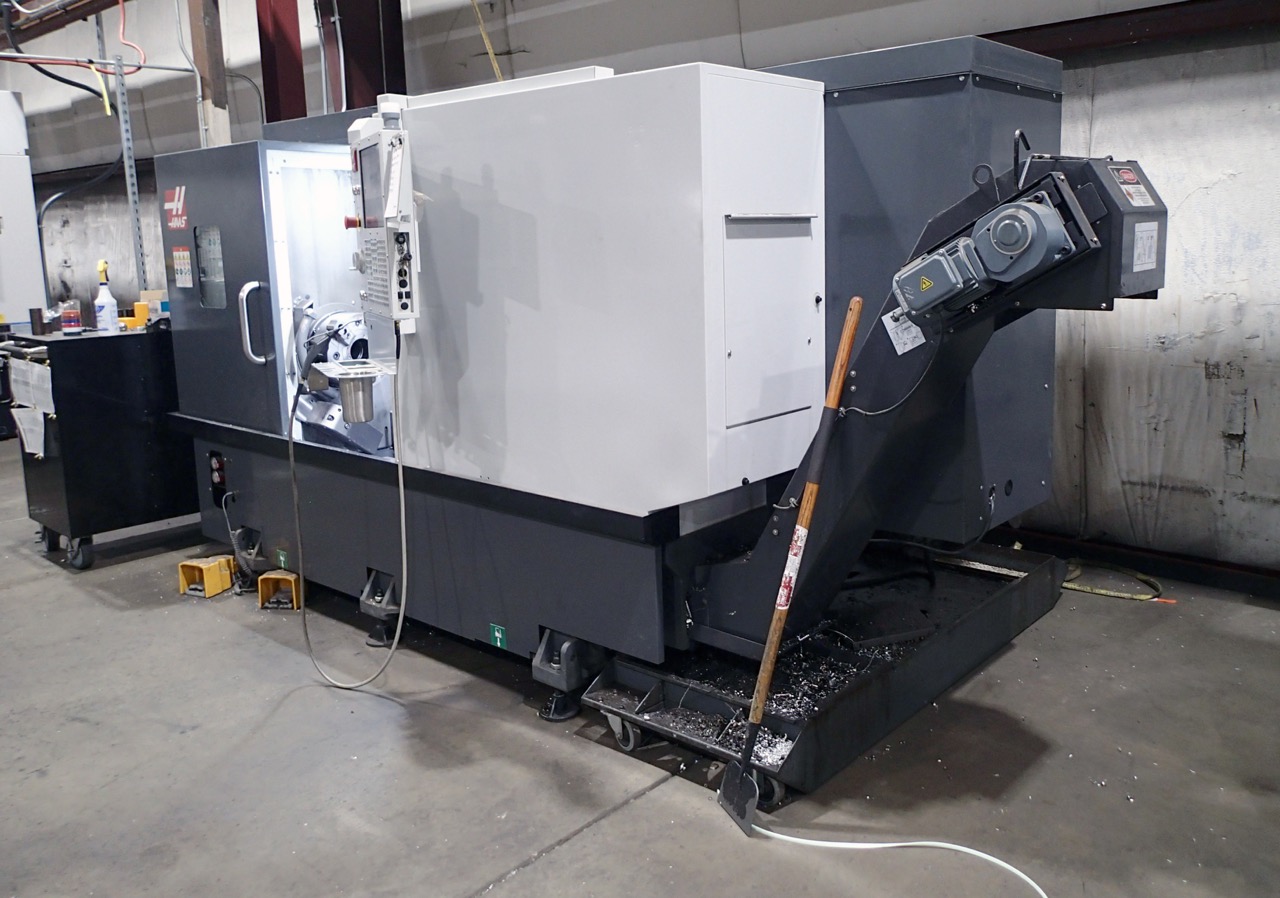

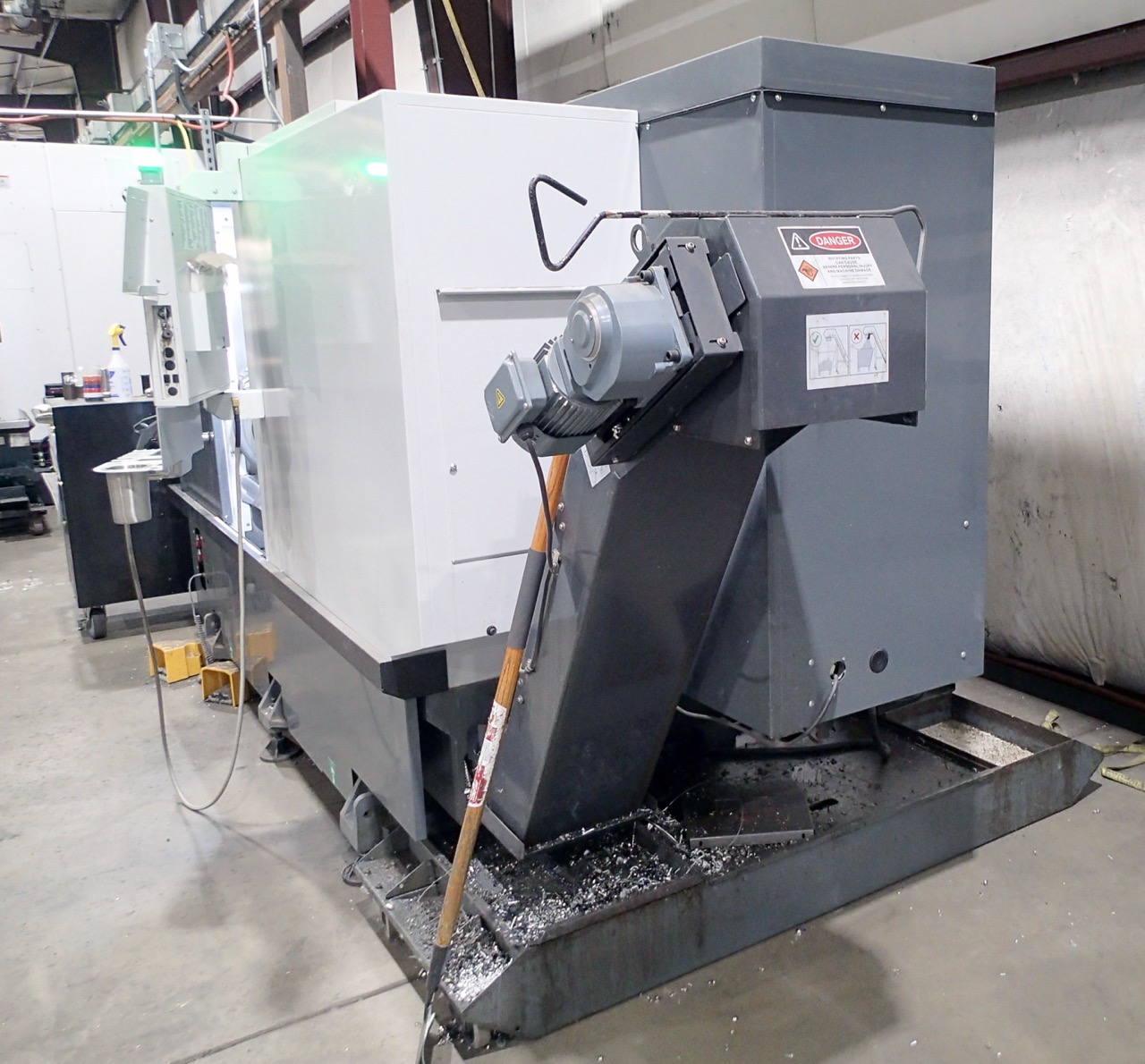

Chip Conveyor- Belt-Type
Chip Tray Filter Kit

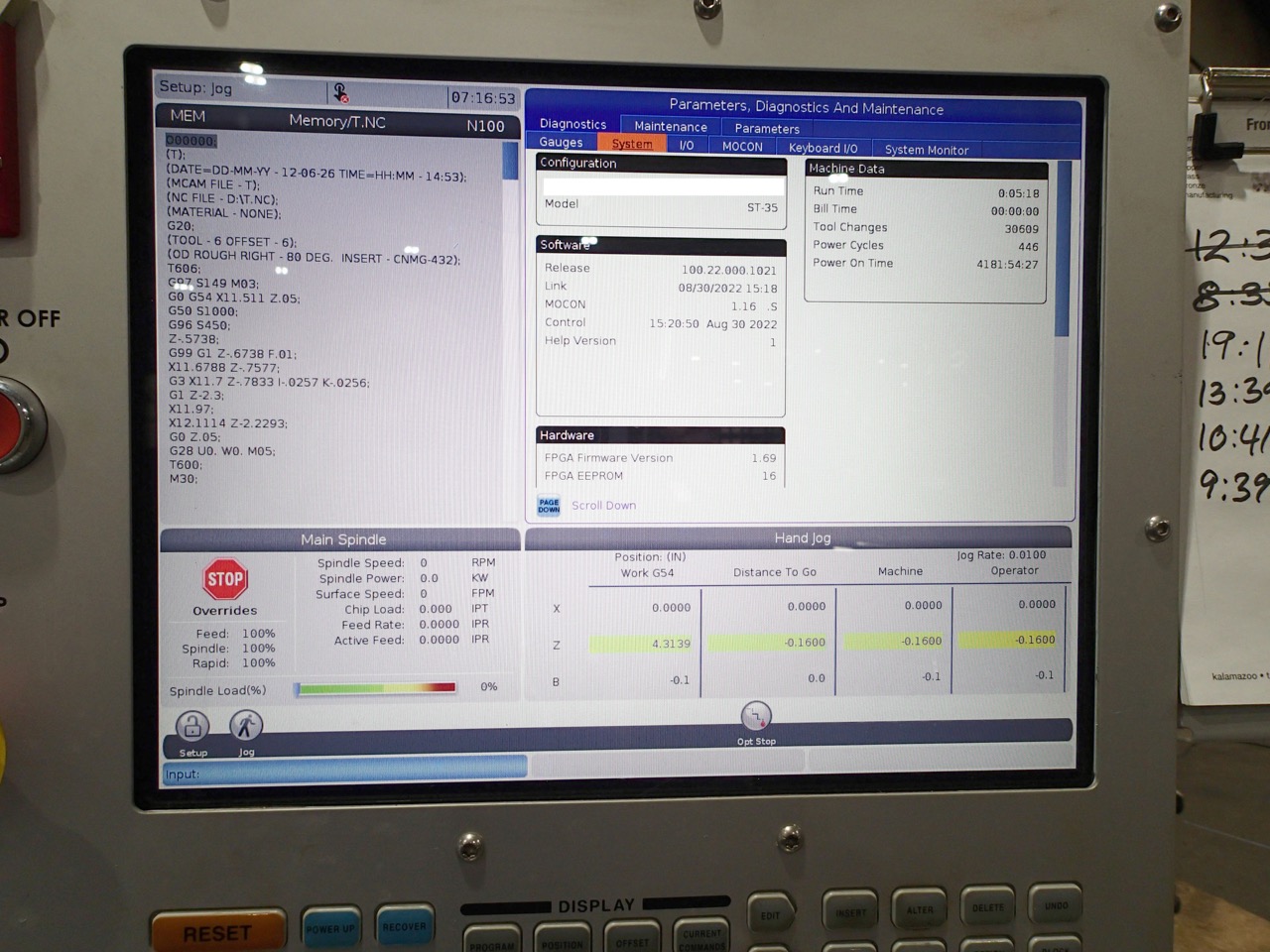

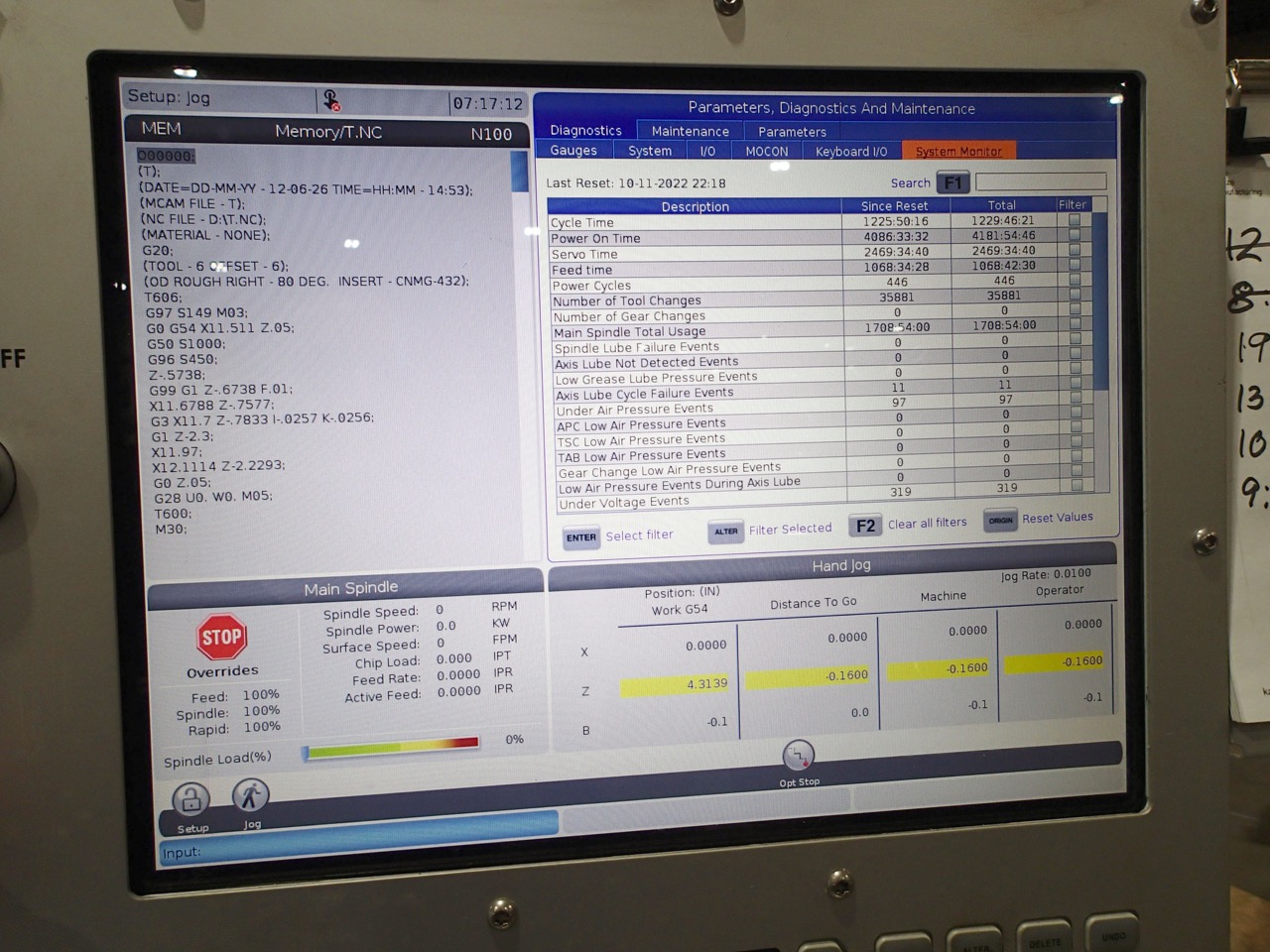

Approx Power On Time: 4,086 Hours
Approx Feed Time: 1,068 Hours
Approx Main Spindle Total Usage: 1,709 Hours
