Haas ST-20 CNC Lathe, 2023 – Bar Feeder, Tool Presetter, Parts Catcher, Tailstock

Chuck Size: 8.3″
Max Part Swing: 21″
Max Cutting Diameter: 13″
Max Cutting Length: 22.5″
Bar Cap: 2.5″
X Axis Travel: 8.4″
Z Axis Travel: 22.5″
Spindle Nose: A2-6
Spindle Motor: 20 HP
Spindle Speed: 4,000 RPM
Spindle Bore: 3.5″
Turret: 12 Stations

Equipped With:

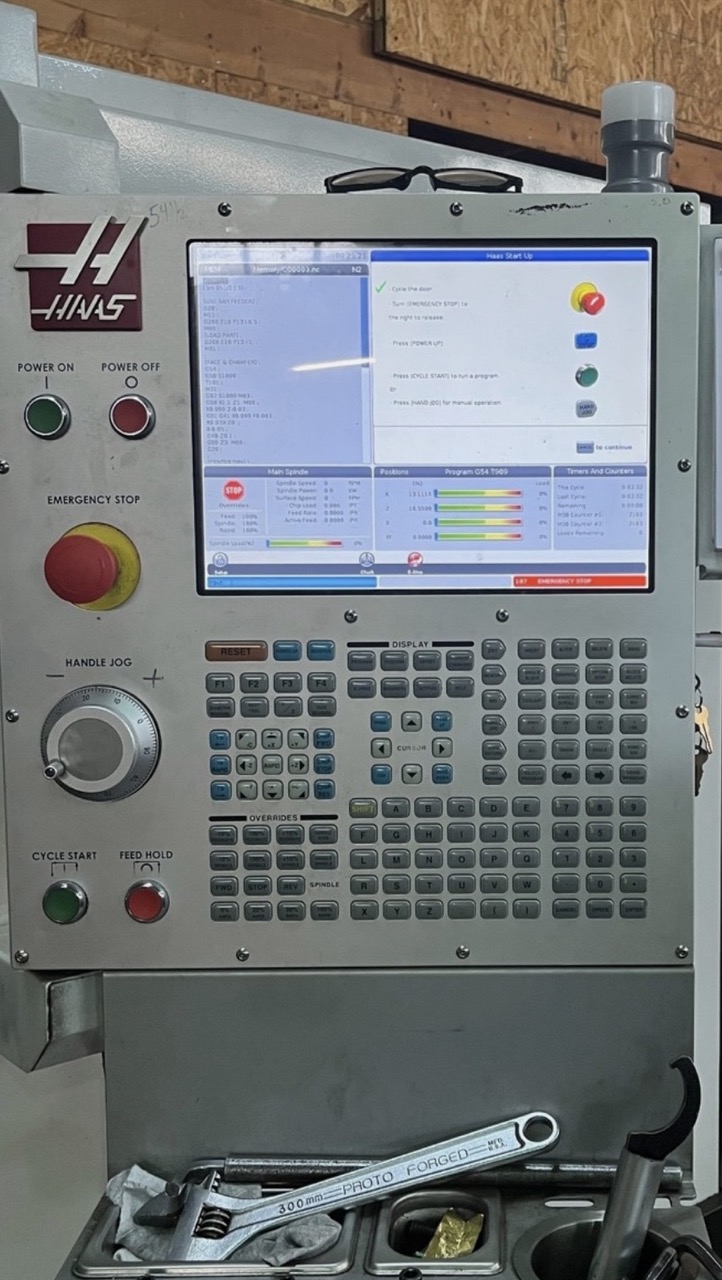

Haas CNC Control
Automatic Tool Presetter
Belt Type Chip Conveyor
Parts Catcher
Programmable Hydraulic Tailstock
Chip Tray Filter Kit

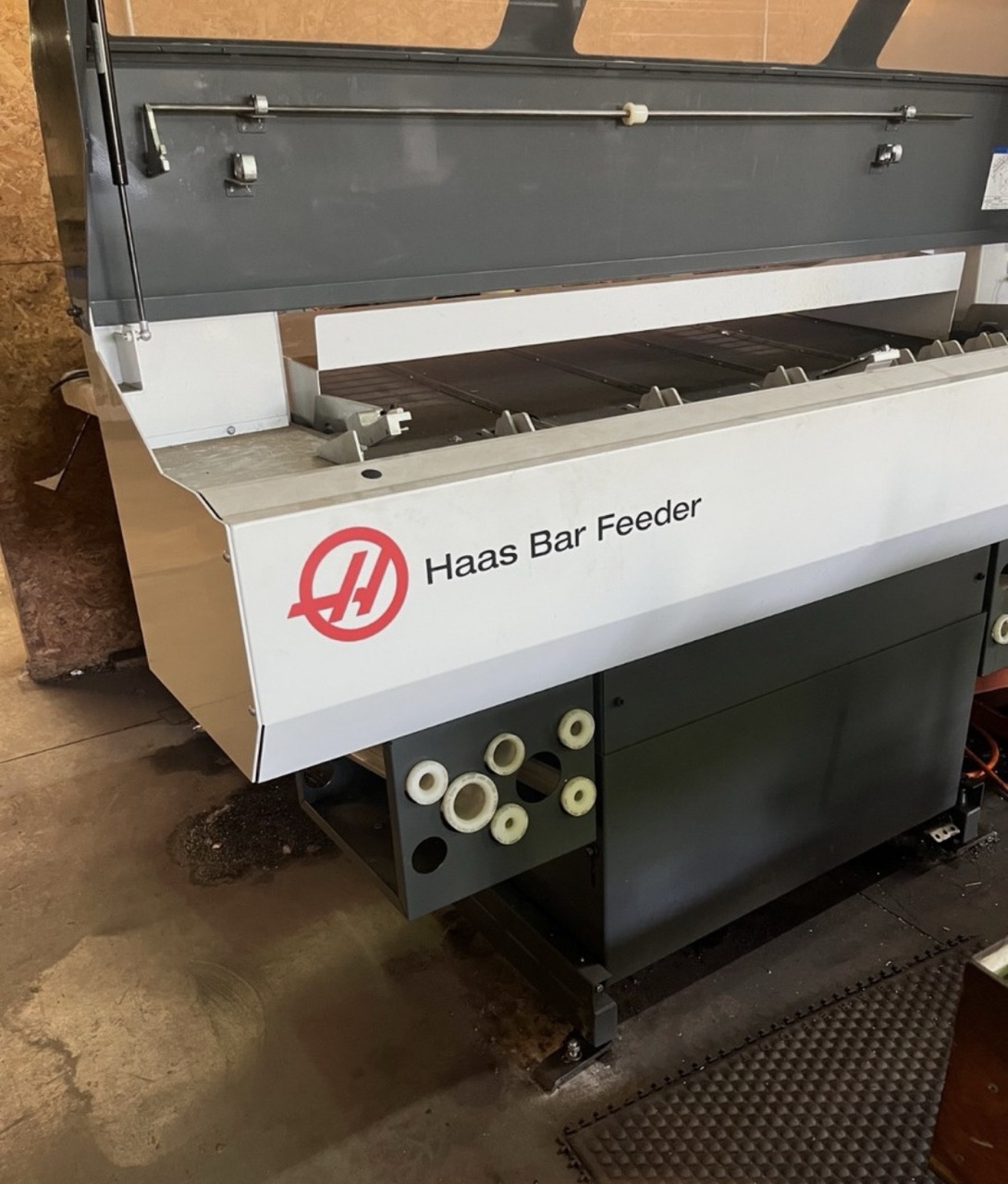

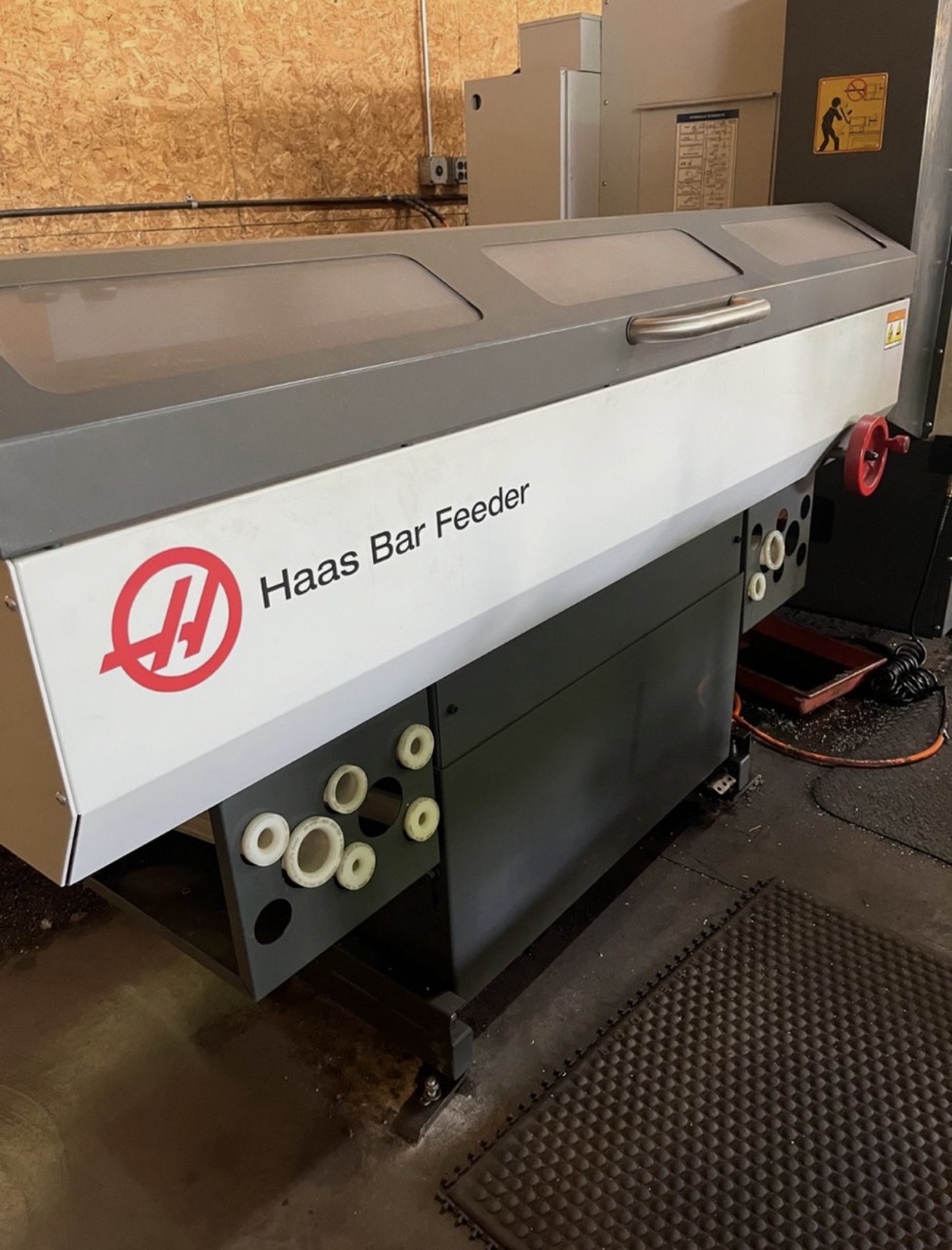

Haas Bar Feeder V2
Standard Program Memory, 1 GB
4000-rpm Spindle
Visual Part Programming System
User-Definable Macros
55-Gallon Coolant Tank
12-Station Bolt-On Tool Turret
Bolt-On Toolholder Kit, 1″
8.3″ Hydraulic Chuck, A2-6
Early Power-Failure Detection Module
Ethernet Interface
HaasConnect: Remote Monitoring
HaasDrop
Media Display M-Code; M130
Rigid Tapping
Safe Run
Power Surge Protection
Control Touch Screen
WiFi Connection for the Haas Control
Inch Measurement Units
LOW-VOLT
