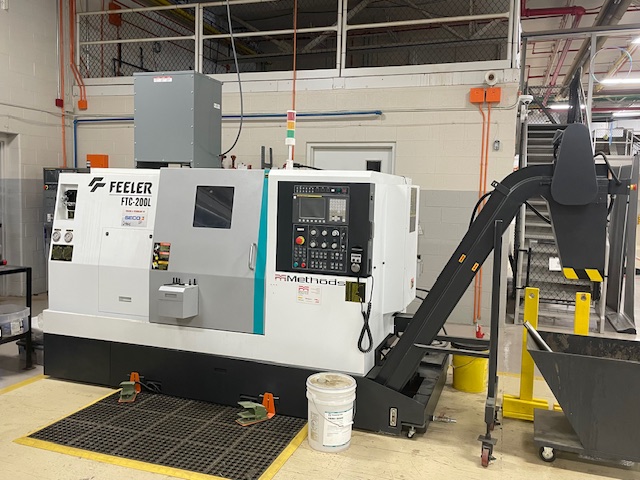

Feeler FTC-200L CNC Lathe, 2017 – Fanuc, Tailstock, 12 Station Turret, Parts Catcher, Chip Conveyor

Chuck Size: 8″
Chuck Type: 3-Jaw Power Chuck
Bar Capacity: 2.6″
Swing Over Bed: 23.6″
Swing Over Saddle: 15.7″
Maximum Turning Diameter: 13.8″
Maximum Turning Length: 26″
Maximum Workpiece Weight Without Tailstock: 53 Lbs.
Slant Angle: 30°
Turret Capacity: 12 Stations
Standard O.D. Tool Size: 1″
Maximum I.D. Tool Size: 1.25″
Turret Indexing Time: 0.3 Sec.
Tailstock: Manual Tailstock With Dead Center
X-Axis Travel: 6.9″ + 1″
Z-Axis Travel: 27.6″
Spindle Speed: 4,500 RPM
Spindle Motor HP: 25 HP
Spindle Nose: A2-6
Coolant Tank Capacity: 29 Gal.
Coolant Pump Pressure: 100 PSI
Power Capacity: 25 KVA
Floor Space With Chip Conveyor: 152″ X 62″
Maximum Machine Height: 68″
Weight: 8,800 Lbs.

Approx Power On Time: 886 Hours
Approx Cutting Time: 219 Hours

EQUIPPED WITH:

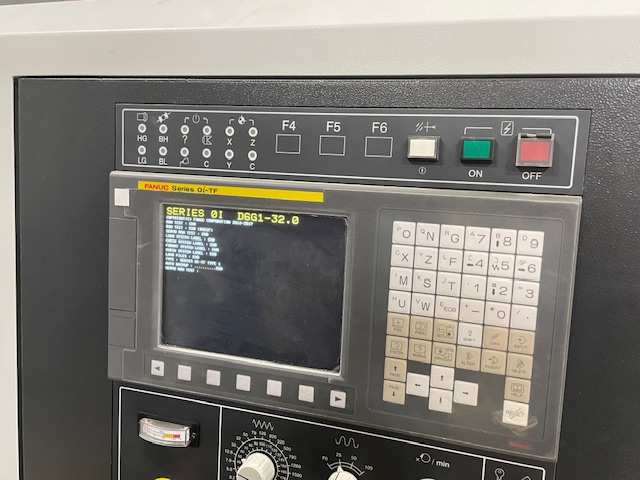

Fanuc 0i-TF Control

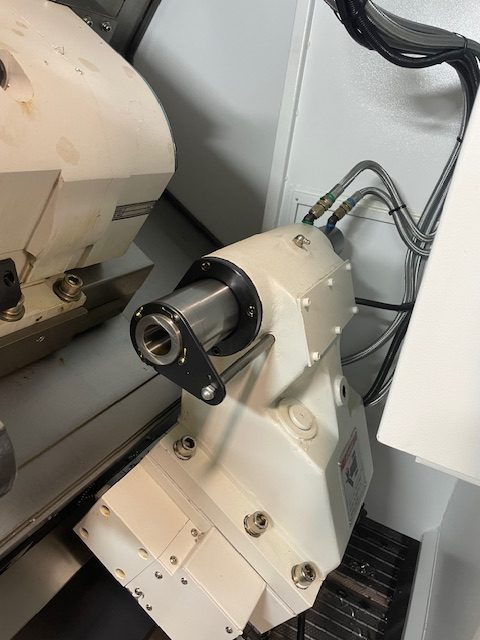

Manual Tailstock With Dead Center
Hydraulic Quill Movement

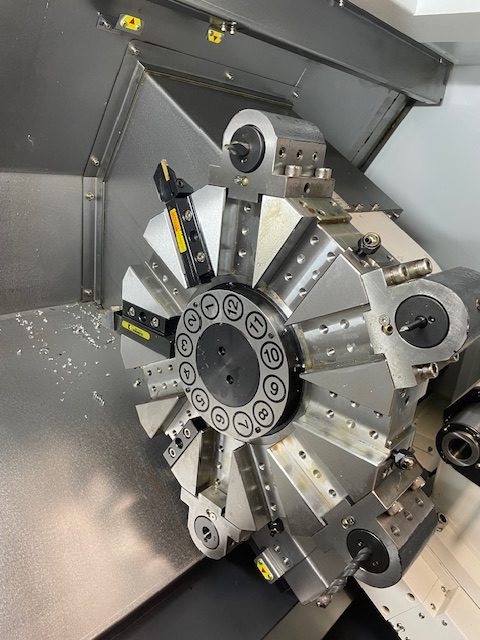

12 Station Turret

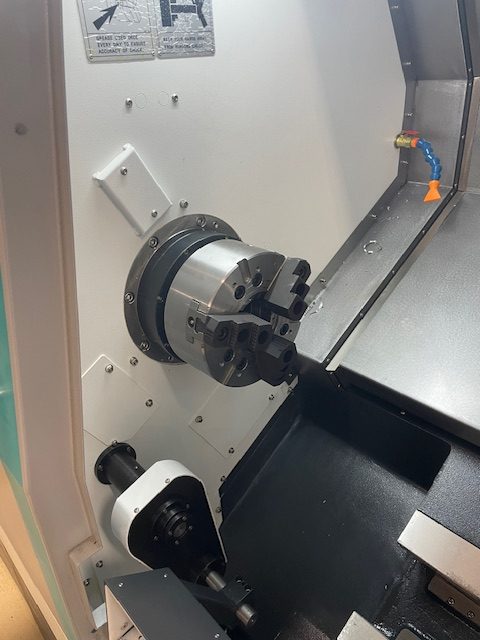

8″ 3-Jaw Power Chuck

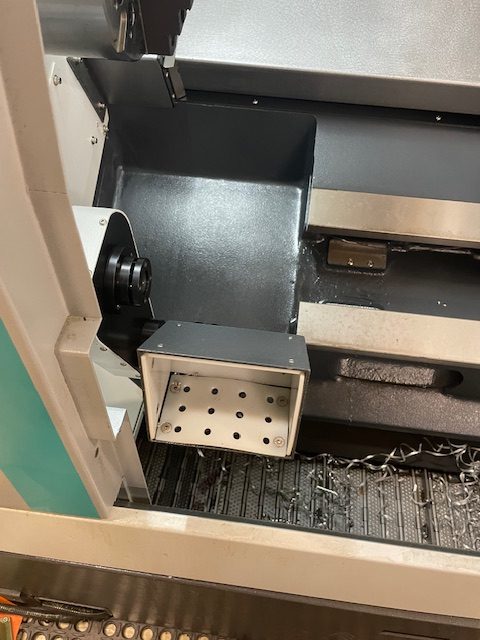

Hydraulic Parts Catcher

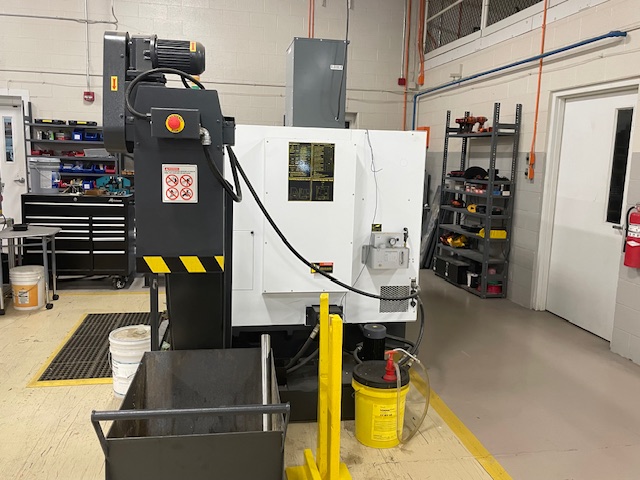

Chip Conveyor
Bar Feeder Interface
Tool Holder Package
Hard Jaw Set
Soft Jaw Sets
Flood Coolant Over Main Spindle
Automatic Lubrication System
Enclosed Splash Guard
Safety Interlock Package
