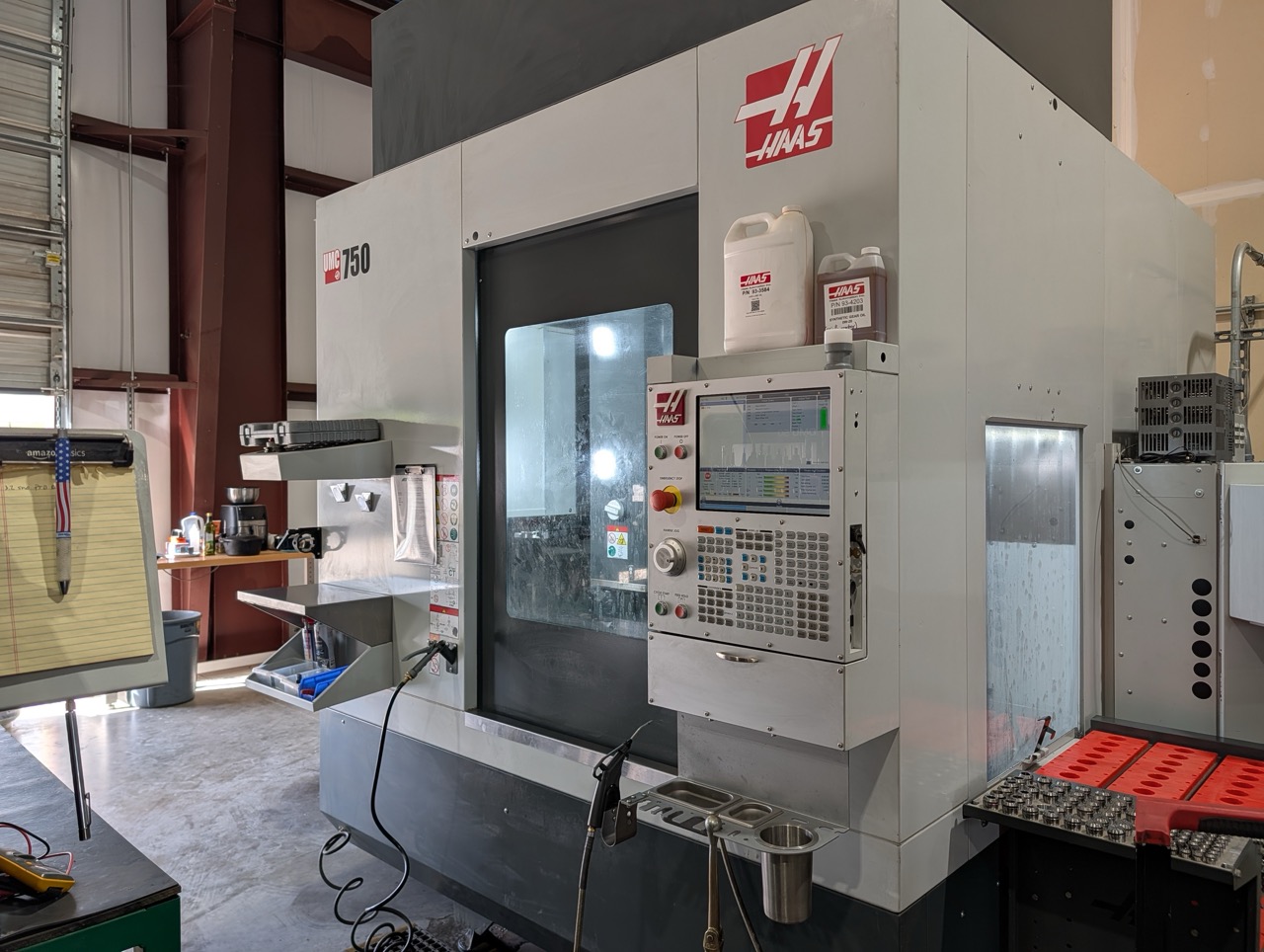

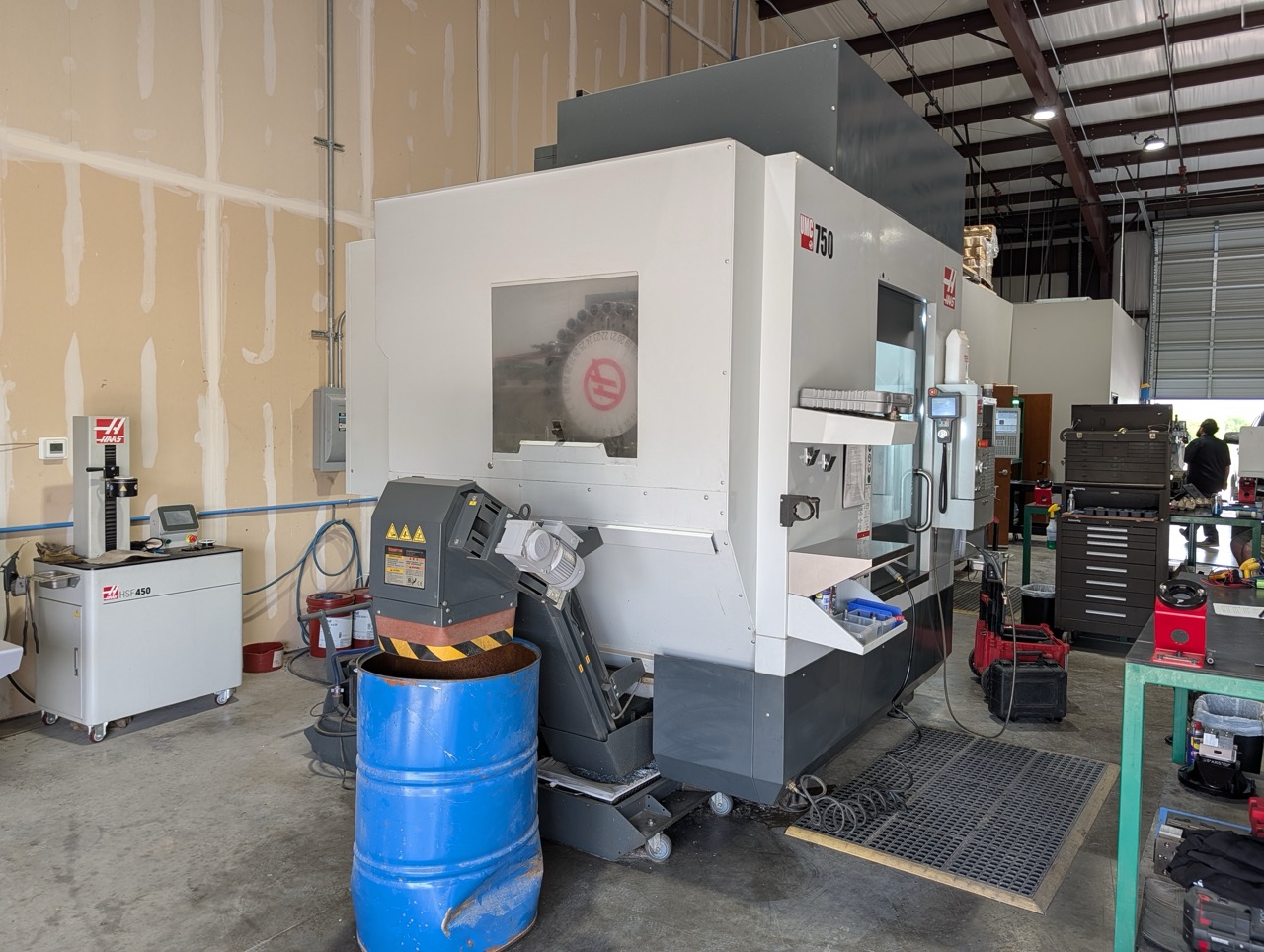

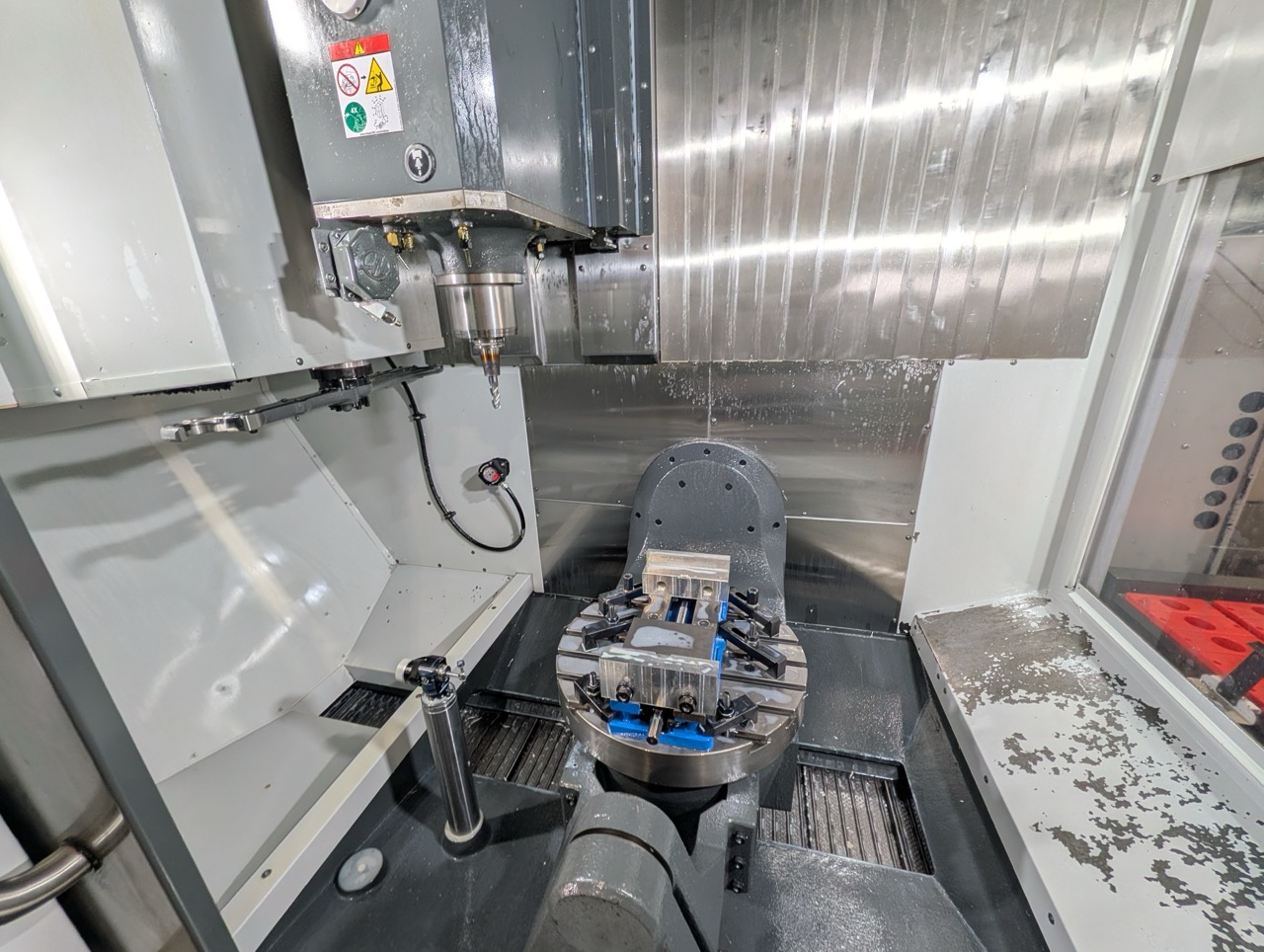

Haas UMC-750 5-Axis UMC, 2023 – 15,000 RPM Spindle, Chip Conveyor, Rigid Tapping
$170,816.88
This specific product is no longer available, however we may have other similar or identical products in stock. Please utilize our search function at the top of the page to check and confirm, or fill out the form below:
Travels
X-Axis: 30″
Y-Axis: 20″
Z-Axis: 20″
Spindle Nose to Platter: ~4″ to 24″

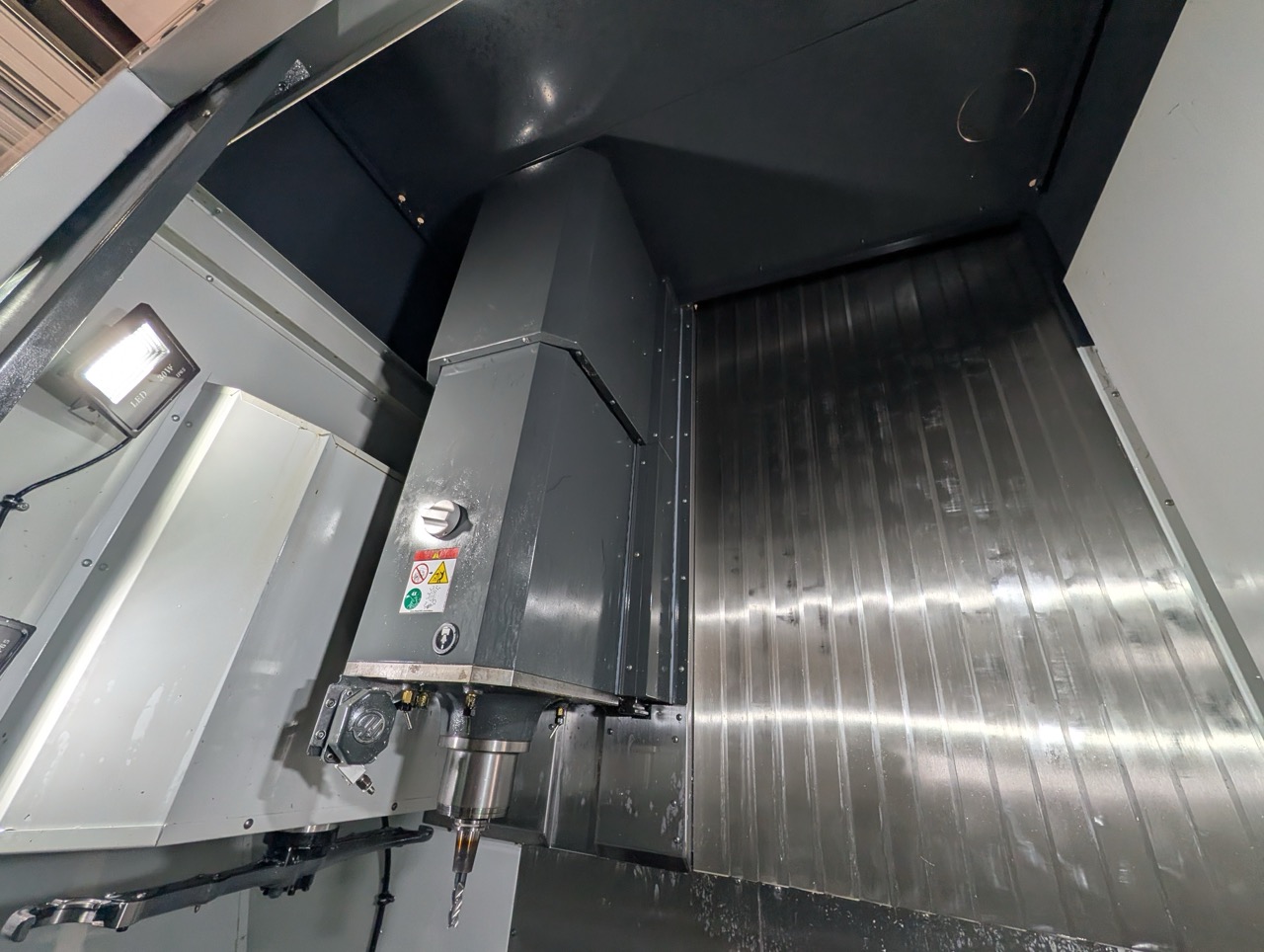

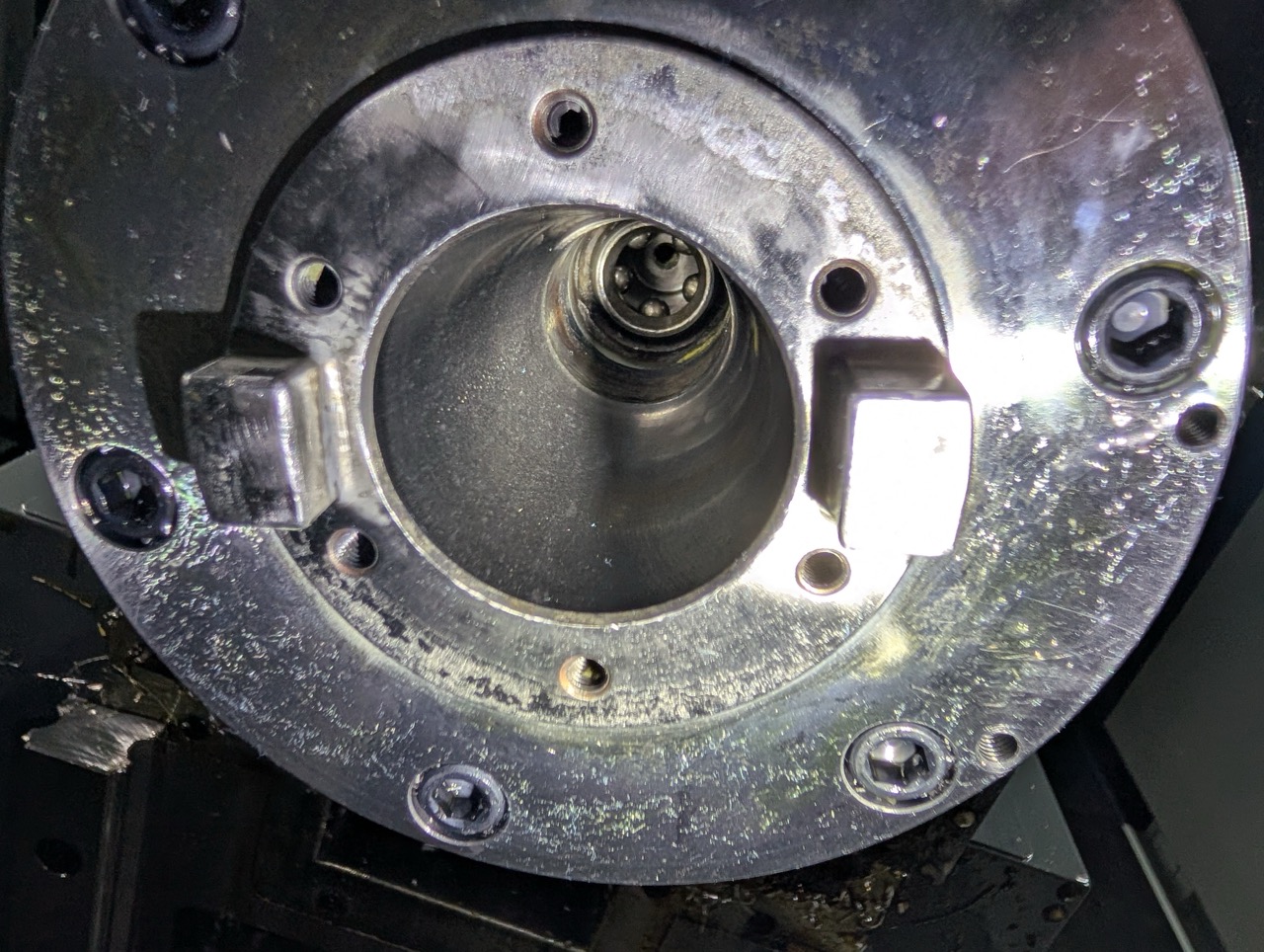

Spindle
Max Power: 30 HP
Max Speed: 15,000 RPM
Taper: CAT 40
B Axis – Tilt
Travel: 120º to 35-º
Max Speed: 50º/sec
C-Axis – Rotation
Travel: 360º
Max Speed: 50º/sec
Max Part Swing: 27″

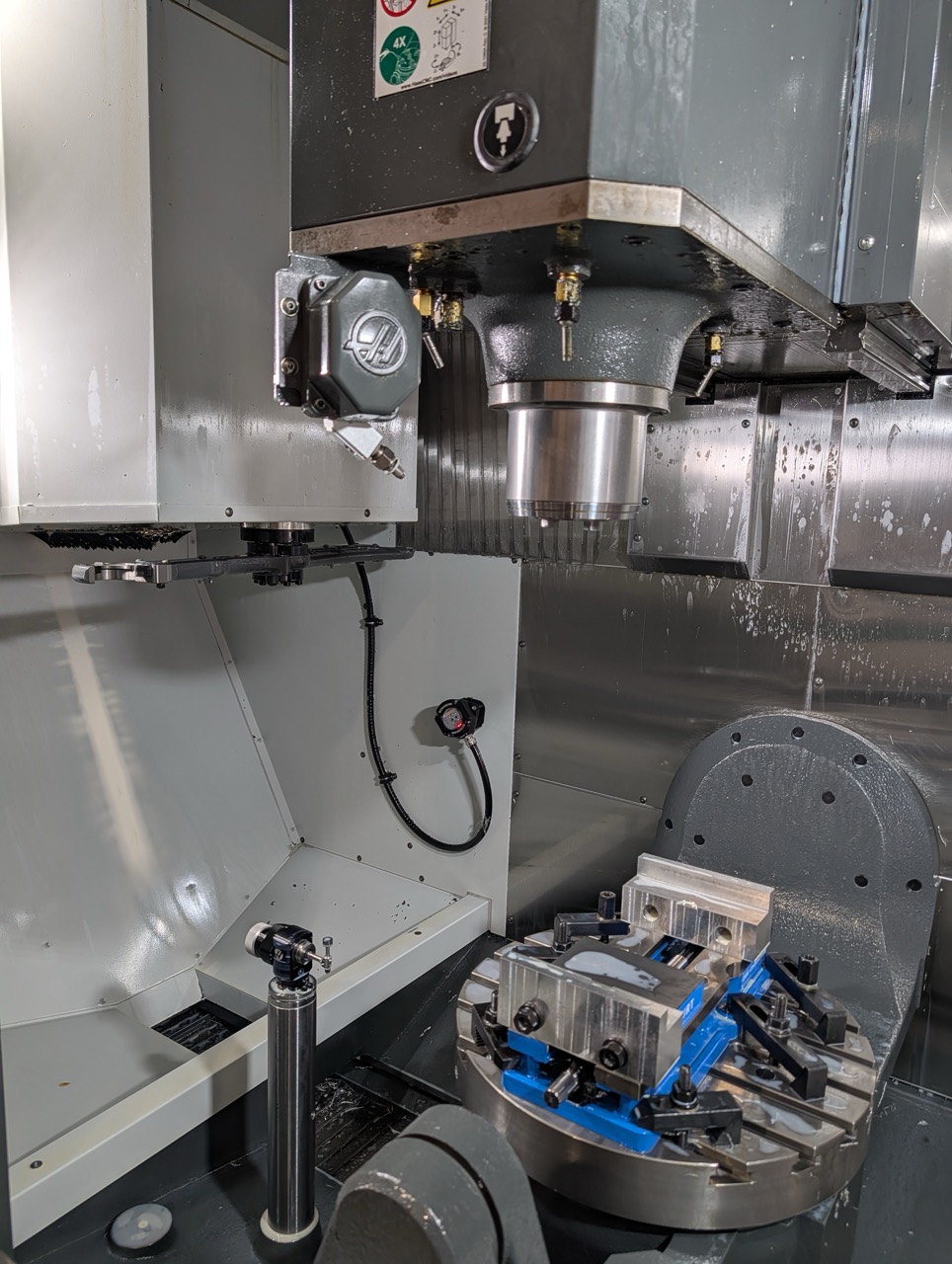

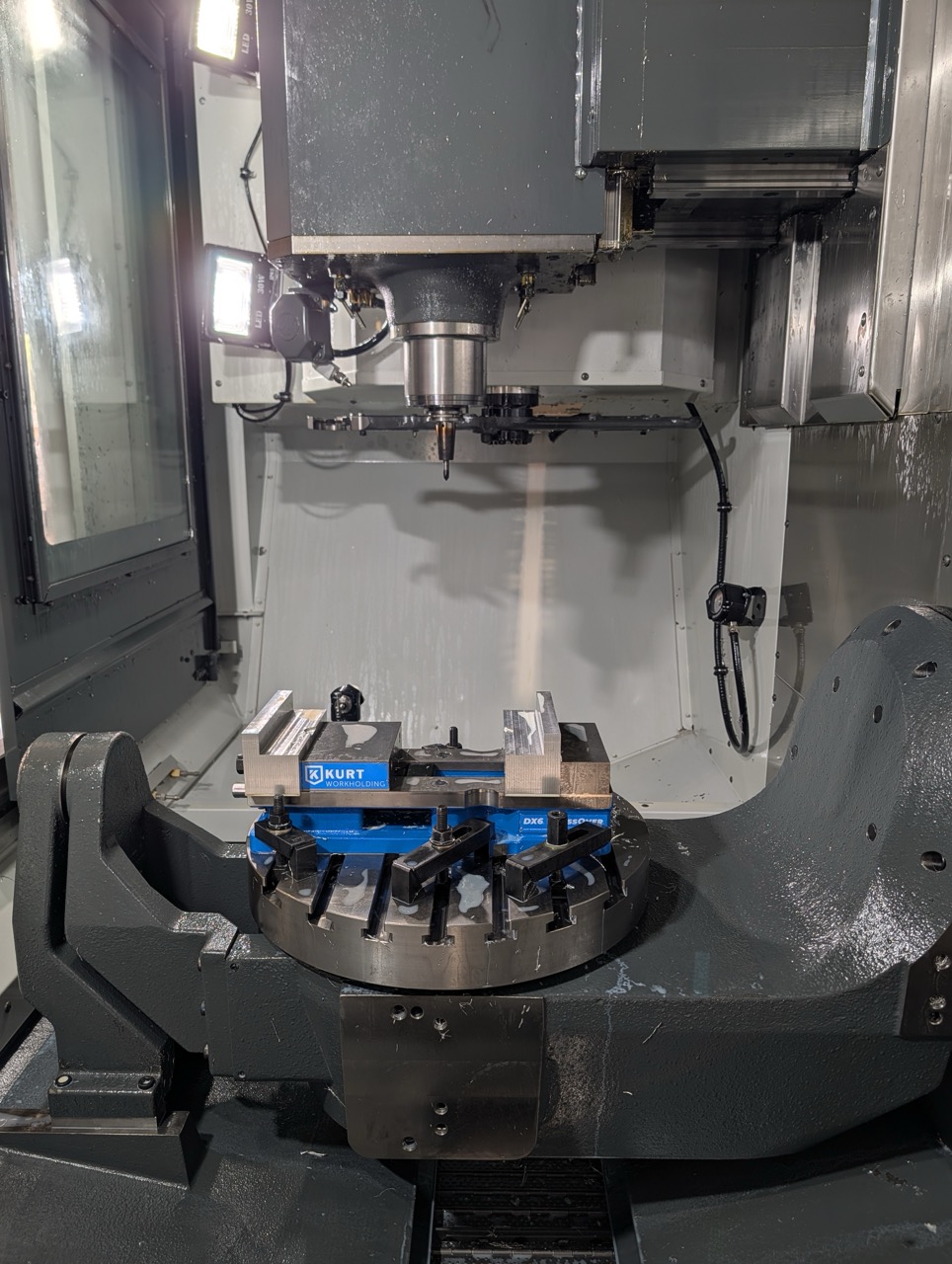

Platter
Diameter: 19.7″
Max Weight: 660lbs
Max Weight w/ Pallet Pool: 200lbs
T-Slot Width: 0.626″ to 0.630″
T-Slot Center Distance: 2.48″
Feedrates
Max Cutting: 650 ipm
Rapids (X/Y/Z): 900 ipm
Dimensions
Shipping: ~ 168″ x 93″ x 110″
Weight: ~14,250lbs
Equipped With:
Rigid Tapping
Chip Tray Filter Kit
Chip Conveyor
Programmable Coolant Nozzle
High-Speed Machining

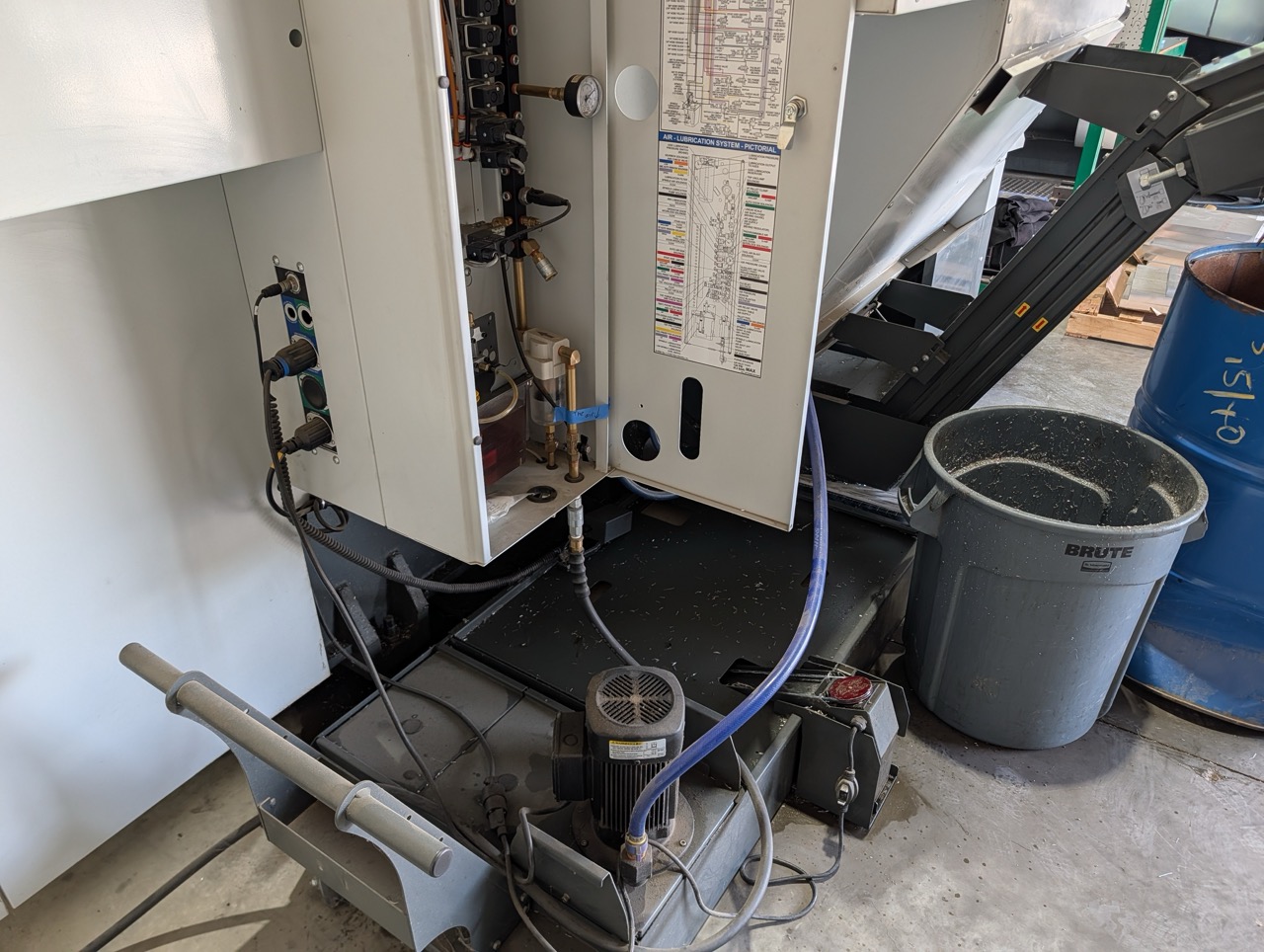

55-Gallon Coolant Tank

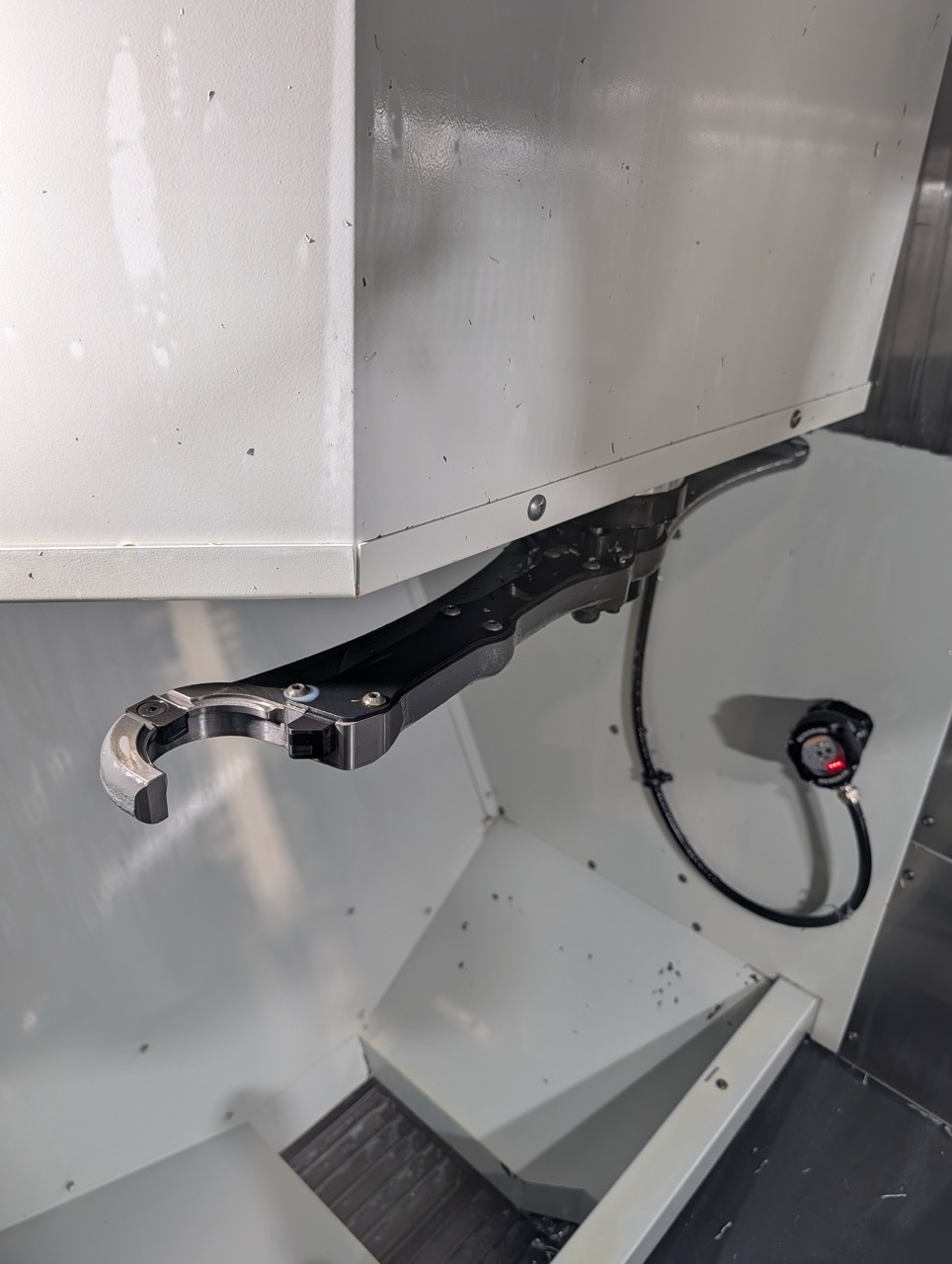

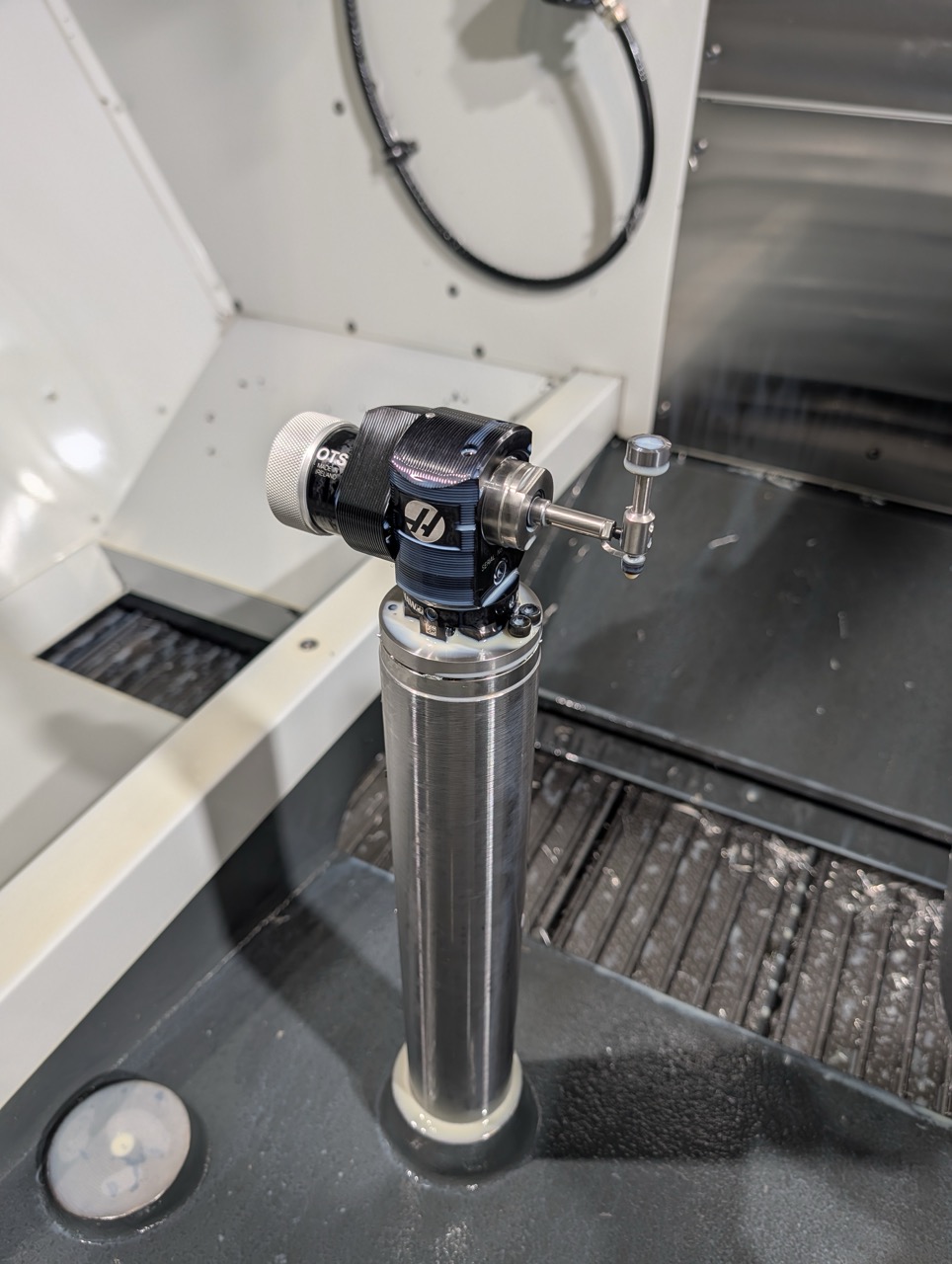

Wireless Intuitive Probing System

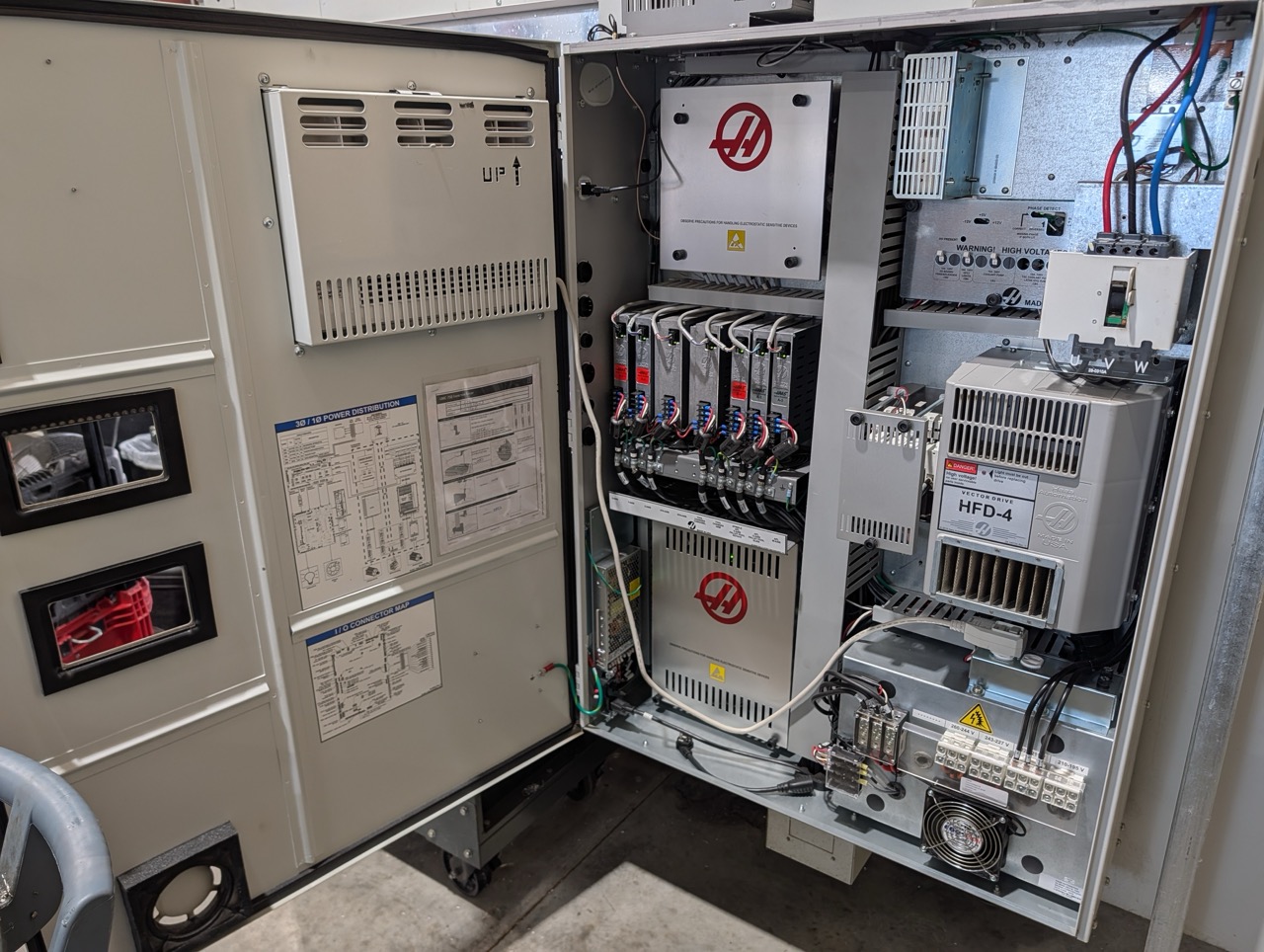

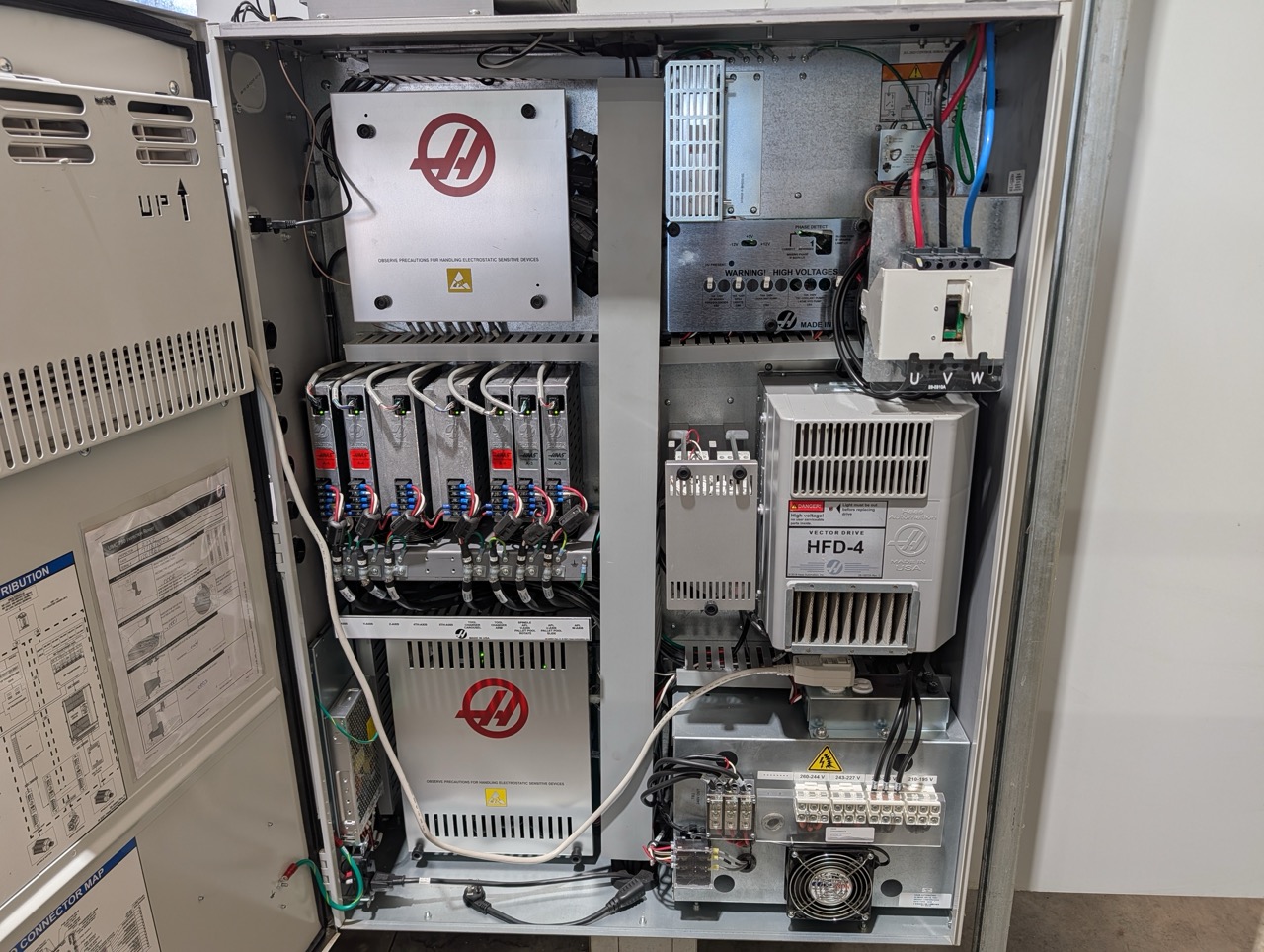

CNC Control Cabinet Cooler
Dynamic Work Offsets and Tool Center Point Control Early Power-Failure Detection Module
Ethernet Interface
HaasConnect: Remote monitoring
HaasDrop
Second Home Position
Media Display M-Code; M130

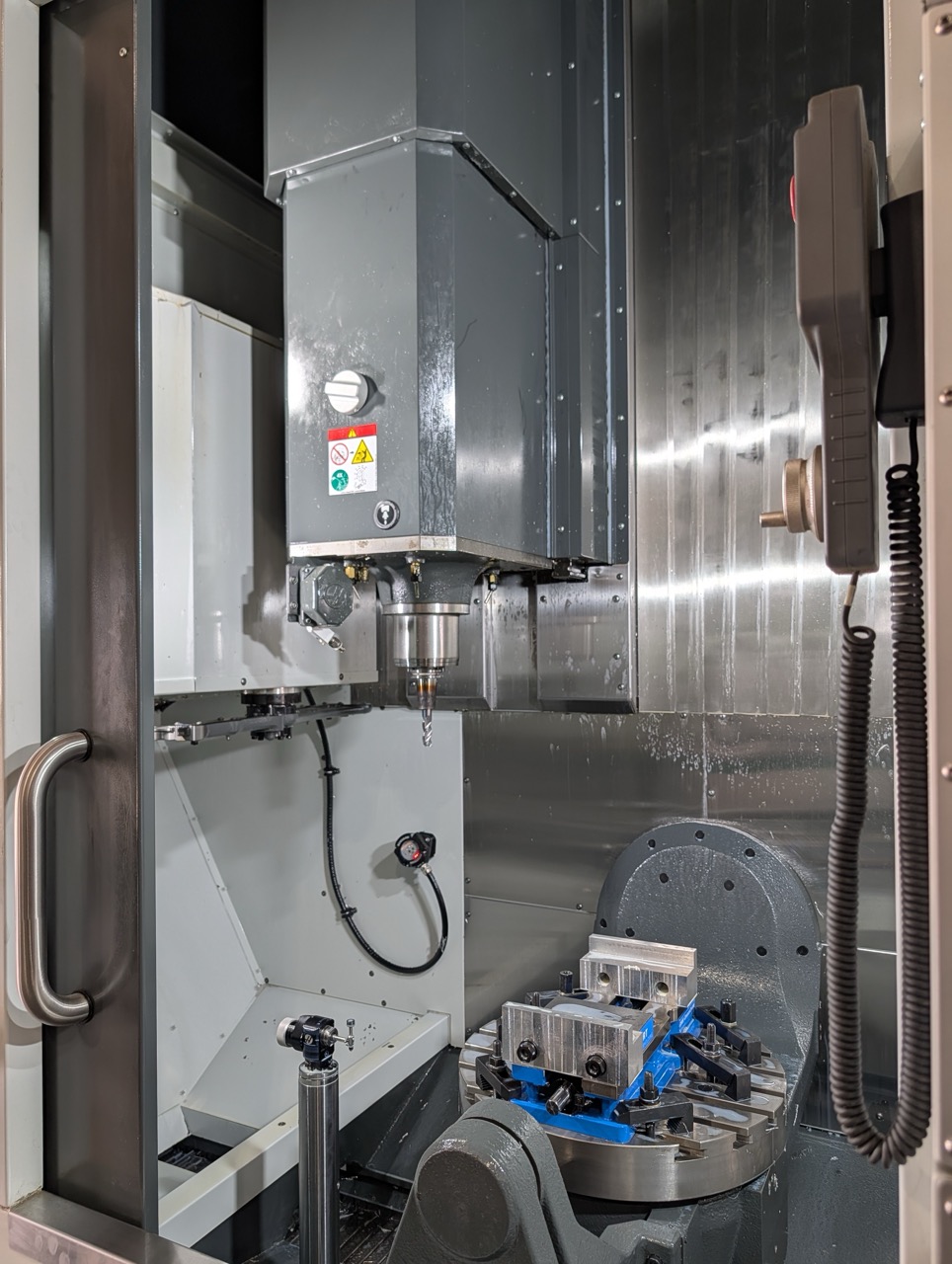

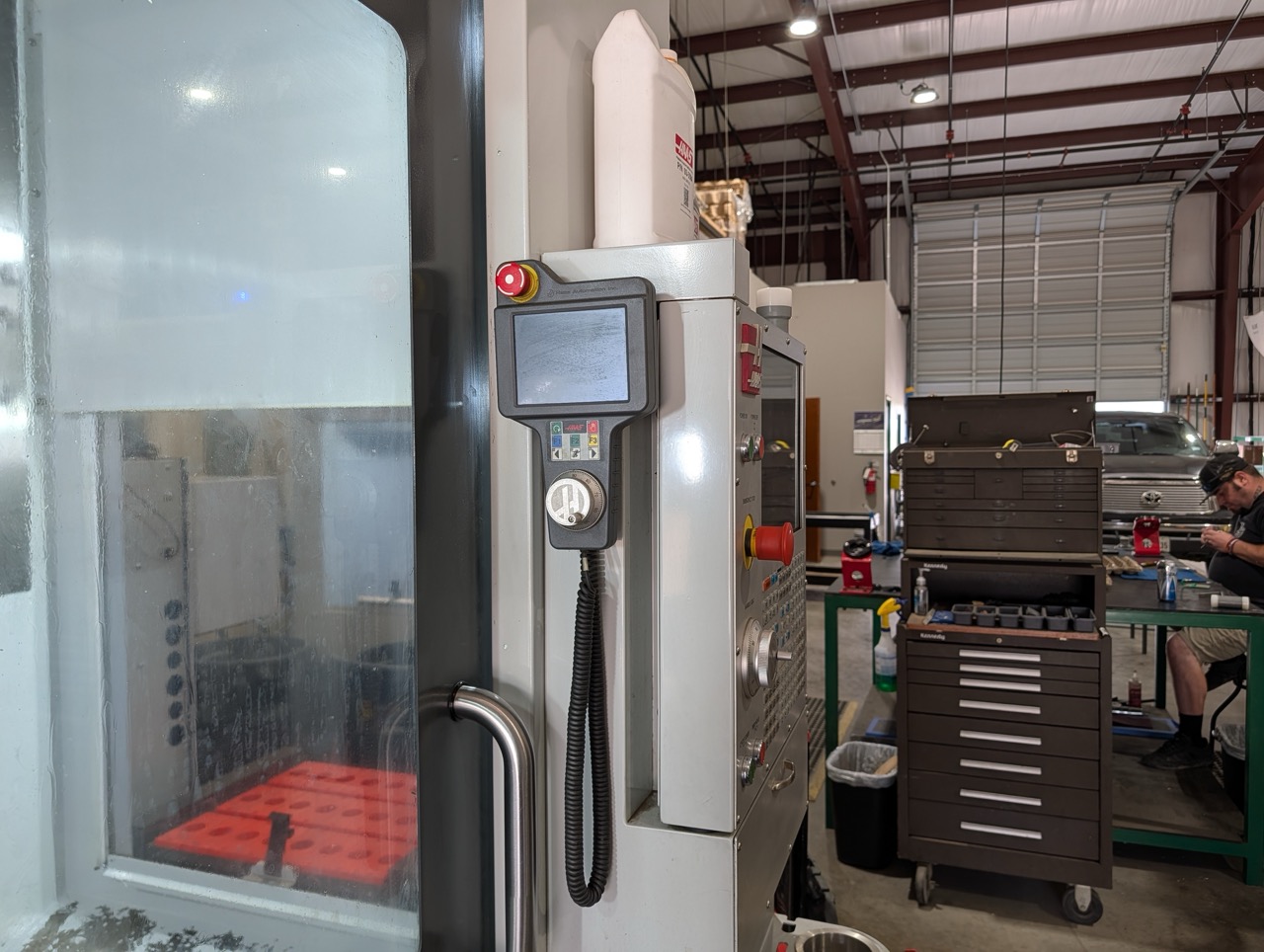

Large Remote Jog Handle with Touchscreen Display Rotary Scales
Safe Run

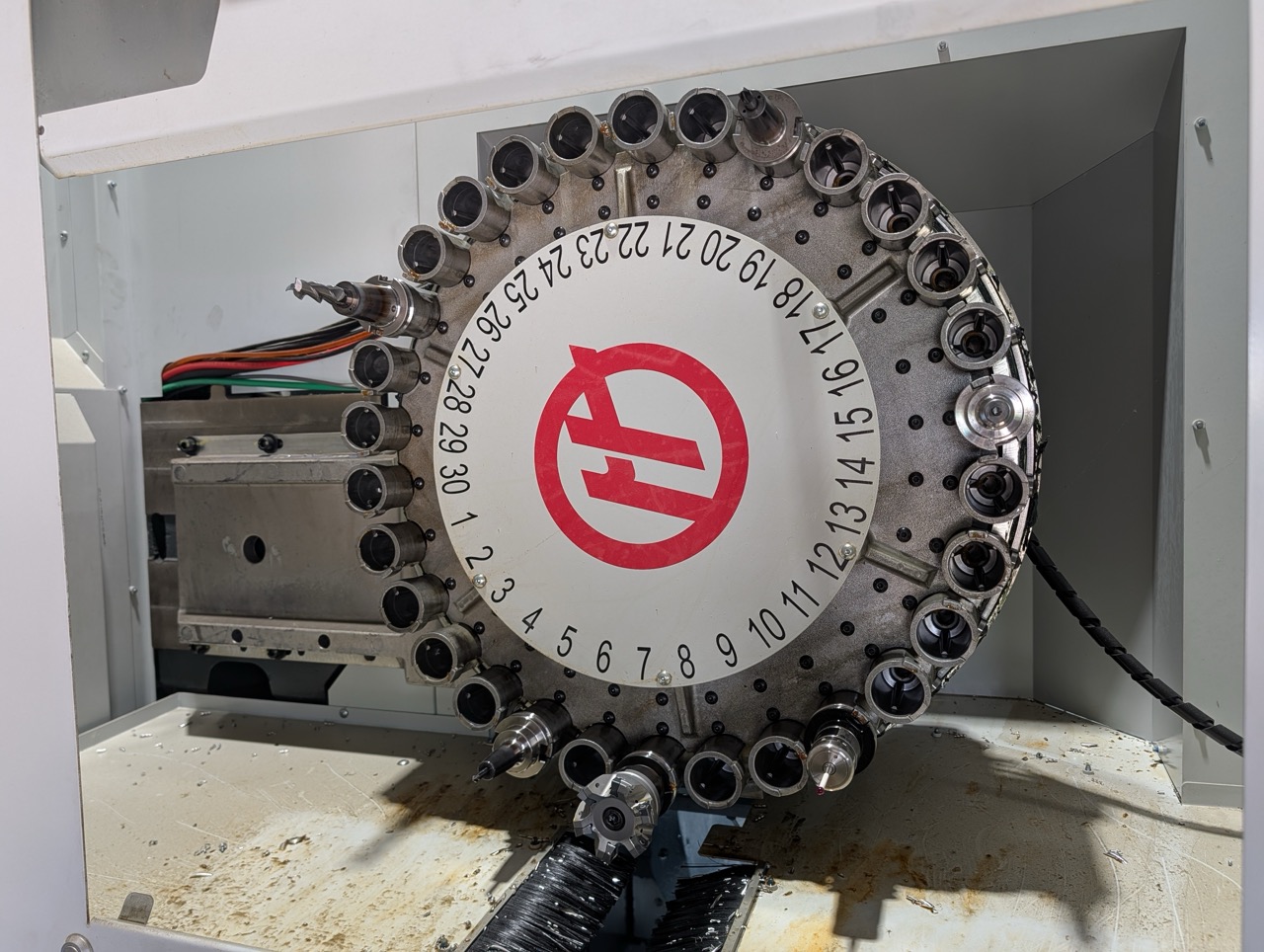

30+1 Side-Mount Tool Changer
Power Surge Protection
Top Cover for UMC Series

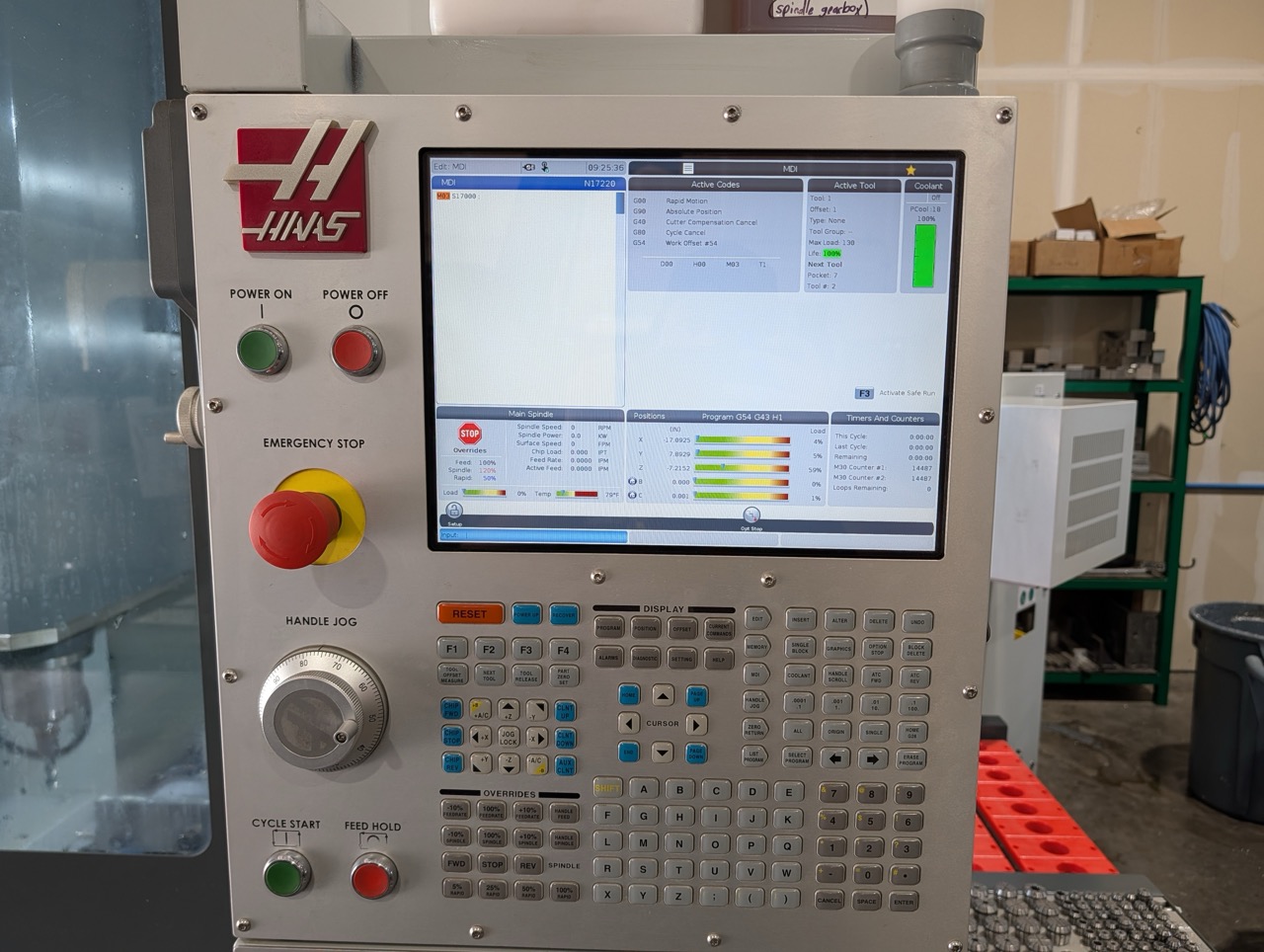

Control Touch Screen
WiFi Connection for the Haas Control
Power On Hours: 5805
