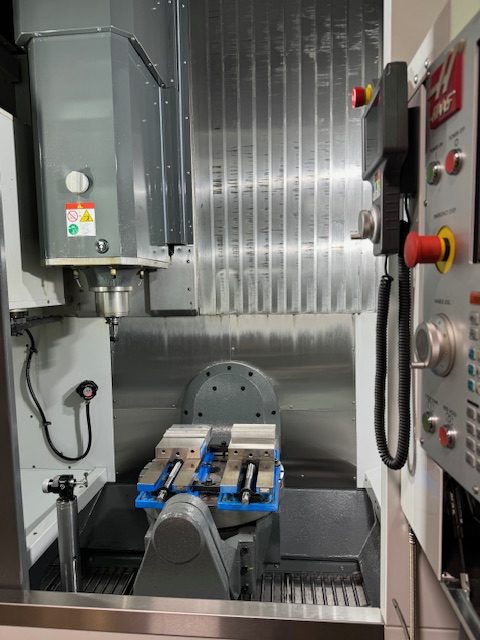

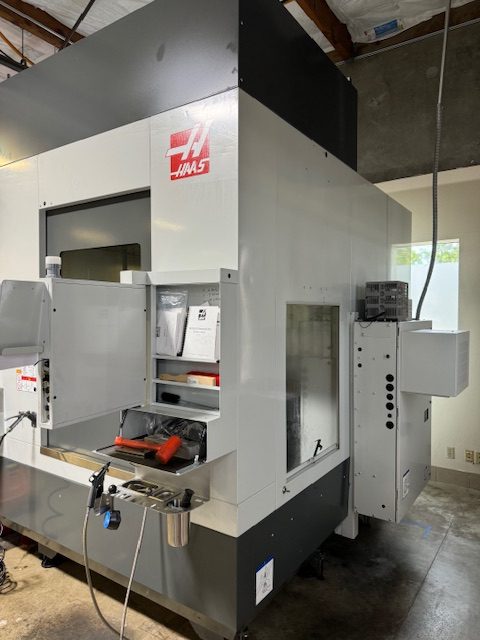

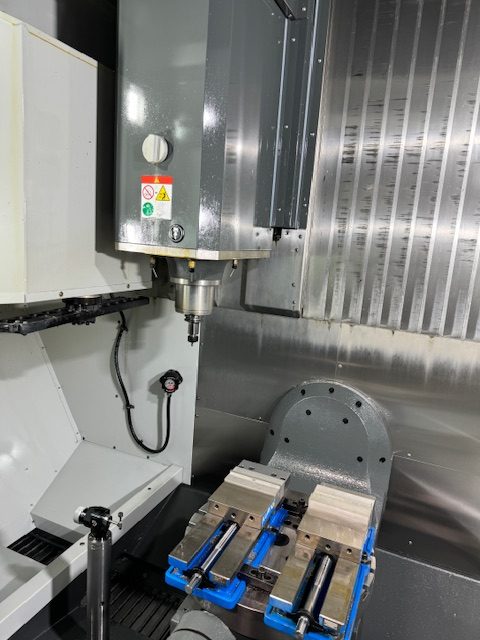

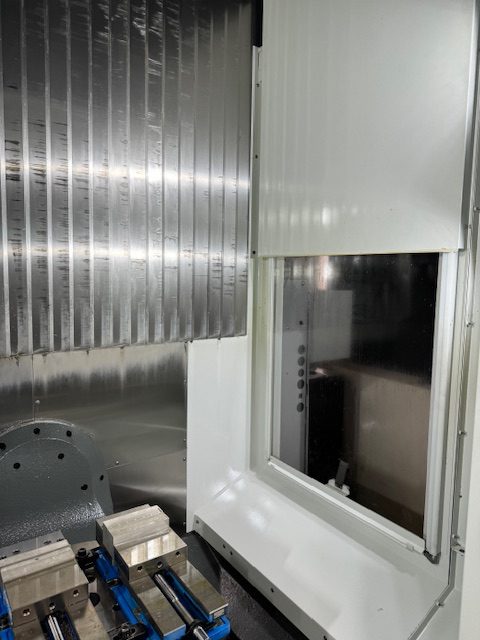

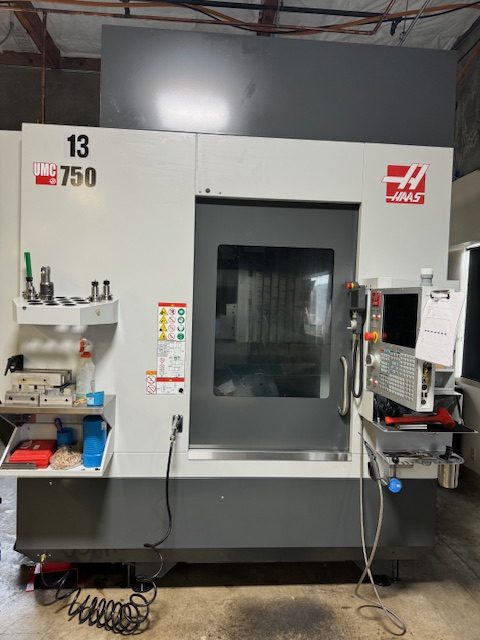

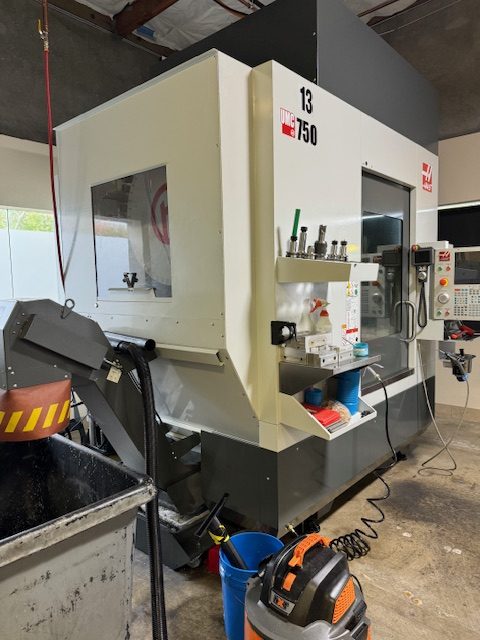

Haas UMC-750 5-Axis VMC, 2022 – 30” Travels, 15K Spindle, 50+1 Tools, TSC & Chip Conveyor (2)

Highly equipped 2022 Haas UMC-750 5-axis CNC vertical machining center featuring 30” x 20” x 20” travels, a 15,000-rpm 40-taper inline direct-drive spindle, 50+1 high-speed tool changer, 300 PSI through-spindle coolant, high-speed machining and a belt-type chip conveyor.

2022 Haas UMC-750 5-Axis CNC Vertical Machining Center
General
Manufacturer: Haas Automation
Model: UMC-750
Year: 2022
Machine Type: 5-Axis CNC Universal Vertical Machining Center
CNC Control: Haas Next Generation Control
Machining Capability: 3+2 positioning and simultaneous 5-axis machining
Axis Travels
X-Axis Travel: 30” / 762 mm
Y-Axis Travel: 20” / 508 mm
Z-Axis Travel: 20” / 508 mm
Number of Controlled Axes: 5
Rotary Configuration: Integrated dual-axis trunnion table
Spindle
Maximum Spindle Speed: 15,000 RPM
Spindle Taper: 40 Taper
Spindle Motor: 30 HP / 22.4 kW
Spindle Drive: Inline Direct Drive
Spindle Control: Vector Drive
Toolholder Requirement: G2.5-balanced toolholders required above 10,000 RPM
Automatic Tool Changer
Type: High-Speed Side-Mount Tool Changer
Tool Capacity: 50+1
Tool Taper: 40 Taper
Coolant System
Through-Spindle Coolant: 300 PSI / 21 bar
Coolant Delivery: High-pressure coolant delivered directly through the cutting tool
Power Requirement for TSC: Three-phase power
Chip Management
Belt-Type Chip Conveyor
High-volume automatic chip removal
Discharge Height: Standard 55-gallon barrel height
Programming and Performance Options
High-Speed Machining Software
5-Axis CNC machining capability
High-speed contouring and complex-part machining
