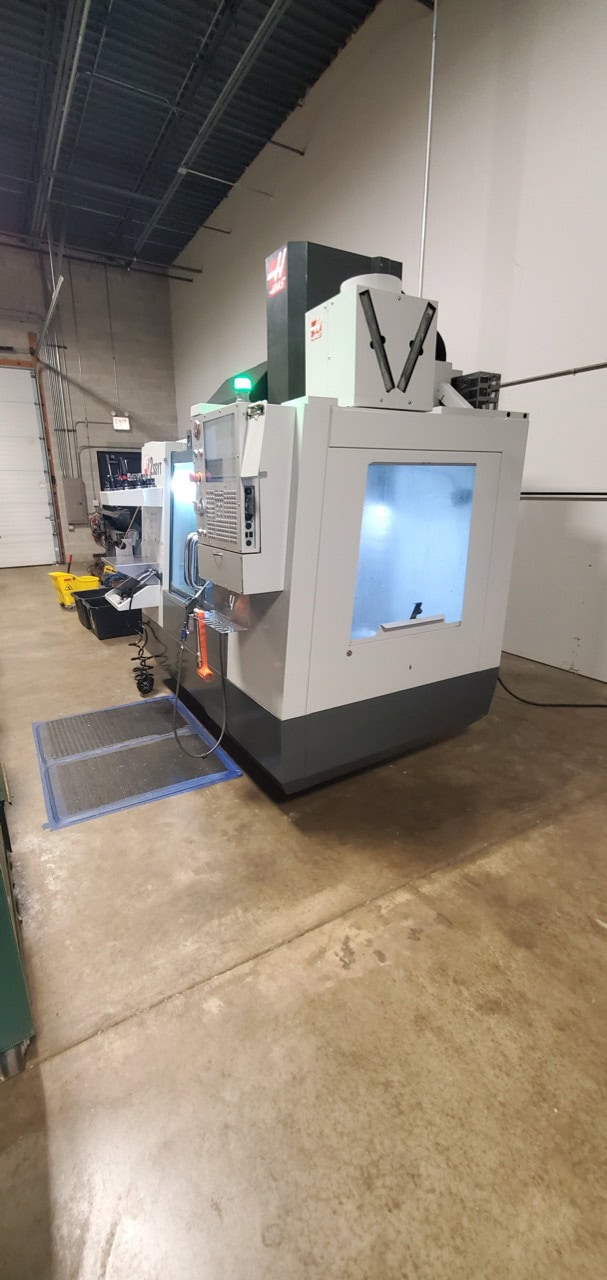

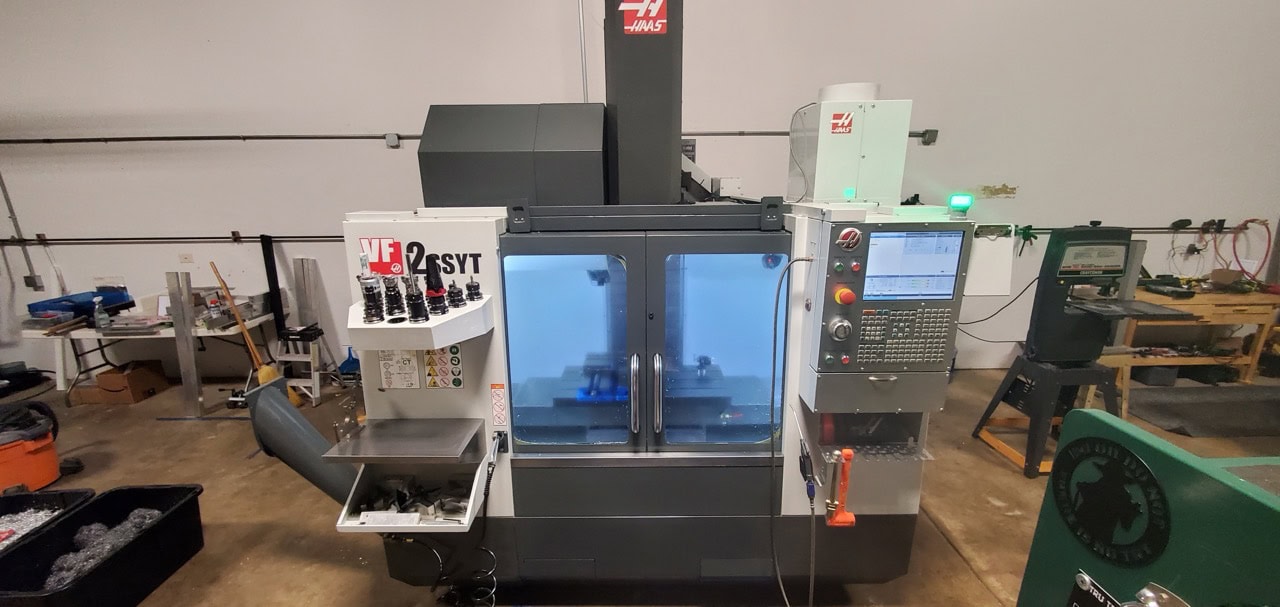

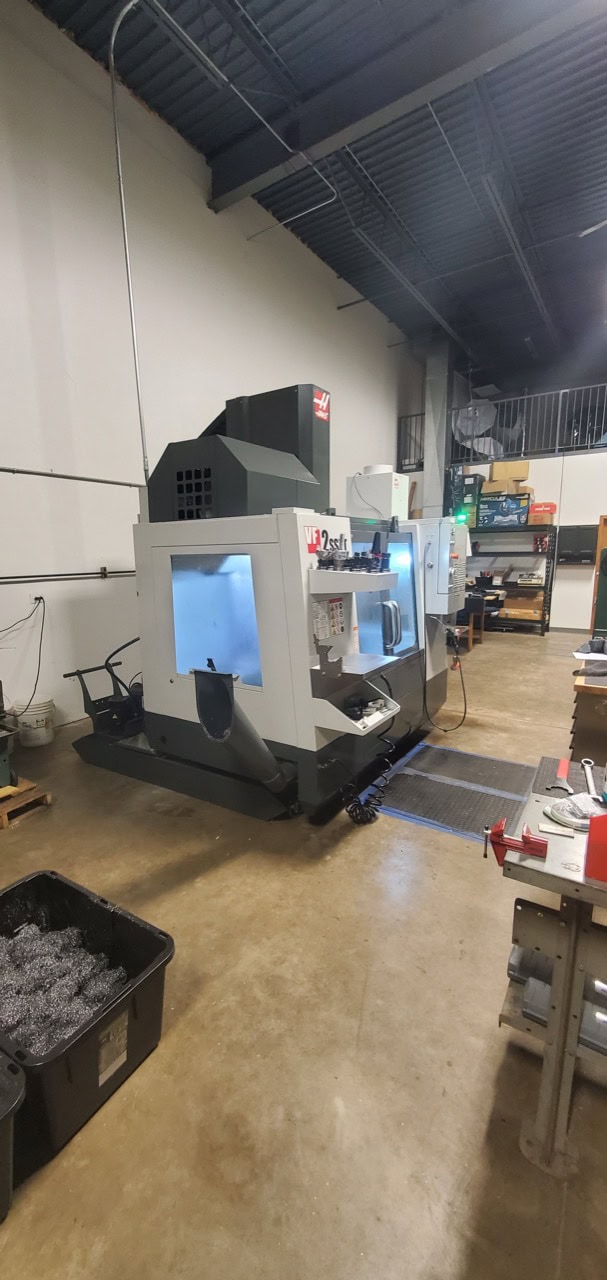

Haas VF-2SSYT, 2018

$74,900.00

Request a Quote to Instantly See Pricing

Call Now

Machine Type: Vertical Machining Centers
Make: Haas
Model: VF-2SSYT
Year: 2018
Machine Location: Upon Request
Stock #: 821932

X Axis Travel: 30″
Y Axis Travel: 20″
Z Axis Travel: 20″
Rapid Rate X Axis: 1,400 IPM
Rapid Rate Y Axis: 1,400 IPM
Rapid Rate Z Axis: 1,400 IPM

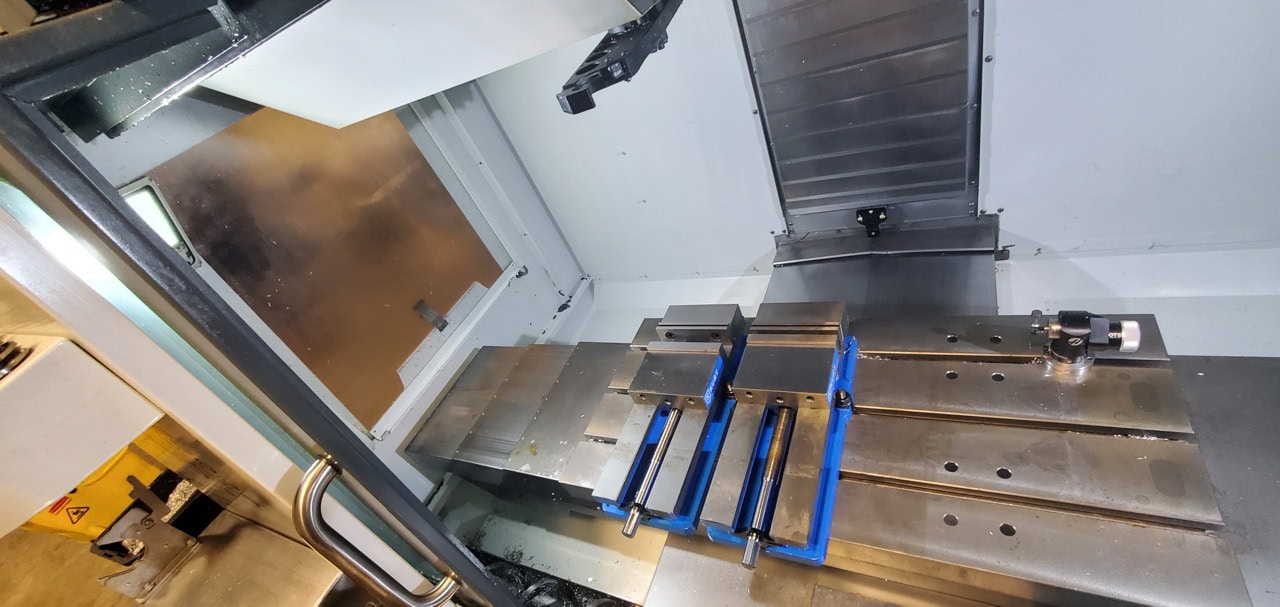

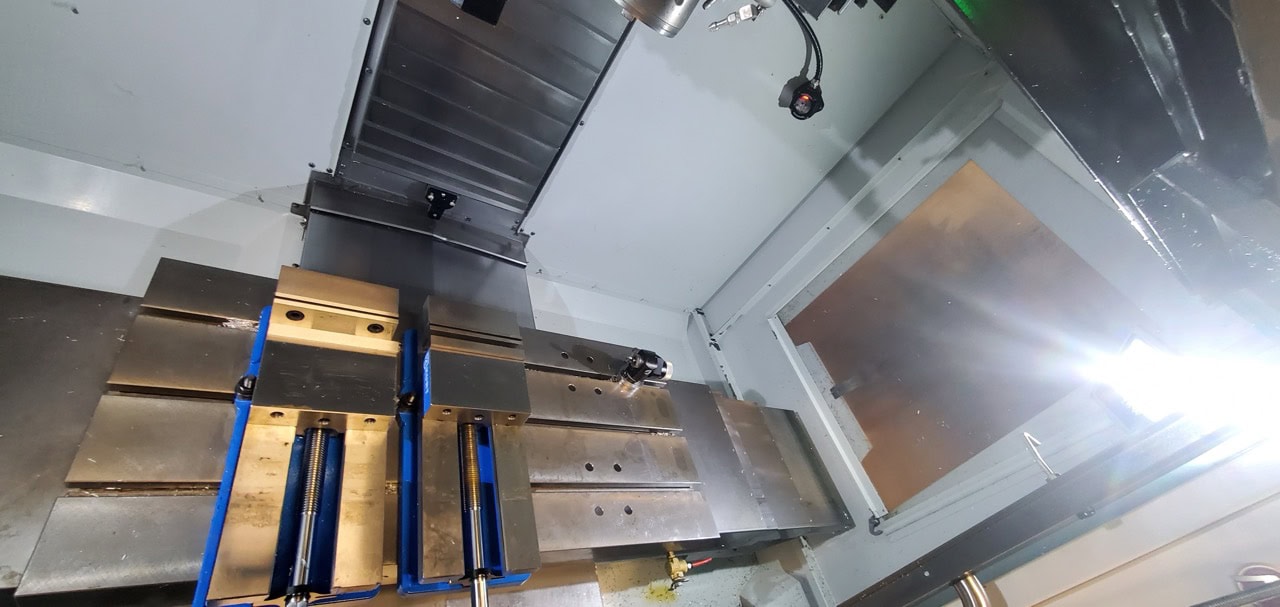

Table Size: 36″ x 18″
Max Table Load: 1,500 Lbs.
Spindle Motor: 30 HP
Spindle Speed: 15,000 RPM
Spindle Taper: 40 CT
Tool Changer: 30+1 ATC
Max Cutting: 833 ipm
Max Thrust X: 1995 lbf
Max Thrust Y: 1995 lbf
Max Thrust Z: 3085 lbf
Max Tool Weight: 12 lb.
Tool-to-Tool (avg): 2.8 s
Chip-to-Chip (avg): 3.6 s
Dimensions: 106″ x 101″ x 101″
Weight: 7,800 Lbs.

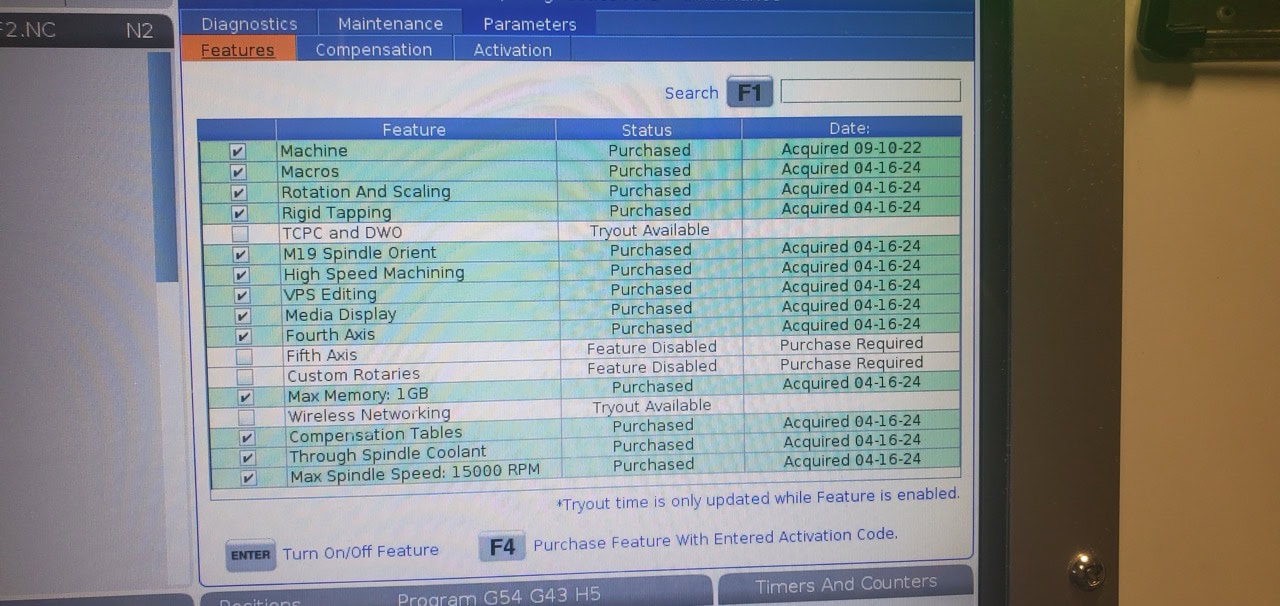

Equipped
*The tool changer is 30+1 (not 24)
1 GB of memory
*15K spindle (not 12k)
Probe with tool setter (WIPS)
Rigid tap
Chip auger
TSC (Thru spindle coolant) 300 psi
User-definable macros
4th axis ready
High speed maching
Spindle orientation
Mist Collector
Rotation and scaling
Media display (can play recorded videos for setups)
M19 Spindle orient
VPS editing (conversional programming)
Compensation tables

All specifications are assumed to be correct but must be confirmed by the purchasing entity.
