Haas VF-3 VMC, 2000 – 4th Axis Ready, 24 SMTC, Renishaw Probe
$23,900.00
This specific product is no longer available, however we may have other similar or identical products in stock. Please utilize our search function at the top of the page to check and confirm, or fill out the form below:
Table Size 48″ x 18″
Max Table Load 3,500 lbs
Spindle Nose to Table Top 4″ – 29″
X Axis Travel 40″
Y Axis Travel 20″
Z Axis Travel 25″
Rapid Traverse Rate All Axes 750 ipm
Spindle Speeds 0 – 10,000 rpm
Spindle Taper # 40
Spindle Motor 20 HP Vector Drive
Tool Changer Capacity 24+1 (Side Mount)
Max Tool Weight 12 lbs
Approx Dimensions 129″ x 111″ x 119.5″
Approx Weight 14,000 lbs
Equipped with: 24 Tool Side Mount Tool Changer, Programmable Coolant, 20 HP Vector Spindle Drive w/ 10,000 RPM, 2 Speed Gearbox, Renishaw Probing, Chip Auger, High Speed Machining

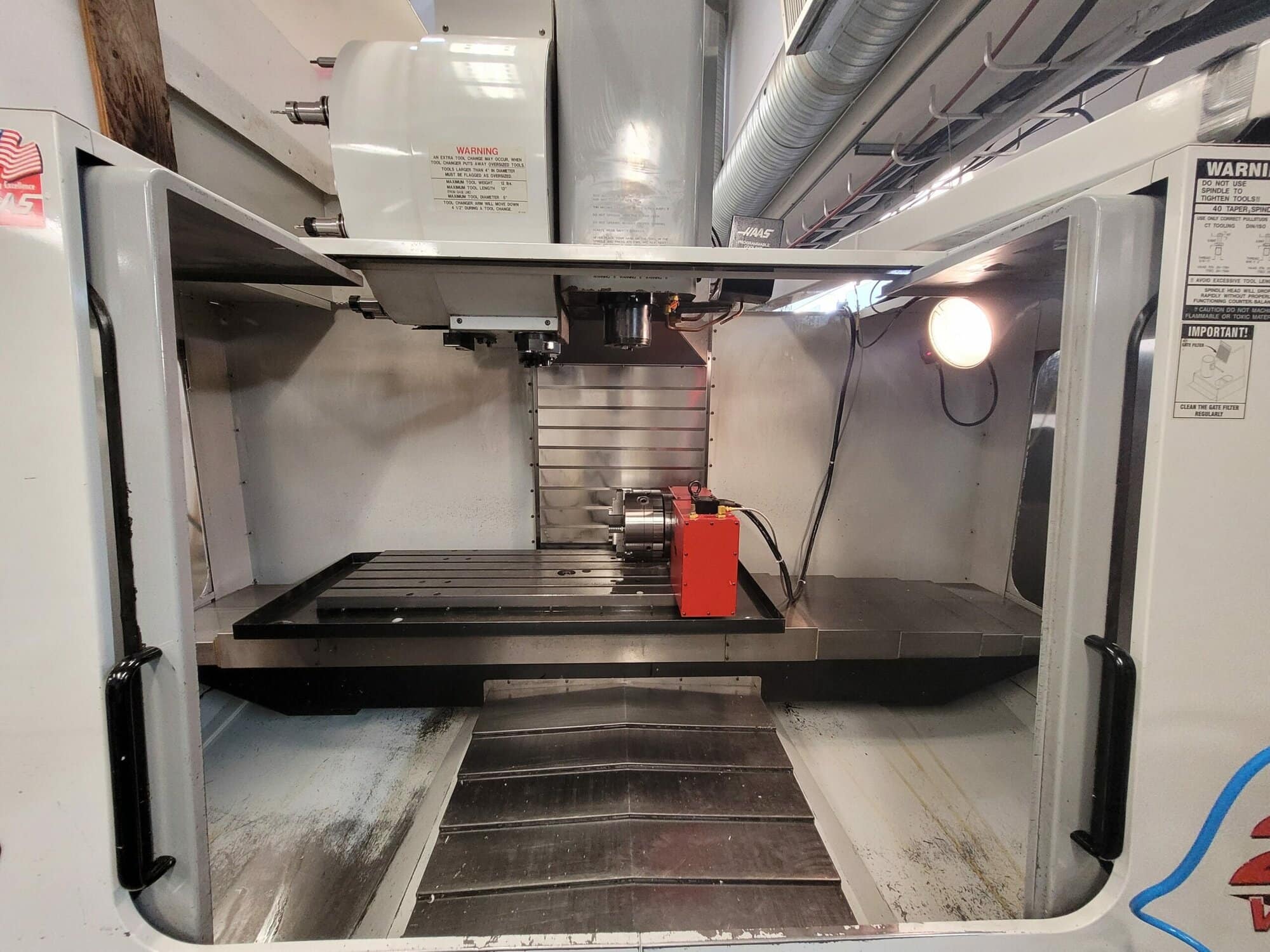

NOTE: Pictured 4th axis is no longer included.
