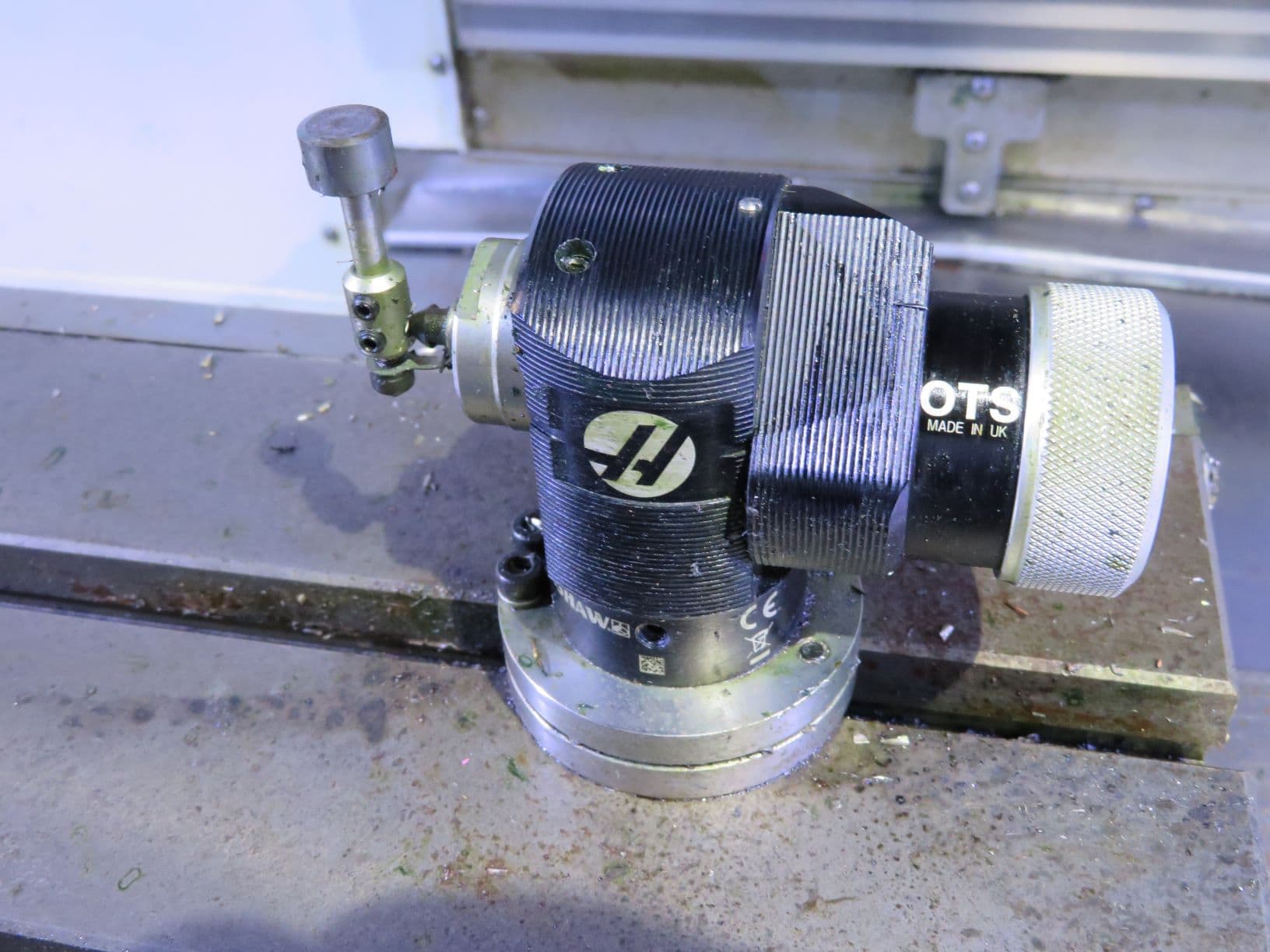

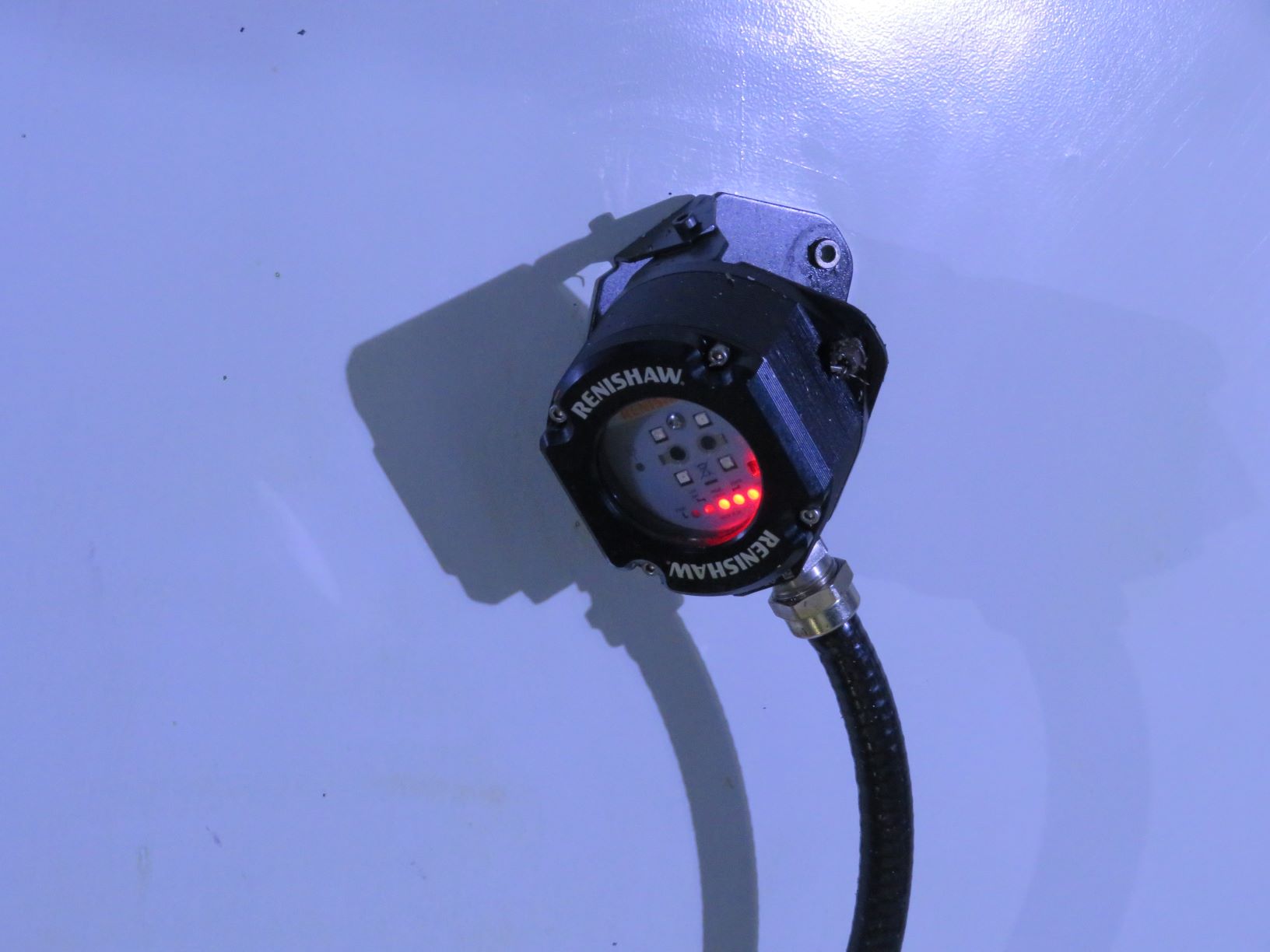

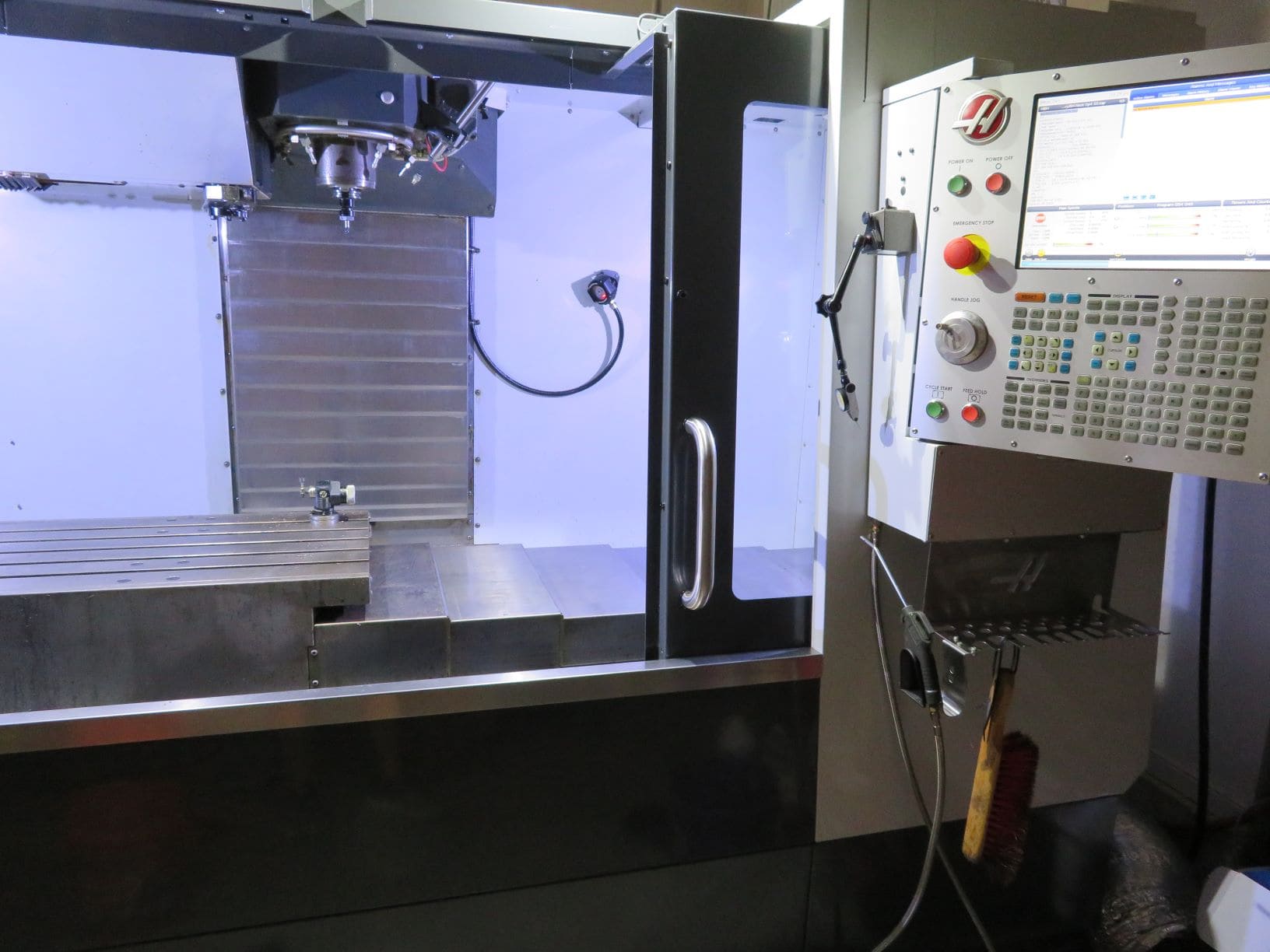

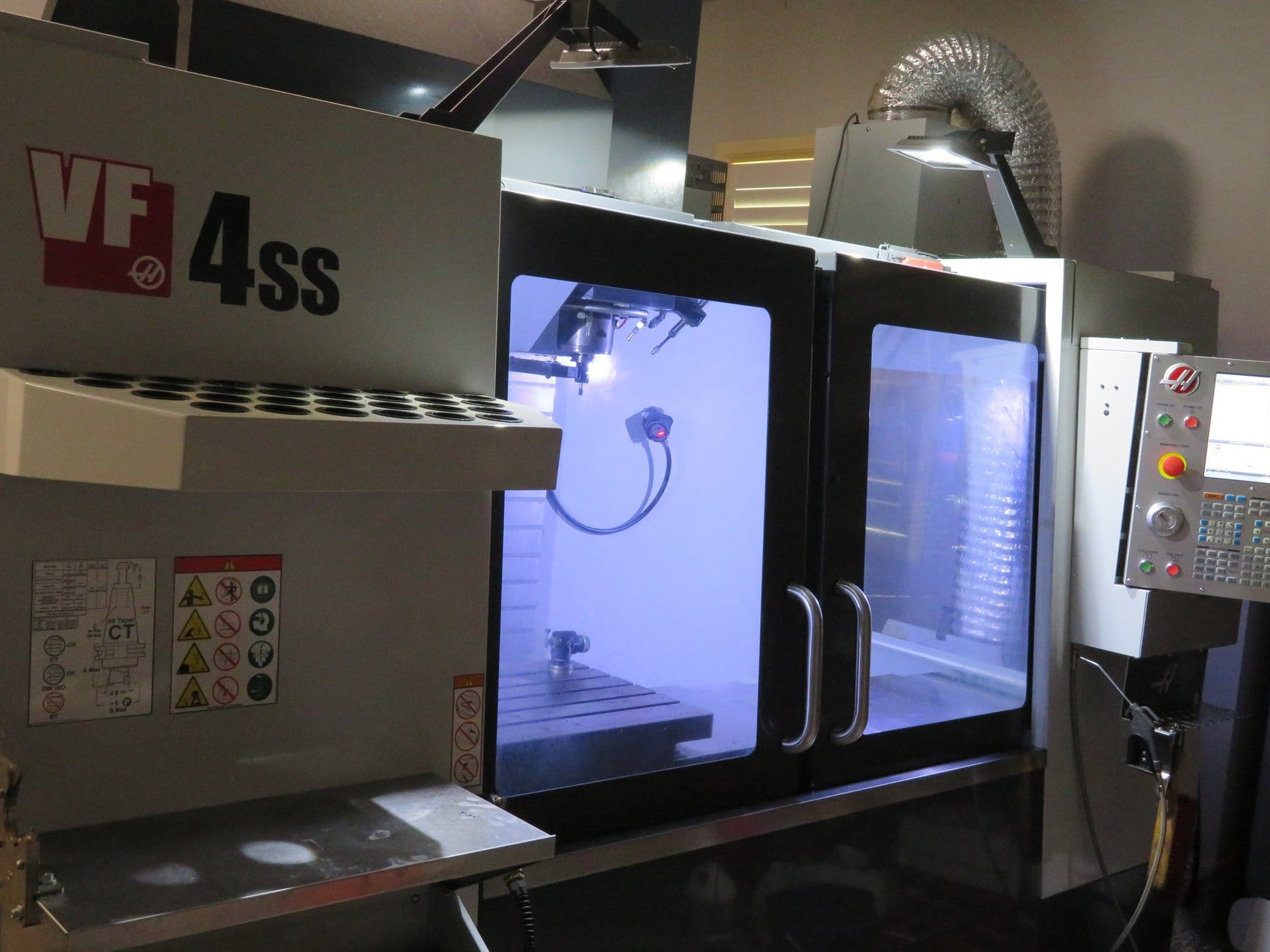

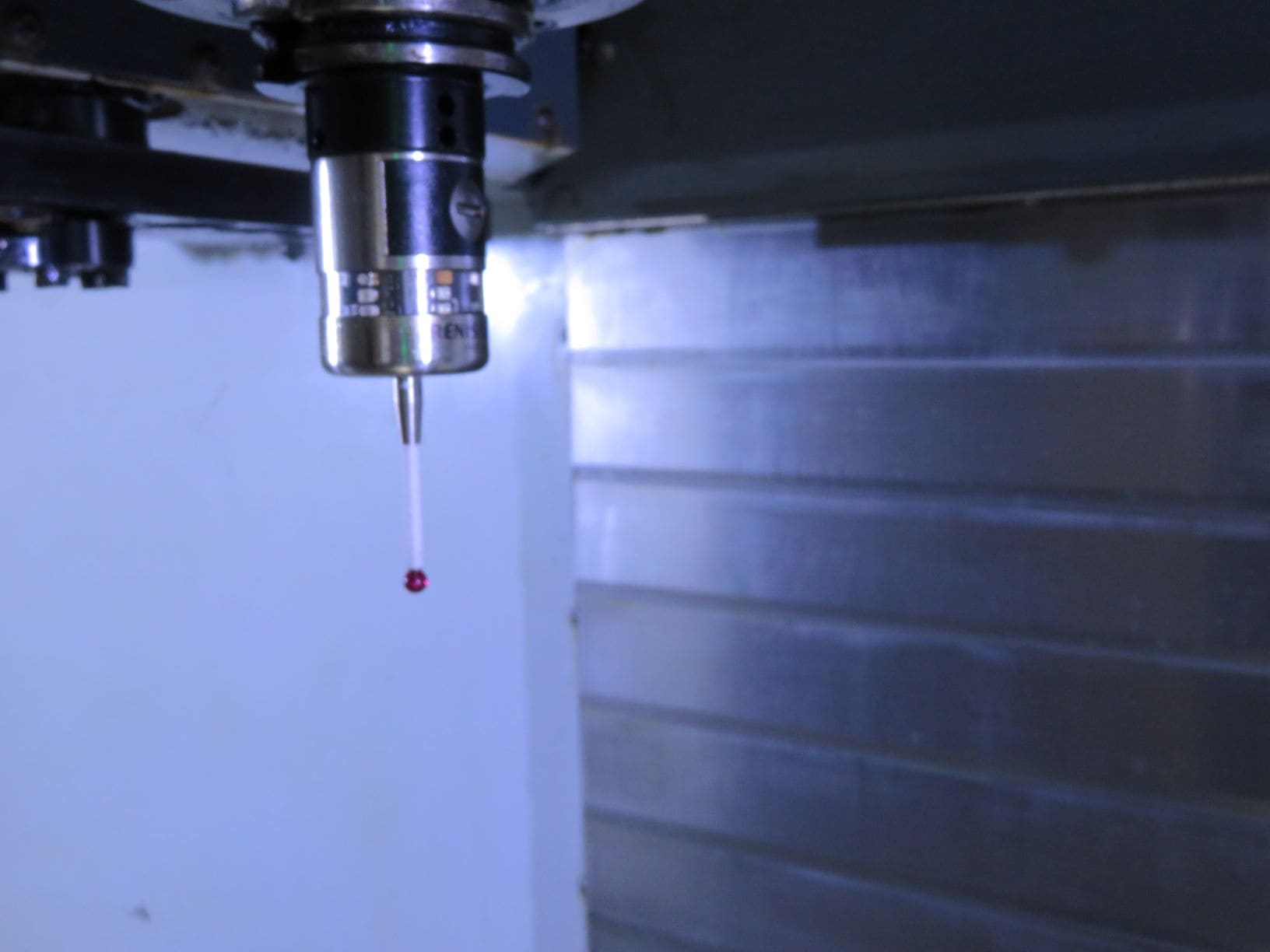

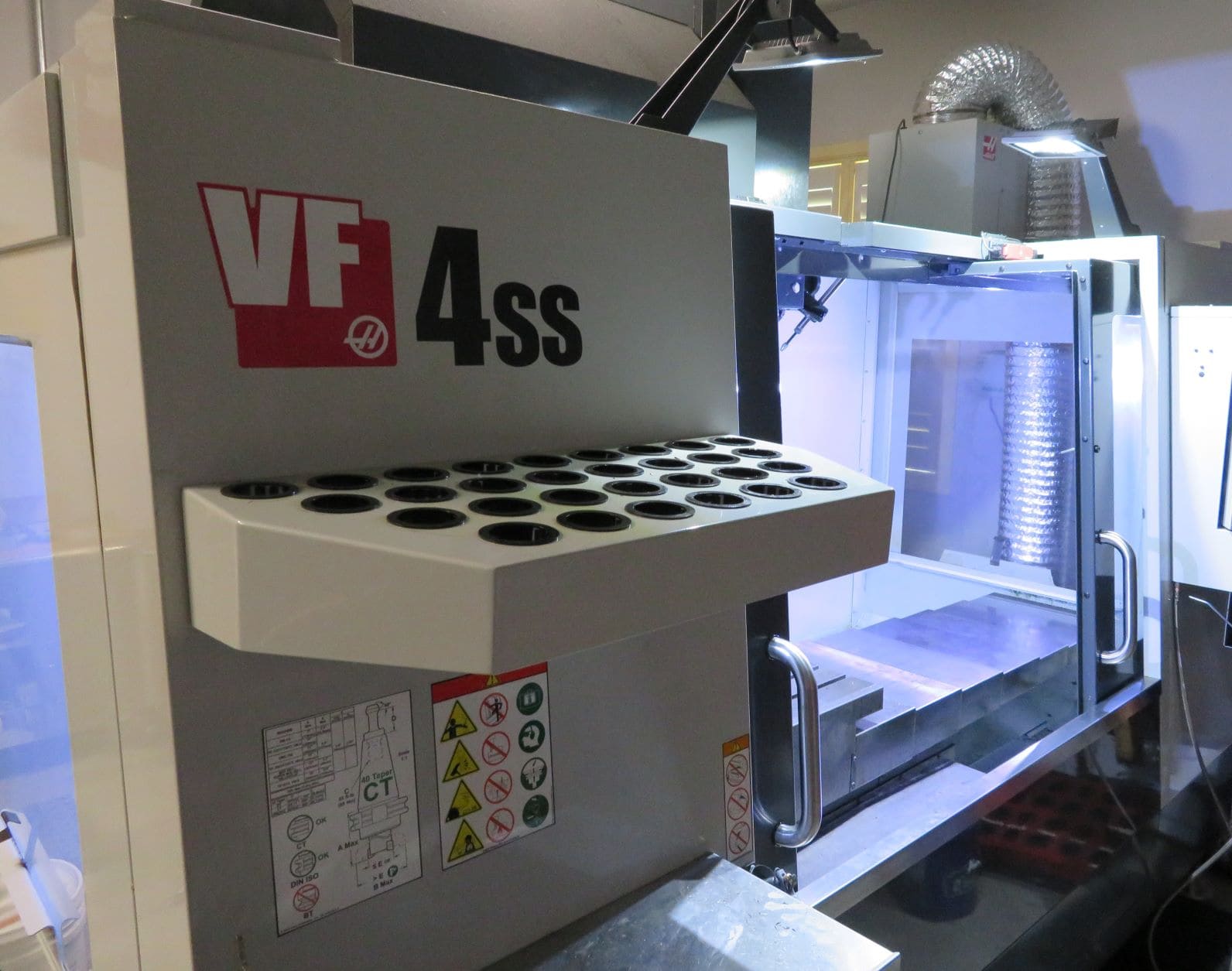

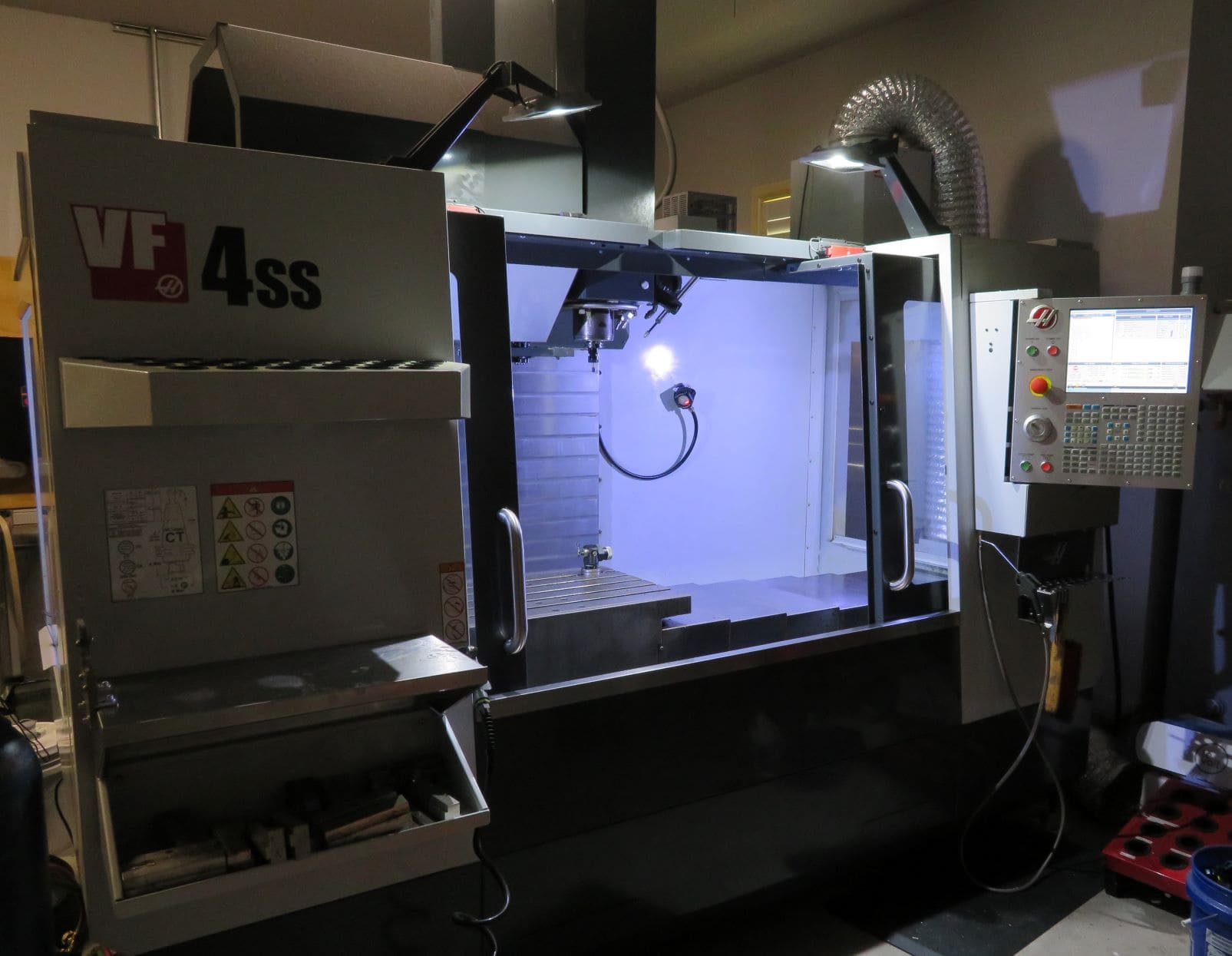

Haas VF-4SS VMC, 2018 – WIPS, HS Machining, TSC Ready, 12K RPM, Low Hours

Low Hours

TRAVELS
X Axis: 50.0 in (1270 mm)
Y Axis: 20.0 in (508 mm)
Z Axis: 25.0 in (635 mm)
Spindle Nose to Table (~ max): 29.2 in (742 mm)
Spindle Nose to Table (~ min): 4.2 in (107 mm)

SPINDLE
Max Rating: 30.0 h (22.4 kW)
Max Speed: 12000 rpm
Max Torque: 90.0 ft-lbf @ 2000 rpm (122.0 Nm @ 2000 rpm)
Drive System: Inline Direct-Drive
Taper: CT or BT 40
Bearing Lubrication: Air / Oil Injection
Cooling: Liquid Cooled

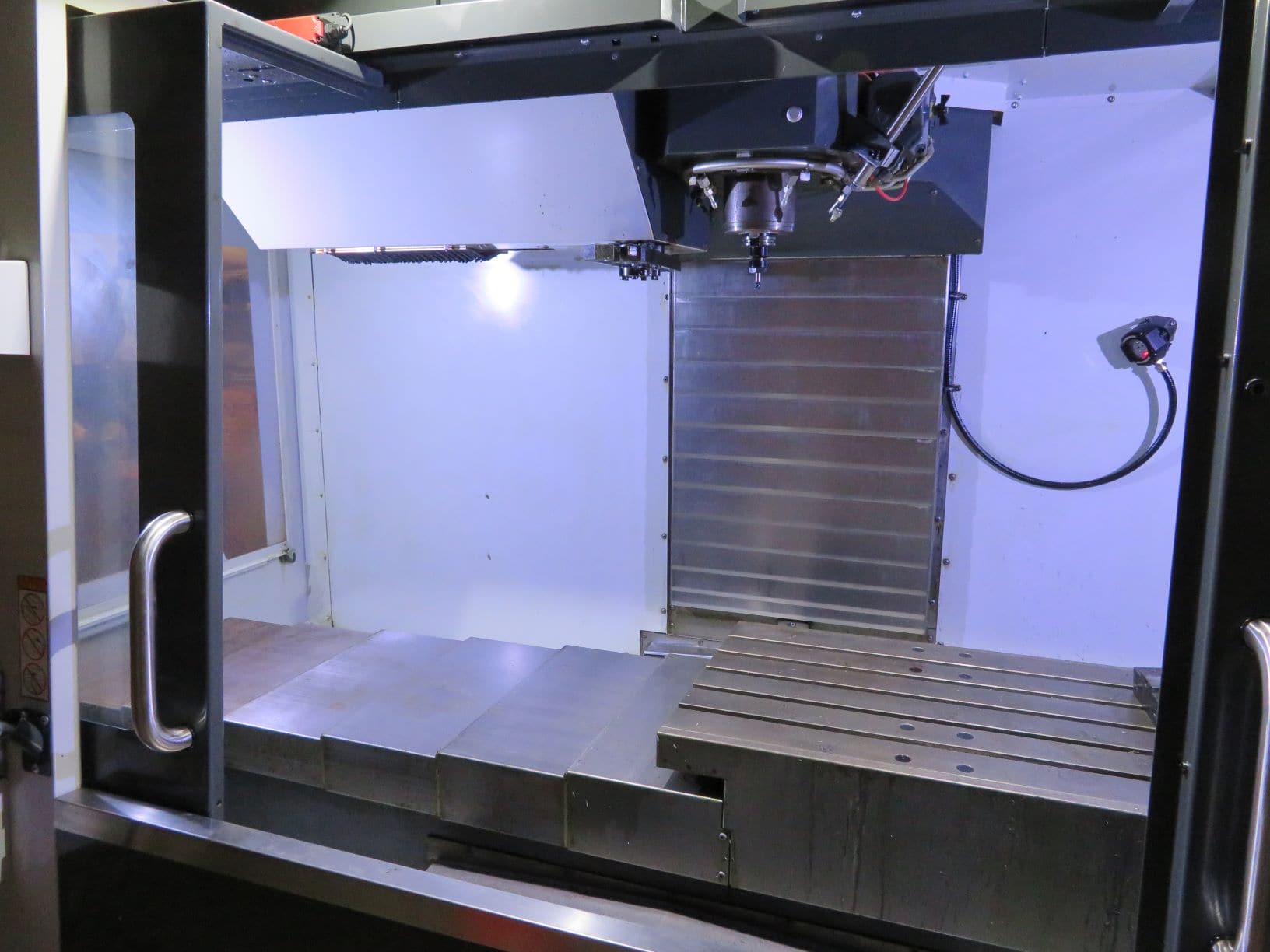

TABLE
Length: 52.0 in (1321 mm)
Width: 18.0 in (457 mm)
T-Slot Width: 0.626 in to 0.630 in (15.90 mm to 16.00 mm)
T-Slot Center Distance: 3.15 in (80 mm)
Number of Std T-Slots: 5
Max Weight on Table (evenly distributed): 1750 lb (794 kg)

FEEDRATES
Max Cutting: 833 ipm 21.2 m/min
Rapids on X: 1400 ipm (35.6 m/min)
Rapids on Y: 1400 ipm. (35.6 m/min)
Rapids on Z: 1400 ipm (35.6 m/min)

AXIS MOTORS
Max Thrust X: 3085 lbf (13723 N)
Max Thrust Y: 3085 lbf (13723 N)
Max Thrust Z: 3925 lbf (17459 N)

TOOL CHANGER
Type: SMTC
Capacity: 30+1
Max Tool Diameter (full): 2.5 in (64 mm)
Max Tool Diameter (adjacent empty): 5.0 in (127 mm)
Max Tool Length (from gage line): 13 in (330 mm)
Max Tool Weight: 12 l (5.4 kg)
Tool-to-Tool (avg): 1.8 s
Chip-to-Chip (avg): 2.4 s

GENERAL
Coolant Capacity: 55 gal (208 L)

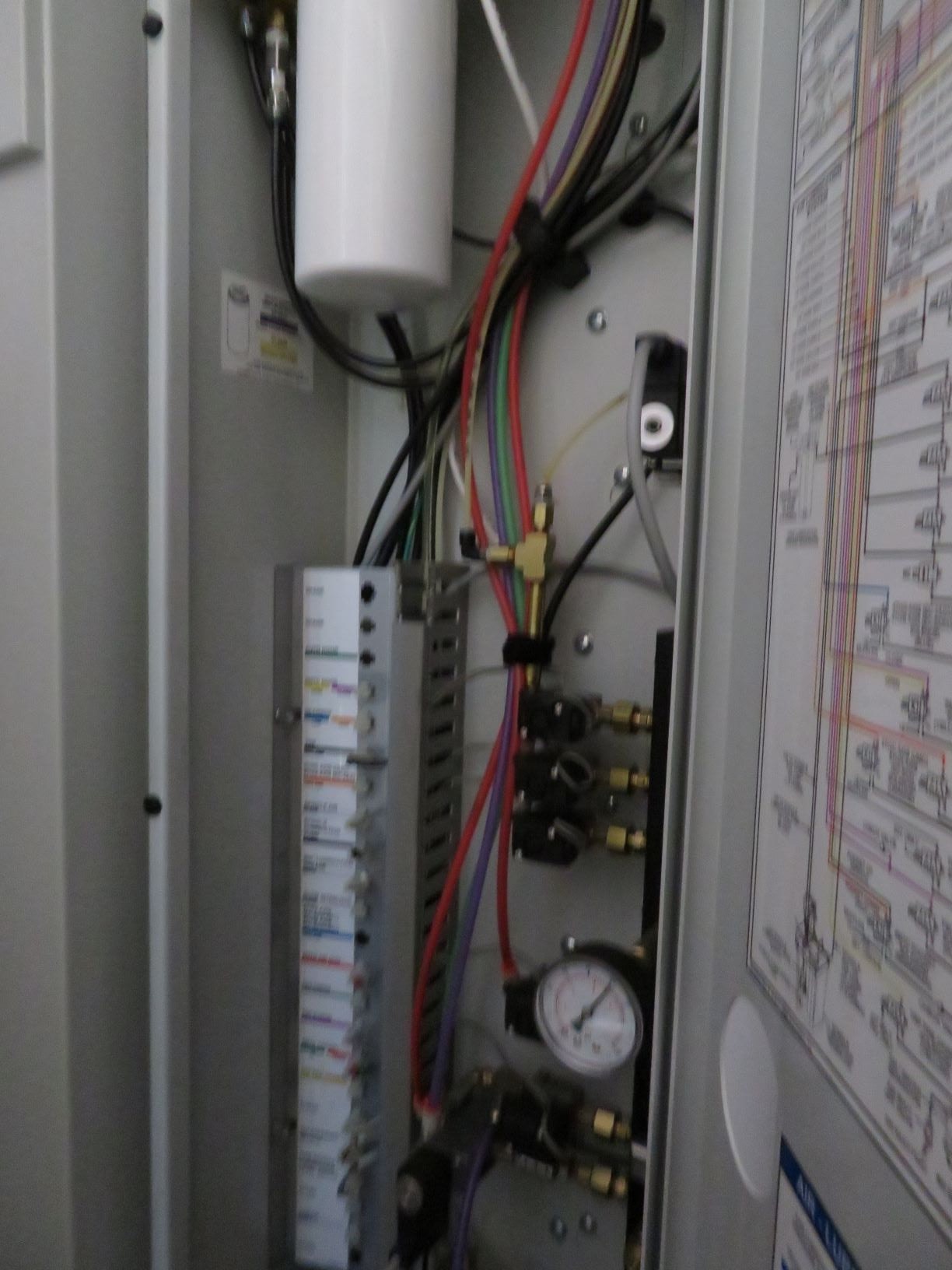

AIR REQUIREMENTS
Air Required: 4 scfm @ 100 psi (113 L/min @ 6.9 bar)
Inline Air Hose: 3/8 in
Coupler (Air): 3/8 in
Air Pressure Min: 80 ps (5.5 bar)

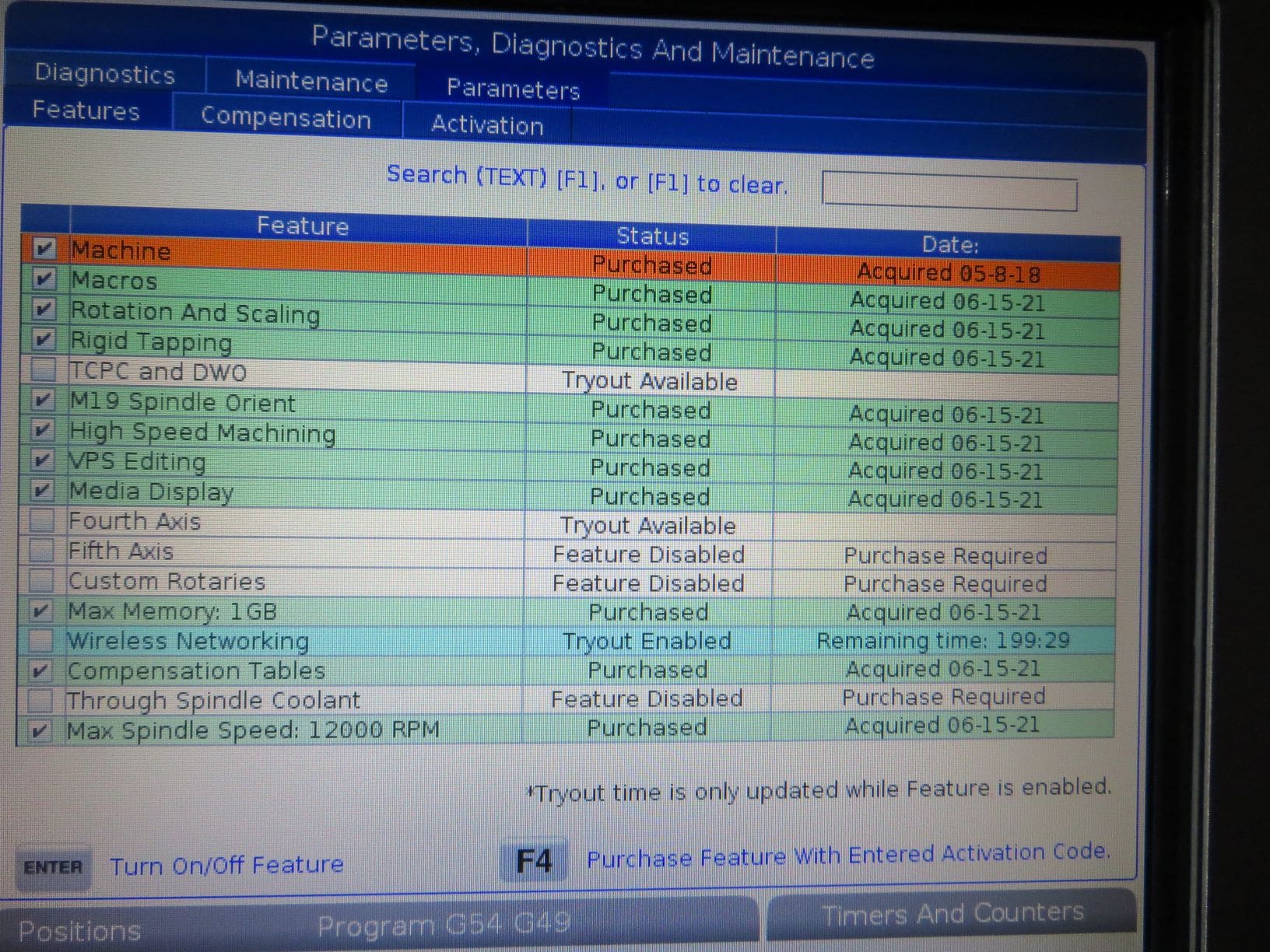

Equipped with:

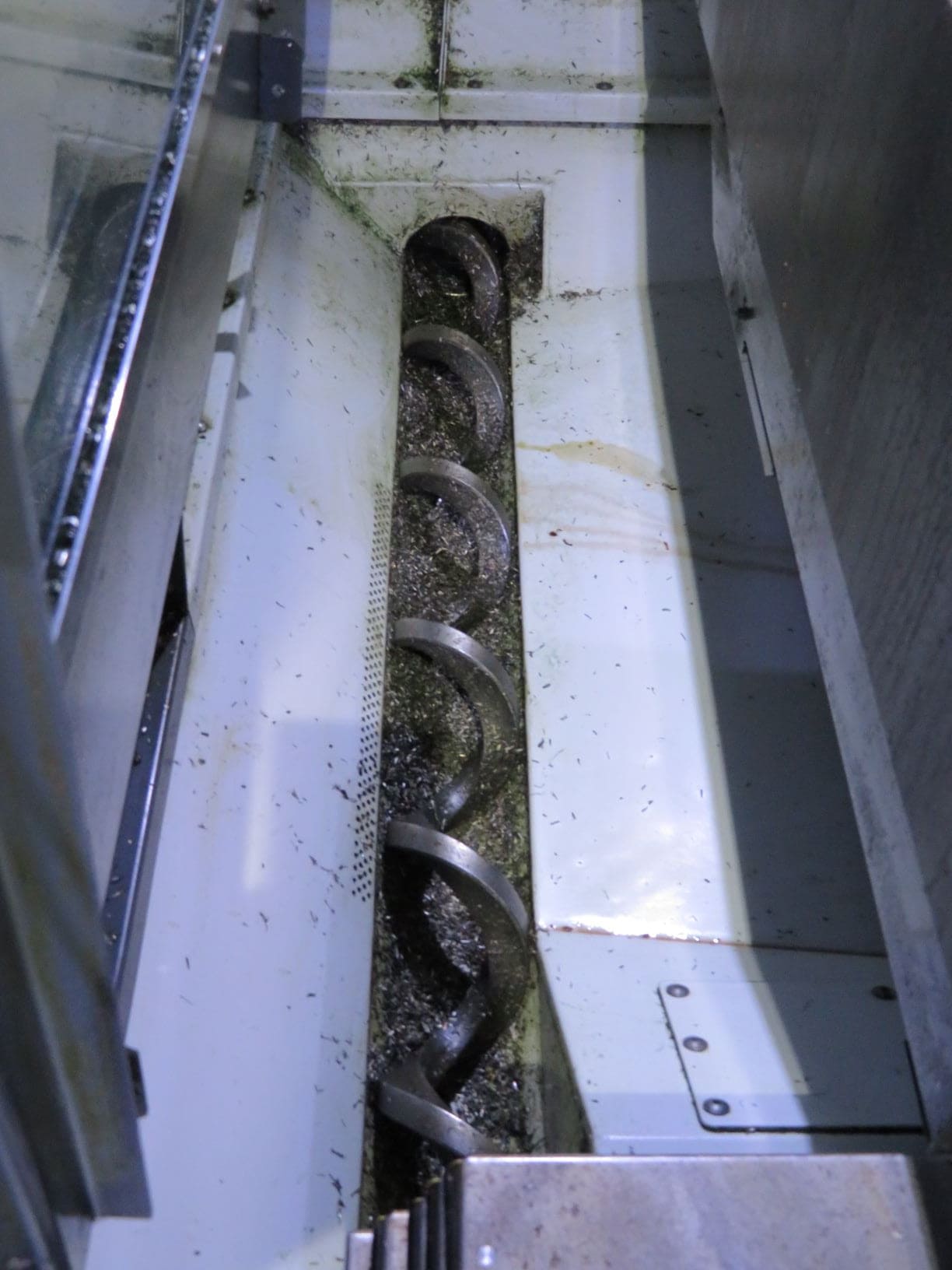

Chip Auger
User Definable Macros
Rotation and Scaling
Rigid Tapping
M19 Spindle Orient
High Speed Machining
Visual Parts Programming System
Media Display
Program Memory 1 GB
Wireless Networking
Thru Spindle Coolant Ready (Not Installed)
Ethernet Interface
HaasConnect
Compensation Tables
High Intensity Lighting
Second Home Position
Coolant Oil Skimmer

** (4) Orange Vise Dual Station with extra’s, Atlas Copco GX5-150T FF Compressor, and ADX 75 Smart Phase Converter are all available at an additional cost. **
