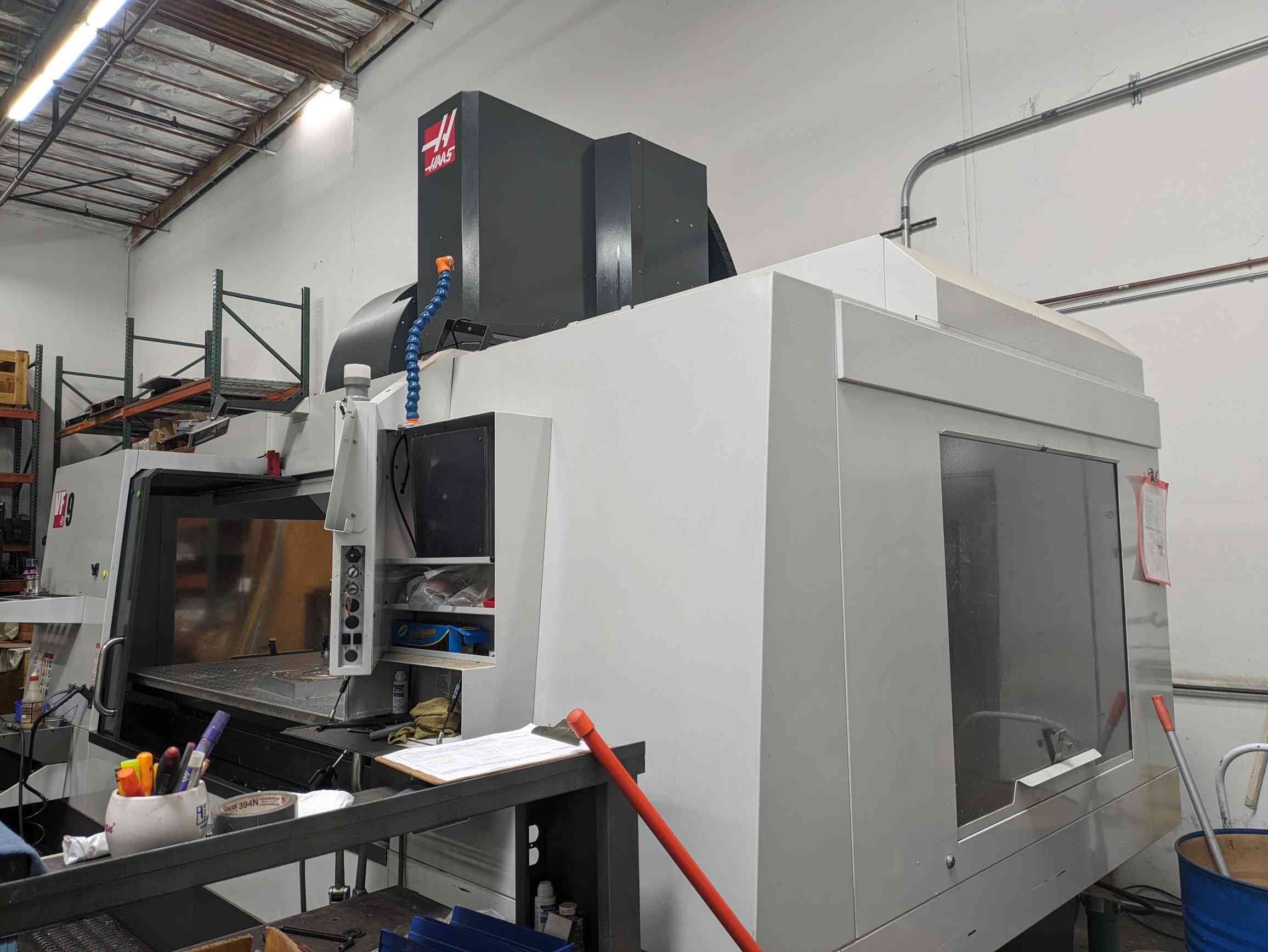

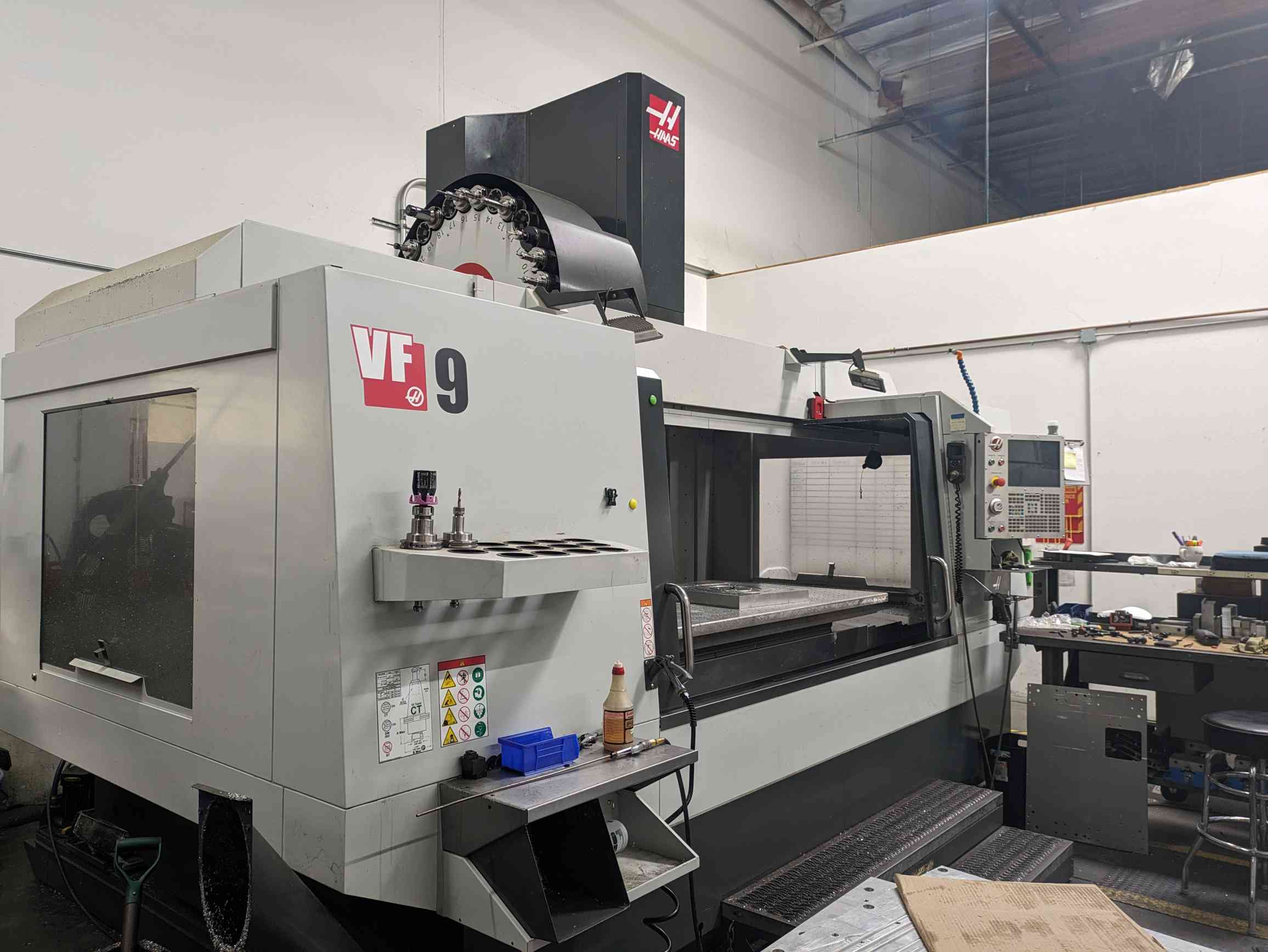

Haas VF-9/50 VMC, 2017 – Open to Offers, 4th Axis Trunnion
$134,900.00
This specific product is no longer available, however we may have other similar or identical products in stock. Please utilize our search function at the top of the page to check and confirm, or fill out the form below:
X Axis Travel: 84″
Y Axis Travel: 40″
Z Axis Travel: 30″
Rapid Rate X Axis: 600 IPM
Rapid Rate Y Axis: 600 IPM
Rapid Rate Z Axis: 600 IPM
Max Table Load: 4,000 LBS
Spindle Motor: 30 HP
Spindle Speed: 10,000 RPM
Spindle Taper: 50
Tool Changer: 40 ATC
Max Torque 90 ft lbf
Max Thrust X/Y 3400 lbf
Max Thrust Z 5600 lbf
Max Cutting 500 ipm
Table Size: 84″ x 36″
Weight: 28,300 LBS
10k Spindle, 4th axis drive, Probing, High Intensity Lighting, Linier Scales, 460V transformer, Ethernet Interface, 750mb Memory, Second Home Position, High Speed Machining, Oil Skimmer.
