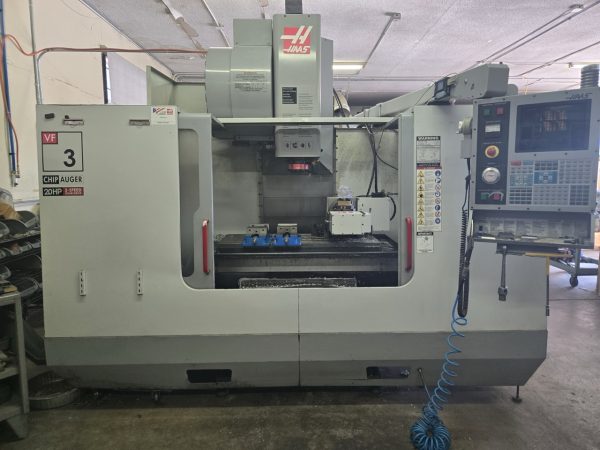

Haas VF3B UMC, 2002 – TRT210 5th Axis

X-Axis Travels: 40″
Y-Axis Travels: 20″
Z-Axis Travels: 25″
Spindle Nose to Table: 4″ – 29″
Rapid Traverse: 710 ipm
Cutting Feedrate: up to 500 ipm

Spindle Speed: 7,500RPM
Spindle taper: CAT40
Spindle Motor: 20HP
Max Torque: 90ft/lb

Table Size: 18″ x 48″
Max Table Load: 3,500lbs

Tool Changer Type: 20-Station Carousel
Max Tool Diameter: 10″
Max Tool Length: 12″
Max Tool Weight: 12lbs

Approximate Machine Weight: 12,500lbs
Machine Dimensions: 10.5′ x 8.5′
Electrical: 208V

Equipped With
Haas Control
Haas TRT210 5th Axis
