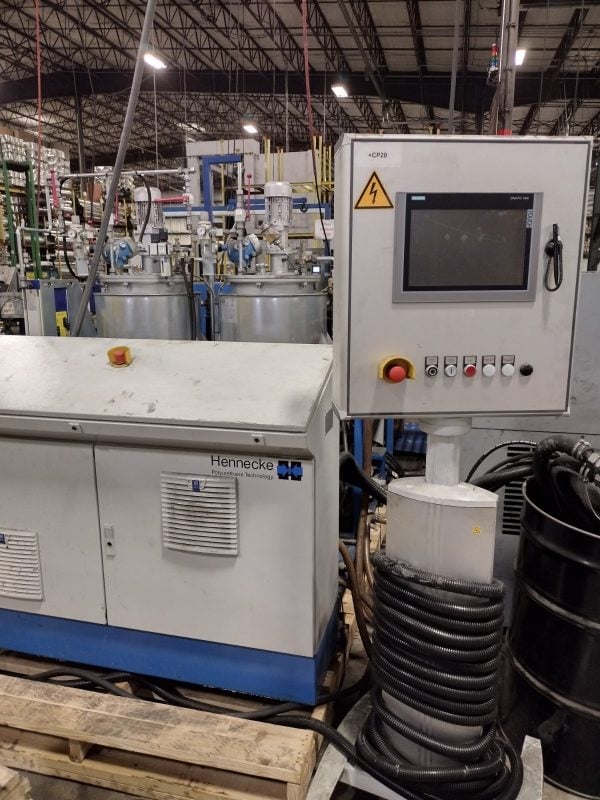

Hennecke MicroLine 45 R/MT Polyurethane Metering Machine – 2019, High-Precision PU Dispensing System (2)

1 metering unit for Polyol with an HP 2 metering pump, max. nominal output
approx. 54 cm3 /sec at 2.6 kW/1800 min-1

1 metering unit for Isocyanate with an HP 2 metering pump, max. nominal output
approx. 54 cm3 /sec at 2.6 kW/1800 min-1

2 set of safety valves, electronic pressure indicators, on delivery and suction side;
line system

1 machine support frame with integrated, removable collection troughs

1 hydraulic unit including pressure accumulator, valves and accessories

2 low-pressure recirculation via frequency converter

1 MT-3, mixhead piston-cleaned

6 meters of flexible lines to the mixhead
