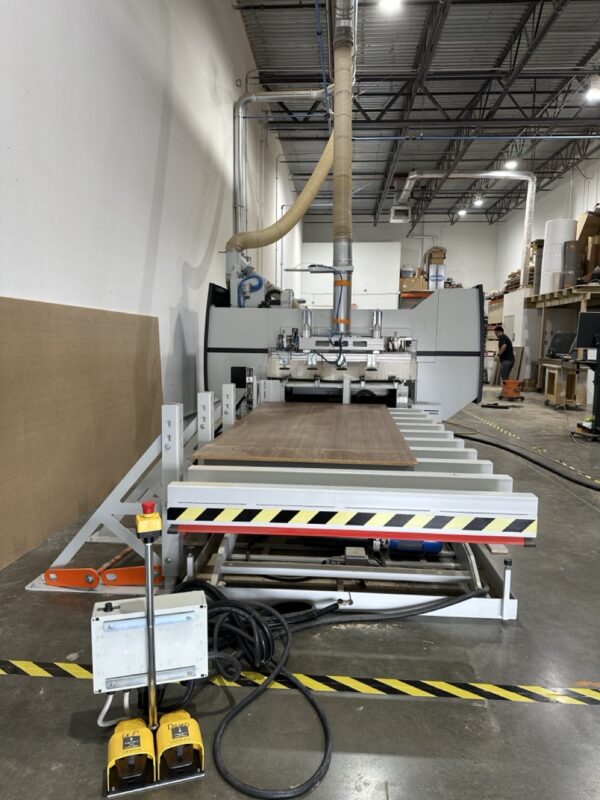

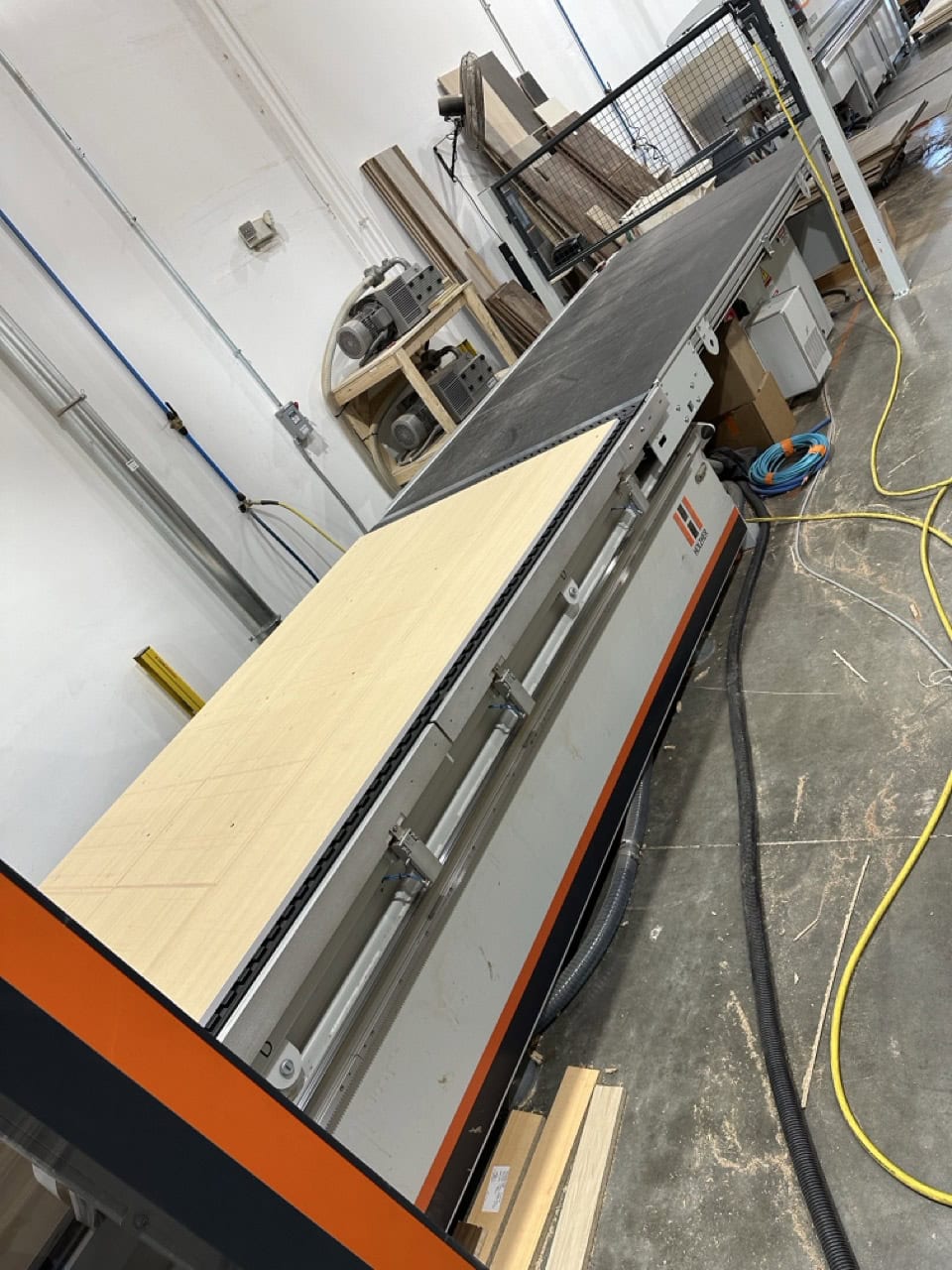

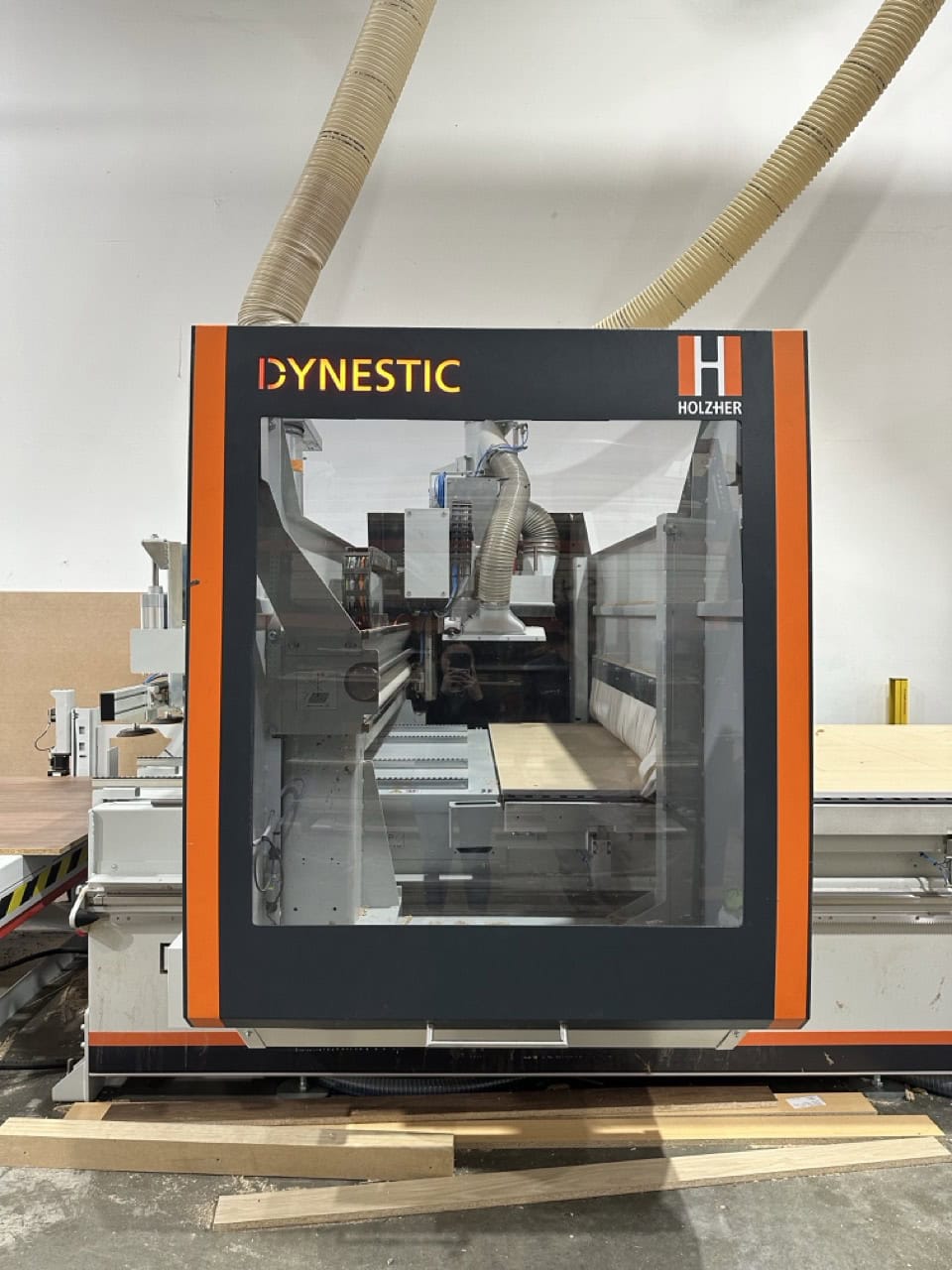

Holz-Her Dynestic 7505 CNC Processing Center, 2023 – Videos Available
$114,900.00
This specific product is no longer available, however we may have other similar or identical products in stock. Please utilize our search function at the top of the page to check and confirm, or fill out the form below:
Working Area: 145″ x 62.99″
X Axis Travel: 182.8″
Y Axis Travel: 74.4″
Z Axis Travel: 12″
Workpiece passage height for tool change spindle
with HSK 63F tool mount: 9.44″
Max. processing thickness / insertion height
(rear stop): 4.72″
Max. workpiece size for vertical drilling (X): 159.44″
Max. workpiece size for vertical drilling (Y): 68.70″
Max. workpiece size for horizontal drilling: X= 152.36″, Y= 71.25″
Max. workpiece size for milling minus the milling
radius: X= 154.92″, Y = 62.40″, Z= 6.69″
Max. workpiece size for grooving in X: X= 157″, Y = 74.6″
Spindle Speed: 24,000 RPM
Machine Weight: 17,000 LBS
Equipped With:
6 Station Tool Changer
Vaccum Table
