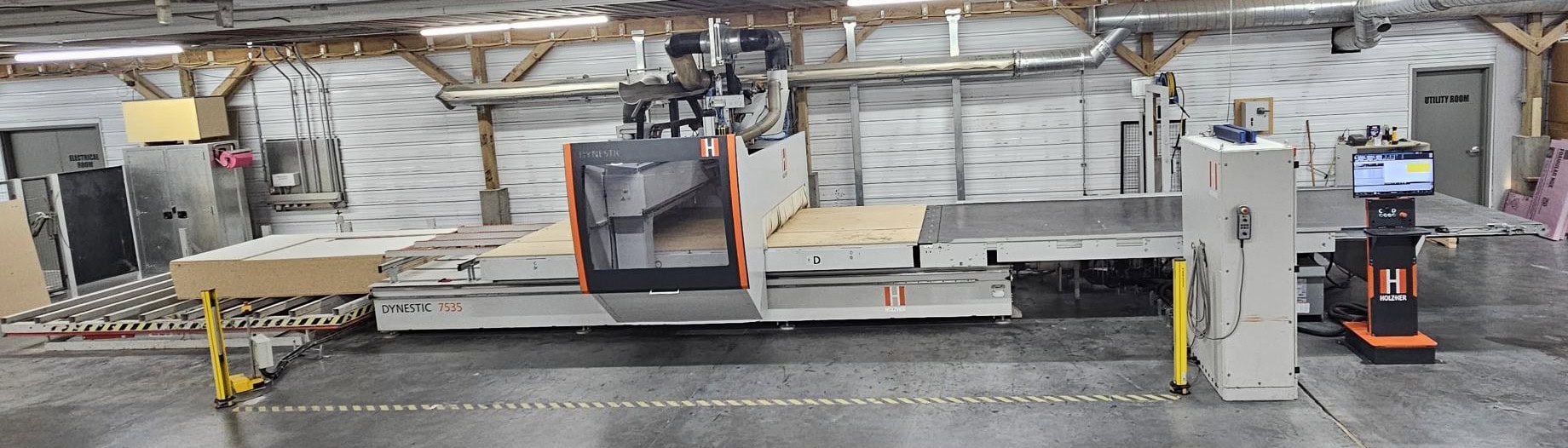

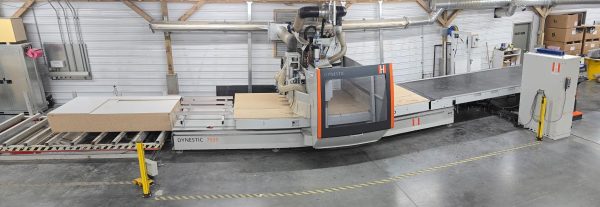

Holz-Her Dynestic 7535 CNC Processing Center, 2019 – Tool Changer, 5 Axis

Nesting Table Dimension
X: 181.1″
Y: 86.6″

Max Displacement
X: 243.9″
Y: 115.5″
Z: 22.24″

Max Passage Height without Pusher: 11.81″
Max Passage Height of Pusher over the Table of Push/Auto Lift: 9.84″

Max Programmable Speed:
Vector Speed: 5039.37″ / min
X: 3149″ / min
Y: 3937″ / min
Z: 984″/ min

Spindle Speed: 24,000 RPM
Spindle Motor: 16 HP
C-axis: +/- 360°
A-axis +/- 180°

Tool changer: 18 positions

Equipped With:

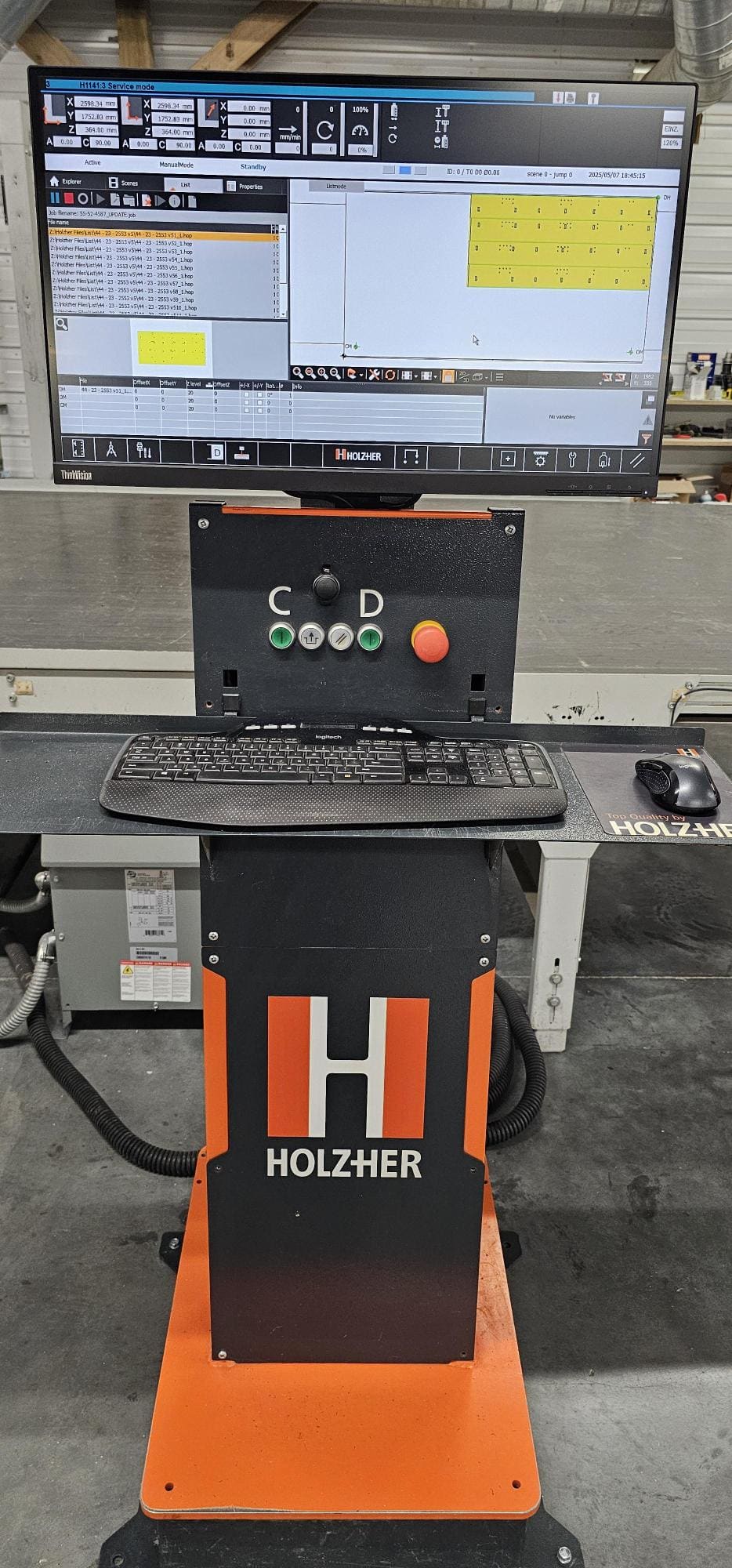

Siemens Industial-PC controller
CAMPUS V7 Plus CAD/CAM Software
18 Station Tool Changer
Dual Drive Gantry Design
Rack Drive (X,Y)
Boll Roller Spindle (Z)
Matrix Table
1 Rear Machining Field with Stop
USB Connector
