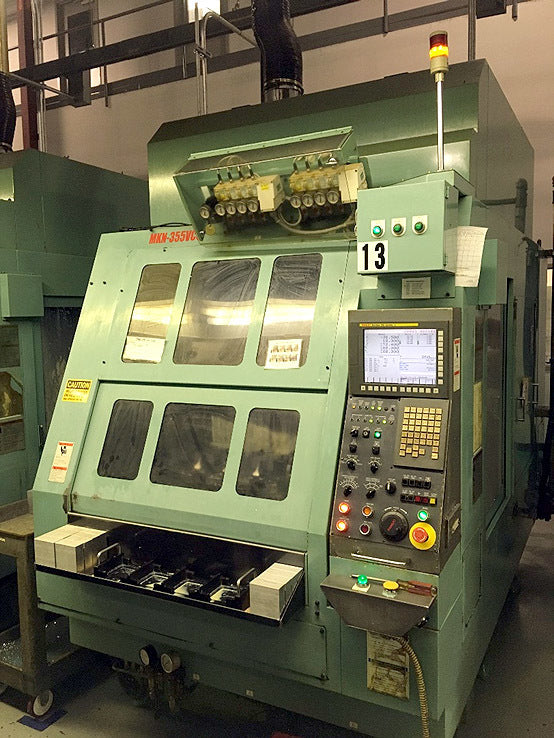

Howa MKN-P355-VCJ VMC, 2007- Fanuc, 2 Pallet Changer, TSC
$11,900.00
This specific product is no longer available, however we may have other similar or identical products in stock. Please utilize our search function at the top of the page to check and confirm, or fill out the form below:
X-Axis Travel: 21.65″ (550 mm)
Y-Axis Travel: 12.60″ (320 mm)
Z-Axis Travel: 15.75″ (400 mm)
Cutting Feed Rate: 0.04 – 787 IPM
Rapid Speed (X/Y/Z): 2,362 IPM
Table Size: 25.6″ x 14.2″ (650 x 360 mm)
Table Capacity: 551 lbs (each pallet)
Spindle Taper: 30
Spindle Speed: 10,000 RPM
Spindle Motor: 7.4 HP
Auto Tool Changer: 24 Tools
Electrics: 200 V; 3 Ph; 60 Hz
Approx Machine Dimensions: 111″ x 59″ x 98″
Approx Weight: 9,040 lbs
EQUIPPED WITH:

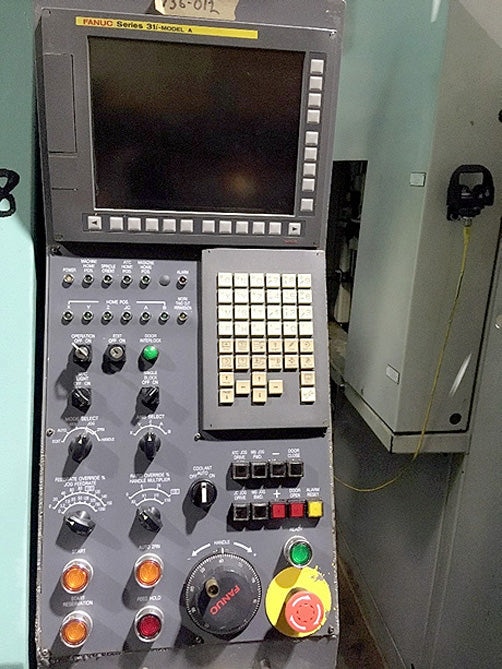

Fanuc 31i-MA CNC Control
Through Spindle Coolant

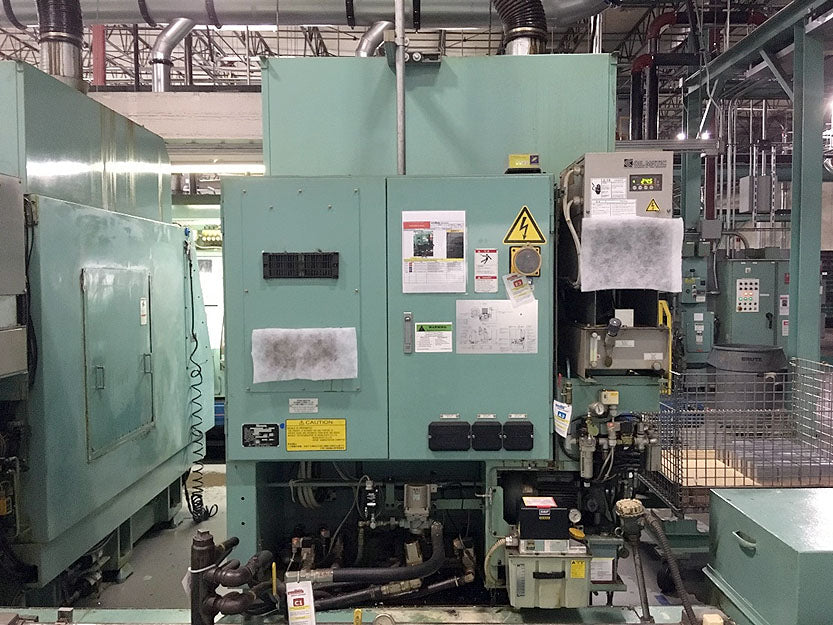

Oil Chiller Unit

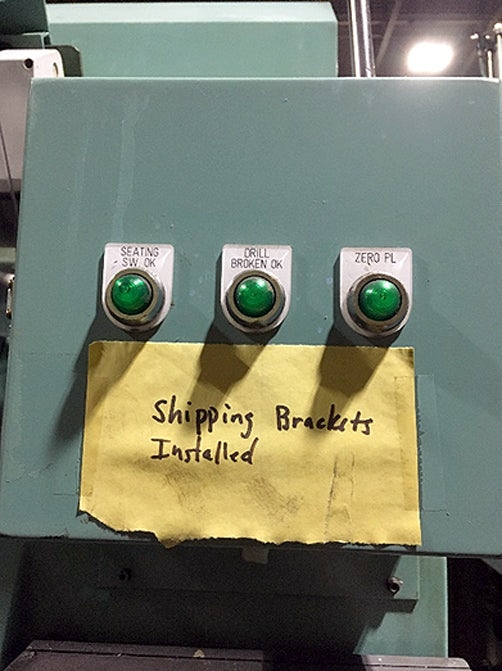

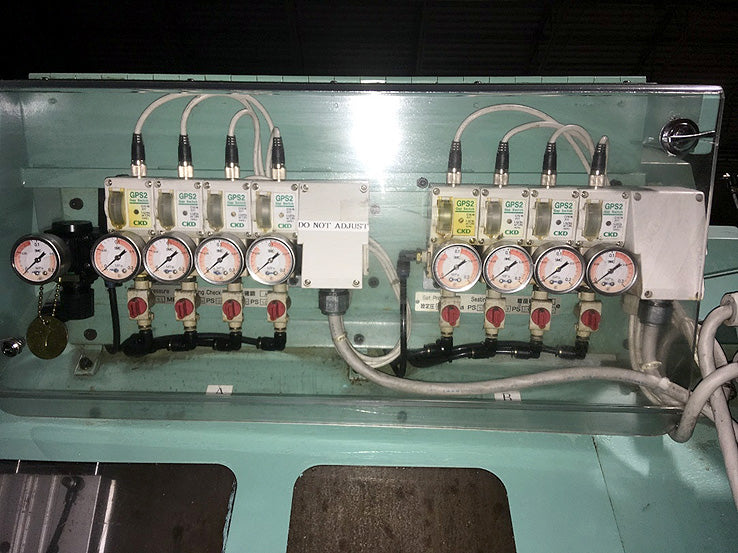

CKD Seating Sensors
Broken Tool Detection

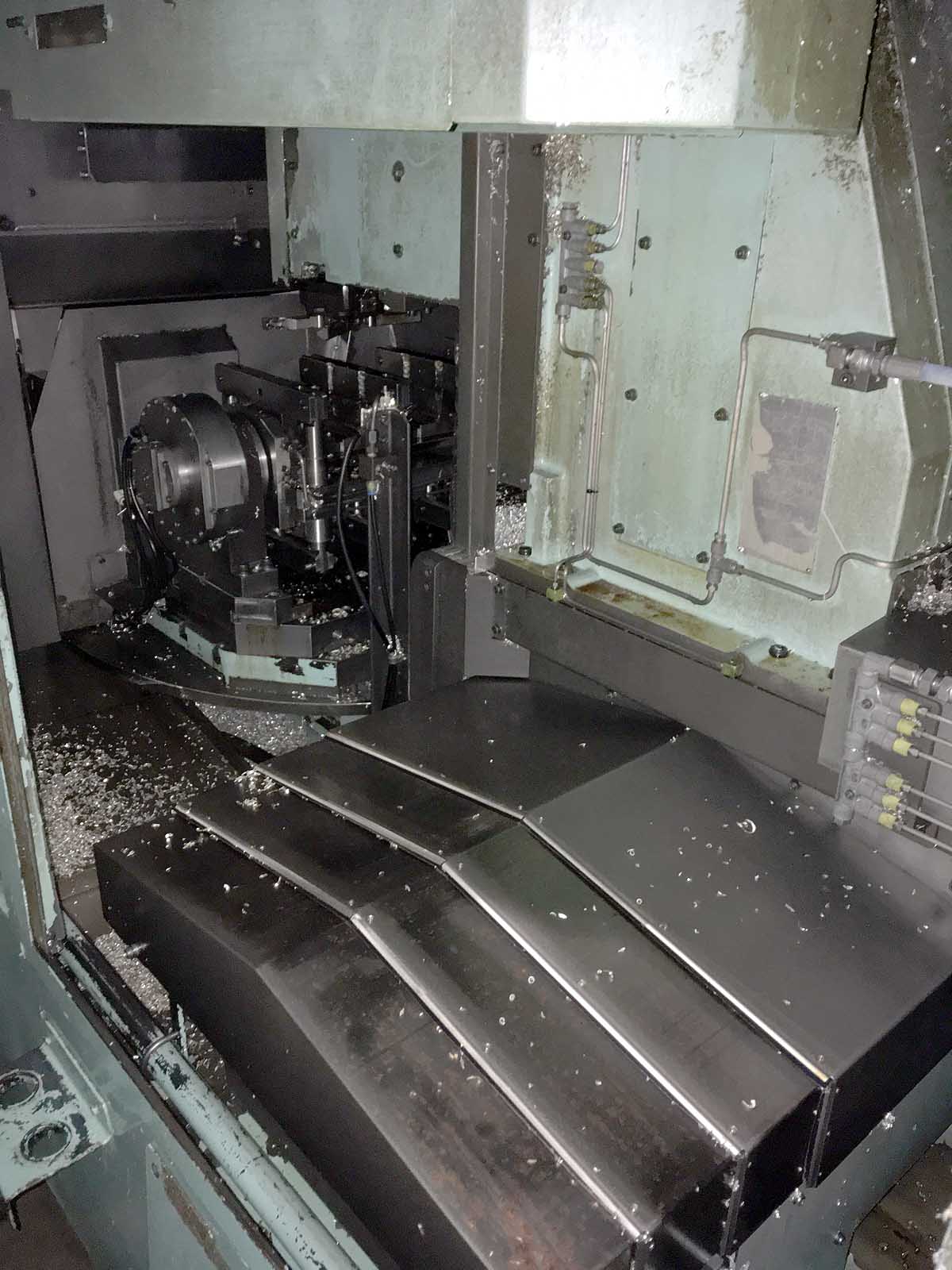

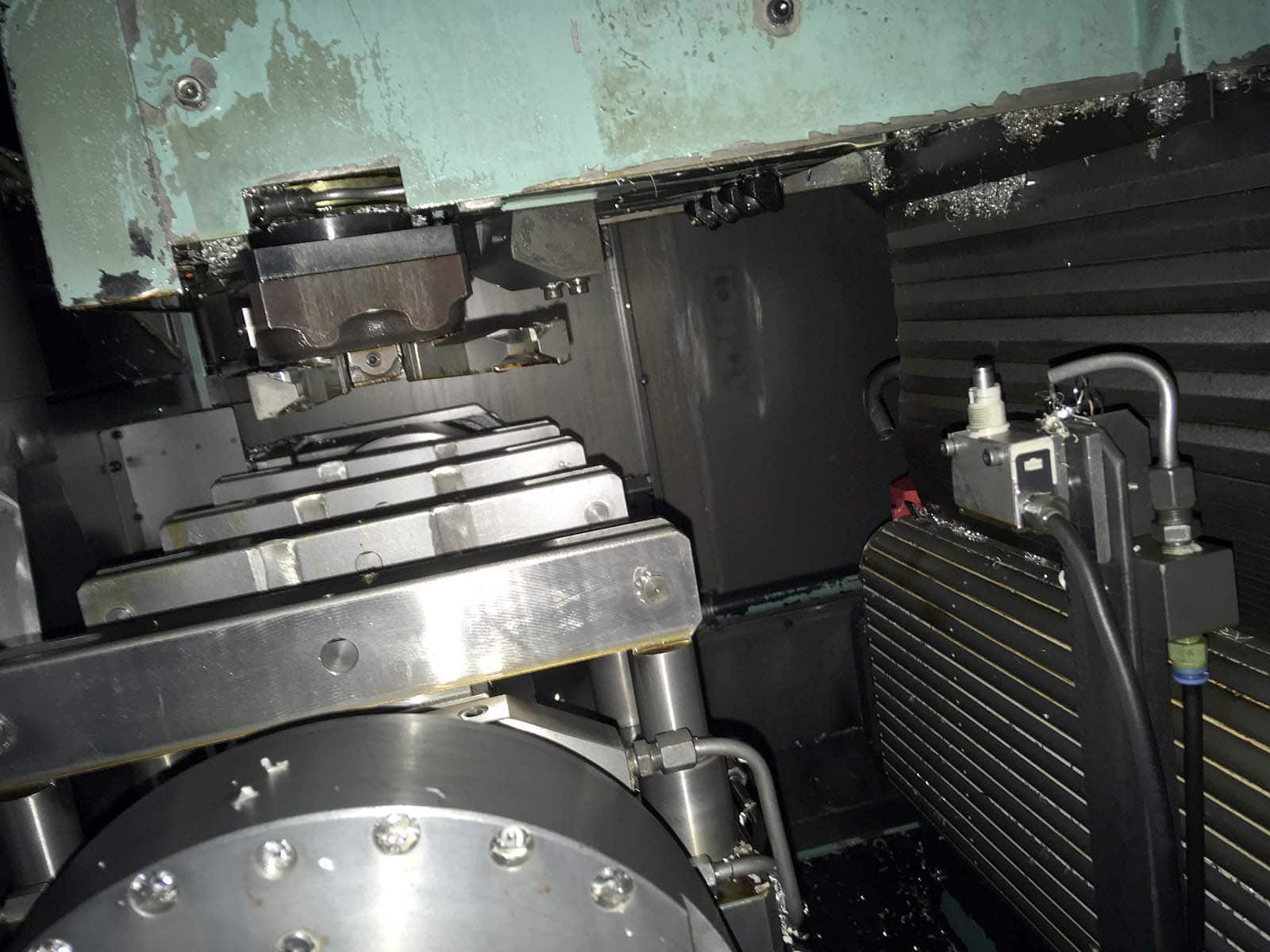

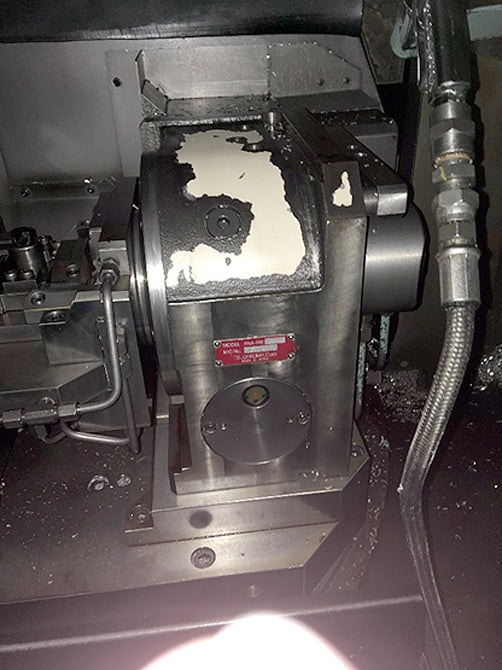

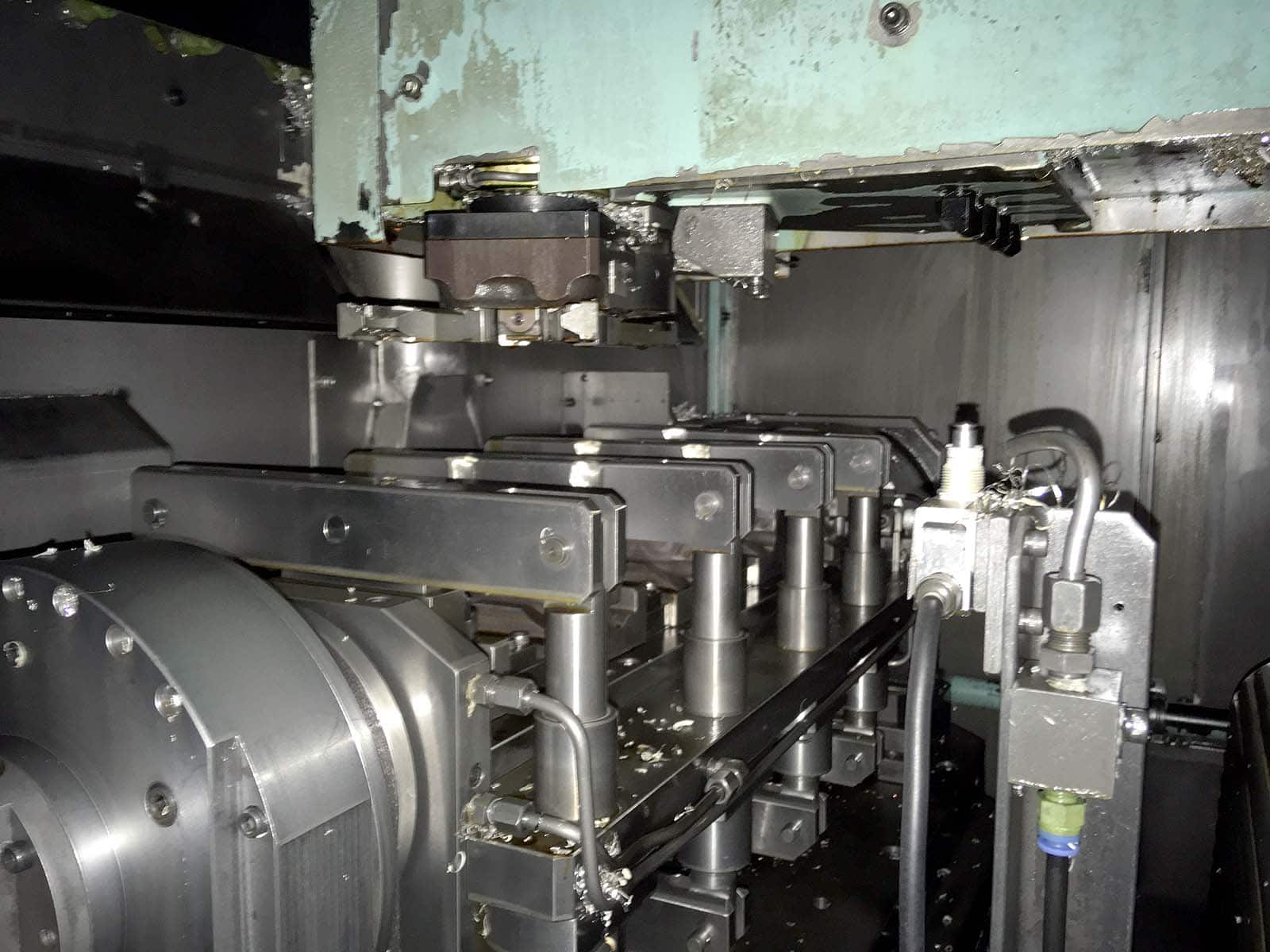

Tsudakoma Indexers with Support Side Braking
Remachine Function- Double Cut Detection
Automatic Tool Changer- 24 Positions
Automatic Pallet Changer- 2 Pallets
No Chip CV (Used on Central System)

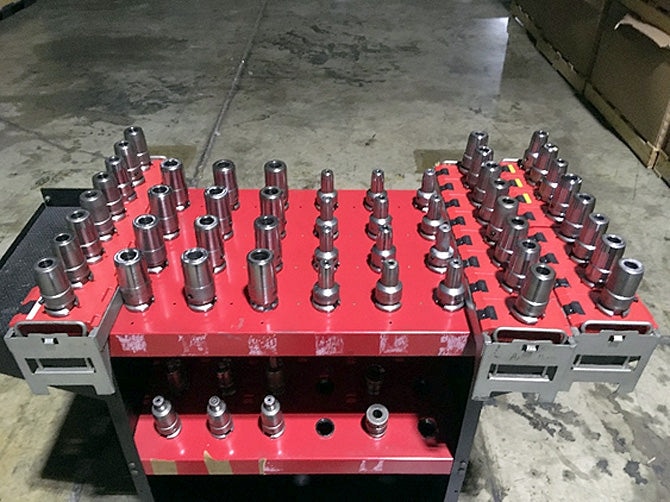

Tool Holders- Approx 60 pcs
