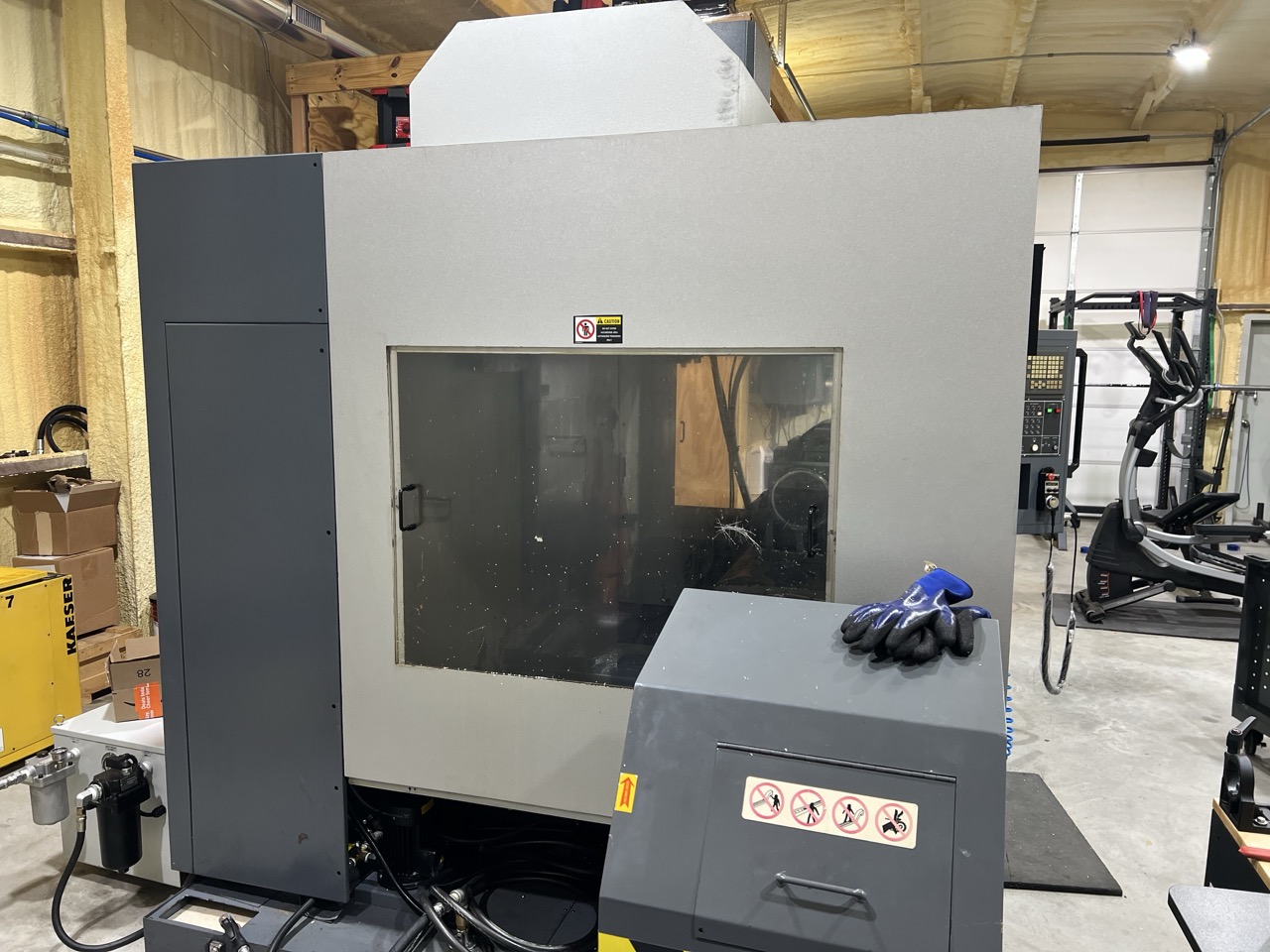

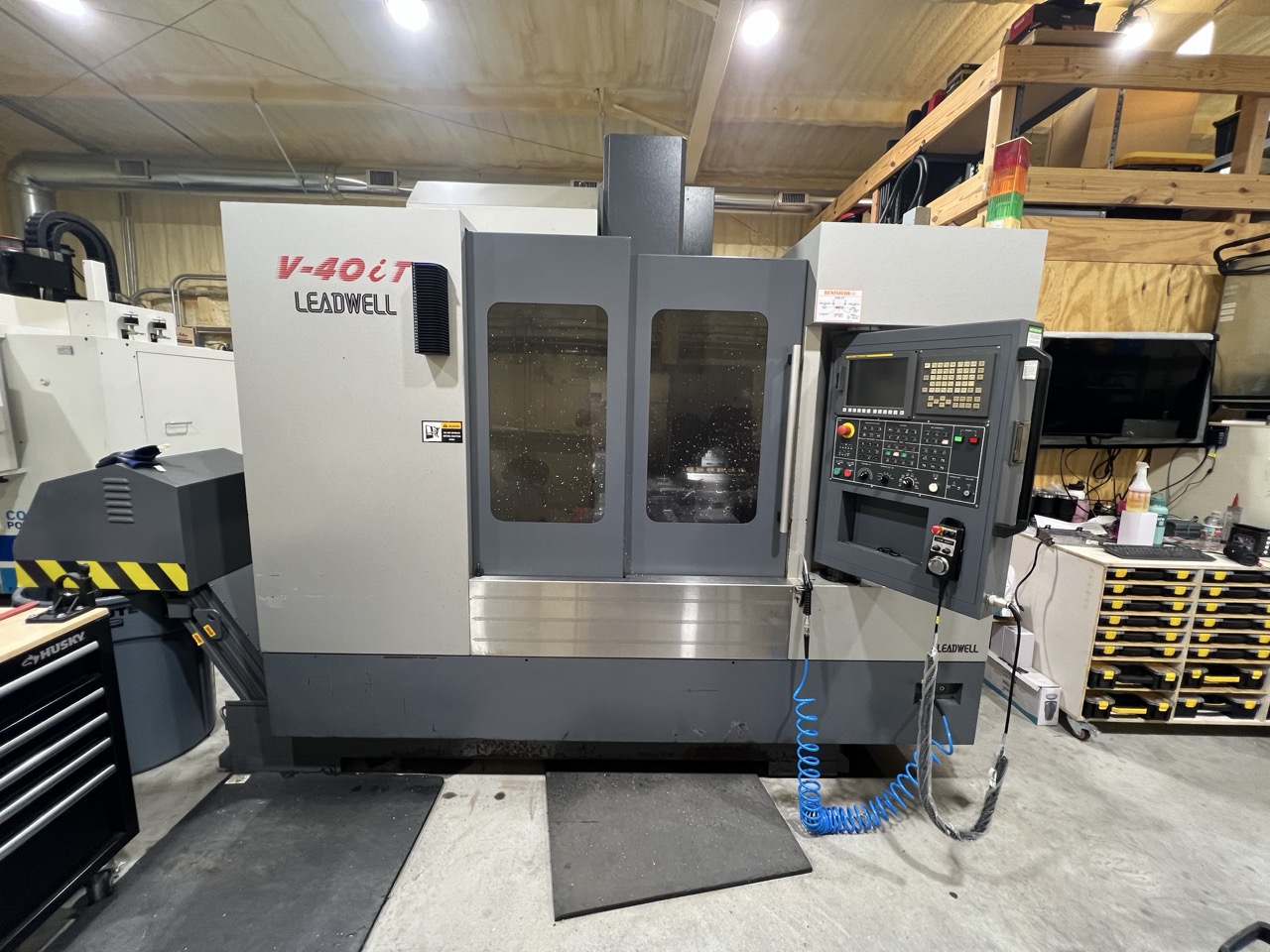

Leadwell V-40it 40″x20″ VMC 4th/5th Axis, 2011 – Trunnion Table, TSC and Low Hours

$75,000.00

Leadwell V-40it 40"x20" VMC 4th/5th Axis, 2011 - Trunnion Table, TSC and Low Hours
Leadwell V-40it 40"x20" VMC 4th/5th Axis, 2011 - Trunnion Table, TSC and Low Hours - Image 2
Leadwell V-40it 40"x20" VMC 4th/5th Axis, 2011 - Trunnion Table, TSC and Low Hours - Image 3
Leadwell V-40it 40"x20" VMC 4th/5th Axis, 2011 - Trunnion Table, TSC and Low Hours - Image 4
Leadwell V-40it 40"x20" VMC 4th/5th Axis, 2011 - Trunnion Table, TSC and Low Hours - Image 5
Leadwell V-40it 40"x20" VMC 4th/5th Axis, 2011 - Trunnion Table, TSC and Low Hours - Image 6
Leadwell V-40it 40"x20" VMC 4th/5th Axis, 2011 - Trunnion Table, TSC and Low Hours - Image 7
Leadwell V-40it 40"x20" VMC 4th/5th Axis, 2011 - Trunnion Table, TSC and Low Hours - Image 8
Leadwell V-40it 40"x20" VMC 4th/5th Axis, 2011 - Trunnion Table, TSC and Low Hours - Image 9
Leadwell V-40it 40"x20" VMC 4th/5th Axis, 2011 - Trunnion Table, TSC and Low Hours - Image 10
Leadwell V-40it 40"x20" VMC 4th/5th Axis, 2011 - Trunnion Table, TSC and Low Hours - Image 11
Leadwell V-40it 40"x20" VMC 4th/5th Axis, 2011 - Trunnion Table, TSC and Low Hours - Image 12
Leadwell V-40it 40"x20" VMC 4th/5th Axis, 2011 - Trunnion Table, TSC and Low Hours - Image 13
Leadwell V-40it 40"x20" VMC 4th/5th Axis, 2011 - Trunnion Table, TSC and Low Hours - Image 14

Request a Quote to Instantly See Pricing

Call Now

Machine Type: 5-Axis Vertical Machining Centers
Make: Leadwell V
Model: 40it
Year: 2011
Machine Location: Upon Request
Stock #: 978936

Spindle Speed: 12000 RPM
Number of tables / pallets: 1
Table size: 22″ X 13.3″
Weight on table: 440 / 220 LBS.
Integrated nc table size: 13.8″ ROUND
Spindle nose to table: 1.9″ – 21″
Main spindle speeds: 12,000 RPM
Main spindle taper: 40 CT
Main spindle horse power: 24.8 HP
X – axis travel: 40″
Y – axis travel: 25″
Z – axis travel: 21″
A – axis travel: + – 90 DEGREES
B – axis travel: .001 DEGREE
Rapid traverse x, y, z: 1417, 1417, 1417 IPM
Cutting feed rate: 394 IPM
Automatic tool changer: 24 ATC
Tool diameter: 3.7″ / 5.2″
Tool length: 9.8″
Machine weight: 15,432 Lbs.

Equipped With:

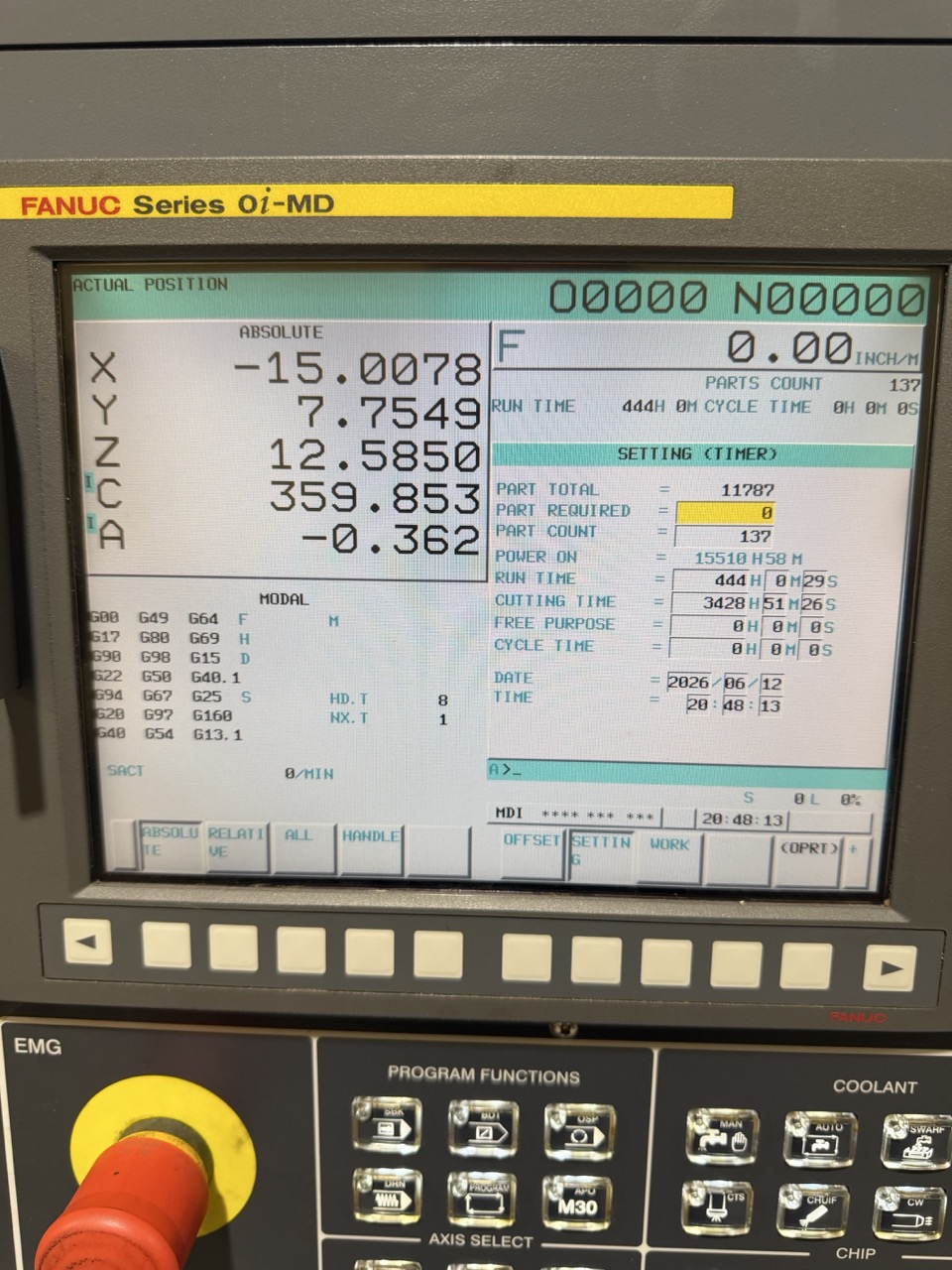

Fanuc G68.2
Renishaw Probe/Tool Setter Package

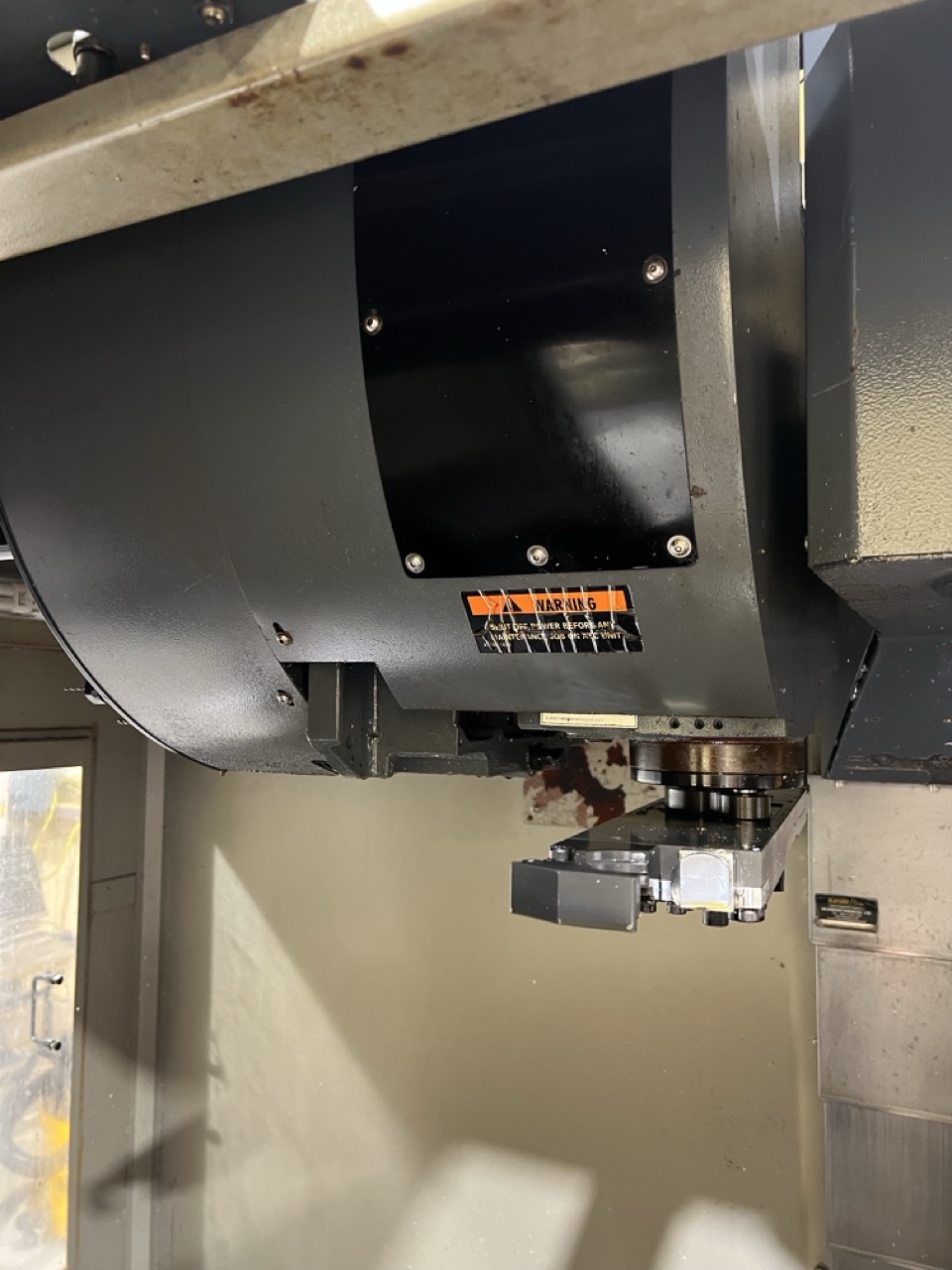

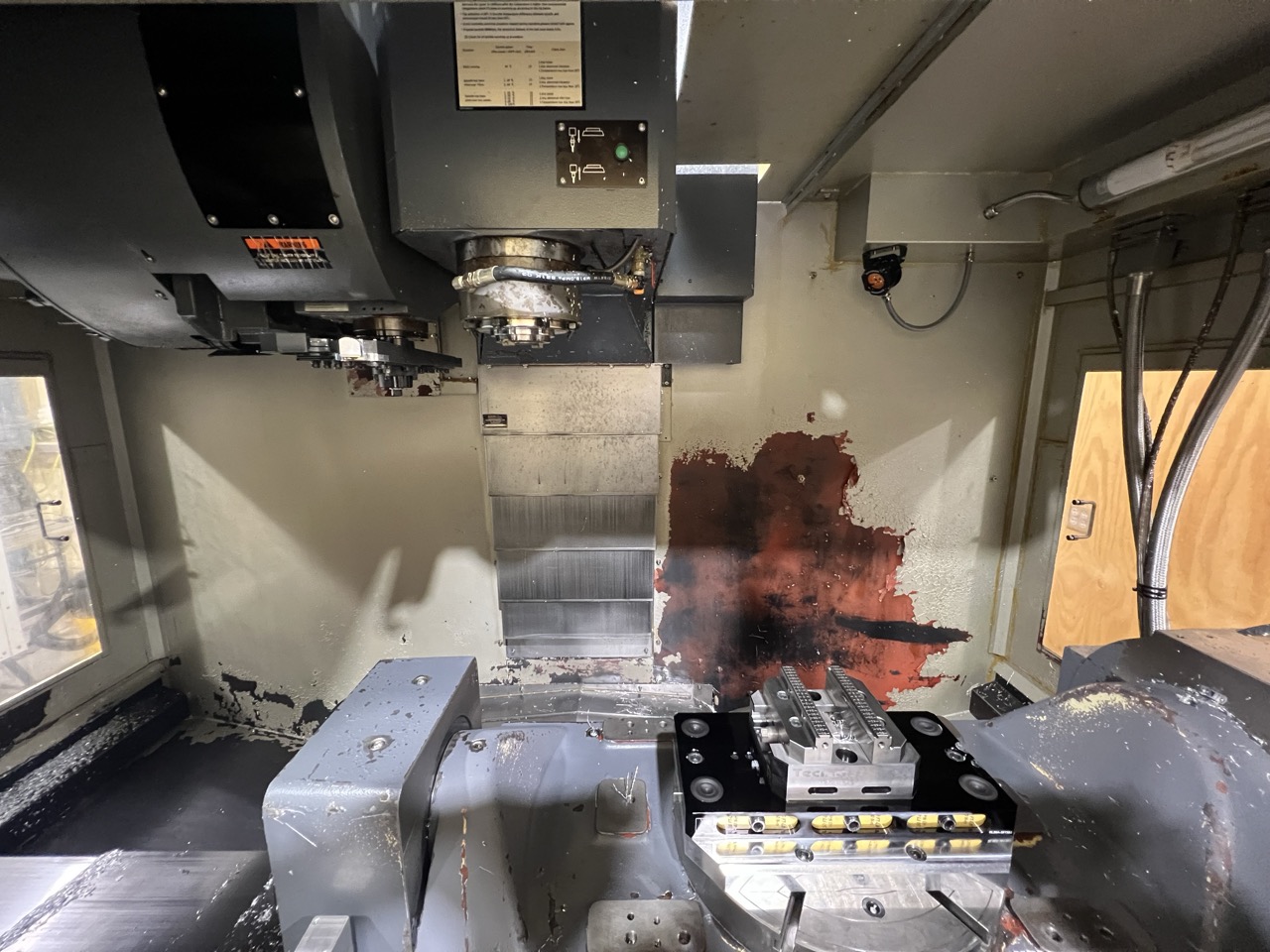

Trunnion Table
Thru Spindle High Pressure Coolant
High Pressure Coolant

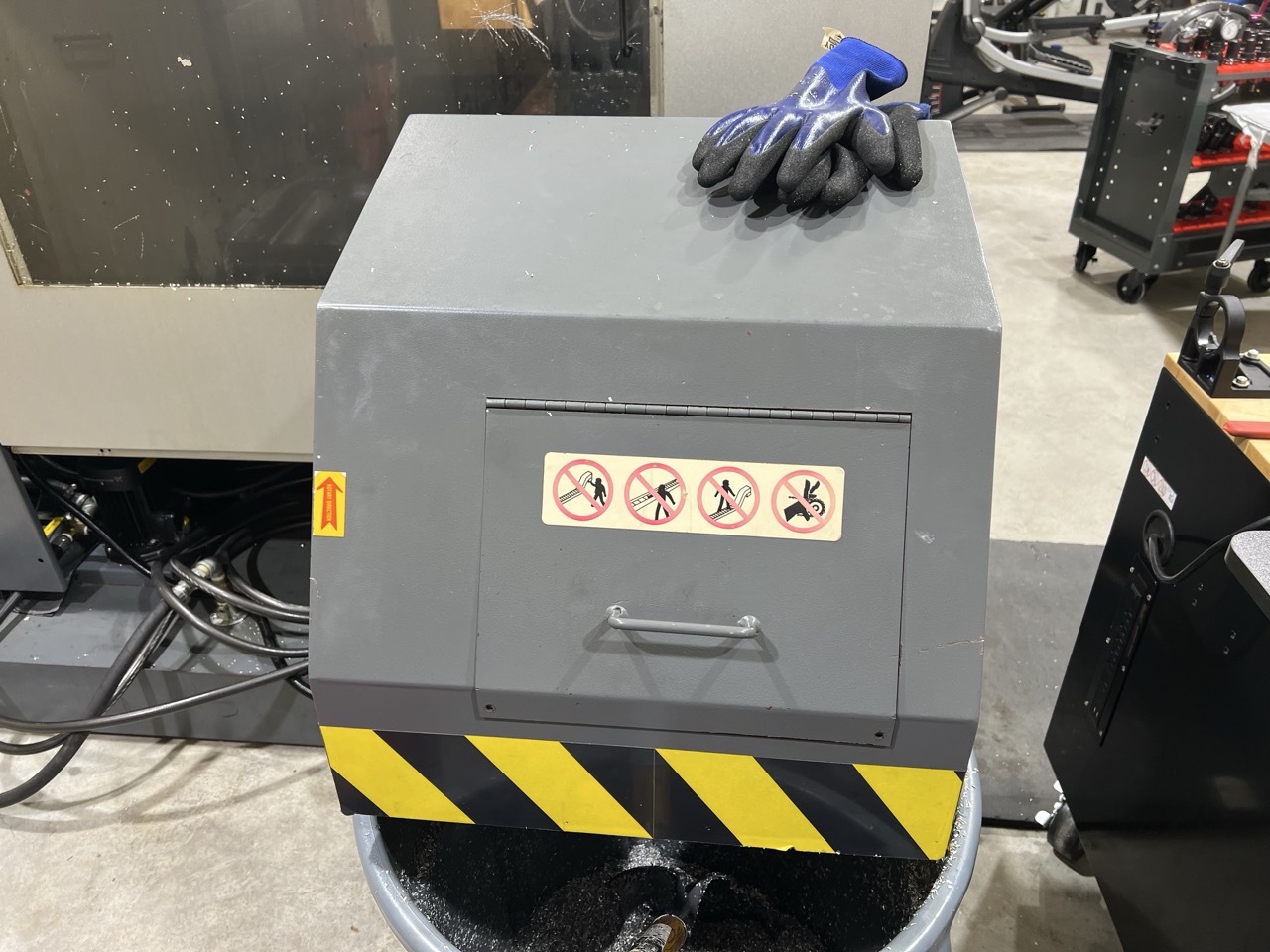

Chip Conveyor

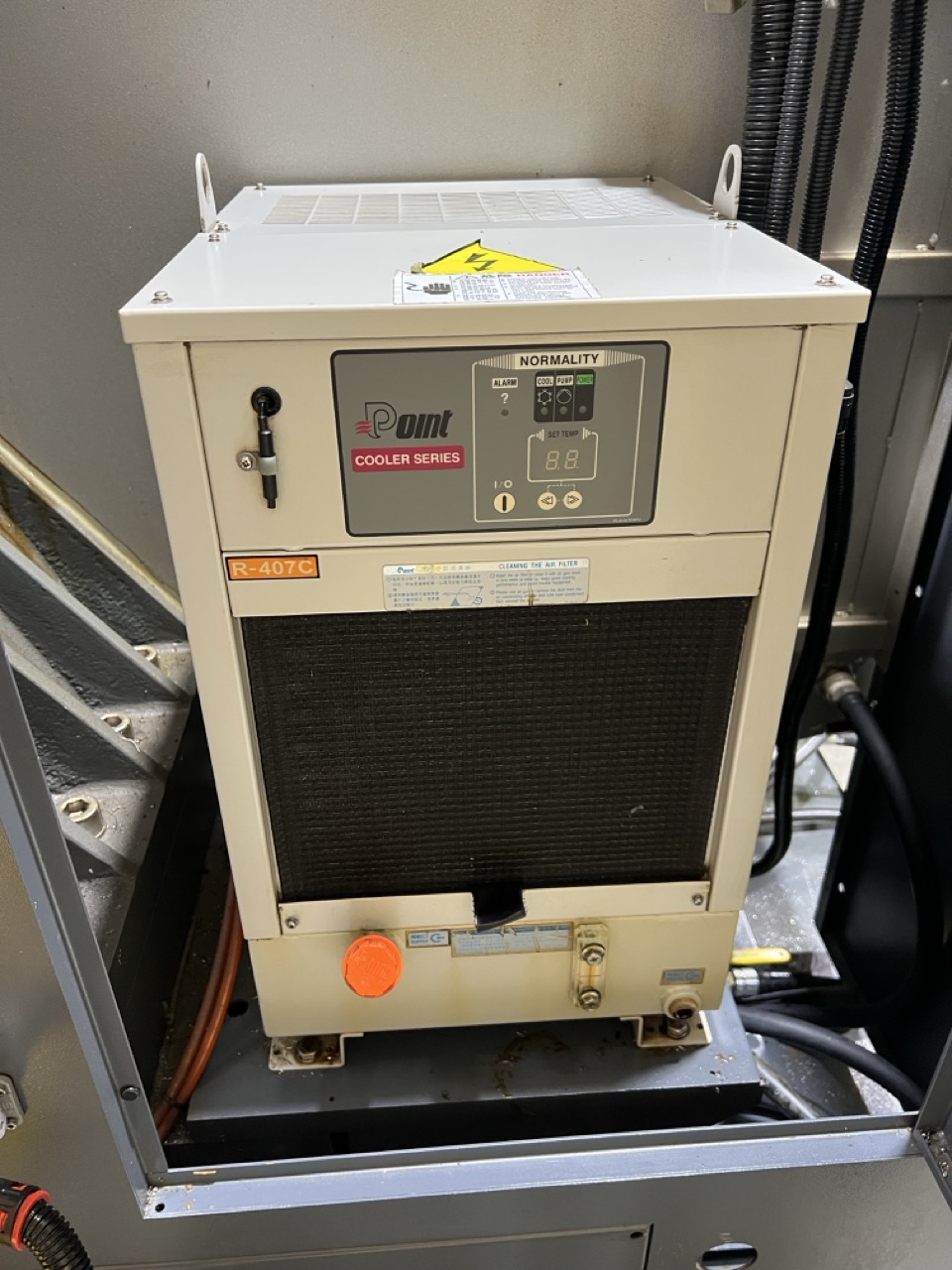

Cooler

All specifications are assumed to be correct but must be confirmed by the purchasing entity.
