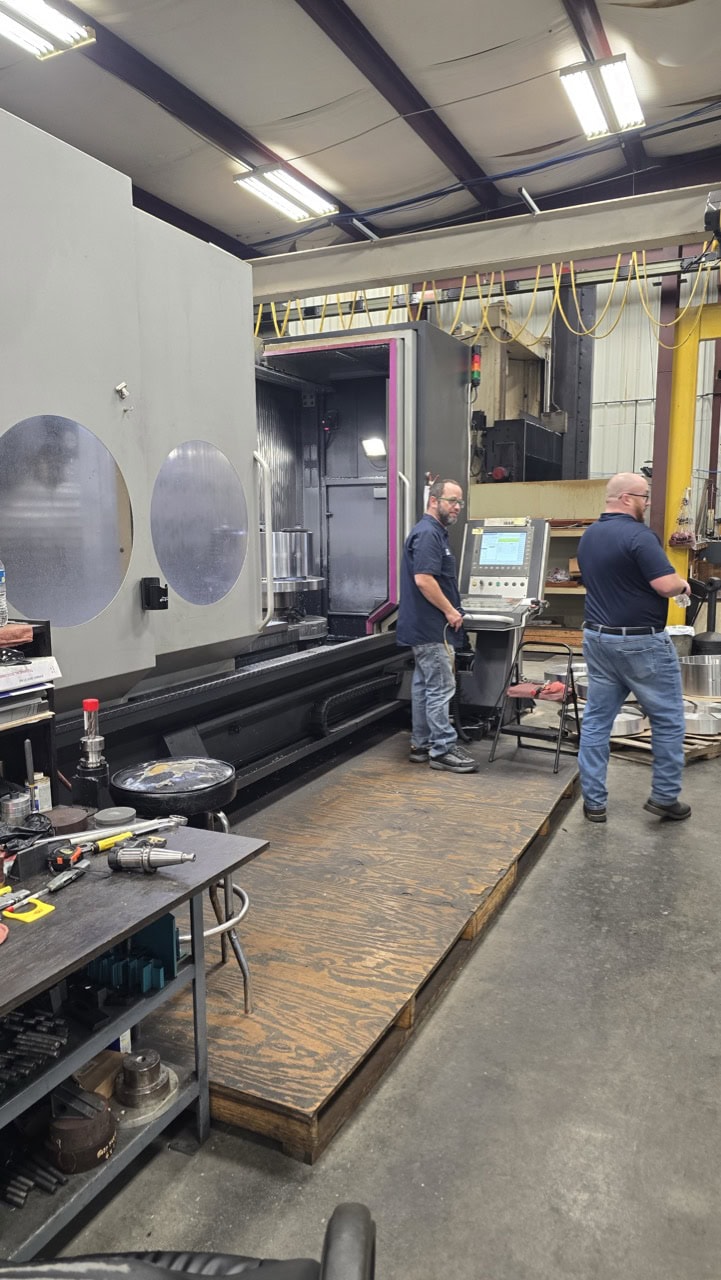

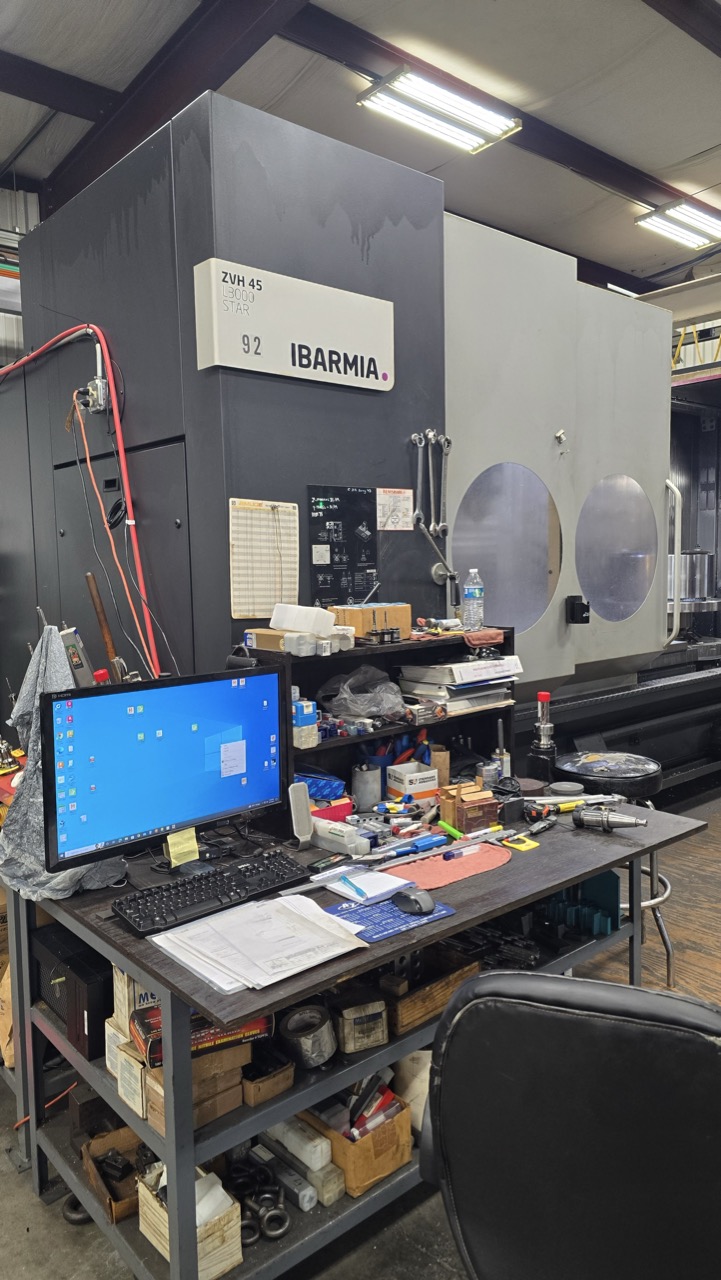

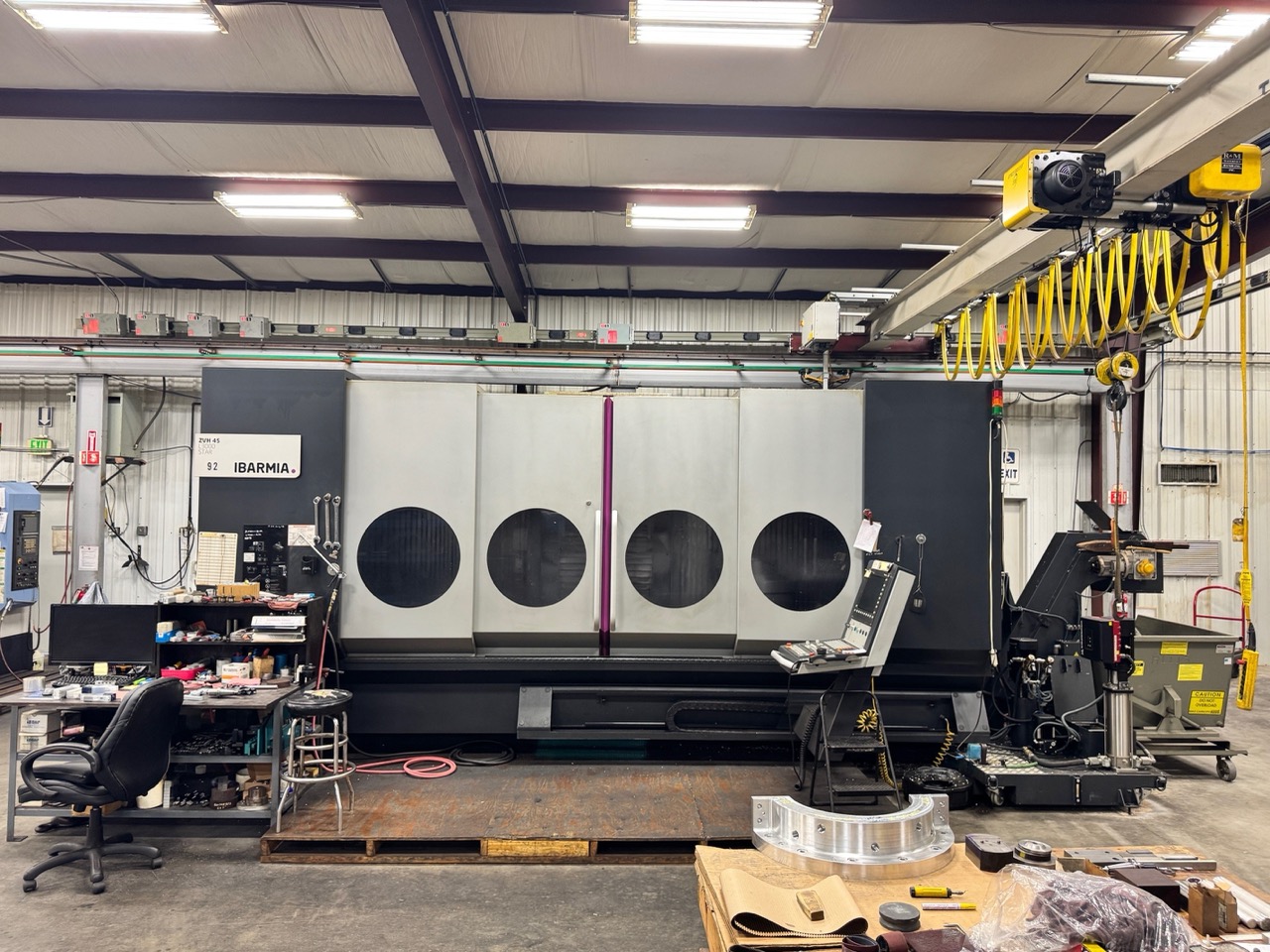

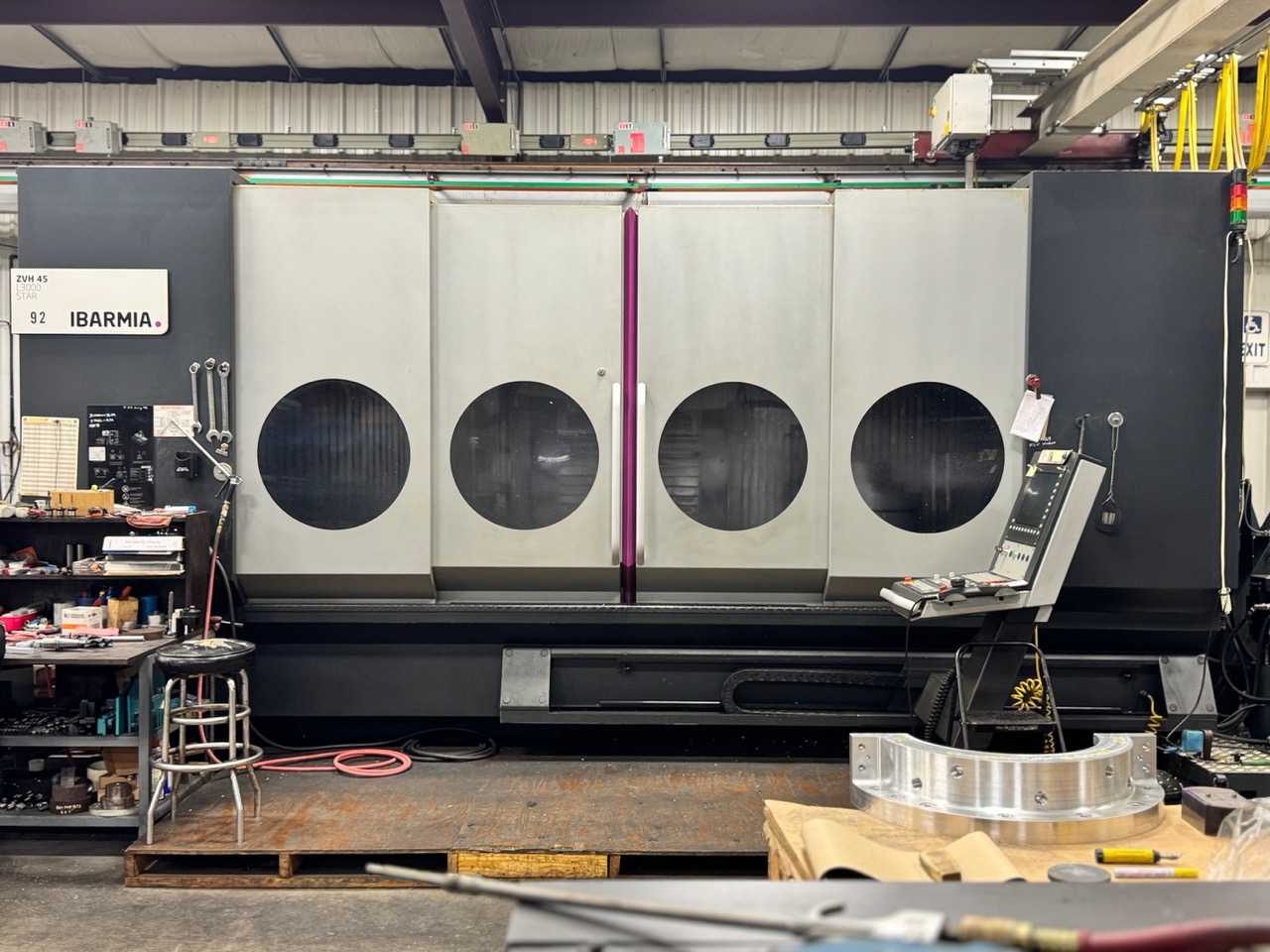

Ibarmia CNC VMC ZVH 45/L3000 Star, 2018 – 5 Axis Machining Center, Heidenhain TNC 640 HSCI Control, Heidenhain HR-510, Renishaw Probe System, Air Through Spindle
$264,900.00
This specific product is no longer available, however we may have other similar or identical products in stock. Please utilize our search function at the top of the page to check and confirm, or fill out the form below:
X-Axis : 118″
X-Axis in 2 Working Areas: 47″
Y-Axis: 32″
Z-Axis : 32″
B-Axis: +/- 105ยบ
C-Axis: 44″
Max. Spindle Speed: 12.000 rpm
Spindle Power: 60 hp
Spindle Torque: 148 ft/lbs
Tools: 40 tools

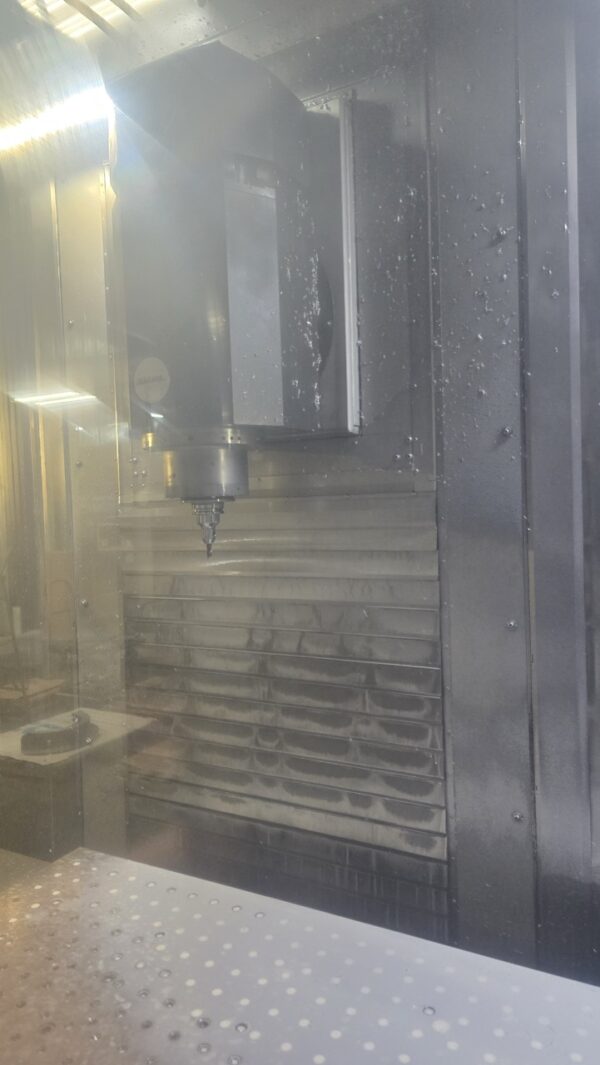

Spindle Taper: SK40

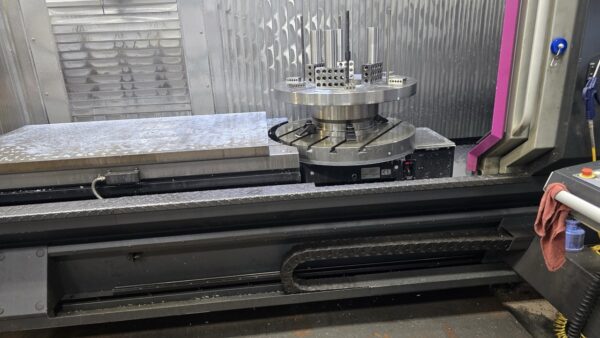

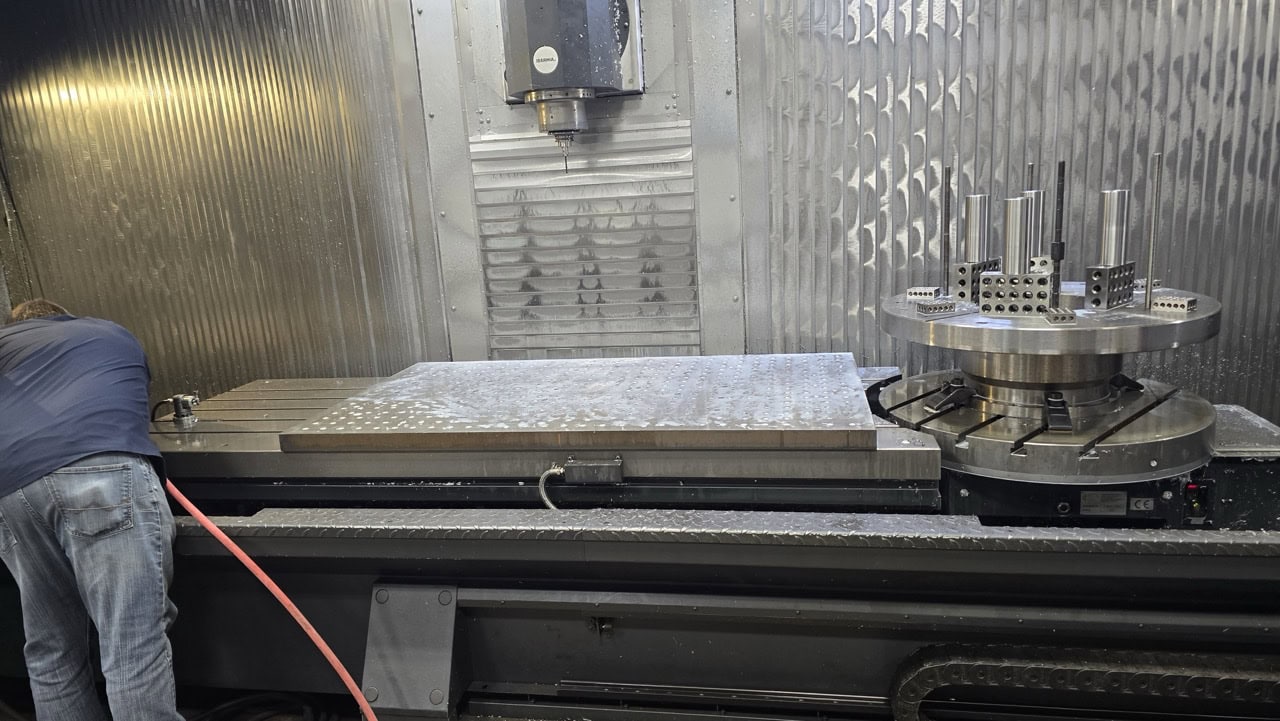

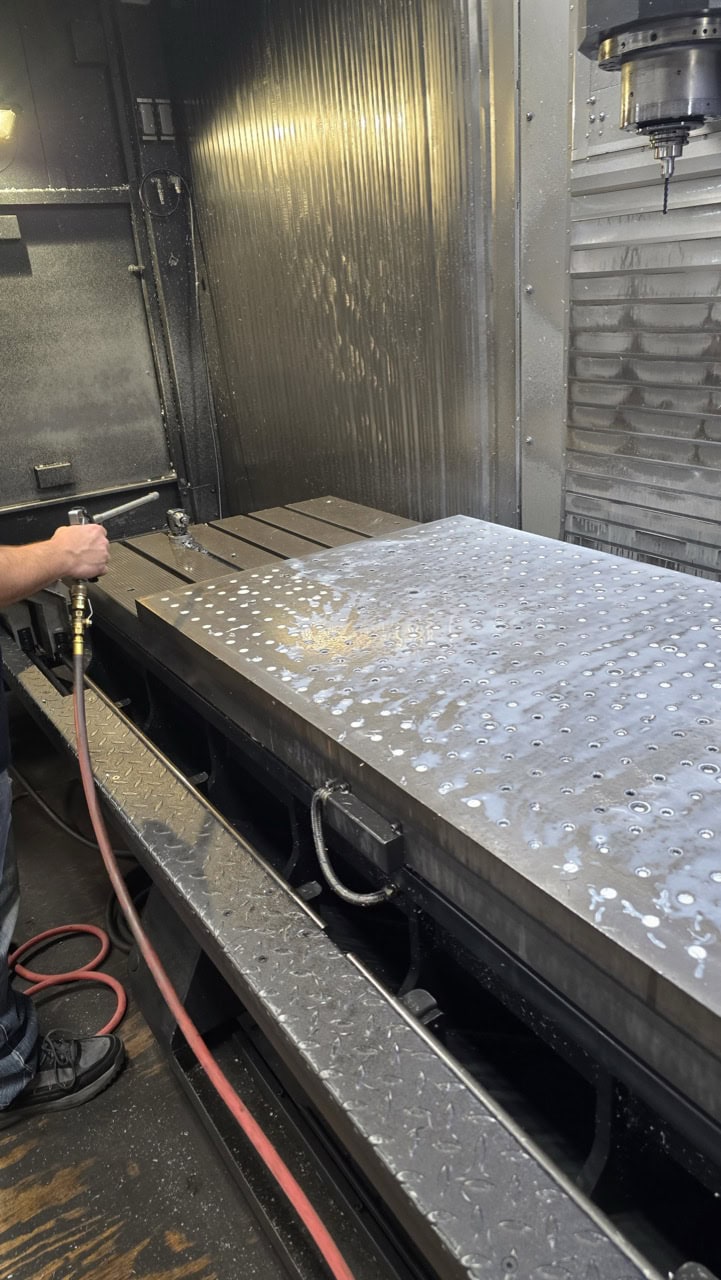

Table: 118″ x 34″
Table Load Capacity: 3,306 lbs
T Slots: 5
Table Height: 41″
Tilt Head Torque: 577 ft/lbs
Tilt Head Clamping Force: 4,425 ft/lbs
Equipped With:

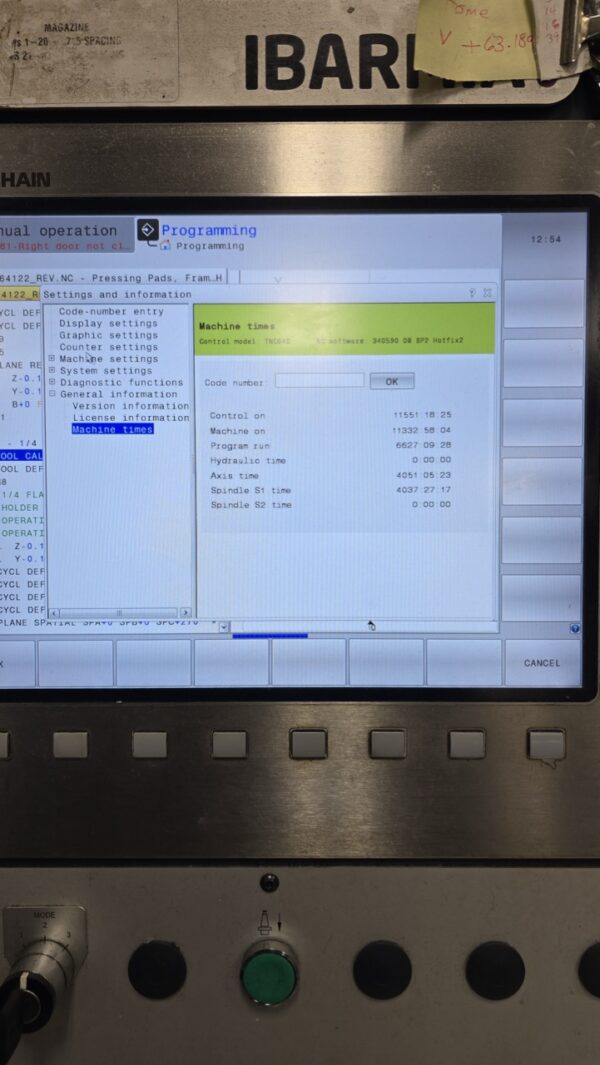

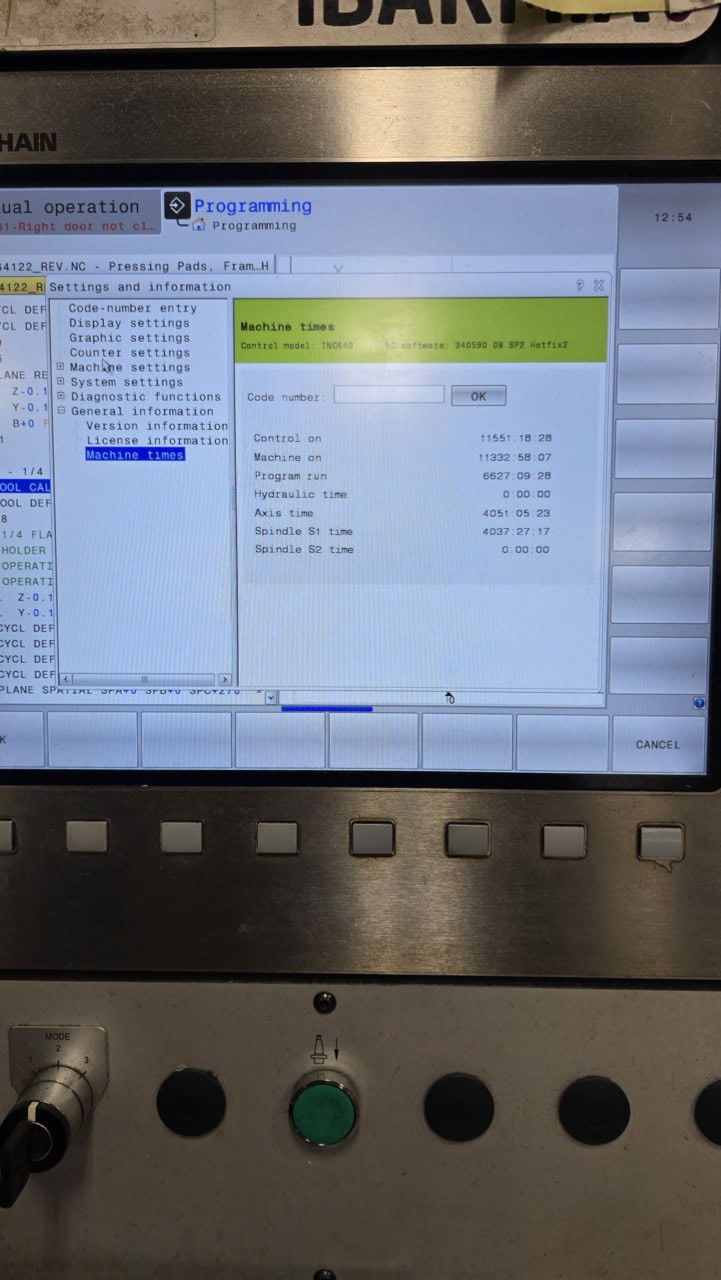

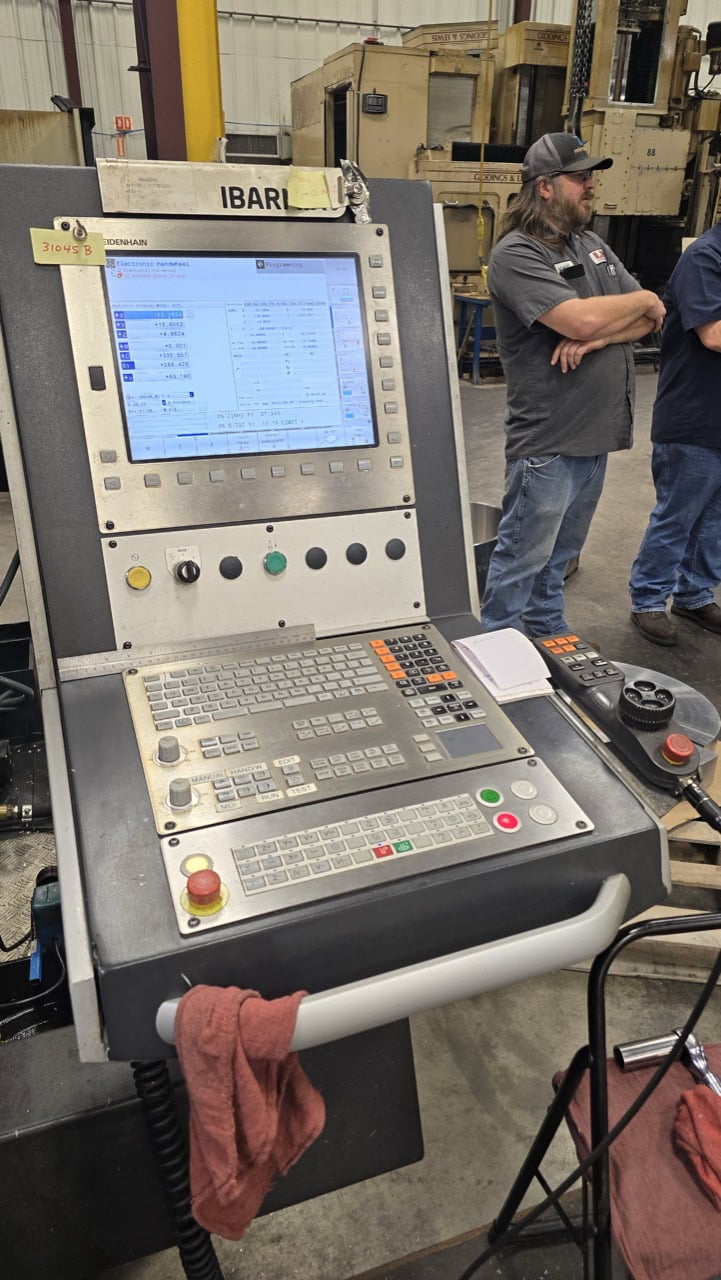

Heidenhain TNC 640 HSCI Control
Chip Conveyor
LED Lighting
Air Cooled Electrical Cabinet
Spray Gun

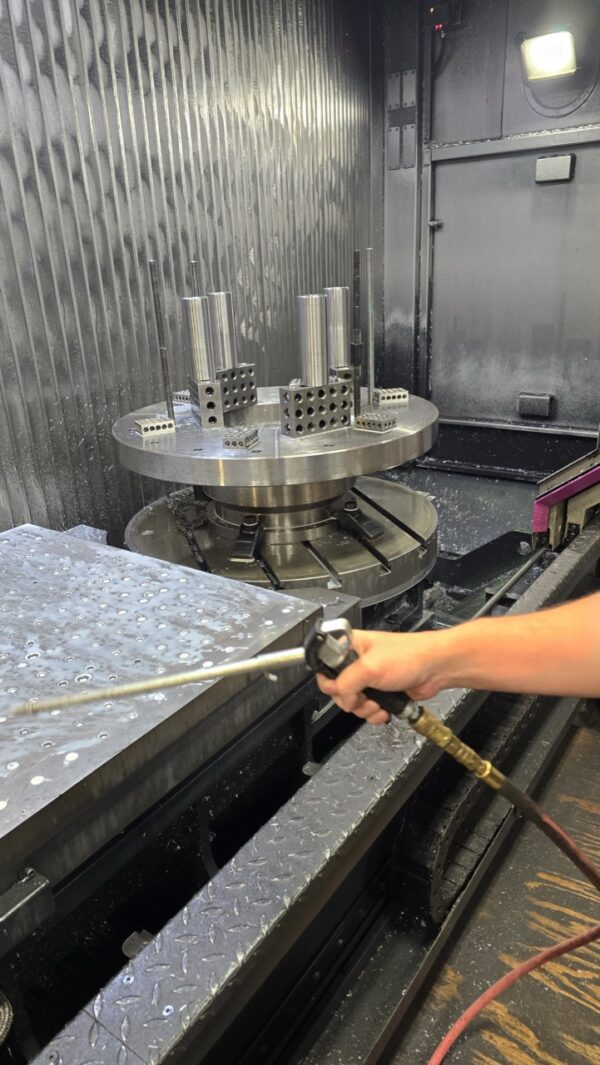

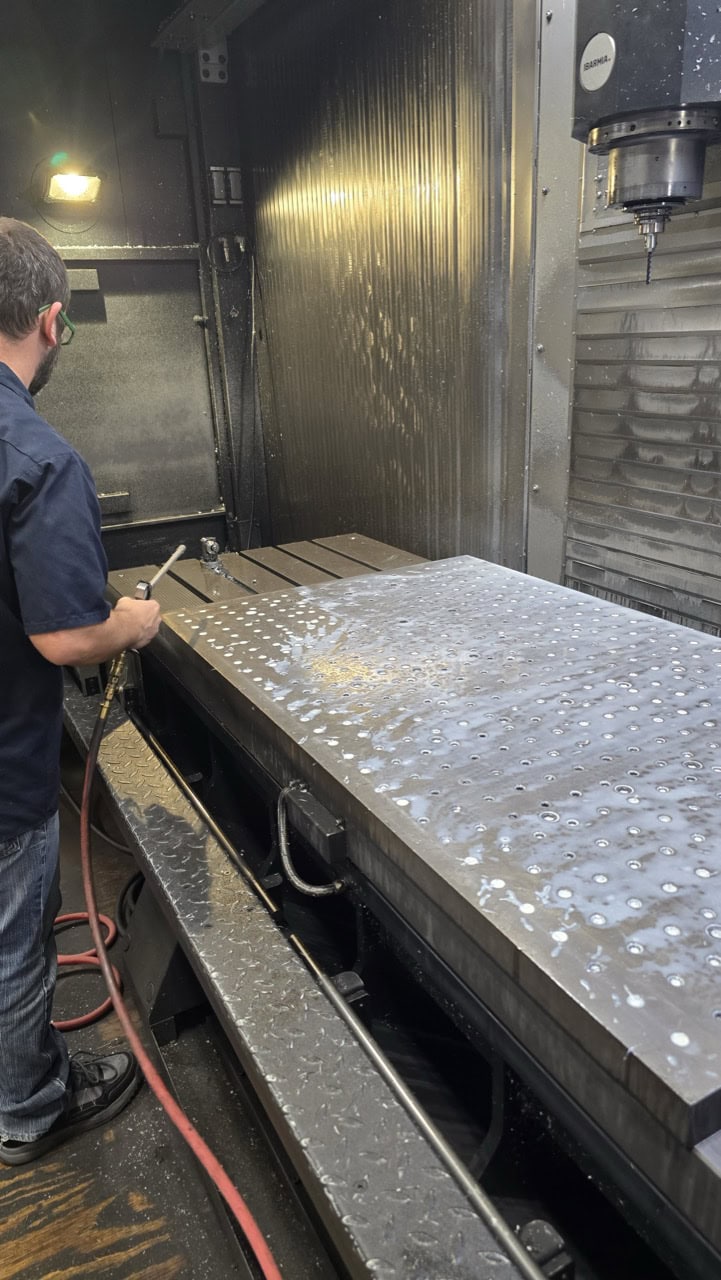

Air Gun
Main Spindle Inner Cooling
Heidenhain HR-510 Portable Electronic Hand-Wheel
Air Through Spindle
Mist Collector Ready
Renishaw TS27r Probe
RMP60 Probe
Smart Point Remote Diagnosis
NSM Dividing Wall & Software
